MD6459
User’s Guide
PERSONAL COMPACT DISC PLAYER
WITH 60 SECOND DIGITAL MOTION
PROOF ANTI-SHOCK PROTECTION
Before operating this product,
please read these instructions completely.
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
DANGER:
This product utilizes a Class 1 laser to read Compact Discs.
This laser Compact Disc Player is equipped with safety
switches to avoid exposure when the CD door is open and the
safety interlocks are defeated. Invisible and hazardous laser
radiation when open and interlock failed or defeated. Avoid
direct exposure to beam. Please do not attempt to defeat or
bypass the safety switches.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty for this
product.
1
SAFETY PRECAUTIONS (CONTINUED)
INFORMATION:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Do not open the CD compartment while the CD is rotating.
• Always keep the CD compartment closed when not in use.
• Keep all foreign objects out of the CD compartment.
• Place the unit on a stable surface.
• Avoid installing the unit in locations described below:
• Places exposed to direct sunlight or close to heat radiating
appliances such as electric heaters.
• On top of other stereo equipment that radiates too much
heat.
• Places lacking ventilation or dusty places.
• Places subject to constant vibration.
• Humid or moist places.
2
Dear Customer:
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of
your musical enjoyment. Now it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels is included for your
protection.
Decibel
Level
Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT
EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
3
LOCATION OF CONTROLS
1110 129
2 3 4 5 6 7 81
13 14 1615
–
+
1. LINE OUT Jack
2. Display
3. PLAY/PAUSE (
ON Button
4. SKIP/SEARCH (
5. DC 4.5V Jack (Rear of Unit)
6. SKIP/SEARCH (
7. MODE Button
8. Battery Compartment (Bottom
of Unit)
®p)/POWER
o) Button
n) Button
9. PHONES Jack (Side of Unit)
10. VOLUME Control
11. DBBS (Bass Boost) Switch
12. CD Compartment
13. CD Door OPEN Switch
14. STOP (
Button
15. PROG (Program) Button
16. ESP Button
4
■)/POWER OFF
–
+
POWER SOURCES
–
+
–
+
–
+
–
+
This CD player requires either two (2) “AA” batteries (not included) or an
AC adapter (not included).
BATTERY INSTALLATION
The battery indicator ( ) will blink in the CD display when the batteries
are low and need replacing.
1. Open the battery compartment door by
pressing out and then lifting up.
the possibility of losing the cover, it
cannot be removed.
2. Insert two (2) “AA” batteries (not included)
according to the polarity diagram inside the
battery compartment. Alkaline batteries are
recommended for the longest playing time.
To prevent
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Carbon-zinc or Rechargeable) or old
batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or
injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
BATTERY PRECAUTIONS
AC OPERATION
To operate the unit using AC power, connect an AC adapter (not
included) to an AC outlet having 120V, 60Hz AC only. Plug the small end
into the DC 4.5V jack on the rear of the unit and connect the other end
into an AC outlet. The batteries are automatically disconnected when an
AC adapter is used.
CAUTION: When not using AC power, disconnect the AC adapter from
the wall outlet by pulling the plug (not the cord). Do not touch the AC
adapter with wet hands. Fully insert the plug without exposing any part of
the blade.
DC 4.5V
5
2
1
OPERATION
BASS BOOST TURNING POWER ON/OFF
1
To emphasize the bass, slide the
DBBS switch to the ON position. For
normal bass, slide the DBBS switch to
the OFF position.
1
To turn the unit on, press the
PLAY/PAUSE ( )/POWER ON
button
❶.
To turn the unit off, press the STOP
(
■)/POWER OFF button ❷.
AUTO POWER OFF
When the unit is stopped (Standby mode) for approximately one minute, the
power will automatically turn off.
Sound Through a Home Audio System
By using a home audio connection cable (not included), superb sound can be
heard through your home audio system. Before making any connections, turn off
the power to all equipment.
Plug a connection cable (not included) between the LINE OUT jack on the side
of the CD player and the amplifier’s AUX or CD input jack. (Do not connect it to
the amplifier’s PHONO jack.)
NOTE: If the radio interferes with TV reception, move the unit away from the TV
or turn off the power to this unit.
6
CD OPERATION
2
4
1
3

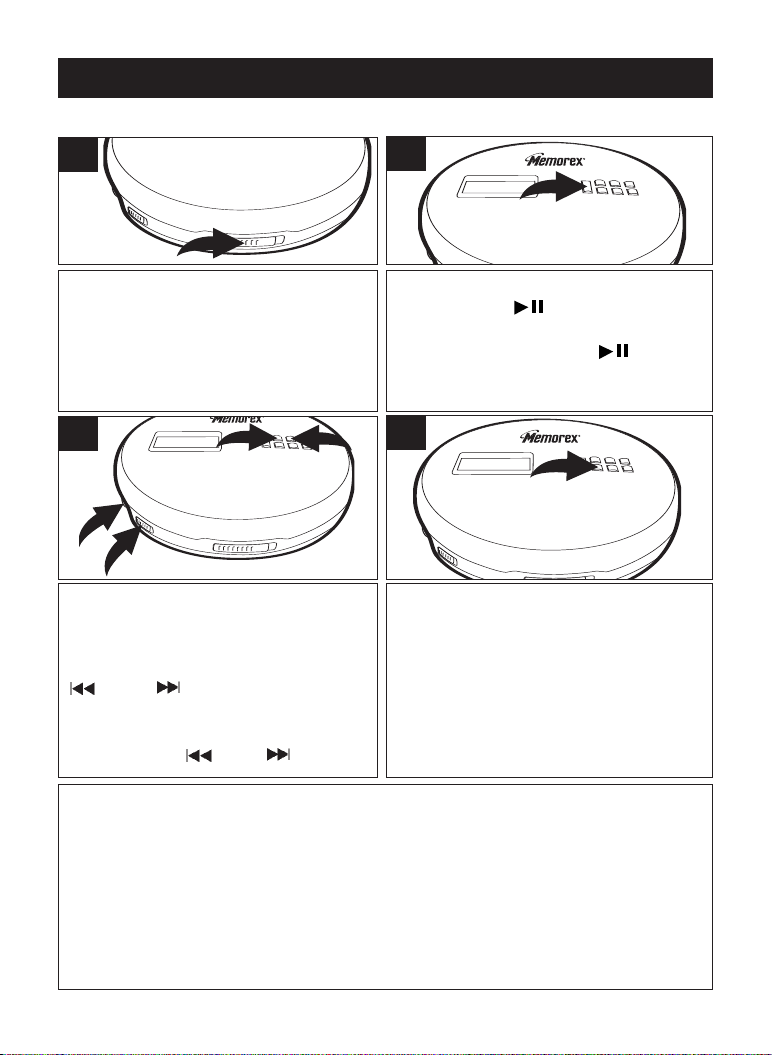

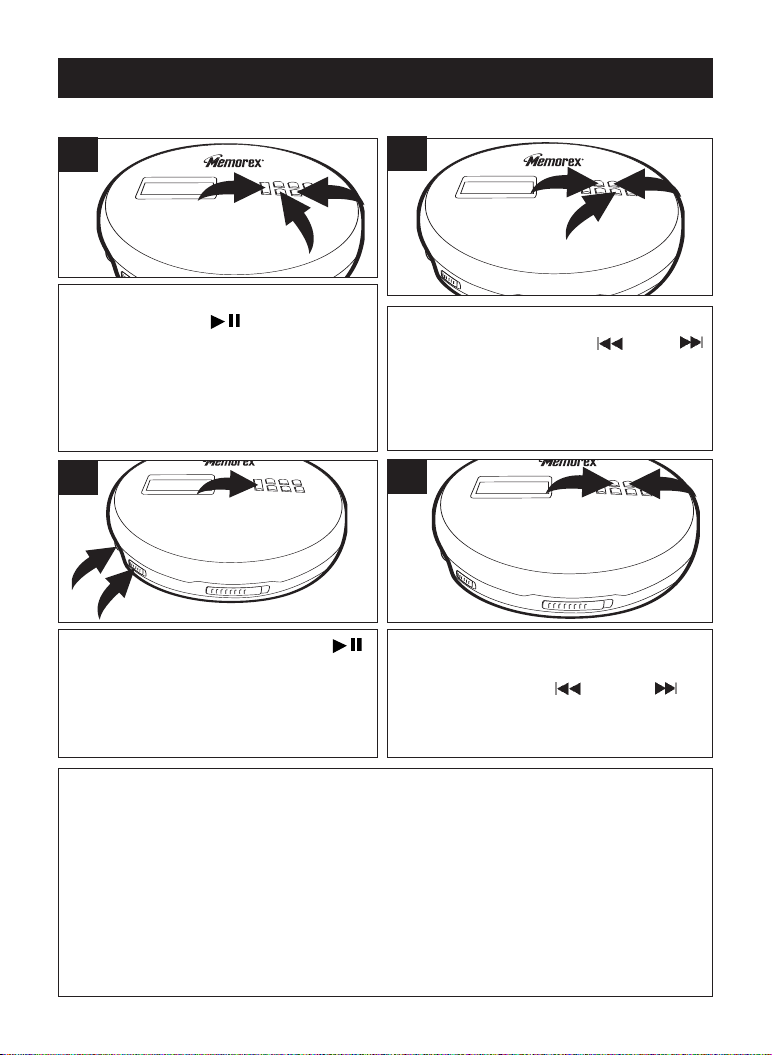

TO PLAY A CD (Standard, CD-R and CD-RW)

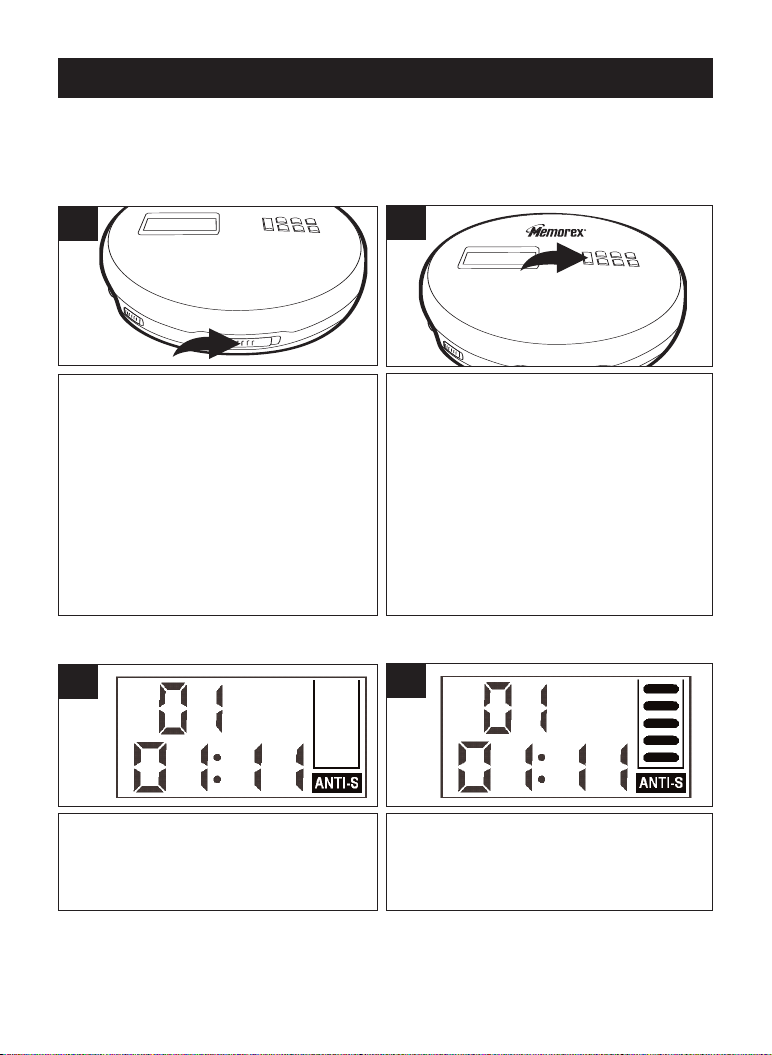

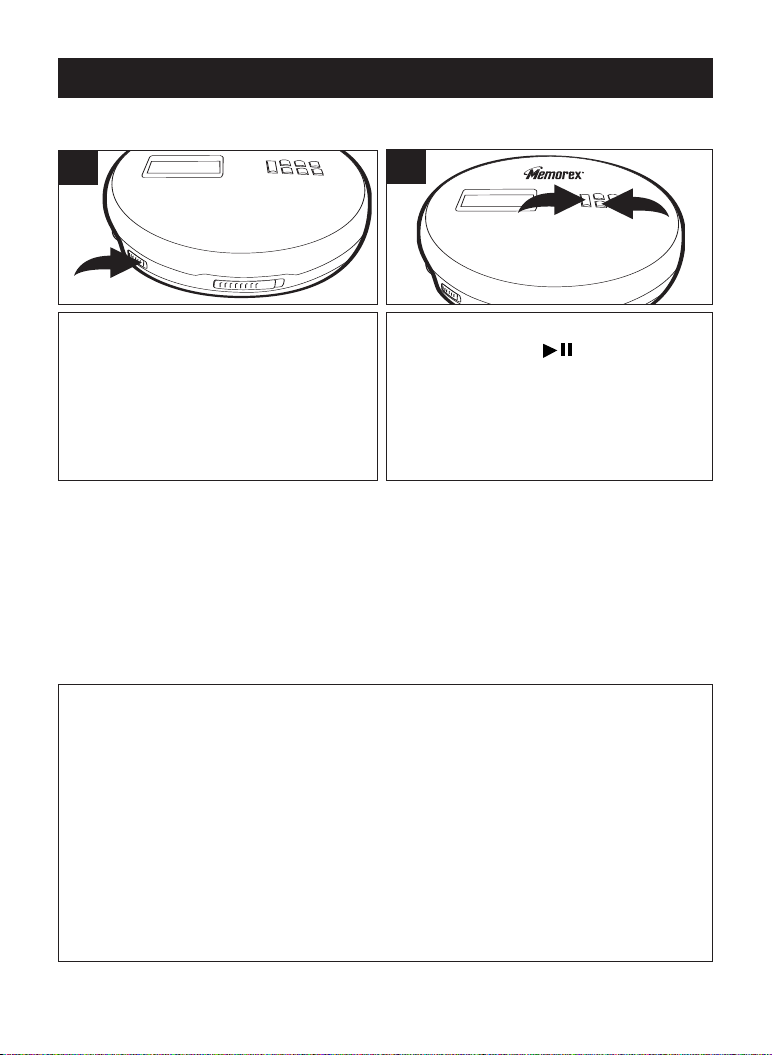

1
Open the CD compartment lid by
sliding the CD OPEN switch to the
right. Gently press a disc, label side up,
onto the spindle until it locks in place.
Close the CD compartment lid. Insert
headphones into the PHONES jack.
3
Adjust the VOLUME control ❶ and
DBBS switch
forward or backward through the tracks
on the disc, press the
❸ or ❹ button. To search
forward or backward through the tracks
on the disc, press and hold the
SKIP/SEARCH ❸ or ❹ button.
❷ as desired. To skip
SKIP/SEARCH
2
While the unit is off, press the
PLAY/PAUSE ( )/POWER ON button
to start playback.
press the PLAY/PAUSE ( )/POWER
ON button again, the display will blink.
Press once again to resume playback.
To pause PLAYBACK,
4
When the disc is through playing, it will
stop. Press the STOP (
button to stop the disc before it is finished;
the total number of tracks will appear.
Press the STOP (
again while in the Stop mode to turn the
unit off or wait approximately 60 seconds
and the unit will automatically turn off.
■)/POWER OFF
■)/POWER OFF button
NOTES:
• This unit is capable of playing standard CDs or 3” singles; no adapter is required.
• If a disc is inserted incorrectly, dirty, damaged or not present at all, the display will
show “no disc”.
• As each track is played, the track number and elapsed time are shown in the display.
• To remove the disc, open the CD compartment, hold the edge of the CD, gently
press the center pivot and lift the CD.
• The maximum time of a CD is 74 minutes for this unit.
• “- - - -” will appear in the display when the CD door is open.
7
CD OPERATION (CONTINUED)
60 SECOND MOTION PROOF ELECTRONIC ANTI-SHOCK SYSTEM
This CD player has a built-in Anti-Shock System that cuts down on CD skipping,
which is useful when using the CD player in the car or while jogging/walking.
Follow the steps below to activate and understand the Anti-Shock System:
1
Open the CD compartment lid by
sliding the CD OPEN switch to the
right. Gently press a disc, label side
up, onto the spindle until it locks in
place. Close the CD compartment lid.
Insert headphones into the PHONES
jack.
3
2
With a CD inserted, press the
PLAY/PAUSE (
button to turn the unit on.
®p)/POWER ON
4
The Anti-Shock System will start
automatically, the sound will mute for a
moment and the display will show the
Anti-Shock indicator with no bars in it.
CONTINUED ON THE NEXT PAGE
Within a few seconds, the Anti-Shock
indicator will fill to indicate music
signals are stored in memory.
8
CD OPERATION (CONTINUED)
5

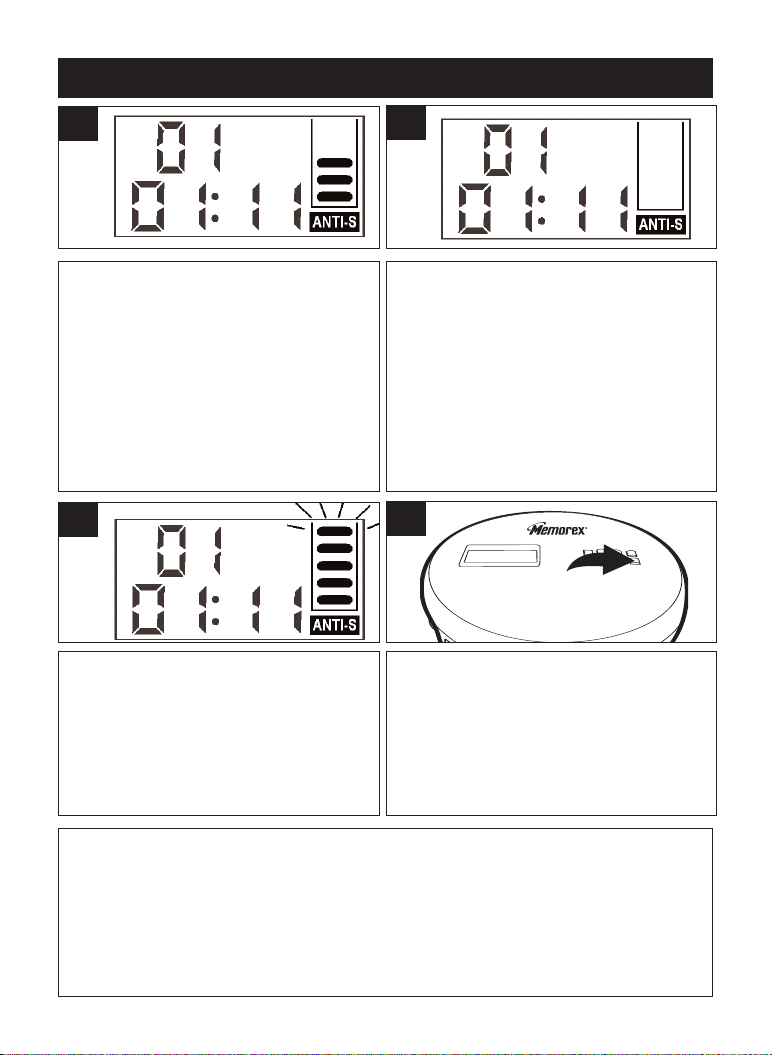

If the CD player is subject to vibration
during playback, the bars will
disappear one by one. During the
vibration, the music should continue to
play the signals stored in the memory
until the CD player can read the music
data properly from the disc. At this
time, the indicator will probably show
fewer bars indicating the music signals
stored in memory are low.
7
If no more vibration occurs, the
music signals are once again stored
into the memory and the indicator
returns to full. When the memory is
full, the top bar will blink and the
disc rotation speed will drop to save
power consumption.
6
If all the bars disappear and the CD
player is subject to immediate vibration,
the unit may skip.
8
To turn the Anti-Shock System off,
press the ESP button.
To turn the Anti-Shock System on,
press the ESP button again.
NOTES:
• When the CD player is used in a stable location, turn the Anti-Shock System
off by pressing the ESP button. When the Anti-Shock System is off, battery
consumption is less.
• The Anti-Shock System provides for continuous sound output when unit is
subject to vibration, but it will not correct errors, such as a defective or dirty
CD.
9
CD OPERATION (CONTINUED)
ALL
4
2
1
3
2
1
3
ALL
2
1
2
1
3

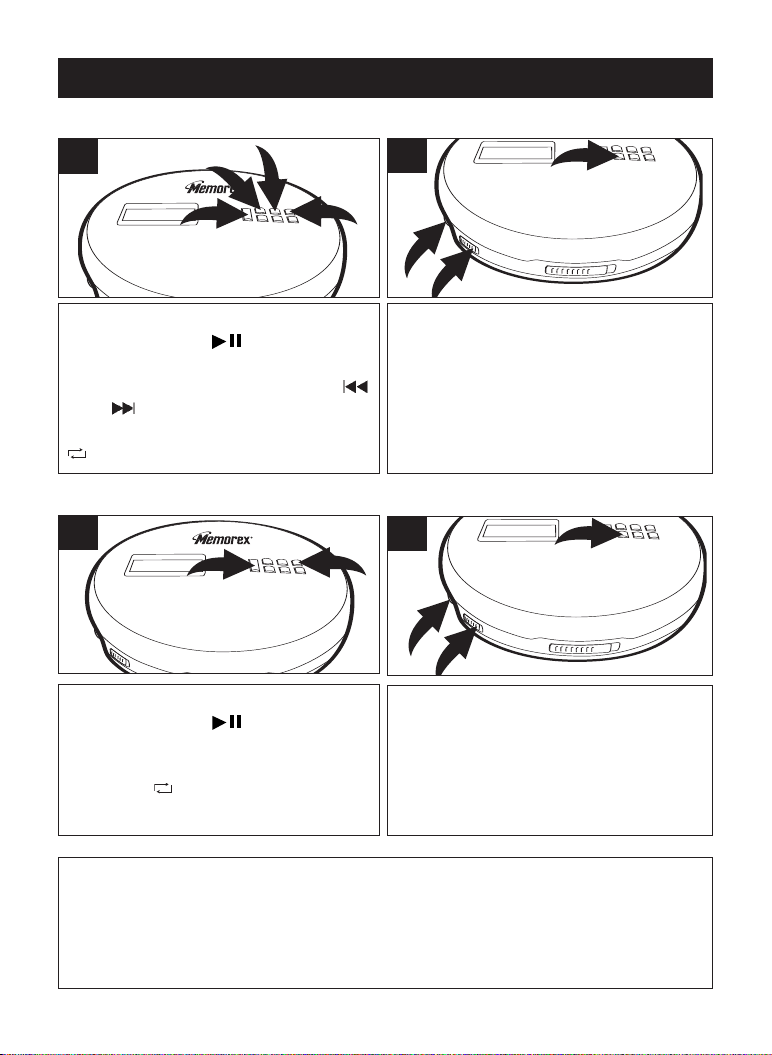

TO REPEATEDLY PLAY BACK ONE TRACK
1
With a CD inserted, press the
PLAY/PAUSE ( )/POWER ON
button ❶ to turn the unit on, then select
a track using the
❷ or ❸ button. Press the MODE
button
❹ once; the Repeat 1 indicator
1 will appear in the display.
SKIP/SEARCH
2
The unit will then play the same track
over and over until the STOP
(
■)/POWER OFF button ❶ is pressed.
Adjust the VOLUME control
DBBS switch
❸ as desired.
TO REPEATEDLY PLAY BACK ALL TRACKS
1
With a CD inserted, press the
PLAY/PAUSE ( )/POWER ON
button ❶ to turn the unit on. Press the
MODE button
indicator will appear in the
display.
❷ twice; the Repeat All
2
The unit will then play all the tracks on
the CD over and over until the STOP
(■)/POWER OFF button ❶ is pressed.
Adjust the VOLUME control
DBBS switch
❸ as desired.
❷ and
❷ and
TO CANCEL REPEAT PLAYBACK, press the MODE button four times if in
Repeat 1 mode, or three times if in Repeat All mode. The unit will continue
normal playback.
10
2
3
1
3
4
2
1

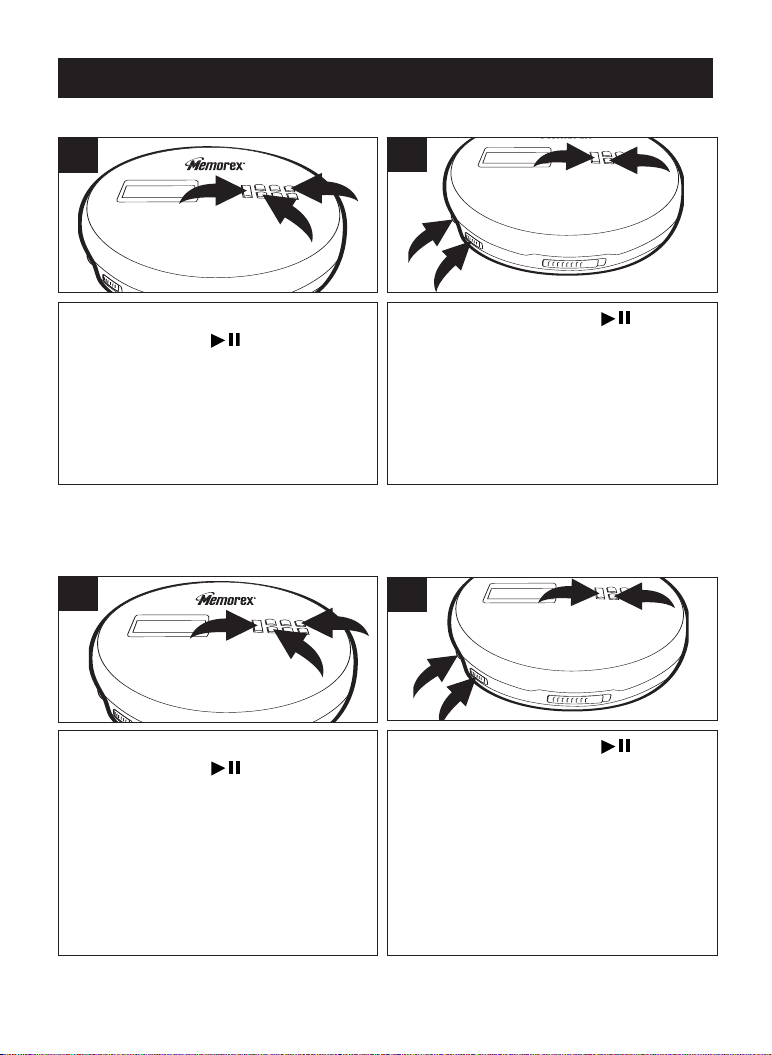

INTRO PLAY
2
3
1
3
4
2
1
CD OPERATION (CONTINUED)
1
With a CD inserted, press the
PLAY/PAUSE ( )/POWER ON
button
❶ to turn the unit on and press
the STOP (
to stop auto playback. Press the MODE
button
indicator will appear in the display.
■)/POWER OFF button ❷
❸ three times; the INTRO
2
Press the PLAY/PAUSE ( )/POWER
ON button ❶ to begin playback. The unit
will play the first 10 seconds of each
track. Adjust the VOLUME control
and DBBS switch ❸ as desired. Press
the STOP (
to stop Intro playback.
■)/POWER OFF button ❹
TO CANCEL Intro Play, press the Mode button twice.
TO RANDOMLY PLAY BACK A CD
1
2
❷
With a CD inserted, press the
PLAY/PAUSE ( )/POWER ON
button ❶ to turn the unit on and press
the STOP (
to stop auto playback. Press the
MODE button ❸ four times; the RAND
indicator will appear in the display.
TO CANCEL Random Play, press the MODE button once.
■)/POWER OFF button ❷
Press the PLAY/PAUSE ( )/POWER
ON button ❶ to begin playback. The
unit will play all the tracks in random
order. Adjust the VOLUME control ❷
and DBBS switch ❸ as desired. When
all the tracks have been played, the
unit will stop. Press the STOP
(
■ )/POWER OFF button ❹ to stop
Random playback.
11
CD OPERATION (CONTINUED)
2
3
1
2
3
1
3
2
1
2
1
TO PROGRAM THE MEMORY (UP TO 24 TRACKS)
1
With a CD inserted, press the
PLAY/PAUSE ( )/POWER ON
button
❶ to turn the unit on and press
the STOP (
stop auto playback. Press the PROG
button
in the CD display.
■)/POWER OFF button ❷ to
❸; the PROG indicator will blink
3
Press the PLAY/PAUSE ( )
/POWER ON button
Programmed playback and adjust the
VOLUME control
❸ as desired.
❷ and DBBS switch
❶ to begin
2
Select the first track to be played back
using the SKIP/SEARCH
❷ button, then press the PROG button ❸
again. Repeat this step to program
additional tracks up to a maximum of 24
tracks.
❶ or
4
To skip forward or backward through
the programs, press the
SKIP/SEARCH
button. When the disc is through
playing, it will stop.
❶ or ❷
NOTES:
•
Press the STOP (■)/POWER OFF button to stop the disc before it is finished.
• As each program is played, the track number is shown in the display.
• To clear the memorized program, press and hold the PROG button while in
the Stop mode until the PROG indicator disappears in the display.
• Programming is the ability to preselect the order in which a series of tracks
• Each track may be stored in the program memory as many times as desired
will be played.
(up to 24 tracks).
12
CARE AND MAINTENANCE
B
E
N
Z
E
N
E
C
L
E
A
N
E
R

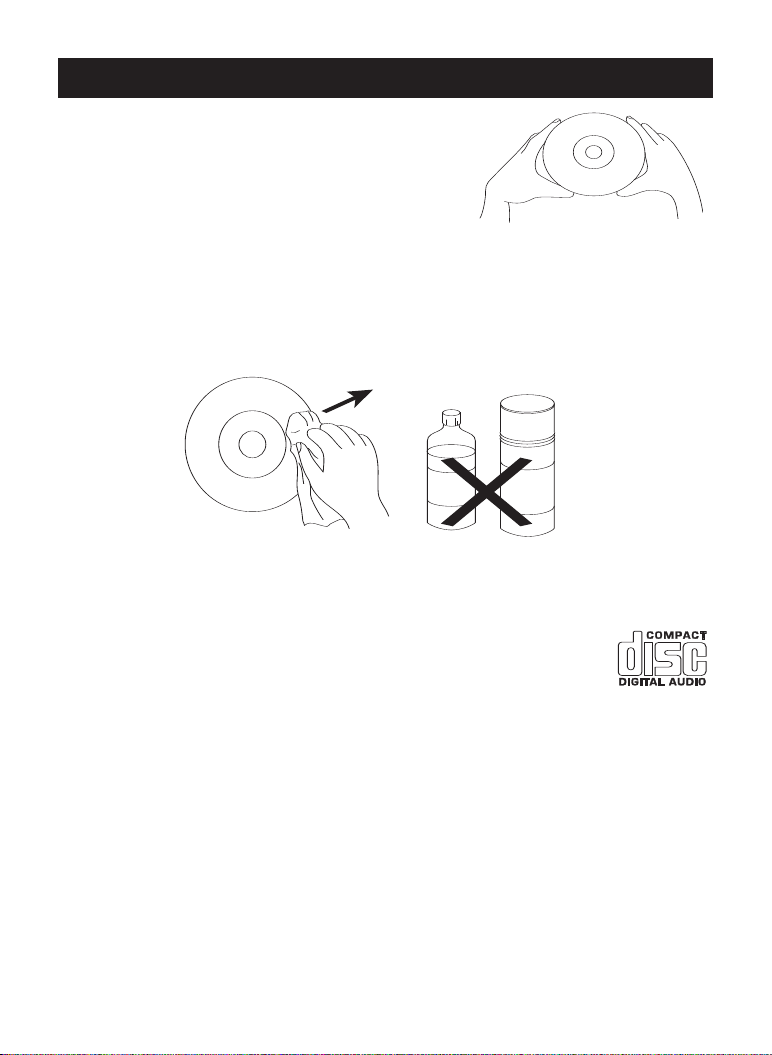

Caring for Compact Discs
• Treat the compact disc carefully. Handle the
compact disc only by its edges. Never allow your
fingers to come in contact with the shiny,
unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to
the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use
detergents or abrasive cleaners to clean the compact disc. If necessary, use a
CD cleaning kit.
• If a compact disc skips or gets stuck on a section of the disc, it is probably dirty
or damaged (scratched).
• When cleaning the compact disc, wipe in straight lines from the center of the
compact disc to the outer edge of the compact disc. Never wipe in circular
motions.
• This unit is designed to play only compact discs bearing the
identification logo as shown here. Other compact discs may not
conform to the CD standard and may not play properly.
• Compact discs should be stored in their cases after each use to avoid
damage.
• Do not expose compact discs to direct sunlight, high humidity, high
temperatures or dust, etc. Prolonged exposure or extreme temperatures can
warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing
instruments, or the ink, may damage the surface.
Cleaning the Unit
• To prevent fire or shock hazard, disconnect your unit from the AC power
source when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other
furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.
13
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM CAUSE SOLUTION
Unit will not Weak or dead batteries Replace batteries and insert
turn on. or inserted incorrectly. correctly.
Weak or dead Re- Recharge or replace
chargeable batteries. batteries (if used).
AC adapter Check AC adapter
not connected. connection.
Disc will not play. CD compartment Close CD compartment.
not closed.
Disc inserted Reinsert disc correctly.
incorrectly.
Dirty or defective Try another disc.
disc.
Moisture Wipe disc with soft
condensation cloth.
on disc.
Erratic CD playback. Dirty or defective Clean or replace disc.
No sound from Headphone Reinsert headphone
headphones. plug not inserted plug correctly.
ESP not working. ESP is not activated. Press the ESP button.
disc.
correctly.
VOLUME control Increase volume.
set to minimum.
Weak batteries. Replace batteries.
Defective disc. Try another disc.
14
SPECIFICATIONS
Power requirements......................................2 x LR6 "AA" alkaline battery
DC In 4.5V adapter (center positive)
D/A conversion ...................................1-bit DAC eight times oversampling
Frequency response ............................................20~20,000Hz (+1,-3 dB)
Anti-shock. .......................................................................60 second buffer
Output level. ..........................................Line output: 0.6 Vms (47K ohms)
Headphone: 16mW (32 ohms)
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT
WWW.MEMOREXELECTRONICS.COM
OR CONTACT CUSTOMER SERVICE AT 1-800-919-3647.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90
DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
15
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
Loading...
