Before operating this product,
please read these instructions completely.
User’s Guide
PERSONAL COMPACT DISC PLAYER
MD3849
1
SAFETY PRECAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
DANGER:
This product utilizes a Class 1 laser to read Compact Discs.
This laser Compact Disc Player is equipped with safety
switches to avoid exposure when the CD door is open and the
safety interlocks are defeated. Invisible and hazardous laser
radiation when open and interlock failed or defeated. Avoid
direct exposure to beam. Please do not attempt to defeat or
bypass the safety switches.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty for this
product.
2
INFORMATION:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Do not open the CD compartment while the CD is rotating.
• Always keep the CD compartment closed when not in use.
• Keep all foreign objects out of the CD compartment.
• Place the unit on a stable surface.
• Avoid installing the unit in locations described below:
• Places exposed to direct sunlight or close to heat radiating
appliances such as electric heaters.
• On top of other stereo equipment that radiates too much
heat.
• Places lacking ventilation or dusty places.
• Places subject to constant vibration.
• Humid or moist places.
SAFETY PRECAUTIONS (CONTINUED)
3
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of
your musical enjoyment. Now it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels is included for your
protection.
Decibel
Level
Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT
EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
4

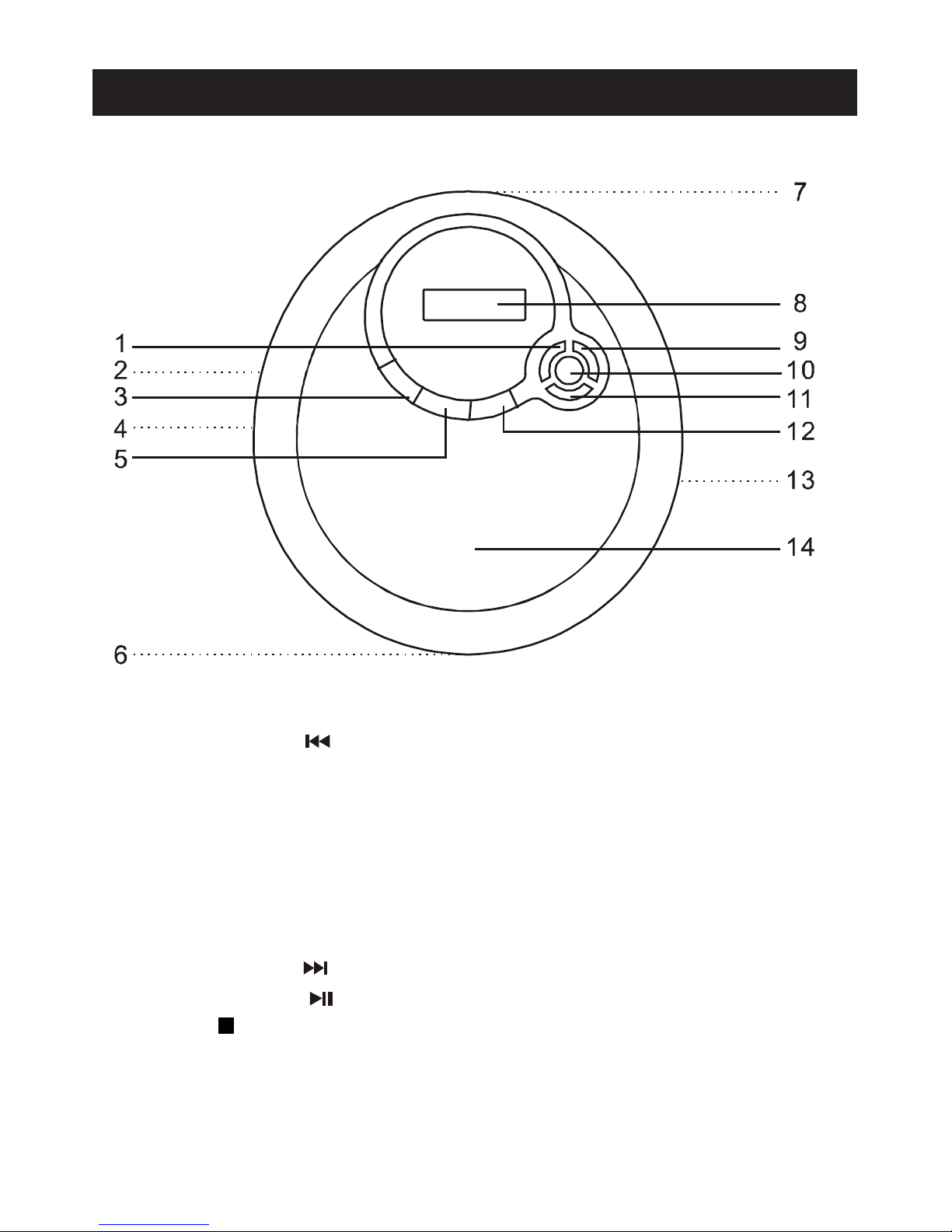

LOCATION OF CONTROLS
1. SKIP/SEARCH button
2. PHONES Jacks (Side of Unit)
3. MODE button
4. VOLUME control
5. RANDOM button
6. CD Door Open Switch
7. DC 4.5V IN Jack (Rear of unit)
8. Display
9. SKIP/SEARCH button
10.PLAY/PAUSE ( ) / POWER ON button
11.STOP / POWER OFF button
12.PROG. (Program) button
13.Battery Compartment (Bottom of unit)
14.CD Compartments
5
This CD player requires either two (2) “AA” size batteries (not included) or
an AC adapter (not included).
BATTERY INSTALLATION
The battery indicator ( ) will appear in the CD display when the
batteries need replacing.

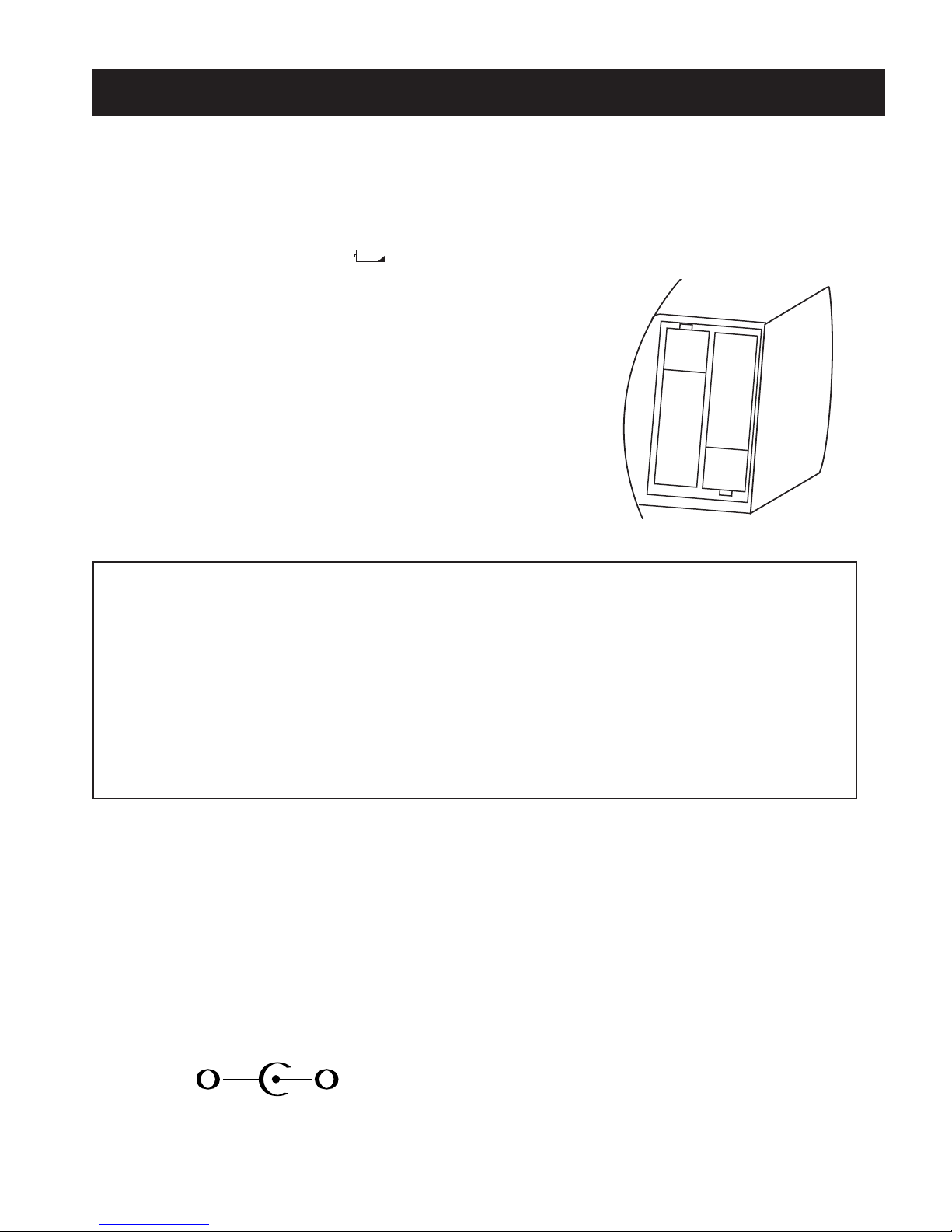

1. Open the battery compartment door on the
bottom of the unit by sliding it out and lifting
up.
To prevent the possibility of losing the
cover, it cannot be removed.
2. Insert two (2) “AA” size batteries (not
included) according to the polarity diagram
inside the battery compartment. Alkaline
batteries are recommended for the longest
playing time.
AC OPERATION
To operate the unit using AC power, connect an AC adapter (not included) to
an AC outlet having 120V, 60Hz AC only. Plug the small end into the DC
4.5V jack on the rear of the unit and connect the other end into the AC outlet.
The batteries are automatically disconnected when the AC adapter is used.
CAUTION: When not using AC power, disconnect the AC adapter from
the wall outlet by pulling the plug (not the cord). Do not touch the AC
adapter with wet hands. Fully insert the plug without exposing any part of
the blade.
DC 4.5V
–
+
POWER SOURCES
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Carbon-zinc and rechargeable) or
old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or
injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
+
–
+
–
6
Connect the stereo headphones (included) to the Phones jack .
1. Insert headphones into the PHONES jack.
2. Slide the CD Door Open switch to open the CD compartment lid.
3. Insert a disc with the label side facing up on to the spindle until it locks in place.
4. Close the CD compartment lid.
5. Set the VOLUME control to minimum.
6. While the unit is off, press the PLAY/PAUSE ( ) POWER ON button to start
playback.
7. Adjust the VOLUME control to your desired listening level.
8. To pause PLAYBACK, press the PLAY/PAUSE ( ) POWER ON button, the
track number will blink in display. Press again to resume playback.
9. To stop playback, press the STOP( ) button once.
10. To turn the unit off, press the STOP( ) again while in the stop mode.
Notes: • When the CD door is open, " - - " will appear in the display.
• If a disc is in served in correctly, dirty damaged or not present at all, “ no”
will appear in the display.
• Wait until the disc is fully stopped before pressing the OPEN button.
• This unit can play 3" (8cm) single CDs, no adapter is repaired.
1. Press the SKIP ( ) button once to go back to the beginning of the current
track.
2. Press the SKIP ( ) button repeatedly to go back to previous tracks.
3. Press the SKIP ( ) button repeatedly to go to next tracks.
4. Press and hold either SKIP( ) or SKIP( ) button to search backwards or
forwards, at high speed, a particular point of track.
Note: Low level audio will be heard during the search process to assist in locating
the correct point in the track.
1. To repeat a single track, press the CD Mode button once while in the stop mode.
The indicator ( ) will appear on the display. Press the SKIP or
button to select the track.
HEADPHONES
CD PLAYBACK
FOR WARD/REVER
SE SKIP TRACK/HIGH
-
SPEED MUSIC SE
ARCH
REPEAT PLAYBACK
7
2. Press the PLAY/PAUSE ( )button, the unit will playback the select track
repeatedly. until STOP button is pressed.
3. To repeat all the tracks on the CD, press the MODE button twice during playback.
The indicator ( ) will appear on the display, and all tracks on the CD will be
repeated.
4. To cancel the repeat mode, simply press the STOP button. The indicator
disappears from the display.
1. While in the stop mode, press the MODE button 3 times to enter the Intro mode,
'INTRO' will appear in the display.
2. Press the PLAY/PAUSE( ) button, CD will play the first 10 seconds of each
track on the CD.
3. Press MODE button once to cancel Intro playback and resume normal playback.
1. While in the stop mode, press the RANDOM button once, 'RAND' will appear in
the display.
2. Press the PLAY/PAUSE( ) button and the unit will play all tracks on the CD in
random order.
3. When all the tracks have been played, the unit will stop.
4. Press the STOP button to stop and cancel the random playback.
1. While in the stop mode, press the PROG. Button. The track number and PGM
will flash in the display.
2. Press SKIP/SEARCH or button to select the desired track to be programmed.
3. Press the PROG. button to enter the track into memory.
4. Repeat the steps 2 and 3 to program up to 24 tracks.
5. Press PLAY/PAUSE ( ) button once to start programmed playback.
6. The unit will play all the programmed tracks and then stop. Press the stop button
to stop the playback before it is finished.
7. To playback to programmed tracks again. Press the PROG.(Program) button
follow by the PLAY/PAUSE ( ) button.
8. The program will be kept unless you have changed the CD or open the CD
compartment lid.
Note: During program playback, if you wish to repeat the entire programmed playback,
press the MODE button repeatedly until the ( ) indicator appears on the
display.
INTRO
PLAY
RANDON
PLAY
PROGRAMMED
PLAYBACK
8
CARE AND MAINTENANCE

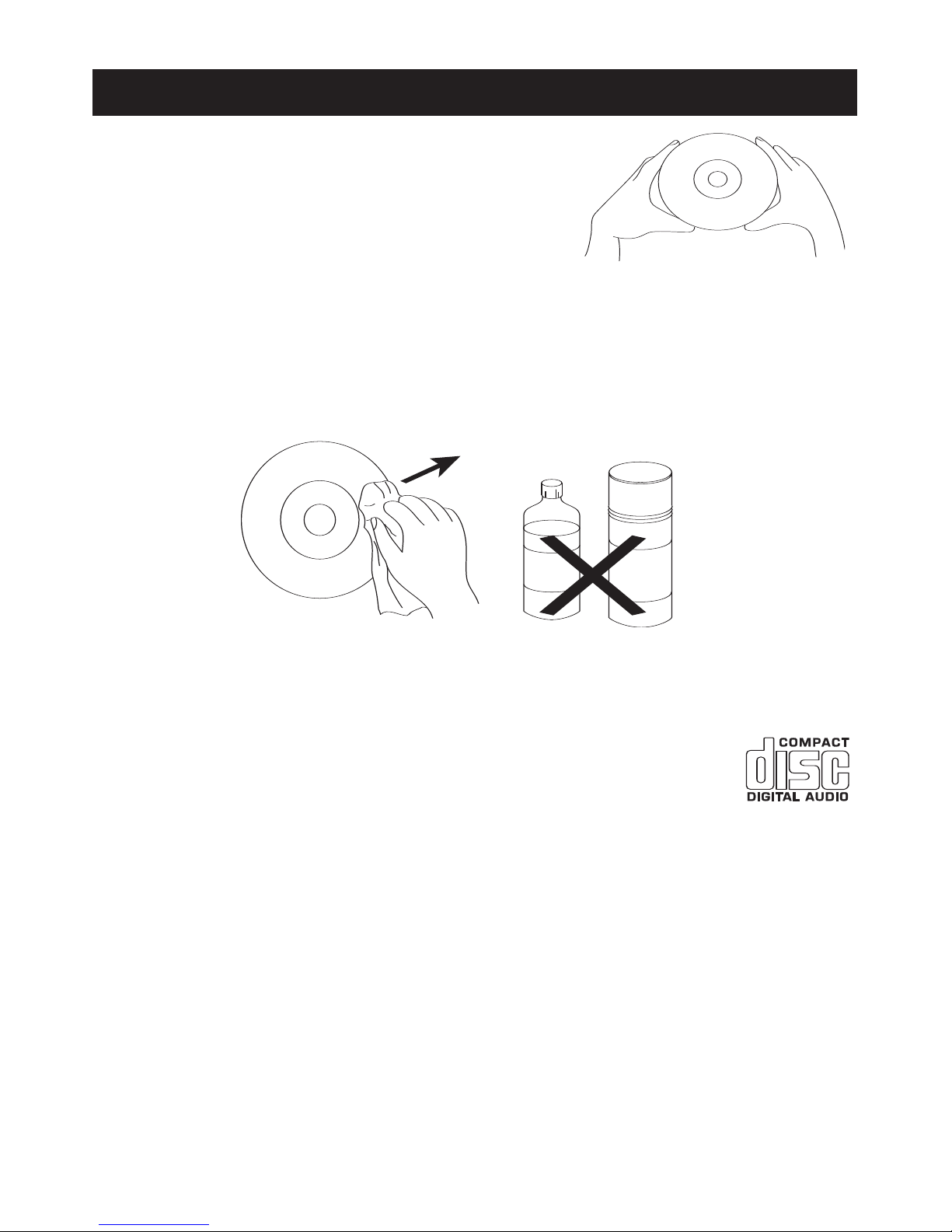

Caring for Compact Discs
• Treat the compact disc carefully. Handle the
compact disc only by its edges. Never allow your
fingers to come in contact with the shiny,
unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to
the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use
detergents or abrasive cleaners to clean the compact disc. If necessary, use a
CD cleaning kit.
• If a compact disc skips or gets stuck on a section of the disc, it is probably dirty
or damaged (scratched).
• When cleaning the compact disc, wipe in straight lines from the center of the
compact disc to the outer edge of the compact disc. Never wipe in circular
motions.
• This unit is designed to play only compact discs bearing the
identification logo as shown here. Other compact discs may not
conform to the CD standard and may not play properly.
• Compact discs should be stored in their cases after each use to avoid
damage.
• Do not expose compact discs to direct sunlight, high humidity, high
temperatures or dust, etc. Prolonged exposure or extreme temperatures can
warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing
instruments, or the ink, may damage the surface.
Cleaning the Unit
• To prevent fire or shock hazard, disconnect your unit from the AC power
source when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other
furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.
B
E
N
Z
E
N
E
C
L
E
A
N
E
R
9
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM CAUSE SOLUTION
Unit will not Weak or dead batteries Replace batteries and insert
turn on. or inserted incorrectly. correctly.
Weak or dead Re- Recharge or replace
chargeable batteries. batteries (if used).
AC adapter Check AC adapter
not connected. connection.
Disc will not play. CD compartment Close CD compartment.
not closed.
Disc inserted Reinsert disc correctly.
incorrectly.
Dirty or defective Try another disc.
disc.
Moisture Wipe disc with soft
condensation cloth.
on disc.
Erratic CD playback. Dirty or defective Clean or replace disc.
disc.
No sound from Headphone Reinsert headphone
headphones. plug not inserted plug correctly.
correctly.
VOLUME control Increase volume.
set to minimum.
Weak batteries. Replace batteries.
Defective disc. Try another disc.
10
Power requirements......................................2 x LR6 "AA" alkaline battery
DC In 4.5V adapter (center positive)
D/A conversion ...................................1-bit DAC eight times oversampling
Frequency response ............................................20~20,000Hz (+1,-3 dB)
Output level............................................Line output: 0.6 Vms (47K ohms)
Headphone: 16mW (32 ohms)
SPECIFICATIONS
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT
WWW.MEMOREXELECTRONICS.COM
OR CONTACT CUSTOMER SERVICE AT (954) 660-7100.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90
DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
Loading...
