MC1009
User’s Guide
Splash-Resistant AM/FM radio
with Compact Disc Player
Before operating this product,
please read these instructions completely.
SAFETY PRECAUTIONS
Thank you for purchasing the Memorex audio system.
The serial number of your unit can be found on a label on the rear of the cabinet.
We suggest that you record the serial number in the space provided below in
case this information is ever needed at a future date.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF
PURCHASE OR MEMOREX.
Model Number: MC1009
Serial Number: _______________________________________
SPLASH RESISTANT: DO NOT use this unit under direct water flow.
This unit is splash resistant, meaning it can withstand small splashes of
water.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE
Uninsulated Dangerous Voltage, that may be of sufficient
magnitude to constitute a risk of electric shock to persons is
present within this product’s enclosure.
ATTENTION
The Owner’s Manual contains important operating and maintenance
instructions.
For your safety, it is necessary to refer to the manual.
DANGER:
Invisible and hazardous laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
1
SAFETY PRECAUTIONS (CONTINUED)
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
LASER SAFETY: This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.
CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
INFORMATION:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
2
SAFETY PRECAUTIONS (CONTINUED)
• Do not open the CD compartment while the CD is rotating.
• Always keep the CD compartment closed when not in use.
• Keep all foreign objects out of the CD compartment.
• Place the unit on a stable surface.
• Avoid installing the unit in locations described below:
• Places exposed to direct sunlight or close to heat radiating
appliances such as electric heaters.
• On top of other stereo equipment that radiates too much
heat.
• Placed lacking ventilation or dusty places.
• Places subject to constant vibration.
• Humid or moist places.
3
Dear Customer:
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of
your musical enjoyment. Now it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels is included for your
protection.
Decibel
Level
Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT
EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
4
LOCATION OF CONTROLS
13
16
17
15
14
1
4
3
2
11
5
6
7
8
9
10
12
–
+
MAIN
1. Mirror/CD Compartment
2. Wall Mount Holes and
Hanging Cord (Rear of Unit)
3. DC 9V Jack (Side of
Unit)
4. POWER Button
5. FUNCTION Button
6. MEMORY Button
7. Skip/Search/Tune Button
8. REPEAT/MEMORY UP
Button
9. STOP (■)/BAND Button
10. Speaker
11. Battery Door and Locking
5
Knob (Rear of Unit)
12. Base
13. CD Door OPEN Switch
14. Skip/Search/Tune Button
15. VOLUME Control
16. PLAY/PAUSE ( ) Button
17. Display
INSTALLATION
SPLASH RESISTANT: DO NOT use this unit under direct
water flow. This unit is splash resistant, meaning it can
withstand small splashes of water.
MOUNTING THE UNIT ON
THE BASE
To use this unit with the
supplied base, simply insert
the base into the hole on
the bottom of the unit, then
rotate the base 90° to
attach the base to the main
unit as shown in figure 1.
Figure 1
REMOVING THE UNIT
FROM THE BASE
To remove unit from base,
simply press in on the tab
located at the bottom of the
base and lift up the unit as
shown in figure 2.
Figure 2
6
INSTALLATION (CONTINUED)

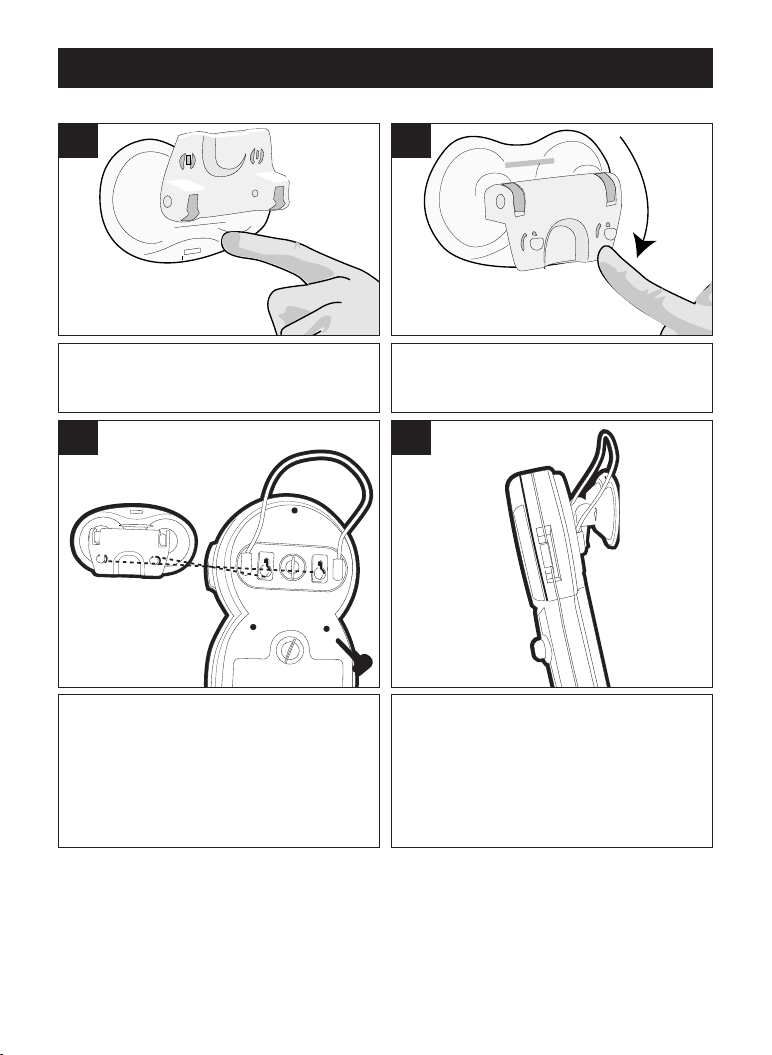

INSTALLING ON A WALL
1
Put the Wall Adapter with suction cups
on the wall.
3
Connect the main unit to the Wall
Adapter by inserting the holes on the
base unit into the hooks on the Wall
Adapter.
2
Pull the suction cup lever down and it
will stick to the wall.
4
USING THE HANGING CORD
Use the Hanging Cord to hang the
unit on an already installed hook,
nail, etc. When using the Hanging
cord, also use the Wall Adapter for
extra support.
REMOVAL
To remove, reverse the above steps.
IMPORTANT CAUTION
Make sure the suction cups are secured on the wall every two to three weeks.
7
–
+
POWER SOURCES
+– +–
+
–
+
–
+– +–
This CD player requires either six (6) “C” cell batteries (not included) or a
9V AC adapter having a positive center.
BATTERY INSTALLATION
1. Make sure the unit is not on the
base. Open the battery
compartment door by rotating the
Battery knob clockwise, then lift
the battery compartment off.
2. Insert six (6) “C” cell batteries (not
included) as shown in the
illustration to the right. Alkaline
batteries are recommended for
the longest playing time.
3. Replace the battery compartment
cover and rotate the Battery knob
counter-clockwise so the compartment is secured.
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with
fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or
injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
BATTERY PRECAUTIONS
AC OPERATION
To operate the unit using AC power, connect an adapter with an input of
120V, 60Hz and an output of 9V DC, 500mA (
AC outlet having 120V, 60Hz AC only. Plug the small end into the DC 9V
jack on the unit and connect the other end into the AC outlet. The batteries
are automatically disconnected when the AC adapter is used.
CAUTION: When not using AC power, disconnect the AC adapter from
the wall outlet by pulling the plug (not the cord). Do not touch the AC
adapter not included) to an
adapter with wet hands and plug fully inserted without exposing any part
of the blade. Do not use an AC adapter near water.
8
OPERATION
2
1
3
2
1
FOGLESS MIRROR
Before using, remove the thin film over the fogless mirror and discard.
CLEANING THE MIRROR
If the mirror, which is made of polycarbonate (plastic), becomes dirty or smudged
with fingerprints, it may be cleaned with a wet soft cloth. Never use abrasive cloths
or polishes as these will mar the finish of the mirror.
TO PLAY THE RADIO
1
Press the POWER button ❶ to turn
the unit on. Press the Function button
❷ to select Radio.
2
Press the STOP (■)/BAND button to
select the AM or FM band.
3
MANUAL TUNING: Repeatedly press the Skip/Search/Tune ❶ or ❷ to
manually advance the frequency in the display up or down until the desired
frequency appears.
AUTOMATIC TUNING: Press and hold the Skip/Search/Tune ❶ or ❷
until the frequency in the display starts to scan, and then release the button; the
tuner will search and then stop on the next strong station it finds. Repeat this
procedure until the desired frequency appears in the display. Adjust the
VOLUME control
❸ as desired.
Antennas
Turn the unit for best AM/FM reception.
9
OPERATION (CONTINUED)
2
1
2
1

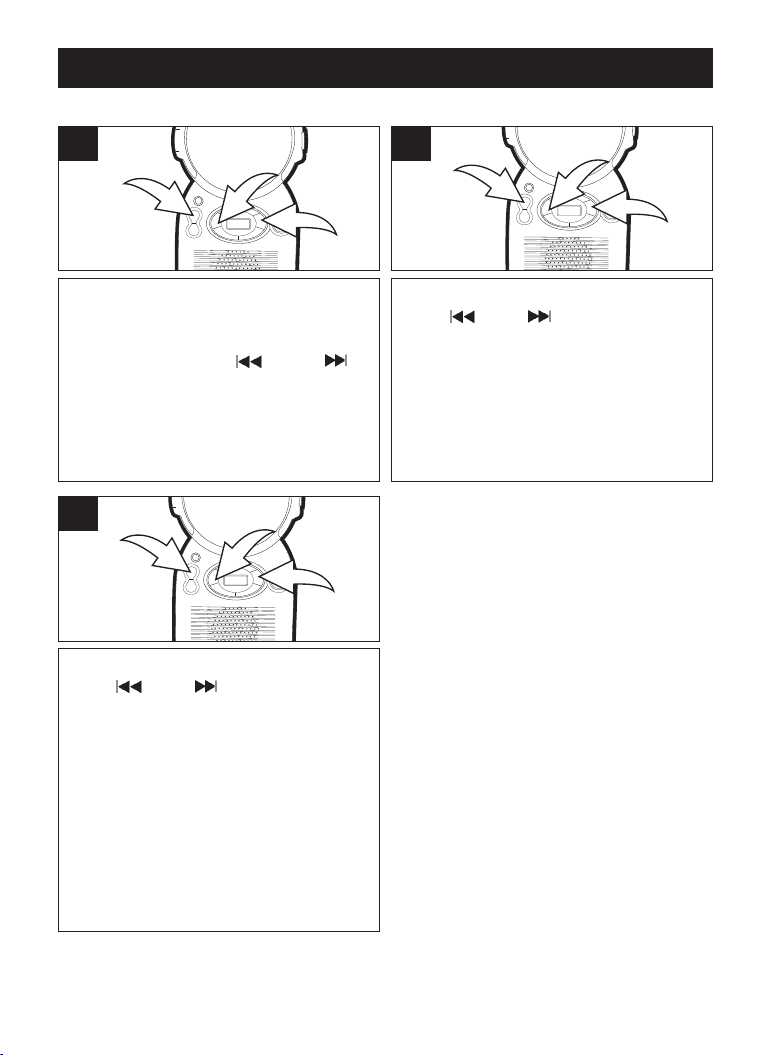

SETTING/RECALLING RADIO PRESETS (UP TO 10 PRESETS EACH BAND)
1
Press the POWER button ❶ to turn
the unit on. Press the Function button
❷ to select Radio.
3
Press the MEMORY button ❶ once;
“P1” will appear in the display. Press
the REPEAT/MEMORY UP button
repeatedly until the desired memory
number appears on the display. Press
the MEMORY button❶ again to set the
station in the selected memory.
2
Press the STOP (■)/BAND button to
select the AM or FM band. Tune a
station as described on the previous
page.
3
Repeat steps 2 and 3 to program up to
10 station in each band, if desired.
TO RECALL, simply press the
❷
REPEAT/MEMORY UP button until
the desired memory number appears.
TO INSERT AND REMOVE A CD
1

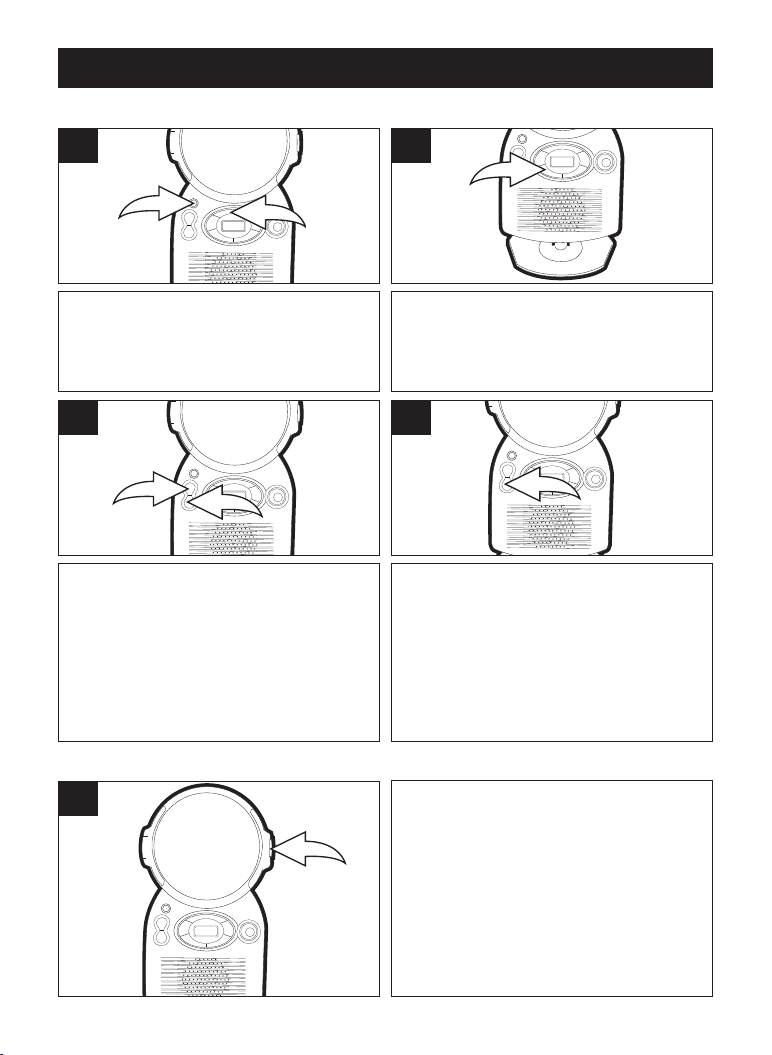

Open the CD Compartment Door by
pressing down on the CD Door OPEN
switch. Gently push a disc, label side up,
onto the spindle until it locks in place
and close the CD Compartment Door.
To remove, press the CD Door OPEN
switch again and Hold the edge of the
CD and pick it up. Close the CD
Compartment Door.
10
1
3
2
2
1
TO PLAY A CD
OPERATION (CONTINUED)
1
Press the POWER button ❶ to turn
the unit on. Press the Function button
❷ to select Radio.
3
Adjust the VOLUME control ❶ as desired.
To
skip forward or backward through the
tracks on the disc, press the
Skip/Search/Tune
To
search forward or backward through
the tracks on the disc, press and hold the
Skip/Search/Tune
❷ or ❸ button.
❷ or ❸ button.
2
Insert a CD as described on the previous
page and press the PLAY/PAUSE
button to start playback.
TO PAUSE PLAYBACK, press the
PLAY/PAUSE
Play indicator will blink in the display.
Press the PLAY/PAUSE
again to resume playback.
) button again; the
(
(
(
) button
4
When the disc is through playing, it
will stop. Press the STOP (■)/BAND
button to stop the disc before it is
finished.
)
NOTES:
• This unit is capable of playing standard CDs or 3” singles; no adapter is
required.
• If a disc is inserted incorrectly, dirty, damaged or not present at all, the disc
will not play and “- - ” will appear in the display.
• To remove the disc, open the CD Compartment, hold the edge of the CD and
lift it out.
• The maximum time of a CD is 74 minutes for this unit.
11
OPERATION (CONTINUED)
4
1
3
2
3
1
2
2
1
3
1
2
TO REPEATEDLY PLAY BACK ONE TRACK
1
Turn the unit on and press the
Function button ❶ to select CD.
Press the REPEAT/MEMORY UP
button
❷ once; “REPEAT” will blink in
the display. Select a track using the
Skip/Search/Tune
buttons.
TO REPEATEDLY PLAY BACK ALL TRACKS ON A CD
❸ or ❹
1
Turn the unit on and press the
Function button ❶ to select CD.
Press the REPEAT/MEMORY UP
button
solid in the display.
❷ twice; “REPEAT” will light
2
Press the PLAY/PAUSE
The unit will then play the same track
over and over until the STOP
(
■)/BAND button ❷ is pressed. Adjust
the VOLUME control
2
Press the PLAY/PAUSE
❶. The unit will then play all the tracks
on the CD over and over until the
STOP (
Adjust the VOLUME control
desired.
■)/BAND button ❷ is pressed.
) button ❶.
(
❸ as desired.
) button
(
❸ as
TO CANCEL REPEAT PLAYBACK
To cancel Repeat playback, repeatedly press the REPEAT/MEMORY UP button
until the REPEAR indicator disappears in the display.
12
OPERATION (CONTINUED)
2
1
3
2
1
2
1
3
1
3
2
TO PROGRAM THE MEMORY (UP TO 20 TRACKS)
1
Press the POWER button ❶ to turn
the unit on. Press the Function button
❷ to select CD.
3
Press the Skip/Search/Tune ❶ or
❷ button repeatedly to select the second desired
track to program. Press the MEMORY button
to memorize the track. Repeat this step to
program additional tracks up to a maximum of
20 tracks. Press the PLAY/ PAUSE ()
button
❹ to begin program playback.
2
Press the MEMORY button ❶, “MEMORY”
and “00” will blink in the display. Press the
Skip/Search/Tune
button repeatedly to select the first
MEMORY button
❶ to memorize the track.
❷ or ❸
4
Adjust the VOLUME control ❶ as desired. To
skip forward or backward through the
programs, press the Skip/Search/Tune
❸
❷ or ❸ button. When the disc is
through playing, it will stop.
NOTES:
• Press the STOP (■)/BAND button to stop the disc before it is finished.
• As each program is played, the track number is shown in the display.
• Repeatedly press the MEMORY button while in the Stop MODE to cycle through
the program.
• Each track may be stored in the program memory as many times as desired (up
to 20 tracks).
• Repeat playback can be used in conjunction with program playback.
13
OPERATION (CONTINUED)
3
2
1
2
1
3
2
1
3
TO SET OR RESET THE ACTUAL TIME
1
With the power off, press the
MEMORY button
the display. Repeatedly press the
Skip/Search/Tune
button to select 12H (12 hour) or 24H
(24 hour) mode, then press the
MEMORY button
hours will blink in the display.
❶; “12H” will blink in
❷ or ❸
❶ to confirm; the
3
Repeatedly press the Skip/Search/
Tune
present minute, then press the
MEMORY button
clock will then be set.
❶ or ❷ button to set the
❸ to confirm; the
2
Repeatedly press the Skip/Search/
Tune
present hour, then press the
MEMORY button
minutes will blink in the display
❶ or ❷ button to set the
❸ to confirm; the
14
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM CAUSE SOLUTION
Unit will not Weak or dead Replace batteries.
turn on. batteries.
Wrong adapter being Use only center positive adapter
used with 9V output.
AC adapter Check AC adapter
not connected. connection.
Disc will not play. CD compartment Close CD compartment.
not closed.
Disc inserted Reinsert disc correctly.
incorrectly.
Dirty or defective Try another disc.
disc.
Moisture Wipe disc with soft
condensation cloth.
on disc.
Erratic CD playback. Dirty or defective Clean or replace disc.
No sound. Headphone Unplug headphones.
Noise or sound Station not tuned Retune AM or FM
distorted on radio.
disc.
plug inserted into
headphone jack.
VOLUME control set Increase volume.
to minimum.
Weak batteries. Replace batteries.
Defective disc. Try another disc.
Function is not set Press the Function button
to the desired position. to select the desired function.
properly for AM or FM
Unit is not Rotate unit until best
positioned correctly. reception is obtained.
. broadcast station.
15
CARE AND MAINTENANCE
B
E
N
Z
E
N
E
C
L
E
A
N
E
R
Caring for Compact Discs
• Treat the compact disc carefully. Handle the
compact compact disc only by its edges. Never
allow your fingers to come in contact with the
shiny, unprinted side of the compact compact
disc.
• Do not attach adhesive tape, stickers, etc. to the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use
detergents or abrasive cleaners to clean the compact disc. If necessary, use a
CD cleaning kit.
• If a compact disc skips or gets stuck on a section of the compact disc, it is
probably dirty or damaged (scratched).
• When cleaning the compact disc, wipe in straight lines from the center of the
compact disc to the outer edge of the compact disc. Never wipe in circular
motions.
• Compact discs should be stored in their cases after each use to
avoid damage.
• Do not expose compact discs to direct sunlight, high humidity,
high temperatures, or dust, etc. Prolonged exposure or extreme temperatures
can warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing
instruments, or the ink may damage the surface.
Cleaning the unit
• To prevent fire or shock hazard, disconnect your unit from the AC power
source when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other
furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.
16
SPECIFICATIONS
Frequency Range (FM) .......................................................87.5–108MHz
Frequency Range (AM) .......................................................530–1720kHz
Disc Diameter ....................................................................4.72” (120mm)
............................................................................3.15” (80mm) Single CD
Optical Source .........................................................Semiconductor Laser
D/A Conversion .................................1-bit DAC eight times oversampling
MPEG Rate ............................................................................32-384Kbps
Dimensions..................................................XX” (H) x XX2” (W) x XX” (D)
Weight.............................................................................................XXLBs
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT
WWW.MEMOREXELECTRONICS.COM
OR CONTACT CUSTOMER SERVICE AT 1-800-919-3647.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90
DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
17
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
Loading...
