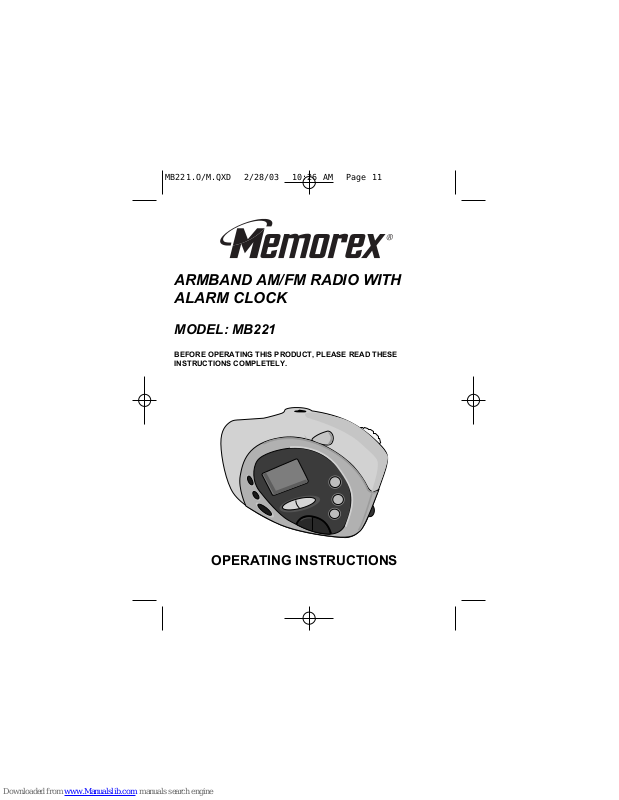

ARMBAND AM/FM RADIO WITH
ALARM CLOCK
MODEL: MB221
BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE
INSTRUCTIONS COMPLETELY.
OPERATING INSTRUCTIONS
MB221.O/M.QXD 2/28/03 10:26 AM Page 11
1
INSTALLATION
BATTERY INSTALLATION:
Open the battery compartment by sliding it downward and lifting it up. To
prevent the possibility of losing the cover, it cannot be removed.
Insert two (2) "AAA" size batteries (not included) following the polarity
diagram. Slide the battery
compartment back in place.
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with
fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury
from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow
battery manufacturer’s directions.)
Thank you for purchasing the Memorex audio system.
The serial number of your unit can be found on a label on the rear of the cabinet.
We suggest that you record the serial number in the space provided below in
case this information is ever needed at a future date.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF
PURCHASE OR MEMOREX.
Model Number: MB221
Serial Number: _______________________________________
IMPORTANT NOTE WHEN CHANGING BATTERIES:
Make sure to change the batteries within 30 seconds, otherwise the time
and memory may be lost.
MB221.O/M.QXD 2/28/03 10:26 AM Page 1
+—
+—
2
LOCATION OF CONTROLS
1. Battery Compartment (Rear of
Unit)
2. BASS BOOST Button
3. Display
4. Armband Strap Holder (Rear
of Unit)
5. Earbud Jack
6. MEM. DOWN Button
7. UNLOCK/LOCK Switch
8. MODE Button
9. VOLUME Control
10. SNOOZE Button
11. ALARM ON/OFF Button
12. Belt Clip release Button (Rear
of Unit)
13. MEM. UP Button
14. DOWN/HOUR Button
15. UP/MINUTE Button
16. BASS On Indicator
17. MEMORY Button
18. BAND Button
19. POWER Button
MB221.O/M.QXD 2/28/03 10:26 AM Page 2
5 76 8 932
41
11 12 13 14 15 1716 1918
10
3
INSTALLATION (CONTINUED)
Insert the belt strap into the belt clip,
then fold the belt strap and fasten the
velcro.
1
Insert the belt clip into the main unit,
then push the belt clip until it locks in
place at the end of the belt clip holder.
2
Straighten the other side of the belt,
then put the belt around your arm (it
will rope your arm itself). Fasten the
velcro so the unit is secure.
3
TO REMOVE THE BELT CLIP:
Press and hold the Belt Clip release
button, then push the belt clip out to
remove it from the unit.
4
TO USE THE ARM STRAP
MB221.O/M.QXD 2/28/03 10:26 AM Page 3
4
OPERATION
To turn the unit on, press the POWER
button on the side of the unit.
1
To lock the unit so no buttons can be
pressed, slide the UNLOCK/LOCK
switch to the LOCK position; “LOCK”
will appear in the display. This is
useful if listening while the unit is in
your pocket, etc. Slide the
UNLOCK/LOCK switch to the
UNLOCK position to activate all
buttons again.
1
TO TURN THE UNIT ON
TO UNLOCK/LOCK
EARBUDS:
Included with this unit are earbuds. Make sure the VOLUME control is at
minimum and insert the earbud plug into the earbud jack on the top of the
unit. Place the earbuds into your left and right ears, corresponding to the
“L” and “R” mark on each earbud.
NOTE: You must have the earbuds plugged in to hear the alarm sound.
To emphasize the bass, press the
BASS BOOST button to the on
position; the BASS On indicator will
light. Press again to turn the bass
boost off.
1
BASS BOOST
MB221.O/M.QXD 2/28/03 10:26 AM Page 4
5
OPERATION (CONTINUED)
Insert the earbuds into the Earbud
jack and press the POWER button ❶
to turn the unit on; the radio frequency
will appear in the display. Press the
BAND button ❷ to select AM or FM.
1
Tune a station using the
DOWN/HOUR ❶ or UP/MINUTE
button ❷. Press and hold the
DOWN/HOUR ❶ or UP/MINUTE
button ❷ for one second, then release,
the unit will automatically scan to the
next broadcasting station.
2
Adjust the VOLUME control ❶ and
BASS BOOST button ❷ as desired.
3
When done listening, press the
POWER button to turn the unit off.
When the unit is off, the time will
appear in the display.
4
TO LISTEN TO THE RADIO
Antennas
FM: Extend the earbud wire for best reception.
AM: Turn the unit for better AM reception.
MB221.O/M.QXD 2/28/03 10:26 AM Page 5
2
2
1
1
2
1
6
OPERATION (CONTINUED)
Insert the earbuds into the Earbud
jack and press the POWER button ❶
to turn the unit on; the radio frequency
will appear in the display. Press the
BAND button ❷ to select AM or FM.
1
Tune a station using the
DOWN/HOUR ❶ or UP/MINUTE
button ❷.
2
Press the MEMORY button ❶; “MEM”
will blink in the display. Within four
seconds, press the MEM. UP ❷ or
MEM. DOWN button ❸ until the desired
memory number appears on the display.
3
Press the MEMORY button again to
set the station in the selected memory.
Repeat steps 2 and 3 to program up to
10 stations in each band.
4
SETTING THE PRESETS (10 FM AND 10 AM)
Repeat step 1 above. Press the MEM.
UP ❶ or MEM. DOWN button ❷ until
the desired memory number appears
on the display.
1
RECALLING THE PRESETS
MB221.O/M.QXD 2/28/03 10:26 AM Page 6
2
1
1
2
3
2
1
1
2
7
OPERATION (CONTINUED)
While the power is off, press and
release the MODE button and the
alarm time will appear. Then press
and hold the MODE button; the alarm
time will blink. Release the MODE
button.
1
Press and hold the DOWN/HOUR
button ❶ to set the alarm hour and
then press and hold the UP/MINUTE
button ❷ to set the alarm minute.
Make sure the correct AM/PM
indicator is lit. Press the MODE button
❸ again to confirm the time.
2
TO SET OR RESET THE ALARM TIME
TO SET OR RESET THE ACTUAL TIME
While the power is off, press and hold
the MODE button; the time will blink.
Release the MODE button.
1
Press and hold the DOWN/HOUR
button ❶ to set the present hour and
then press and hold the UP/MINUTE
button ❷ to set the present minute.
Make sure the correct AM/PM
indicator is lit. Press the MODE button
❸ again to confirm the time.
2
NOTE: If no button has been pressed for four seconds, the unit will revery back to
the actual time display.
MB221.O/M.QXD 2/28/03 10:26 AM Page 7
3
1
2
3
1
2
8
OPERATION (CONTINUED)
Set the alarm time as previously instructed. Press the ALARM ON/OFF button
until “AL” appears in the display. When the actual time matches the selected
preset alarm time, the alarm (beep sound) automatically turns on. To shut off the
alarm, see TO SHUT THE ALARM OFF section below.
1
TO TURN THE ALARM ON
To shut the alarm off, press the
ALARM ON/OFF button once and the
alarm time will be reset for the next
day. To turn the alarm and not set it
for the next day, press the ALARM
ON/OFF button again and “AL” will
disappear from the display.
1
TO SHUT THE ALARM OFF
The alarm can be temporarily turned
off manually by pressing the
SNOOZE button; the alarm will turn
back on automatically eight minutes
later.
1
SNOOZE
NOTES:
• You must have the earbuds plugged in to hear the alarm sound.
• The alarm will be a beeping sound; you cannot set the unit to wake to the
radio sound.
MB221.O/M.QXD 2/28/03 10:26 AM Page 8
9
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM
POSSIBLE POSSIBLE
CAUSE SOLUTION
RADIO
No sound. The earbuds are not Plug in the earbuds.
connected.
VOLUME control at min- Increase the VOLUME
imum position. control.
Noise or sound AM - Interference from Turn the radio for
distorted on AM traffic. better AM reception.
or FM. FM - Earbud wire is Extend Earbud wire.
not extended.
CLOCK
Time not set. Battery connected Check the battery and/
improperly, not con- or replace battery.
nected or dead.
Clock not set. Set the clock.
Alarm does not Clock is not set. Set the clock.
sound. Alarm time not set. Set alarm time.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT
OUR WEBSITE AT:
WWW.MEMOREXELECTRONICS.COM
OR CONTACT CUSTOMER SERVICE AT 1-800-919-3647.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF
PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
MB221.O/M.QXD 2/28/03 10:26 AM Page 9
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
