Memorex MB2190 User Manual

Before operating this product,

please read these instructions completely.

User’s Guide

Micro Cassette Recorder

MB2190

MB2190 O/M.QXD 3/31/03 3:07 PM Page 13

LOCATION OF CONTROLS

1. MIC (Microphone) Jack

2. VOLUME/VOX Mic Sensitivity Control

3. Microcassette Compartment

4. Tape Counter Reset Button

5. Tape Counter

6. REC/BATT Indicator

7. Speaker

8. PHONES (Headphones) Jack

9. VOX (Voice Activation) ON/OFF Switch

10. Built-in Microphone

11. PAUSE (ON/OFF) Switch

12. Record Button

13. Play Button

14. REW (REV)/F.F (CUE) Switch Button

15. Stop/Eject Button

16. Hand Strap Hole/Hand Strap*

17. CUE MARKER Button

18. TAPE SPEED (2.4/1.2) Switch

19. DC 3V Jack

20. Battery Compartment (Rear of Unit)

* NOTE: The hand strap is attached and cannot be removed from the unit.

MB2190 O/M.QXD 3/31/03 3:07 PM Page 1

1 2

8 9

4 5

6 7

11 12

13 14

19 20

POWER SOURCES

BATTERY INSTALLATION

Open the battery compartment and insert two (2) "AAA" size batteries (not included) following the polarity diagram. Put the battery compartment cover back into place. NOTE: The REC/BATT indicator will brightly light during recording when batteries are fresh. When they are weak, the indicator will appear dim.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

DC JACK

To use this unit with an external AC adapter (not included) having 3V and a positive center pin, insert the AC adapter’s plug into the DC 3V jack on the unit. The batteries will be disconnected when the AC adapter is connected.

MB2190 O/M.QXD 3/31/03 3:07 PM Page 2

—

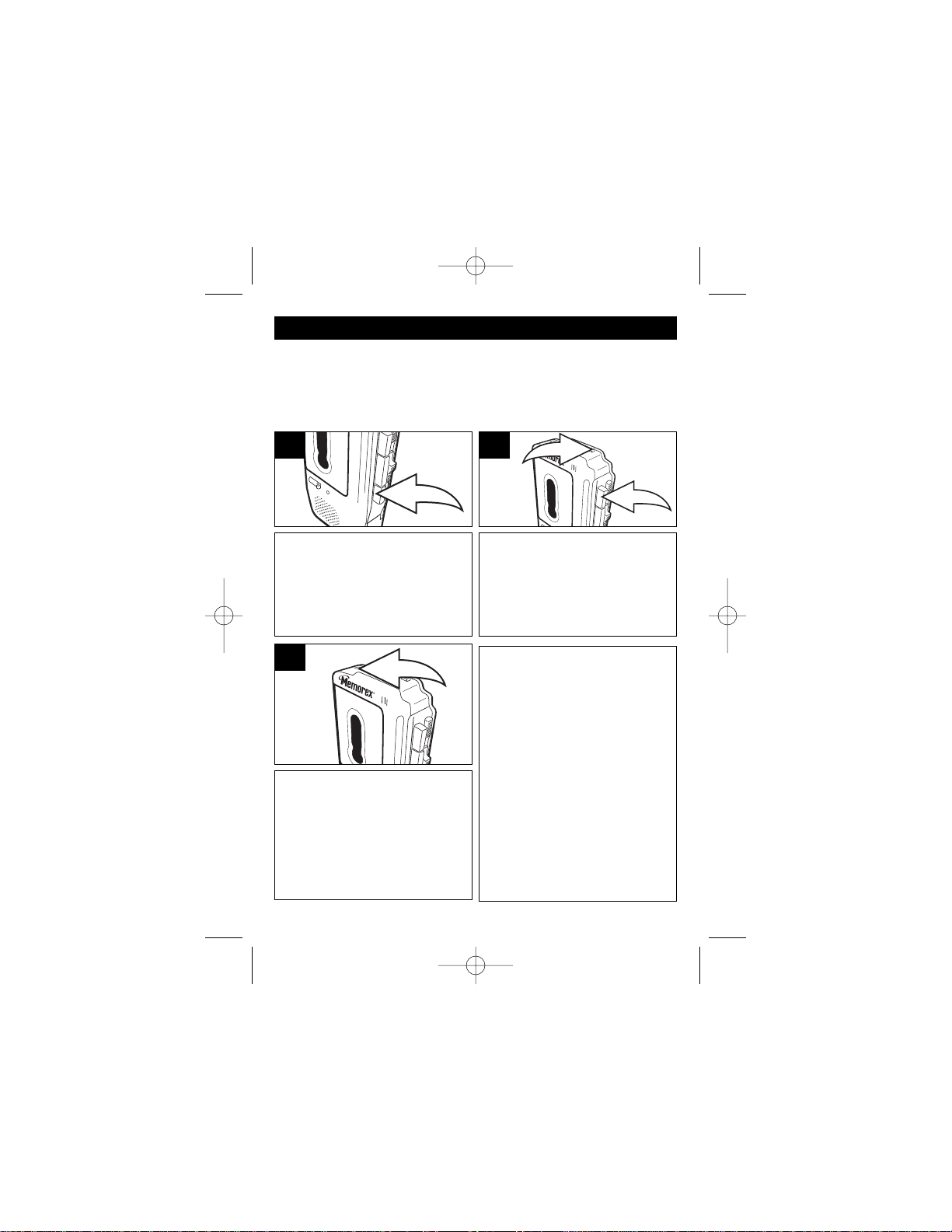

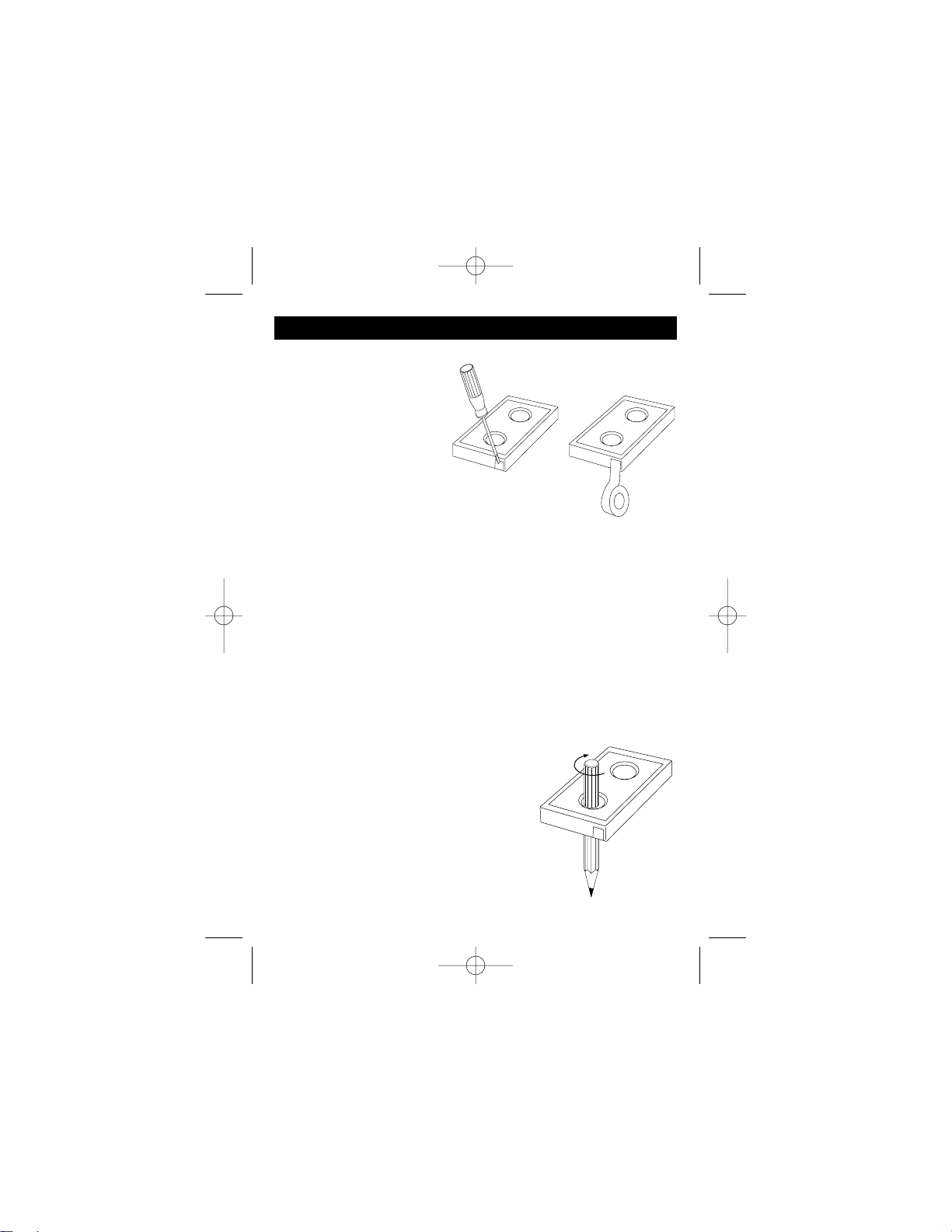

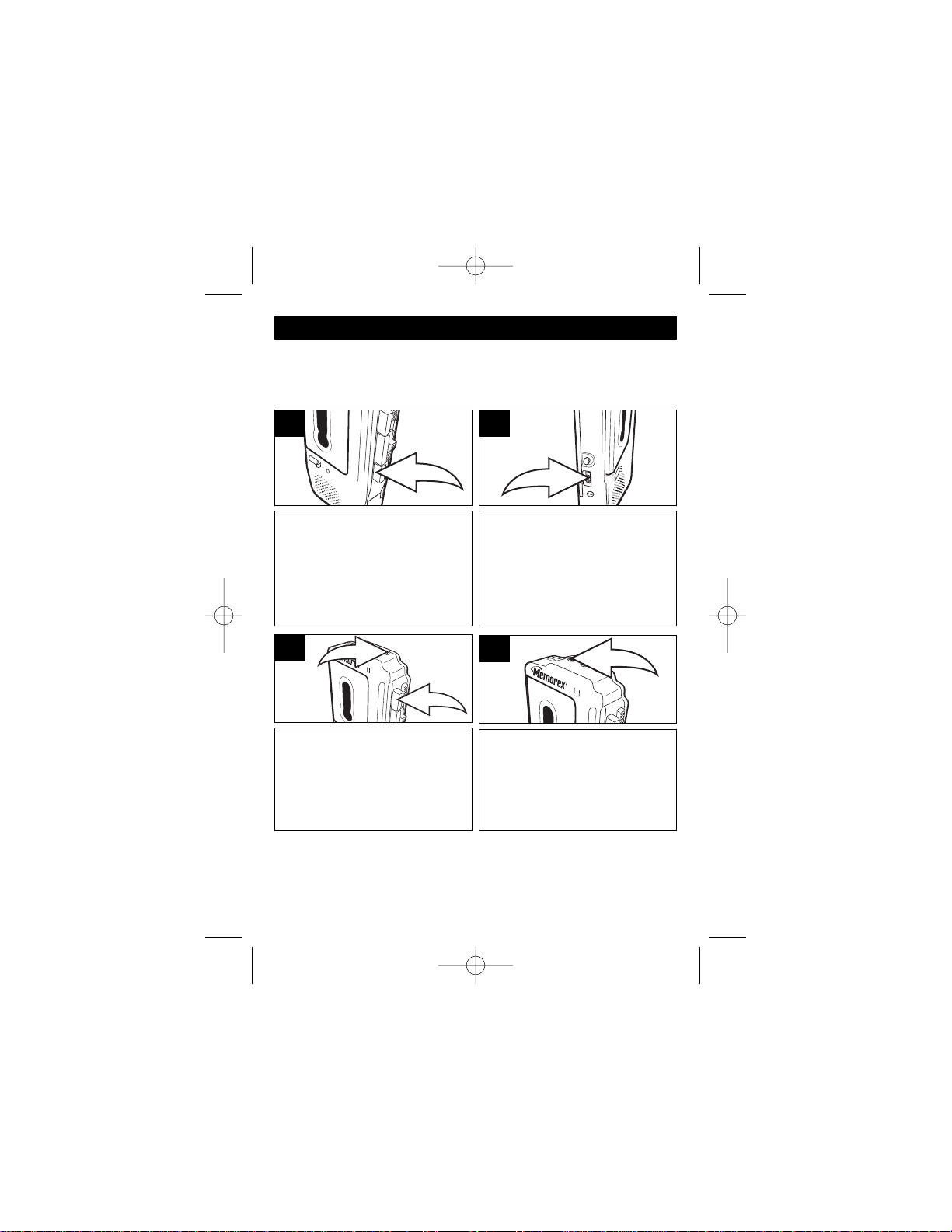

Press the Stop/Eject button and insert a microcassette tape with the side to be played facing you. Close the Cassette Compartment.

Slide the TAPE SPEED switch to the tape speed used when recorded.

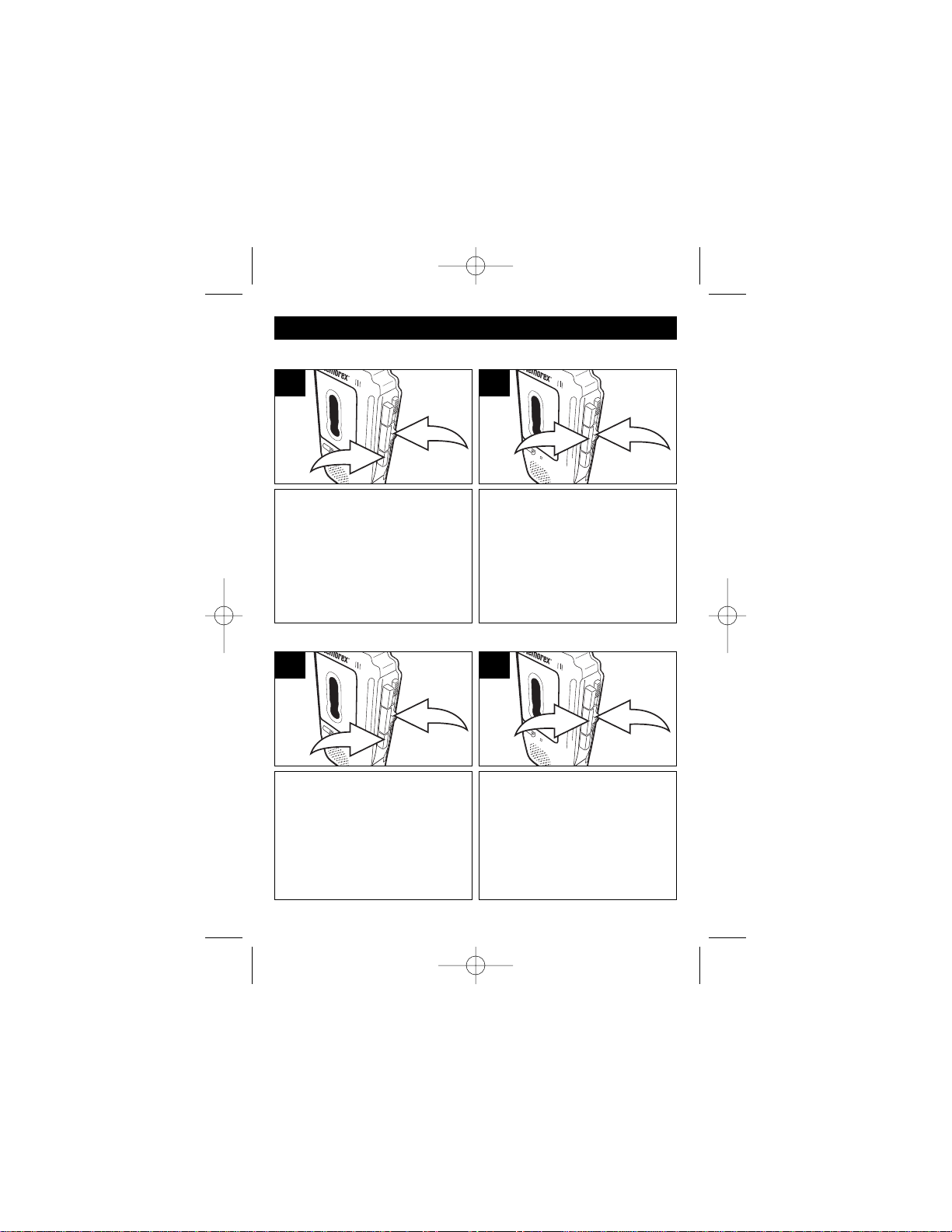

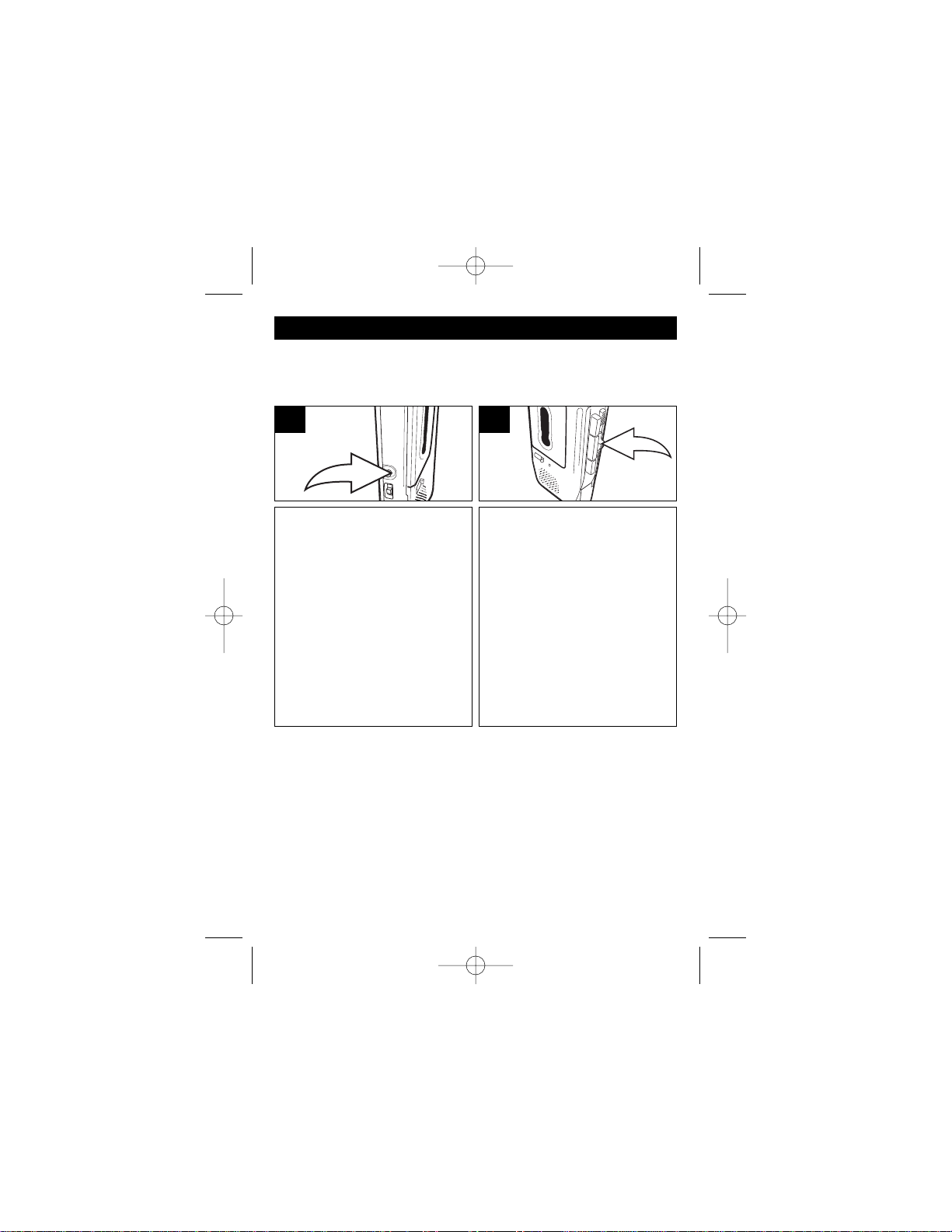

TO PLAY A PRERECORDED MICROCASSETTE TAPE

Press the Play button ❶ to start

playback and adjust the VOLUME/VOX Mic Sensitivity

control ❷ as desired.

To stop the tape before it reaches the end, press the Stop/Eject button.

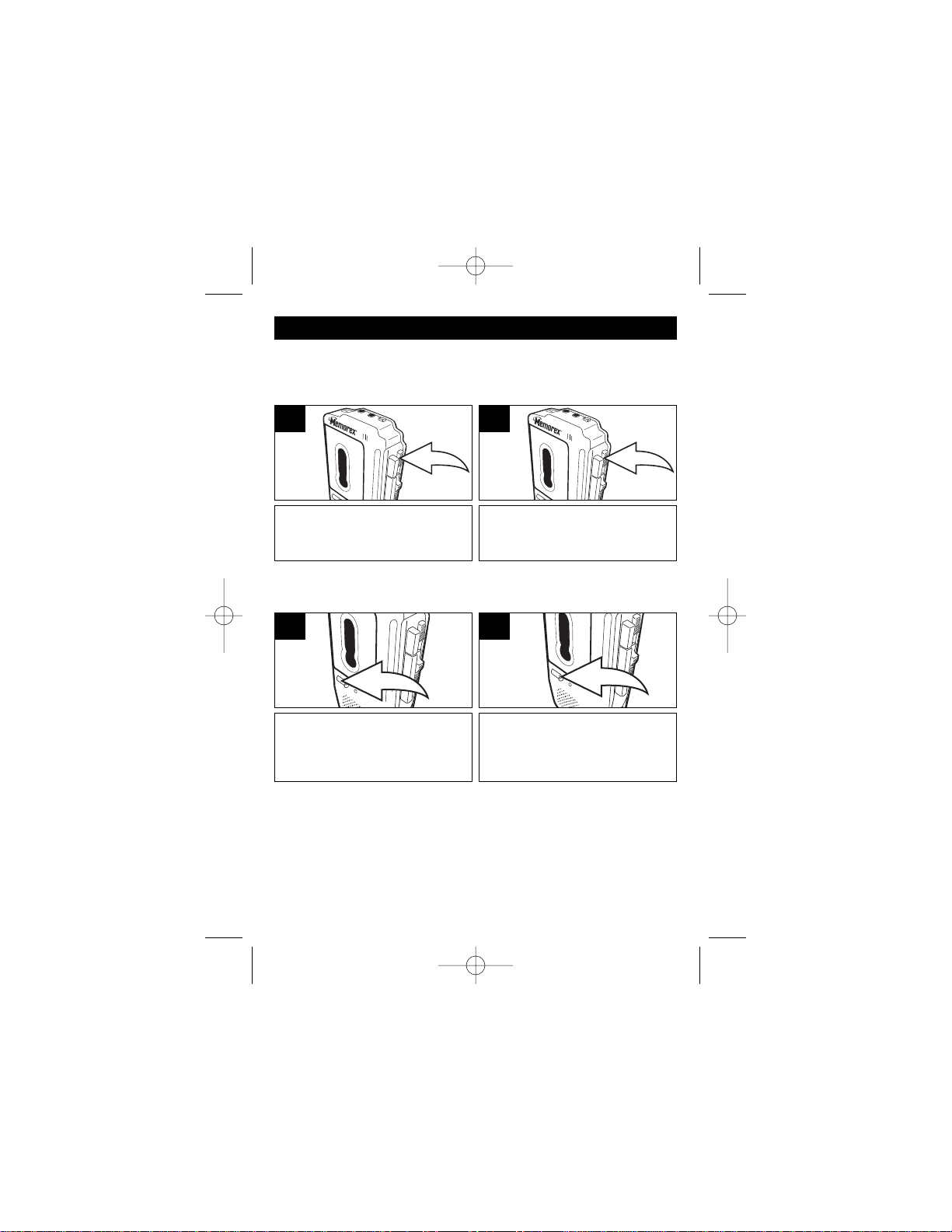

OPERATION

EARPHONE JACK

For private listening, connect an earphone (not included) to this jack. The speaker is automatically disconnected when the earphone plug is inserted in the jack.

MB2190 O/M.QXD 3/31/03 3:07 PM Page 3
