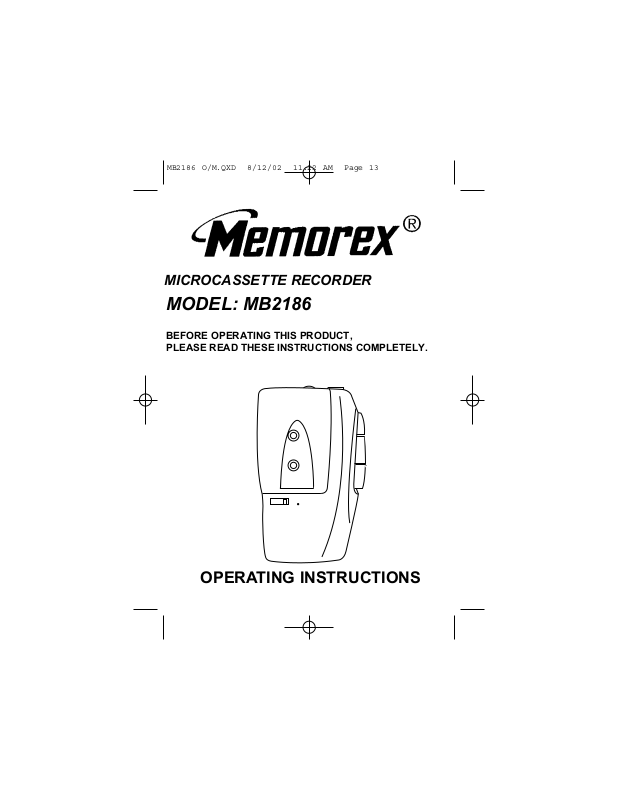

Memorex MB2186 User Manual

MODEL: MB2186

BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY.

MICROCASSETTE RECORDER

OPERATING INSTRUCTIONS

MB2186 O/M.QXD 8/12/02 11:22 AM Page 13

SAFETY PRECAUTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

DANGEROUS VOLTAGE

The lightning ﬂash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT: PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

Before using, fill out and mail the registration card. This will make sure a permanent record is made with the date of purchase in case service is needed.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

MB2186 O/M.QXD 8/12/02 11:22 AM Page 1

LOCATION OF CONTROLS

1. MIC (Microphone) Jack

2. EAR (Earphone) Jack

3. VOLUME/VAC Mic Sensitivity Control

4. VAS (Voice Activation) ON/OFF Switch

5. Microcassette Compartment

6. Tape Counter Reset Button

7. Tape Counter

8. REC/BATT Indicator

9. DC 3V Jack

10. Battery Compartment (Rear of unit)

11. Built-in Microphone (Top of unit)

12. PAUSE ON/OFF Switch

13. REC (Record) Button

14. PLAY Button

15. REW (REV)/F.F Switch Button

16. Stop/Eject Button

17. TAPE SPEED (2.4/1.2) Switch

FRONT REAR

MB2186 O/M.QXD 8/12/02 11:22 AM Page 2

6 7

4192 3

12 13

14 15

POWER SOURCES

BATTERY INSTALLATION

Open the battery compartment and insert two (2) "AA" size batteries (not included) following the polarity diagram. Put the battery compartment cover back into place. NOTE: The REC/BATT indicator will brightly light during recording when batteries are fresh. When they are weak, it will light dim.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

DC JACK

To use this unit with an external AC adapter (not included) having 3V and a negative center pin, insert the AC adapter’s plug into the DC 3V jack on the unit. The batteries will be disconnected when the AC adapter is connected.
