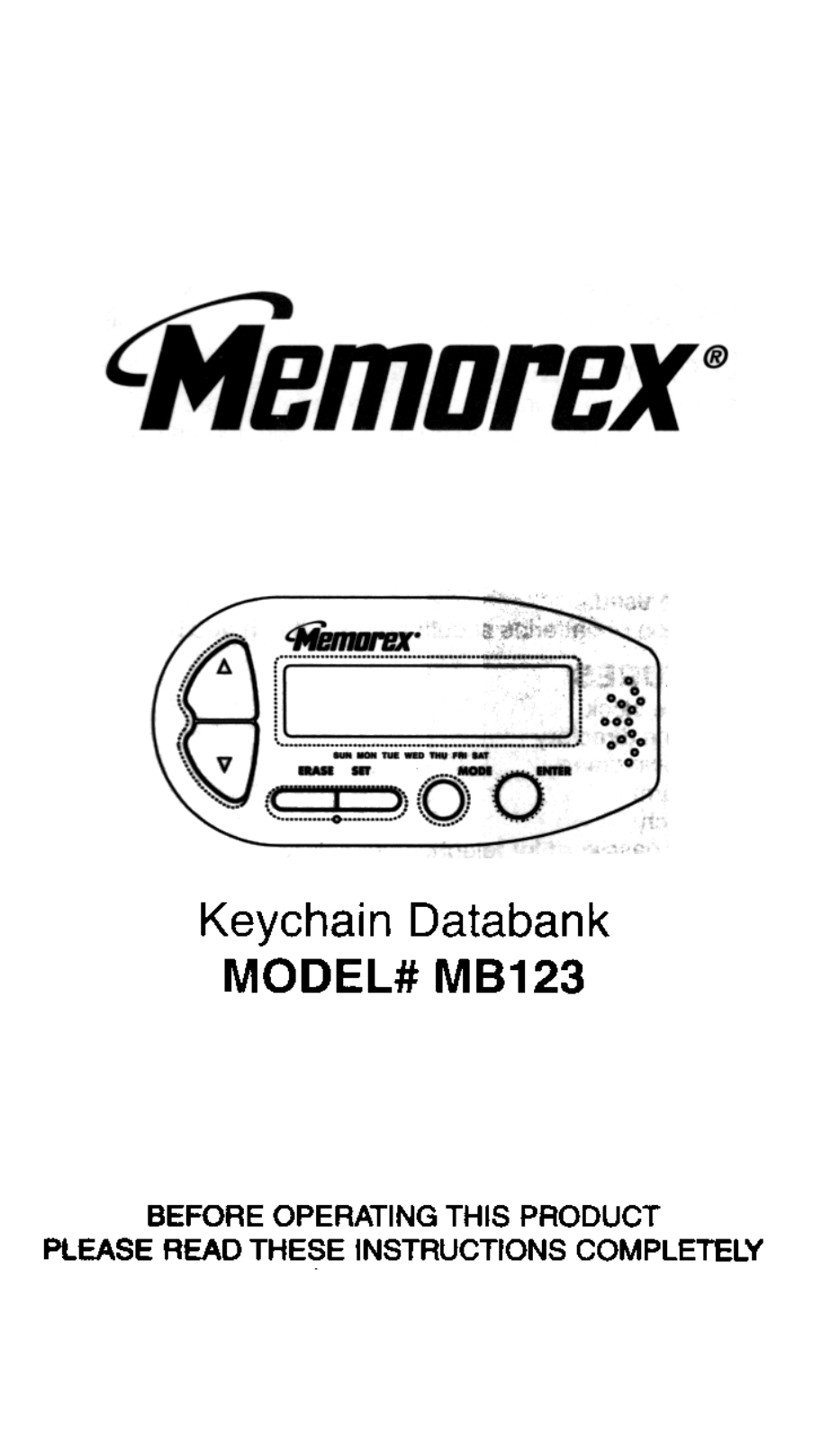

Keychain Databank
MODEL# MB123
BEFORE OPERATING THIS PRODUCT
PlEASE READ THESE INSTRUCTIONS COMPLETELY

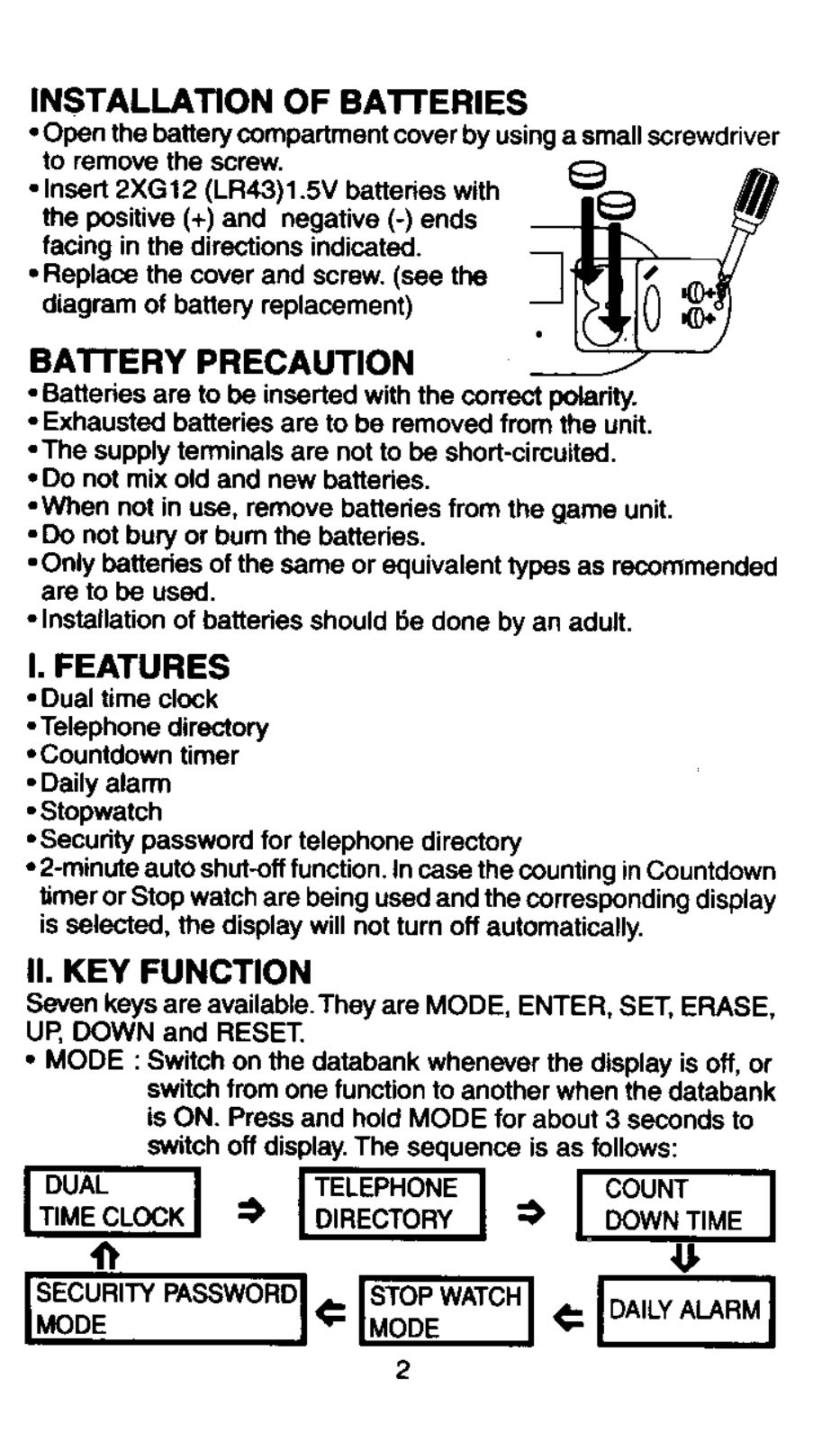

INSTALLATION OF BATTERIES
.Open the battery compartment cover by using a small screwdriver
to remove the screw. e
.lnsert2XGl2 (LR43)1.5V batteries with
facing in the directions indicated
.Replace the cover and screw (see the ] '
BATTERY PRECAUTION
.Batteries are to be inserted with the correct polarity.
.Exhausted batteries are to be removed from the unit.
.The supply te,",inals are not to be short-circuited.
.Do not mix old and new batteries.
.When not in use, remove batteries from the game unit.
.Do not bury or bum the batteries.
.Only batteries of the same or equivalent types as recommended
are to be used.
.Installation of batteries should tie done by an adult.
I. FEATURES
.Dual time clock
.Telephone directory
.Countdown timer
.Daily ala,",
.Stopwatch
.Security password for telephone directory
.2-minute auto shut-off function In case the counting in Countdown
timer or Stop watch are being used and the corresponding display
is selected, the display will not turn off automatically.
II. KEY FUNCTION
Seven keys are available They are MODE, ENTER, SET, ERASE,
UP, DOWN and RESET
.MODE: Switch on the databank whenever the display is off, or
switCh from one function to another when the databank
is ON. Press and hold MODE for about 3 seconds to
switch off display. The sequence is as follows:
I DUAL I TELEPHONE I COUNT I
I TIME CLOCK I ~ DIRECTORY ~ I DOWN TIME I
~ ~
I SECURITY PASSWORDI <: I STOP WATCH I Ao I DAILY ALARM I
I MODE I IMODE I ...I~~'"' ~~".., I
tJthe positive (+) and negative (-) ends
0 otD+ diagram of battery replacement) .~
2

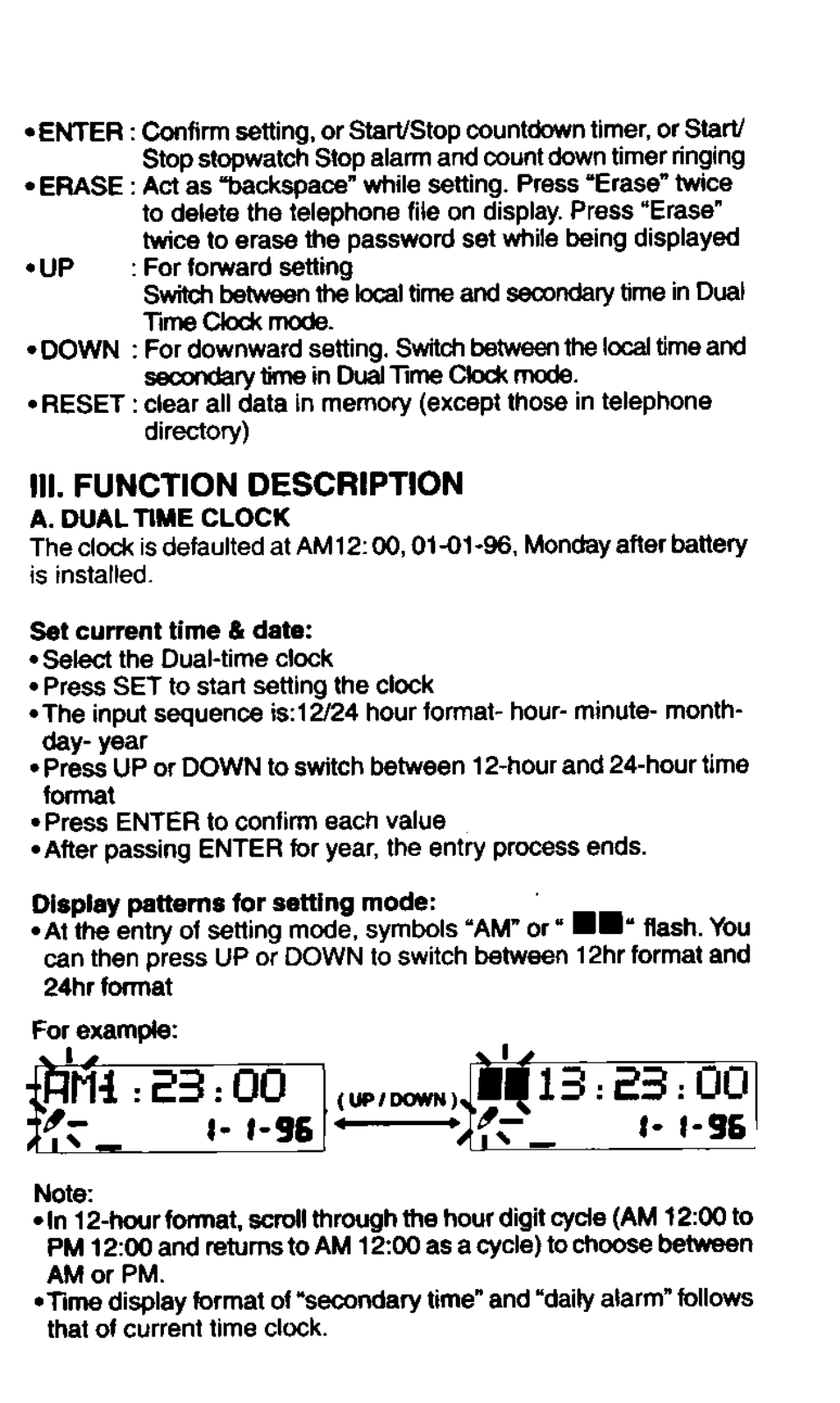

0 ENTER: Confim setting, or Start/Stop countdown timer, or Start/
Stop stopwatch Stop alano and count down timer ringing
0 ERASE: Act as "backspace" while setting Press "Erase" twice
to delete the telephone file on display Press "Erase"
twice to erase the password set while being displayed
0 UP For torward setting
Switch between the kJcal time and secondary time in Dual
lime CkxX mode.
0 DOWN: For downward setting, Switch between the local time and
secondary time in Dual lime CkxX mode
0 RESET: clear all data in memory (except those in telephone
directory)
III. FUNCTION DESCRIPTION
A. DUAL TIME CLOCK
The clock is defaulted atAM12 00, 01-01-96, Monday alter battery
is Installed
Set current time & date:
0 Select the Dual-time clock
0 Press SET to star! setting the clock
oThe input sequence is:12/24 hour fonoat- hour- minute- month-
day- year
0 Press UP or DOWN to switch between 12-hour and 24-hour time
Ionnat
0 Press ENTER to confino each value
0 Alter passing ENTER for year, the entry process ends.
Display patterns for setting mode:
0 At the entry of setting mode, symbols "AM" or" .." flash. You
can then press UP or DOWN to switch between 12hr format and
24hr Ionnat
For example:
I
l ~~=~~j~l 1Rtl-i :23:00 I(UP/~) 13:23:00
,~, -I- 1-961-", -1'1-96
Note:
oln 12-hour Ionnat, scroll through the hour digit cycle (AM 12:00 to
PM 12:00 and retumstoAM 12:00 as a cycle) to choose between
AM or PM
olime display format of "secondary time" and "daily alarm" follows
that of current time clock

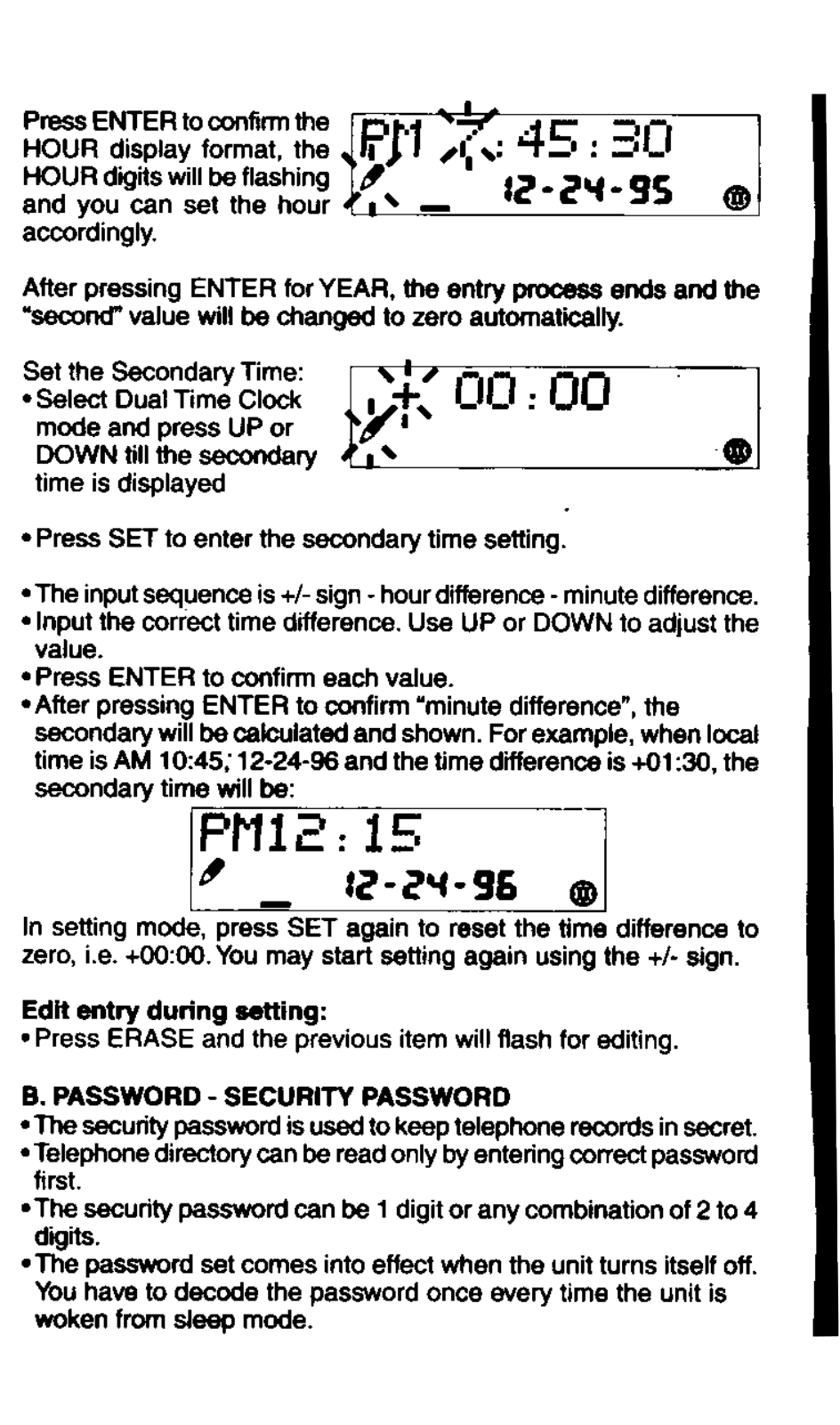

PressENTERtoconfinnthe Ot-
HOUR digns will be flashing" IZ-Z'f. 9S and you can set the hour' -""
accordingly
Alter pressing ENTER for YEAR. the entry process ends and the
"second" value will be changed to zero automatical~.
Set the Secondary Time:
mode and press UP or ~ I
DOWN till the secondary , .
time is displayed
.Press SET to enter the secondary time setting
.The input sequence is +/- sign -hour difference -minute difference.
.Input the correct time difference Use UP or DOWN to adjust the
value.
.Press ENTER to confinn each value.
.Alter pressing ENTER to confinn "minute difference", the
secondary will be calculated and shown. For example, when local
time is AM 10:45; 12-24-96 and the time difference is +01:30, the
secondary time will be:
1 . 4r:: -.
}i+: 00: 00.10 00.Select Dual Time Clock V + , :
0HOUR display format, the Ii" J ".; ,: -': =-
IPM12: 15 -l
In setting mode, press SET again to reset the time difference to
zero, ie +0000 You may start setting again using the +/. sign.
Edit entry during setting:
.Press ERASE and the previous nem will flash for edning.
B. PASSWORD -SECURITY PASSWORD
.The security password is used to keep telephone records in secret
.Telephone directory can be read only by entering correct password
first
.The security password can be 1 dign or any combination of 2 to 4
digns
.The password set comes into effect when the unn turns nself off
You have to decode the password once every time the unn is
woken from sleep mode
I" -IZ-Z'f-96 @I

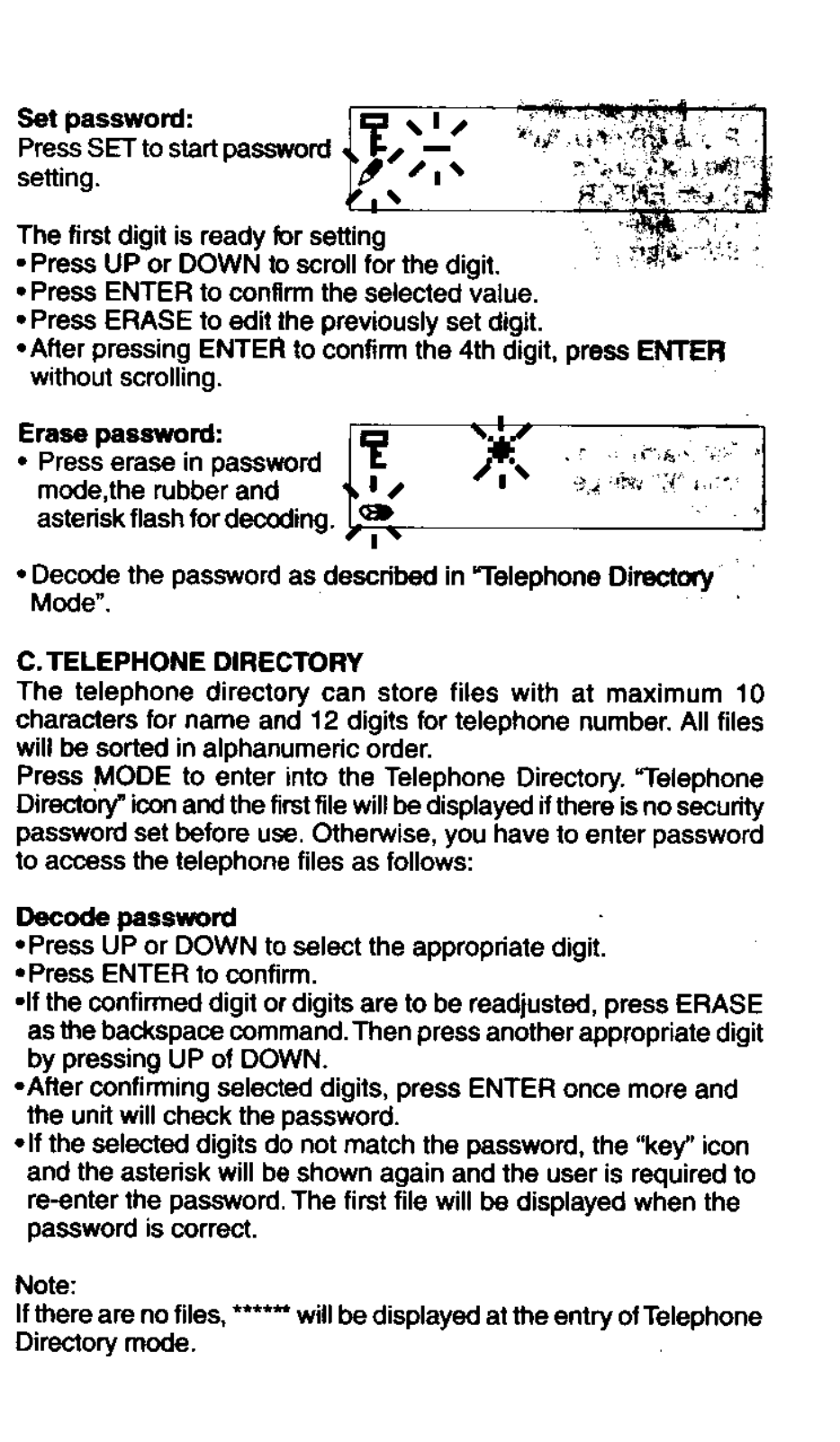

Set password:
Press SET to start password
setting
The first digit is ready for setting
0 Press UP or DOWN to scroll for the digit
0 Press ENTER to confirm the selected value.
0 Press ERASE to edit the previously set digit.
0 After pressing ENTER to confirm the 4th digit, press ENTER
without scrolling
Erase password: g
0 Press erase in password t.
mode,the rubber and I ~
asteriskllashlordecoding a
0 Decode the password as described in "Telephone DireckWy
Mode"
C. TELEPHONE DIRECTORY
The telephone directory can store files with at maximum 10
characters for name and 12 digits for telephone number All files
will be sorted in alphanumeric order.
Press MODE to enter into the Telephone Directory "Telephone
Directory" k:on and the first file will be displayed il there is no securi1y
password set belore use Otherwise, you have to enter password
to access the telephone files as follows:
Decode password
0 Press UP or DOWN to select the appropriate digit.
0 Press ENTER to confirm.
oil the confirmed digit or digits are to be readjusted, press ERASE
as the backspace command. Then press another appropriate digit
by pressing UP of DOWN
oAfter confirming selected digits, press ENTER once more and
the uni1 will check the password
oil the selected digi1s do not match the password, the "key" icon
and the asterisk will be shown again and the user is required to
re-enter the password The first file will be displayed when the
password is correct.
Note:
If there are no files, will be displayed at the entry 01 Telephone
Directory mode
I

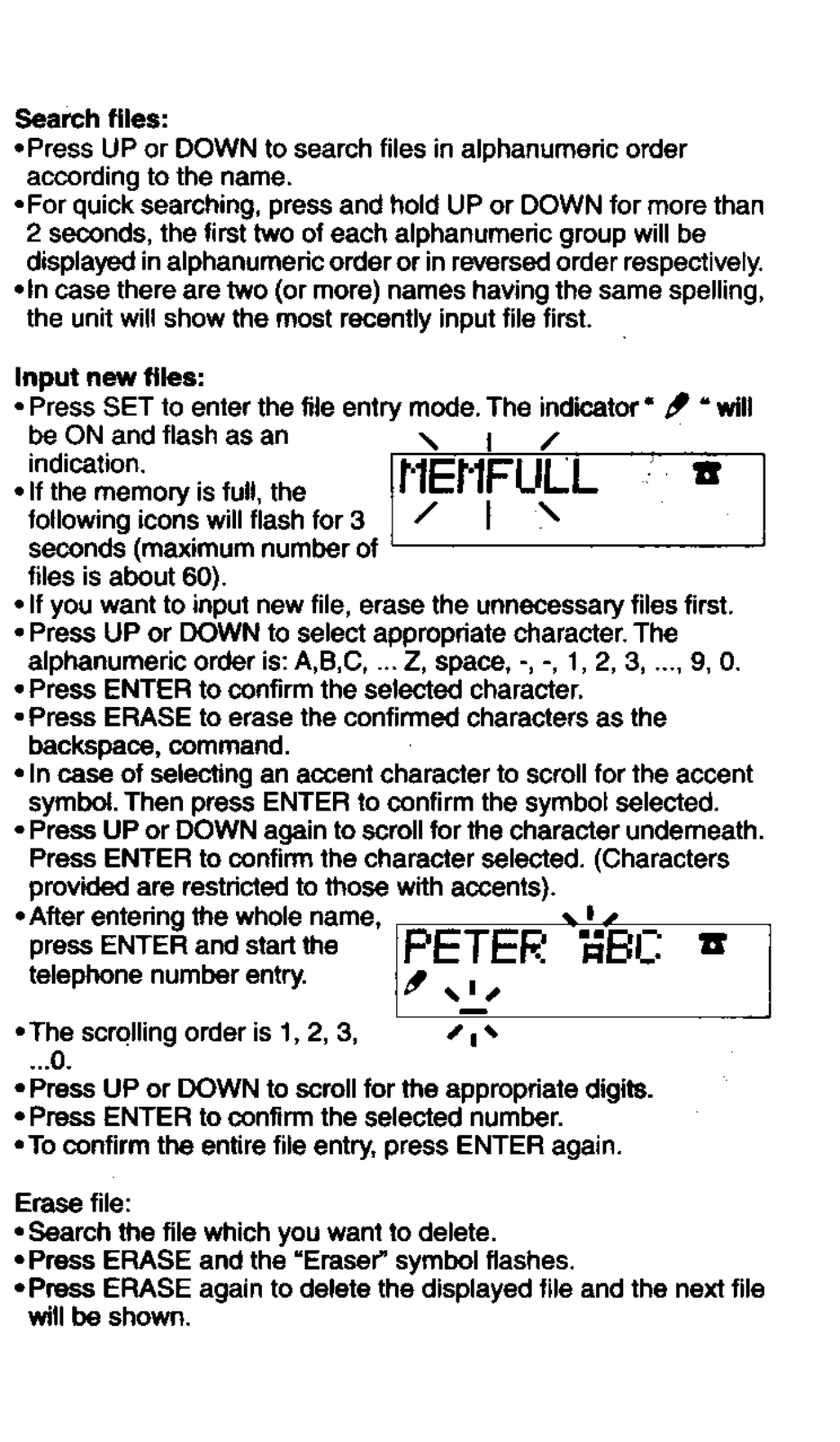

Search files:
0 Press UP or DOWN to search files in alphanumeric order
according to the name
oFor quick searching, press and hold UP or DOWN for more than
2 seconds, the first two of each alphanumeric group will be
displayed in alphanumeric order or in reversed order respectively
oln case there are two (or more) names having the same spelling,
the unit will show the most recently input file first
Input new files:
0 Press SET to enter the file entry mode, The indicator 0 " .will
be ON andllash as an 'I /
indication
following icons wilillash for 3 / I ,
seconds (maximum number of
files is about 60)
olf you want to input new file, erase the unnecessary files first
0 Press UP or DOWN to select appropriate character The
alphanumeric order is: A,B,C, Z, space, -, -, 1, 2, 3, ,,9, 0
0 Press ENTER to confirm the selected character,
0 Press ERASE to erase the confinned characters as the
backspace, command,
oln case of selecting an accent character to scroll for the accent
symbol, Then press ENTER to confirm the symbol selected
0 Press UP or DOWN again to scroll lor the character undemeath,
Press ENTER to confinn the character selected (Characters
provided are restricted to those w~h accents)
0 Alter entering the whole name,
telephone number entry, ~ ,',
oThe scrQlling order is 1, 2, 3, ','
",0,
0 Press UP or DOWN to scroll for the appropriate digits.
0 Press ENTER to confinn the selected number.
oTo confirm the entire file entry, press ENTER again
Erase file:
0 Search the file Which you want to delete.
0 Press ERASE and the "Eraser" symbol flashes
0 Press ERASE again to delete the displayed file and the next file
will be shown
It~EMrUtL a j1EMFULL a olf the memory is full, the
I~~I;R ~~BC B I' press ENTER and start the PETER RBC B

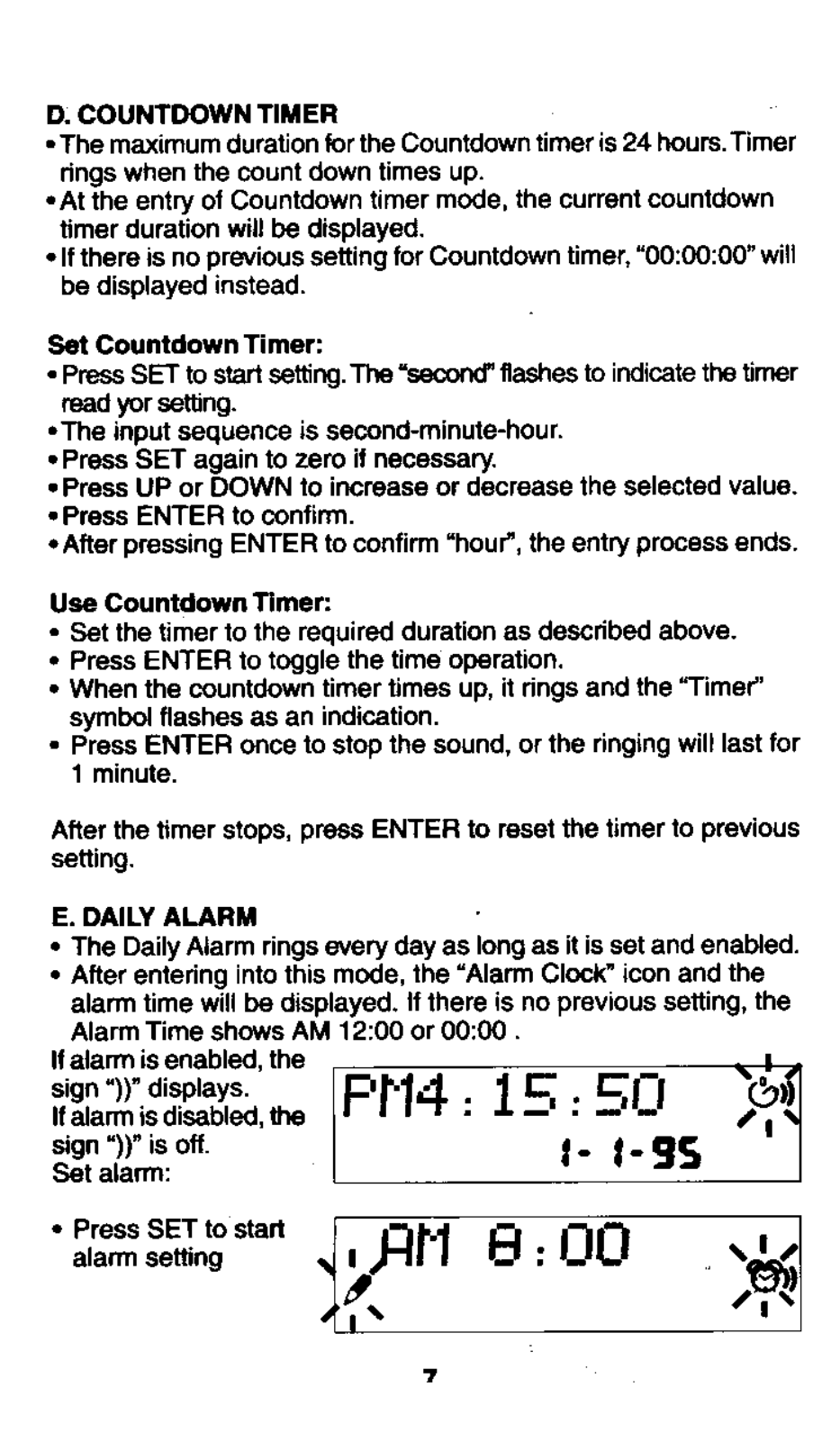

D. COUNTDOWN TIMER
0 The maximum duration for the Countdown timer is 24 hours. Timer
rings when the count down times up
0 At the entry of Countdown timer mode, the current countdown
timer duration will be displayed
olt there is no previous setting for Countdown timer, "00:00:00" will
be displayed instead
Set Countdown Timer:
0 Press SET to start setting. The "second" flashes to indicate the timer
read yor setting.
0 The input sequence is second-minute-hour
0 Press SET again to zero if necessary
0 Press UP or DOWN to increase or decrease the selected value.
0 Press ENTER to confim1.
0 After pressing ENTER to confim1 "hour", the entry process ends
Use Countdown TImer:
0 Set the timer to the required duration es described above.
0 Press ENTER to toggle the time operation.
0 When the countdown timer times up, it rings and the "Timer"
symbol flashes as an indication.
0 Press ENTER once to stop the sound, or the ringing will last for
1 minute.
Atter the timer stops, press ENTER to reset the timer to previous
setting
E. DAILY ALARM
0 The Daily Alarm rings every day as long as it is set and enabled
0 After entering into this mode, the "Alam1 Clock" icon and the
alam1 time will be displayed. If there is no previous setting, the
Alam1Time shows AM 12:00 or 00:00
lfalam1isenabled,the
Set alam1:
0 Press SET to start
IPr-14: 15,:- ~:~S ~Il sign"»"di~lays. P t. 14 . 1 c:; .c:;n 61 lfaiam1lsdlsabled,1he I " sign "»" is 011 ,- '-95 I
j1~M 8: 00 :~IM 8 00 I alam1 setting I J' : '~
.f, ".'
7

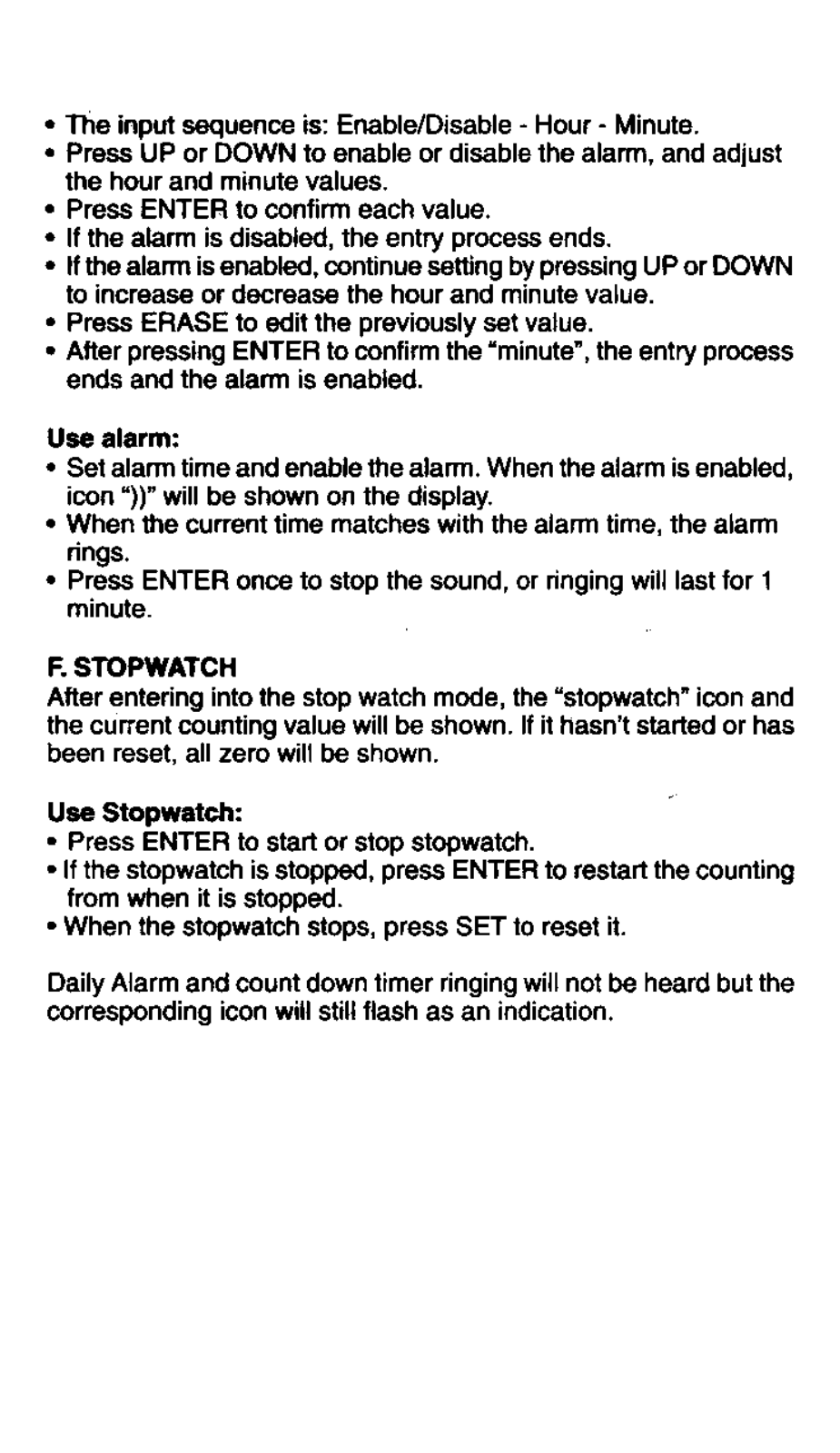

.The input sequence is: Enable/Disable. Hour. Minute
.Press UP or DOWN to enable or disable the alarm, and adjust
the hour and minute values
.Press ENTER to confirm each value
.If the alarm is disabled, the entry process ends
.If the alarm is enabk3d, continue setting by pressing UP or DOWN
to increase or decrease the hour and minute value.
.Press ERASE to edit the previously set value.
.After pressing ENTER to confirm the "minute", the entry process
ends and the alarm is enabled.
Use alarm:
.Set alarm time and enable the alarm When the alarm is enabled,
icon j)" will be shown on the display
.When the current time matches with the alarm time, the alarm
rings
.Press ENTER once to stop the sound, or ringing will last for 1
minute
F. STOPWATCH
After entering into the stop watch mode, the "stopwatch" icon and
the current counting value will be shown If it hasn't started or has
been reset, all zero will be shown
Use Stopwatch:
.Press ENTER to start or stop stopwatch.
.If the stopwatch is stopped, press ENTER to restart the counting
from when it is stopped
.When the stopwatch stops, press SET to reset it
Daily Alarm and count down timer ringing will not be heard but the
corresponding icon will stilillash as an indication
cHemorex'

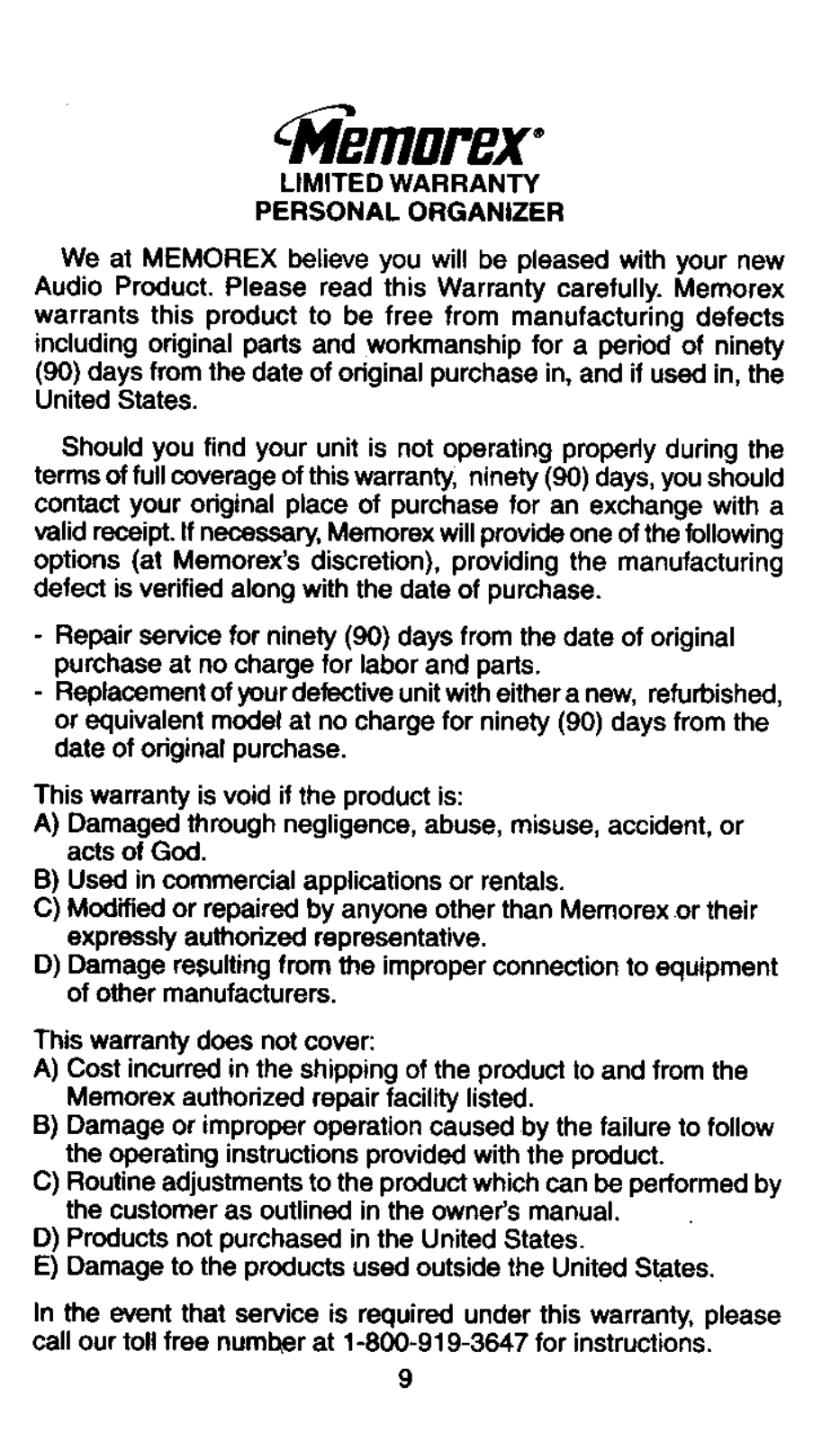

LIMITED WARRANTY
We at MEMOREX believe you will be pleased with your new
Audio Product Please read this Warranty carefully. Memorex
warrants this product to be free from manufacturing defects
including original parts and workmanship for a period of ninety
(00) days from the date of original purchase in, and if used in, the
United States
Should you find your unif is not operating properiy during the
terms of full coverage of this warranty, ninety (00) days, you should
contact your original place of purchase for an exchange with a
valid receipt. If necessary, Memorex will provide one of the following
options (at Memorex's discretion), providing the manufacturing
defect is verified along with the date of purchase.
-Repair service for ninety (00) days from the date of original
purchase at no charge for labor and parts
-Replacement of your defective unit with either a new, refurbished,
or equivalent model at no charge for ninety (90) days from the
date of original purchase.
This warranty is void if the product is:
A) Damaged through negligence, abuse, misuse, accident, or
acts ot God.
B) Used in commercial applications or rentals
C) Modified or repaired by anyone other than Memorexor their
expressly authorized representative.
D) Demege re$ulting from the improper connection to equipment
of other manufacturers.
This werranty does not cover
A) Cost incurred in the shipping of the product 10 and from the
Memorex authorized repair facility listed.
B) Damage or improper operation caused by the failure to follow
the operating instructions provided with the product
C) Routine adjustments to the product which can be performed by
the customer as outlined in the owner's manual.
D) Products not purchased in the United States
E) Damage to the products used outside the United Stiltes
In the event that service is required under this warranty, please
call our toll free numl\er at 1-800-919-3647 for instructions
PERSONAL DRGANIZER
9
[rt1,
I ,
'. ..'..~-~~- ~

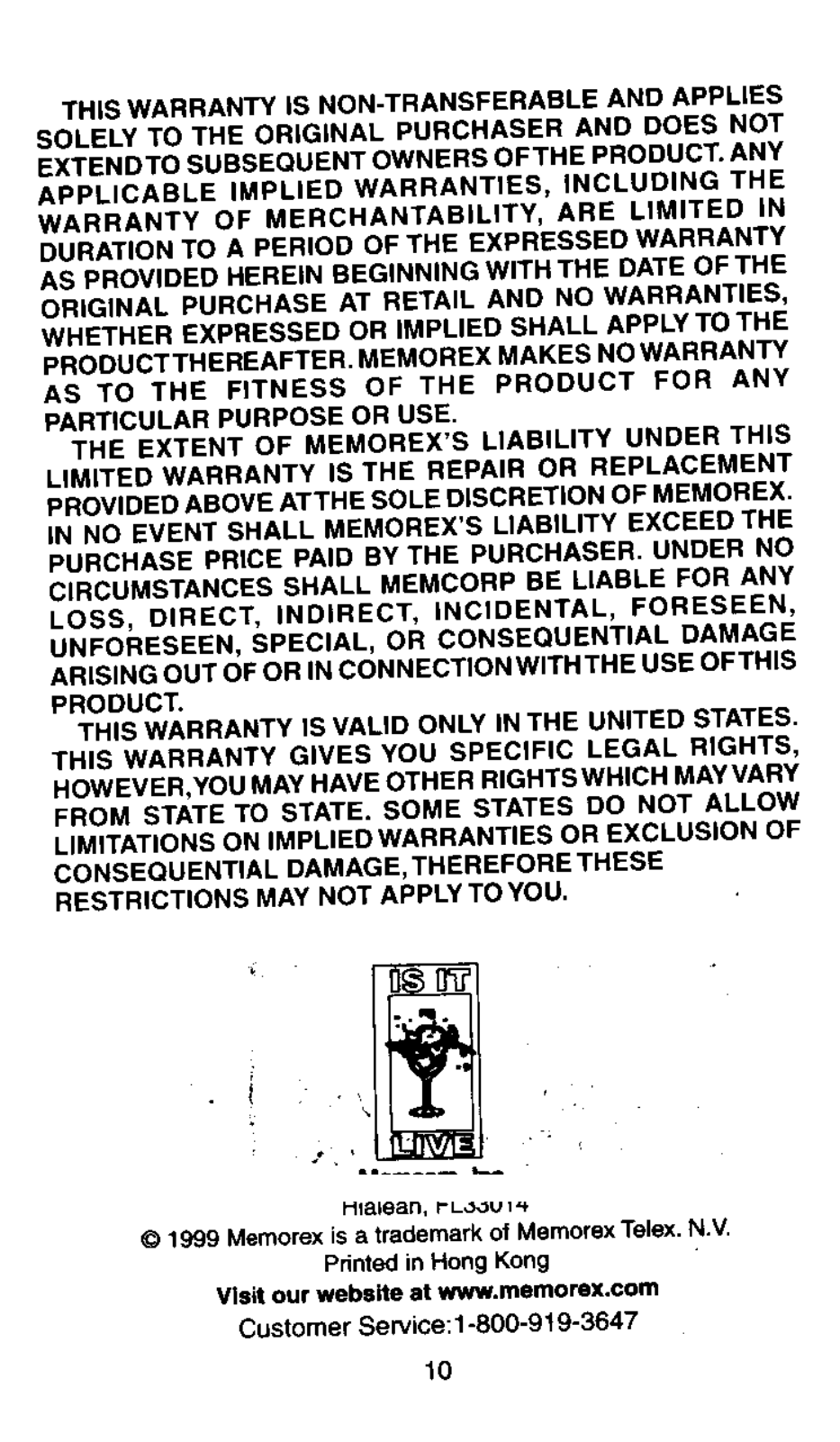

@ 1999 Memorex is " trademark of Memo,ex Telex. N V
HI",ean. "L""VI'
Prinfed in Hong Kong
Visit our webslte at www.memorex.com
Customer Service1-800-919-3647
10
~
Loading...
