Memorex E-IDE User Manual

INTERNAL E-IDE

GUIDE & SOFTWARE MANUAL

DVD RECORDER

For DVD+ & DVD- Recording

FORMAT

dual

DOUBLE LAYER

DVD-ROM

read speed

DVD+RW/-RW

re-write speed

DVD-R

write speed

DVD+R

write speed

CD-R

write speed

CD-RW

re-write speed

CD-ROM

read speed

DVD+R

write speed

2.4

DOUBLE-LAYER

Supports Windows® 98SE/Me/2000/XP

FCC INFORMATION (U.S.A.)

1.IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Memorex may void your authority, granted by the FCC, to use the product.

2.IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.

Cable/s supplied with this product MUST be used (except: if cables are used on CSEL System, they won’t work). Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3.NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class

B digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the product OFF and ON, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change  the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Memorex Products, Inc. 17777 Center Court Dr. #800, Cerritos, CA 90703.

Table of Contents

1. INTRODUCTION 6

1.1. Congratulation

1.2. About your new Memorex DVD Recorder

1.3. About Double-Layer Recording

1.4. Tools Required for Installation

2. HARDWARE INSTALLATION 8

2.1. Setup Flowchart

2.2. About the ATAPI/E-IDE Interface

3. PHYSICAL INSTALLATION OF YOUR NEW DVD RECORDER 11

4. OPERATING YOUR NEW DRIVE 16

4.1. Front Panel

4.2. Loading a Disc

4.3. Ejecting a Disc

4.4. Troubleshooting

5. INCLUDED SOFTWARE 19

5.1 Nero StartSmart

5.2 Nero Express 6

5.3 NeroVision Express 2

5.4 InCD 4

5.5 Nero BackItUp

5.6 Nero ShowTime

5.7 Nero Cover Designer

5.8 Nero Recode 2

5.9 Nero Media Player

5.10 Nero ToolKit

5.11 InCD EasyWrite Reader 4

5.12 DVD-Video Plug-in

5.13 HE-AAC Plug-in

6. CREATING CDs AND DVDs 21

6.1. Software Installation

6.2 Uninstalling the Software

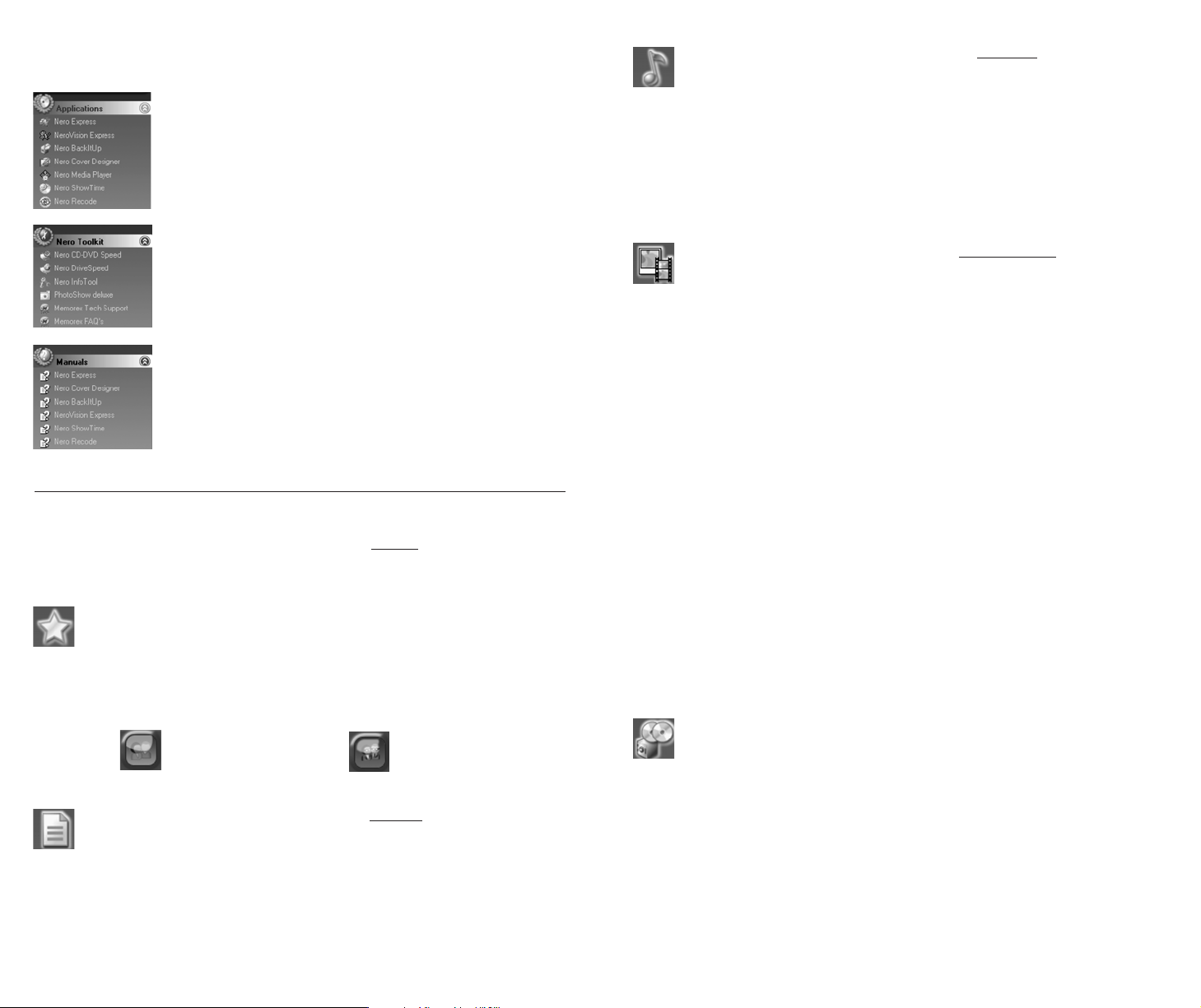

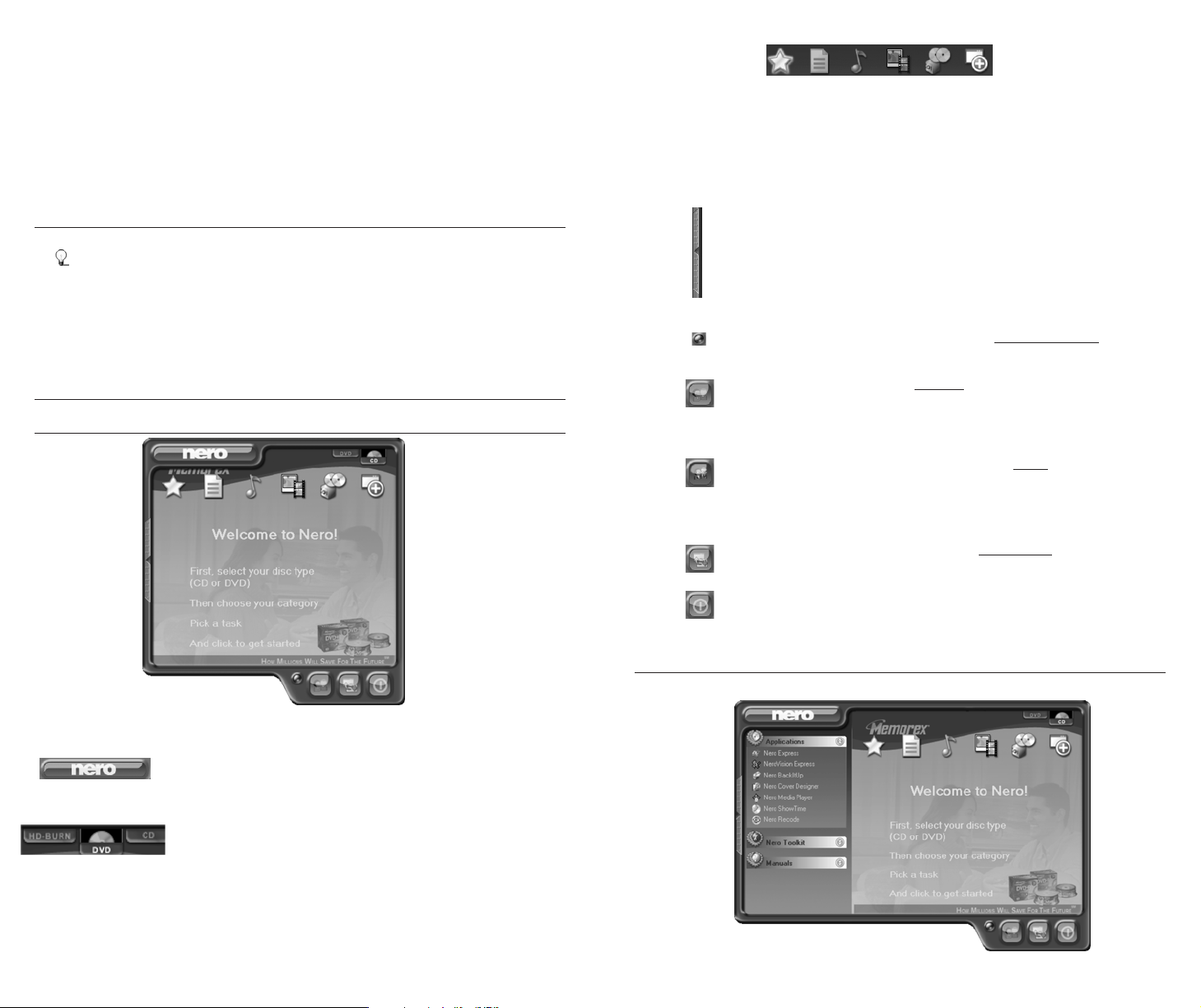

6.3 Using StartSmart - the Command Center

6.4 User Interface and Navigation

7. BURNING DISCS - THE BASICS 27

7.1. Make a Data Disc

7.2 Make an Audio Disc

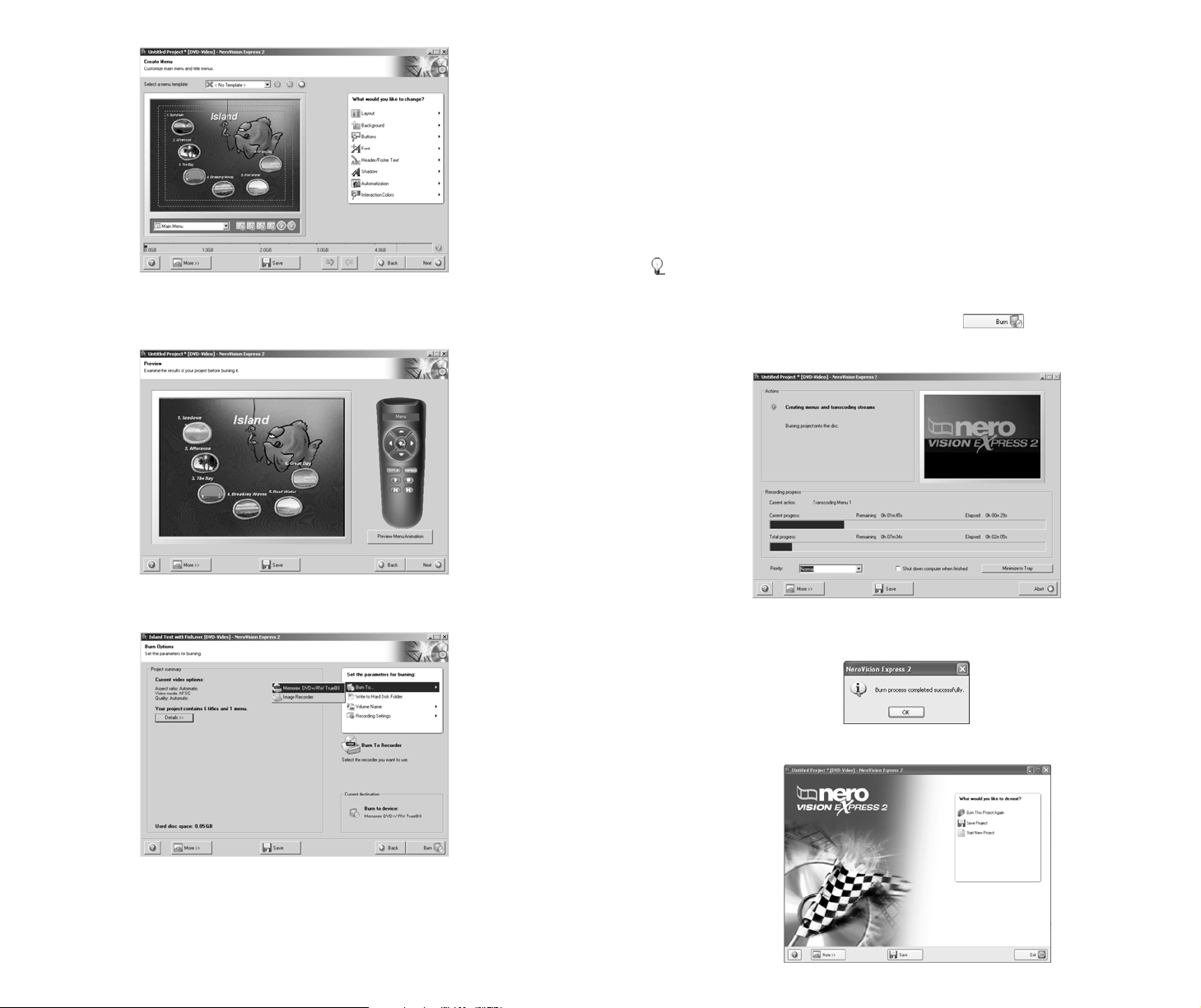

7.3 Make a Video Disc

7.4 Copy a Disc

7.5 Upgrade Options

7.6 FAQs

8. TROUBLESHOOTING 42

9. APPENDIX 46

1. INTRODUCTION

1.2. About your new Memorex DVD Recorder

1.1. Congratulations!

Thank you for purchasing a Memorex DVD Recorder.

Bringing a new dimension to your PC’s capabilities and performance, Memorex’s DVD drives are designed for recording, re-writing, and playing CDs and DVDs.

Memorex makes award-winning optical drives that every other drive is compared to. Memorex quality, reliability, features, bundled software, and reputation are the reasons why.

Before you can start enjoying all the features and benefits of your new Memorex drive, please read this manual thoroughly. It is also a good idea to keep this manual in a safe place for future reference.

1.1.1. System Requirements

Your new Memorex drive is a high-performance DVD recording device. For optimum performance, Memorex recommends installing your new drive in a high performance PC. While complying to the minimum requirements highlighted below will ensure proper installation and operation of the drive, Memorex’s recommended requirements are essential for high-speed recording.

Recommended Requirements:

IBM PC and compatibles:

• Intel Pentium III 800MHz(Pentium 4 1.8GHz or higher is recommended for fastest results) or equivalent.

• 128MB memory (512MB of memory is recommended for faster results).

• Fast hard disk drive with 15 ms or faster speed and DMA set (A/V rated hard disk drives are recommended for faster results and ensured high quality when capturing video).

• An available 5.25" drive bay for mounting the drive.

• Available IDE controller port.

• Windows 98SE, Me, Windows 2000, Windows XP.

• Available on-board IDE port.

• Please see section 3 below for more information on DMA (page 16).

Your new Memorex DVD Recorder is a state-of-the-art device, capable of recording a wide variety of disc types and formats. Here is a list of some of the major features of this drive:

Dual Format Recording: Records both DVD+R/RW and DVD-R/RW discs. Double-Layer Recording: Records on 8.5GB, DVD+R9 discs for extra capacity application. Fast Recording Speeds: This drive provides fast DVD recording speeds on both DVD and

CD media. Please note that speeds displayed below are maximum recording speeds and average recording speeds might be lower.

16X DVD+R 8X DVD-R 4X DVD+RW 24X CD-RW

2.4X DVD+R9 4X DVD-RW 48X CD-R

Buffer Memory: This Memorex DVD Recorder is equipped with 2MB of buffer memory,

virtually eliminating buffer underruns and preventing wasted time and media.

Smart-Burn Buffer Underrun Protection: This drive features a comprehensive Buffer Underrun Management system which monitors and adapts Recording Technology for burning, virtually eliminating the possibility of buffer underruns.

Superior Compatibility and Recording Performance: This drive offers reliable performance and superior functions. The discs produced in this drive have been tested to provide the highest compatibility available.

Precision Recording Technology: This drive provides exceptional overwrite performance significantly more advanced than technology used in previous models.

Defect Management: This drive features the new DRT-DM (Distributed Real Time Defect Management) system, offering the highest reliability for your recorded discs.

Vibration Absorber System (VAS): Imbalanced discs can cause vibrations that affect performance during high-speed recording and playback. VAS is designed to the resonance frequency of the drive rotating speed. The vibration will be inducted into the absorber to get the minimum vibration.

Smart-X Function: This drive technology adjusts CD-DA/VCD data extraction to the fastest allowable speed according to both data request rates from host and disk quality.

1.3. About Double-Layer Recording

1.1.2. Package Contents

In addition to the items listed below, this package may contain additional software (see product box for details) and optional items such as promotional offers.

1. Internal DVD Recorder

2. Quick Start Guide

3. Software Installation CD

4. Installation Map

5. 3mm mounting screws (total of 4)

* System Requirements and Specifications are subject to change without notice.

6. E-IDE Ribbon cable

7. Audio Cable (audio output to soundcard input)

8. Blank DVD Media 9 . Late Breaking News

(if applicable)

The Memorex DVD recorder is capable of Double-Layer recording using the new Double-Layer DVD+R9 format discs.

The new Double-Layer discs allow for 80 percent more recording capacity than current single layer discs delivering

8.5GB of data versus the standard 4.7GB DVD capacity.

Longer continuous recording makes Double-Layer DVDs ideal for recording longer movies or music and sporting events. High-capacity double layer DVDs are also an ideal back-up and storage medium for data files.

Double-Layer DVD+R9 discs record at 2.4x speed and require a double layer burner for recording. However, they are playback-compatible with several standard computer and home DVD players on the market because they conform to the DVD9 commercial standard.

1.4. Tools Required for installation

Make sure the following items are ready before proceeding with the installation of your new DVD Recorder (see illustration).

• Phillips screwdriver • A pair of narrow pliers • Memorex DVD Recorder

• Installation CD-ROM • This Quick Install Guide

 /

READ

 /

WRITE

VOL

2.2.1. Rear panel

The drive’s rear panel features the following:

2. HARDWARE INSTALLATION

2.1. Setup Flowchart

This flowchart shows the procedure for setting up your new Memorex E-IDE drive. For easy cross-referencing, please go to chapter 3 in this guide.

STEP

Set up the DVD drive

1. Disconnect power from computer.

2. Remove the outer casing of computer.

3. Set the jumper switches.

4. Fit the drive into the computer.

Check that the DVD drive is recognized correctly

1. Power up your computer.

2. Go to Control Panel | System | Device Manager tab. Double-click on CDROM and check that the drive has been recognized correctly by the computer’s OS.

STEP

Install the DVD writing software

Follow instructions in Chapter 6, or refer to the documentation that came on the software disc.

Start using the drive!

Use the drive to create DVDs, to back up data on your hard disk, or for whatever purpose suits your needs.

2.2. About the E-IDE (ATAPI) Interface

The most common standard for connecting internal hard drives and CD-ROM drives inside a PC is the E-IDE (ATAPI) interface.

DIGITAL/ANALOG AUDIO OUT

For connecting your drive to the sound card or connection in your computer.

JUMPER SWITCH

Insert a plastic jumper switch to set the connection of the IDE to MASTER or to SLAVE. The jumper switch is set on MASTER by default.

2 3 4

IDE INTERFACE CONNECTOR

Connects the included 40-pin cable.

DC INPUT

Connects the 4-pin internal power cable of the computer.

2.2.2. Setting the Jumper to Select MASTER, SLAVE or CSEL settings

Your new drive setting is configured as MASTER by default. Most users will connect their new DVD Recorder to the secondary E-IDE controller of their computer in which case there is no need to change the default setting. However, a jumper is provided on the rear panel of your new DVD Recorder drive to configure it to work in various situations.

E-IDE or Enhanced IDE computers normally have two IDE interface connectors: a primary and a secondary. Each IDE interface connector allows up to two IDE devices to be connected for a total of four IDE devices. Typically, a hard disk is connected to the primary connector while a CD-ROM drive is attached to the secondary connector.

Important Note : Avoid connecting your new DVD drive to the same primary IDE connector as the one connected to your hard drive if possible. Select the secondary connector that may be connected to your CD-ROM drive. But if you must connect it to the primary connector, make sure there is only one device (your hard drive) selected as MASTER and all other devices are selected as SLAVE. However, it is recommended not to have the dual drive as a SLAVE to a CD-ROM. The Dual Drive should be the MASTER on the secondary controller with the CD-ROM or DVD-ROM as a SLAVE to it.

Master (by default)

Slave

PUSH

OFF

MASTER - Leave the jumper switch on the MASTER position if:

Drain any static charge

• You'll be replacing your system's existing CD-ROM drive with your new Memorex DVD recorder. In this case you need to disconnect your CD-ROM drive's secondary IDE controller cable and power cable and then plug in the new Memorex DVD recorder using the same IDE controller cable connector and power cable.

• You will be adding your new Memorex DVD drive to an existing drive that will become the SLAVE recorder. The MASTER recorder is connected to the last IDE connector on a 3connector IDE cable, and the SLAVE recorder is connected to the middle connector. Remove the existing CD-ROM drive from its IDE cable and power cable connections and change its jumper setting to SLAVE. Reconnect the CD-ROM drive to the middle connector on the multi-ribbon IDE cable and connect the Memorex DVD drive to the last IDE connector as the MASTER. (The MASTER drive is typically the faster drive in a pair).

Important Note: If you are adding your new Memorex drive to a system already equipped with a DVD-ROM or high-speed drive that features CS (Check the existing drive’s jumper setting.) You may encounter problems such as the blue error screen when attempting to record a CD using particular CD recording software. In that case, turn off the computer, remove the cover, and reposition the jumper switch on your CD-ROM or DVD-ROM drive from its CS setting to the SLAVE setting. (You may have to reposition the drive to reach the middle SLAVE connector on the IDE ribbon cable). Leave the Memorex drive’s setting on MASTER and attach the drive to the last (master) connector on the IDE ribbon cable. If you still encounter problems, try the reverse: change the Memorex drive to the SLAVE jumper setting attached to the SLAVE IDE connector and make the CD-ROM or DVD-ROM drive the MASTER with the proper jumper setting and IDE last connector attachment.

3. PHYSICAL INSTALLATION OF YOUR NEW DVD RECORDER

Installing your new Memorex DVD Recorder is quite simple. Please follow the instructions on the next page patiently, step-by-step.

• Your new Memorex DVD drive will be used in a special application with multiple Memorex DVD recorders. In this case only one drive can be the MASTER. All other drives connected to the same cable should have SLAVE settings.

• This drive will be the only IDE drive installed in the computer. This is unusual unless your computer is using a SCSI hard disk drive and a SCSI CD-ROM drive.

Use narrow pliers to set the plastic jumper at the jumper switch on the rear panel.

Note: If you are adding your new Memorex drive to a system already equipped with a DVD-ROM or high-speed

drive, you may want to proceed with the following configuration if you encounter problems:

• Turn off your computer.

• Remove your DVD-ROM or high-speed drive from the secondary IDE connecter where it was most likely connected.

• Install your Memorex DVD-Recorder (with its default MASTER jumper setting) on the same secondary controller where your DVD-ROM was once installed.

• Reset the jumper switch of your DVD-ROM from MASTER to SLAVE

• Add your DVD-ROM drive to your Primary IDE controller (the controller connected to your hard drive). Use the included 3-connector IDE cable to replace your primary IDE connector cable if necessary.

SLAVE - Change the jumper to the SLAVE position if:

• Your new Memorex DVD recorder will be connected to the secondary IDE controller cable to which an existing CD-ROM or DVD-ROM drive is already connected as MASTER. The SLAVE drive should be connected to the middle connector on a 3-connector IDE cable. Use the included 3-connector IDE cable if necessary to attach two drives to the secondary IDE controller. The connector that attaches to the motherboard is at the end of the cable farthest from the other two connectors. The most common configuration is to attach recording drives to the secondary IDE controller.

• You intend to connect your new Memorex DVD recorder to the primary IDE controller with the computer's hard drive as the MASTER drive.

1. Before attempting to install your DVD Recorder, turn off your computer by flipping the power switch to the OFF position. Unplug the power cord as well.

2. Remove the cover of your computer carefully to allow access to the inside of the computer (Consult your computer’s operating manual for information on removing the cover.)

3. Before touching any of the components inside your computer, first ground yourself by touching the metal case of your computer. This will prevent the unwanted discharge of static electricity.

CS - Cable SELect is a setting that relies on the computer's automatically determining the correct MASTER/SLAVE setting of a drive. Not all computers support CS. Use the CS jumper setting only if you are sure your computer supports it. If an existing drive has the CS jumper setting, leave it as is and change the jumper on your Memorex DVD drive to CS also. DO NOT use the IDE ribbon cable provided with your Memorex drive; it may not work with the CS system. If your CS cable has only one connector for the existing drive and the Memorex supplied cable does not work, you may need to buy a double-connector Cable Select IDE cable.

4. Select an available drive bay that can hold your new DVD Recorder. Most computers have a blank cover plate over the empty drive bay. These plates typically snap into place although some may be secured by screws. Consult your computer’s documentation and then remove the cover plate.

Note 1: To install your new DVD Recorder, you need an empty drive bay. If you plan to use an existing drive bay currently occupied by a CD-ROM drive, you must first remove the driver software for that drive and then turn off your computer and remove the drive. Then, turn on the computer again, making sure that your system recognizes that the old drive is no longer there. Turn off the computer again and start the installation process of your new DVD Recorder from the beginning.

Note 2: The drive bays of most computers accommodate any Memorex DVD Recorder directly. However, some computers may require an accessory rail or mounting bracket. These components should be available from your computer’s manufacturer or your local computer hardware store.

8. Connect one end of the the supplied audio cable to the audio output (audio out) of your DVD Recorder. Connect the other end of the audio cable to your soundcard. Do not force in the connector heads. Gently try to insert the connector heads in after determining their correct orientation. Please note that some soundcards may only have one internal audio input which is probably occupied by the audio output of your CD-ROM or DVD-ROM drive already. If this is the case, it is best to leave the existing drive connected to the soundcard.

Analog Connection:

(Not Included)

5. Your Memorex DVD Recorder is protected in a poly bag. Ground yourself again and then remove the drive slowly from its poly bag. Make sure you hold your DVD Recorder by its main case and not the tray or front panel. Check your drive Jumper selection in section 2.2.1 before installing the drive into the CPU

6. Slide your DVD Recorder into the drive bay. Do not force the DVD Recorder in if you feel it does not fit the slot. Repeat step 4 and study the illustration carefully.

7. If space is tight inside your computer, you may wish to connect the audio output cable, the power supply cable, and the ribbon cable before sliding your DVD Recorder all the way into the bay.

Important Notes: Some sound cards have more than one audio input jack, including those which do not support the specification of the drive. If you cannot hear playback audio from the speakers, refer to the documentation that comes with the sound card.

Important Notes: Your new Memorex DVD Recorder will be fully functional without any connection to the soundcard. The only exception is that you will not be able to play an audio CD on your new drive and hear it through your sound card. Of course, you can still play back an audio CD on your CD-ROM drive. The ability to playback audio through your computer sound system without the use of the audio cable is dependent upon the version of your operating system.

9. Your new DVD Recorder will be connected to your computer via a ribbon cable.

10. Chances are that your computer may already have an IDE cable with a spare connector.

IDE cable

TopTop

Bottom

4-pin power cable

If so, you may skip to step 14. If not, please proceed to step 11.

11. It is now time to replace your computer’s original IDE ribbon cable with the three con-

nector E-IDE ribbon cable provided in the package. On most computers, the connectors are keyed in such a way that it is impossible to install this cable incorrectly. However, this may not be the case in your computer. CSEL will not work with the supplied cables.

12. To ensure that the cable is correctly connected, make sure that the colored wire and the

Pin 1 arrow are lined up with Pin 1 of the IDE controller or the IDE connector on the motherboard and drive connectors. Also, make sure that the cable connector is properly aligned with the mating connector before you apply pressure to seat the connector.

13. Connect one end of the new ribbon cable to your computer's IDE controller or the IDE

connector on the motherboard. Connect the middle connector or the other end to your existing CD-ROM or DVD-ROM. Make sure both are seated correctly and then apply some pressure to completely secure them in place.

14. Connect the IDE ribbon cable (either the end or the middle connector) to your new

drive. Please note that your drive has an arrow on the right side of the IDE connector (see illustration below). This arrow should point to the red line on the IDE cable. Your drive is designed to accept the IDE ribbon only at its correct orientation. Do not force the ribbon in if you feel it does not fit the slot. Refer back to step 10 and repeat the process described.

Color Mark

15. Make sure the connector attached to your existing CD-ROM or DVD-ROM drive is still

tight and has not become loose during installation.

17. Carefully slide your new drive into the bay. Locate the screw holes on the drive and match them against the screw holes in the chassis. Insert all 4, 3mm mounting screws from the sides and tighten them. Be careful not to drop any of the screws inside the computer. Do not over tighten screws; this may cause drive mechanism to jam or the screw to break off.

18. Visually inspect your computer and make sure that you have not pulled any other cables loose, that no cables may be pinched when the case is re-installed, and that no wires are obstructing any cooling fans or block ventilation.

19. Put the cover of your computer back on its chassis and fasten it properly.

16. Locate one of the available DC power connectors inside your computer. Power connectors are usually 4-pin extension with yellow. red and black wires. Connect this cable to the power supply input of your drive, as illustrated below.

20. Reconnect the computer to the AC outlet and power it up.

Important Notes: For the most desired results, ensure that your operating system has the DMA setting enabled for all of your internal drives. Consult your Microsoft Windows user’s guide to verify how to enable this setting and consult your computer manufacturer’s documentation to verify that your computer and its various components like hard drives, optical drives, and motherboards are capable of enabling and utilizing the many benefits of DMA. For details about how to enable DMA in your operating system, go to our website at http://www enabling DMA. You will need administrator rights to your computer if you are using Windows 2000 or XP in order to enable DMA.

.memorex.com under service and support, click on FAQs, look for topics about

4. OPERATING YOUR NEW DRIVE

It is important to familiarize yourself with your new Memorex DVD Recorder. Please study the following illustrations and text carefully.

4.1. Front Panel

DOUBLE

LAYER

4.2. Loading a Disc

1. Press the eject button to open the tray.

2. Carefully place the disc, label-side up, on the disc tray.

3. Press the eject button again to close the disc tray.

4.3. Ejecting a Disc

• If your new drive is powered on, press the eject button to eject the disc.

Be sure to remove the disc after it is completely ejected. (Trying to remove the disc before it is completely ejected may cause the drive to malfunction or damage to the disc).

1 32 4 5 6

Headphone Jack

Forced Eject Hole

Opens the loading tray when the tray cannot be opened using the eject button.

Volume Control

LED Indicator

This indicator displays the drive status.

Disc Loading Tray

Holds the CD or DVD disc. Open the loading tray by pressing the eject button.

Eject Button

Press this button to unload/load the tray.

• If your new drive is not powered on, pressing the eject button will not eject the disc. However, you may use the Manual Eject hole (see following page) to eject the disc.
