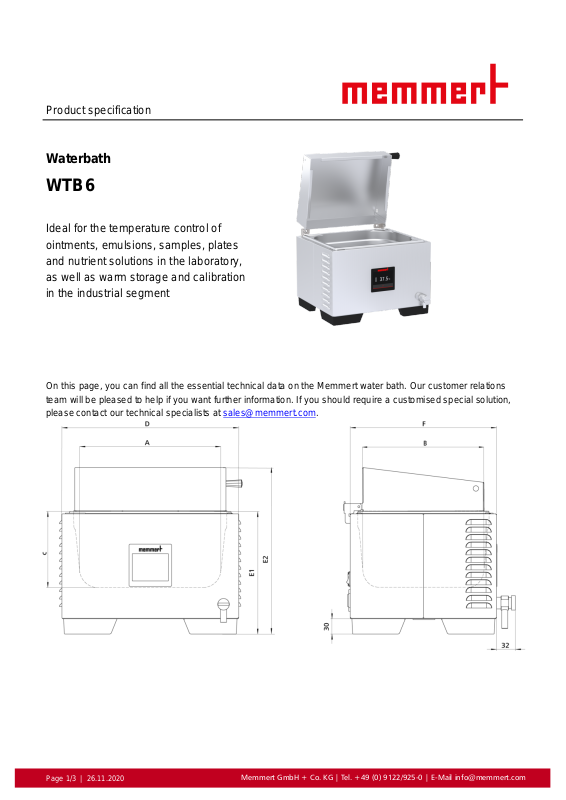

Memmert WTB6 Product specification

Product specification

Waterbath

WTB6

Ideal for the temperature control of
ointments, emulsions, samples, plates
and nutrient solutions in the laboratory,
as well as warm storage and calibration
in the industrial segment

On this page, you can find all the essential technical data on the Memmert water bath. Our customer relations
team will be pleased to help if you want further information. If you should require a customised special solution,
please contact our technical specialists at [e-mail].

Page 1/3 | 26.11.2020 | 26.11.2020

Memmert GmbH + Co. KG | Tel. [phone] | E-Mail [e-mail]

Memmert Waterbath WTB6 - en

Temperature

Working temperature range at least 5 above ambient to +100 (depending on ambient pressure)
Setting temperature range +10 to +100 °C
Setting accuracy

temperature

0.1 °C

Control of standard components

Controller intuitive 3.5" colour graphic display with touch screen

Safety

Temperature control Independent temperature limiter to switch off the heating in case of failure

Heating concept

Heating corrosion-proof large-area heating on the outside of the interior

Stainless steel interior

Interior Deep-drawn stainless steel tray (stainless steel W.St. 1-4301), without corners and edges for easy

cleaning incl. central drain (no disturbing installations)

Dimensions W x H x D in
mm

Volume 7 l

w

x h

x d

(A)

: 277 x 150 x 217 mm

(C)

(B)

Textured stainless steel casing

Dimensions w

x h

x d

(D)

(E2)

: 349 x 328 x 289 mm

(F)

Electrical data

Voltage
Electrical load

Voltage 230 V, 50/60 Hz
Voltage

Electrical load

230 V, 50/60 Hz
approx. 1000 W

115 V, 50/60 Hz
approx. 1000 W

Ambient conditions

Installation The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all

sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.

Ambient temperature +5 °C to +40 °C
Humidity rh max. 80 %, non-condensing
Overvoltage category II
Pollution degree 2
