OPERATING MANUAL

CO2 INCUBATOR ICO

Manufacturer and customer service

MEMMERT GmbH + Co. KG Willi-Memmert-Straße 90-96 91186 Büchenbach Germany

Phone: +49 (0)9122 925-0 Fax: +49 (0)9122 14585 E-mail: sales@memmert.com Internet: www.memmert.com

Customer service: Service hotline: +49 (0)9171 9792 911 Service fax: +49 (0)9171 9792 979 E-mail: service@memmert.com

For service enquiries, please always specify the appliance number on the nameplate (see page

12). Shipping address for repairs:

Memmert GmbH + Co. KG Customer service Willi-Memmert-Str. 90-96 DE-91186 Büchenbach Germany

Please contact our customer service before sending appliances for repair or before returning equipment, otherwise, we have to refuse acceptance of the shipment.

D33451 | Date 01/2018 3

About this manual

Purpose and target audience

This manual describes the design, function, transport, putting into operation, the actual operation and maintenance of CO

incubators ICO. It is intended for use by trained personnel of

the owner, who have the task of operating and/or maintaining the respective appliance. If you are asked to work on the appliance, read this manual carefully before starting. Familiar-

ise yourself with the safety regulations. Only perform work that is described in this manual. If there is something you do not understand, or certain information is missing, ask your manager or contact the manufacturer. Do not do anything without authorisation.

Versions

The appliances are available in different configurations and sizes. If specific equipment features or functions are available only for certain configurations, this is indicated at the relevant points in this manual.

The functions described in this manual refer to the latest firmware version. Due to individual configurations and sizes, illustrations in this manual may be slightly different

from the actual appearance. Function and operation are identical.

Other documents that have to be observed

When operating the appliance with the MEMMERT AtmoCONTROL PC software, observe the separate software manual. To open the AtmoCONTROL software manual, click on “Help” in the AtmoCONTROL menu bar.

Storage and resale

This instruction manual belongs with the appliance and should always be stored where persons working on the appliance have access to it. It is the responsibility of the owner to ensure that persons who are working or will work on the appliance are informed as to the whereabouts of this instruction manual. We recommend that it is always stored in a protected location close to the appliance. Make sure that the instruction manual is not damaged by heat or humidity. If the appliance is resold or transported and then set up again at a different location, the operating instructions must go with it.

For the current version of this operating manual in pdf format, please go to http://www.memmert.com/en/service/downloads/user-manual/ .

4 D33451 | Date 01/2018

Contents

1. For your safety 6

1.1 Terms and signs used........................................................................................................... 6

1.2 Product safety and dangers ................................................................................................ 6

1.3 Requirements of the operating personnel .......................................................................... 8

1.4 Responsibility of the owner ................................................................................................. 8

1.5 Intended use ........................................................................................................................ 8

1.6 Changes and conversions ....................................................................................................9

1.7 Behaviour in case of malfunctions and irregularities .......................................................... 9

1.8 What to do in case of accidents .......................................................................................... 9

1.9 Switching off the appliance in an

emergency ........................................................................................................................... 9

2. Construction and description 10

2.1 Construction ...................................................................................................................... 10

2.2 Description and function ................................................................................................... 10

2.3 Material.............................................................................................................................. 11

2.4 Electrical equipment .......................................................................................................... 11

2.5 Connections and interfaces ............................................................................................... 11

2.6 Designation (nameplate) ................................................................................................... 12

2.7 Technical data .................................................................................................................... 13

2.8 Applied directives and standards ...................................................................................... 14

2.9 Declaration of conformity ................................................................................................. 14

2.10 Ambient conditions ...........................................................................................................15

2.11 Scope of delivery ...............................................................................................................15

2.12 Optional accessories .......................................................................................................... 15

3. Delivery, transport and setting up 16

3.1 For your safety ................................................................................................................... 16

3.2 Delivery .............................................................................................................................. 17

3.3 Transport ............................................................................................................................ 17

3.4 Unpacking ......................................................................................................................... 17

3.5 Storage after delivery ........................................................................................................17

3.6 Setting up .......................................................................................................................... 18

4. Putting into operation 20

4.1 Connect the appliance to the power supply ..................................................................... 20

4.2 Establishing water supply .................................................................................................. 20

4.3 CO

and N2 connection ...................................................................................................... 21

4.4 Switching on ......................................................................................................................22

5. Operation and control 23

5.1 For your safety ................................................................................................................... 23

5.2 Operating personnel.......................................................................................................... 23

5.3 Opening the door .............................................................................................................. 24

5.4 Loading the appliance ....................................................................................................... 25

5.5 Operating the appliance .................................................................................................... 25

5.6 Monitoring function .......................................................................................................... 32

5.7 Graph ................................................................................................................................. 39

5.8 Sterilising the appliance ...................................................................................................40

5.9 Ending operation ...............................................................................................................40

Contents

D33451 | Date 01/2018 5

Contents

6. Malfunctions, warning and error messages 41

6.1 Warning messages of the monitoring function ................................................................ 41

6.2 Malfunctions, operating problems and appliance errors ................................................ 43

6.3 Power failure ...................................................................................................................... 45

7. Menu mode 46

7.1 Overview ............................................................................................................................ 46

7.2 Basic operation in menu mode using the example of language selection ....................... 47

7.3 Setup.................................................................................................................................. 48

7.4 Date and time .................................................................................................................... 51

7.5 Calibration ......................................................................................................................... 52

7.6 Programme ........................................................................................................................ 58

7.7 Sounds ............................................................................................................................... 59

7.8 Protocol ............................................................................................................................. 60

7.9 USER ID .............................................................................................................................. 61

8. Maintenance and Servicing 63

8.1 Regular maintenance.........................................................................................................63

8.2 Cleaning ............................................................................................................................. 63

8.3 Repairs and Service ............................................................................................................ 63

9. Storage and disposal 64

9.1 Storage ..............................................................................................................................64

9.2 Disposal .............................................................................................................................64

Index 65

6 D33451 | Date 01/2018

For your safety

1. For your safety

1.1 Terms and signs used

In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these notes and regulations to avoid accidents and damage. These terms and signs are explained below.

1.1.1 Terms used

WARNING

Warns about a dangerous situation that might lead to death or serious injuries

CAUTION

Warns about a dangerous situation that might lead to moderate or minor injuries

NOTICE

Warns about material damage

1.1.2 Signs used

Danger of elec-

trocution

Fire hazard

Gases / vapours Danger of frost-

bite/

cold burns

Warning about

gas bottles

Do not tilt Disconnect the

mains plug

Wear gloves Wear safety

boots

Observe informa-

tion in separate

manual

Information on

first aid

First aid:

Rinse eyes out

Important or

useful

additional infor-

mation

1.2 Product safety and dangers

The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They reflect the state of the art and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended. These are described below.

D33451 | Date 01/2018 7

For your safety

WARNING

After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Only electrical engineers may work on the electrical equipment of the appliances.

WARNING

When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may not be loaded with materials / test objects that release toxic or explosive vapours when heated up (see also chapter Intended use on page 8).

WARNING

Leaving the door open during operation can cause the appliance to overheat or pose a ﬁ re hazard. Do not leave the door open during operation.

WARNING

Gas bottles may burst or explode at high temperatures. Keep the gas bottles away from open ﬂ ames. Store gas bottles below 50 °C and ensure that the location is always well ventilated. Prevent water from penetrating as well as backﬂ ow into the gas bottles. It is es- sential that you read the safety notes and instructions of the gas supplier.

WARNING

Condensation might cause a short circuit. After transport or storage at high humidity conditions, the appliance shall be stored unpacked at normal conditions for at least 24 hours. During this period of time the appliance shall not be connected to the power supply.

CAUTION

Danger of suffocation. CO2 and N2 can have a suffocating effect in high concentrations. In normal mode, the appliance emits small amounts of CO

and N2 to its surroundings. You should therefore ensure that the room in which it is installed is properly ventilated. A ventilation rate of 250 m³ / h is required. Always close the stop valve or pressure reducer on the gas bottles if the appliance is not in operation.

CAUTION

High concentrations of CO2 can cause cold burns or frostbite. Avoid contact with CO

gas to the eyes and skin.

8 D33451 | Date 01/2018

For your safety

and N2 are not dangerous substances in terms of the German Hazardous Substances Ordinance (GefStoffV). You should nevertheless familiarise yourself with the applicable safety regulations prior to handling such gas bottles.

1.3 Requirements of the operating personnel

The appliance may only be operated and maintained by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

Repairs may only be performed by qualified electricians. The regulations in the separate service manual must be observed.

1.4 Responsibility of the owner

The owner of the appliance

► is responsible for the flawless condition of the appliance and for it being operated in ac-

cordance with its intended use (see chapter 1.5);

► is responsible for ensuring that persons who are to operate or service the appliance are

qualified to do this, have been instructed accordingly and are familiar with the operating

instructions at hand;

► must know about the applicable guidelines, requirements and operational safety regula-

tions, and train staff accordingly;

► is responsible for ensuring that unauthorised persons have no access to the appliance; ► is responsible for ensuring that the maintenance plan is adhered to and that maintenance

work is carried out properly (see page 63);

► has to ensure that the appliance and its surroundings are kept clean and tidy, for example

through corresponding instructions and inspections;

► is responsible for ensuring that personal protective clothing is worn by operating person-

nel, e.g. work clothes and safety shoes.

1.5 Intended use

CO2 incubators ICO are intended for incubation of cell cultures or similar. The appliance is not explosion-proof (does not comply with the German occupational health

& safety regulation VBG 24). The appliance may only be loaded with materials and substances which cannot form any toxic or explosive vapours at the set temperature and which cannot explode, burst or ignite.

The appliance may not be used for the drying, evaporation and baking of paints or similar materials, the solvents of which could form an explosive mixture when combined with air. If there is any doubt as to the composition of materials, they must not be loaded into the appliance. Potentially explosive gas-air mixtures must not form, neither in the working chamber nor in the direct vicinity of the appliance.

Only feed distilled water as well as CO

and N2 into the chamber through the media connec-

tions on the rear of the appliance. Introducing other liquids or gases is not permitted. The incubator may not be used for sterilisation purposes. It is not a steriliser according to the

German Law on Medical Products. Sterilisation programmes (see page 58) that are saved in the appliance only serve to sterilise the appliance itself. Do not use them to sterilise medical devices!

D33451 | Date 01/2018 9

For your safety

1.6 Changes and conversions

No unauthorised changes or alterations may be made to the appliance. No parts may be added or inserted which have not been approved by the manufacturer.

Unauthorised changes or alterations result in the CE declaration of conformity losing its validity, and the appliance may no longer be operated.

The manufacturer is not liable for any damage, danger or injuries that result from unauthorised changes or alterations, or from non-observance of the regulations in this manual.

1.7 Behaviour in case of malfunctions and irregularities

The appliance may only be used in a flawless condition. If you as the operator notice irregularities, malfunctions or damage, immediately take the appliance out of service and inform your superior.

You can find information on eliminating malfunctions from page 41.

1.8 What to do in case of accidents

1. Keep calm. Act with determination and consideration. Pay attention to your own safety.

2. Switch off the appliance and close the valves of the gas bottle.

3. Call a doctor.

4. Start first aid measures. If available: Call a trained first aid helper.

In case of contact with CO2 to the eyes and skin:

Rinse eyes out with water for at least 15 minutes. In case of cold burns, rinse with water for at least 15 minutes. Cover over in a sterile way. Call a doctor.

When breathing in CO2 or N2:

High concentrations can cause suffocation. Symptoms may include a loss of mobility and unconsciousness. The victim is not aware of suffocating.

Low concentrations of CO

can cause accelerated breathing and headaches.

Anyone affected should breathe fresh air, using a breathing device independent of recirculating air. Keep the person warm and calm. Call a doctor. In case of respiratory arrest, use artificial respiration.

In case of gas leakage:

Leave the room immediately, warn others and ventilate the room. If you re-enter the room, use a breathing device independent of recirculating air if it has not been established that the atmosphere is harmless.

1.9 Switching off the appliance in an emergency

Press the main switch at the ControlCOCKPIT (Fig. 1) and disconnect the power plug. This disconnects the appliance from the power supply at all poles.

ONN

Fig. 1 Switch off the appliance by pressing the main switch

10 D33451 | Date 01/2018

Construction and description

2. Construction and description

2.1 Construction

1 2

3 4

Fig. 2 Construction of CO2 incubators ICO

1 ControlCOCKPIT with capacitive function

keys and LCD displays (see page 26) 2 On/Off switch (see page 22) 3 Inner glass door

4 Stainless steel perforated sheet 5 Water tray (passive humidity control) 6 Adjustable feet 7 Nameplate (see page 12)

2.2 Description and function

Air is heated inside the appliance by means of large-area all-round heating. The interior of appliances with passive humidity control is humidified with water that evapo-

rates from a tray that is placed inside. The interior of appliances with active humidity control is humidified with water evaporating at a set rate from a tank by means of a hot-air generator on the rear side of the appliance. The sterile hot air is introduced into the interior above the fan and mixed with the air current. In appliances with water trays, a Peltier humidity trap in the back of the appliance limits humidity. Appliances with active humidity are dehumidified with a dosed supply of fresh air provided through a sterile filter.

Carbon dioxide (CO

) and nitrogen (N2 only for models with O2 module) are also injected into the interior through sterile filters. Interior ventilation ensures a uniform distribution of the gases, creating a homogeneous atmosphere. The oxygen concentration is controlled by introducing nitrogen: If nitrogen is introduced, the concentration of oxygen decreases.

D33451 | Date 01/2018 11

Construction and description

2.3 Material

For the outer housing, MEMMERT uses stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion resistance to many (but not all!) chemical compounds (caution for example with chlorine compounds).

The chamber load for the appliance must be carefully checked for chemical compatibility with the materials mentioned. A material resistance table can be requested from the manufacturer.

2.4 Electrical equipment

► Operating voltage and current consumption: See nameplate ► Protection class I, i.e. operating insulation with PE conductor in accordance with EN 61010 ► Protection type IP 20 acc. to EN 60 529 ► Interference suppression acc. to EN 55011 class B ► Appliance fuse: Safety fuse 250 V/15 A, quick-blow ► The temperature controller is protected with a miniature fuse 100 mA (160 mA at 115 V)

2.5 Connections and interfaces

2.5.1 Electrical connection

This appliance is intended for operation on an electrical power system with a system impedance Z

max

of a maximum of 0.292 ohm at the point of transfer (service line). The operator must ensure that the appliance is operated only on an electrical power system that meets these requirements. If necessary, you can ask your local energy supply company what the system impedance is.

Observe the country-specific regulations when making connections (e.g. in Germany DIN VDE 0100 with earth leakage circuit breaker).

2.5.2 Communication interfaces

The communication interfaces are intended for appliances which meet the requirements of IEC 60950-1.

USB interface

The appliance is fitted by default with a USB interface in accordance with the USB specification. This way, you can

► transfer software stored on a USB storage

medium to the appliance (see page 58).

► export protocol logs from the appliance to

a USB storage medium (see page 60).

► transfer user ID data stored on a USB stor-

age medium to the appliance (see page

61).

The USB port is located on the right side of the ControlCOCKPIT (Fig. 3).

Fig. 3 USB interface

12 D33451 | Date 01/2018

Construction and description

Ethernet interface

Via Ethernet interface, the appliance can be connected to a network, so that you can transfer programmes created with the AtmoCONTROL software to the appliance and read out protocols. The Ethernet interface is located on the rear of the appliance (Fig. 4).

For identification purposes, each appliance connected must have its own unique IP address. Setting the IP address is described on page 48 .

You will find a description of how to transfer programmes via Ethernet in the enclosed AtmoCONTROL manual.

With an optional USB to Ethernet converter, the appliance can be directly connected to a computer / laptop (see Optional accessories on page 15).

2.6 Designation (nameplate)

The nameplate (Fig. 5) provides information about the appliance model, manufacturer and technical data. It is attached on the upper right behind the door (see page 10).

Typ: ICO240 F.-Nr.: 0817.0050 230 V~ 50/60 Hz

7.2

21650 W

DIN12880-Kl.3.3 Nenntemp.: 18-50 °C

1 2

3 4

8 7

0197

Fig. 5 Nameplate (example) 1 Type designation

2 Operating voltage 3 Applicable standard 4 Protection type 5 CE conformity 6 Address of manufacturer

7 Test mark of the notified body 8 Disposal note 9 Temperature range 10 Connection / power ratings 11 Appliance number

Fig. 4 Ethernet interface

D33451 | Date 01/2018 13

Construction and description

2.7 Technical data

Appliance size 50 105 150 240

Appliance width D* [mm] 559 719 719 759 Appliance height E* [mm]

(varies due to adjustable feet)

791 846 1066 1176

Appliance depth F* (without door handle) [mm] 521 591 591 691 Depth of door handle [mm] 56 Chamber width A* [mm] 400 560 560 600 Chamber height B* [mm] 425 480 700 810 Interior depth C* [mm] (less 35 mm for fan) 330 400 400 500 Chamber volume [litres] 56 107 156 241 Net weight [kg] 55 75 90 110 Weight including packaging [kg] 74 100 116 145 Power [W] 1100 1300 1500 1650 Supply voltage [AC V] 230/115 Frequency [Hz] 50/60 max. number of sliding shelves 5 6 10 12 max. load per sliding shelf [kg] 15

max. load per appliance [kg] 75 90 120 140

Operating temperature range

5 °C above room temperature up to

50 °C

Setting temperature range [°C] +18 to +50

Adjustment precision [°C] 0.1 Temporal temperature deviation

(in accordance with DIN 12880:2007-05) at 37 °C [K]

±0.1

Spatial temperature deviation at +37 °C (in accordance with DIN 12880:2007-05) at 37 °C [K]

±0.3

Adjustment range of active humidity control [% rh] (only for appliances with the corresponding configuration)

40 to 97 and rh off

Setting accuracy humidity [%] 0.5

Adjustment range for CO

[%]

0 to 20

Setting accuracy for CO

[%]

0.1

Adjustment range for O

[%] (optional and only for

appliances with active humidity control)

1 to 20

Setting accuracy for O

[%]

0.1

* see Fig. 6 on page 14 .

14 D33451 | Date 01/2018

Construction and description

Fig. 6 Dimensions

2.8 Applied directives and standards

► Directive 2004/108/EC amended (Directive of the council for harmonisation of the laws of

the member states on electromagnetic compatibility). Standards complied with: DIN EN 61326:2004-05, EN 61326:1997, EN 61326/A1:1998, EN 61326/A2:2001 EN 61326/A2:2003

► Directive 2006/95/EC amended (Directive of the council for harmonisation of the laws of

member states relating to electrical equipment designed for use within certain voltage limits). Standards complied with: DIN EN 61 010-1 (VDE 0411 part 1) DIN EN 61 010-2-010 (VDE 0411 part 2-010) EN 61 010-1:2001, EN 61 010-2-010

2.9 Declaration of conformity

You can download the EC declaration of conformity of the appliance online: English: http://www.memmert.com/en/service/downloads/ce-statement/ German: http://www.memmert.com/de/service/downloads/eg-konformitaetserklaerung/

D33451 | Date 01/2018 15

Construction and description

2.10 Ambient conditions

► The appliance may only be used in enclosed areas and under the following ambient condi-

tions:

Ambient temperature

10 °C to 35 °C

Humidity rh max. 70 %, non-condensing

Overvoltage category II

Pollution degree 2

Altitude of installation max. 2,000 m above sea level

► The appliance may not be used in areas where there is a risk of explosion. The ambient air

must not contain any explosive dusts, gases, vapours or gas-air mixtures. The appliance is not explosion-proof.

► Heavy dust production or aggressive vapours in the vicinity of the appliance could lead to

sedimentation in the interior and, as a consequence, could result in short circuits or damage to electrical parts. For this reason, sufficient measures to prevent large clouds of dust or aggressive vapours from developing should be taken.

2.11 Scope of delivery

► Power cable ► 1 or 2 stainless steel perforated sheets (load capacity: 15 kg each) ► 1 stainless steel water tray (only for appliances with passive humidity control) ► 1 water tank (only for appliances with active humidity control) ► Gas connection hose (depending on the model: one to three) ► Silicone plugs (2 units) ► USB storage medium with software and AtmoCONTROL manual ► the operating instructions at hand ► Calibration certificates ► Separately packaged fastening material for wall mounting (see page 19)

2.12 Optional accessories

► USB to Ethernet converter (Fig. 7). Makes it

possible to connect the Ethernet connection interface (see page 12) to the USB port of a computer / laptop.

Fig. 7 USB to Ethernet converter

16 D33451 | Date 01/2018

Delivery, transport and setting up

3. Delivery, transport and setting up

3.1 For your safety

WARNING

Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. To carry appliances of size 50, at least two persons are needed; for appliances of the sizes 105 and 150, four people are needed. Appliances larger than that may not be carried but must be transported with a manual pallet jack or forklift truck.

105

150 240

CAUTION

You might get your hands or feet squashed when transporting and installing the appliance. Wear protective gloves and safety boots. When grasping the bottom of the appliance, grasp it only on the sides:

D33451 | Date 01/2018 17

Delivery, transport and setting up

3.2 Delivery

The appliance is packed in cardboard and is delivered on a wooden palette.

3.3 Transport

The appliance can be transported in the following ways:

► With a forklift truck; move the forks of the truck entirely under the pallet. ► On a manual pallet jack

3.4 Unpacking

NOTICE

► To avoid damage, do not unpack the appliance until you reach the installation site.

Remove the cardboard packaging by pulling it upwards or carefully cutting along an edge.

3.4.1 Checking for completeness and transport damage

► Check the delivery note to ensure that the delivery is complete. ► Check the appliance for damage.

If you notice deviations from the delivery note, damage or irregularities, do not put the appliance into operation but inform the haulage company and the manufacturer.

3.4.2 Removing the transport protection

Remove the transport protection. It is located between the door hinge, door and frame and has to be removed after opening the door.

3.4.3 Disposing of packaging material

Dispose of the packaging material (cardboard, wood, foil) in accordance with the applicable disposal regulations for the respective material in your country.

3.5 Storage after delivery

If the appliance is first to be stored after delivery: Read the storage conditions from page

64.

18 D33451 | Date 01/2018

Delivery, transport and setting up

3.6 Setting up

3.6.1 Preconditions

The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see Technical data on page 13). Do not place the appliance on a flammable surface.

The appliance emits small amounts of CO

and N2 to its surroundings during operation. There-

fore, the installation site must be ventilated. Depending on the model (see nameplate), a 230 V or 115 V power connection must be avail-

able at the installation site. The distance between the wall and the rear of the appliance must be at least 15 cm. The clear-

ance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm (Fig. 8). Sufficient air circulation in the vicinity of the appliance must be guaranteed at all times.

FP FP

FP

FP

Fig. 8 Minimum clearance from walls and ceiling

D33451 | Date 01/2018 19

Delivery, transport and setting up

3.6.2 Tilt protection

Due to its centre of gravity, the appliance can fall over to the front and injure you or other people. Always attach the appliance to a wall with the tilt protection included in the delivery. In case there is not enough space, do not put the appliance into operation and do not open the door. Contact the Memmert service (see page 2).

1. Screw the tilt protection

onto the back of the appliance as illustrated.

2. Bend the tilt protec-

tion upwards by 90 ° in the desired distance to the wall (consider the minimum distance to the wall, see Fig. 8).

3. Drill a hole, insert a plug

and screw the tilt protection to a suitable wall.

20 D33451 | Date 01/2018

Putting into operation

4. Putting into operation

NOTICE

The first time the appliance is operated, it must not be left unattended until it has reached the steady state.

4.1 Connect the appliance to the power supply

WARNING

Observe the country-specific regulations when making connections (e.g. in Germany: DIN VDE 0100 with earth leakage circuit breaker). Observe the connection and power ratings (see nameplate and "Technical Data" on page 13). Make sure to establish a safe PE conductor connection.

Plug the provided power cable into the rear of the appliance and connect it to the power supply ( Fig. 9 ). Place the power cable so that

► it is easily accessible at all times and can be pulled off quickly, for example in case of inter-

ference or an emergency;

► it does not represent a trip hazard; ► it cannot come into contact with any hot parts.

4.2 Establishing water supply

4.2.1 Water speciﬁ cations

For humidification with a water tray or steam generator, only use: demineralised water (aqua dem) in accordance with VDE 0510/DIN EN 50272 if you are working according to these regulations (production conductivity ≥ 5 ≤ 10 μS/cm). You can buy battery water in accord- ance with the VDE 0510 standard in all larger drug stores, supermarkets and hardware stores as well as from wholesale traders. The VDE 0510/DIN EN 50272 standard has to be explicitly specified on the label.

Otherwise, possible calcification in the steam generators, steam piping and steam generator pumps could affect the correct functioning of the appliance.

Only use chlorine-free water with a pH value of > 5 and < 7.

4.2.2 For appliances with passive humidity control: inserting the water tray

Mount the provided sealing lip to the narrow side of the water tray (Fig. 10) and fill 1.5 cm to 2 cm of water into the tray (for specifications see section 4.2.1).

Place the water tray with the attached sealing lip in the centre of the appliance floor and carefully push it towards the rear panel until the sealing lip is completely under the ventilation opening, touching the rear panel along its entire length (Fig. 11). The sealing lip magnetically adheres to the rear panel and returns the water condensing on the humidity limiter to the water tray.

Fig. 9 Connect the power cable to the rear of the appliance

D33451 | Date 01/2018 21

Putting into operation

NOTICE

Important: make sure not to spill any water and make sure that no water flows past the water tray and onto the floor, as this would cause the humidity to exceed the maximum values.

Fig. 10 Attach the sealing lip

Fig. 11 Push the water tray to the rear panel

4.2.3 For appliances with active humidity control: Fill up and connect the water

tank

Fill the supplied water tank with water and use the enclosed tube to connect it to the “H2O” connection on the rear of the chamber (Fig. 12).

4.3 CO2 and N2 connection

WARNING

Danger of explosion and poisoning when introducing gases/substances other than CO

and N2. Only carbon dioxide (CO2) and ni-

trogen (N

) may be introduced into the appliance through the gas

connections on the rear of the appliance.

WARNING

Gas bottles may burst or explode at high temperatures. Keep the gas bottles away from open ﬂ ames. Do not store gas bottles at or above 50 °C and ensure that the location is always well-ventilated. Prevent water from penetrating as well as backﬂ ow into the gas bottles. It is essential that you read the safety notes and instructions of the gas supplier.

CAUTION

Danger of suffocation. CO2 and N2 can have a suffocating effect in high concentrations. In normal mode, the appliance emits small amounts of CO

22 D33451 | Date 01/2018

Putting into operation

CAUTION

High concentrations of CO2 can cause cold burns or frostbite. Avoid contact with CO

gas to the eyes and skin.

On the rear of the appliance, connect the delivered gas connection tubes to the CO

and N2 gas bottles (pressure reducer) and to the connections “CO2 In” and “N2 In” (N

only for appliances with active humidity control) (Fig. 12). Set pressure reducer to between 1.0 and 1.2 bar.

4.4 Switching on

Switch on the appliance by pressing the On/Off switch on the front of the appliance ( Fig. 13 ).

Three animated white dots

indicate that start-up is in progress . If the dots have another colour, an error has occurred (see page 45).

After the first start-up, the appliance display is set to English by default. You can change the language as described from page 47 . However, to get a basic overview of operating the appliance, you should read the following chapter first.

Fig. 13 Switch on appliance

123

Fig. 12 Media connections on the rear of the appliance 1 Connection 1 CO

2 Connection 2 CO2 (optional) 3 Connection N

(only for models with O2

module)

4 Water connection (only for appliances with

active humidity control)

D33451 | Date 01/2018 23

Operation and control

5. Operation and control

5.1 For your safety

WARNING

Leaving the door open during operation can cause the appliance to overheat or pose a ﬁ re hazard. Do not leave the door open during operation.

WARNING

CAUTION

Danger of suffocation. CO2 and N2 in high concentrations can have a suffocating effect. In normal mode, the appliance emits small amounts of CO

and N2 to its surroundings. You should therefore ensure that the room is properly ventilated. A ventilation rate of 250 m³ / h is required. Always close the stop valve or pressure reducer on the gas bottles if the appliance is not in operation.

CAUTION

High concentrations of CO2 can cause cold burns or frostbite. Avoid contact with CO

gas to the eyes and skin.

5.2 Operating personnel

The appliance may only be operated by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

24 D33451 | Date 01/2018

Operation and control

5.3 Opening the door

► To open the door, pull the door handle to the side (to the left or to the right, depending

on the door variation, see Fig. Fig. 14 , A).

► To close the appliance, push the door closed and push the door handle to the side (B).

Fig. 14 Opening and closing the door

D33451 | Date 01/2018 25

Operation and control

5.4 Loading the appliance

WARNING

When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may only be loaded with materials which do not form any toxic or explosive vapours when heated up and cannot ignite (see also Intended use on page 8). If there is any doubt as to the composition of materials, they must not be loaded into the appliance.

NOTICE

► Check the chamber load for chemical compatibility with the materials of the appliance (see

page 11).

Insert the sliding steel grids or sliding shelves. The maximum number or grids / shelves and the load capacity are specified in the technical data overview from page 13 .

Load the chamber leaving enough space between the items so that proper air circulation in the interior is guaranteed. Do not place any of the chamber load on the bottom, touching the side walls or right below the ceiling of the chamber (Fig. 15, see also the "correct loading" sticker on the appliance).

In case of improper loading (not enough space between the items), the set temperature may be exceeded or it may take longer until it is reached.

5.5 Operating the appliance

5.5.1 ControlCOCKPIT

In manual operation, the desired parameters are entered at the ControlCOCKPIT on the front of the appliance (Fig. 16 and Fig. 17 ). You can also make basic settings here (menu mode). Additionally, warning messages are displayed, e.g. if the temperature is exceeded. In programme mode, the parameters defined, the programme description, the programme segment currently active and programme duration remaining are displayed (for a more detailed description, see page 30).

Fig. 15 Correct placement of the chamber load

26 D33451 | Date 01/2018

Operation and control

TIMER

End 14: 45

44h:44m

Holz trocknen aufheizen 09:12h

Fr 20.10.2010 20:31

min

000°C

ALARM

of °C

max

000°C

auto off

99K

012

%rh°C

GRAPH

off

LIGHTONLIGHT

HUMIDITY

30%rh

Set 30 %rh

22.4°C

TEMP

Set 37

.0°C

10.0 %

10.

Set

CO2

1.0 %

15.

Set

ALARM

max

40.0°C

0.0K

min

15.0°C

auto

Manual Mode

12.Sept.2012

13:44

5 678912 3 4

19 2015 16 17 1810 11 12 13 14

TIMER

30m04h

End

13:30 23.11.

Fig. 16 ControlCOCKPIT of ICO appliances with O2 and active humidity control in operating mode

TIMER

End 14: 45

44h:44m

Holz trocknen aufheizen 09:12h

Fr 20.10.2010 20:31

min

000°C

ALARM

of °C

max

000°C

auto off

99K

012

%rh°C

GRAPH

off

LIGHTONLIGHT

°C22.4

TEMP

°CSet 37.0

TIMER

30m04h

Ende

13:30 23.11.

CO2

1.0 %

15.

Set

ALARM

max

40.0°C

0.0K

min

15.0°C

auto

Manual Mode

12.Sept.2012

13:44

5678912

19 2015 16 17 1810 11 12

Fig. 17 ControlCOCKPIT of ICO appliances without O2 and active humidity control in operating mode

1 Activation key for temperature setpoint

adjustment 2 Setpoint and actual temperature display 3 Display O

setpoint and actual value

4 Activation key for setting the O

setpoint 5 Switch to menu mode (see page 46) 6 Activation key for setting the CO

setpoint

7 Display CO

setpoint and actual value 8 Appliance state and programme display 9 Activation key for the appliance state 10 Activation key digital backwards counter

with target time setting, adjustable from 1 minute to 99 days

11 On/Off switch

12 Display digital backwards counter with

target time setting, adjustable from 1 minute to 99 days

13 Display humidity setpoint and actual

value 14 Humidity control activation key 15 Turn control for setpoint adjustment 16 Confirmation key (accepts setting made

with the turn control) 17 Activation key for setting the temperature,

humidity, CO

and O2 monitoring

18 Temperature, humidity, CO

and O2

monitoring 19 Graphical representation of setpoint and

actual values 20 Activation key for graphic representation

D33451 | Date 01/2018 27

Operation and control

5.5.2 Basic operation

In general, all settings are made according to the following pattern:

1. Activate the desired parameter (e.g. temperature). To do so, press the corresponding activation key on the left or right or the respective display. The activated display is lined in colour, the other displays are dimmed. The set value is highlighted in colour.

.5°C100

TEMP

22.4°C

TEMP

37.0°CSet

2. By turning the turn control to the left or right, adjust the set value (e.g. to

37.0 ºC).

3. Save the set value by pressing the confirmation key. The display returns to normal and the appliance begins adjusting to the defined set value.

23.2°C

TEMP

Set 37

.0°C

Additional parameters can be set accordingly.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically restores the former values.

If you want to cancel the setting procedure, press the activation key on the left or right of the display that you want to exit. The appliance restores the former values. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

5.5.3 Operating modes

The appliance can be operated in different modes:

► Manual mode: The appliance runs in permanent operation at the values set on the Con-

trolCOCKPIT. Operation in this mode is described in chapter 5.5.4 .

► Operation with digital backwards counter with target time setting, adjustable from 1

minute to 99 days (timer): The appliance runs at the values set until the timer has elapsed. Operation in this mode is described in chapter 5.5.5 .

► Programme mode: The appliance automatically runs programme sequences which have

been defined using AtmoCONTROL software at a computer / laptop and then transferred to the appliance from a USB stick or via Ethernet. Operation in this mode is described in chapter 5.5.6 .

► via remote control (AtmoREMOTE)

22.4°C

TEMP

37.0°CSet

28 D33451 | Date 01/2018

Operation and control

The status display shows you which operating mode or operating state the appliance is currently in. The current operating state is highlighted in colour and indicated by the text display:

 Appliance is in programme mode

■ Programme is stopped

 Appliance is in manual mode

The example on the right shows the appliance in manual mode, identified by the coloured hand symbol.

► When the appliance is in timer mode, Timer active

is displayed:

► If the appliance is in remote control mode,

the

symbol appears in the temperature display:

5.5.4 Manual mode

In this operating mode, the appliance runs in permanent operation at the values set on the ControlCOCKPIT.

Adjustment options

As described in chapter 5.5.2 , you can set the following parameters after pressing the corresponding activation key (in any sequence):

Temperature Adjustment range: +18 °C to +50 °C

Heating operation is indicated by the

symbol.

You can select °C or °F as the temperature unit displayed (see page 49).

22.4

37.0

TEMP

Set

°C

Humidity (only for appliances with active humidity control) Adjustment range: 40 to 97 % rh and OFF

Humidification is indicated by the

symbol.

Dehumidification is indicated by the

symbol.

When the appliance heats up, the humidity is dynamically adjusted to approach the setpoint depending on the dew point of the interior temperature.

HUMIDITY

%rh

Set

34%

Manual Mode

12.Sept.2012

13:44

Timer active

12.Sept.2012

13:44

23.2°C

TEMP

Set 38

.0°C

D33451 | Date 01/2018 29

Operation and control

Adjustment range: 0 to 20 % in steps of 0.1 %

CO2

1.0 %

15.

Set

The number 1 or 2 displayed in the gas bottle symbol indicates which gas bottle is currently active.

1 2

O2 (only for corresponding model) Adjustment range: 1 % to 20 % in steps of 0.1 %

1.0 %

10.

Set

5.5.5 Operation with digital backwards counter with target time setting,

adjustable from 1 minute to 99 days ( timer)

In timer operation, you can adjust the time the appliance runs at the set values. The appliance has to be in manual operating mode for this.

1. Press the activation key to the left of the timer display. The timer display is activated.

TIMER

Ende

9:00 23.11.

--h- m

2. Turn the turn control until the desired duration is displayed – in this example 4 hours 30 minutes. The approximate end time is shown beneath, in a smaller font.

TIMER

End

13:30 23.11.

04 mh 3

Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes) format. For 24 hours and more, the format dd:hh (days:hours) is used. The maximum duration adjustable is 99 days 00 hours.

3. Press the confirmation key to confirm.

The display now shows the remaining time in a large font and the approximate end time in a smaller font beneath. The status display shows

Timer active.

TIMER

30m04h

End

13:30 23.11.

Timer active

12.Sept.2012

13:44

30 D33451 | Date 01/2018

Operation and control

4. Now, as described under 5.5.2 , set the individual values which you want the appliance to operate at. The set values can be changed at any time while the timer elapses. The changes are effective immediately.

Setup, you can choose if the timer should run setpoint-dependent or not. This deter-

mines whether the timer should not start until a tolerance band around the set temperature is reached or if it should start right after activation (see page 50). If the timer runs setpoint-dependent, this is indicated by the

symbol in the timer display.

When the timer expires, the display shows 00h:00m. All functions (heating etc.) are switched off. In addition, an acoustic alarm sounds, which can be turned off by pressing the confirmation key.

Note that condensation may occur in the interior after you switch off the heating.

To deactivate the timer, open the timer display by pressing the activation key again and then turning the turn control to reduce the timer setting until --:-- is displayed. Confirm with the confirmation key.

5.5.6 Programme mode

In this operating mode, programmes saved in the appliance can be started with different combinations of individual parameters (temperature, humidity, etc.) at staggered intervals, which the appliance then automatically processes in sequence. These programmes are not created directly at the appliance but externally at a computer / laptop and using AtmoCONTROL software. Transfer to the appliance is possible using the provided USB storage medium or via Ethernet.

A description of how to create and save programmes can be found in the separate AtmoCONTROL software manual.

NOTICE

One or several default sterilisation programmes are saved in the appliance (see page 58). They only serve to sterilise the appliance itself. Do not use them to sterilise medical devices. The hold time in the sterilisation programme set in the appliance at 180 °C is 1 h. The total time including heating up and cooling down to 50 °C is 6 h 30 min.

Starting a programme

1. Press the activation key to the right of the status display. The current operating mode is highlighted automatically, in this example

Manual mode ( ).

manueller Betrieb

Fr 20.10.2010 20:31

GRAPH

Manual mode

17:4413.Sept.2012

Activate

2. Turn the turn control until the  start symbol is highlighted. The current programme is displayed, in this example

Steri 180.

Steri 180 ready

10:4412.Sept.2012

TIMER

00m00h

End

13:30 23.11.

TIMER

--m--h

End

9:00 23.11.

D33451 | Date 01/2018 31

Operation and control

Only the programme currently selected in menu mode and shown in the display can be used. If you want to process another programme, you need to activate it in menu mode first (description from page 58).

3. To start the programme, press the confirmation key. The programme is executed. The display shows:

► the programme description (in this exam-

ple

Steri 180)

► the programme segment description, in

this example

Heat up

► the current run (in case of loops)

Steri 180 Heat up

10:4412.Sept.2012

You cannot change any parameters (e.g. the temperature) at the appliance while a programme is running. However, the displays

ALARM and GRAPH can still be used.

Cancel programme

You can cancel an active programme at any time.

1. Press the activation key to the right of the status display. The status display is automatically highlighted.

manueller Betrieb

Fr 20.10.2010 20:31

GRAPH

Steri 180 Heat up

10:4412.Sept.2012

2. Turn the turn control until the stop symbol

■

is highlighted.

Progr. Stopp

Steri 180

10:4812.Sept.2012

3. Press the confirmation key to confirm. The programme is cancelled.

End

Steri 180

10:4912.Sept.2012

A cancelled programme cannot be resumed at the point it was cancelled. It must be restarted from the beginning.

End of programme

End

is shown on the display to indicate that

the programme has finished.

End

Steri 180

10:4912.Sept.2012

32 D33451 | Date 01/2018

Operation and control

You can now

► restart the programme as described ► select another programme for processing in menu mode (see page 58) and run it as

described.

► return to manual mode. To do so, reactivate it by pressing the

activation key next to the status display, then turn the turn control until the hand symbol

is highlighted in colour and

press the confirmation key.

5.6 Monitoring function

5.6.1 Temperature monitoring

The appliance is equipped with a multiple overtemperature protection in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction:

► electronic temperature monitoring (TWW) ► automatic temperature monitor ( ASF) ► mechanical temperature limiter (TB)

The monitoring temperature of the electronic temperature monitor is measured via a separate Pt100 temperature sensor in the interior. Temperature monitoring settings are made via the

ALARM display. The settings made apply to all operating modes.

If temperature monitoring has been triggered, this is indicated by the temperature display: the actual temperature is highlighted in red and a warning symbol

is displayed ( Fig. 18 ). The type of temperature monitoring triggered (TWW in this example) is shown beneath the temperature.

If the acoustic alarm has been activated in menu mode (

Sound

see page 59, indicated by the speaker symbol

in the alarm display), the alarm is additionally signalled by an intermittent acoustic signal, which can be turned off by pressing the confirmation key. Information on what to do in this case is provided in chapter Malfunctions, warning and error messages from page

41. Before reading how to adjust temperature monitoring (from page 34), please read the

description of the individual monitoring functions here.

Electronic temperature monitoring ( TWW)

The manually set monitoring temperature min and max of the overtemperature control is monitored by an adjustable over/undertemperature controller (TWW) of protection class 3.3 according to DIN 12 880. If the manually set monitoring temperature

max is exceeded, the

TWW takes overtemperature control and begins to regulate the monitoring temperature (Fig.

19).

Manual Mode

12.Sept.2012

13:44

ALARM

max

38.5°C

1.0K

min

36.5°C

auto

TEMP

TWW Set 38.5 °C

42.4°C

Fig. 18 Temperature monitoring triggered

D33451 | Date 01/2018 33

Operation and control

Setting MAX

Set temperature

°C

Controller error

Emergency operation

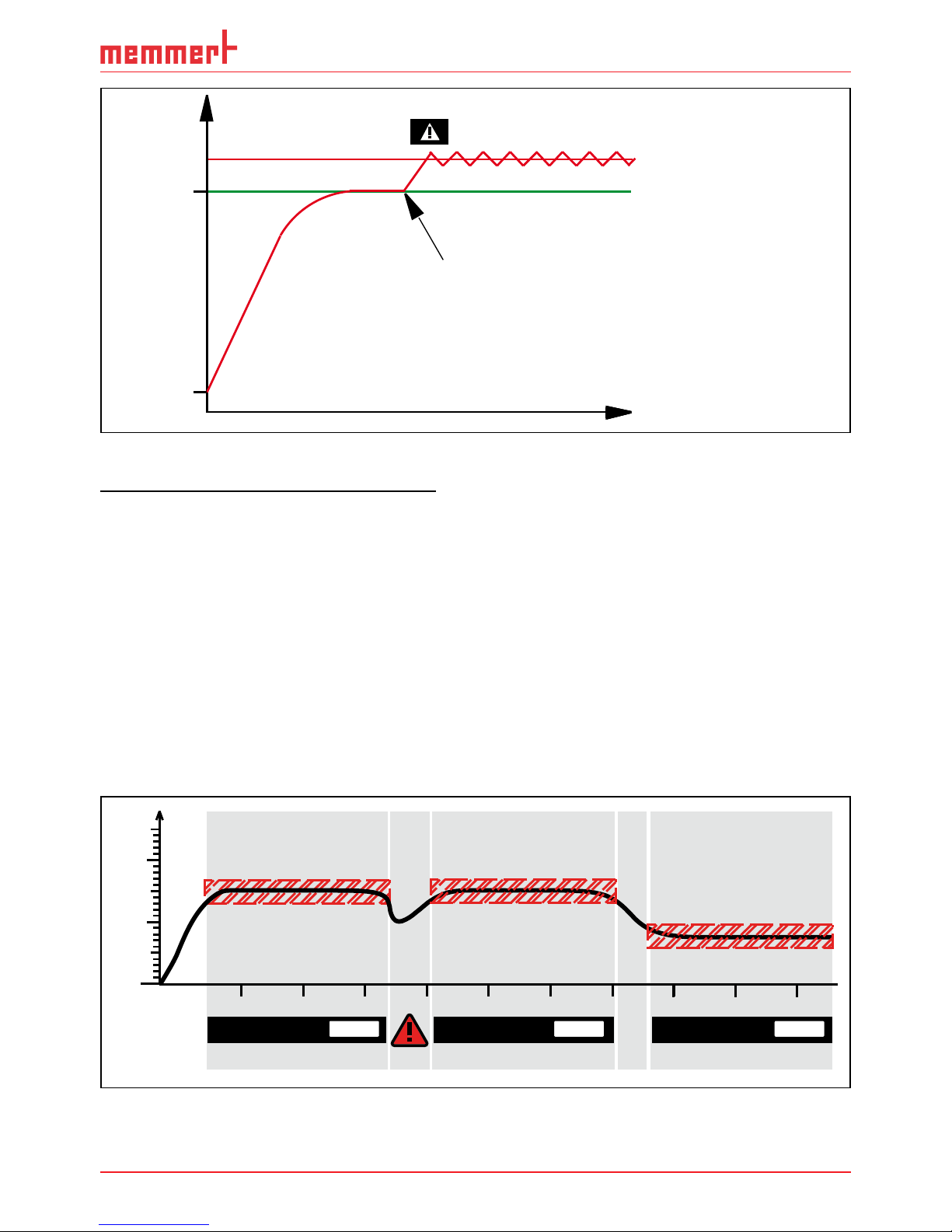

Fig. 19 Schematic diagram of how TWW temperature monitoring works

Automatic temperature monitor ( ASF)

ASF is a monitoring device that automatically follows the set temperature setpoint within an adjustable tolerance band (Fig. 20).

The ASF – if switched on – is automatically activated as soon as the actual temperature value reaches 50 % of the set tolerance band of the setpoint (in the example: 50 °C ± 1 K) for the first time (section A).

When the temperature violates the set tolerance band around the setpoint (in the example in Fig. 20: 50 °C ± 2 K) – e.g. if the door is opened during operation (section B of illustration) – the alarm is set off. The ASF alarm is automatically triggered as soon as 50 % of the set tolerance band of the setpoint (in the example: 50 °C ± 1 K) are reached again (section C).

If the temperature setpoint is altered, the ASF is automatically disabled temporarily (in this example: The setpoint is changed from 50 °C to 25 °C, section D), until it reaches the tolerance range of the new temperature setpoint (section E).

52°C

48°C

ASF active

52°C

48°C

ASF alarm

ASF active ASF active

27°C

23°C

°C

50°C

25°C

ABCDE

AUTO AUTO AUTO

Fig. 20 Schematic diagram of how the ASF temperature monitoring works

34 D33451 | Date 01/2018

Operation and control

Mechanical temperature monitoring: Temperature limiter (TB)

The appliance is equipped with a mechanical temperature limiter (TB) of protection class 1 in accordance with DIN 12 880. If the electronic monitoring unit fails during operation and the default maximum temperature is exceeded by at least 20 °C, the temperature limiter, as the final protective measure, switches off the heating permanently.

Adjusting temperature monitoring

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated (

min

000°C

ALARM

max

000°C

auto off

99K

ALARM

max

auto

0.0K

min

15.0 °C .0°C

2. Save the selection by pressing the con-

firmation key. The

min setting (under-

temperature protection) is automatically activated.

ALARM

max

auto

0.0K

min

15.0°C .0 °C

1. By turning the turn control, adjust the

desired lower alarm limit value, in the example on the right 35.5 °C.

The lower alarm limit value cannot be set higher than the top one. If no undertemperature protection limit is required, set the lowest temperature.

ALARM

0.0K

min

°C

auto

max

40.0°C

35 5.

2. Press the confirmation key to confirm.

The

max display (overtemperature pro-

tection) is activated.

ALARM

0.0

min

°C

auto

max

°C

35 5.

40 0.

3. By turning the turn control, adjust the

desired upper alarm limit value, in the example on the right 38.5 °C.

The monitoring temperature must be set sufficiently high above the maximum set temperature. We recommend 0.5 to 1 K.

ALARM

0.0K

min

°C

auto

max

°C35 5. 385.

4. Accept the upper alarm limit value by

pressing the confirmation key. The setting of the automatic temperature monitor (ASF) is automatically activated (

auto).

ALARM

max

38.5 °C

0.0K

min

35.5°C

auto

TEMP

TB Set 38.5 °C

.4°C

D33451 | Date 01/2018 35

Operation and control

5. With the turn control, select ON (



) or

OFF ().

ALARM

max

38.5 °C

0.0K

min

35.5°C

auto

6. Press the confirmation key to confirm.

The ASF tolerance band setting is activated.

ALARM

min

°C

auto

max

38.5°C

35 5.

0.0

7. With the turn control, adjust the desired

tolerance band. We recommend 0.5 to 1 K.

ALARM

min

°C

auto

max

38.5°C

35 5.

1.0

8. Press the confirmation key to confirm.

Temperature monitoring is now active.

ALARM

max

38.5°C

1.0K

min

36.5°C

auto

5.6.2 Humidity monitoring

(only for appliances in the corresponding configuration) If humidity monitoring was triggered, this

is indicated by the humidity display: the actual humidity is highlighted in red and a warning symbol

is shown ( Fig. 21 ). If the acoustic alarm has been activated in menu mode (

Sound, see page 59, as indicated

by the speaker symbol

), the alarm is additionally signalled by an intermittent acoustic signal. Information on what to do in this case is provided in chapter Malfunctions, warning and error messages from page 46.

min

000

LIG

FEUCHTE

30.0%rh

Set 30.0%rh

0C°C

°C22.4

°CSet 37.0

:30

HUMIDITY

Set 70

.0%rh

%rh

75.4

FEUCHTE

30.0%rh

Set 30.0%rh

°CSet 37.0

HUMIDITY

Set 70

.0%rh

%rh

75.4

Fig. 21 Humidity monitoring triggered

36 D33451 | Date 01/2018

Operation and control

Adjusting humidity monitoring (only for appliances in the corresponding configuration)

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated.

min

000°C

ALARM

max

000°C

auto off

99K

ALARM

max

auto

0.0K

min

15.0 °C .0°C

2. Turn the turn control until the humidity

monitoring entry

is highlighted.

ALARM

min

20.0 %rh

max

60.0 %rh

3. Accept the selection by pressing the con-

firmation key. The lower humidity alarm limit is automatically highlighted.

ALARM

min

20.0%rh

max

60.0 %rh

4. By turning the turn control, adjust the

desired lower alarm limit, in the example on the right 50 % rh.

ALARM

min

50.0%rh

max

60.0 %rh

5. Accept the selection by pressing the con-

firmation key. The upper humidity alarm limit is automatically highlighted.

ALARM

min

50.0%rh

max

60.0 %rh

6. By turning the turn control, adjust the

desired upper alarm limit, in the example on the right 70 % rh.

ALARM

min

50.0%rh

max

70.0 %rh

7. Accept the selection by pressing the

confirmation key and leave the

Alarm

display by pressing the activation key on the side. Humidity monitoring is now active.

ALARM

min

50.0%rh

max

70.0 %rh

D33451 | Date 01/2018 37

Operation and control

5.6.3 CO2 monitoring

If CO2 monitoring was triggered, this is indicated by the CO

display: the actual value is highlighted in red and a warning symbol

is shown ( Fig. 22 ). If the acoustic alarm has been activated in menu mode (

Sound, see page 59, as indicated by the

speaker symbol

), the alarm is additionally signalled by an intermittent acoustic signal. Information on what to do in this case is provided in chapter Malfunctions, warning and error messages from page

41.

Adjusting CO2 monitoring

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated.

min

000°C

ALARM

max

000°C

auto off

99K

ALARM

max

auto

0.0K

min

15.0 °C .0°C

2. Turn the turn control until the CO2 adjust-

ment entry is selected (upper gas bottle symbol

ALARM

min

10.0%

max

10.0%

3. Accept the selection by pressing the

confirmation key. The lower alarm limit is automatically selected.

ALARM

min

max

10.0%

10 4.

10.0

4. By turning the turn control, adjust the

desired lower alarm limit, in the example on the right 7 %.

ALARM

min

max

10.0%

10 4.

7.0

5. Accept the selection by pressing the

confirmation key. The upper alarm limit is automatically highlighted.

ALARM

min

7.0 %

max

10.0%

min

000°C

ALARM

of °C

max

000°C

auto off

99K

LIGHTONLIGHT

.0%rh

t 30.0%rh

LICHT

100

ALARM

max

38.5°C

auto

0.0K

min

35.5°C

CO2

Set 15

.0%

12.0

H au 09

Fr 20

ALARM

of °C

LIGHT

LICHT

100

ALARM

12.Se

CO2

Set 15

.0%

12.0

Fig. 22 CO

monitoring triggered

38 D33451 | Date 01/2018

Operation and control

6. By turning the turn control, adjust the

desired upper alarm limit, in the example on the right 15 %.

ALARM

min

7.0%

max

15.0%

7. Accept the selection by pressing the

confirmation key and leave the

Alarm

display by pressing the activation key on the side. CO

monitoring is now active.

ALARM

min

7.0%

max

15.0%

5.6.4 O2 monitoring

(only for appliances in the corresponding configuration) If O

monitoring was triggered, this is

indicated by the O

display: the actual value

is highlighted in red and a warning symbol

is shown ( Fig. 23 ). If the acoustic alarm

has been activated in menu mode (

Sound,

see page 59, as indicated by the speaker symbol

), the alarm is additionally signalled by an intermittent acoustic signal. Information on what to do in this case is provided in chapter Malfunctions, warning and error messages from page 41.

Adjusting O2 monitoring

O2 monitoring is set the same way as CO2 monitoring (see page 37). After the alarm display is activated, turn the turn control until the O

adjustment entry is selected (upper

gas bottle symbol

) and set the min and max

values as described above.

ALARM

min

10.0%

max

10.0%

5.7 Graph

The GRAPH display provides an overview of the chronological sequence of the setpoint values and actual values for temperature, humidity, CO

and O2 content as a curve.

Press the activation key to the right of the

GRAPH display. The

display is enlarged and the temperature profile shown.

0 4 8 12162024

°C

40 20

100

Fr 20.10.2010 20:34

12.09.2012

14.00 16.00 18.00

FEUCHTE

10.0 %

10.

Set

Set 15

.0%

12.0

FEUCHTE

.0°C

10.0 %

10.

Set

Set 15

.0%

12.0

Fig. 23 O

monitoring triggered

D33451 | Date 01/2018 39

Operation and control

► To display the setpoint and ac-

tual values for humidity, CO

and O

: Press the activation key next to the parameter selection.

0 4 8 12162024

°C

40 20

100

Fr 20.10.2010 2

12.09.2012

14.00 16.00 18.00

Select the humidity symbol or one of the gas bottle symbols with the turn control. Accept the selection by pressing the confirmation key.

12.09.2012

► To change the time frame to

be displayed: Press the activation key next to the  arrow symbols. The time frame to be displayed can now be changed by turning the turn control.

0 4 8 12162024

°C

40 20

100

Fr 20.10.2010 20

12.09.2012

14.00 16.00 18.00

► To zoom the graph in or out:

Press the activation key next to the magnifying glass symbol. Select whether you want to zoom in or out (+/–) with the turn control and confirm your selection by pressing the confirmation key.

.2010 20:34

To close the graphical representation, press the activation key you used to activate it again.

5.8 Sterilising the appliance

One or several sterilisation programmes are saved in the appliance. They are used to sterilise the appliance. Do not use them to sterilise medical devices.

The hold time in the appliance’s sterilisation programme at 180 °C is 1 h. The total time including heating up and cooling down to 50 °C is 6 h 30 min. At the end of the sterilisation programme, the appliance maintains a constant temperature of 37 °C and the status display shows

Steri End.

Appliance sterilisation procedure

1. If there is a HEPA filter in the interior of the fan box (dditional equipment, Fig. 24) is fitted: Remove HEPA filter. It can get damaged during sterilisation.

2. Empty the water trays or, for appliances with active humidity control, open the door briefly to vent the appliance and let the humidity escape.

3. Insert the slide-in units and the water tray with the rubber seal and close the door.

Fig. 24 HEPA filter

40 D33451 | Date 01/2018

Operation and control

4. In the menu mode, prepare the sterilisation programme for execution (see page 58).

5. Switch to the operating mode and start the sterilisation programme as described on page

30. You cannot set or change any values as long as the programme is running.

6. Once sterilisation is finished and the appliance has cooled down to 37 °C, end the sterilisation programme. To do so, press the activation key to the right of the status display. The status display is automatically highlighted.

manueller Betrieb

Fr 20.10.2010 20:31

GRAPH

Steri 180 Steri End

10:4412.Sept.2012

7. Turn the turn control until the hand symbol is highlighted.

Manual mode

17:4413.Sept.2012

Activate

8. Press the confirmation key to confirm.

9. Replace the HEPA filter in the interior (optional).

You can now load the appliance and continue to operate it as usual. You have to enter all set values again (temperature, CO

, O2,

humidity), see chapter 5.5.4.

Manual Mode

12.Sept.2012

13:44

5.9 Ending operation

1. Switch off active appliance functions (turn back the set values).

2. Close the valves on the gas bottles.

3. Remove the chamber load.

4. Check and, if required, fill up the water tank (see page 21) or remove the water tray(s) of appliances with passive humidity control.

5. Switch off the appliance with the main switch (Fig. 25).

Fig. 25 Switching off the appliance

D33451 | Date 01/2018 41

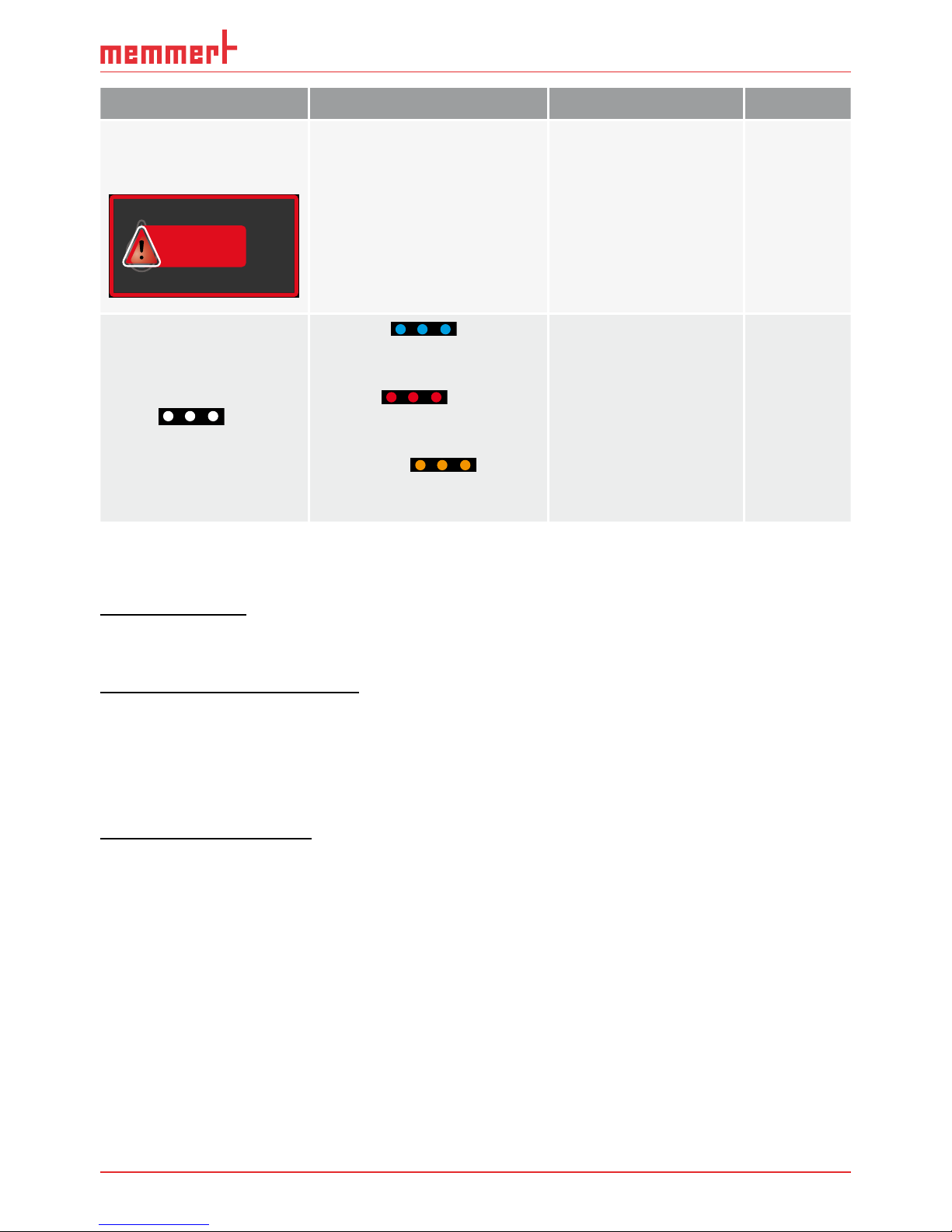

Malfunctions, warning and error messages

6. Malfunctions, warning and error messages

WARNING

After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Do not try to rectify appliance errors yourself by opening the appliance, instead, contact the MEMMERT customer service department (see page 2) or an authorised service point.

6.1 Warning messages of the monitoring function

If the acoustic alarm has been activated in the menu mode (

Sound, see page 59, indicated by the speaker symbol ), the

alarm is additionally signalled by an intermittent acoustic signal. If the confirmation key is pressed, the acoustic alarm can be temporarily switched off until the next alarm event occurs.

6.1.1 Temperature monitoring

Description Cause Action See

Temperature alarm and "ASF" are displayed

TEMP

ASF Set 38.5 °C

40.4°C

Automatic temperature monitor (ASF) was triggered.

Check if the door is closed. Close the door.

Increase the ASF tolerance band. If the alarm continues: Contact

customer service

Page 34

Page 2

Temperature alarm and "TWW" are displayed

TEMP

TWW Set 38.5 °C

.4°C

The adjustable temperature controller (TWW) has assumed heating control.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring or decreasing the setpoint temperature.

If the alarm continues: Contact customer service

Page 34

Page 2

Temperature alarm and "TB" are displayed

TEMP

TB Set 38.5 °C

.4°C

The mechanical temperature limiter (TB) permanently switched off heating.

Switch off the appliance and leave to cool down.

If the error occurs again, contact customer service.

Page 2

42 D33451 | Date 01/2018

Malfunctions, warning and error messages

6.1.2 Humidity monitoring (only for appliances in the corresponding

conﬁ guration)

Description Cause Action See

Error display symbol

HUMIDITY

Set 55

.0%rh

%rh

Water tank empty

Fill the water tank with demineralised/distilled water and press the confirmation key

Page 21

Alarm display (

MaxAl)

HUMIDITY

MaxAl Set 70

.0%rh

%rh

Upper humidity limit exceeded

Open the door for 30 sec. and wait to see if the appliance reliably adjusts to the setpoint.

If the error occurs again, contact customer service.

Page 2

Alarm display (

MinAl)

HUMIDITY

MinAl Set 60

.0%rh

%rh

Humidity below lower limit

Check if the door is closed. Check the water supply and the

fill level of the water tank / water trays. If required, refill the water tank / water trays.

If the error occurs again, contact customer service.

Page 21

Page 2

6.1.3 CO2 Monitoring

Description Cause Action See

Alarm indicates that the upper CO

alarm limit

was exceeded

CO2

Set 10

.0%

13.0

Open the door for 30 sec. and wait to see if the appliance then steadily adjusts to the setpoint.

If the error occurs again, contact customer service. Page 2

D33451 | Date 01/2018 43

Malfunctions, warning and error messages

Description Cause Action See

Alarm indicates that the lower CO

alarm limit

was undercut

CO2

Set 15

.0%

12.0

Check if the door is closed. Check that the lines are con-

nected correctly, check the valve and level of the gas bottle. If necessary, connect a new gas bottle.

If the error occurs again, contact customer service.

Page 21

Page 2

6.1.4 O2 monitoring

Description Cause Action See

Alarm indicates that the upper O

alarm limit

was exceeded

Set 10

.0%

13.0

Check the N2 supply and the fill level of the gas bottle.

If the error occurs again, contact customer service.

Page 2

Alarm indicates that the lower O

alarm limit was

undercut

Set 15

.0%

12.0

Open the door for 30 sec. and wait to see if the appliance then steadily adjusts to the setpoint.

If the error occurs again, contact customer service. Page 2

6.2 Malfunctions, operating problems and appliance errors

Description Cause Action See

Displays are dark External power supply

was interrupted

Check the power supply

Page 20

Miniature fuse, appliance fuse or power module faulty

Contact customer service

Page 2

Displays cannot be activated

Appliance locked by USER IDUnlock with USER ID Page 61

The appliance is in programme, timer or remote control mode (mode "Write" or "Write + Alarm")

Wait until the end of the programme or timer mode or switch off the remote control

44 D33451 | Date 01/2018

Malfunctions, warning and error messages

Description Cause Action See

Displays suddenly look different

Appliance is in "wrong" mode

Change to operating or menu mode by pressing the

key

Error message

T:E-3 in

the temperature display

TEMP

T:E-3 Set 37.0 °C

37.4°C

Temperature operating sensor is defective. The monitoring sensor takes over the measurement function.

► The appliance can

temporarily be kept in service

► Contact customer

service as soon as possible

Page 2

Error message

AI E-3 in

the temperature display

TEMP

AI E-3 Set 37.0 °C

37.4°C

Temperature monitoring sensor is defective. The operating sensor takes over the measurement function.

► The appliance can

temporarily be kept in service

► Contact customer

service as soon as possible

Page 2

Error message

E-3 in

the temperature display

TEMP

Set 45.0 °C

E-3 °C

Operating and monitoring sensor defective

► Switch off appli-

ance

► Remove the cham-

ber load

► Contact customer

service

Page 2

Error message

E-6 in

the humidity display

HUMIDITY

Set 50

.0%rh

%rh

E-6

Humidity sensor defective ► No humidity con-

trol possible

► Contact customer

service

Page 2

D33451 | Date 01/2018 45

Malfunctions, warning and error messages

Description Cause Action See

Error message E-5 in the CO

display

CO2

Set 15

.0%

E-5

CO2 sensor is defective ► No CO2 control

possible

► Contact customer

service

Page 2

When switching on the appliance, the "start" animation is displayed in another colour than white

► Cyan :

Not enough storage space on the SD card

► Red :

The system files could not be loaded

► Orange : The

fonts and images could not be loaded

Contact customer service

Download the firmware update at memmert.com and install it

Page 2

6.3 Power failure

In case of a power failure, the appliance operates as follows:

In manual mode

After power supply has been restored, operation is continued with the parameters set. The time and duration of the power failure are documented in the log memory.

In timer or programme mode

In case of an interruption of the power supply of less than 60 minutes, the current programme is continued from the point at which it was interrupted. For longer interruptions of the power supply, all appliance functions (heating, fan etc.) are switched off.

The sterilisation time is reset if the temperature drops while the sterilisation programme is running.

In remote control mode

The previous values are restored. If a programme has been initiated via remote control, it is continued.

46 D33451 | Date 01/2018

Menu mode

7. Menu mode

In menu mode, you can make basic settings, load programmes and export protocols, as well as calibrate the appliance.

NOTICE

► Before changing menu settings, read the description of the respective functions on the fol-

lowing pages to avoid possible damage to the appliance and/or chamber load.

To enter menu mode, press the MENU key.

To exit the menu mode at any time, press the MENU key again. The appliance then returns to operating mode. Only changes that are accepted by pressing the confirmation key are saved.

7.1 Overview

Press the MENU key to change between the displays in menu mode:

SETUP

SIGNALTÖNE

PROG

ZEIT UND DATUM

CALIB

USER ID

PROTOCOL

LANGUAGE

TIME

SOUND

12 34 512141513

67 18 1989 1011 16 17

Fig. 25 ControlCOCKPIT in menu mode

1 Language selection activation key 2 Language selection display 3 Date and time display 4 Date and time setting activation key 5 Exit menu mode and return to operating

mode

6 Setup activation key (basic appliance set-

tings)

7 Setup display (basic appliance settings) 8 Adjustment display 9 Adjustment activation key

10 Turn control for adjustment 11 Confirmation key (accepts setting made

with the turn control) 12 Programme selection activation key 13 Programme selection display 14 Protocol display 15 Protocol activation key 16 Acoustic signal adjustment activation key 17 Acoustic signal adjustment display 18 USER ID display 19 USER ID display activation key

D33451 | Date 01/2018 47

Menu mode

7.2 Basic operation in menu mode using the example of language selection

In general, all settings in menu mode are done just like in operating mode: Activate the respective display, use the turn control for setting and press the confirmation key to accept the change. A more detailed description is provided in the following, using the example of language selection.

1. Activate the desired parameter (in this

example the language). To do so, press the corresponding activation key on the left or right of the respective display. The activated display is enlarged.

ENGLISH

DEUTSCH

ESPANOL

FRANCAIS

If you want to exit or cancel the settings, press the activation key you used to activate the display again. The appliance returns to the menu overview. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

SETUP

SIGNALTÖNE

CALIB

LANGUAGE

TIME

2. With the turn control, select the desired

new setting, e.g. Español (Spanish).

3. Save the setting by pressing the confir-

mation key.

ENGLISH DEUTSCH

ESPANOL

FRANCAIS

4. To return to the menu overview, press the

activation key again.

SETUP

SIGNALTÖ

CALI

LANGUAGE

TIM

You can now

► activate another menu function by press-

ing the corresponding activation key or

► return to operating mode by pressing the

MENU key.

Balance

Einheit

IP Adresse

Alarm Temp Timer Mode

Unit

IP address

Subnet mask

Alarm Temp Timer Mode

ENGLISH DEUTSCH

ESPANOL

FRANCAIS

48 D33451 | Date 01/2018

Menu mode

All other settings can be made accordingly. The settings possible are described in the following sections.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically restores the former values.

7.3 Setup

7.3.1 Overview

In the SETUP display, you can set the following parameters:

► the IP address and subnet mask of the appliance's Ethernet interface (for connection to a

network)

► the temperature display unit (°C or °F, see page 49) ► how the digital backwards counter with target time setting works (Timer Mode, see page

50)

► Remote control (see page 50) ► Gateway (see page 50)

If the Setup menu contains more entries than can be displayed, this is indicated by the display "1/2". This means that there is a second "page" of entries.

To display the hidden entries, use the turn control to scroll beyond the lowest entry. The page display changes to "2/2".

7.3.2 IP address and subnet mask

If you want to operate one ore more appliances in a network, each appliance must have its own unique IP address for identification. By default, each appliance is delivered with the IP address 192.168.100.100.

LAN 1: 192.168.1.233

192.168.1.216

LAN 2: 192.168.1.215

LAN 3: 192.168.1.241

192.168.

Editor

Programmname

Simulation Protokoll

+-+

INP 250 Test 01

180

.0°C

HPP 250 Labor

.0°C

.4%rh

STAND BY

Programm negnulletsniEllokotorPtäreG efliHnekcurD

AtmoCONTROL

Fig. 26 Operation of several appliances in a network (schematic example)

Setup

Unit

IP adress 255.145.136.22

Subnet mask 255.255. 0.0

°C F

1/2

D33451 | Date 01/2018 49

Menu mode

1. Activate the

SETUP display. The entry IP

address is automatically highlighted.

SETUP

Balance

Einheit

IP Adresse

+30%

192.168.100.100

Alarm Temp

°C F TWW TWB

Timer Mode

SETUP

Unit

IP address 192.168.100.100

Subnet mask 255.255.0.0

Alarm Temp

°C F TWW TWB

Timer Mode

2. Accept the selection by pressing the con-

firmation key. The first three digits of the IP address are automatically selected.

SETUP

Unit

IP address 192. 168.1 0 0. 100

Subnet mask 255.255.0 . 0

Alarm temp

°C F TWW TWB

Timer mode

3. With the turn control, set the new num-

ber, e.g. 255.

SETUP

Unit

IP address 255. 168.1 0 0. 100

Subnet mask 255.255.0 . 0

Alarm temp

°C F TWW TWB

Timer mode

4. Accept the selection by pressing the

confirmation key. The next three digits of the IP address are automatically selected. Setting these is done according to the description above.

SETUP

Unit

IP address 255. 168.100.100

Subnet mask 255.255.0 . 0

Alarm temp

°C F TWW TWB

Timer mode

5. After setting the last three digits, accept

the new IP address by pressing the confirmation key. The selection returns to the overview. The subnet mask is set accordingly.

SETUP

Unit

IP address 255. 145.136.225

Subnet mask 255.255.0 . 0

Alarm temp

°C F TWW TWB

Timer mode

Unit Here, you can choose whether the temperature is displayed in

°C or °F.

SETUP

Unit

IP address 255. 145.136.225 Subnet mask 255.255.0 . 0

Alarm temp

°C °F

TWW TWB

Timer mode

50 D33451 | Date 01/2018

Menu mode

7.3.3 Timer Mode

Here, you can choose whether the digital backwards counter with target time setting (see page 29, timer) should run setpoint-dependent or not – this determines whether the timer should not start until a tolerance band of ±3 K around the set temperature is reached (Fig. 27, B) or whether it should start right after activation (A).

Timer

°C/°F

6 K



Fig. 27 Timer mode A Timer independent of setpoint: Timer starts right after activation B Timer setpoint-dependent: Timer does not start until tolerance band is reached

7.3.4 Remote control (AtmoREMOTE)

In the "remote control" setup entry , you can set whether the appliance should be controlled via remote control and if so, in which mode. These settings are available:

► Off ► Read only ► Write ► Write + Alarm

If the appliance is in remote control mode, the symbol appears in the temperature display. In the settings

Write

and Write + Alarm, the appliance cannot be controlled at the ControlCOCKPIT unless the remote control is switched off (setting

Off) or set to Read only.

In order to use the remote control function, programming skills and special libraries are required.

7.3.5 Gateway

The setup entry gateway is used to connect two networks with different protocols.

The gateway is set the same way as the IP address (see page

48).

Unit

IP address 255. 145.136.225 Subnet mask 255.255.0 . 0

Alarm temp

°C F TWW TWB

Timer mode

Remote Control Off

Gateway 192.168.5 .1

23.2°C

TEMP

Set 38

.0°C

Remote Control Off

Gateway 192.168.5 .1

D33451 | Date 01/2018 51

Menu mode

7.4 Date and time

In the TIME display, you can set the date and time, time zone and daylight saving time.

NOTICE

Always set the time zone (and daylight saving time yes/no) before you set the date and time. Avoid changing the set time after that since this can lead to gaps or overlapping when recording measured values. If you still need to change the time, you should not run a programme immediately before or after doing so.

1. Activate the time setting. To do so, press

the activation key on the right side of the

TIME display. The display is enlarged

and the first adjustment option (

Date)

automatically highlighted.

Date and time

Time Time zone Daylight savings

12.05 . 2012

12:00 GMT 01:00

Date

2. Turn the turn control until Time zone is

highlighted.

Time

Daylight savings

12. 05 .2012 12:00 GMT 01:00

Date

Time zone

3. Accept the selection by pressing the

confirmation key.

Time

Daylight savings

12. 05 .2012 12: 00 GMT

Date

Time zone

01:00

4. Set the time zone of the installation site

with the turn control, e.g. 00:00 for France, Spain or Great Britain and 01:00 for Germany. Accept the selection by pressing the confirmation key.

Time

Daylight savings

12. 05 .2012 12: 00 GMT

Date

Time zone

00:00

5. With the turn control, select the Daylight

savings

entry.

Time

12. 05 .2012 12: 00 GMT 00:00

Date

Time zone

Daylight savings

6. Accept the selection by pressing the

confirmation key. The adjustment options are highlighted.

Time

12. 05 .2012 12: 00 GMT 00:00

Date

Time zone

Daylight savings

52 D33451 | Date 01/2018

Menu mode

7. Set daylight savings to off () or on

(



) with the turn control – in this case

on (



). Save the setting by pressing the

confirmation key.

Time

12. 05 .2012 12: 00 GMT 00:00

Date

Time zone

Daylight savings

Daylight saving time and standard time are not changed automatically. For this reason, please keep in mind to adjust them at the beginning of each period.

8. Now, set date (day, month year) and time

(hours, minutes) in the same way. Accept the selection by pressing the confirmation key.

Time Time zone Daylight savings

..2012 12:00 GMT 00:00

Date 27 05

7.5 Calibration

NOTICE

To guarantee perfect control, we recommend to calibrate the appliance once a year. The calibration possibilities depend on the appliance configuration.

7.5.1 Temperature calibration

The appliances are temperature calibrated and adjusted at the factory. In case readjustment should be necessary later on – for example due to influence of the chamber load – the appliance can be calibrated customer-specifically using three calibration temperatures of your choice:

► Cal1 Temperature calibration at low temperature ► Cal2 Temperature calibration at medium temperature ► Cal3 Temperature calibration at high temperature

For temperature calibration, you will need a calibrated reference measuring device.

CAL 1

+0,5°C

CAL 3

+0,4°C

CAL 2

-0,4°C

factory calibration

20°C 30°C 40°C 50°C

0°C

10°C

Fig. 28 Schematic example of temperature calibration

D33451 | Date 01/2018 53

Menu mode

Example: Temperature deviation at 42 °C should be corrected.

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically selected.

Cal1 °C -0,2K Cal2 100.0 °C +0,1 K Cal3 180.0 °C -0,2 K

JUSTIEREN

Temperatur

letzte Justierung 12.10.2012 12:00

40.0

CK0,2- CK0,1+ CK0,2-

Calibrate

Cal1

Cal2

Cal3

40.0

50.0

30.0

Temperature

Humidity CO2 O2

2. Press the confirmation key repeatedly, until the calibration temperature Cal2 is selected.

CK0,2- CK0,1+ CK0,2-

Cal1

Cal2

Cal3

50.0

30.0

40.0

3. With the turn control, set the calibration temperature Cal2 to 42 °C.

CK0,2- CK0,1+ CK0,2-

Cal1

Cal2

Cal3

50.0

30.0

42.0

4. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

CK0,2-

0,2-

Cal1

Cal2

Cal3

50.0

30.0

42.0 0,1+

5. Set the calibration value to 0.0 K and accept the setting by pressing the confirmation key.

CK0,2-

0,2-

Cal1

Cal2

Cal3

50.0

30.0

42.0 0,0

6. Position the sensor of a calibrated reference instrument centrally in the appliance's working chamber.

7. Close the door and, in manual mode, adjust the set temperature to 42 °C.

21.4°C

TEMP

42.0 °CSet

8. Wait until the appliance reaches the set temperature and displays 42 °C. The reference instrument should display 43.6 °C.

42.0°C

TEMP

Set 42

.0°C

43.6 °C

54 D33451 | Date 01/2018

Menu mode

9. In the SETUP, adjust the calibration value Cal2 to +1.6 K (measured reference value minus displayed value) and save the setting by pressing the confirmation key.

CK0,2-

0,2-

Cal1

Cal2

Cal3

50.0

30.0

42.0 1,6+

10. After the calibration procedure, the temperature measured by the reference instrument should now also be 36 °C.

42.0°C

TEMP

Set 42

.0°C

42,0 °C

With Cal1, a calibration temperature below Cal2 can be programmed accordingly, and with Cal3, a temperature above. The minimum interval between the Cal values is 10 K.

If all calibration values are set to 0.0 K, the factory calibration settings are restored.

7.5.2 Humidity calibration

(only for appliances with active humidity control) You can adjust the humidity according to customer requirements with the two freely selecta-

ble balance points. For each selected calibration point, a positive or negative compensation correction value between –10 % and +10 % can be set (Fig. 29).

For temperature calibration, you will need a calibrated reference measuring device.

rh 50

+3,0 %

rh 95

+1,5 %

60%

40%

80%

100%

rh 85

-1,5 %

Factory calibration

Fig. 29 Humidity calibration (example)

D33451 | Date 01/2018 55

Menu mode

Example: Humidity deviation at 60 % should be corrected:

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically selected.

Cal1

°C -0,2

Cal2 100.0 °C +0,1 K Cal3 180.0 °C -0,2 K

JUSTIEREN

Temperatur

letzte Justierung 12.10.2012 12:00

40.0

CK0,2- CK0,1+ CK0,2-

Calibrate

Cal1

Cal2

Cal3

40.0

50.0

30.0 Temperature

Humidity CO2 O2

2. Turn the turn control until Humidity is highlighted.

%rh

%0,5- %1,0+

Temperature

Cal1

Cal2

10.0

50.0

%rh

1,0+Cal3 80.0

Humidity

CO2 O2

3. Press the confirmation key repeatedly, until the calibration point Cal2 is selected.

%rh

%0,5- %1,0+

Temperature

Cal1

Cal2

10.0

Humidity

50.0

CO2

%rh

1,0+Cal3

80.0

4. With the turn control, set the calibration point Cal2 to 60 % rh.

%rh

%0,5- %1,0+

Temperature

Cal1

Cal2

10.0

Humidity

60.0

CO2

%rh

1,0+

Cal3 80.0

5. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

%rh

%0,5-

JUSTIEREN

Temperature

Cal1

Cal2

10.0

Humidity

60.0 1,0+

CO2

%rh

1,0+

Cal3 80.0

6. Set the calibration value to 0.0 % and accept the setting by pressing the confirmation key.

%rh

%0,5-

Temperature

Cal1

Cal2

10.0

Humidity

60.0 0,0

CO2

%rh

1,0+Cal3

80.0

7. Position the sensor of the calibrated reference instrument centrally in the working chamber of the appliance.

8. Close the door and, in manual mode, adjust the set humidity to 60 % rh.

HUMIDITY

29.5%rh

Set 60.0%rh

56 D33451 | Date 01/2018

Menu mode

9. Wait until the appliance reaches the set humidity and displays 60 % rh. The reference instrument should display

58.5 % rh.

FEUCHTE

60.0%rh

Set 60.0%rh

58.5 %rh

10. In the SETUP, adjust the calibration value Cal2 to –1.5 % (measured reference value minus displayed value) and save the setting by pressing the confirmation key.

%rh

%0,5-

Temperature

Cal1

Cal2

10.0

Humidity

60.0 -1.5

CO2

%rh

1,0+Cal3 80.0

11. After the calibration procedure, the humidity measured by the reference instrument should now also be 60 % rh.

HUMIDITY

60.0%rh

Set 60.0%rh

60.0 %rh

7.5.3 CO2 and O2 calibration

You can calibrate the CO2 and O2 control (O2 only in the corresponding configuration) according to customer requirements with three freely selectable balance points. You can set a positive or negative compensation correction values for each selected balance point(Fig. 30).

For CO

calibration, a calibrated CO2 measuring instrument is required;for O2 calibration, a

calibrated O

measuring instrument is required.

The procedure for CO

and O2 calibration is identical. This is explained with the example of CO2

in the following.

Cal1

-0,4 %

20%

10%

Cal2

+1,5 %

Cal3

-0,7 %

Factory calibration

Fig. 30 CO2 calibration (example)

Example: A CO

deviation of 10 % or more should be corrected.

D33451 | Date 01/2018 57

Menu mode

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically selected.

Cal1

°C -0,2

Cal2 100.0 °C +0,1 K Cal3 180.0 °C -0,2 K

JUSTIEREN

Temperatur

letzte Justierung 12.10.2012 12:00

40.0

CK0,2- CK0,1+ CK0,2-

Calibrate

Cal1

Cal2

Cal3

40.0

50.0

30.0

Temperature

Humidity CO2 O2

2. Turn the turn control until CO2 or O2 is selected.

%CO2

%0,5- %1,0+

Temperature

Cal1

Cal2

5.0

12.0

Humidity

%CO2

1,0+Cal3 15.0

CO2

3. Press the confirmation key repeatedly, until the calibration point Cal2 is selected.

%CO2

%0,5- %1,0+

Temperature

Cal1

Cal2

5.0

Humidity

%CO2

1,0+

Cal3 15.0

CO2

12.0

4. With the turn control, set the calibration point Cal2 to 10 %.

%CO2

%0,5- %1,0+

Temperature

Cal1

Cal2

5.0

Humidity

%CO2

1,0+Cal3 15.0

CO2

10.0

5. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

%CO2

%0,5-

JUSTIEREN

Temperature

Cal1

Cal2

5.0

Humidity

%CO2

1,0+Cal3 15.0

CO2

10.0 1,0+

6. Set the calibration value to 0.0 % and accept the setting by pressing the confirmation key.

%CO2

%0,5-

Temperature

Cal1

Cal2

5.0

Humidity

%CO2

1,0+

Cal3 15.0

CO2

10.0 0,0

7. Position the sensor of the calibrated reference instrument centrally in the working chamber of the appliance.

8. Close the door and, in manual operating mode, adjust the CO

content setpoint to

10 %.

CO2

1.0 %

10.

Set

58 D33451 | Date 01/2018

Menu mode

9. Wait until the appliance reaches the setpoint and displays 10 %. The reference instrument displays 8.5 %, for example.

CO2

10.0 %

10.0

Set

8.5 %CO2

10. In the SETUP, adjust the calibration value Cal2 to –1.5 % (reference value measured minus value displayed) and save the setting by pressing the confirmation key.

%CO2

%0,5-

Temperature

Cal1

Cal2

5.0

Humidity

%CO2

1,0+

Cal3 15.0

CO2

10.0 1,5-

11. After the calibration procedure, the CO2 value measured by the reference instrument should now also be 10 %.

CO2

10.0 %

10.0

Set

10.0 %CO2

7.6 Programme

In the Program display, programmes created using the AtmoCONTROL software can be transferred to the appliance and saved on a USB storage medium. Here, you can also select the programme provided for use (see page 30 ) and delete programmes.

NOTICE

One or several default sterilisation programmes are saved in the appliance. They only serve to sterilise the appliance itself and must not be used to sterilise medical devices.

To load a programme from a USB storage medium: Connect the USB storage medium with the saved programme(s) to the interface on the right side of the ControlCOCKPIT.

1. Activate the programme display. To do so, press the activation key on the left side of the

Prog display. The display is enlarged

and the entry

Select is automatically

highlighted. The programmes available for activation are shown on the right. The programme currently available for use – in this example

Test 012 – is highlighted

in orange.

Program

Delete

Test 012

Test 013 Test 014 Test 015 Test 016

Select

2. Access the Select function by pressing the confirmation key. All programmes available are displayed, including the ones saved on the USB storage medium (identified by the USB symbol

). The programme currently available for use is highlighted in orange.

Select

Delete

Test 012

Test 022 Test 013 Test 014 Test 022

D33451 | Date 01/2018 59

Menu mode

3. With the turn control, select the programme you want to make available for use, in this example the sterilisation programme

Steri 180.

Select

Delete

Test 012

Test 022 Test 013 Test 014

Steri 180

4. Accept the selection by pressing the confirmation key. The programme is loaded and provided for use.

Select

Delete

Test 012

Test 022 Test 013 Test 014

Steri 180

5. As soon as the programme is ready, the selection returns to

Select. To start the

programme: Return to operating mode by pressing the MENU key and start the programme as described on page 30.

Delete

Test 012 Test 022 Test 013

Select

If you connected a USB storage medium, you can now remove it. To delete a programme, select

Delete with the turn control and select the programme to be

deleted the same way you can select a programme for activation. Sterilisation programmes cannot be deleted.

7.7 Sounds

In the SOUND display, you can define whether or not the appliance should emit acoustic signals and, if yes, define for which events it should do so:

► on the press of a key ► at the end of a programme ► On alarm ► if the door is open

1. Activate the acoustic signal adjustment. To do so, press the activation key on the left side of the

SOUND display. The

display is enlarged. The first category (in this case

Keysound) is automatically

highlighted. On the right, the current settings are shown on.

Sound

Keysound

At the end

If door open

On alarm

If you want to edit another list entry: Turn the turn control until the respective entry – e.g.

if door open (special configura-

tion) – is highlighted in colour.

Keysound At the end

If door open

On alarm

Sound

60 D33451 | Date 01/2018

Menu mode

2. Save the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

Keysound At the end

If door open

On alarm

Sound

3. With the turn control, select the desired setting – in this example OFF ().

Keysound At the end

If door open

On alarm

Sound

4. Save the setting by pressing the confirmation key.

If an acoustic alarm sounds, it can be turned off by pressing the confirmation key.

Keysound At the end

If door open

On alarm

Sound

7.8 Protocol

The appliance continually logs all relevant measured values, settings and error messages at 1-minute intervals. The internal log memory is of the continuous memory type. The logging function cannot be switched off and is always active. The measured data are stored in the appliance, safe from manipulation. If the power supply is interrupted, the time of the power failure and voltage recovery are stored in the appliance.

You can export the protocol data for different periods to a USB storage medium via the USB interface or, via Ethernet, import them to the AtmoCONTROL software for graphical representation, print-out or storage.

The log memory of the appliance is not modified or deleted by reading it out.

1. Connect the USB storage medium to the interface on the right side of the ControlCOCKPIT.

2. Activate the protocol. To do so, press the activation key on the right side of the

PROTOCOL display. The display is en-

larged and the period

This Month is au-

tomatically highlighted. To select another logging period, use the turn control.

Protocol

12.10.2012 12:00

ontrol range

D33451 | Date 01/2018 61

Menu mode

3. Save your selection by pressing the confirmation key. The transfer starts and a status symbol indicates the progress.

Protocol

This Year Complete control range

This Month

4. As soon as the transfer is complete, a check mark appears in front of the period selected. You can now remove the USB storage medium.

Protocol

This Year Complete control range

This Month

For a description of how to import and process protocol data in AtmoCONTROL or read them out via Ethernet, please observe the separate AtmoCONTROL manual.

7.9 USER ID

7.9.1 Description

With the USER ID function, you can lock the settings of individual (e.g. temperature) or all parameters, so that they cannot be changed at the appliance by accident or unauthorised persons. You can also lock setting options in menu mode (e.g. adjustment or date and time settings) this way.

If adjustment options are locked, this is indicated by the lock symbol in the respective display (Fig.

31).

USER ID data is entered in the AtmoCONTROL software and saved on the USB storage medium. The USB storage medium is thus acting as a key: Parameters can only be locked or unlocked if it is connected.

A description of how to create a USER ID in AtmoCONTROL is provided in the separate AtmoCONTROL manual.

7.9.2 USER ID activation and deactivation

1. Connect the USB storage medium with the USER ID data to the interface on the right side of the ControlCOCKPIT.

22.4

TEMP

°C

Fig. 31 Temperature adjustment at appliance locked (example)

62 D33451 | Date 01/2018

Menu mode

2. Activate the USER ID. To do so, press the activation key on the right side of the

USER ID display. The display is enlarged

and the entry

Activate is automatically

highlighted.

USER-ID

Deactivate

Activate

3. Confirm the activation by pressing the confirmation key. The new USER ID data are transferred from the USB storage medium and activated. As soon as activation is complete, a check mark appears in front of the corresponding entry.

USER-ID

Deactivate

Activate

4. Remove the USB storage medium. Locked parameters are indicated by the lock symbol in the respective display (Fig. 31 ).

To unlock the appliance, connect the USB storage medium, activate the

USER ID display and

select the entry

Deactivate.

D33451 | Date 01/2018 63

Maintenance and Servicing

8. Maintenance and Servicing

WARNING

Danger due to electric shock. Disconnect the mains plug before any cleaning or maintenance work.

8.1 Regular maintenance

Annually:

► Check the sterile filters and the water pump filters in the control unit and replace them if

they are dirty.

► To guarantee perfect control, we recommend to calibrate the appliance once a year (see

page 52).

Every two years:

► Replace all sterile filters and water pump filters in the control unit.

8.2 Cleaning

8.2.1 Interior and metal surfaces

Regular cleaning of the easy-to-clean interior prevents build up of material remains that could impair the appearance and functionality of the stainless steel chamber over time.

The metal surfaces of the appliance can be cleaned with normal stainless steel cleaning agents. Make sure that no rusting objects come into contact with the interior or with the stainless steel housing. Rust deposits can lead to an infection of the stainless steel. If rust spots appear on the surface of the interior due to impurities, immediately clean and polish the affected area.

8.2.2 Plastic parts

Do not clean the ControlCOCKPIT and other plastic parts of the appliance with caustic or solvent-based cleaning agents.

8.2.3 Glass surfaces

Glass surfaces can be cleaned with a commercially available glass cleaner.

8.3 Repairs and Service

Only authorised customer service points may carry out maintenance work.

64 D33451 | Date 01/2018

Storage and disposal

9. Storage and disposal

9.1 Storage

The appliance may only be stored under the following conditions:

► in a dry and enclosed, dust-free room ► frost-free ► disconnected from the power supply and gas supply

Close the valves of the gas bottles and disconnect the hoses. Gas bottles may only be stored in closed rooms if these are sufficiently ventilated.

Disconnect the tube of the water supply tank and empty it.

9.2 Disposal

This product is subject to the Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament and of the Council. This appliance has been brought to market after August 13th, 2005 in countries which have already integrated this directive into their national laws. It may not be disposed of in normal household waste. For disposal, please contact your dealer or the manufacturer. Any appliances that are infected, infectious or contaminated with materials hazardous to health are excluded from return. Please also observe all other regulations applicable in this context.

Before disposing of the appliance, please render the door locking mechanism unusable, for example to prevent playing children from being locked inside the appliance.

There is a lithium battery in the ControlCOCKPIT of the appliance. Remove it and dispose of it in accordance with the regulations in your country (Fig. 32).

Fig. 32 Removing the lithium battery

D33451 | Date 01/2018 65

Index

Accessories 15 Accidents 9 Activation button 27 Alarm 32, 33, 35, 37, 38, 41 Ambient conditions 15 Ambient temperature 15 Appliance error 43 ASF 32, 33 AtmoCONTROL 3, 12, 15, 27,

30, 58, 60, 61

Basic device settings 46 Basic settings 46

Calibration 52 Cancel programme 31 Carrying 16 Chamber load 25 Changes 9 Cleaning 63 CO2 29 CO2 connection 21 CO and O calibration 56 Cold burns 7 Communication interfaces

CO monitoring 37 Compensation correction

values 54

Connections 11 ControlCOCKPIT 25, 26 Customer service 2

Danger of suffocation 7 Date 51 Declaration of conformity 14 Decommissioning 64 Delete programme 59 Delivery 16, 17, 20 Digital backwards counter

with target time setting 29

Dimensions 14 Directives 14 Disposal 64 Door 24

Electrical connection 11 Electrical equipment 11 Electronic temperature moni-

toring 32 Emergency 9 Ending operation 40 End of programme 31 Error message 44, 45 Error messages 41 Ethernet 12 Explosion protection 8

Fan speed 29 Forklift truck 17 Fresh water container 21

Gas bottles 6, 7, 8, 9, 20 Gas connection 21 Gas leakage 9 Gateway 50 Graph 37, 39

Hazards 6 Hot-air generator 10 Humidity 28 Humidity adjustment 54 Humidity monitoring 35, 36,

37, 38, 43 Humidity profile 39

Installation site 18 Intended use 8 Interfaces 11 IP address 48

Keysound 59

Language selection 47 Loading the appliance 25 Log memory 45, 60

Maintenance 63 Malfunctions 9, 41, 43

Manufacturer 2 Material 11 Mechanical temperature

monitoring 34 Menu 46 Menu mode 46 Minimum clearances 18 Monitoring function 32 Monitoring temperature 32

Nameplate 12 Network 12, 48

O monitoring 38 Operating 23 Operating modes 27 Operating personnel 8 Operating problems 43 Operation 23

Packaging material 17 Parameter adjustment 27,

47 Power failure 45 Power supply 20, 60 Product safety 6 Programme 58 Programme mode 27, 30 Protocol 60 Pt100 temperature sensor

32 Putting into operation 20

Regular maintenance 63 Remote control 50

Safety regulations 6, 10 Service 63 Servicing 63 Setting up 16, 18 Setup 48 Sound 52, 59 SOUND 59 Speaker symbol 32, 35, 37,

38, 41 Standards 14

66 D33451 | Date 01/2018

Index

Starting a programme 30 Sterile filter 63 Sterilisation programme 40 Sterilisation programmes 8,

58, 59 Sterilising 40 Sterilizing the appliance 40 Storage after delivery 17 Switching off 40 Switching on 22

TB 34 Technical data 13 Temperature 28 Temperature calibration 52 Temperature comparison 52 Temperature deviation 53 Temperature limiter 34 Temperature monitor 32, 33 Temperature monitoring 32 Temperature sensor 32 Tilt protection 19 Time 51

Timer 29 Timer mode 50 Transport 16, 17 Transport damage 17 Turn control 27 TWW 32 TWW temperature monitor-

ing 33

Unit 49 Unpacking 17 USB interface 11, 60 USER ID 61

Warning messages 11, 41 Water specifications 20 Water supply 20 Water tank 21 Water tray 20 Weight 13 What to do in case of ac-

cidents 9

Memmert GmbH + Co. KG Willi-Memmert-Straße 90-96 | D-91186 Büchenbach Tel. +49 9122 925-0 | Fax +49 9122 14585 E-Mail: sales@memmert.com facebook.com/memmert.family Die Experten-Plattform: www.atmosafe.net

CO2 Incubator ICO

D33451 | Date 01/2018

englisch

Memmert ICO Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
