About this manual

Purpose and target audience

This manual describes the setup, function, transport, operation and maintenance of climate chambers ICH and ICHL. It is intended for use by trained personnel of the owner, who have the task of operating and/or maintaining the respective appliance.

If you are asked to work on the appliance, read this manual carefully before starting. Familiarise yourself with the safety regulations. Only perform work that is described in this manual. If there is something you do not understand, or certain information is missing, ask your manager or contact the manufacturer. Do not do anything without authorisation.

Versions

The appliances are available in different configurations and sizes. If specific equipment features or functions are available only for certain configurations, this is indicated at the relevant points in this manual.

The functions described in this manual refer to the latest firmware version. Due to individual configurations and sizes, illustrations in this manual may be slightly different

from the actual appearance. Function and operation are identical.

Other documents that have to be observed:

► For operation of the appliance with MEMMERT AtmoCONTROL, observe the separate

software manual. To open the AtmoCONTROL software manual, click on “Help” in the AtmoCONTROL menu bar.

► For service and repair work (see page 58), observe the separate service manual

Storage and resale

This instruction manual belongs with the appliance and should always be stored where persons working on the appliance have access to it. It is the responsibility of the owner to ensure that persons who are working or will work on the appliance are informed as to the whereabouts of this instruction manual. We recommend that it is always stored in a protected location close to the appliance. Make sure that the instruction manual is not damaged by heat or humidity. If the appliance is resold or transported and then set up again at a different location, the operating instructions must go with it.

For the current version of this operating manual in pdf format, please go to www.memmert.com/de/service/downloads/bedienungsanleitung/.

D33142 | Date 03/2017 3

Contents

1. For your Safety 6

1.1 Terms and signs used........................................................................................................... 6

1.2 Product safety and dangers ................................................................................................ 7

1.3 Safety labels ......................................................................................................................... 7

1.4 Requirements of the operating personnel ..........................................................................8

1.5 Responsibility of the owner .................................................................................................8

1.6 Intended use ........................................................................................................................ 8

1.7 Changes and conversions ....................................................................................................8

1.8 Behaviour in case of malfunctions and irregularities .......................................................... 9

1.9 Switching off the appliance in an emergency ....................................................................9

2. Construction and description 10

2.1 Construction ......................................................................................................................10

2.2 Construction and function ................................................................................................ 11

2.3 Material.............................................................................................................................. 11

2.4 Electrical equipment .......................................................................................................... 11

2.5 Connections and interfaces ............................................................................................... 11

2.6 Designation (nameplate) ................................................................................................... 13

2.7 Technical data ....................................................................................................................14

2.8 Applied directives and standards ...................................................................................... 15

2.9 Declaration of conformity ................................................................................................. 15

2.10 Ambient conditions ........................................................................................................... 16

2.11 Scope of delivery ...............................................................................................................16

2.12 Optional accessories .......................................................................................................... 16

3. Delivery, transport and setting up 17

3.1 For your Safety ................................................................................................................... 17

3.2 Delivery .............................................................................................................................. 18

3.3 Transport ............................................................................................................................ 18

3.4 Unpacking .........................................................................................................................18

3.5 Storage after delivery ........................................................................................................18

3.6 Setting up ..........................................................................................................................19

4. Putting into operation 22

4.1 Connecting the appliance .................................................................................................22

4.2 Fill up and connect the water tank ................................................................................... 22

4.3 Switching on ...................................................................................................................... 23

5. Operation and control 24

5.1 Operating personnel.......................................................................................................... 24

5.2 Opening the door .............................................................................................................. 24

5.3 Loading the appliance ....................................................................................................... 25

5.4 Operating the appliance .................................................................................................... 25

5.5 Monitoring function .......................................................................................................... 32

5.6 Graph ................................................................................................................................. 37

5.7 Ending operation ...............................................................................................................38

4 D33142 | Date 03/2017

Contents

6. Malfunctions, warning and error messages 39

6.1 Warning messages of the monitoring function ................................................................ 39

6.2 Malfunctions, operating problems and appliance errors ................................................ 41

6.3 Power failure ...................................................................................................................... 42

7. Menu mode 43

7.1 Overview ............................................................................................................................ 43

7.2 Basic operation in menu mode using the example of language selection ....................... 44

7.3 Setup.................................................................................................................................. 45

7.4 Date and Time ................................................................................................................... 48

7.5 Calibration ......................................................................................................................... 50

7.6 Program ............................................................................................................................. 54

7.7 Sound ................................................................................................................................ 55

7.8 Protocol ............................................................................................................................. 56

7.9 User-ID ...............................................................................................................................57

8. Maintenance and Servicing 58

8.1 Cleaning ............................................................................................................................. 58

8.2 Repairs and Service ............................................................................................................ 60

9. Storage and disposal 63

9.1 Storage .............................................................................................................................. 63

9.2 Disposal ............................................................................................................................. 63

Index 64

D33142 | Date 03/2017 5

For your Safety

1. For your Safety

1.1 Terms and signs used

In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these hints and regulations to avoid accidents and damage. These terms and signs are explained below.

1.1.1 Terms used

"Warning"

"Caution"

is used whenever you or somebody else could be injured if you do not observe the accompanying safety regulation.

is used for information that is important for avoiding damage.

1.1.2 Signs used

Warning signs (warning of a danger)

Danger of electrocu-

tion

Danger of

explosion

Gases / va-

Prohibition signs (forbidding an action)

Do not lift Do not tilt Do not enter

Regulation signs (stipulating an action)

pours

Danger of

toppling

over

UV light Hazard area!

Observe the

operating

instructions

Disconnect

the mains

plug

Wear gloves Wear safety

boots

Wear UV

safety gog-

gles

Observe information in

separate manual

Other icons

Important or useful additional information

6 D33142 | Date 03/2017

For your Safety

1.2 Product safety and dangers

The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They contain the latest technology and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended. These are described below.

Warning! After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Only electrical technicians may work on the electrical equipment of the appliances.

Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may only be loaded with materials/test objects which do not form any toxic or explosive vapours when heated up (see also chapter Intended use on page 8).

Warning! If the door is open while the appliance is in operation, the appliance may overheat and pose a ﬁ re hazard. Do not leave the door open during operation.

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

1.2.1 Additional safety regulation for the model ICHL

Warning! UV light is a danger to your eyes. Your eyes could be injured by UV light if you do not wear protection. Always wear UV safety goggles when opening the door of the ICHL. This is indicated by the warning signs on the door (see Fig. 1).

1.3 Safety labels

The model ICHL has warning labels attached to its door, warning against dangerous UV radiation in the interior (Fig. 1). They indicate that either the lighting has to be switched off or UV safety goggles are required when the door is opened.

These stickers must not be removed and must always be well visible. If they become unrecognisable or if they peel off, they must be replaced. They can be ordered from Memmert customer service.

D33142 | Date 03/2017 7

Fig. 1 Warning sign on the door

For your Safety

1.4 Requirements of the operating personnel

The appliance may only be operated and maintained by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

Repairs may only be performed by qualified electricians. The regulations in the separate service manual must be observed.

1.5 Responsibility of the owner

The owner of the appliance

► is responsible for the flawless condition of the appliance and for it being operated in ac-

cordance with its intended use (see chapter 1.6);

► is responsible for ensuring that persons who are to operate or service the appliance are

qualified to do this, have been instructed accordingly and are familiar with the operating instructions at hand;

► must know about the applicable guidelines, requirements and operational safety regula-

tions, and train staff accordingly;

► is responsible for ensuring that unauthorised persons have no access to the appliance; ► is responsible for ensuring that the maintenance plan is adhered to and that maintenance

work is carried out properly (see page 58);

► has to ensure that the appliance and its surroundings are kept clean and tidy, for example

through corresponding instructions and inspections;

► is responsible for ensuring that personal protective clothing is worn by operating person-

nel, e.g. work clothes, safety shoes and UV safety goggles.

1.6 Intended use

Climate chambers ICH and ICHL are suitable for stability testing of pharmaceuticals, cosmetics, food etc under long-term stable ambient conditions. Any other use could be dangerous. In case of any doubts, please contact the Memmert customer service.

The appliance is not explosion-proof (does not comply with the German workplace health & safety regulation VBG 24). The appliance may only be loaded with materials and substances which cannot form any toxic or explosive vapours at the set temperature and which cannot explode, burst or ignite.

The appliance may not be used for drying, vaporising and branding paints or similar materials the solvents of which could form an explosive mixture when combined with air. If there is any doubt as to the composition of materials, they must not be loaded into the appliance. Potentially explosive gas-air mixtures must not form, neither in the working chamber nor in the direct vicinity of the appliance.

1.7 Changes and conversions

No unauthorised changes or alterations may be made to the appliance. No parts may be added or inserted which have not been approved by the manufacturer.

Unauthorised changes or alterations result in the CE declaration of conformity losing its validity, and the appliance may no longer be operated.

The manufacturer is not liable for any damage, danger or injuries that result from unauthorised changes or alterations, or from non-observance of the regulations in this manual.

8 D33142 | Date 03/2017

For your Safety

ONN

1.8 Behaviour in case of malfunctions and irregularities

The appliance may only be used in a flawless condition. If you as the operator notice irregularities, malfunctions or damage, immediately take the appliance out of service and inform your superior.

You can find information on eliminating malfunctions from page 39.

1.9 Switching off the appliance in an emergency

Press the main switch at the ControlCOCKPIT (Fig. 2) and disconnect the power plug. This disconnects the appliance from the power supply at all poles.

Fig. 2 Switch off the appliance by pressing the main switch

D33142 | Date 03/2017 9

Construction and description

2. Construction and description

2.1 Construction

1 2

Fig. 3 Construction 1 ControlCOCKPIT with capacitive function

keys and LCD displays (see page 26) 2 On/Off switch (see page 23) 3 Door handle 4 Chamber fan 5 Castors 6 Cooling unit (see page 59)

10 D33142 | Date 03/2017

7 Nameplate (see page 13) 8 Inner glass door 9 Illumination box with fluorescent tubes

(only for model ICHL, see page 60)

10 Turn control with confirmation key

Construction and description

2.2 Construction and function

The appliance can heat up the interior to up to 60 °C and cool it down to –10 °C (without humidity and without light) or +10 °C (with humidity). A compressor is used for cooling.

Humidification of the interior is achieved by evaporating water from a tank at a set rate by means of a hot-air generator on the rear side of the appliance. The sterile hot air is introduced into the interior above the fan and mixed with the air current. Humidity is reduced through condensation, using Peltier cooling modules on the rear side of the appliance. Ice that might build up due to dehumidification is automatically defrosted in cycles.

The model ICHL is equipped with an illumination box in the upper interior, which contains fluorescent tubes. The chamber load can be illuminated with UV light and/or daylight.

2.3 Material

For the outer housing, MEMMERT uses stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion resistance to many (but not all!) chemical compounds (caution for example with chlorine compounds).

The chamber load for the appliance must be carefully checked for chemical compatibility with the materials mentioned. A material resistance table can be requested from the manufacturer.

2.4 Electrical equipment

► Operating voltage and current consumption: See nameplate ► Protection class I, i.e. operating insulation with PE conductor in accordance with EN 61010 ► Protection type IP 20 acc. to EN 60 529 ► Interference suppression acc. to EN 55011 class B ► Appliance fuse: Safety fuse 250 V/15 A, quick-blow ► The temperature controller is protected with a miniature fuse 100 mA (160 mA at 115 V)

2.5 Connections and interfaces

2.5.1 Electrical connection

This appliance is intended for operation on an electrical power system with a system impedance Z must ensure that the appliance is operated only on an electrical power system that meets these requirements. If necessary, you can ask your local energy supply company what the system impedance is.

Observe the country-specific regulations when connecting (e.g. in Germany DIN VDE 0100 with residual current circuit breaker).

D33142 | Date 03/2017 11

of a maximum of 0.292 ohm at the point of transfer (service line). The operator

max

Construction and description

2.5.2 Communication interfaces

The communication interfaces are intended for appliances which meet the requirements of IEC 60950-1.

USB interface

The appliance is fitted by default with a USB interface in accordance with the USB specification. This way, you can

► transfer software stored on a USB storage

medium to the appliance (see page 54).

► export protocol logs from the appliance to

a USB storage medium (see page 56).

► transfer user ID data stored on a USB stor-

age medium to the appliance (see page

57).

The USB port is located on the right side of the ControlCOCKPIT (Fig. 4).

Fig. 4 USB interface

Ethernet interface

Via Ethernet interface, the appliance can be connected to a network, so that you can transfer programmes created with the AtmoCONTROL software to the appliance and read out protocols. The Ethernet interface is located on the rear of the appliance (Fig. 5).

For identification purposes, each appliance connected must have its own unique IP address. Setting the IP address is described on page 45 .

Fig. 5 Ethernet interface

You will find a description of how to transfer programmes via Ethernet in the enclosed AtmoCONTROL manual.

With an optional USB to Ethernet converter, the appliance can be directly connected to a computer / laptop (see Optional accessories on page 16).

12 D33142 | Date 03/2017

Construction and description

2.6 Designation (nameplate)

The nameplate (Fig. 6) provides information about the appliance model, manufacturer and technical data. It is attached to the front of the appliance, on the right behind the door (see page 10).

1 2

3 4

Fig. 6 Nameplate (example) 1 Type designation

2 Operating voltage 3 Applicable standard 4 Protection type 5 CE conformity

Typ: ICH 260 F.-Nr.: Y613.0088 230 V

DIN12880-Kl.3.3 Nenntemp.: -10 - +60 °C

5.9 A 50/60 Hz 1350 W

6 Address of manufacturer 7 Disposal note 8 Temperature range 9 Connection / power ratings 10 Appliance number

9 8

D33142 | Date 03/2017 13

Construction and description

2.7 Technical data

Appliance size 110 260 750

Appliance width D* [mm] 745 824 1224 Appliance height E* [mm] 1233 1552 1950 Appliance depth F* (without door handle) [mm] 634 734 834 Depth of door lock [mm] 56 Chamber width A* [mm] 560 640 1040 Chamber height B* [mm] 480 800 1200 Chamber depth C* [mm] 400 500 600 Chamber volume [litres] 108 256 749 Weight including packaging [kg] 127 209 324

Power [W]

Current consumption [A]

max. number of sliding shelves 5 9 14 max. load per sliding shelf [kg] 20 30

max. load per appliance [kg] 150 200

Working temperature range (°C)

Setting temperature range (°C) -10 to +60 °C

Adjustment precision (°C) 0.1

Adjustment range humidity (% rh) 10 to 80

Adjustment precision humidity (% rh) 1

Illumination (only ICHL) Standard illuminant D65/UV

ICH 1350 ICHL 1450 1530 230 V 50/60 Hz 5.9 230 V, 50/60 Hz with

light 115 V 50/60 Hz 11.8 115 V, 50/60 Hz with

light

with humidity +10 to +60 °C

without humidity -10 to +60 °C

with light 0 to +60 °C

6.3 6.7

12.6 13.3

14 D33142 | Date 03/2017

Construction and description

Fig. 7 Dimensions

2.8 Applied directives and standards

► Directive 2004/108/EC amended (Directive of the council for harmonisation of the laws of

the member states on electromagnetic compatibility). Standards complied with:

DIN EN 61326:2004-05, EN 61326:1997, EN 61326/A1:1998, EN 61326/A2:2001

EN 61326/A2:2003

► Directive 2006/42/EC (Directive of the European Parliament and Council dated May 17,

2006 on machinery and amending directive 95/16/EC (revised)). Standards complied with:

DIN EN ISO 12100-1:2003, DIN EN ISO 12100-2:2003

EN ISO 14121-1:2007, EN ISO 14121-2:2007

2.9 Declaration of conformity

You can download the EC declaration of conformity of the appliance online: English: http://www.memmert.com/en/service/downloads/ce-statement/ German: http://www.memmert.com/de/service/downloads/eg-konformitaetserklaerung/

D33142 | Date 03/2017 15

Construction and description

2.10 Ambient conditions

► The appliance may only be used in enclosed areas and under the following ambient condi-

tions:

Ambient temperature

Humidity rh max. 70 %, non-condensing

Overvoltage category II

Pollution degree 2

Altitude of installation max. 2,000 m above sea level

15 °C to 28 °C (to 34 °C with limited temperature and humidity range)

► The appliance may not be used in areas where there is a risk of explosion. The ambient air

must not contain any explosive dusts, gases, vapours or gas-air mixtures. The appliance is

not explosion-proof.

► Heavy dust production or aggressive vapours in the vicinity of the appliance could lead to

sedimentation in the interior and, as a consequence, could result in short circuits or dam-

age to electrical parts. For this reason, sufficient measures to prevent large clouds of dust

or aggressive vapours from developing should be taken.

2.11 Scope of delivery

► Power cable ► Sliding grid (load capacity 30 kg each) ► Water tank with connection hose ► USB storage medium with software and AtmoCONTROL manual ► The operating instructions at hand ► Calibration certificate ► Separately packaged fastening material for wall mounting (see page 20) ► Tank holder (only for appliances of size 750, see page 23)

2.12 Optional accessories

► USB to Ethernet converter (Fig. 8). Makes it

possible to connect the Ethernet connection

interface (see page 12) to the USB port of

a computer / laptop.

► Reinforced, sliding steel grids with a load

capacity of 60 kg each (for appliance size

110 and larger)

Fig. 8 Converter USB to Ethernet

16 D33142 | Date 03/2017

3. Delivery, transport and setting up

3.1 For your Safety

Warning! Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. For carrying appliances of size 110, at least 4 people are needed. Appliances larger than that may not be carried but must be transported with a manual pallet jack or forklift truck.

110 260 750

Delivery, transport and setting up

Warning! You may get your hands or feet squashed when transporting and installing the appliance. Wear protective gloves and safety boots. When grasping the bottom of the appliance, grasp it only on the sides:

Warning! The appliance could fall over and seriously injure you. Never tilt the appliance and transport it in upright position and without load only (except for standard accessories such as steel grids or shelves). Appliances with castors always have to be moved by two people.

D33142 | Date 03/2017 17

Delivery, transport and setting up

3.2 Delivery

The appliance is packed in cardboard and is delivered on a wooden palette.

3.3 Transport

The appliance can be transported in three ways:

► With a forklift truck; move the forks of the truck entirely under the pallet. ► On a manual pallet jack ► On its own castors, in case of the corresponding configuration, for which the catch on the

(front) castors must be released

3.4 Unpacking

To avoid damage, do not unpack the appliance until you reach the installation site.

Remove the cardboard packaging by pulling it upwards or carefully cutting along an edge.

3.4.1 Checking for completeness and transport damage

► Check the delivery note to ensure that the delivery is complete. ► Check the appliance for damage.

If you notice deviations from the delivery note, damage or irregularities, do not put the appliance into operation but inform the haulage company and the manufacturer.

3.4.2 Removing the transport protection

Remove the transport protection. It is located between the door hinge, door and frame and has to be removed after opening the door.

3.4.3 Disposing of packaging material

Dispose of the packaging material (cardboard, wood, foil) in accordance with the applicable disposal regulations for the respective material in your country.

3.5 Storage after delivery

If the appliance is first to be stored after delivery: Read the storage conditions from page

63.

18 D33142 | Date 03/2017

Delivery, transport and setting up

3.6 Setting up

Warning! Due to its centre of gravity, the appliance can fall over to the front and injure you or other people. Always attach the appliance to a wall with the tilt protection (see page 20). In case there is not enough space, do not put the appliance into operation and do not open the door. Contact the Memmert service (see page 2). The appliance may only be installed on the ﬂ oor.

3.6.1 Preconditions

The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see Technical data on page 14). Do not place the appliance on a flammable surface.

Depending on the model (see nameplate), a 230 V or 115 V power connection must be available at the installation site.

The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm (Fig. 9). Sufficient air circulation in the vicinity of the appliance must be guaranteed at all times. Do not put anything in front of the fan opening of the cooling unit at the appliance front.

For appliances with castors, these need to be positioned in forward direction at all times.

FP

FP FP

Fig. 9 Minimum clearance from walls and ceiling

D33142 | Date 03/2017 19

FP

Delivery, transport and setting up

3.6.2 Tilt protection

Attach the appliance to a wall with the tilt protection. The tilt protection is included in the delivery.

1. Screw the tilt protection

as shown onto the back

of the appliance.

2. Bend the tilt protec-

tion upwards by 90 ° in

the desired distance to

the wall (consider the

minimum distance to the

wall, see Fig. 9).

3. Drill a hole, insert a plug

and screw the tilt protec-

tion to a suitable wall.

20 D33142 | Date 03/2017

Delivery, transport and setting up

3.6.3 Adjusting the doors (only for model size 750)

For model size 750, it is possible to adjust doors that warp due to the floor conditions. In order to do so, every door has two adjuster screws at the top and at the bottom (Fig. 10).

First, adjust the door at the top and then, if further adjustment is necessary, at the bottom

as well.

1. Open the door.

2. Undo the screws.

3. Adjust the door.

4. Tighten the screws again.

5. Check door alignment.

6. If necessary, readjust.

Fig. 10 Door adjustment screws

D33142 | Date 03/2017 21

Putting into operation

4. Putting into operation

Caution:

The first time the appliance is operated, it must not be left unattended until it has reached

the steady state. The temperature limiter might have been triggered during transport. Press the red button on

the back of the appliance to reset the temperature limiter before putting the appliance into operation.

4.1 Connecting the appliance

Caution:

Observe the country-specific regulations when mak-

ing connections (e.g. in Germany DIN VDE 0100 with

residual current circuit breaker). Observe the connec-

tion and power ratings (see nameplate and “Technical

Data” on page 14).

conductor connection. Plug the provided power cable into the rear of the appli-

ance and connect it to the power supply ( Fig. 11 ). Lay the power cable so that

► it is always accessible and within reach so it can be disconnected quickly in the event of

failure or emergencies;

► no one can trip over it; ► it does not come into contact with any hot parts.

4.2 Fill up and connect the water tank

Water specifications

For steam creation, use only demineralised water (aqua dem) in accordance with VDE 0510/DIN EN 50272; regulations must be strictly adhered to (production conductivity ≥ 5 ≤ 10 μS/cm). Battery water in accordance with VDE 0510 is available in larger chemist’s shops, super markets, hardware stores and in the wholesale trade. The standard VDE 0510/ DIN EN 50272 has to be explicitly specified on the label.

Otherwise, possible calcification in the steam generators, steam piping and peristaltic pumps could affect the operability of the device.

The water used must have a pH value between 5 and 7 and be chlorine-free.

Make sure to establish a safe PE

Fig. 11 Connect the power cable to the rear of the appliance

22 D33142 | Date 03/2017

Putting into operation

Fill the supplied water tank with water and connect it with the enclosed tube to the “H2O” connection on the rear of the chamber (Fig. 12).

For appliances of size 750, the tank can be attached to the appliance with the included tank holder (Fig. 13). To do so, hook the tank holder into the slots on the rear of the appliance. For wall mounting, the tank holder also has two drill holes (fastening material not included in the delivery).

Fig. 12 Water connection Fig. 13 Tank holder

4.3 Switching on

Switch on the appliance by pressing the On/Off switch on the front of the appliance ( Fig. 14 ).

The starting process is shown by three animated white dots occurred (see page 42).

D33142 | Date 03/2017 23

. If the dots have another colour, an error has

After the first start-up, the appliance display is set to

English by default. You can change the language as

described from page 44. However, to get a basic

overview of operating the appliance, you should read

the following chapter first.

Fig. 14 Switching on the appliance

Operation and control

5. Operation and control

Warning! UV light is a danger to your eyes. Your eyes could be injured by UV light if you do not wear protection. Always wear UV safety goggles when opening the door of the ICHL climate chamber. This is indicated by the warning signs on the door (see page 7).

Caution! When in operation, small amounts of condensed water may leak from the appliance. Always wear shoes with slip-proof soles and wipe up the condensed water immediately.

Caution! The surfaces in the appliance‘s interior and the chamber load may be very cold. Always wear gloves when you touch the interior of the appliance.

5.1 Operating personnel

The appliance may only be operated by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

5.2 Opening the door

► To open the door, pull the door handle to the side (to the left or to the right, depending

on the door variation, see Fig. 15, A) and open the door completely.

► To close the appliance, push the door closed and the door handle to the side (B).

Fig. 15 Opening and closing the door

Warning! If the door is open while the appliance is in operation, the appliance may overheat and pose a ﬁ re hazard. Do not leave the door open during operation.

24 D33142 | Date 03/2017

Operation and control

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

5.3 Loading the appliance

Warning! When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may only be loaded with materials which do not form any toxic or explosive vapours when heated up and cannot ignite (see also Intended use on page 8). If there is any doubt as to the composition of materials, they must not be loaded into the appliance.

Caution:

Check the chamber load for chemical compatibility with the materials of the appliance (see page 11).

Insert the sliding steel grids or sliding shelves. The maximum number or grids / shelves and the load capacity are specified in the technical data overview from page 14 .

To achieve the correct heating capacity, the type of drawer used – Grid or Shelf – must be set in the menu under

The chamber must not be loaded too tightly, so that proper air circulation in the interior is guaranteed. Do not place any of the chamber load on the floor, touching the side walls or right below the ceiling of the chamber (Fig. 16, see also the "correct loading" sticker on the appliance).

In case of improper loading (chamber loaded too tightly), the set temperature may be exceeded or it may take longer until it is reached.

The appliance is not suitable for long-term storing at sub-zero temperatures. During permanent operation, the glass door may ice over.

SETUP (see page 55).

Fig. 16 Correct placement of the chamber load

5.4 Operating the appliance

5.4.1 ControlCOCKPIT

In manual operation, the desired parameters are entered at the ControlCOCKPIT on the front of the appliance (Fig. 17 ). You can also make basic settings here (menu mode). Additionally, warning messages are displayed, e.g. if the temperature is exceeded. In programme mode, the parameters defined, the programme description, the programme segment currently active and programme duration remaining are displayed (for a more detailed description, see page

32).

D33142 | Date 03/2017 25

Operation and control

5 678912 3 4

LIGHTONLIGHT

min

000°C

min

35.5°C

auto

LIGHT

100 0

ALARM

Set 37

30m04h

FAN

50%

.0°C

HUMIDITY

30%rh

Set 30 %rh

TEMP

22.4°C

TIMER

44h:44m

End

13:30 23.11.

End 14:45

Fr 20.10.2010 20:31

13:44

12.Sept.2012

Manual Mode

Holz trocknen

%DL

aufheizen

%UV

09:12h

max

38.5°C

000°C

auto off +

GRAPH

0.0K

%rh°C

012

99K

of °C

19 2015 16 17 1810 11 12 13 14

Fig. 17 ControlCOCKPIT for ICH/ICHL appliances in operating mode (width may differ depending on appliance size)

1 Activation key for temperature setpoint

adjustment 2 Setpoint and actual temperature display 3 Fan speed display 4 Activation key for fan speed setting 5 Switch to menu mode (see page 43) 6 Interior lighting activation key (only for

model ICHL) 7 Display interior lighting (only for model

ICHL) 8 Appliance state and programme display 9 Activation key for the appliance state 10 Activation key digital backwards counter

with target time setting, adjustable from 1

minute to 99 days

11 On/Off switch 12 Display digital backwards counter with

target time setting, adjustable from 1 min-

ute to 99 days 13 Humidity control display 14 Humidity control activation key 15 Turn control for setpoint adjustment 16 Confirmation key (accepts setting made

with the turn control) 17 Activation key setting the temperature

and humidity monitoring 18 Display temperature and humidity moni-

toring 19 Graphic representation 20 Activation key for graphic representation

off

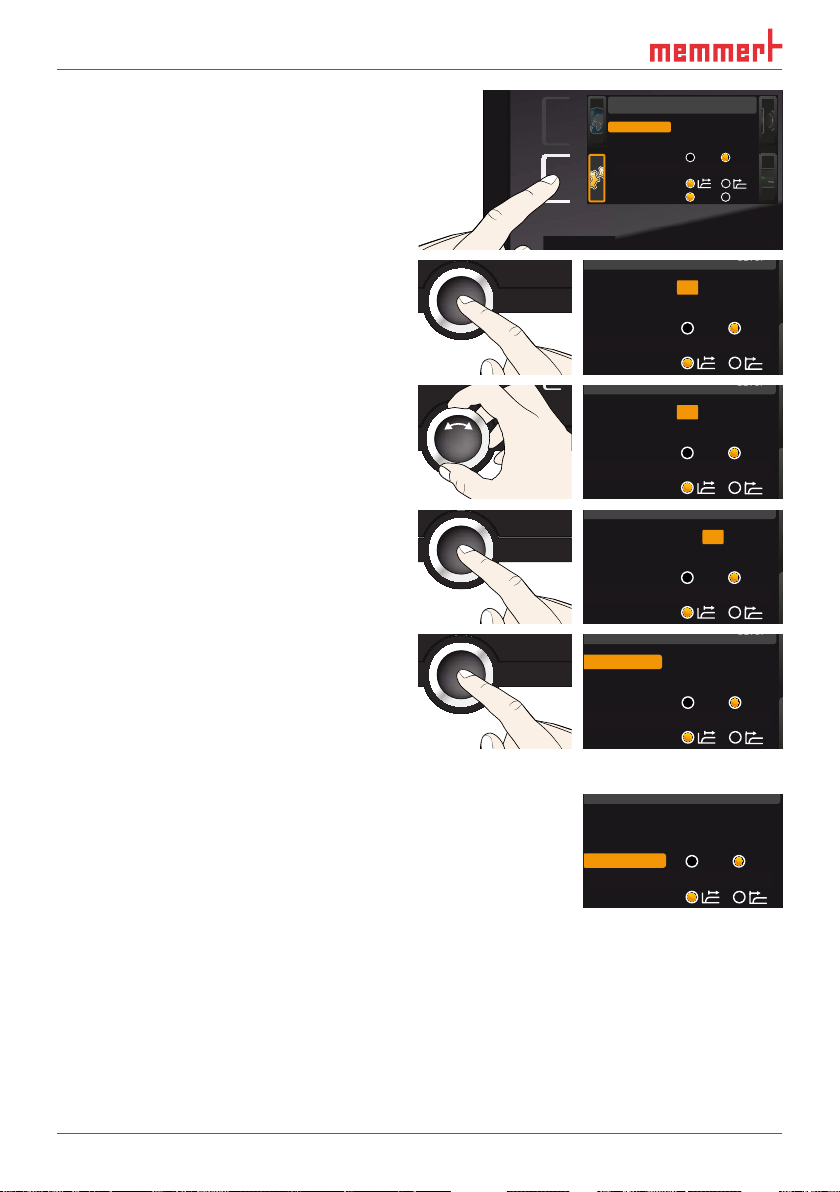

5.4.2 Basic operation

In general, all settings are made according to the following pattern:

1. Activate the desired parameter (e.g. temperature). To do so, press the corresponding activation key on the left or right of the respective display. The activated display is lined in colour, the other displays are dimmed. The set value is highlighted in colour.

2. By turning the turn control to the left or right, adjust the set value (e.g. to

37.0 ºC).

26 D33142 | Date 03/2017

TEMP

22.4°C

TIME

22.4°C

37.0°CSet

.5°C100

Operation and control

3. Save the set value by pressing the confirmation key. The display returns to normal and the appliance begins adjusting to the defined set value.

Additional parameters can be set accordingly.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically restores the former values.

If you want to cancel the setting procedure, press the activation key on the left or right of the display that you want to exit. The appliance restores the former values. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

TEMP

23.2°C

Set 37

5.4.3 Operating modes

The appliance can be operated in different modes:

► Manual mode: The appliance runs in permanent operation at the values set on the Con-

trolCOCKPIT. Operation in this mode is described in chapter 5.4.4 .

► Operation with digital backwards counter with target time setting, adjustable from 1

minute to 99 days (Timer): The appliance runs at the values set until the timer has elapsed. Operation in this mode is described in chapter .

► Programme mode: The appliance automatically runs programme sequences which have

been defined using AtmoCONTROL software at a computer / laptop and then transferred to the appliance from a USB stick or via Ethernet. Operation in this mode is described in chapter 5.5 .

► via remote control

The status display shows you which operating mode or operating state the appliance is currently in. The current operating state is highlighted in colour and indicated by the text display:

 Appliance is in programme mode

■ Programme is stopped

 Appliance is in manual mode

The example on the right shows the appliance in manual mode, identified by the coloured hand symbol.

12.Sept.2012

Manual Mode

13:44

.0°C

► When the appliance is in timer mode, Timer active is

displayed:

D33142 | Date 03/2017 27

12.Sept.2012

Timer active

13:44

Operation and control

► When the appliance is in remote control mode, the

symbol appears in the temperature display:

5.4.4 Manual mode

TEMP

In this operating mode, the appliance runs in permanent operation at the values set on the ControlCOCKPIT.

23.2°C

Adjustment options

As described in chapter 5.4.2 , you can set the following parameters after pressing the corresponding activation key (in any sequence):

Temperature Adjustment range: dependent on model and operating mode (see nameplate and technical data on page 14)

Heating operation is indicated by the Cooling is indicated by the

symbol.

You can select °C or °F as the temperature unit displayed (see

page 46). Fan speed Adjustment option: 10 % to 100 % in steps of 10%

symbol.

Set 38

TEMP

22.4

Set

FAN

.0°C

37.0

°C

Humidity Adjustment range: 10 to 80 % rh

Humidification is indicated by the

Dehumidification is indicated by the

symbol.

A high level of air humidity in the interior can only be achieved without condensation if the interior is thoroughly heated. For this reason, how fast the humidity is dynamically adjusted to approach the setpoint depends on the interior temperature.

Interior lighting (only ICHL) Adjustment range: Daylight (DL) on (100 %) or off (0 %)

UV light (UV) on (100 %) or off (0 %)

Setting interior lighting

1. Activate light display. To do so, press the

activation key on the left side of the light

display. The daylight entry

automatically.

DL is selected

HUMIDITY

34%

Set

LIGHT

%DL

100

%UV

LIGHT

LIGHTONLIGHT

%DL

%UV

ALARM

of °C

ALARM

min

35.5°C

min

auto

000°C

max

38.5°C

000°C

auto off

0.0K

99K

%rh

Fr 20.10.20

12.Sept.201

Manual

Holz tr aufheiz 09:12h

°C

012

28 D33142 | Date 03/2017

Operation and control

.5 C100

Set 1

2. By turning the turn control to the left or right, set the desired daylight value (0 % = off, 100 % = on).

3. Save the setting by pressing the confirmation key. The UV entry ( UV light) is automatically activated.

4. By turning the turn control to the left or right, set the desired UV light value (0 % = off, 100 % = on).

5. Save the setting by pressing the confirmation key.

As soon as the illumination boxes are active, the refrigeration unit has to compensate the residual heat produced by the illumination boxes. This means operation is only possible at limited temperature and humidity range. We recommend a temperature of 25 °C and a humidity of 50 % RH at most. Depending´on the ambient conditions, there may be some condensation in the chamber.

LIGHT

100

LIGHT

100

LIGHT

100

LIGHT

100 100

%DL %UV

5.4.5 Operation with digital backwards counter with target time setting,

adjustable from 1 minute to 99 days ( Timer)

In timer operation, you can adjust the time the appliance runs at the set value. The appliance has to be in manual operating mode for this.

1. Press the activation key to the left of the timer display. The timer display is activated.

2. Turn the turn control until the desired duration is displayed – in this example 4 hours 30 minutes. The approximate end time is shown beneath, in a smaller font.

D33142 | Date 03/2017 29

TIMER

04 mh 3

End

TIMER

--h- m

9:00 23.11.

Ende

13:30 23.11.

Operation and control

Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes) format. For 24 hours and more, the format dd:hh (days:hours) is used. The maximum duration adjustable is 99 days 00 hours.

3. Press the confirmation key to confirm.

The display now shows the remaining time in a large font and the approximate end time in a smaller font beneath. The status display shows „Timer active“.

4. Now, as described under 5.4.4, set the individual values for temperature, air flap position etc. which you want the appliance to operate at. The set values can be changed at any time during the timer. The changes are effective immediately.

Setup, you can choose if the timer should run setpoint-dependent or not. This deter-

mines whether the timer should not start until a tolerance band around the set temperature is reached or if it should start right after activation (see page 47). If the timer runs setpoint-dependent, this is indicated by the

When the timer has elapsed, the display shows 00h:00m. All functions (heating etc.) are switched off. In addition, an acoustic alarm sounds, which can be turned off by pressing the confirmation key.

TIMER

30m04h

Ende

13:30 23.11.

symbol in the timer display.

12.Sept.2012

Timer active

13:44

TIMER

00m00h

End

13:30 23.11.

To deactivate the timer, open the timer display by pressing the activation key again and then turning the turn control to reduce the timer setting until --:-- is displayed. Confirm with the confirmation key.

5.4.6 Programme mode

In this operating mode, programmes saved in the appliance can be started with different combinations of individual parameters (temperature, humidity, interior lighting) at staggered intervals, which the appliance then automatically processes in sequence. These programmes are not created directly at the appliance but externally at a computer / laptop and using AtmoCONTROL software. Transfer to the appliance is possible using the provided USB storage medium or via Ethernet.

TIMER

End

--m--h

9:00 23.11.

A description of how to create and save programmes can be found in the separate AtmoCONTROL software manual.

30 D33142 | Date 03/2017

Starting a programme

080

1. Press the activation key to the right of the status display. The current operating mode is highlighted automatically, in this example

manual mode ( ).

Fr 20.10.2010 20:31

manueller Betrieb

Manual mode

Activate

GRAPH

80 40

17:4413.Sept.2012

Operation and control

2. Turn the turn control until the  start symbol is highlighted. The current programme is displayed, in this example

Test 012.

Test 012 ready

Only the programme currently selected in the menu and shown in the display can be used. If you want to process another programme, you need to activate it in the menu first (description from page 54).

3. To start the programme, press the confirmation key. The programme starts. The display shows:

► the programme description (in this exam-

ple

Test 012)

Test 012 Ramp 1

► the programme segment description, in

this example

Ramp 1

► the current run (in case of loops)

You cannot change any parameters (e.g. the temperature) at the appliance while a programme is running. However, the displays

ALARM and GRAPH can still be used.

Cancelling a programme

You can cancel an active programme at any time.

1. Press the activation key to the right of the status display. The status display is automatically highlighted.

Fr 20.10.2010 20:31

manueller Betrieb

Test 012 Ramp 3

GRAPH

10:4412.Sept.2012

2. Turn the turn control until the ■ stop symbol is highlighted.

Cancel program

Test 012

D33142 | Date 03/2017 31

10:4812.Sept.2012

Operation and control

3. Press the confirmation key to confirm. The programme is cancelled.

A cancelled programme cannot be

End

Test 012

10:4912.Sept.2012

resumed at the point it was cancelled. It must be restarted from the beginning.

End of programme

The display shows End when the programme is finished.

You can now

End

Test 012

10:4912.Sept.2012

► restart the programme as described ► select another programme for processing in menu mode (see page 54) and run it as

described.

► return to manual mode. To do so, reactivate it by pressing the

activation key next to the status display, then turn the turn control until the hand symbol

is highlighted in colour and

12.Sept.2012

Manual Mode

13:44

press the confirmation key.

5.5 Monitoring function

5.5.1 Temperature monitoring

The appliance is equipped with a multiple overtemperature protection in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction:

► electronic temperature monitoring (TWW) ► automatic temperature monitor ( ASF) ► mechanical temperature limiter (TB)

The monitoring temperature of the electronic temperature monitoring is measured via a separate Pt100 temperature sensor in the interior. Temperature monitoring settings are made via the

ALARM display. The settings made apply to all

operating modes.

min

36.5 °C

auto

ALARM

max

38.5 °C

2.0K

32 D33142 | Date 03/2017

Operation and control

OLIO

22.4

37.0

TEMP

Set

°C

°C22.4

TEMP

°CSet 37.0

°C

TEMP

TWW Set 38.5 °C

38.9

If temperature monitoring has been triggered, this is indicated by the temperature display: the actual temperature is highlighted in red and a symbol is shown ( Fig. 18 ). The type of temperature monitoring triggered (TWW in this example) is shown beneath the

warning

TWW Set 38.5 °C

TIMER

30m04h

44h:44m

Ende

23.Nov 13:30

End14 :45

TEMP

38.9

°C22.4

°C

°CSet 37.0

FEUCHTE

30.0%rh

Set 30.0%rh

temperature. If the acoustic alarm has been activated in

the menu mode ( indicated by the speaker symbol alarm display), the alarm is additionally

Sound see page 55,

in the

Fig. 18 Temperature monitoring triggered

signalled by an intermittent acoustic signal, which can be turned off by pressing the confirmation key. Information on what to do in this case is provided in the chapter Malfunctions, warning and error messages from page 39.

Before reading how to adjust temperature monitoring (from page 34), please read the description of the individual monitoring functions here.

Electronic temperature monitoring ( TWW)

The manually set monitoring temperature min and max of the overtemperature control is monitored by an adjustable over/undertemperature controller (TWW) protection class 3.3 acc. to DIN 12 880. If the manually set monitoring temperature over temperature control and begins to regulate the monitoring temperature (Fig. 19).

max is exceeded, the TWW takes

°C

Emergency operation

Setting MAX Set temperature

Controller error

Fig. 19 Schematic diagram of how TWW temperature monitoring works

D33142 | Date 03/2017 33

Operation and control

09:12h

Automatic temperature monitor ( ASF)

ASF is a monitoring device that automatically follows the set temperature setpoint within an adjustable tolerance band (Fig. 20).

The ASF – if switched on – is automatically activated as soon as the actual temperature value reaches 50 % of the set tolerance band of the setpoint (in the example: 50 °C ± 1 K) for the first time (section A).

When the temperature violates the set tolerance band around the setpoint (in the example in Fig. 20: 50 °C ± 2 K) – e.g. if the door is opened during operation (section B of illustration) – the alarm is set off. The ASF alarm is automatically triggered as soon as 50 % of the set tolerance band of the setpoint (in the example: 50 °C ± 1 K) are reached again (section C).

If the temperature setpoint is altered, the ASF is automatically disabled temporarily (in this example: The setpoint is changed from 50 °C to 25 °C, section D) until the tolerance range of the new temperature setpoint is reached again (section E).

°C

52°C

ABCDE

52°C

50°C

25°C

48°C

27°C

23°C

ASF active

AUTO AUTO AUTO

ASF alarm

ASF active ASF active

Fig. 20 Schematic diagram of how the ASF temperature monitoring works

Mechanical temperature monitoring: Temperature limiter (TB)

The appliance is equipped with a mechanical temperature limiter (TB) of protection class 1 in accordance with DIN 12 880 (Fig. 21).

If the electronic monitoring unit should fail during operation and the factory-set maximum temperature is exceeded by approx. 20 °C, the temperature limiter, as the final protective measure, switches off the heating

Fig. 21 Resetting the mechanical temperature limiter

permanently.

Adjusting temperature monitoring

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated (

min

auto

000°C

ALARM

.0°C

max

000°C

auto off

0.0

DRAPH

.0°C

99K

%rh°C

012

34 D33142 | Date 03/2017

Operation and control

2. Save the selection by pressing the confirmation key. The min setting (undertemperature protection) is automatically activated.

3. By turning the turn control, adjust the desired lower alarm limit value, in the example on the right 35.5 °C.

The lower alarm limit value cannot be set higher than the top one. If no undertemperature protection limit is required, set the lowest temperature.

4. Press the confirmation key to confirm. The max display (overtemperature protection) is activated.

5. By turning the turn control, adjust the desired upper alarm limit value, in the example on the right 38.5 °C.

The monitoring temperature must be set sufficiently high above the maximum set temperature. We recommend 1 to 3 K.

6. Accept the upper alarm limit value by pressing the confirmation key. The setting of the automatic temperature monitor (ASF) is automatically activated (

auto).

7. With the turn control, select ON () or OFF ().

8. Press the confirmation key to confirm. The ASF tolerance band setting is activated.

9. With the turn control, adjust the desired tolerance band, e.g. 2.0 K.

We recommend a tolerance band of 1 to 3 K.

min

15.0 °C .0°C

auto

min

auto

min

auto

min

35 5.

auto

min

35.5°C

auto

min

35.5°C

auto

min

auto

min

35 5.

auto

ALARM

°C

ALARM

°C

ALARM

°C

ALARM

°C

ALARM

°C

max

40.0°C35 5.

max

38 5.

max

38.5 °C

max

38.5 °C

max

38.5°C35 5.

max

38.5°C

0.0K

0.0

0.0K

0.3

2.0

°C355. 40 0.

°C

D33142 | Date 03/2017 35

Operation and control

IGHT

FEUCHTE

30.0%rh

Set 30.0%rh

°CSet 37.0

10. Press the confirmation key to confirm. Temperature monitoring is now active.

5.5.2 Humidity monitoring

If humidity monitoring has been triggered, this is indicated by the humidity display: the actual humidity is highlighted in red and a warning symbol

is shown ( Fig. 22 ). If the acoustic alarm has been activated in the

Sound menu (see page

55), which is indicated by the speaker symbol

, the alarm is additionally signalled by an intermittent acoustic signal. Information on what to do in this case are provided in the chapter Malfunctions, warning and error messages on page

39.

Adjusting humidity monitoring

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated.

min

36.5 °C

auto

°C22.4

°CSet 37.0

0C°C

FEUCHTE

HUMIDITY

30.0%rh

:30

Set 30.0%rh

Set 70

%rh75.4

.0%rh

Fig. 22 Humidity monitoring triggered

HUMIDITY

75.4

ALARM

Set 70

min

15.0°C

min

auto

000°C

%rh

.0%rh

ALARM

max

38.5 °C

2.0K

max

40.0°C

000°C

auto off

0.0K

99K

LIGH

min

000°C

min

aut

2. Turn the turn control until the humidity

monitoring entry

is highlighted.

ALARM

min

20.0%rh

3. Accept the selection by pressing the con-

firmation key. The lower humidity alarm

ALARM

limit is automatically highlighted.

min

20.0%rh

4. By turning the turn control, adjust the

desired lower alarm limit, in the example on the right 50 % rh.

36 D33142 | Date 03/2017

ALARM

min

50.0%rh

max

60.0%rh

max

60.0%rh

max

60.0%rh

Operation and control

5. Accept the selection by pressing the con-

firmation key. The upper humidity alarm limit is automatically highlighted.

ALARM

max

60.0%rh

min

50.0%rh

6. By turning the turn control, adjust the

desired upper alarm limit, in the example on the right 70 % rh.

ALARM

max

70.0%rh

min

50.0%rh

7. Accept the selection by pressing the

confirmation key and leave the

Alarm

display by pressing the activation key on the side. Humidity monitoring is now active.

ALARM

max

70.0%rh

min

50.0 %rh

5.6 Graph

The GRAPH display provides an overview of the chronological sequence of the set values and the actual values as a curve.

5.6.1 Temperature proﬁ le

1. Press the activation key to the

right of the

GRAPH display.

The display is enlarged and the temperature profile shown.

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

► To change the time frame to

be displayed: Press the activation key next to the  arrow symbols. The time frame to be displayed can now be changed by turning the turn control.

► To zoom the graph in or out:

Press the activation key next to the magnifying glass symbol. Select whether you want to zoom in or out (+/–) with the turn control and confirm your selection by pressing the confirmation key.

To close the graphical representation, again press the activation key which you have used to activate it.

.2010 20:34

12.09.2012

Fr 20.10.2010 20:34

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

12.09.2012

Fr 20.10.2010 20

D33142 | Date 03/2017 37

Operation and control

5.6.2 Humidity proﬁ le

1. Activate graphic representa-

tion as described above and then press the activation key next to the parameter selection.

2. Select humidity

turn control.

with the

3. Press the confirmation key to

confirm. The humidity profile is displayed. You can change the display range as described above, as well as extend or reduce it.

5.7 Ending operation

1. Switch off active appliance functions

(turn back the set values).

2. Remove the chamber load.

3. Check the freshwater tank and fill up if

necessary (see page 22).

4. Switch off appliance (Fig. 23).

12.09.2012

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

Fr 20.10.2010 2

%rh

°C 100

12.09.2012

Fr 20.10.2010 2

12.09.2012

Fr 20.10.2010 20:3

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

Fig. 23 Switching off the appliance.

38 D33142 | Date 03/2017

Malfunctions, warning and error messages

6. Malfunctions, warning and error messages

Warning! After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Malfunctions requiring work inside the appliance may only be rectiﬁ ed by electricians. Ob- serve the separate service manual for this.

Do not try to rectify appliance errors yourself but contact the MEMMERT customer service department (see page 2) or an authorised service point. In case of enquiries, please always specify the model and appliance number on the nameplate (see page 13).

6.1 Warning messages of the monitoring function

If the acoustic alarm has been activated in the menu mode (

Sound, see page 55, indicated by the speaker symbol ), the

alarm is additionally signalled by an intermittent acoustic signal. If the confirmation key is pressed, the acoustic alarm can be temporarily switched off until the next alarm event occurs.

6.1.1 Temperature monitoring

Description Cause Action See

Temperature alarm and "ASF" are displayed

TEMP

40.4°C

ASF Set 38.5 °C

Automatic temperature monitor (ASF) triggered

Check if the door is closed. Close the door.

Extend the ASF tolerance band If the alarm continues: Contact

customer service

page 56

page 2

Temperature alarm and "TWW" are displayed

TEMP

42.4°C

TWW Set 38.5 °C

D33142 | Date 03/2017 39

The adjustable temperature controller (TWW) has assumed heating control.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring or decreasing the setpoint temperature.

If the alarm continues: Contact customer service

page 57

page 2

Malfunctions, warning and error messages

Description Cause Action See

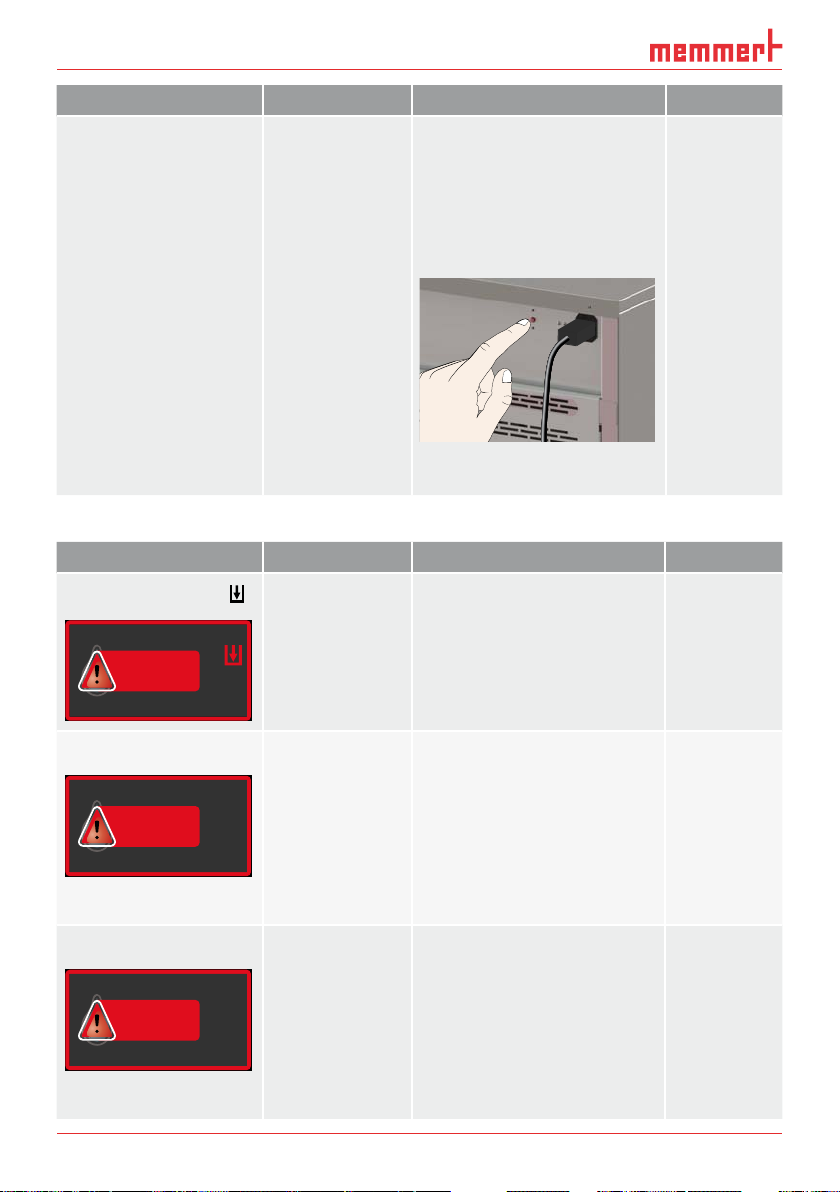

Appliance does not heat up any more

The mechanical temperature limiter (TB) permanently switched off heating.

1. Wait until the appliance cools down.

2. Reset the TB. To do so, press the red button on the right of the appliance rear side until a clicking sound can be heard:

If the alarm continues: Contact customer service

6.1.2 Humidity monitoring

Description Cause Action See

Error display symbol

HUMIDITY

55.4

Set 55

Alarm display (

HUMIDITY

75.4

MaxAl Set 70

Alarm display (

HUMIDITY

55.4

MinAl Set 60

%rh

.0%rh

MaxAl)

%rh

.0%rh

MinAl)

%rh

.0%rh

Water tank empty

Upper humidity limit exceeded

Humidity below lower limit

Fill the water tank with demineralised/distilled water and press the confirmation key

Open the door for 30 sec. and wait to see if the appliance reliably adjusts to the setpoint.

If the error occurs again, contact customer service. page 2

Check if the door is closed. Check the water supply and

the filling level of the water tank. If required, refill the water tank.

If the error occurs again, contact customer service.

page 2

page 22

page 2

40 D33142 | Date 03/2017

Malfunctions, warning and error messages

6.2 Malfunctions, operating problems and appliance errors

Error description Cause of errors Rectifying errors See

Displays are dark External power supply

Displays cannot be activated

Displays suddenly look different

Display T:E-3 in the temperature display

TEMP

was interrupted

Miniature fuse, appliance fuse or power module faulty

Appliance locked by USER IDUnlock with USER ID page 57

The appliance is in programme, timer or remote control mode (mode "Write" or "Write + Alarm")

Appliance is in "wrong" mode

Temperature operating sensor defective. The monitoring sensor takes over the measurement function.

37.4°C

T:E-3 Set 37.0 °C

Check the power supply

Contact customer service

Wait until the end of the programme or timer mode or switch off the remote control

Change to operating or menu mode by pressing the key

► The appliance can

be temporarily operated

► Contact customer

service as soon as possible

page 22

page 2

Error message AI E-3 in the temperature display

TEMP

37.4°C

AI E-3 Set 37.0 °C

Error message E-3 in the temperature display

TEMP

E-3 °C

Set 45.0 °C

D33142 | Date 03/2017 41

Temperature monitoring sensor defective. The operating sensor takes over the measurement function.

Operating and monitoring sensor defective

► The appliance can

temporarily be kept in service

► Contact customer

service as soon as possible

► Switch off appli-

ance.

► Remove the cham-

ber load

► Contact customer

service

page 2

Malfunctions, warning and error messages

Error description Cause of errors Rectifying errors See

Error message E-6 in the humidity display

Humidity sensor defective ► No humidity con-

trol possible

► Contact customer

HUMIDITY

service

page 2

E-6

When switching on the appliance, the start animation is displayed in another colour than white

Set 50

%rh

.0%rh

► Cyan :

Not enough storage space on the SD card

► Red :

The system files could not be loaded

► Orange : The

fonts and images could not be loaded

Contact customer service

Download the firmware update at memmert.com and install it

page 2

6.3 Power failure

In case of a power failure, the appliance operates as follows:

In manual mode

After power supply has been restored, operation is continued with the parameters set. The time and duration of the power failure are documented in the log memory.

In timer or programme mode

In case of an interruption of the power supply of less than 60 minutes, the current programme is continued from the point at which it was interrupted. For longer interruptions of the power supply, all appliance functions (heating, fan etc.) are switched off.

In remote control mode:

The previous values are restored. If a programme has been initiated via remote control, it is continued.

42 D33142 | Date 03/2017

Menu mode

7. Menu mode

In menu mode, you can make basic settings, load programmes and export protocols, as well as adjust appliance parameters.

Caution:

Before changing menu settings, read the description of the respective functions on the following pages to avoid possible damage to the appliance and/or chamber load.

To enter menu mode, press the MENU key.

To exit the menu mode at any time, press the MENU key again. The appliance then returns to manual mode. Only changes accepted by pressing the confirmation key are saved.

7.1 Overview

Press the MENU key to change between the displays in menu mode:

12 34 512141513

TIME

LANGUAGE

SIGNALTÖNE

PROG

PROTOCOL

SETUP

CALIB

67 18 1989 1011 16 17

Fig. 24 ControlCOCKPIT in menu mode

1 Language selection activation key 2 Language selection display 3 Date and time display 4 Date and time setting activation key 5 Exit menu mode and return to operating

mode

6 Setup activation key (basic appliance set-

tings) 7 Setup display (basic appliance settings) 8 Adjustment display 9 Adjustment activation key 10 Turn control for adjustment

11 Confirmation key (accepts setting made

with the turn control) 12 Programme setup activation key 13 Programme setup display 14 Protocol display 15 Protocol activation key 16 Acoustic signal adjustment activation key 17 Acoustic signal adjustment display 18 User ID display 19 User ID activation key

ZEIT UND DATUM

SOUND

USER ID

D33142 | Date 03/2017 43

Menu mode

7.2 Basic operation in menu mode using the example of language selection

In general, all settings in menu mode are done just like in manual mode: Activate the respective display, use the turn control for setting and press the confirmation key to accept the change. A more detailed description is provided in the following, using the example of language selection.

1. Activate the desired parameter (in this

example the language). To do so, press the corresponding activation key on the left or right of the respective display. The activated display is enlarged.

ENGLISH

DEUTSCH FRANCAIS ESPANOL

If you want to exit or cancel your settings, again press the activation key which you have used to activate the display. The appliance returns to the menu overview. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

2. With the turn control, select the desired

new setting, e.g. Español (Spanish).

ENGLISH DEUTSCH FRANCAIS

ESPANOL

3. Save the setting by pressing the confir-

mation key.

ENGLISH DEUTSCH FRANCAIS

ESPANOL

4. To return to the menu overview, press the

activation key again.

You can now

IP address

► activate another menu function by press-

ing the corresponding activation key or

► return to manual mode by pressing the

Balance

Subnet mask

IP Adresse

Unit

Einheit

Alarm Temp

Timer mode

Timer Mode

Slide-in unit

MENU key.

44 D33142 | Date 03/2017

LANGUAGE

SETUP

LANGUAGE

TIME

SIGNALTÖNE

CALIB

TIM

SIGNALTÖ

SETUP

CALI

Menu mode

All other settings can be made accordingly. The settings possible are described in the following sections.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically returns to the main menu and restores the former values.

7.3 Setup

7.3.1 Overview

In the SETUP display, you can set the following parameters:

► the IP address and Subnet mask of the appliance’s Ethernet interface (for connection to

a network)

► the Unit of the temperature display (°C or °F, see page 46) ► how the digital backwards counter with target time setting works (Timer mode, see page

► the type of the slide-in unit (grid or shelf, see page 47) ► the defrosting system (Defrost, see page 47) ► Remote control (see page 48) ► Gateway (see page 48)

If the Setup menu contains more entries than can be displayed, this is indicated by the display “1/2”. This means that there is a second “page” of entries.

To display the hidden entries, use the turn control to scroll beyond the lowest entry. The page display changes to “2/2”.

7.3.2 IP address and subnet mask

1/2

IP adress 255.145.136.22

Subnet mask 255.255.0 .0 Unit

If you want to operate one ore more appliances in a network, each appliance must have its own unique IP address for identification. By default, each appliance is delivered with the IP address 192.168.100.100.

Programm negnulletsniEllokotorPtäreG efliHnekcurD

AtmoCONTROL

INP 250 Test 01

180

.0°C

HPP 250 Labor

.0°C

.4%rh

Programmname

Editor

Simulation Protokoll

STAND BY

151

Setup

°C F

-+-

Fig. 25 Operation of several appliances in a network (schematic example)

192.168.1.216

192.168.

LAN 1: 192.168.1.233

LAN 2: 192.168.1.215

LAN 3: 192.168.1.241

D33142 | Date 03/2017 45

Menu mode

SETUP

1. Activate the

SETUP display. The entry IP

address is automatically highlighted.

2. Accept the selection by pressing the con-

firmation key. The first three digits of the IP address are automatically selected.

3. With the turn control, set the new num-

ber, e.g. 255.

4. Accept the selection by pressing the

confirmation key. The next three digits of the IP address are automatically selected. Setting these is done according to the description above.

5. After setting the last three digits, accept

the new IP address by pressing the confirmation key. The selection returns to the overview. The subnet mask is set accordingly.

7.3.3 Unit

Here, you can choose whether the temperature is displayed in °C or °F.

SETUP

IP address 192.168.100.100

Balance

Subnet mask 255.255.0 .0

IP Adresse

Unit

Einheit

Alarm Temp

Timer mode

Timer Mode

Slide-in unit

IP address 192.168.100.100

Subnet mask 255.255. 0. 0

Unit Alarm temp Timer mode

IP address 255.168.100.100

Subnet mask 255.255. 0. 0 Unit Alarm temp Timer mode

IP address 255. 168.100.100

Subnet mask 255.255. 0. 0 Unit Alarm temp Timer mode

IP address 255. 145.136.225

Subnet mask 255.255. 0. 0

Unit

Alarm temp

Timer mode

IP address 255. 145.136.225 Subnet mask 255.255. 0. 0

Unit

Alarm temp Timer mode

+30%

192.168. 10 0. 100

°C F

TWW TWB

Grid Shelf

°C F TWW TWB

°C °F

TWW TWB

46 D33142 | Date 03/2017

7.3.4 Timer mode

SETUP

Here, you can choose whether the digital backwards counter with target time setting (see page 29) should run setpoint-dependent or not. This determines whether the timer should not start until a tolerance band of ±3 K around the set temperature is reached (Fig. 26, B) or if it should start right after activation (A).

Menu mode

IP address 255. 145.136.225

Subnet mask 255.255. 0. 0

Unit Alarm temp

Timer mode

°C F TWW TWB



°C/°F



Timer

6 K

Fig. 26 Timer Mode A Timer independent of setpoint: Timer starts right after activation B Timer setpoint-dependent: Timer does not start until tolerance band is reached

7.3.5 Type of the slide-in unit ( Grid or Shelf)

Here, you have to set the type of the slide-in unit (grid or shelf) used. The selection Shelf enables you to adjust the control function to the different air flow characteristics in the interior when using optional sliding shelves instead of the grids that are part of the standard delivery.

IP adress 255.145.136.225 Subnet mask 255.255. 0. 0 Unit

Alarm temp Timer mode

Slide-in unit

°C °F TWW TWB

Grid Shelf

7.3.6 Automatic defrosting system ( Defrost)

The integrated automatic defrosting system for the cooling unit ensures perfect operation of the appliance at low temperatures and in permanent operation. The defrosting interval can be set in steps of 6 hours, between 6 and 48 hours. The setting

Off

deactivates automatic defrosting. Due to long-term operation with a working temperature below

+15 °C or due to a damp chamber load and/or the door opening frequently, ice can form in the interior over time. Heavy icing may impair the function of the appliance and could damage the cooling system. In this case, the working chamber should be defrosted. This can be achieved by short heating of the appliance (to 30-40 °C) or by switching it off for a longer period of time, e.g. over night. The resulting melting water can best be collected with a cloth at the front edge of the working chamber. Afterwards, the smooth surface of the interior can easily be cleaned.

Due to this automatic defrosting, there is a minor brief increase in the chamber temperature at regular intervals. If you would like to further reduce this impairment in performance, you can shorten the defrosting frequency, e.g. to every 24 hours.

In this case, please observe if there is a permanent drop in the cooling performance or a strong fluctuation of the actual value, which may be an indication that the cooling unit is icing over. If this is the case, please set the automatic defrosting system one level higher.

2/2

Defrost

18h

D33142 | Date 03/2017 47

Menu mode

If humidity/room temperature are particularly high, it is possible that the factory setting for defrosting, 12 hours, is not sufficient. If this is the case, you should set a more frequent defrosting interval, e.g. every 6 hours.

Automatic defrosting is disabled with the setting Off. When operating at low temperatures, this over time causes the cooling unit to ice over. Regular defrosting needs to be carried out in order to prevent damage to the cooling system.

7.3.7 Remote control

In the setup entry Remote control, you can set whether the appliance should be controlled via remote control and if so, in which mode. These settings are available:

► Off

Remote Control Off

Gateway 192.168.5 .1

► Read Only ► Write ► Write+Alarm

When the appliance is in remote control mode, the

symbol appears in the temperature display. In the settings controlled at the ControlCOCKPIT until the remote control has been switched off (setting Off) or set to

Write and Write+Alarm, the appliance cannot be

Read Only.

In order to use the remote control function, programming skills and special libraries are required.

TEMP

23.2°C

Set 38

.0°C

7.3.8 Gateway

The setup entry Gateway is used to connect two networks with different protocols.

The gateway is set the same way as the IP address (see page

45).

Remote Control Off

Gateway 192.168.5 .1

7.4 Date and Time

In the Time display, you can set date and time, time zone and daylight saving time.

Always set the time zone (and summer time yes/no) before you set the date and time. Avoid changing the set time after that since this can lead to gaps or overlapping when recording measured values. If you still need to change the time, you should not run a programme immediately before or after doing so.

1. Activate the time setting. To do so, press

the activation key on the right side of the

Time display. The display is enlarged

and the first adjustment option ( automatically highlighted.

48 D33142 | Date 03/2017

Date)

Date

Time Time zone Daylight savings

Date and time

12. 05. 2012

12:00 GMT 01:00

Menu mode

2. Turn the turn control until Time zone is

highlighted.

Date Time

Time zone

Daylight savings

3. Accept the selection by pressing the

confirmation key.

Date Time

Time zone

Daylight savings

4. Set the time zone of the installation site

with the turn control, e.g. 00:00 for France, Spain or Great Britain, 01:00 for Germany. Accept the selection by pressing the confirmation key.

Date Time

Time zone

Daylight savings

5. With the turn control, select the Daylight

savings entry

Date Time Time zone

Daylight savings

6. Accept the selection by pressing the

confirmation key. The adjustment options are highlighted.

Date Time Time zone

Daylight savings

7. Set daylight savings to off () or on

(

) with the turn control – in this case



on (

). Save the setting by pressing the



confirmation key.

Date Time Time zone

Daylight savings

Daylight saving time and standard time are not changed automatically. For this reason, please keep in mind to adjust them at the beginning of each period.

8. Now, set date (day, month year) and time

(hours, minutes) in the same way. Accept the selection by pressing the confirmation key.

Date 27 05

Time Time zone Daylight savings

12.05 .2012 12:00 GMT 01:00

12.05 .2012 12:00 GMT

01:00

12.05 .2012 12:00 GMT

00:00

12.05 .2012 12:00 GMT 00:00

..2012 12:00 GMT 00:00

D33142 | Date 03/2017 49

Menu mode

7.5 Calibration

To guarantee perfect control, we recommend to calibrate the appliance once a year.

7.5.1 Temperature adjustment

The appliances are temperature calibrated and adjusted at the factory. In case readjustment should be necessary later on – for example due to influence of the chamber load – the appliance can be calibrated customer-specifically using three calibration temperatures of your choice:

► Cal1 Temperature calibration at low temperature ► Cal2 Temperature calibration at medium temperature ► Cal3 Temperature calibration at high temperature

For temperature adjustment, you will need a calibrated reference measuring device.

CAL 3

+1,6°C

CAL 2

-0,4°C

Factory calibration

CAL 1

+0,5°C

0°C

10°C

20°C 30°C 40°C

Fig. 27 Schematic example of temperature adjustment

Example: Temperature deviation at 30 °C should be corrected.

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically highlighted.

Temperatur

Temperature

Humidity

Last updated 12.10.2012 12:00:00

letzte Justierung 12.10.2012 12:00

Cal1

Cal2 100.0 °C +0,1K

Cal2

Cal3 180.0 °C -0,2 K

Cal3

2. Press the confirmation key repeatedly, until the calibration temperature Cal2 is selected.

40.0

5.0

20.0

37.0

JUSTIEREN

Calibration

°C -0,2

CK0,2- CK0,1+ CK0,2-

5.0

20.0

37.0

CK0,2- CK0,1+ CK0,2-

Cal1

Cal2

Cal3

50 D33142 | Date 03/2017

3. With the turn control, set the calibration temperature Cal2 to 30 °C.

4. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

5. Set the calibration value to 0.0 K and accept the setting by pressing the confirmation key.

6. Position the sensor of a calibrated reference instrument centrally in the appliance's working chamber.

7. Close the door and, in manual mode, adjust the set temperature to 30 °C.

Menu mode

5.0

30.0

37.0

CK0,2- CK0,1+ CK0,2-

Cal1

Cal2

Cal3

Cal1

Cal2

Cal3

Cal1

Cal2

Cal3

CK0,2-

5.0

30.0 0,1+

37.0

5.0

30.0 0,0

37.0

0,2-

CK0,2-

0,2-

TEMP

21.4°C

30.0 °CSet

8. Wait until the appliance reaches the set temperature and displays 30 °C. The ref-

TEMP

erence instrument should display 31.6 °C.

30.0°C

Set 30

.0°C

31.6 °C

9. In the SETUP, adjust the calibration value Cal2 to +1.6 K (actual value measured minus setpoint temperature) and save the setting by pressing the confirmation key.

Cal1

Cal2

Cal3

CK0,2-

5.0

30.0 1,6+

37.0

0,2-

10. After the calibration procedure, the temperature measured by the reference

TEMP

instrument should now also be 30 °C.

30.0°C

Set 30

.0°C

30,0 °C

With Cal1, a calibration temperature below Cal2 can be programmed accordingly, and with Cal3, a temperature above. The minimum difference between the Cal values is 10 K.

If all calibration values are set to 0.0 K, the factory calibration settings are restored.

D33142 | Date 03/2017 51

Menu mode

7.5.2 Humidity calibration

Humidity control can be adjusted according to customer requirements by means of three freely selectable balance points. For each selected calibration point, a positive or negative compensation correction value between –10 % and +10 % can be set (Fig. 28).

For humidity adjustment, you will need a calibrated reference measuring device.

rh 50

+1,5 %

rh 20

+3,0 %

Factory calibration

20%

Fig. 28 Humidity adjustment (example)

Example: Humidity deviation at 60 % should be corrected.

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically highlighted.

2. Turn the turn control until Humidity is highlighted.

3. Press the confirmation key repeatedly, until the calibration point Cal2 is selected.

40%

60%

Temperatur

Temperature

Humidity

Last updated 12.10.2012 12:00:00

letzte Justierung 12.10.2012 12:00

JUSTIEREN

Calibration

Cal1 °C -0,2K

40.0

CK0,2-

5.0

Cal1

Cal2 100.0 °C +0,1K

CK0,1+

20.0

Cal2

Cal3 180.0 °C -0,2 K

CK0,2-

37.0

Cal3

rh 90

-1,5 %

80% 100%

Temperature

Humidity

Temperature

Humidity

Cal1

Cal2

Cal1

Cal2

10.0

50.0

10.0

50.0

80.0

%rh

%0,5-

%rh

%1,0+

%rh

1,0+Cal3 80.0

%rh

%0,5-

%rh

%1,0+

%rh

1,0+Cal3

4. With the turn control, set the calibration point Cal2 to 60 % rh.

Temperature

Humidity

10.0

Cal1

60.0

Cal2 Cal3 80.0

%rh

1,0+

52 D33142 | Date 03/2017

%0,5- %1,0+

5. Save the setting by pressing the confir-

JUSTIEREN

mation key. The corresponding calibration value is automatically highlighted.

6. Set the calibration value to 0.0 K and accept the setting by pressing the confirmation key.

7. Position the sensor of the calibrated reference instrument centrally in the appliance's working chamber.

8. Close the door and, in manual mode, adjust the set humidity to 60 % rh.

Temperature

Humidity

Temperature

Humidity

Menu mode

%rh

10.0

Cal1

%rh

60.0 1,0+

Cal2

%rh

Cal3

80.0

%rh

10.0

Cal1

%rh

60.0 0,0

Cal2

%rh

Cal3 80.0

HUMIDITY

29.5%rh

Set 60.0%rh

%0,5-

1,0+

%0,5-

1,0+

9. Wait until the appliance reaches the set humidity and displays 60 % rh. The reference instrument should display

58.5 % rh.

10. In the SETUP, adjust the calibration value Cal2 to -1.5 % (actual value measured minus setpoint humidity) and save the setting by pressing the confirmation key.

11. After the calibration procedure, the humidity measured by the reference instrument should now also be 60 % rh.

HUMIDITY

60.0%rh

Set 60.0%rh

HUMIDITY

60.0%rh

Set 60.0%rh

Temperature

Humidity

58.5 %rh

%rh

10.0

Cal1

%rh

60.0 -1.5

Cal2

%rh

60.0 %rh

%0,5-

1,0+Cal3 80.0

D33142 | Date 03/2017 53

Menu mode

7.6 Program

In the PROG display, programmes created using the AtmoCONTROL software can be transferred to the appliance and saved on a USB storage medium. Here, programme to be used in manual mode can also be selected (see page 32) and programmes can be deleted.

To load a programme from a USB storage medium: Connect the USB storage medium with the saved programme(s) to the interface on the right side of the control panel.

1. Activate the programme display. To do so, press the activation key on the left side of the

PROG display. The display is enlarged

and the entry

Select automatically

highlighted. The programmes available for activation are shown on the right. The programme currently available for use – in this example

Test 012 – is highlighted

in orange.

2. Call the Select function by pressing the confirmation key. All programmes available are displayed, including the ones saved on the USB storage medium (identified by the USB symbol). The programme currently available for use is highlighted in orange.

3. With the turn control, select the programme you want to make available for use.

4. Accept the selection by pressing the confirmation key. The programme is now loaded, which is indicated by the transfer symbol.

5. As soon as the programme is ready, the selection returns to

Select. To start the

programme: As described on page 32, return to manual mode by pressing the MENU key.

Select

Delete

Test 012 Test 022 Test 013 Test 014

Test 023

Test 015

You can now remove the USB storage medium. To delete a programme, select

Delete with the turn control and select the programme to be

deleted the same way you can select a programme for activation.

Program

Select

Delete

Select

Delete

Select

Delete

Select

Delete

Test 012

Test 013 Test 014 Test 015 Test 016 Test 017

Test 012

Test 022 Test 013 Test 014 Test 022

Test 012

Test 022 Test 013 Test 014

Test 023

Test 012

Test 022 Test 013 Test 014

Test 023

54 D33142 | Date 03/2017

Menu mode

7.7 Sound

In the Sound display, it can be define whether or not the appliance should emit acoustic signals and, if yes, on which events:

► on the press of a key ► at the end of a programme ► on alarm ► if the door is open

1. Activate the acoustic signal adjustment. To do so, press the activation key on the left side of the

SOUND display. The

display is enlarged. The first category (in this case

Key sound) is automatically

highlighted. On the right, the current settings are shown on.

If you want to edit another list entry: Turn the turn control until the respective entry – e.g.

If door open (Special accessories) –

is highlighted in colour.

2. Save the selection by pressing the confirmation key. The adjustment options are automatically highlighted.

3. With the turn control, select the desired setting – in this example OFF () .

4. Save the setting by pressing the confirmation key.

If an acoustic alarm sounds, it can be turned off by pressing the confirmation key.

Sound

Keysound

At the end On alarm If door open

Keysound At the end On alarm

If door open

Keysound At the end On alarm

If door open

Keysound At the end On alarm

If door open

Keysound At the end On alarm

If door open

D33142 | Date 03/2017 55

Menu mode

7.8 Protocol

The appliance continually logs all relevant measured values, settings and error messages at 1-minute intervals. The internal log memory is of the continuous memory type. The logging function cannot be switched off and is always active. The measured data are stored in the appliance, safe from manipulation. If the power supply is interrupted, the time of the power failure and voltage recovery are stored in the appliance.

You can export the protocol data for different periods to a USB storage medium via the USB interface or, via Ethernet, import them to the AtmoCONTROL software for graphical representation, print-out or storage.

The log memory of the appliance is not modified or deleted by reading it out.

1. Connect the USB storage medium to the interface on the right side of the control panel.

2. Activate the protocol. To do so, press the activation key on the right side of the

PROTOCOL display. The display is

enlarged and the period

This Month au-

tomatically highlighted. To select another logging period, use the turn control.

3. Save your selection by pressing the confirmation key. The transfer starts and a status symbol indicates the progress.

4. As soon as the transfer is complete, a check mark appears in front of the period selected. The USB storage medium can now be removed.

For a description of how to import and process protocol data in AtmoCONTROL or read them out via Ethernet, please observe the separate AtmoCONTROL manual.

Protocol

ontrol range

12.10.2012 12:00

This Month

This Year Complete control range

This Month

This Year Complete control range

56 D33142 | Date 03/2017

Menu mode

7.9 User-ID

7.9.1 Description

With the User-ID function, you can lock the settings of individual (e.g. temperature) or all parameters, so that they cannot be changed at the appliance by accident or unauthorised persons. You can also lock setting options in menu mode (e.g. adjustment or date and time settings) this way.

If adjustment options are locked, this is indicated by the lock symbol in the respective display (Fig. 29).

User ID data are entered in the AtmoCONTROL software and saved on the USB storage medium. The USB storage medium is thus acting as a key: Parameters can only be locked or unlocked if it is connected.

A description of how to create a user ID in AtmoCONTROL is provided in the separate AtmoCONTROL manual.

7.9.2 User ID activation and deactivation

1. Connect the USB storage medium with the user ID data to the interface on the right side of the control panel.

Fig. 29 Temperature adjustment at appliance locked (example)

TEMP

22.4

°C

2. Activate the user ID. To do so, press the activation key on the right side of the

User-ID display. The display is enlarged

and the entry highlighted.

3. Confirm the activation by pressing the confirmation key. The new user ID data are transferred from the USB storage medium and activated. As soon as activation is complete, a check mark appears in front of the corresponding entry.

4. Remove the USB storage medium. Locked parameters are indicated by the lock symbol in the respective display (Fig. 29 ).

To unlock the appliance, connect the USB storage medium, activate the select Deactivate.

D33142 | Date 03/2017 57

Activate automatically

Activate

Deactivate

USER-ID

Activate

Deactivate

User-ID entry and

Maintenance and Servicing

8. Maintenance and Servicing

Warning! Danger due to electric shock. Before doing any maintenance work, pull out the mains plug.

Warning! In case of appliances of a certain size, you can get accidentally locked in, which is life-threatening. Do not climb into the appliance!

Caution! Danger of cuts due to sharp edges. Always wear gloves when working in the chamber interior.

To guarantee perfect control, we recommend to calibrate the appliance once a year (see page

50).

8.1 Cleaning

8.1.1 Interior and metal surfaces

Regular cleaning of the easy-to-clean interior prevents build up of material remains that could impair the appearance and functionality of the stainless steel chamber over time.

The metal surfaces of the appliance can be cleaned with normal stainless steel cleaning agents. Make sure that no rusty objects come into contact with the interior or with the stainless steel housing. Rust deposits can lead to an infection of the stainless steel. If rust spots should appear on the surface of the interior due to impurities, the affected area must be immediately cleaned and polished.

8.1.2 Plastic parts

Do not clean the ControlCOCKPIT and other plastic parts of the appliance with caustic or solvent-based cleaning agents.

8.1.3 Glass surfaces

Glass surfaces can be cleaned with a commercially available glass cleaner.

58 D33142 | Date 03/2017

Maintenance and Servicing

8.1.4 Cooling unit

In order to guarantee perfect function and a long lifetime of the refrigeration unit, it is absolutely essential to remove dust deposits from the condenser (with a vacuum cleaner, paintbrush or bottle brush, depending on the amount of dust).

To do so, open the screws at the lower front cover (number varies depending on the appliance size) and remove the front cover (Fig. 30).

Fig. 30 Unscrew and remove the front cover

8.1.5 Peltier dehumidiﬁ cation modules

In order to guarantee perfect function and a long lifetime of the Peltier dehumidification modules, it is absolutely essential to remove dust deposits from the heat sink on the rear side of the appliance (with a vacuum cleaner, paintbrush or bottle brush, depending on the amount of dust) (Fig. 31).

Fig. 31 Peltier cooling modules at the rear side of the appliance

D33142 | Date 03/2017 59

Maintenance and Servicing

8.2 Repairs and Service

Warning! After removing covers, live parts may be exposed. You may receive an electric shock if you touch these parts. Disconnect the mains plug before removing any covers. Any work inside the appliance may only be performed by qualiﬁ ed electri- cians.

Repairs and service work are described in a separate service manual.

8.2.1 Replacing ﬂ uorescent tubes (only for model ICHL)

Warning! UV light is a danger to your eyes. Your eyes could be injured by UV light if you do not wear protection. Please always wear UV safety goggles when testing the function of ﬂ uores- cent tubes.

► Replace the fluorescent tubes only with fluorescent tubes of the same power and type;

e.g. UV light tubes only with UV light tubes, not daylight tubes. For information on the specifications, please refer to chapter Technical data from page 14.

► Do not replace single tubes, but always the entire tube set (e.g. all UV light tubes instead

of just one). Replacing single tubes can influence the light output.

1. Switch off the appliance and remove the mains plug.

2. Loosen the connection of the illumination box in the interior. To do so, turn the bayonet catch to the left and pull off the plug (Fig. 32).

3. Slightly lift the illumination box and carefully pull it out of the appliance (Fig. 33).

Fig. 32 Open the bayonet catch and pull off the plug

60 D33142 | Date 03/2017

Fig. 33 Pull out the illumination box

Maintenance and Servicing

4. Turn the illumination box around and place it carefully on a smooth surface, so that the fluorescent tubes are on top (Fig. 34). Undo the four screws on the side.

5. Loosen the screws surrounding the glass plate. Remove the glass plate and put it aside.

Fig. 34 Lay the illumination box on its back and loosen the screws

6. Undo the screw connections on the sockets of the fluorescent tubes to be exchanged (Fig. 35).

7. Carefully pull the fluorescent tubes out of the sockets and remove them.

8. Insert the new fluorescent tubes and screw them in tight. Put the glass plate back on and secure it.

Fig. 35 Undo the screw connections

D33142 | Date 03/2017 61

Maintenance and Servicing

9. Push the illumination box back into the appliance. Guide the two connectors of the illumination cooling into the feed-throughs at the rear of the appliance until they click in place (Fig. 36).

Fig. 36 Put the illumination box back in

10. Put in the plug and lock the bayonet catch by turning it right (Fig. 32).

11. Check the function of the lighting.

62 D33142 | Date 03/2017

Storage and disposal

9. Storage and disposal

9.1 Storage

The appliance may only be stored under the following conditions:

► in a dry and enclosed, dust-free room ► frost-free ► disconnected from the power supply

Before storage, remove water tube and empty the water tank (see page 23).

9.2 Disposal

This product is subject to the Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament and of the Council. This appliance has been brought to market after August 13th, 2005 in countries which have already integrated this directive into their national laws. It may not be disposed of in normal household waste. For disposal, please contact your dealer or the manufacturer. Any appliances that are infected, infectious or contaminated with materials hazardous to health are excluded from return. Please also observe all other regulations applicable in this context.

Before disposing of the appliance, please render the door locking mechanism unusable, for example, to prevent playing children from being locked inside the appliance.

There is a lithium battery in the ControlCOCKPIT of the appliance. Remove it and dispose of it in accordance with the regulations in your country (Fig. 37).

Fig. 37 Removing the lithium battery

Note for Germany: The appliance may not be left at public or communal recycling or collection points.

D33142 | Date 03/2017 63

Index

Accessories 16 Activation key 26, 28 Alarm 33, 34, 36, 39 Ambient conditions 16 Ambient temperature 16 Appliance error 41 ASF 32, 34 AtmoCONTROL 3, 12, 16, 27,

30, 54, 56, 57

Balance 47 Basic device settings 43 Basic settings 43

Carrying 17 Cause of errors 41 Chamber load 25 Changes 8 Cleaning 58 Clock time 48 Communication interfaces

Compensation correction

values 51

Connections 11 ControlCOCKPIT 25, 26 Cooling unit 47, 59 Customer service 2

Daylight 28 Declaration of conformity 15 Defrost 47 Delete programme 54 Delivery 17, 18, 22 Digital backwards counter

Dimensions 15 Directives 15 Disposal 62 Door 24

Electrical connection 11 Electrical equipment 11 Electronic temperature moni-

toring 33 Emergency 9 Ending operation 38 End of programme 32 Error description 41 Error messages 39 Ethernet 12 Explosion protection 8

Fan speed 28 Fluorescent tubes 60, 61 Forklift truck 18 Fresh water container 22

Graph 37 Grid 47

Hazards 7 Hot-air generator 11 Humidity 28 Humidity adjustment 52 Humidity monitoring 36,

37, 41 Humidity profile 37

Illumination box 11, 60, 61 Installation site 19 Intended use 8 Interfaces 11 Interior lighting 28 IP address 45

Language selection 44 Light 28 Light display 28 Lighting 28 Loading the appliance 25 Log memory 42, 56

Maintenance 58 Malfunctions 9, 39, 41 Manufacturer 2 Material 11 Mechanical temperature

monitoring 34 Menu 48 Minimum clearances 19 Monitoring function 32 Monitoring temperature 32

Nameplate 13 Network 12, 45

Operating 24 Operating modes 27 Operating personnel 8, 24 Operating problems 41 Operation 24

Packaging material 18 Parameter adjustment 26 Power failure 42 Power supply 56 Press of a key 55 Product safety 7 Programme 54 Programme mode 27, 30, 32 Protocol 56 Pt100 temperature sensor

32 Putting into operation 22

Rectifying errors 41 Replacing fluorescent tubes

64 D33142 | Date 03/2017

Index

Safety goggles 7, 24, 60 Safety labels 7 Safety regulations 6, 10 Service 60 Servicing 60 Setting parameters 44 Setting up 17, 19 Setup 45 Shelf 47 Slide-in unit 47 Speaker symbol 33, 36, 39 Standards 15 Storage after delivery 18 Switching off 38 Switching on 23

Tank holder 23 TB 34 Technical data 14 Temperature 28 Temperature adjustment 50 Temperature comparison 50 Temperature deviation 50 Temperature limiter 34 Temperature monitor 32, 34 Temperature monitoring 32 Temperature profile 37 Temperature sensor 32 Tilt protection 20 Time 47 Timer 29 Timer mode 47 Transport 17, 18 Transport damage 18 Türen einstellen 21 Turn control 26, 29 TWW 33 TWW temperature monitor-

ing 33

Unit 46 Unpacking 18 USB interface 12, 56 User ID 57 UV light 7, 24, 29, 60 UV safety goggles 7, 24, 60

Warning messages 12, 39 Water specifications 22 Water tank 22 Weight 14 What to do in case of ac-

cidents 9

D33142 | Date 03/2017 65

Climate chamber ICH

D33142 | Date 03/2017

englisch

Memmert GmbH + Co. KG Willi-Memmert-Straße 90-96 | D-91186 Büchenbach Tel. +49 9122 925-0 | Fax +49 9122 14585 E-Mail: sales@memmert.com facebook.com/memmert.family Die Experten-Plattform: www.atmosafe.net

Memmert ICH, ICHL, ICHL 110, ICHL 750, ICHL 260 Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Manufacturer and customer service

About this manual

Contents

1. For your Safety

2. Construction and description

3. Delivery, transport and setting up

4. Putting into operation

5. Operation and control

6. Malfunctions, warning and error messages

7. Menu mode

8. Maintenance and Servicing

9. Storage and disposal

Index
