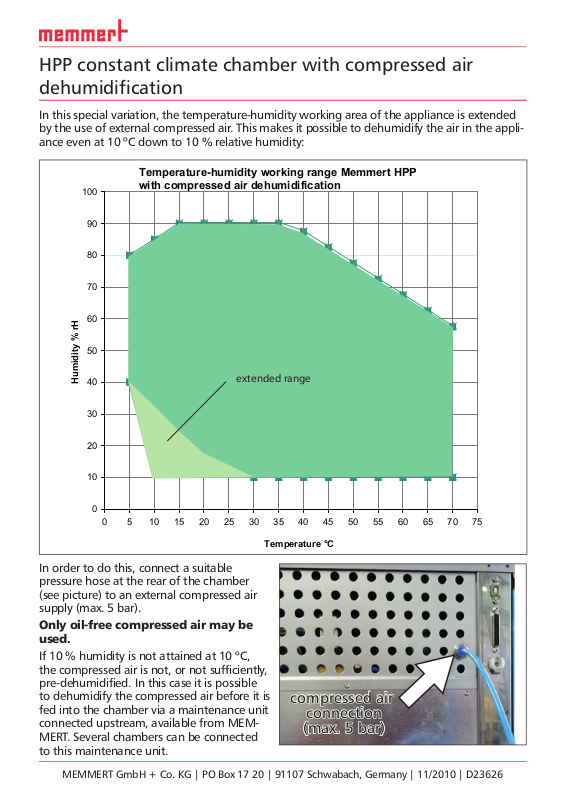

HPP constant climate chamber with compressed air
dehumidification

In this special variation, the temperature-humidity working area of the appliance is extended
by the use of external compressed air. This makes it possible to dehumidify the air in the appli­ance even at 10 ºC down to 10 % relative humidity:

Temperature-humidity working range Memmert HPP

100

90

80

70

60

with compressed air dehumidification

50

Humidity % rH

40

30

20

10

0

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75

extended range

In order to do this, connect a suitable
pressure hose at the rear of the chamber
(see picture) to an external compressed air
supply (max. 5 bar).

Temperature °C

Only oil-free compressed air may be
used.

If 10 % humidity is not attained at 10 ºC,
the compressed air is not, or not sufficiently,
pre-dehumidified. In this case it is possible
to dehumidify the compressed air before it is
fed into the chamber via a maintenance unit
connected upstream, available from MEM-

compressed air

compressed air

connection

connection

(max. 5 bar)

(max. 5 bar)

MERT. Several chambers can be connected
to this maintenance unit.

MEMMERT GmbH + Co. KG | PO Box 17 20 | 91107 Schwabach, Germany | 11/2010 | D23626
