OPERATING MANUAL

HUMIDITY CHAMBER HCP

Manufacturer and customer service

MEMMERT GmbH + Co. KG Willi-Memmert Strasse 90-96 91186 Büchenbach Germany

Phone: +49 (0)9122 925-0 Fax: +49 (0)9122 14585 E-mail: sales@memmert.com Internet: www.memmert.com

Customer service: Service hotline: +49 (0)9171 9792 911 Service fax: +49 (0)9171 9792 979 E-mail: service@memmert.com

When calling for service enquiries, please state the appliance number given on the nameplate (see page 13).

Shipping address for repairs: Memmert GmbH + Co. KG Customer service Willi-Memmert Str. 90-96 91186 Büchenbach Germany

Please contact our customer service department before sending appliances for repair or before returning equipment, or the shipment may be refused.

About this manual

Purpose and target audience

This manual describes the design, function, transport, putting into operation, the actual operation and maintenance of HCP humidity chambers. It is intended for use by trained personnel of the owner, who have the task of operating and/or maintaining the respective appliance.

If you are asked to work on the appliance, read this manual carefully before starting. Familiarise yourself with the safety regulations. Only perform work that is described in this manual. If there is something you do not understand, or certain information is missing, ask your manager or contact the manufacturer. Do not do anything without authorisation.

Versions

The appliances are available in different configurations and sizes. If specific equipment features or functions are available only for certain configurations, this is indicated at the relevant points in this manual.

The functions described in this manual refer to the latest firmware version. Due to individual configurations and sizes, illustrations in this manual may be slightly different

to the actual appearance. Function and operation are identical.

Other documents that have to be observed

When operating the appliance with the MEMMERT AtmoCONTROL PC software, observe the separate software manual. To open the AtmoCONTROL software manual, click on “Help” in the AtmoCONTROL menu bar.

Storage and resale

This operating manual belongs with the appliance and should always be stored where persons working on the appliance have access to it. It is the owner's responsibility to ensure that persons who are working on or are going to work on the appliance know where to find the operating manual. We recommend that it is always stored in a protected location close to the appliance. Make sure that the operating manual is not damaged by heat or humidity. If the appliance is resold or transported and then set up again at a different location, the operating manual must remain with it.

For the current version of this operating manual in PDF format, please go to http://www.memmert.com/en/service/downloads/user-manual/ .

D39303 | Date 09/2018 3

Contents

1. For your safety 6

1.1 Terms and signs used........................................................................................................... 6

1.2 Product safety and dangers ................................................................................................ 7

1.3 Requirements of the operating personnel .......................................................................... 8

1.4 Responsibility of the owner ................................................................................................. 8

1.5 Intended use and improper use .......................................................................................... 8

1.6 Changes and alterations ...................................................................................................... 9

1.7 Behaviour in case of malfunctions and irregularities .......................................................... 9

1.8 Switching off the appliance in an emergency .................................................................... 9

2. Construction and description 10

2.1 Design ................................................................................................................................ 10

2.2 Description and function .................................................................................................. 10

2.3 Working range ...................................................................................................................11

2.4 Material.............................................................................................................................. 12

2.5 Electrical equipment .......................................................................................................... 12

2.6 Connections and interfaces ............................................................................................... 12

2.7 Designation (nameplate) ................................................................................................... 13

2.8 Technical data .................................................................................................................... 14

2.9 Applied directives and standards ...................................................................................... 15

2.10 Declaration of conformity .................................................................................................15

2.11 Ambient conditions ...........................................................................................................16

2.12 Scope of delivery ...............................................................................................................16

2.13 Optional accessories .......................................................................................................... 16

3. Delivery, transport and setting up 17

3.1 For your safety ................................................................................................................... 17

3.2 Delivery .............................................................................................................................. 18

3.3 Transport ............................................................................................................................18

3.4 Unpacking ......................................................................................................................... 18

3.5 Storage after delivery ........................................................................................................18

3.6 Setting up .......................................................................................................................... 19

4. Putting into operation 21

4.1 Connect the appliance to the power supply ..................................................................... 21

4.2 Establish water supply .......................................................................................................21

4.3 Switching on ......................................................................................................................22

5. Operation and control 23

5.1 For your safety ................................................................................................................... 23

5.2 Operating personnel.......................................................................................................... 23

5.3 Opening the door .............................................................................................................. 23

5.4 Loading the appliance ....................................................................................................... 24

5.5 Operating the appliance .................................................................................................... 24

5.6 Monitoring function .......................................................................................................... 30

5.7 Graph ................................................................................................................................. 35

5.8 Ending operation ...............................................................................................................36

4 D39303 | Date 09/2018

Contents

6. Malfunctions, warning and error messages 37

6.1 Warning messages of the monitoring function ................................................................ 37

6.2 Malfunctions, operating problems and appliance errors ................................................ 38

6.3 Power failure ...................................................................................................................... 40

7. Menu mode 41

7.1 Overview ............................................................................................................................ 41

7.2 Basic operation in menu mode using the example of language selection ....................... 42

7.3 Setup.................................................................................................................................. 43

7.4 Date and time ....................................................................................................................45

7.5 Calibration ......................................................................................................................... 47

7.6 Program ............................................................................................................................. 51

7.7 Sounds ............................................................................................................................... 52

7.8 Protocol ............................................................................................................................. 53

7.9 USER ID .............................................................................................................................. 54

8. Maintenance and Servicing 55

8.1 Regular maintenance.........................................................................................................55

8.2 Cleaning ............................................................................................................................. 55

8.3 Repairs and Service ............................................................................................................ 55

9. Storage and disposal 56

9.1 Storage ..............................................................................................................................56

9.2 Disposal ............................................................................................................................. 56

Index 57

D39303 | Date 09/2018 5

For your safety

1. For your safety

1.1 Terms and signs used

In this manual and on the appliance itself, certain common terms and signs are used to warn you of possible dangers or to give you hints that are important in avoiding injury or damage. Observe and follow these notes and regulations to avoid accidents and damage. These terms and signs are explained below.

1.1.1 Terms used

WARNING

CAUTION

NOTICE

1.1.2 Signs used

Danger of electrocu-

tion

Warns of a dangerous situation that might lead to death or serious injuries

Warns of a dangerous situation that might lead to moderate or minor injuries

Warns of material damage

Fire hazard

Danger of burns

Danger from hot

steam

Do not tilt

Wear safety

boots

Disconnect the

mains plug

Observe information

in separate

manual

6 D39303 | Date 09/2018

For your safety

1.2 Product safety and dangers

The appliances described in this manual are technically sophisticated, manufactured using high-quality materials and subject to many hours of testing in the factory. They reflect the state of the art and comply with recognised technical safety regulations. However, there are still risks involved, even when the appliances are used as intended. These are described below.

WARNING

After removing covers, live parts may be exposed. Touching these can lead to an electrical shock. Disconnect the mains plug before removing any covers. Work on the electrical system must only be performed by qualiﬁ ed electricians.

WARNING

When loading the appliance with an unsuitable chamber load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may only be loaded with materials/test objects which do not release any toxic or explosive vapours when heated (see also chapter Intended use and improper use on page

8).

WARNING

Hot steam can build up inside the appliance. You could be scalded on opening the door. Allow the appliance to cool before opening the door.

WARNING

Depending on operation, the surfaces in the interior of the appliance and the chamber load may still be very hot after the appliance is switched off. Touching these surfaces can cause burns. Wear heatresistant protective gloves or wait until the appliance cools down before touching.

WARNING

Leaving the door open during operation can cause the appliance to overheat or pose a ﬁ re hazard. Do not leave the door open during operation.

WARNING

Condensation in the electrical components may cause short circuits. After transporting or storing the device under humid conditions, remove it from its packaging and let it ventilate for at least 24 hours in normal environmental conditions. Do not connect the device to the mains power during this time.

D39303 | Date 09/2018 7

For your safety

1.3 Requirements of the operating personnel

The appliance may only be operated and maintained by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

Repairs may only be performed by qualified electricians. The regulations in the separate service manual must be observed.

1.4 Responsibility of the owner

The owner of the appliance

► is responsible for the flawless condition of the appliance and for it being operated in ac-

cordance with its intended use (see chapter 1.5);

► is responsible for ensuring that persons who are to operate or service the appliance are

qualified to do this, have been instructed accordingly and are familiar with the operating manual at hand;

► must know about the applicable guidelines, requirements and operational safety regula-

tions, and train staff accordingly;

► is responsible for ensuring that unauthorised persons have no access to the appliance; ► is responsible for ensuring that the maintenance plan is adhered to and that maintenance

work is carried out properly (see page 55);

► has to ensure that the appliance and its surroundings are kept clean and tidy, for example

through corresponding instructions and inspections;

► is responsible for ensuring that personal protective clothing is worn by operating person-

nel, e.g. work clothes and safety shoes.

1.5 Intended use and improper use

Humidity chambers may be used exclusively for temperature and climate testing of materials and substances in the context of the procedures and specifications described in this manual. Any other use is improper and may result in hazards and damage.

The appliance is not explosion-proof (does not comply with the German occupational health and safety regulation VBG 24). The appliance may only be loaded with materials and substances which cannot form any toxic or explosive vapours at the set temperature and which cannot explode, burst or ignite.

The appliance may not be used for the drying, evaporation and burning-in of paints or similar materials, the solvents of which could form an explosive mixture when combined with air. If there is any doubt as to the composition of materials, they must not be loaded into the appliance. Potentially explosive gas-air mixtures must not form, neither in the chamber nor in the direct vicinity of the appliance.

8 D39303 | Date 09/2018

For your safety

ONN

1.6 Changes and alterations

No unauthorised changes or alterations may be made to the appliance. No parts may be added or inserted which have not been approved by the manufacturer.

Unauthorised changes or alterations result in the CE declaration of conformity losing its validity, and the appliance may no longer be operated.

The manufacturer is not liable for any damage, danger or injuries that result from unauthorised changes or alterations, or from non-compliance with the provisions in this manual.

1.7 Behaviour in case of malfunctions and irregularities

The appliance may only be used in a flawless condition. If you as the operator notice irregularities, malfunctions or damage, immediately take the appliance out of service and inform your superior.

You can find information on troubleshooting from page 37.

1.8 Switching off the appliance in an emergency

Press the main switch at the ControlCOCKPIT (Fig. 1) and disconnect the power plug. This disconnects the appliance from the power supply at all poles.

Fig. 1 Switch off the appliance by pressing the main switch

D39303 | Date 09/2018 9

Construction and description

2. Construction and description

2.1 Design

1 2

Fig. 2 Design of HCP humidity chambers

1 ControlCOCKPIT with capacitive function

keys and LCD displays (see page 25) 2 On/Off switch (see page 22) 3 Chamber fan

2.2 Description and function

4 Stainless steel perforated sheet 5 Inner glass door 6 Nameplate (see page 13)

Air is heated inside the appliance by means of large-area all-round heating. Humidification of the interior is achieved by evaporating water from a tank at a set rate by means of a hot-air generator on the rear side of the appliance. The sterile hot steam is introduced into the interior underneath the fan and mixed with the air current. Dehumidification takes place through the metered supply of fresh air via a sterile filter.

10 D39303 | Date 09/2018

Construction and description

2.3 Working range

The temperature-humidity diagram (Fig. 3) specifies at what range of temperature and humidity a permanent operation is possible.

NOTICE

If in operation for long periods at the upper level or outside the working range, puddles of water may form inside the chamber and water may force its way out of the door seal.

% rh

°C

Fig. 3 Temperature-humidity working range (possible at an ambient temperature of 22 °C ± 3 K, relative humidity < 50 %)

Range A:

In this range, temperature and humidity can be combined as you please. If the chamber is in operation at the upper limit or outside the working range for long periods, puddles of water may form inside the chamber and water may leak out through the door seal. In extreme ambient conditions, the working range may be restricted.

Range B:

If the specified range is exceeded upwards, the hot steam fed in will immediately condense, due to the dew-point, at the coldest point in the appliance.

Range C:

At low temperatures and low relative air humidity, the effective range is heavily dependent on the degree of humidity of the chamber load.

D39303 | Date 09/2018 11

Construction and description

2.4 Material

For the outer housing, MEMMERT uses stainless steel (Mat.No. 1.4016 – ASTM 430) and for the interior, stainless steel (Mat.No. 1.4301 – ASTM 304) is used, which stands out through its high stability, optimal hygienic properties and corrosion resistance to many (but not all!) chemical compounds (caution for example with chlorine compounds).

The chamber load for the appliance must be carefully checked for chemical compatibility with the materials mentioned. A material resistance table can be requested from the manufacturer.

2.5 Electrical equipment

► Operating voltage and current consumption: See nameplate ► Protection class I, i.e. operating insulation with PE conductor in accordance with EN 61010 ► Protection type IP 20 acc. to EN 60 529 ► Interference suppression acc. to EN 55011 class B ► Appliance fuse: Safety fuse 250 V/15 A, quick-blow ► The temperature controller is protected with a miniature fuse 100 mA (160 mA at 115 V)

2.6 Connections and interfaces

2.6.1 Electrical connection

This appliance is intended for operation on an electrical power system with a system impedance Z must ensure that the appliance is operated only on an electrical power system that meets these requirements. If necessary, you can ask your local energy supply company what the system impedance is.

Observe the country-specific regulations when making connections (e.g. in Germany DIN VDE 0100 with earth leakage circuit breaker).

2.6.2 Communication interfaces

The communication interfaces are intended for appliances which meet the requirements of IEC 60950-1.

USB interface

The appliance is fitted by default with a USB interface in accordance with the USB specification. This way, you can

► transfer software stored on a USB storage

of a maximum of 0.292 ohm at the point of transfer (service line). The operator

max

medium to the appliance (see page 51).

► export protocol logs from the appliance to

a USB storage medium (see page 53).

► transfer user ID data stored on a USB stor-

age medium to the appliance (see page

54).

The USB port is located on the right side of the ControlCOCKPIT (Fig. 4).

12 D39303 | Date 09/2018

Fig. 4 USB interface

Construction and description

Ethernet interface

Via Ethernet interface, the appliance can be connected to a network, so that you can transfer programs created with the AtmoCONTROL software to the appliance and read out protocols. The Ethernet interface is located on the rear of the appliance (Fig. 5).

For identification purposes, each appliance connected must have its own unique IP address. Configuration of the IP address is described on page 43.

You will find a description of how to transfer programs via Ethernet in the enclosed AtmoCONTROL manual.

The appliance can be directly connected to a computer / laptop using an optional USB to Ethernet converter (see Optional accessories on page 16).

Fig. 5 Ethernet interface

2.7 Designation ( nameplate)

The nameplate (Fig. 6) provides information about the appliance model, manufacturer and technical data. It is attached on the upper right behind the door (see page 10).

1 2

3 4

Fig. 6 Nameplate (example) 1 Type designation

2 Operating voltage 3 Applicable standard 4 Protection type 5 CE conformity

Typ: HCP240 F.-Nr.: H818.3008 230 V~ 50/60 Hz DIN12880-Kl.3.1 Nenntemp.: 18-90 °C

6 Address of manufacturer 7 Disposal note 8 Temperature range 9 Connection / power ratings 10 Appliance number

8.0

1840 W

D39303 | Date 09/2018 13

Construction and description

2.8 Technical data

Appliance size 50 105 150 240

Appliance width D* [mm] 559 719 719 759 Appliance height E* [mm]

(varies due to adjustable feet) Appliance depth F* (without door handle) [mm] 521 591 591 691 Depth of door handle [mm] 56 Chamber width A* [mm] 400 560 560 600 Chamber height B* [mm] 425 480 700 810 Interior depth C* [mm] (less 35 mm for fan) 330 400 400 500 Chamber volume [litres] 56 107 156 241 Net weight [kg] 55 75 90 110 Weight including packaging [kg] 74 100 116 145 Power [W] 1520 1720 1800 1840 Mains voltage [AC V] 230/115

795 851 1071 1181

Mains frequency [Hz] 50/60 max. number of sliding grids/shelves 5 6 10 12 max. load per sliding grid [kg] 15

max. load per appliance [kg] 75 90 120 140

Operating temperature range

Setting temperature range [°C] +18 bis +90

Adjustment precision [°C] 0.1 Adjustment range of active humidity control [% rh]

(only for appliances with the corresponding configuration)

Setting accuracy humidity [%] 0.5

* See Fig. 7 on page 15.

7 °C above room temperature up to

90 °C

20 to 95

14 D39303 | Date 09/2018

Construction and description

Fig. 7 Dimensions

D A

(79,3)(79,3)(79,3)(79,3)

243,6

40,8

2.9 Applied directives and standards

► Directive 2004/108/EC amended (Directive of the European Parliament and of the Council

on the approximation of the laws of the Member States relating to electromagnetic com-

patibility). Standards complied with:

DIN EN 61326:2004-05, EN 61326:1997, EN 61326/A1:1998, EN 61326/A2:2001

EN 61326/A2:2003

► Directive 2006/95/EC amended (Directive of the European Parliament and of the Council

on the harmonisation of the laws of Member States relating to electrical equipment de-

signed for use within certain voltage limits). Standards complied with:

DIN EN 61 010-1 (VDE 0411 part 1)

DIN EN 61 010-2-010 (VDE 0411 part 2-010)

EN 61 010-1:2001, EN 61 010-2-010

2.10 Declaration of conformity

You can download the EC declaration of conformity of the appliance online: English: http://www.memmert.com/en/service/downloads/ce-statement/ German: http://www.memmert.com/de/service/downloads/eg-konformitaetserklaerung/

D39303 | Date 09/2018 15

Construction and description

2.11 Ambient conditions

► The appliance may only be used in enclosed areas and under the following ambient condi-

tions:

Ambient temperature

Humidity rh max. 70 % non-condensing

Overvoltage category II

Pollution degree 2

Altitude of installation max. 2,000 m above sea level

10 °C to 35 °C

► The appliance may not be used in areas where there is a risk of explosion. The ambient air

must not contain any explosive dusts, gases, vapours or gas-air mixtures. The appliance is

not explosion-proof.

► Heavy dust production or aggressive vapours in the vicinity of the appliance could lead to

sedimentation in the interior and, as a consequence, could result in short circuits or dam-

age to electrical parts. For this reason, sufficient measures to prevent large clouds of dust

or aggressive vapours from developing should be taken.

2.12 Scope of delivery

► Power cable ► 1 or 2 stainless steel perforated sheets (load capacity: 15 kg each) ► 1 water tank ► 2 sponge plugs for silicone entry ports ► USB storage medium with software and AtmoCONTROL manual ► the operating instructions at hand ► Safety data sheet ► Calibration certificates ► Separately packaged fixing material for wall mounting (see page 20)

2.13 Optional accessories

► USB to Ethernet converter (Fig. 8). Makes it

possible to connect the Ethernet connection

interface of the appliance (see page 13)

to the USB port of a computer/laptop.

Fig. 8 USB to Ethernet converter

16 D39303 | Date 09/2018

3. Delivery, transport and setting up

3.1 For your safety

WARNING

Because of the heavy weight of the appliance, you could injure yourself if you try to lift it. To carry appliances of the size 50 at least two persons, for appliances of the sizes 105 and 150, four people are needed. Appliances larger than that may not be carried, but must be transported using a manual pallet jack or forklift truck.

Delivery, transport and setting up

CAUTION

You may get your hands or feet squashed when transporting and installing the appliance. Wear protective gloves and safety boots. Only grasp the appliance at the sides of the base:

105

150 240

D39303 | Date 09/2018 17

Delivery, transport and setting up

3.2 Delivery

The appliance is packed in cardboard and is delivered on a wooden palette.

3.3 Transport

The appliance can be transported in the following ways:

► With a forklift truck; move the forks of the truck entirely under the pallet. ► On a manual pallet jack

3.4 Unpacking

NOTICE

► To avoid damage, do not unpack the appliance until you reach the installation site.

Remove the cardboard packaging by pulling it upwards or carefully cutting along an edge.

3.4.1 Checking for completeness and transport damage

► Check the delivery note to ensure that the delivery is complete. ► Check the appliance for damage.

If you notice deviations from the delivery note, damage or irregularities, do not put the appliance into operation but inform the haulage company and the manufacturer.

3.4.2 Remove the transportation lock

Remove the transportation lock. This is located between the door hinge, door and frame and can be removed after opening the door.

3.4.3 Disposing of packaging material

Dispose of the packaging material (cardboard, wood, foil) in accordance with the applicable disposal regulations for the respective material in your country.

3.5 Storage after delivery

If the appliance is first to be stored after delivery: Read the storage conditions from page

56.

18 D39303 | Date 09/2018

Delivery, transport and setting up

3.6 Setting up

3.6.1 Preconditions

The installation site must be flat and horizontal and must be able to reliably bear the weight of the appliance (see Technical data on page 14). Do not place the appliance on a flammable surface.

Depending on the model (see nameplate), a 230 V or 115 V power connection must be available at the installation site.

The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm (Fig. 9). Sufficient air circulation in the vicinity of the appliance must be guaranteed at all times.

FP

FP FP

Fig. 9 Minimum clearance from walls and ceiling

FP

D39303 | Date 09/2018 19

Delivery, transport and setting up

3.6.2 Tilt protection

Due to its centre of gravity, the appliance can fall over to the front and injure you or other people. Always attach the appliance to a wall with the tilt protection included in the delivery. In case there is not enough space, do not put the appliance into operation and do not open the door. Contact the Memmert service (see page 2).

1. Screw the tilt protection

onto the back of the ap-

pliance as illustrated.

2. Bend the tilt protec-

tion upwards by 90° in

the desired distance to

the wall (observe the

minimum distance to the

wall, see Fig. 9).

3. Drill a hole, insert a

dowel and screw the tilt

protection to a suitable

wall.

20 D39303 | Date 09/2018

Putting into operation

4. Putting into operation

NOTICE

When putting the appliance into operation for the first time, do not leave it unattended until it has reached a steady state.

4.1 Connect the appliance to the power supply

WARNING

Observe the country-specific regulations when making connections (e.g. in Germany DIN VDE 0100 with earth leakage circuit breaker). Observe the connection and power ratings (see nameplate and "Technical Data" on page 14). Make sure to establish a safe PE conductor connection.

Plug the provided power cable into the rear of the appliance and connect it to the power supply ( Fig. 10 ). Place the power cable so that

Fig. 10 Connect the power cable to the rear of the appliance

► it is easily accessible at all times and can be pulled off quickly, for example in case of inter-

ference or an emergency;

► it does not represent a trip hazard; ► it cannot come into contact with any hot parts.

4.2 Establish water supply

4.2.1 Water speciﬁ cations

For steam creation, use only: demineralised/desalinated water (Aqua Dem) with a conductivity ≤ 10 μS/cm. Otherwise, possible calcification in the steam generators, steam piping and steam generator pumps could affect the correct functioning of the appliance. Only use chlorine-free water with a pH value of > 5 and < 7.

D39303 | Date 09/2018 21

Putting into operation

4.2.2 Filling and connecting the water tank

Fill the supplied water tank with water and use the enclosed tube to connect it to the “H

O” connection

on the rear of the chamber (Fig. 11).

4.3 Switching on

Switch on the appliance by pressing the main switch on the front of the appliance ( Fig. 12 ).

The start-up process is shown by three animated white dots has occurred (see page 39).

The appliance displays are in English by default

when the appliance is switched on for the first

time. You can change the language as described

from page 42 . However, to get a basic overview

of operating the appliance, you should read the

following chapter first.

. If the dots are any other colour, an error

Fig. 12 Switching on the appliance

Fig. 11 Water connections on the rear of the appliance

22 D39303 | Date 09/2018

5. Operation and control

5.1 For your safety

WARNING

Leaving the door open during operation can cause the appliance to overheat or pose a ﬁ re hazard. Do not leave the door open during operation.

WARNING

Hot steam can build up inside the appliance. You could be scalded on opening the door. Allow the appliance to cool before opening the door.

WARNING

Operation and control

5.2 Operating personnel

The appliance may only be operated by persons who are of legal age and have been instructed accordingly. Personnel who are to be trained, instructed or who are undergoing general training may only work with the appliance under the continuous supervision of an experienced person.

5.3 Opening the door

► To open the door, pull the door handle to the side (to the left or to the right, depending

on the door variation, see Fig. Fig. 13 , A).

► To close the appliance, push the door closed and the door handle to the side (B).

Fig. 13 Opening and closing the door

D39303 | Date 09/2018 23

Operation and control

5.4 Loading the appliance

WARNING

When loading the appliance with an unsuitable load, poisonous or explosive vapours or gases may be produced. This could cause the appliance to explode, and people could be severely injured or poisoned. The appliance may only be loaded with materials which do not form any toxic or explosive vapours when heated up and cannot ignite (see also Intended use and improper use on page 8). If there is any doubt as to the composition of materials, they must not be loaded into the appliance.

NOTICE

► Check the chamber load for chemical compatibility with the materials of the appliance (see

page 12).

Insert the sliding steel grids or sliding shelves. The maximum number of grids/shelves and the load capacity are specified in the technical data overview from page 14.

The appliance must not be loaded too tightly, so that proper air circulation in the interior is guaranteed. Do not place any of the chamber load on the bottom, touching the side walls or right below the ceiling of the chamber (Fig. 14, see also the "correct loading" sticker on the appliance).

In case of improper loading (not enough space between the items), the set temperature may be exceeded or it may take longer until it is reached.

Fig. 14 Correct placement of the chamber load

5.5 Operating the appliance

5.5.1 ControlCOCKPIT

In manual mode, the desired parameters are entered in the ControlCOCKPIT on the front of the appliance (Fig. 15 ). You can also make basic settings here (menu mode). Additionally, warning messages are displayed, e.g. if the temperature is exceeded. In program mode, the parameters defined, the program description, the program segment currently active and program duration remaining are displayed (for a more detailed description, see page 28).

24 D39303 | Date 09/2018

Operation and control

TEMP

22.4

Set

TIMER

30m04h

44h:44m

Ende

13:30 23.11.

End 14: 45

°C22.4

°C

°CSet 37.0

37.0

°C

HUMIDITY

30%rh

Set 30 %rh

Fig. 15 ControlCOCKPIT

1 Activation key for temperature setpoint

adjustment 2 Setpoint and actual temperature display 3 Switch to menu mode (see page 41)

4 Activation key digital backwards counter

with target time setting, adjustable from 1

minute to 99 days 5 Main switch 6 Display digital backwards counter with

target time setting, adjustable from 1 min-

ute to 99 days 7 Display humidity setpoint and actual

value

312

11 12

12.09.2012 13:44

LIGHTONLIGHT

Manual mode

ALARM

of °C

ALARM

min

max

38.5°C

35.5°C

min

auto

000°C

max

000°C

auto off

0.0K

99K

Fr 20.10.2010 20:31

Holz trocknen aufheizen 09:12h

GRAPH

%rh°C

012

off

15 169 10 13 1445 6 7 8

8 Humidity control activation key 9 Turn control for setpoint adjustment 10 Confirmation key (accepts setting made

with the turn control) 11 Activation key for the appliance state 12 Appliance state and program display 13 Activation key setting the temperature

and humidity monitoring 14 Display of the temperature and humidity

monitoring 15 Graphical representation of setpoint and

actual values 16 Activation key for graphical representation

5.5.2 Basic operation

In general, all settings are made according to the following pattern:

1. Activate the desired parameter (e.g. temperature). To do so, press the corresponding activation key on the left or right or the respective display. The activated display is lined in colour, the other displays are dimmed. The set value is highlighted in colour.

2. By turning the turn control to the left or right, adjust the set value (e.g. to

37.0 ºC).

TEMP

22.4°C

37.0°CSet

.5°C100

TIME

TEMP

22.4°C

37.0°CSet

D39303 | Date 09/2018 25

Operation and control

3. Save the set value by pressing the confirmation key. The display returns to normal and the appliance begins adjusting to the defined set value.

Additional parameters can be set accordingly.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically restores the former values.

TEMP

23.2°C

Set 37

.0°C

If you want to cancel the setting procedure, press the activation key on the left or right of the display that you want to exit. The appliance restores the former values. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

5.5.3 Operating modes

The appliance can be operated in different modes:

► Manual mode: The appliance runs in permanent operation at the values set on the Con-

trolCOCKPIT. Operation in this mode is described in chapter 5.5.4 .

► Operation with digital backwards counter with target time setting, adjustable from 1

minute to 99 days (timer): The appliance runs at the values set until the timer has elapsed. Operation in this mode is described in chapter 5.5.5 .

► Program mode: The appliance automatically runs program sequences which have been

defined using AtmoCONTROL software at a computer / laptop and then transferred to the appliance from a USB stick or via Ethernet. Operation in this mode is described in chapter

5.5.6 .

► via remote control (AtmoREMOTE)

The status display shows you which operating mode or operating state the appliance is currently in. The current operating state is highlighted in colour and indicated by the text display:

 Appliance is in program mode

■ Program is stopped

 Appliance is in manual mode

The example on the right shows the appliance in manual mode, identified by the coloured hand symbol.

► When the appliance is in timer mode, Timer active

is displayed:

12.09.2012 13:44

Manual mode

12.09.2012 13:44

Timer active

► When the appliance is in remote control mode, the

following symbol display:

26 D39303 | Date 09/2018

appears in the temperature

TEMP

23.2°C

Set 38

.0°C

Operation and control

5.5.4 Manual mode

In this operating mode, the appliance runs in permanent operation at the values set on the ControlCOCKPIT.

Adjustment options

As described in chapter 5.5.2 , you can set the following parameters after pressing the corresponding activation key (in any sequence):

Temperature Adjustment range: +18 °C to +90 °C

Heating operation is indicated by the You can select °C or °F as the temperature units displayed (see

page 44).

Humidity Adjustment range: 20 to 95 % rh

Humidification is indicated by the Dehumidification is indicated by the

When the appliance heats up, the humidity is dynamically adjusted to approach the setpoint depending on the dew point of the interior temperature.

symbol.

TEMP

22.4

Set

HUMIDITY

34%

Set

37.0

°C

%rh

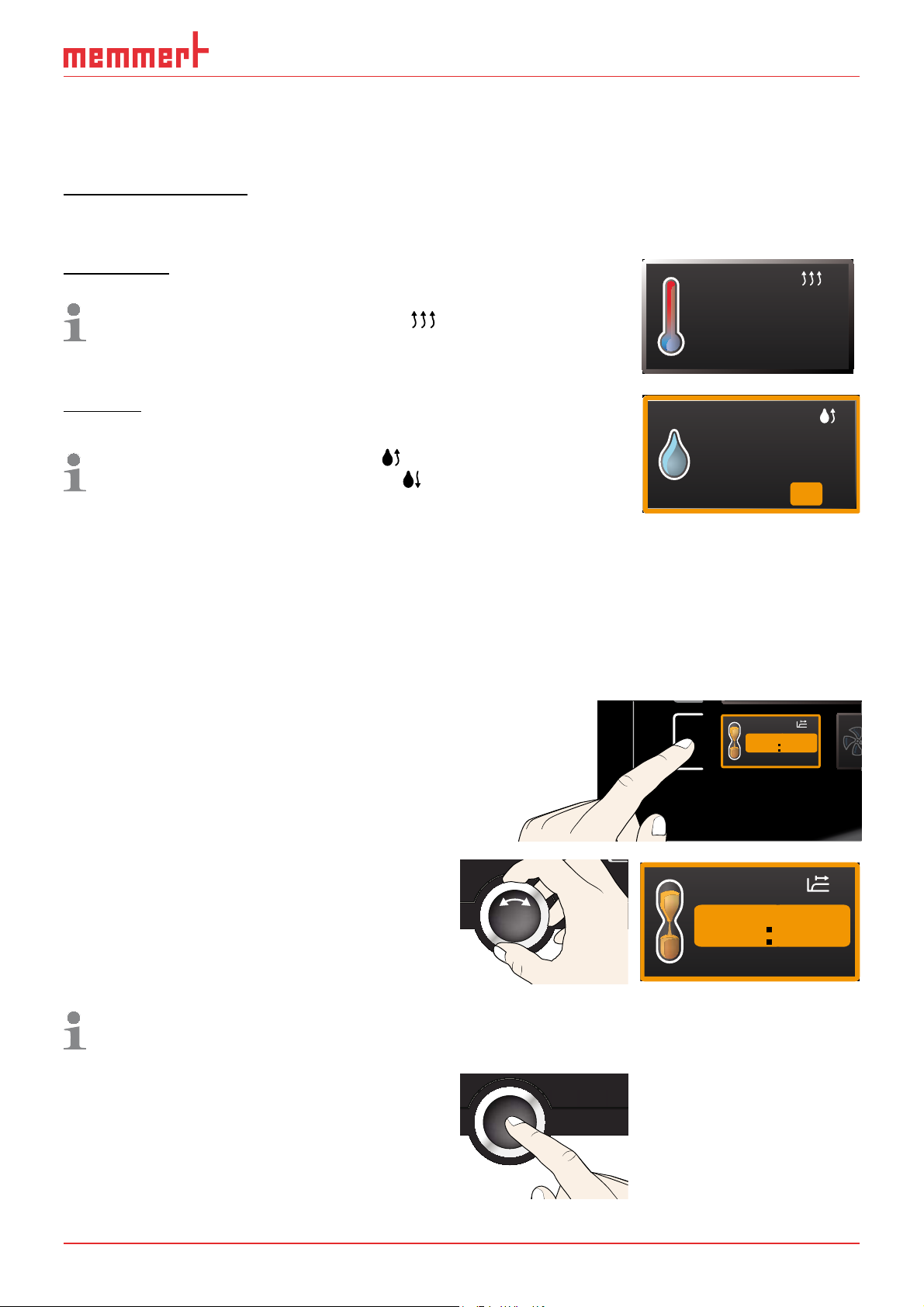

5.5.5 Operation with digital backwards counter with target time setting,

adjustable from 1 minute to 99 days ( timer)

In timer operation, you can adjust the time the appliance runs at the set values. The appliance has to be in manual operating mode for this.

1. Press the activation key to the left of the timer display. The timer display is activated.

2. Turn the turn control until the desired duration is displayed – in this example 4 hours 30 minutes. The approximate end time is shown beneath, in a smaller font.

Up to a duration of 23 hours 59 minutes, the time is displayed in hh:mm (hours:minutes) format. For 24 hours and more, the format dd:hh (days:hours) is used. The maximum duration adjustable is 99 days 00 hours.

3. Press the confirmation key to confirm.

04 mh 3

End

TIMER

Ende

TIMER

13:30 23.11.

9:00 23.11.

--h- m

D39303 | Date 09/2018 27

Operation and control

The display now shows the remaining time in a large font and the approximate end time in a smaller font beneath. The status display shows

Timer active.

TIMER

End

30m04h

13:30 23.11.

12.09.2012 13:44

Timer active

4. Now, as described under 5.5.2, set the individual values which you want the appliance to operate at. The set values can be changed at any time while the timer elapses. The changes are effective immediately.

Setup, you can choose if the timer should be setpoint-dependent or not. This deter-

mines whether the timer should not start until a tolerance band around the set temperature is reached or if it should start immediately after activation (see page 44). The symbol on the timer display indicates that the timer is set to setpoint-dependent.

Once the timer has finished, the display shows 00h:00m. All functions (heating etc.) are switched off. In addition, an

TIMER

acoustic alarm sounds, which can be turned off by pressing the confirmation key.

Note that condensation may occur in the interior after you

End

00m00h

13:30 23.11.

switch off the heating.

To deactivate the timer, open the timer display by pressing the activation key again and then turning the turn control to reduce

TIMER

the timer setting until --:-- is displayed. Press the confirmation key to confirm.

5.5.6 Program mode

End

--m--h

9:00 23.11.

In this operating mode, programs saved in the appliance can be started with different combinations of individual parameters (temperature, humidity, etc.) at staggered intervals, which the appliance then automatically processes in sequence. These programs are not created directly at the appliance but externally at a computer / laptop and using AtmoCONTROL software. Transfer to the appliance is possible using the provided USB storage medium or via Ethernet.

A description of how to create and save programs can be found in the separate AtmoCONTROL software manual.

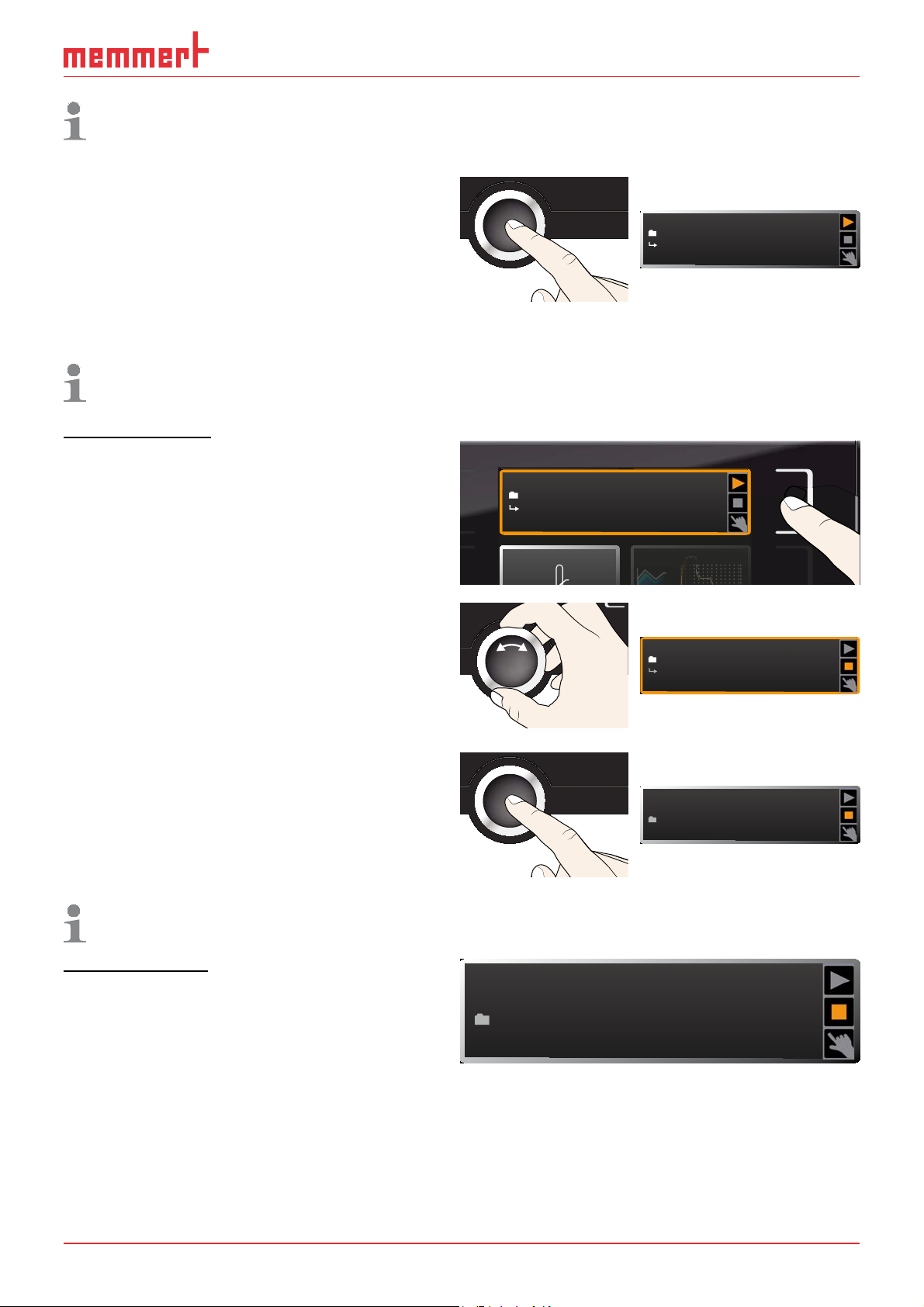

Starting a program

1. Press the activation key next to the status display. The current operating mode is highlighted automatically, in this example

Manual mode ( ).

2. Turn the turn control until the  start symbol is highlighted. The current program is displayed, in this example

12.09.2012 13:44

LIGHT

Manual mode

Manueller Modus

Activate

Fr 20.10.2010 20:31

Holz trocknen aufheizen 09:12h

12.11.2012

Test 012 Ready

off

13:44

Test012.

28 D39303 | Date 09/2018

Operation and control

Only the program currently selected in menu mode and shown in the display can be used. If you want to process another program, you need to activate it in menu mode first (see description starting on page 51).

3. To start the program, press the confirmation key. The program is executed. The display shows:

12.11.2012

Test 012 Ramp 1

► the program name

13:44

► the program segment description, in this

example

Ramp 1

► the current run (in case of loops)

You cannot change any parameters (e.g. the temperature) at the appliance while a program is running. However, the displays

Cancel program

You can cancel an active program at any time.

1. Press the activation key next to the status display. The status display is automatically highlighted.

2. Turn the turn control until the symbol is highlighted.

■

stop

ALARM and GRAPH can still be used.

LIGHT

IGHT

12.11.2012

Test 012 Ramp 1

100

ALARM

max

400°C

Fr 20.10.2010 20:31

manueller Betrieb

13:44

GRAPH

12.11.2012

Cancel program

Test 012

13:44

3. Press the confirmation key to confirm. The program is cancelled.

12.11.2012

End

Test 012

A cancelled program cannot be resumed at the point it was cancelled. It must be restarted from the beginning.

End of program

is shown on the display to indicate that

End

the program has finished.

12.11.2012

End

Test 012

13:44

D39303 | Date 09/2018 29

Operation and control

OLIO

22.4

37.0

TEMP

Set

°C

°C22.4

TEMP

°CSet 37.0

°C

TEMP

TWW Set 38.5 °C

38.9

You can now

► restart the program as described ► select another program to run in menu mode (see page 51) and run it as described. ► return to manual mode. To do so, reactivate it by

pressing the activation key next to the status display, then turn the turn control until the hand symbol

12.09.2012 13:44

Manual mode

highlighted in colour and press the confirmation key.

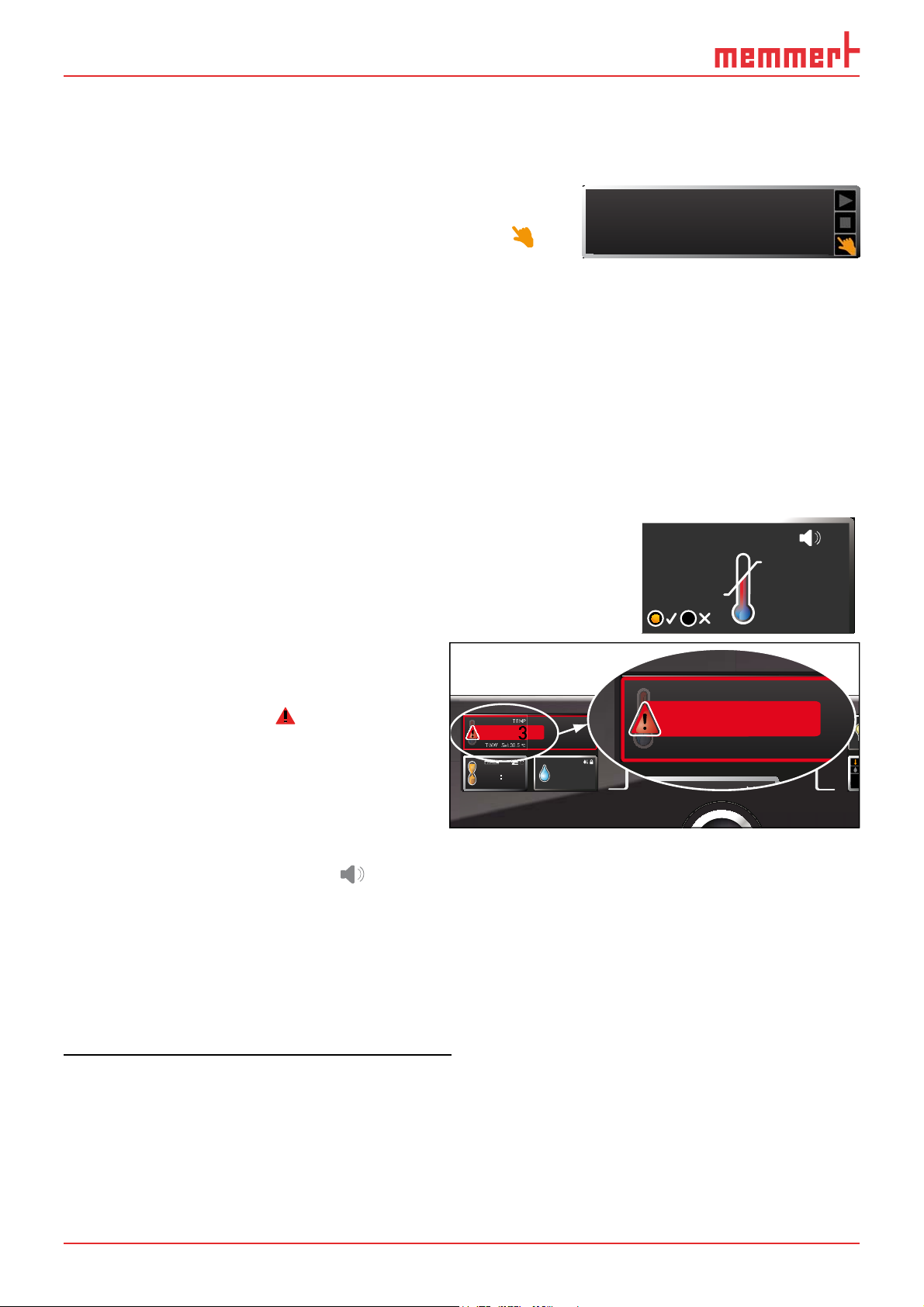

5.6 Monitoring function

5.6.1 Temperature monitoring

The appliance is equipped with a multiple overtemperature protection in accordance with DIN 12 880. This serves to avoid damage to the chamber load and/or appliance in case of a malfunction:

► electronic temperature monitoring (TWW) ► automatic temperature monitor ( ASF) ► mechanical temperature limiter (TB)

The monitoring temperature of the electronic temperature monitoring is measured via a separate Pt100 temperature sensor in the interior. Temperature monitoring settings are made via the

ALARM display. The settings made apply to all operating modes.

min

35.5°C

auto

ALARM

max

38.5°C

1.0K

If temperature monitoring has been triggered, this is indicated on the temperature display: the actual temperature is highlighted in red and a symbol is shown ( Fig. 16 ). The type of temperature monitoring triggered (TWW in this example) is shown beneath the

warning

TWW Set 38.5 °C

TIMER

30m04h

44h:44m

Ende

23.Nov 13:30

End 14:45

TEMP

38.9

°C22.4

°C

°CSet 37.0

FEUCHTE

30.0%rh

Set 30.0%rh

temperature. If the acoustic alarm has been activated

in menu mode (

Sound see page 52,

indicated by the speaker symbol

on the

Fig. 16 Temperature monitoring triggered

alarm display), the alarm is additionally signalled by an intermittent acoustic signal, which can be turned off by pressing the confirmation key. Information on what to do if this happens can be found in chapter Malfunctions, warning and error messages from page 37.

Before reading how to adjust temperature monitoring (from page 32), please read the description of the individual monitoring functions here.

Electronic temperature monitoring ( TWW)

The manually set monitoring temperature min and max of the overtemperature control is monitored by an adjustable over/undertemperature controller (TWW) of protection class 3.3 according to DIN 12 880. If the manually set monitoring temperature TWW takes overtemperature control and begins to regulate the monitoring temperature (Fig.

17).

max is exceeded, the

30 D39303 | Date 09/2018

Operation and control

°C

Fig. 17 Schematic diagram of how TWW temperature monitoring works

Emergency operation

Setting MAX

Set temperature

Controller error

Automatic temperature monitor ( ASF)

ASF is a monitoring device that automatically follows the set temperature setpoint within an adjustable tolerance band (Fig. 18).

The ASF – if switched on – is automatically activated as soon as the actual temperature value reaches 50 % of the set tolerance band of the setpoint (in the example: 50 °C ± 1 K) for the first time (section A).

When the temperature violates the set tolerance band around the setpoint (in the example in Fig. 18: 50 °C ± 2 K) – e.g. if the door is opened during operation (section B of illustration) – the alarm is set off. The ASF alarm is automatically terminated as soon as 50 % of the set tolerance band of the setpoint (in the example: 50 °C ± 1 K) are reached again (section C).

If the temperature setpoint is altered, the ASF is automatically disabled temporarily (in this example: The setpoint is changed from 50 °C to 25 °C, section D), until it reaches the tolerance range of the new temperature setpoint (section E).

°C

52°C

ABCDE

52°C

50°C

48°C

27°C

25°C

23°C

ASF active

AUTO AUTO AUTO

ASF active ASF active

ASF alarm

Fig. 18 Schematic diagram of how the ASF temperature monitoring works

D39303 | Date 09/2018 31

Operation and control

Mechanical temperature monitoring: Temperature limiter (TB)

The appliance is equipped with a mechanical temperature limiter (TB) of protection class 1 in accordance with DIN 12 880. If the electronic monitoring unit fails during operation and the default maximum temperature is exceeded by at least 20 °C, the temperature limiter, as the final protective measure, switches off the heating permanently.

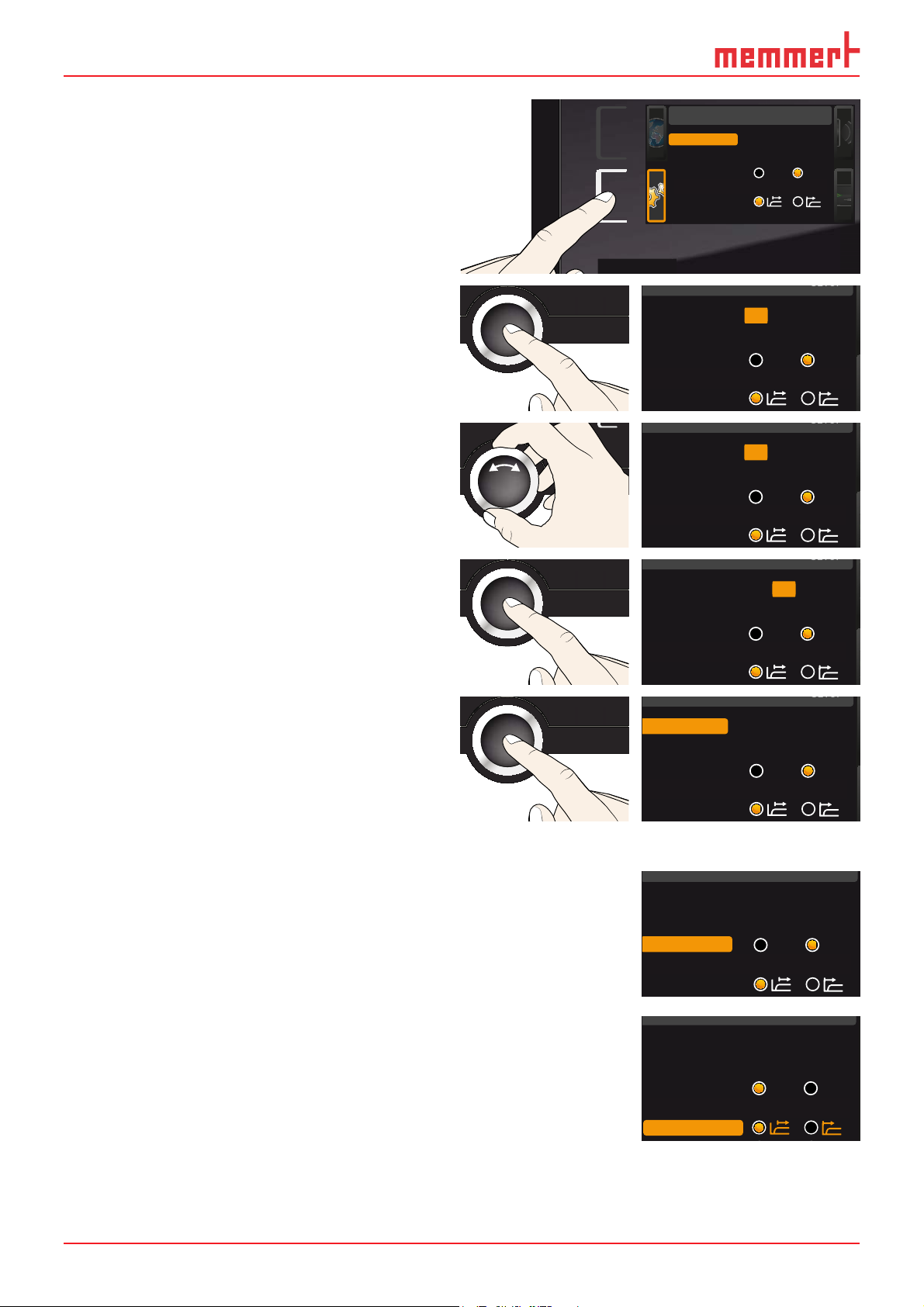

Adjusting temperature monitoring

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated (

2. Save the selection by pressing the confirmation key. The temperature protection) is automatically activated.

min setting (under-

TEMP

128

TB Set 80.0 °C

ALARM

min

15.0°C

min

auto

000°C

ALARM

min

°C

34 0.

auto

.4°C

max

40.0°C

000°C

auto off

max

40 0.

0.0K

99K

°C

1. By turning the turn control, adjust the desired lower alarm limit value, in the example on the right 35.5 °C.

The lower alarm limit value cannot be set higher than the top one. If no undertemperature protection limit is required, set the lowest temperature.

2. Press the confirmation key to confirm. The

max display (overtemperature pro-

tection) is activated.

3. By turning the turn control, adjust the desired upper alarm limit value, in the example on the right 38.5 °C.

The monitoring temperature must be set sufficiently high above the maximum set temperature. We recommend 0.5 to 1 K.

min

35 5.

auto

min

35 5.

auto

min

auto

ALARM

°C

ALARM

°C

ALARM

°C

max

40 0.

max

40 0.

max

0.0K

0.0

°C

°C35.5 38 5.

4. Accept the upper alarm limit value by

35.5°C

ALARM

max

38.5 °C

0.0K

pressing the confirmation key. The setting of the automatic temperature monitor (ASF) is automatically activated (

auto).

min

auto

32 D39303 | Date 09/2018

Operation and control

FEUCHTE

30.0%rh

Set 30.0%rh

°CSet 37.0

5. With the turn control, select ON () or OFF ().

6. Press the confirmation key to confirm. The ASF tolerance band setting is activated.

7. With the turn control, adjust the desired tolerance band. We recommend 1 to 3 K.

8. Press the confirmation key to confirm. Temperature monitoring is now active.

min

35.5°C

auto

min

35 5.

auto

min

35 5.

auto

min

35.5°C

auto

ALARM

°C

ALARM

°C

ALARM

max

38.5 °C

0.0K

max

38.5°C

0.0

max

38.5°C

1.0

max

38.5°C

1.0K

5.6.2 Humidity monitoring

If humidity monitoring was triggered, this is indicated by the humidity display: the actual humidity is highlighted in red and a warning symbol

is shown ( Fig. 19 ). If the acoustic alarm has been activated in menu mode ( by the speaker symbol

Sound, see page 52, as indicated

), the alarm is additionally signalled by an intermittent acoustic signal. Information on what to do if this happens can be found in chapter Malfunctions, warning and error messages from page 41.

Adjusting humidity monitoring

1. Press the activation key to the left of the

ALARM display. The temperature moni-

toring setting is automatically activated.

°C22.4

°CSet 37.0

0C°C

FEUCHTE

HUMIDITY

30.0%rh

75.4

:30

%rh

Set 30.0%rh

Set 70

.0%rh

HUMIDITY

75.4

Fig. 19 Humidity monitoring triggered

Set 70

min

15.0°C

min

auto

000°C

%rh

.0%rh

ALARM

max

40.0°C

000°C

auto off

0.0K

99K

LIG

min

000

D39303 | Date 09/2018 33

Operation and control

2. Turn the turn control until the humidity

monitoring entry

3. Accept the selection by pressing the con-

firmation key. The lower humidity alarm limit is automatically highlighted.

4. By turning the turn control, adjust the

desired lower alarm limit, in the example on the right 50 % rh.

5. Accept the selection by pressing the con-

firmation key. The upper humidity alarm limit is automatically highlighted.

is highlighted.

min

40.0%rh

min

50.0%rh

min

50.0%rh

ALARM

max

60.0 %rh

min

40.0 %rh

ALARM

max

60.0 %rh

ALARM

max

60.0 %rh

ALARM

max

60.0 %rh

6. By turning the turn control, adjust the

desired upper alarm limit, in the example on the right 70 % rh.

7. Accept the selection by pressing the

confirmation key and leave the display by pressing the activation key on the side. Humidity monitoring is now active.

Alarm

min

50.0%rh

min

50.0 %rh

ALARM

max

70.0 %rh

ALARM

max

70.0 %rh

34 D39303 | Date 09/2018

Operation and control

5.7 Graph

The GRAPH display provides an overview of the chronological sequence of the setpoint values and actual values for temperature and humidity content as a curve.

Press the activation key to the right of the

GRAPH display. The

display is enlarged and the temperature profile shown.

To display the setpoint and actual values for the humidity: Press the activation key next to the parameter selection.

Select the humidity symbol with the turn control. Accept the selection by pressing the confirmation key.

► To change the time frame to

be displayed: Press the activation key next to the  arrow symbols. The time frame to be displayed can now be changed by turning the turn control.

12.09.2012

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

Fr 20.10.2010 20:34

12.09.2012

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

Fr 20.10.2010 2

12.09.2012

°C 100

60 40

0 4 8 12162024

14.00 16.00 18.00

Fr 20.10.2010 20

12.09.2012

► To zoom the graph in or out:

Press the activation key next to the magnifying glass symbol. Select whether you want to zoom in or out (+/–) with the turn control and confirm your selection by pressing the confirmation key.

To close the graphical representation, press the activation key you used to activate it again.

D39303 | Date 09/2018 35

.2010 20:34

Operation and control

5.8 Ending operation

WARNING

Hot steam can build up inside the appliance. You could be scalded on opening the door. Allow the appliance to cool before opening the door.

WARNING

1. Switch off active appliance functions

(turn back the set values).

2. Remove the chamber load.

3. Check the water tank and fill up if neces-

sary (see page 22).

4. Switch off the appliance with the main

switch (Fig. 20).

Fig. 20 Switching off the appliance

36 D39303 | Date 09/2018

Malfunctions, warning and error messages

6. Malfunctions, warning and error messages

WARNING

After removing covers, live parts may be exposed. Touching these can lead to an electrical shock. Do not try to rectify appliance errors yourself by opening the appliance, but contact the MEMMERT customer service department (see page 2) or an authorised service point.

6.1 Warning messages of the monitoring function

If the acoustic alarm has been activated in menu mode (Sound, see page 52, as indicated by the speaker symbol is additionally signalled by an intermittent acoustic signal. If the confirmation key is pressed, the acoustic alarm can be temporarily switched off until the next alarm event occurs.

6.1.1 Temperature monitoring

), the alarm

Description Cause Action See

Temperature alarm and "ASF" are displayed

TEMP

Automatic temperature monitor (ASF) was triggered.

Check if the door is closed. Close the door.

Extend the ASF tolerance band If the alarm continues: Contact

customer service

Page 32 Page 60

40.4°C

ASF Set 38.5 °C

Temperature alarm and "TWW" are displayed

TEMP

TWW Set 38.5 °C

.4°C

The adjustable temperature controller (TWW) has assumed heating control.

Increase the difference between the monitoring and setpoint temperature – by either increasing the max value of the temperature monitoring or decreasing the setpoint temperature.

If the alarm continues: Contact customer service

Page 32

Page 60

Temperature alarm and "TB" are displayed

TEMP

128

TB Set 80.0 °C

D39303 | Date 09/2018 37

.4°C

The mechanical temperature limiter (TB) permanently switched off heating.

Switch off the appliance and leave to cool down.

If the error occurs again, contact the customer service. Page 2

Malfunctions, warning and error messages

6.1.2 Humidity monitoring (only for appliances in the corresponding

conﬁ guration)

Description Cause Action See

Error display symbol

HUMIDITY

Set 55

Alarm display (

HUMIDITY

MaxAl Set 70

Alarm display (

HUMIDITY

MinAl Set 60

%rh

.0%rh

MaxAl)

%rh

.0%rh

MinAl)

%rh

.0%rh

Water tank empty

Upper humidity limit exceeded

Humidity below lower limit

Fill the water tank with demineralised/distilled water and press the confirmation key

Open the door for 30 sec. and wait to see if the appliance reliably adjusts to the setpoint.

If the error occurs again, contact customer service. Page 2

Check if the door is closed. Check the water supply and the

filling level of the water tank. If required, refill the water tank/ water trays.

If the error occurs again, contact customer service.

Page 22

Page 2

6.2 Malfunctions, operating problems and appliance errors

Description Cause Action See

Displays are dark External power supply

was interrupted

Miniature fuse, appliance fuse or power module faulty

Displays cannot be activated

Displays suddenly look different

Appliance locked by USER IDUnlock with USER ID Page 54

The appliance is in program, timer or remote control mode (mode "Write" or "Write + Alarm")

Appliance is in "wrong" mode

Check the power supply

Contact customer service

Wait until the end of the program or timer mode or switch off the remote control

Change to operating or menu mode by pressing the key

Page 21

Page 60

38 D39303 | Date 09/2018

Malfunctions, warning and error messages

Description Cause Action See

Error message T:E-3 in the temperature display

TEMP

37.4°C

T:E-3 Set 37.0 °C

Error message the temperature display

TEMP

AI E-3 in

37.4°C

AI E-3 Set 37.0 °C

Error message the temperature display

TEMP

E-3 in

E-3 °C

Set 45.0 °C

Temperature operating sensor is defective. The monitoring sensor takes over the measurement function.

Temperature monitoring sensor is defective. The operating sensor takes over the measurement function.

Operating and monitoring sensor defective

► The appliance can

temporarily be kept in service

► Contact customer

service as soon as possible

Page 2

► The appliance can

temporarily be kept in service

► Contact customer

service as soon as possible Page 2

► Switch off appli-

ance

► Remove the cham-

ber load

► Contact customer

service

Page 2

Error message the humidity display

HUMIDITY

E-6

When switching on the appliance, the start animation is displayed in another colour than white

E-6 in

Set 50

%rh

.0%rh

Humidity sensor defective ► No humidity con-

trol possible

► Contact customer

service

► Cyan :

Not enough storage space on the SD card

► Red :

The system files could not be loaded

Contact customer service

► Orange : The

fonts and images could not be loaded

Download the firmware update from memmert.com and install it

Page 2

D39303 | Date 09/2018 39

Malfunctions, warning and error messages

6.3 Power failure

In case of a power failure, the appliance operates as follows:

In manual mode

After power supply has been restored, operation is continued with the parameters set. The time and duration of the power failure are documented in the log memory.

In timer or program mode

In case of an interruption of the power supply of less than 60 minutes, the current program is continued from the point at which it was interrupted. For longer interruptions of the power supply, all appliance functions (heating, fan etc.) are switched off.

In remote control mode

The previous values are restored. If a program has been initiated via remote control, it is continued.

40 D39303 | Date 09/2018

Menu mode

7. Menu mode

In menu mode, you can make basic settings, load programs and export protocols, as well as calibrate the appliance.

Caution:

Before changing menu settings, read the description of the respective functions on the following pages to avoid possible damage to the appliance and/or chamber load.

To enter menu mode, press the MENU key.

To exit the menu mode at any time, press the MENU key again. The appliance then returns to operating mode. Only changes accepted by pressing the confirmation key are saved.

7.1 Overview

Press the MENU key to change between the displays in menu mode:

12 34 512141513

TIME

LANGUAGE

SETUP

SIGNALTÖNE

CALIB

67 18 1989 1011 16 17

Fig. 21 ControlCOCKPIT in menu mode

1 Language selection activation key 2 Language selection display 3 Date and time display 4 Date and time setting activation key 5 Exit menu mode and return to operating

mode

6 Setup activation key (basic appliance set-

tings) 7 Setup display (basic appliance settings) 8 Adjustment display 9 Adjustment activation key

10 Turn control for adjustment 11 Confirmation key (accepts setting made

with the turn control) 12 Program selection activation key 13 Program selection display 14 Protocol display 15 Protocol activation key 16 Acoustic signal adjustment activation key 17 Acoustic signal adjustment display 18 USER ID display 19 USER ID display activation key

PROG

ZEIT UND DATUM

SOUND

PROTOCOL

USER ID

D39303 | Date 09/2018 41

Menu mode

7.2 Basic operation in menu mode using the example of language selection

In general, all settings in menu mode are done just like in operating mode: Activate the respective display, use the turn control for setting and press the confirmation key to accept the change. A more detailed description is provided in the following, using the example of language selection.

1. Activate the desired parameter (in this

example the language). To do so, press the corresponding activation key on the left or right or the respective display. The activated display is enlarged.

ENGLISH

DEUTSCH FRANCAIS ESPANOL POLSKI CESTINA

If you want to exit or cancel the settings, again press the activation key which you have used to activate the display. The appliance returns to the menu overview. Only the settings that you have confirmed by pressing the confirmation key before cancelling the setting procedure are accepted.

2. With the turn control, select the desired

new setting, e.g. Español (Spanish).

3. Save the setting by pressing the confir-

mation key.

ENGLISH DEUTSCH FRANCAIS

ESPANOL

POLSKI CESTINA

ENGLISH DEUTSCH FRANCAIS

ESPANOL

POLSKI CESTINA

LANGUAGE

SETUP

MAGYAR ITALIANO

TIME

SIGNALTÖNE

CALIB

4. To return to the menu overview, press the

LANGUAGE

SIGNALTÖ

TIM

activation key again.

SETUP

CALI

You can now

IP address

► activate another menu function by press-

ing the corresponding activation key or

Balance

Subnet mask

IP Adresse

Unit

Einheit

Alarm Temp

Timer Mode

► return to operating mode by pressing the

MENU key.

42 D39303 | Date 09/2018

Menu mode

All other settings can be made accordingly. The settings possible are described in the following sections.

If no new values are entered or confirmed for approx. 30 seconds, the appliance automatically restores the former values.

7.3 Setup

7.3.1 Overview

In the SETUP display, you can set the following parameters:

► the IP address and subnet mask of the appliance's Ethernet interface (for connection to a

network)

► The units of the temperature display (°C or °F, see page 44) ► How the digital backwards counter with target time setting (Timer Mode, see page 44) ► Remote control (see page 45) ► Gateway (see page 45)

If the Setup menu contains more entries than can be displayed, this is indicated by the display "1/2". This means that there is a second "page" of entries.

To display the hidden entries, use the turn control to scroll beyond the lowest entry. The page display changes to "2/2".

7.3.2 IP address and subnet mask

If you want to operate one ore more appliances in a network, each appliance must have its own unique IP address for identification. By default, each appliance is delivered with the IP address 192.168.100.100.

1/2

IP adress 255.145.136.22

Subnet mask 255.255.0 .0 Unit Alarm Temp Timer mode

°C F TWW TWB

Setup

Programm negnulletsniEllokotorPtäreG efliHnekcurD

AtmoCONTROL

INP 250 Test 01

180

.0°C

HPP 250 Labor

.0°C

.4%rh

+-+

Programmname

Editor

Simulation Protokoll

STAND BY

192.168.1.216

LAN 1: 192.168.1.233

LAN 2: 192.168.1.215

Fig. 22 Operation of several appliances in a network (schematic example)

LAN 3: 192.168.1.241

D39303 | Date 09/2018 43

Menu mode

SETUP

1. Activate the

SETUP display. The entry IP

address is automatically highlighted.

2. Accept the selection by pressing the con-

firmation key. The first three digits of the IP address are automatically selected.

3. With the turn control, set the new num-

ber, e.g. 255.

SETUP

IP address 192.168.100.100

Balance

Subnet mask 255.255.0.0

IP Adresse

Unit

Einheit

Alarm Temp

Timer Mode

IP-Adresse 192.168.1 0 0 . 100

Subnetmask 255.255. 0. 0

Einheit Alarm Temp Timer Mode

IP address 255.168.100. 100

Subnet mask 255.255.0.0

Unit Alarm temp Timer mode

+30%

192.168.100.100

°C F

TWW TWB

°C F TWW TWB

4. Accept the selection by pressing the

confirmation key. The next three digits of the IP address are automatically selected. Setting these is done according to the description above.

5. After setting the last three digits, accept

the new IP address by pressing the confirmation key. The selection returns to the overview.

The subnet mask is set accordingly.

7.3.3 Unit

Here you can choose whether the temperature is displayed in °C or °F.

7.3.4 Timer Mode

IP address 255.168.100.100

Subnet mask 255.255.0.0

Unit Alarm temp Timer mode

IP address 255.145.136.225

Subnet mask 255.255.0.0

Unit Alarm temp Timer mode

IP address 255.145.136.225 Subnet mask 255.255.0.0

Unit

Alarm temp Timer mode

°C F TWW TWB

°C °F

TWW TWB

Here, you can choose whether the digital backwards counter with target time setting (timer, see page 27) should run setpointdependent or not – this determines whether the timer should not start until a tolerance band of ±3 K around the setpoint temperature is reached (Fig. 23, B) or whether it should start right after activation (A).

44 D39303 | Date 09/2018

IP address 255.145.136.225 Subnet mask 255.255.0.0 Unit

Alarm temp

Timer mode

°C F TWW TWB

Menu mode



°C/°F

6 K

Fig. 23 Timer mode A Timer independent of setpoint: Timer starts immediately after activation B Timer setpoint-dependent: Timer does not start until tolerance band is reached



Timer

7.3.5 Remote control (AtmoREMOTE)

In the setup entry remote control, you can set whether the appliance should be controlled via remote control and if so, in which mode. These settings are available:

► Off

Remote Control Off

Gateway 192.168.5 .1

► Read only ► Write ► Write + Alarm

If the appliance is in remote control mode, the symbol appears in the temperature display. In the settings and Write + Alarm, the appliance cannot be controlled at the ControlCOCKPIT until the remote control has been switched off (setting

In order to use the remote control function, programming skills and special libraries are required.

Off) or set to Read only.

Write

TEMP

23.2°C

Set 38

7.3.6 Gateway

The setup entry gateway is used to connect two networks with different protocols.

The gateway is set the same way as the IP address (see page

43).

Remote Control Off

Gateway 192.168.5 .1

7.4 Date and time

In the TIME display, you can set the date and time, time zone and daylight saving time.

.0°C

NOTICE

Always set the time zone (and daylight saving time yes/no) before you set the date and time. Avoid changing the set time after that since this can lead to gaps or overlapping when recording measured values. If you still need to change the time, you should not run a program immediately before or after doing so.

D39303 | Date 09/2018 45

Menu mode

1. Activate the time setting. To do so, press

the activation key on the right side of the

TIME display. The display is enlarged

and the first adjustment option (

Date)

automatically highlighted.

2. Turn the turn control until Time zone is

highlighted.

3. Accept the selection by pressing the

confirmation key.

Date

Time Time zone Daylight savings

Date and time

12.05.2012

12:00 GMT 01:00

Date Time

Time zone

Daylight savings

Date Time

Time zone

Daylight savings

12.05 . 2012 12:00 GMT 01:00

12.05 . 2012 12:00 GMT

01:00

4. Set the time zone of the installation site

with the turn control, e.g. 00:00 for Great Britain and 01:00 for Germany, France or Spain. Accept the selection by pressing the confirmation key.

5. With the turn control, select the Daylight

savings

entry.

6. Accept the selection by pressing the

confirmation key. The adjustment options are highlighted.

7. Set daylight savings to off () or on

(

) with the turn control – in this case



on (

). Save the setting by pressing the



confirmation key.

Date Time

Time zone

Daylight savings

Date Time Time zone

Daylight savings

Date Time Time zone

Daylight savings

Date Time Time zone

Daylight savings

12.05 . 2012 12:00 GMT

00:00

12.05 . 2012 12:00 GMT 00:00

Daylight saving time and standard time are not changed automatically. For this reason, please keep in mind to adjust them at the beginning of each period.

46 D39303 | Date 09/2018

Menu mode

8. Now, set date (day, month year) and time

(hours, minutes) in the same way. Accept the selection by pressing the confirmation key.

Date 27 05

Time Time zone Daylight savings

..2012 12:00 GMT 00:00

7.5 Calibration

NOTICE

To guarantee perfect control, we recommend to calibrate the appliance once a year.

7.5.1 Temperature calibration

The appliances are temperature calibrated and adjusted at the factory. In case readjustment should be necessary later on – for example due to influence of the chamber load – the appliance can be calibrated customer-specifically using three calibration temperatures of your choice:

► Cal1 Temperature calibration at low temperature ► Cal2 Temperature calibration at medium temperature ► Cal3 Temperature calibration at high temperature

For temperature calibration, you will need a calibrated reference measuring device.

CAL 3

+0,4°C

CAL 2

-0,4°C

0°C

10°C

CAL 1

+0,5°C

factory calibration

20°C 30°C 40°C 50°C

Fig. 24 Schematic example of temperature calibration

Example: Temperature deviation at 42 °C should be corrected.

D39303 | Date 09/2018 47

Menu mode

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically selected.

2. Press the confirmation key repeatedly, until the compensation temperature Cal2 is selected.

3. With the turn control, set the compensation temperature Cal2 to 42 °C.

4. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

JUSTIEREN

Calibration

Temperatur

Temperature

Humidity

Last updated 12.10.2012 12:00:00

letzte Justierung 12.10.2012 12:00

Cal1

Cal2 100.0 °C +0,1 K

Cal2

Cal3 180.0 °C -0,2 K

Cal3

40.0

30.0

40.0

60.0

°C -0,2

CK0,2- CK0,1+ CK0,2-

Cal1

Cal2

Cal3

Cal1

Cal2

Cal3

Cal1

Cal2

CK0,2-

30.0

CK0,1+

40.0

CK0,2-

60.0

CK0,2-

30.0

CK0,1+

42.0

CK0,2-

60.0

CK0,2-

30.0

42.0 0,1+

5. Set the calibration value to 0.0 K and accept the setting by pressing the confirmation key.

6. Position the sensor of a calibrated reference instrument centrally in the appliance's working chamber.

7. Close the door and, in manual mode, adjust the set temperature to 42 °C.

8. Wait until the appliance reaches the set temperature and displays 42 °C. The reference instrument should display 43.6 °C.

TEMP

Cal3

Cal1

Cal2

Cal3

60.0

CK0,2-

30.0

42.0 0,0

60.0

TEMP

0,2-

21.4°C

42.0 °CSet

42.0°C

Set 42

.0°C

43.6 °C

48 D39303 | Date 09/2018

9. In the SETUP, adjust the calibration value Cal2 to +1.6 K (reference value measured minus value displayed) and save the setting by pressing the confirmation key.

Cal1

Cal2

Cal3

Menu mode

CK0,2-

30.0

42.0 1,6+

60.0

0,2-

10. After the calibration procedure, the temperature measured by the reference

TEMP

instrument should now also be 42 °C.

42.0°C

Set 42

.0°C

With Cal1, a calibration temperature below Cal2 can be programd accordingly, and with Cal3, a temperature above. The minimum interval between the Cal values is 10 K.

If all compensation correction values are set to 0.0 K, the factory calibration settings are restored.

7.5.2 Humidity calibration

Humidity control can be adjusted according to customer requirements by means of three freely selectable balance points. For each selected calibration point, a positive or negative compensation correction value between –10% and +10% can be set (Fig. 25).

For humidity adjustment, you will need a calibrated reference measuring device.

rh 50

+1,5 %

42,0 °C

rh 90

-1,5 %

rh 20

+3,0 %

Factory calibration

20%

Fig. 25 Humidity adjustment (example)

Example: Humidity deviation at 60 % should be corrected:

1. Press the activation key to the right of the

CALIB display. The display is enlarged

and the temperature adjustment option is automatically selected.

40%

60%

Temperatur

Last updated: 12.10.2012 12:00:00

letzte Justierung 12.10.2012 12:00

JUSTIEREN

Calibration

Cal1

Cal2 100.0 °C +0,1 K

Cal2

Cal3 180.0 °C -0,2 K

Cal3

40.0

30.0 Temperature

40.0

60.0

°C -0,2

CK0,2- CK0,1+ CK0,2-

80% 100%

D39303 | Date 09/2018 49

Menu mode

JUSTIEREN

2. Turn the turn control until

Humidity is

highlighted.

3. Press the confirmation key repeatedly, until the calibration point Cal2 is selected.

4. With the turn control, set the calibration point Cal2 to 60% rh.

5. Save the setting by pressing the confirmation key. The corresponding calibration value is automatically highlighted.

Temperature

Humidity

Temperature

Humidity

Temperature

Humidity

Temperature

Humidity

40.0

Cal1

50.0

Cal2

80.0

40.0

Cal1

50.0

Cal2 Cal3 80.0

40.0

Cal1

60.0

Cal2

80.0

40.0

Cal1

60.0 1,0+

Cal2

80.0

%rh

%0,5- %1,0+

1,0+Cal3

%0,5- %1,0+

1,0+

%0,5- %1,0+

1,0+Cal3

%0,5-

1,0+Cal3

6. Set the calibration value to 0.0% and accept the setting by pressing the confirmation key.

7. Position the sensor of the calibrated reference instrument centrally in the working chamber of the appliance.

8. Close the door and, in manual mode, adjust the set humidity to 60% rh.

9. Wait until the appliance reaches the set humidity and displays 60% rh. The reference instrument should display 58.5% rh.

HUMIDITY

Temperature

Humidity

%rh

40.0

Cal1

%rh

60.0 0,0

Cal2

HUMIDITY

%rh

29.5%rh

Set 60.0%rh

%0,5-

1,0+Cal3 80.0

60.0%rh

Set 60.0%rh

58.5 %rh

50 D39303 | Date 09/2018

10. In the SETUP, adjust the compensation correction value Cal2 to -1.5% (actual value measured minus setpoint humidity) and save the setting by pressing the confirmation key.

11. After the calibration procedure, the humidity measured by the reference instrument should now also be 60% rh.

HUMIDITY

Temperature

Humidity

Menu mode

%rh

40.0

Cal1

%rh

60.0 -1.5

80.0

%rh

Cal2

%0,5-

1,0+Cal3

60.0%rh

Set 60.0%rh

60.0 %rh

7.6 Program

In the Program display, programs created using the AtmoCONTROL software can be transferred to the appliance and saved on a USB storage medium. Here, you can also select the program provided for use (see page 28 ) and delete programs.

To load a program from a USB storage medium: Connect the USB storage medium with the saved program(s) to the interface on the right side of the ControlCOCKPIT.

1. Activate the program display. To do so, press the activation key on the left side of the

Prog display. The display is enlarged

and the entry

Select automatically

highlighted. The programs available for activation are shown on the right. The program currently available for use – in this example

Test 012 – is highlighted in

orange.

Select

Delete

Program

Test 012

Test 013 Test 014 Test 015 Test 016

2. Access the Select function by pressing the confirmation key. All programs available are displayed, including the ones saved on the USB data storage medium (identified by the

USB symbol). The

program currently available for use is

Select

Delete

Test 012

Test 022 Test 013 Test 014 Test 022

highlighted in orange.

3. With the turn control, select the program you want to make available for use.

Select

Delete

Test 012

Test 022 Test 013 Test 014

Test 023

D39303 | Date 09/2018 51

Menu mode

4. Accept the selection by pressing the confirmation key. The program is now loaded, which is indicated by the transfer symbol.

Select

Delete

Test 012

Test 022 Test 013 Test 014

Test 023

5. As soon as the program is ready, the selection returns to

Select. To start the

program: Return to operating mode by pressing the MENU key, as described on page 28.

Select

Delete

Test 012 Test 022 Test 013 Test 014

Test 023

Test 015

If you connected a USB storage medium, you can now remove it. To delete a program, select

Delete with the turn control and select the program to be de-

leted the same way you can select a program for activation.

7.7 Sounds

In the SOUND display, you can define whether or not the appliance should emit acoustic signals and, if yes, define on which events it should do so:

► on the press of a key ► at the end of a program ► On alarm ► if the door is open

1. Activate the acoustic signal adjustment. To do so, press the activation key on the left side of the

SOUND display. The

display is enlarged. The first category (in this case

Keysound) is automatically

highlighted. On the right, the current settings are shown on.

Keysound

At the end On alarm If door open

Sound

If you want to edit another list entry:

Sound

Turn the turn control until the respective entry – e.g. in colour.

if door open – is highlighted

Keysound At the end On alarm

If door open

2. Save the selection by pressing the confir-

Sound

mation key. The adjustment options are

Keysound At the end On alarm

If door open

automatically highlighted.

52 D39303 | Date 09/2018

Menu mode

3. With the turn control, select the desired

Sound

setting – in this example OFF ().

Keysound At the end On alarm

If door open

4. Save the setting by pressing the confir-

Sound

mation key.

Keysound At the end On alarm

If door open

If an acoustic alarm sounds, it can be turned off by pressing the confirmation key.

7.8 Protocol

The appliance continually logs all relevant measured values, settings and error messages at 1-minute intervals. The internal log memory is of the continuous memory type. The logging function cannot be switched off and is always active. The measured data are stored in the appliance, safe from manipulation. If the power supply is interrupted, the time of the power failure and voltage recovery are stored in the appliance.

You can export the protocol data for different periods to a USB storage medium via the USB port or, via Ethernet, import them to the AtmoCONTROL software for graphical representation, print-out or storage.

The log memory of the appliance is not modified or deleted by reading it out.

1. Connect the USB storage medium to the USB port on the right of the ControlCOCKPIT.

2. Activate the protocol. To do so, press the activation key on the right side of the

PROTOCOL display. The display is

enlarged and the period

This month au-

ontrol range

Protocol

tomatically highlighted. To select another logging period, use the turn control.

12.10.2012 12:00

3. Save your selection by pressing the confirmation key. The transfer starts and a status symbol indicates the progress.

This Month

This Year Complete control range

Protocol

4. As soon as the transfer is complete, a

Protocol

check mark appears in front of the period selected. You can now remove the USB storage medium.

D39303 | Date 09/2018 53

This Month

This Year Complete control range

Menu mode

For a description of how to import and process protocol data in AtmoCONTROL or read it out via Ethernet, please refer to the separate AtmoCONTROL manual.

7.9 USER ID

7.9.1 Description

With the USER ID function, you can lock the settings of individual (e.g. temperature) or all parameters, so that they cannot be changed at the appliance by accident or unauthorised persons. You can also lock setting options in menu mode (e.g. adjustment or date and time settings) this way.

If adjustment options are locked, this is indicated by the lock symbol in the respective display (Fig.

26).

USER ID data is entered in the AtmoCONTROL software and saved on the USB storage medium. The USB storage medium is thus acting as a key: Parameters can only be locked or unlocked if it is connected.

A description of how to create a USER ID in AtmoCONTROL is provided in the separate AtmoCONTROL manual.

7.9.2 USER ID activation and deactivation

1. Connect the USB storage medium with the USER ID data to the USB port on the right of the ControlCOCKPIT.

TEMP

22.4

Fig. 26 Temperature adjustment at appliance locked (example)

°C

2. Activate the USER ID. To do so, press the activation key on the right side of the

USER ID display. The display is enlarged

and the entry highlighted.

3. Confirm the activation by pressing the confirmation key. The new USER ID data are transferred from the USB storage medium and activated. As soon as activation is complete, a check mark appears in front of the corresponding entry.

4. Remove the USB storage medium. Locked parameters are indicated by the lock symbol on the respective display (Fig. 26 ).

o unlock the appliance, connect the USB storage medium, activate the

T select the entry

54 D39303 | Date 09/2018

Activate automatically

Deactivate.

Activate

Deactivate

USER-ID

Activate

Deactivate

USER ID display and

Maintenance and Servicing

8. Maintenance and Servicing

WARNING

Danger due to electric shock. Disconnect the mains plug before any cleaning or maintenance work.

8.1 Regular maintenance

Annually:

► Check the sterile filter in the control unit and the water pump filter in the rear panel and

replace them if they are dirty.

► To guarantee perfect control, we recommend calibrating the appliance once a year (see

page 47).

Every two years:

► Replace the sterile filter in the control unit and the water pump filter.

8.2 Cleaning

8.2.1 Interior and metal surfaces

Regular cleaning of the easy-to-clean interior prevents build up of material remains that could impair the appearance and functionality of the stainless steel chamber over time.

The metal surfaces of the appliance can be cleaned with normal stainless steel cleaning agents. Make sure that no rusty objects come into contact with the interior or with the stainless steel housing. Rust deposits can lead to an infection of the stainless steel. If rust spots should appear on the surface of the interior due to impurities, the affected area must be immediately cleaned and polished.

8.2.2 Plastic parts

Do not clean the ControlCOCKPIT and other plastic parts of the appliance with caustic or solvent-based cleaning agents.

8.2.3 Glass surfaces

Glass surfaces can be cleaned with a commercially available glass cleaner.

8.3 Repairs and Service

Only authorised customer service points should carry out maintenance work.

D39303 | Date 09/2018 55

Storage and disposal

9. Storage and disposal

9.1 Storage

The appliance may only be stored under the following conditions:

► in a dry and enclosed, dust-free room ► frost-free ► disconnected from the power supply and water supply

Disconnect the tube of the water supply tank and empty it.

9.2 Disposal

This product is subject to the Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) of the European Parliament and of the Council. This appliance was placed on the market after August 13 2005 in countries which have already integrated this Directive into their national laws. It may not be disposed of in normal household waste. For disposal, please contact your dealer or the manufacturer. Any appliances that are infected, infectious or contaminated with materials hazardous to health are excluded from return. Please also observe all other regulations applicable in this context.

Before disposing of the appliance, please render the door locking mechanism unusable, for example to prevent playing children from being locked inside the appliance.

There is a lithium battery in the ControlCOCKPIT of the appliance. Remove it and dispose of it in accordance with the regulations in your country (Fig. 27).

Fig. 27 Removing the lithium battery

56 D39303 | Date 09/2018

Index

Accessories 16 Activation button 25 Alarm 30, 31, 33, 37 Ambient conditions 16 Ambient temperature 16 Appliance error 38 ASF 30, 31 AtmoCONTROL 3, 13, 16, 26,

28, 51, 53, 54

Basic appliance settings 41 Basic settings 41

Calibration 47 Cancel programme 29 Carrying 17 Chamber load 24 Changes 9 Cleaning 55 Communication interfaces

Compensation correction

values 49

Connections 12 ControlCOCKPIT 24, 25 Customer service 2

Date 45 Declaration of conformity 15 Delete programme 52 Delivery 17, 18, 21 Digital backwards counter

with target time setting 27

Dimensions 15 Directives 15 Disposal 56 Door 23

Electrical connection 12 Electrical equipment 12 Electronic temperature moni-

toring 30

Emergency 9 Ending operation 36

End of programme 29 Error message 39 Error messages 37 Ethernet 13

Forklift truck 18

Gateway 45 Graph 35

Hazards 7 Hot-air generator 10 Humidity 27 Humidity adjustment 49 Humidity monitoring 33,

34, 38

Humidity profile 35

Installation site 19 Intended use 8 Interfaces 12 IP address 43

Keysound 52

Language selection 42 Loading the appliance 24 Log memory 40, 53

Maintenance 55 Malfunctions 9, 37, 38 Manufacturer 2 Material 12 Mechanical temperature

monitoring 32 Menu 41 Menu mode 41 Minimum clearances 19 Monitoring function 30 Monitoring temperature 30

Network 13, 43

Operating modes 26 Operating personnel 8 Operating problems 38 Operation 23

Packaging material 18 Parameter adjustment 25,

42 Power failure 40 Power supply 21, 53 Product safety 7 Programme 51 Programme mode 26, 28 Protocol 53 PT100 temperature sensor

30 Putting into operation 21

Regular maintenance 55 Remote control 45

Safety regulations 6, 10 Service 55 Servicing 55 Setting up 17, 19 Setup 43 Sound 47, 52 SOUND 52 Speaker symbol 30, 33, 37 Standards 15 Starting a programme 28 Sterilisation programmes 52 Storage after delivery 18 Switching off 36 Switching on 22

Taking out of service 56 TB 32 Technical data 14 Temperature 27 Temperature calibration 47 Temperature comparison 47 Temperature deviation 47 Temperature limiter 32 Temperature monitor 30, 31

D39303 | Date 09/2018 57

Index

Temperature monitoring 30 Temperature sensor 30 Tilt protection 20 Time 45 Timer 27 Timer mode 44 Transport 17, 18 Transport damage 18 Turn control 25 TWW 30 TWW temperature monitor-

ing 31

Type plate 13

Unit 44 Unpacking 18 USB port 12, 53 USER ID 54

Warning messages 12, 37 Water specifications 21 Water supply 21 Weight 14 What to do in case of ac-

cidents 9

58 D39303 | Date 09/2018

Humidity chamber HCP

D39303| Date 09/2018

English

Memmert GmbH + Co. KG Willi-Memmert-Straße 90-96 | D-91186 Büchenbach Tel. +49 9122 925-0 | Fax +49 9122 14585 E-Mail: sales@memmert.com facebook.com/memmert.family Die Experten-Plattform: www.atmosafe.net

Memmert HCP 50, HCP 150, HCP 105 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

OPERATING MANUAL

Manufacturer and customer service

About this manual

Contents

1. For your safety

2. Construction and description

3. Delivery, transport and setting up

4. Putting into operation

5. Operation and control

6. Malfunctions, warning and error messages

7. Menu mode

8. Maintenance and Servicing

Index
