Page 1
or disclosure of its contents to any person not authorized by MELTRIC Corporation or its agents to receive it, is strictly prohibited.
This drawing is the property of MELTRIC Corporation, Franklin (Milwaukee), Wisconsin, USA. Any unauthorized copying of this drawing by any means,
G
F
E
D
C
8-32 UNC
4X
1.654
B
A
1
4.25
3.250
2.75
1.875
C
2.00
2
THRU
30°
2.0
3
L
4
ENG/RD/06 REV: 20 ISSUED DATE: 11/15/11
4X R
.25
C
L
NOTES:
MELTRIC TO SUPPLY HARDWARE:
1.
4M8-32X1/2-SW.
4MF6-32X3/4.
Société d’Exploitation des Procédés Maréchal Copyright
4
.150 THRU ALL
X
TOLERANCES UNLESS OTHERWISE SPECIFIED
MACHINED SURFACES
GROUND SURFACES
ANGLE TOLERANCE
REMOVE BURRS & SHARP EDGES TO .015 MAX.
DIMENSIONS SHOWN IN OVALS
ARE INSPECTION DIMENSIONS.
M:\Web Site\Web Site New\Drawing Files\DSN20\
1°
ENGLISH
0.X ±0.05
0.XX ±0.01
0.XXX ±0.005
.25
DRAWN
DATE:
SHEET:
OF
APPROVED
11
10-32 UNF
GROUND SCREW

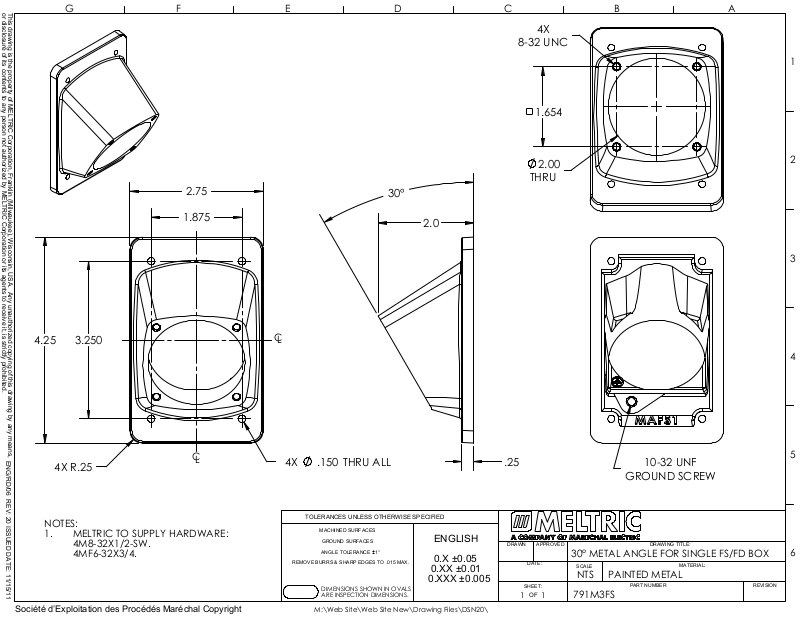

DRAWING TITLE:
30° METAL ANGLE FOR SINGLE FS/FD BOX
SCALE
NTS
791M3FS
PAINTED METAL
PART NUMBER
MATERIAL:
REVISION
5
6
