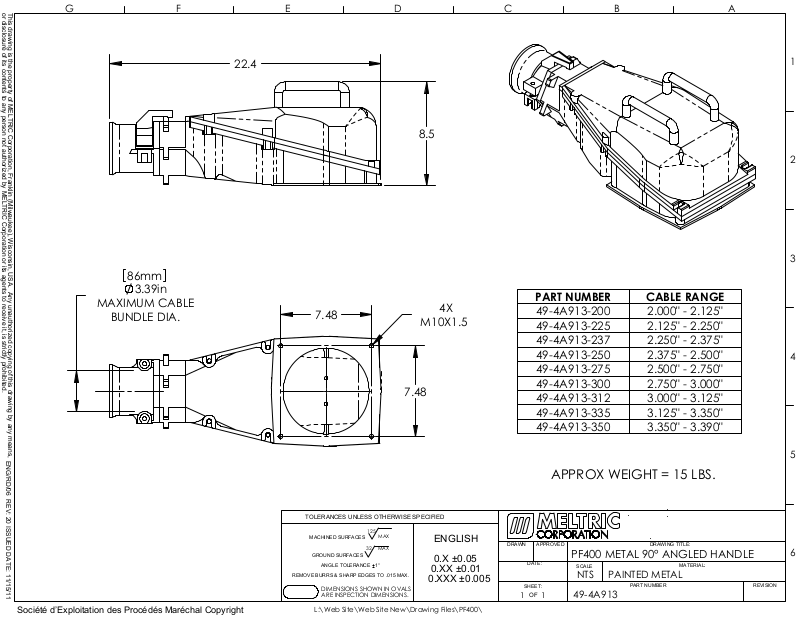

Meltric 49-4A913 Reference Drawing

or disclosure of its contents to any person not authorized by MELTRIC Corporation or its agents to receive it, is strictly prohibited.

This drawing is the property of MELTRIC Corporation, Franklin (Milwaukee), Wisconsin, USA. Any unauthorized copying of this drawing by any means,

G

F

E

D

C

B

A

86mm

3.39in

MAXIMUM CABLE

BUNDLE DIA.

22.4

7.48

8.5

M10X1.5

7.48

1

2

3

PART NUMBER

4

X

49-4A913-200
49-4A913-225
49-4A913-237
49-4A913-250
49-4A913-275
49-4A913-300
49-4A913-312
49-4A913-335
49-4A913-350

CABLE RANGE

2.000" - 2.125"

2.125" - 2.250"

2.250" - 2.375"

2.375" - 2.500"

2.500" - 2.750"

2.750" - 3.000"

3.000" - 3.125"

3.125" - 3.350"

3.350" - 3.390"

4

ENG/RD/06 REV: 20 ISSUED DATE: 11/15/11

Société d’Exploitation des Procédés Maréchal Copyright

TOLERANCES UNLESS OTHERWISE SPECIFIED

125

MACHINED SURFACES

GROUND SURFACES

ANGLE TOLERANCE

REMOVE BURRS & SHARP EDGES TO .015 MAX.

DIMENSIONS SHOWN IN OVALS
ARE INSPECTION DIMENSIONS.

L:\Web Site\Web Site New\Drawing Files\PF400\

MAX

MAX

32

1°

ENGLISH

0.X ±0.05

0.XX ±0.01

0.XXX ±0.005

DRAWN

APPROX WEIGHT = 15 LBS.

DRAWING TITLE:

PART NUMBER

DATE:

SHEET:

OF

APPROVED

11

PF400 METAL 90° ANGLED HANDLE

SCALE

NTS

49-4A913

PAINTED METAL

5

6

MATERIAL:

REVISION
