or disclosure of its contents to any person not authorized by MELTRIC Corporation or its agents to receive it, is strictly prohibited.
This drawing is the property of MELTRIC Corporation, Franklin (Milwaukee), Wisconsin, USA. Any unauthorized copying of this drawing by any means,
G
F
E
D
7.4
C
B
A
1
2
3
ENG/RD/06 REV: 21 ISSUED DATE: 10/7/16
Société d’Exploitation des Procédés Maréchal Copyright
1.654
TOLERANCES UNLESS OTHERWISE SPECIFIED
MACHINED SURFACES
GROUND SURFACES
ANGLE TOLERANCE
REMOVE BURRS & SHARP EDGES TO .015 MAX.
DIMENSIONS SHOWN IN OVALS
ARE INSPECTION DIMENSIONS.
M:\Web Site\Web Site New\Drawing Files\PN20-PNHT\
4
5
125
MAX
MAX
32
1°
ENGLISH
0.X ±0.05
0.XX ±0.01
0.XXX ±0.005
DRAWN
DATE:
SHEET:
OF
APPROVED
11
DRAWING TITLE:

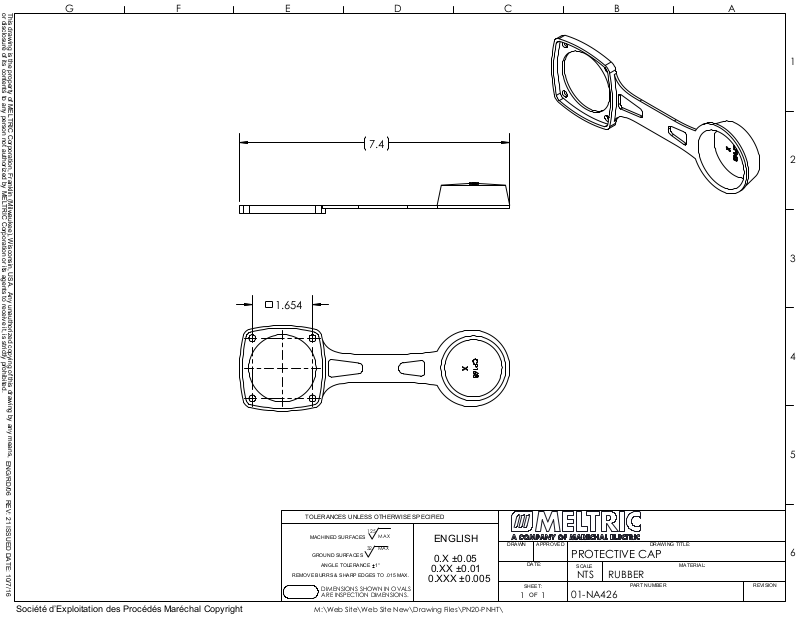

PROTECTIVE CAP
SCALE
NTS
01-NA426
RUBBER
PART NUMBER
6
MATERIAL:
REVISION
