Page 1
300W
Model:
85300
PLEASE READ ALL INSTRUCTIONS BEFORE USE
complies with
INTERNATIONAL
IEC60335
SAFETY SPECIFICATIONS
2 year guarantee
Robot Ultimate Stick Blender
Page 2
Important Safeguards
Before using the electrical appliance, the
following basic precautions should always be
followed:
Read all instructions.1.
Before using check that the voltage of wall outlet 2.
correspond to the one shown on the rating plate.
Do not operate any appliance with a damaged cord 3.
or plug or after the appliance malfunctions, or is
dropped or damaged in any manner. Return 4.
appliance
to the nearest authorized service facility for 5.
examination, repair or electrical or mechanical
adjustment.
If the supply cord is damaged it must be replaced by 6.
the manufacturer or a authorized service agent or a
qualified technician in order to avoid a hazard.
Unplug from outlet when not in use, before putting 7.
on or taking off parts, and before cleaning.
Do not let cord hang over edge of table or hot 8.
surface.
Do not immerse upper part of blender into water as 9.
this would give rise to electric shock.
Close supervision is necessary when your appliance 10.
is being used near children or infirm persons.
Avoid contacting moving parts. 11.
Keep hands and utensils out of container while 12.
blending to reduce the risk of severe injury to
persons or damage to the blender.
A scraper may be used only when the blender is not 13.
running.14.
The appliance cannot be used for chopping ice or 15.
blending hard and dry substance, otherwise the
blade could blunt.
To reduce the risk of injury, never place cutting blade 16.
on base without first putting bowl properly in place.
Be sure chopper lid is securely locked in place 17.
before operating appliance.
The use of accessory not recommended by the 18.
manufacturer may cause injuries to persons.
Do not operate the appliance for other than its 19.
intended use.
Do not use outdoors.20.
SAVE THESE INTRUCTIONS
unit, turn the shaft in an anti-clockwise direction
until tightened. To disassemble, just turn in the
adverse direction.
Simply plug the hand-held blender to power 2.
outlet.
Lower the hand-held blender into food and 3.
depress the switch at the top of the motor unit.
To stop the hand-held blender release the switch 4.
at the top of the motor unit.
Instructions for chopper
Max operation duration under high speed per 1.
timecannot exceed 1 minute, and 1 minute rest
time must bemaintained at two consecutive
cycles.
Place the chopper bowl on a clean, level surface.2.
Assemble the stainless steel blade into the 3.
chopper bowl, as shown in Fig.1.
Place food into the chopper bowl.4.
Note:5. remove the bones from meat, cut into
small pieces, then place into bowl, the max
quantity of product can’t exceed 200g with
each blend.
Attach the Lid onto the chopper bowl and turn it 6.
ina clockwise direction until it locks into position.
(see Fig.2) To detach the lid, turn in adverse
direction.
Insert the bottom part of the blender into the hole 7.
of the chopper lid, and turn in clockwise direction
to lock. (See Fig.3)
Plug the appliance to power outlet and depress 8.
the switch to begin operation.
To stop the appliance release the switch at the top 9.
of the motor unit.
Caution:
To reduce the risk of injury, never place cutting •
blade on base without first putting bowl properly
in place.
Be sure chopper lid is securely locked in place •
before operating appliance.
Instructions for beater
Max operation duration under high speed per time 1.
cannot exceed 3 minute, and 1 minute rest time
must be maintained at two consecutive cycles.
To assemble the beater with the motor unit, turn 2.
the whisk anti-clockwise direction until tightened.
To disassemble, just turn in the adverse direction.3.
Using Your Blender
Before the first use, clean the blender according to the
section of “quick cleaning”. The time running unit
without load can’t exceed 15 seconds.
Important: Blades are very sharp, handle with care
Ensure that the hand-held stick blender is unplugged
from the power outlet before assembling or removing
attachments.
Instructions for blender
Max operation duration under high speed per time
cannot exceed 1 minute, and 1 minute rest time must be
maintained at two consecutivecycles.
To assemble the detachable shaft with the motor 1.
Fig.1 Fig.2 Fig.3
Page 3
Simply plug the hand-held stick blender to power 4.
outlet.
Place product into the cup, generally, two eggs is5.
enough.6.
Lower the hand-held stick blender into food and 7.
depress the switch at the top of the motor unit.
To stop the hand-held blender release the switch 8.
at the top of the motor unit.
Cleaning and Maintenance
1. Unplug the appliance and remove
the detachable
stem (accessory).
Note: Do not immerse the detachable
stem of the blender in water because
overtime the lubrication on the
bearings may wash away. Wash he
detachable stem under running water,
without the use of abrasive cleaner or
detergents. After finishing cleaning
the detachable stem, place it
upright so that any water which
may have got in, can drain out. The
stem is a dishwashing safe component.
Wash the cup, chopping bowl, beater and blade 1.
in warm soapy water. The bowl and the beater are
not recommend to place in dishwashing machine
as the plastic components can deteriorate through
prolonged use of dishwasher cleaning.
Wipe the motor unit with a damp cloth. Never 2.
immerse it in water for cleaning as electric shock
may occur.
Dry thoroughly.3.
Caution: Blades are very sharp, handle with care.

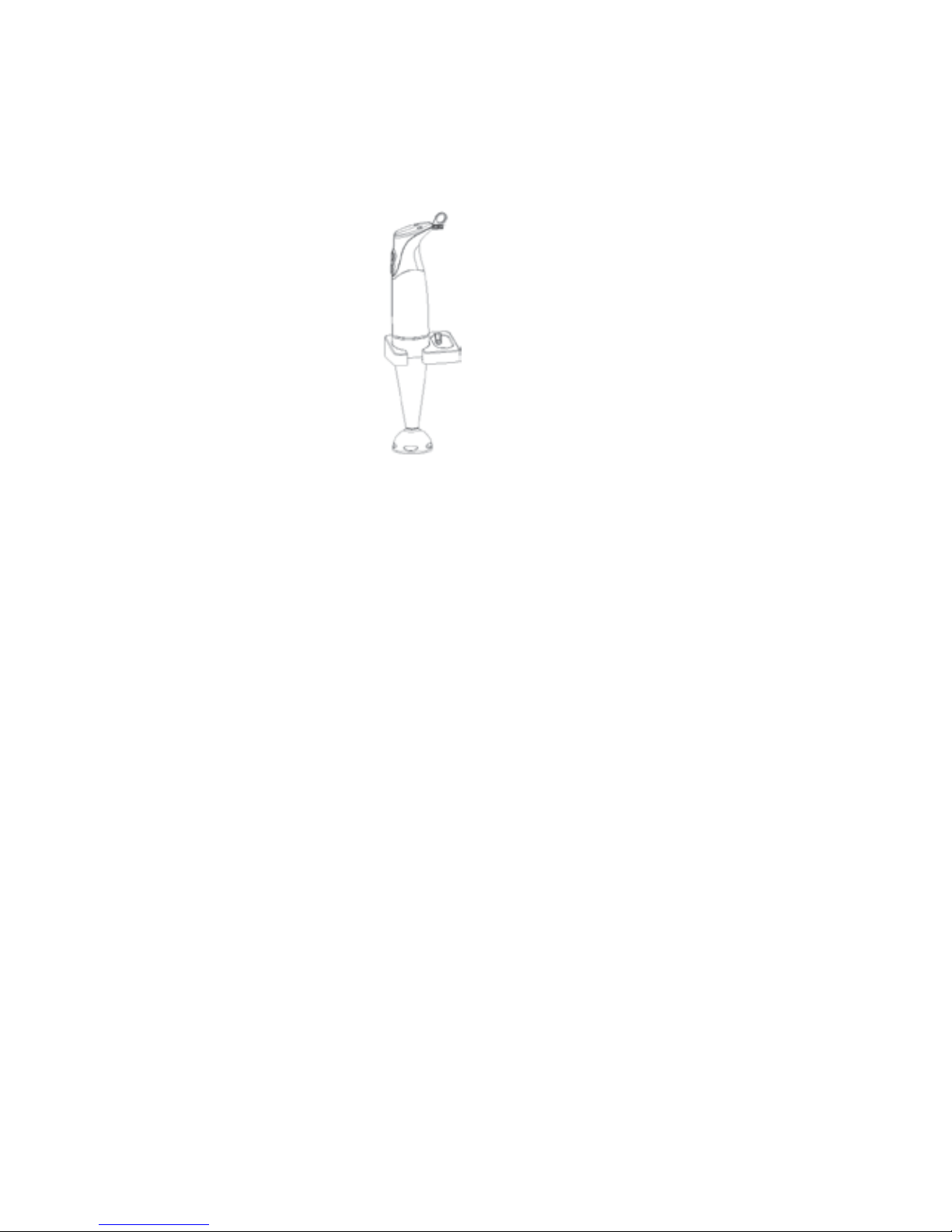

Reassemble the blender stem to motor unit then
place it upright in wall bracket (see Fig.4) or hang it up
for saving space.
Quick cleaning
Between processing tasks, hold the hand-held blender
in the cup half filled with water and turn on for a few
seconds.
Fixing wall bracket
You can fix the wall bracket as following:
Drill two equal holes in wall and strictly follow•
the dimension as indicated in the fig.5.•
Knock two plastic plugs into holes with a hammer. •
Secure the bracket on wall with screws.•
WARRANTY
Mellerware guarantees that this product has been
thoroughly inspected and tested before being
dispatched and is free from mechanical and electrical
defects. Should defects due to faulty material or
workmanship develop within 24 months from original
date of purchase, under normal domestic use, the
appliance will be repaired free of charge or replaced as
determined by Mellerware return policy. No money
will be refunded unless returned with original packaging
and in new condition within 14 days of purchase.
Kindly retain your purchase slip for this must be
presented together with this completed claim
form (see reverse) when making a claim under the terms
of the guarantee. No correspondence in this regard will
be entered into. This guarantee does not cover wear
and tear or damage caused by over-loading,
negligence, abuse, and accidental or improper use. Any
changes will invalidate the guarantee, as would any
attempted repair. Creative Housewares (Pty) Ltd will not
be liable for any loss or damage.
SERVICE
Before returning your product – check for the following:
Your household mains supply socket is working •
properly. Check with another appliance.
The mains supply circuit is not overloaded. White •
trip switch on the DB board is off.
The product has been used as directed in the •
instructions.
All parts are present.•
If service becomes necessary outside the •
guarantee period, the appliance should be
returned to the retail outlet where purchased or
carefully packed and marked “fragile-handle with
care“, and sent carriage paid to a Mellerware
approved service centre.
(Postage is not refundable).•
Page 4
THIS PRODUCT IS
FOR HOUSEHOLD
USE ONLY!
Know Your Accessory Chopper Know Your Blender
Know Your Accessory Beater
Suitable for chopping and making paste Suitable for blending vegetables and fruits.
Suitable for mixing egg
Motor unit (turn motor
clockwise to lock with
chopper)
Low and high speed switch (from
up to down, not shown)
Motor unit (turn motor
clockwise to lock with
chopper)
Motor unit
Detachable stem (turn
anti-clockwise to lock with motor,
to unlock turn clockwise)
Blade (not shown)
Whisk (used to whisk egg
and to make cream)
Cup (the max capacity is 700ml, it
is ideal for taking measurements
and preparing small quantities of
processed food)
Wall bracket (hook the blender
or detachable stem in large
hole after using)
Cup
Detachable chopper (turn
clockwise to lock with
chopper bowl, turn
anticlockwise to unlock)
Detachable chopper blade
(handle with care, the
blade is very sharp, always
handle the plastic shaft)
Bowl (place food into
bowl prior to attaching the
chopper lid)
LOCK
LOCK
LOCK
LOCK
Page 5
Page 6
27 Nourse Avenue Epping 2 Cape Town
P.O. Box 975 Eppindust 7475 South Africa
Tel: +27 21 534 8114 Fax: +27 21 534 8086
Service Centre Share Call: 086 111 5006
web: www.creativehousewares.co.za
