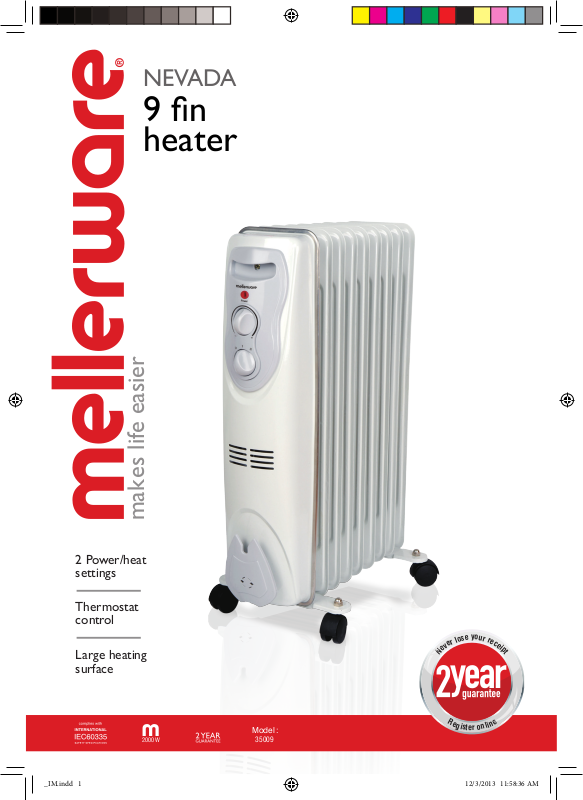

Page 1
NEVADA
Thermostat
control
2 Power/heat
settings
Large heating
surface
Model :
35009
2000W
9 n
heater
makes life easier
_IM.indd 1 12/3/2013 11:58:36 AM
y
o
u
e
r
s
o
r
l
e
r
e
v
e
N
R
e
g
c
e
i
p
t
e
n
i
l
i
s
n
t
o
e
r
Page 2
PARTS IDENTIFICATION
A
B
C
D
E
F
A.Plastic handle
B.Thermostat
C.Power switch
D.Fins
E.Power cable & plug storage compartment
F.Castor wheels
INSTRUCTION
The oil filled radiator is manufactured to the
highest specifications, utilizing the latest technology. To get the best from this product and
prolong it’s life, please spare a few minutes to
read the user instructions.
5. Don’t lay the cords over the radiator when
not in use.
6. Don’t cover the radiator with anything.
7. The radiator must not be used in a bathroom or near a source of water.
8. It’s normal for the radiator to make a noise
when it is being used for the first time.
9. In case of problems with the radiator, please
don’t attempt any repairs. Refer repairs only
to qualified service personnel.
10. The oil used in this radiator is of a specifi-
cation particular to this type of radiator and
is manufactured with a precisely measured
quantity. Only approved agents must open
the oil container section to carry our repairs. Any oil leak must be reported to and
repaired by qualified service personnel.
11. Check that your supply voltage is the same
as the shown on the rating label and that
the socket is earthed.
Fitting the wheels (see Diagram (a) & (b) for
guidance)
1. Turn the radiator upside down and rest on a
soft surface to prevent scratching the radiator housing.
2. Screw the wheel plate onto the radiator, using the wire loops and wing nuts provided.
3. Push the castor wheels onto the wheel pins
on the plate until they “click” into place.
4. Turn the radiator back to its
correct upright position.
FEATURES
Large 7-fins heating surface provides uniform
radiation.
Automatic temperature controller for adjusting
and maintaining the desired room temperature.
Special high-speed heat conducting oil is
utilized. Equipped with castor wheels
for ease of movement.
Safety Guidelines
1. The radiator should always be kept upright
Operation:
1. Turn the thermostat (B) to the highest setting and switch on the power button (C).
When the desired temperature has been
reached, turn back the thermostat until the
indicator lamp goes out.
2. Simply adjust the thermostat to retain the
desired temperature.
3. The indicator lamp indicates whether or not
the radiator is working.
2. Don’t position your radiator near to flammable materials. Allow a distance of at least
50mm between furniture, curtain, walls and
any other household objects.
3. Don’t position your radiator directly under a
socket outlet.
4. If the cord becomes worn, it must be replaced by a qualified technician.
_IM.indd 2 12/3/2013 11:58:36 AM
Warning
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
Page 3
person responsible for their safety. Children
should be supervised to ensure that they do
not play with the appliance.
2. If the supply cord is damaged, it must be
replaced by the manufacture, its service
agent or similarly qualified persons in order
to avoid a hazard.
3. The instructions for heaters marked “DO
NOT COVER” or with the “DO NOT COVER” symbol shall contain the substance of
the following: WARNING: in order to avoid
overheating, do not cover the heater.
4. The instructions shall state that the heater
must not be located immediately below a
socket outlet.
5. Do not use this heater in the immediate surroundings of a bath, shower
or swimming pool.
6. This heater is filled with a precise quantity
of special oil.
7. Repairs requiring opening of the oil container are only to be made by the manufacturer
or his service agent who should be contacted if there is an oil leak; When scrapping
the heater, follow the regulations concerning
the disposal of oil.
Maintenance
Before carrying out any maintenance on
your radiator, ensure that it is unplugged and
completely cold. Don’t spray water onto the
radiator. Wipe the casing with a soft, damp
cloth. Don’t clean the radiator with detergents
or abrasive cleaners.
_IM.indd 3 12/3/2013 11:58:36 AM
Page 4
_IM.indd 4 12/3/2013 11:58:37 AM
