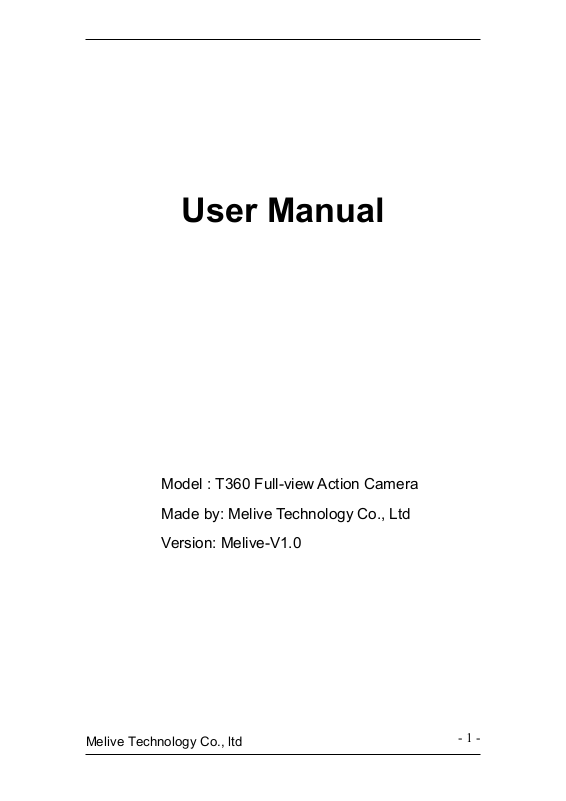

- 1 -
User Manual
Model : T360 Full-view Action Camera
Made by: Melive Technology Co., Ltd
Version: Melive-V1.0
Melive Technology Co., ltd
- 2 -
1 Key Features
Video resolution: 4K@24fps, 2K@30fps, 1080p@96fps,
1080p@60fps, 1080p@30fps, 720p@120fps, 720@60fps.
Image resolution: 12.4MP
LENS: FOV 360 degree (horizontal), 220 degree (vertical)
Advanced WiFi function, range up to 15 meters
Support 2.4G Wireless remote control
Support customized App for Android & iOS device
Waterproof: 10 meters (without waterproof case)
0.83” TFT LCD screen
3.7V/1200mAh built-in Lithium-ion battery
Melive Technology Co., ltd
- 3 -
2 What’s in the box
Camera x 1 3M adhesive for curved mount x 1
Remote control x 1 3M adhesive for Flat mount x 1
Portable case x 1 Lock bolt x 2
Quick release mount x 1 USB Cable x 1
Curved mount x 1 Knuckle x 1
Flat mount x 1
3 Camera Diagram
Melive Technology Co., ltd
- 4 -
4 Using your camera
4.1 Power On & Power Off the Camera
Turn on
Press and hold the “POWER” button for 2 seconds, the camera will
turn on.
Turn off
Press and hold the “POWER” button for 2 seconds.
4.2 Insert a Memory Card
Press the button control on the interface cap, it will pop open
automatically, then insert a memory card with correct direction.
Melive Technology Co., ltd
- 5 -
NOTE:
1. Connect 360°Full-view Action Camera to a computer (or other
3. A completely flat battery will take about 3.5 hours to be fully
1. We suggest using CLASS 10 (High speed) Micro SD card for
smooth shooting purpose. Lower CLASS of Micro SD Card
may cause video blur.
2. There is only one correct direction to insert the Micro SD card
into the slot. Do not force the card into the card slot, as it may
damage both the camera and the Micro SD card.
3. A new Micro SD card should be formatted before using.
4.3 Charge the battery
Before using the 360°camera for the first time, please fully charge
the battery first.
Procedure:
USB power source) using the USB cable (provided).
2. If the Camera is on when charging, one red light on the upper left
ahead will glow red until the battery is fully charged.
charged. The red indicator light will turn off when the battery is fully
charged.
When the battery is nearly running flat, some functions of the
Melive Technology Co., ltd
- 6 -
camera will be not allowed to use, such as WiFi function.
4.4 Shoot Video
Press "SHOOT" button once to start recording.
Press again to stop.
4.5 Shoot a Single Picture
Press "POWER" button twice to switch from Video mode to Picture
mode.
Press "SHOOT" button once to shoot a single picture.
5 Setup your camera
Press “POWER” button five times to switch to Menu setting mode,
press “SHOOT” button to set it.
Press “POWER” button to move forward, press “SHOOT” button to
confirm.
5.1 Video Mode
Resolution
UHD P24, QHD P30, FHD P60, FHD P30, HD P120, HD P60 are
for your choose.
Melive Technology Co., ltd
- 7 -
Loop recording
The video will be separated into difference files by the Time Length.
Off: the video will be separated into different files by every 12mins if
4K selected; by every 25mins if 1080p/ 720p / VGA selected.
5 Minutes: the video will be separated into difference files by every
5 minutes.
10 Minutes: the video will be separated into difference files by every
10 minutes.
For example, if you select "5 Minutes", after recording 20 minutes,
the video will be separated into 4 Video Clips (5 Minutes each Clip).
Time-lapse
This feature allows you to set the intervals at which a frame is
captured. You can set the time intervals as Off, 1Second, 5Seconds,
10Seconds, 30Seconds, 1 Minute.
HDR
HDR is to use more photos with different exposure images, and
then use software to combine them into one image. Its advantage is
that eventually you can get a part no matter in the shadows or
highlights have detail pictures.
Off
Melive Technology Co., ltd
- 8 -
On
5.2 Picture Mode
Resolution
8M 3264 x 2448
12M 4032 x 3024
16M 4608×3408
Burst mode
The camera will continuously shoot pictures automatically.
Capture Mode
Single: Shoot a single picture;
3S Timer: Shoot a single picture every 3 seconds;
5S Timer: Shoot a single picture every 5 seconds;
10S Timer: Shoot a single picture every 10 seconds;
30S Timer: Shoot a single picture every 30 seconds;
60S Timer: Shoot a single picture every 60 seconds;
5.3 General Setting
Beep Sound
Off: Turn the key tone off.
Melive Technology Co., ltd
- 9 -
On: Turn the key tone on.
Auto Power Off
Off: The camera will be always on;
1 Minute: The camera will be off after 1min;
2 Minutes: The camera will be off after 2mins;
5 Minutes: The camera will be off after 5mins;
White balance
You can adjust it when the lighting condition changed, Auto,
Daylight, Cloudy, Fluorescent, Underwater.
Default mode is Auto.
ISO
This is the measurement of how sensitive a digital camera’s sensor
is to light.
You can set it as AUTO, 100, 200, 400, 800, 1600.
Exposure value
This allows user to set the light exposure value, +2.0,+1.5,+1.0,
+0.5, +0.0, -0.5, -1.0, -1.5 , -2.0.
Melive Technology Co., ltd
- 10 -
Sharpness
To set the image sharpness.
Date / Time
The date appears as Y/M/D/H/M/S.
Use the “POWER” button to adjust the time, use the “SHOOT”
button to roll down.
Frequency
Select correct light frequency to avoid strobing.
50Hz
60Hz
DEL
Delete the earlier file saved on the SD card.
Format
Internal Memory: Erase the data saved on camera internal
memory;
SD Card: Erase the data saved on SD card.
Default Setting
Melive Technology Co., ltd
- 11 -
Return all the menu setting into factory defaults.
5.4 WiFi set-up
Version
You can check your camera software version here.
Make sure your camera is full of power before using the WiFi
function.
a. Download the App “Melive T360” to your wireless device from
Google play store or Apple App store.
b. Turn on the camera, then press the WiFi button to enter into the
WiFi mode.
c. Go to WiFi setting of your wireless device, then you can see
“WIFI T-360” in your list;
d. Input password “12345678” to connect the camera with your
wireless device.
e. Open the App “Melive T360”.
Melive Technology Co., ltd
- 12 -
5.5 Remote Control
A. Picture key
B. Video key
C. Power Off key
D. Indicator
Note: Please pair your camera and remote control before
using the remote.
Picture key: Press once to take a single picture.
Video key: Press once to start recording a video, press again to
stop.
Power off key: Press and hold for 4 seconds to turn off the camera.
Indicator function:
Left indicator: When WiFi connected, flicker with blue;
Middle indicator: When pairing finished, light with blue;
When during charging, light with red;
Melive Technology Co., ltd
- 13 -
During charging while camera is on, light with purple;
a. Connect camera and PC via a USB cable provided.
b. The camera will turn on automatically, and shows two options,
Right indicator: When video recording, flicker with green;
When picture captured, flicker green once for each single picture.
Pairing your camera and remote control
1. Make sure your camera and remote control are full of power.
2. Press and hold the "Picture" & "Video" (B&C) buttons of the
remote at the same time, and turn the camera on.
3. When the camera enters into the real live interface, release the
"Picture" & "Video" buttons of remote.
4. When the middle indicator lights up blue, the setup is finished.
Note: Only need to pair once, afterwords the camera will recognize
automatically;
WiFi function & remote controller can not be used simultaneously.
5.6 PC Camera (Web cam)
The camera can be used as a PC camera (web cam)
“Mass Storage” & “PC Camera”, then choose PC Camera.
Use the WiFi button to navigate, use SHOOT button to confirm.
Melive Technology Co., ltd
- 14 -
6 Saving and viewing
6.1 Connect with TV
You can playback captured videos and pictures on TV via a Micro
b. Power the camera on.
c. The displayed images on the TV are all the same with the
d. Press and hold “POWER” button for 2 seconds to turn off the
a. Connect your camera and PC via a USB cable (Provided).
b. The camera will turn on automatically, and shows two options,
c. Select the files you want to transfer to your computer.
HDMI cable.
a. Connect the camera to TV via a Micro HDMI cable.
camera screen. You can operate same as the camera also.
camera.
6.2 Transfer files to PC
You can transfer captured videos and pictures to PC.
“Mass Storage” & “PC Camera”, then choose “Mass Storage”.
Use the WiFi button to navigate, use SHOOT button to confirm.
Melive Technology Co., ltd
- 15 -
7 Reset the Camera
The “Reset” button is near to the USB and TF card interface.
When the camera does not work properly or is jammed, you might
Use a pin to press the reset button near to USB interface for 2
seconds, so that you can restart the camera for properly shooting.
Cautions
Do not drop the camera.
Do not place heavy objects on the camera.
Recharge the battery via the USB cable.
The camera should not be in heat over 55℃.
Do not use the camera when it is low power.
Do not use the camera while it is in charging.
Do not attempt to open the case of the camera or modify it in any
way. If the camera has been opened, the warranty will be void.
Maintenance and repairs can only be performed by Melive .
Melive Technology Co., ltd
