MELICONI CONTROL 3-300 PLUS - WINDOWS User Manual
USING THE KEYS AND FUNCTIONS
The functions described below are only available
if they are already foreseen by your appliance.
Keep this booklet in case you ever need to consult it in the future.
Thanks to the enclosed CD and to the on-line guide on the site www.meliconi.com/guide,
it is even easier and faster to programme the remote control
and discover all its potential.
Thanks to its large database and numerous functions the Meliconi 3 in 1 remote control is ideal for replacing
up to 3 remote controls of any brands for TV - DVD/VCR (
Video Recorder
) - SAT/TER (
Digital Terrestrial
).
Specific area for SET TOP BOX
FORWARD/REWIND functions for VCR and DVD

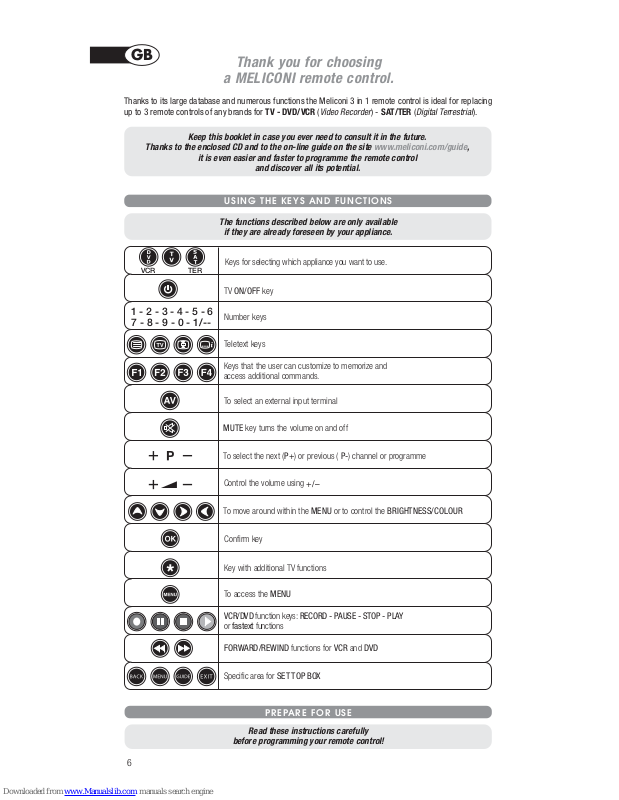

Thank you for choosing
a MELICONI remote control.
Teletext keys
Number keys
Keys for selecting which appliance you want to use.
TV ON/OFF key
Control the volume using
+
/
–
To select the next (P+) or previous ( P-) channel or programme
MUTE key turns the volume on and off
Confirm key
VCR/DVD function keys: RECORD - PAUSE - STOP - PLAY
or fastext functions
To access the MENU
Key with additional TV functions
To select an external input terminal
To move around within the MENU or to control the BRIGHTNESS/COLOUR
Keys that the user can customize to memorize and
access additional commands.
GB
6
1 - 2 - 3 - 4 - 5 - 6
7 - 8 - 9 - 0 - 1/--
PREPARE FOR USE
Read these instructions carefully
before programming your remote control!
VCR
TER
HOW TO PROGRAMME THE REMOTE CONTROL
FITTING THE BATTERIES
Before programming and using the remote control,
fit the batteries.
The remote control requires 2 new AAA/LR03 batteries. Insert the batteries as shown:
• Change the batteries if the light indicator starts to flash during use. The batteries are low.
• Make a note of the codes for your appliances on the adhesive label inside the battery cover in case you
have to reprogramme your remote control.
• This remote control has a permanent memory and does not lose the programmed codes or functions
when the batteries are removed.
To display and make a note of the code memorized by means of the search,
follow the instructions described in the paragraph CURRENT CODE DISPLAY.
ADDITIONAL CHECK
Check that some of the other keys, corresponding to those on your original remote control, work correctly.
If the commands function incorrectly or erratically, you have probably entered a code for a similar remote
control but not the right one. In this case, repeat the search procedure starting from point 3, entering the
code previously used (e.g. 0025).
1. Turn on the appliance to be programmed:
- if a VCR, insert a cassette
- if a TV, SAT or TER select a programme
- if a DVD insert a DVD.
2. Look for the brand of the appliance you want to programme
in the code list and make a note of the corresponding
code alongside
(e.g. PHILIPS 0025)
.
3. Hold down the selection key for the appliance to be
programmed for 5 seconds.
4. When the key is released, it will start to flash. Enter the
brand code previously identified
(e.g. 0025).
The selection
key flashes more quickly to indicate that the remote
control is ready for the search.
5. Point the remote control towards the appliance. Press
and slowly release the ON/OFF key or PLAY for the VCR
and DVD several times, stopping when the appliance
responds correctly to the command.
6. When the appliance responds correctly, press the OK key
to confirm. Three flashes indicate that the search operation
has been completed correctly.
The TV - DVD - SAT keys can be programmed according to your
requirements, following the procedure described below.
The quickest and easiest way to programme the remote control is by consulting enclosed
CD or the website www.meliconi.com/guide.
Warning: programme one appliance at a time!
PHILIPS 0025
or
+++
7
5 SEC.
or
or
VCR
TER
