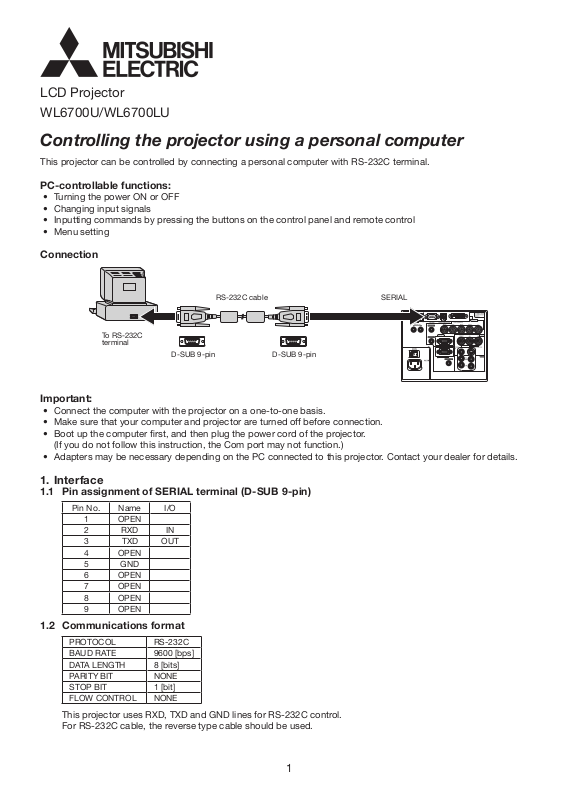

LCD Projector

RS-232C cable

SERIAL

D-SUB 9-pin

RS-232C

terminal

WL6700U/WL6700LU

Controlling the projector using a personal computer

This projector can be controlled by connecting a personal computer with RS-232C terminal.

PC-controllable functions:

• Turning the power ON or OFF

• Changing input signals

• Inputting commands by pressing the buttons on the control panel and remote control

• Menu setting

Connection

Important:

• Connect the computer with the projector on a one-to-one basis.

• Make sure that your computer and projector are turned off before connection.

• Boot up the computer ﬁrst, and then plug the power cord of the projector. (If you do not follow this instruction, the Com port may not function.)

• Adapters may be necessary depending on the PC connected to this projector. Contact your dealer for details.

1. Interface

1.1 Pin assignment of SERIAL terminal (D-SUB 9-pin)

Pin No. Name I/O

1 OPEN 2 RXD IN 3 TXD OUT 4 OPEN 5 GND 6 OPEN 7 OPEN 8 OPEN 9 OPEN

1.2 Communications format

PROTOCOL RS-232C BAUD RATE 9600 [bps] DATA LENGTH 8 [bits] PARITY BIT STOP BIT 1 [bit] FLOW CONTROL NONE

This projector uses RXD, TXD and GND lines for RS-232C control. For RS-232C cable, the reverse type cable should be used.

NONE

Page 2

2. Control command diagram

Computer Projecto

The command consists of the address code, function code, data code, and end code. The length of the command varies among the functions.

Address code Function code Data code End code ASCII ‘30h’ 30h’ Function Data ‘0Dh’ Character 00 Function Data

[Address code] 00 (In ASCII code, ‘30h’ ‘30h’) ﬁxed. [Function code] A code of each ﬁxed control move. [Data code] A code of each ﬁxed control data (number) and not always indicated. [End code] (In ASCII code, ‘0Dh’) ﬁxed.

3. Control sequence

Sequence Note

Send the command from the

personal computer to the projector. The projector will send a return

command after it receives an end code.

The personal computer checks the command and conﬁrms if the sent

command has been received or not. Use the check command to see

if the projector has executed the

command.

If the projector does not receive commands normally, that is, if the projector is not connected physically or unable to receive commands, it does not send out a return command. The projector sends out a return command within one second at the latest.

Although the projector receives the commands, it in some cases does not execute the commands.

This projector sends various codes other than the return code. When having a control sequence by RS-232C, reject other codes from the personal computer.

• Although the projector sends out the return command, the command may not take effect in the following cases. (1) During signal switching (2) In the process of the auto position (3) After the power is turned on. The projector receives no commands for about 20 seconds (or for 2 minutes at the longest if the lamp

• When sending commands successively, wait to receive the return command of the current command before sending a next command.

• The projector may not receive a command when the splash screen is being displayed immediately after turning on the power. Use command “00r10” to cancel the splash screen.

• While using the LAN terminals, the LAN functions take precedence.

• For the LAN terminals, the same commands as those for connecting with the TCP/IP (port number 63007) are available. Note, however, that the response becomes slightly slower than when using the RS-232C terminals.

[Example] When turning the power ON. (Figures and symbols enclosed in quotation marks are ASCII codes.):

‘30’ ‘30’ ‘21’ ‘0D’ 00!

• The ﬂowchart on the next page shows the recommended operating sequence for your reference to create a program.

does not light up promptly as the life is expiring.)

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘21’ ‘0D’ 00!

Status code

from the projector

Description

Command for POWER ON

Command receipt conﬁrmation (Command echo back)

Page 3

Sending out command

Awaiting response

from projector

Awaiting response

from projector

Checking execution of

command (sending out

check command)

Sending command again

sYes

Yes

10th trial

Less than 10 times

Projector error

Send out “00vER” to check error details.

Recover from error state.

0–3

To normal operation

Enter password.

Send out “00PASS****.”

Projector is functioning.

Use “00FNCOFF” to cancel the current function.

6 5

END

No response for 1 second or longer

Sending command again

Number of trials

without response

Sending “00vST”

Checking response to “00vST”

[RS-232C control flowchart]

[Method of checking state of projector]

START

Check the following.

• The projector is not supplied with AC power. → Check that AC power cord is connected. → Turn on the power. (Turn on the circuit breaker or

main switch.)

• Not connected with the projector.

→ Check that the RS-232C cable is connected. → Check the RS-232C cable for electrical discontinuity.

• The projector is in the state of being unable to send out a command.

→ Use command “00vST” to check if the projector

operates normally.

Note: In the following conditions, the projector

does not respond even if it operates normally.

• Immediately after turning on the power (for about 20 seconds to 2 minutes)

• During switching signals (about 10 seconds)

• In the process of the auto position (about 10 seconds)

• During locking the password

Page 4

Command list

4.1 Operation commands (Not executable in stand-by mode. When the commands for input select are sent

while the splash screen is being displayed, the splash screen is only canceled.) The operation commands are used for the basic operation setting of this projector. They may not be executed

while the signals are changed. The operation commands have no data codes.

! " _r1 _r2 _d1 _v1 _v2

Function

ASCII 21h 22h 5Fh 72h 31h 5Fh 72h 32h 5Fh 64h 31h 5Fh 76h 31h 5Fh 76h 32h

This command is invalid for 1 minute after the power is turned off. This command is invalid for 1 minute after the power is turned on. This command will not be executed in Stand-by mode or when the MUTE is executed. This command will not be executed in Stand-by mode or when the MUTE is executed. This command will not be executed in Stand-by mode or when the MUTE is executed. This command will not be executed in Stand-by mode or when the MUTE is executed. This command will not be executed in Stand-by mode or when the MUTE is executed.

Status code

from the projector

‘30’ ‘30’ ‘5F’ ‘72’ ‘31’ ‘0D’ 00_r1

Note

Description

Command for setting the input signal to COMPUTER 1

Command receipt conﬁrmation (Command echo back)

ITEM

POWER ON POWER OFF INPUT COMPUTER 1 INPUT COMPUTER 2 INPUT DVI INPUT VIDEO INPUT S-VIDEO

Character

[Example] When setting the input signal to COMPUTER 1. (Figures and symbols enclosed in quotation marks

are ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘5F’ ‘72’ ‘31’ ‘0D’ 00_r1

4.2 Reading command diagram

The projectors operating status, such as POWER-ON/OFF and the currently selected input terminal, etc. can be monitored.

ITEM

POWER ON vP 1 76h 50h 31h POWER OFF vP 0 76h 50h 30h INPUT COMPUTER 1 vI r1 76h 49h 72h 31h INPUT COMPUTER 2 vI r2 76h 49h 72h 32h INPUT DVI vI d1 76h 49h 64h 31h INPUT VIDEO vI v1 76h 49h 76h 31h INPUT S-VIDEO vI v2 76h 49h 76h 32h POWER ON/OFF IMPOSSIBLE vPK 0 76h 50h 4Bh 30h POWER ON/OFF POSSIBLE vPK 1 76h 50h 4Bh 31h NO SIGNAL SUPPLIED vSM 0 76h 53h 4Dh 30h SIGNAL SUPPLIED vSM 1 76h 53h 4Dh 31h

Use the following commands to obtain the values of the items in the INFORMATION menu.

ITEM

LAMP TIME (LOW) vLE 76h 4Ch 45h hhhhmm RESOLUTION vRESO 76h 52h 45h 53h 4Fh HHHHxVVVV VERTICAL FREQUENCY

HORIZONTAL FREQUENCY SYNC. TYPE

Character

vVFREQ vHFREQ vSYNCT

“hhhh” and “mm” represent hours and minutes respectively. “HHHH” and “VVVV” represent the horizontal and vertical resolutions respectively.

Character ASCII

Function Data (Receive) Function Data (Receive)

Function

ASCII

76h 56h 46h 52h 45h 51h 76h 48h 46h 52h 45h 51h 76h 53h 59h 4Eh 43h 54h

***.** ***.** 0 (NO SIGNAL), 3 (3wire), 4 (4wire),

Data (Receive)

5 (5wire), 6 (SCART)

Use the following commands to obtain other information.

ITEM

Model name vMDL Serial number vS/N Input source vSOUCE

Character

Function

ASCII 76h 4Dh 44h 4Ch 76h 53h 2Fh 4Eh 76h 53h 4Fh 55h 43h 45h

Data (Receive)

****************(within 16 characters) *******(within 7 characters) r1 r2 d1 v1 v2

Page 5

ITEM

Projector status vST 76h 53h 54h 0 (Stand-by mode),

Error status

Character

vER 76h 45h 52h Reading out error data (3 digits, hexadecimal

Function

ASCII

Data (Receive)

1 (Within 1 minute after POWER-ON (warm-up mode)), 2 (POWER-ON mode (including state of warning)), 3 (Cooling mode), 4 (Abnormal state (including shutdown due to an error)), 5 (State of functioning (menu display, dialog display,

MUTE, SPLIT, FREEZE)),

6 (Awaiting password entry)

numbers, total 9 bits) (MSB) xb1, xb2... xb8, xb9, 0, 0, 0 (LSB) xb1: Fan error xb2:

Lamp error (The lamp goes out or does not light.) xb3: Lamp warning 1 (The lamp life has expired.) xb4: Lamp warning 2 (The lamp life is expiring.) xb5: Temperature error xb6: The temperature warning is being indicated. xb7: Lamp cover open error xb8: Filter cover open error xb9: States of other component abnormality

The PC sends the command without attaching the data code to it. On the other hand, the projector attaches to the received command its current operating status as the data code and send it back to the PC.

[Example] When checking the currently selected input terminal (when the INPUT VIDEO is being selected).

(Figures and symbols enclosed in quotation marks are ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘76’ ‘49’ ‘0D’ 00vl

‘30’ ‘30’ ‘76’ ‘49’ ‘76’ ‘31’ ‘0D’ 00vlv1

Status code

from the projector

Description

Command for checking the input terminal

Check result (VIDEO)

4.3 Remote commands (Not executable in stand-by mode. When the remote commands are sent while the

splash screen is being displayed, the splash screen is only canceled.) Some remote control operations can be achieved by the remote command codes. The remote commands have

no data codes.

Button’s name on remote

+/VOLUME r06 72h 30h 36h

-/VOLUME r07 72h 30h 37h ZOOM/FOCUS r0f 72h 30h 66h LENS SHIFT r47 72h 34h 37h KEYSTONE r43 72h 34h 33h MAGNIFY r02 72h 30h 32h SPLIT r04 72h 30h 34h AV MUTE ra6 72h 61h 36h

MENU r54 72h 35h 34h ENTER r10 72h 31h 30h AUTO POSITION r09 72h 30h 39h FREEZE ra4 72h 61h 34h ASPECT re2 72h 65h 32h CE re7 72h 65h 37h

Character

r53 72h 35h 33h r2b 72h 32h 62h r4f 72h 34h 66h r59 72h 35h 39h

Function

ASCII

Page 6

[Example] When displaying the MENU selection bar. (Figures and symbols enclosed in quotation marks are

ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘72’ ‘35’ ‘34’ ‘0D’ 00r54

Status code

from the projector

Description

Command operating the same as the MENU button

Command receipt conﬁrmation (Command echo back)

4.4 Direct commands (Not executable in stand-by mode. Possible only to read during muting.)

The direct commands are used for the keystone setting of this projector with the value.

ITEM

VOLUME VL 56h 4Ch 00–31 KEYSTONE (vertical) KS 4Bh 53h ±35 KEYSTONE (horizontal) KSH 4Bh 53h 48h ±25

Character ASCII

How to set the value

Use the character or ASCII code as shown below to set the value.

Character + - 0 1 2 3 4 5 6 7 8 9 ASCII ‘2Bh’ ‘2Dh’ ‘30h’ ‘31h’ ‘32h’ ‘33h’ ‘34h’ ‘35h’ ‘36h’ ‘37h’ ‘38h’ ‘39h’

[Example] When setting the volume to 15. (Figures and symbols enclosed in quotation marks are ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘56’ ‘4C’ ‘31’ ‘35’ ‘0D’ 00VL15

Function

Status code

from the projector

‘30’ ‘30’ ‘56’ ‘4C’ ‘31’ ‘35’ ‘0D’ 00VL15

Data

Description

Command for setting the volume

Command receipt conﬁrmation (Command echo back)

4.5 Function commands (Not executable in stand-by mode. When the mute commands are sent while the splash

screen is being displayed, the splash screen is not muted but only canceled.) The mute commands are used for the mute setting of this projector with the 0 (30h) and 1 (31h).

ITEM

AV MUTE MUTE 4Dh 55h 54h 45h 0 (OFF), 1 (ON) SPLIT SPLT 53h 50h 4Ch 54h 0 (OFF), 1 (ON) MAGNIFY MGNFY 4Dh 47h 4Eh 46h 59h 0 (OFF), 1 (ON) FREEZE FRZ 46h 52h 5Ah 0 (OFF), 1 (ON) Function canceling FNCOFF 46h 4Eh 43h 4Fh 46h 46h

Character ASCII

Function

Data

4.6 Menu setting commands (Not executable in stand-by mode. Possible only to read during muting.)

The menu setting commands are used for the menu setting of this projector. If the personal computer sends the command without attaching the data code, the projector attaches to the received command its current setting value as the data code and send it back to the PC.

ITEM

COLOR ENHANCER CE 43h 45h 0 (AUTO), 1 (PRESENTATION), 2 (STANDARD),

COLOR ENHANCERUSER-GAMMA MODE

COLOR ENHANCERUSER-RGB-COLOR

COLOR ENHANCERUSER-RGB-TINT

CONTRAST PP 50h 50h ±30 BRIGHTNESS QQ 51h 51h ±30 COLOR TEMP. COLOR TEMP.-USER

(CONTRAST)

Character ASCII

CEU1GS

CEU1C 43h 45h 55h 31h 43h ±10

CEU1T 43h 45h 55h 31h 54h ±10

A 41h 1 (STANDARD), 2 (HIGH), 3 (LOW), 4 (USER) P 50h ±30 ±30 ±30 (R, G, B)

Function

3 (THEATER), 4 (sRGB), 5 (USER)

43h 45h 55h 31h 47h 53h 0 (DYNAMIC), 1 (NATURAL), 2 (DETAIL)

Data

Page 7

ITEM

COLOR TEMP.-USER

Character ASCII

Q 51h ±30 ±30 ±30 (R, G, B)

Function

Data

(BRIGHTNESS) COLOR T 54h ±10 TINT S 53h ±10 SHARPNESS R 52h ±5 NOISE REDUCTION NR 4Eh 52h 0 (OFF), 1 (ON) CTI CTI 43h 54h 49h 0 (OFF), 1 (ON) INPUT LEVEL IPL 49h 50h 4Ch ±5,

For DVI input: +0 (NORMAL), +1 (ENHANCED) LAMP MODE LM 4Ch 4Dh 0 (STANDARD), 1 (LOW) AUTO POWER ON APON 41h 50h 4Fh 4Eh 0 (OFF), 1 (ON) AUTO POWER OFF APOF 41h 50h 4Fh 46h 00 (OFF), 05, 10, 15, 30, 60 SPLASH SCREEN SS 53h 53h 0 (OFF), 1 (ON) BACK COLOR BB 42h 42h 0 (BLACK), 1 (BLUE), 2 (IMAGE) MUTE MODE MM 4Dh 4Dh 0 (BLACK), 1 (IMAGE) IMAGE REVERSE IR 49h 52h 0 (OFF), 1 (MIRROR), 2 (INVERT),

3 (MIRROR INVERT) ZOOM/FOCUS LOCK FZL 46h 5Ah 4Ch 0 (OFF), 1 (ON) LENS SHIFT LOCK LSL 4Ch 53h 4Ch 0 (OFF), 1 (ON) LENS SHIFT RESET LSRST 4Ch 53h 52h 53h 54h ASPECT SC 53h 43h 0 (AUTO (FULL)), 1 (AUTO (16:10)), 2 (AUTO (16:9)),

3 (AUTO (4:3)), 4 (16:9), 5 (REAL), 6 (FULL) PASSWORD FUNCTION

PSLOCK

50h 53h 4Ch 4Fh 43h 4Bh

0**** (UNLOCK), 1**** (DISPLAY INPUT),

2**** (MENU ACCESS), 3**** (SPLASH ID SCREEN)

**** is a 4 to 8-digit password comprised of any

ﬁgures 1 to 4. MENU POSITION MP 4Dh 50h 0 (Upper left), 1 (Lower right) CINEMA MODE CINE 43h 49h 4Eh 45h 0 (VIDEO), 1 (AUTO), 2 (FILM) VIDEO SIGNAL

(VIDEO only)

VS 56h 53h 0 (AUTO), 1 (NTSC), 2 (PAL), 3 (SECAM),

4 (4.43NTSC), 5 (PAL-M), 6 (PAL-N), 7 (PAL-60) SET UP STU 53h 54h 55h 0 (AUTO), 1 (OFF), 2 (3.75%), 3 (7.5%) SCART INPUT SRT

53h 52h 54h 0 (OFF), 1 (ON)

LANGUAGE LG 4Ch 47h 00 ( ), 01 (English), 02 (Español), 03 (Deutsch),

04 (Français), 05 (Italiano), 06 ( ), 07 ( ),

08 ( ), 09 (PORTUGUÊS), 11 (SVENSKA),

12 (POLSKI) RESET ALL

RSTALL

52h 53h 54h 41h 4Ch 4Ch MEMORY CALL MMC 4Dh 4Dh 43h 0 (AUTO), 1 (MEMORY1), 2 (MEMORY2) HORIZ.POSITION HP 48h 50h + (increment), - (decrement) VERT. POSITION VP 56h 50h + (increment), - (decrement)

FINE SYNC. FN 46h 4Eh 00–31 TRACKING TRK 54h 52h 4Bh + (increment), - (decrement)

COMPUTER INPUT CIN 43h 49h 4Eh 0 (RGB), 1 (YCBCR/YPBPR), 2 (AUTO) OVER SCAN VOS 56h 4Fh 53h 00 (90%) – 10 (100%) HOLD HLD 48h 4Ch 44h 0 (OFF), 1 (ON) HOLD BEGIN HLB 48h 4Ch 42h 00–99 HOLD END HLE 48h 4Ch 45h 00–99 CLAMP POSITION CLP 43h 4Ch 50h 001–255 CLAMP WIDTH CLW 43h 4Ch 57h 01–63 VERT. SYNC

VSC 56h 53h 43h 0 (AUTO), 1 (OFF) LPF LPF 4Ch 50h 46h 0 (OFF), 1 (ON) SHUTTER(U) SHU 53h 48h 55h 00–20 SHUTTER(L) SHL 53h 48h 4Ch 00–20 SHUTTER(LS) SHLS 53h 48h 4Ch 53h 00–20 SHUTTER(RS) SHRS 53h 48h 52h 53h 00–20

*1) Setting range differs depending on the input signals.

• Some commands are not executed depending on the input signal. The operational restrictions same as those on the menu setting are applied. Refer to “Menu operation” in the User Manual for more details.

How to set the value

Use the character or ASCII code as shown below to set the value.

Character + - 0 1 2 3 4 5 6 7 8 9 ASCII ‘2Bh’ ‘2Dh’ ‘30h’ ‘31h’ ‘32h’ ‘33h’ ‘34h’ ‘35h’ ‘36h’ ‘37h’ ‘38h’ ‘39h’

Page 8

[Example 1] When setting the AUTO POWER ON to ON. (Figures and symbols enclosed in quotation marks are

ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘41’ ‘50’ ‘4F’ ‘4E’ ‘31’ ‘0D’ 00APON1

Status code

from the projector

Description

Command for setting the AUTO POWER ON to ON

Command receipt conﬁrmation (Command echo back)

[Example 2] When setting the CONTRAST R of the COLOR TEMP.-USER to +10, the CONTRAST G to 0, and the

CONTRAST B to -5. (Figures and symbols enclosed in quotation marks are ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘50’ ‘2B’ ‘31’ ‘30’ ‘2B’ ‘30’ ‘30’ ‘2D’ ‘30’ ‘35’ ‘0D’ 00P+10+00-05

Status code

from the projector

Description

Command for setting the picture control

Command receipt conﬁrmation (Command echo back)

[Example 3] When checking the TINT setting (when the TINT is set to +10). (Figures and symbols enclosed in

quotation marks are ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘53’ ‘0D’ 00S

‘30’ ‘30’ ‘53’ ‘2B’ ‘31’ ‘30’ ‘0D’ 00S+10

Status code

from the projector

Description

Command for checking the TINT setting

Check result (+10)

[Example 4] When setting the GAMMA MODE of the COLOR ENHANCER-USER to DETAIL. (Figures and sym-

bols enclosed in quotation marks are ASCII codes.):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘43’ ‘45’ ‘55’ ‘31’ ‘47’ ‘53’ ‘32’ ‘0D’ 00CEU1GS2

Status code

from the projector

Description

Command for setting the picture control

Command receipt conﬁrmation (Command echo back)

4.7 Password lock commands

The password lock commands control the password lock. The password lock enabling or disabling command is sent with a 4 to 8-digit password comprised of any ﬁgures 1 to 4 added to the end of the data code. When the password lock is enabled or disabled successfully, the projector sends a return command comprising the data code, password, and “1” at the end. When enabling or disabling the password lock fails, it sends a return command with “0” at the end. There is no reconﬁrmation of the password. The password input command is for enabling projection of image when password lock has been set to DISPLAY INPUT. The password input command is sent with a 4 to 8-digit password comprised of any ﬁgures 1 to 4 at the end.

ITEM

Password lock enabling/ disabling

Password input PASS

Character ASCII

PSLOCK 50h 53h 4Ch 4Fh 43h 4Bh 0**** (Disabling), 1**** (DISPLAY INPUT),

**** is a 4 to 8-digit password comprised of any ﬁgures 1 to 4.

Function

2**** (MENU ACCESS), 3**** (SPLASH ID SCREEN)

50h 41h 53h 53h ****

Data

[Example] When enabling the password lock of DISPLAY INPUT (in the case that the password is 123412):

Sending commands

from the PC, etc.

‘30’ ‘30’ ‘50’ ‘53’ ‘4C’ ‘4F’ ‘43’ ‘4B’ ‘31’ ‘31’ ‘32’ ‘33’ ‘34’ ‘31’ ‘32’ ‘0D’ 00PSLOCK1123412

‘30’ ‘30’ ‘50’ ‘53’ ‘4C’ ‘4F’ ‘43’ ‘4B’ ‘31’ ‘31’ ‘32’ ‘33’ ‘34’ ‘31’ ‘32’ ‘31’ ‘0D’ 00PSLOCK11234121

Status code

from the projector

Description

Command for enabling the password lock of DISPLAY INPUT

Response informing that the projector succeeded in enabling the password lock of DISPLAY INPUT
