Melco N1A/2, N1Z/2 User Manual
High-Res Digital Music Library
N1/2 Series
Hardware Manual
Please make sure to read this manual before using and follow the procedures. If you have any inquiries about
the product, contact the number on the warranty statement or the packing box. Do not discard this manual, the
warranty statement, or the packing box.
35021284-01
2016.12
Contents
Diagrams .........................................................................2

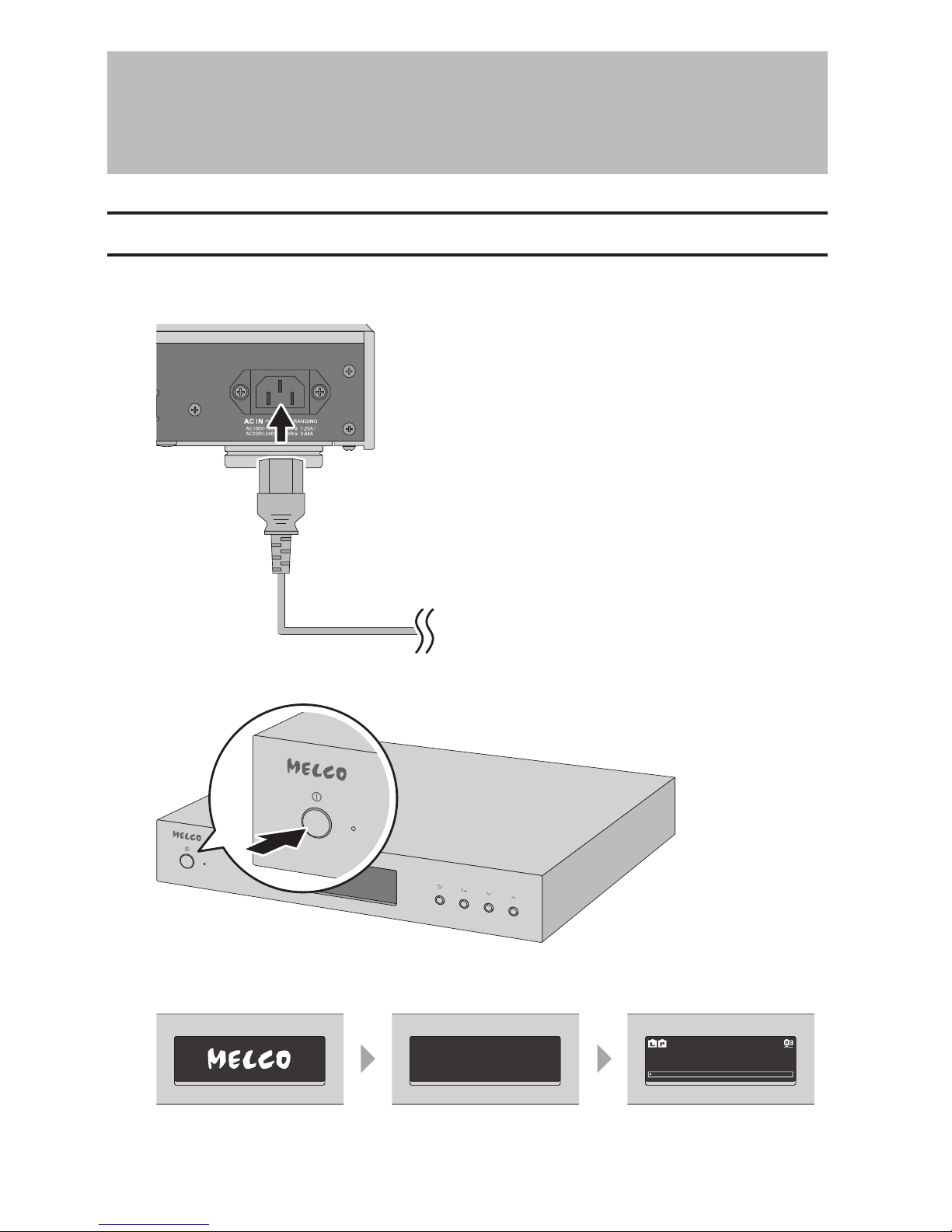

Turning the N1 On and Off .............................................5
Powering On .....................................................................................5
Powering Off .....................................................................................6

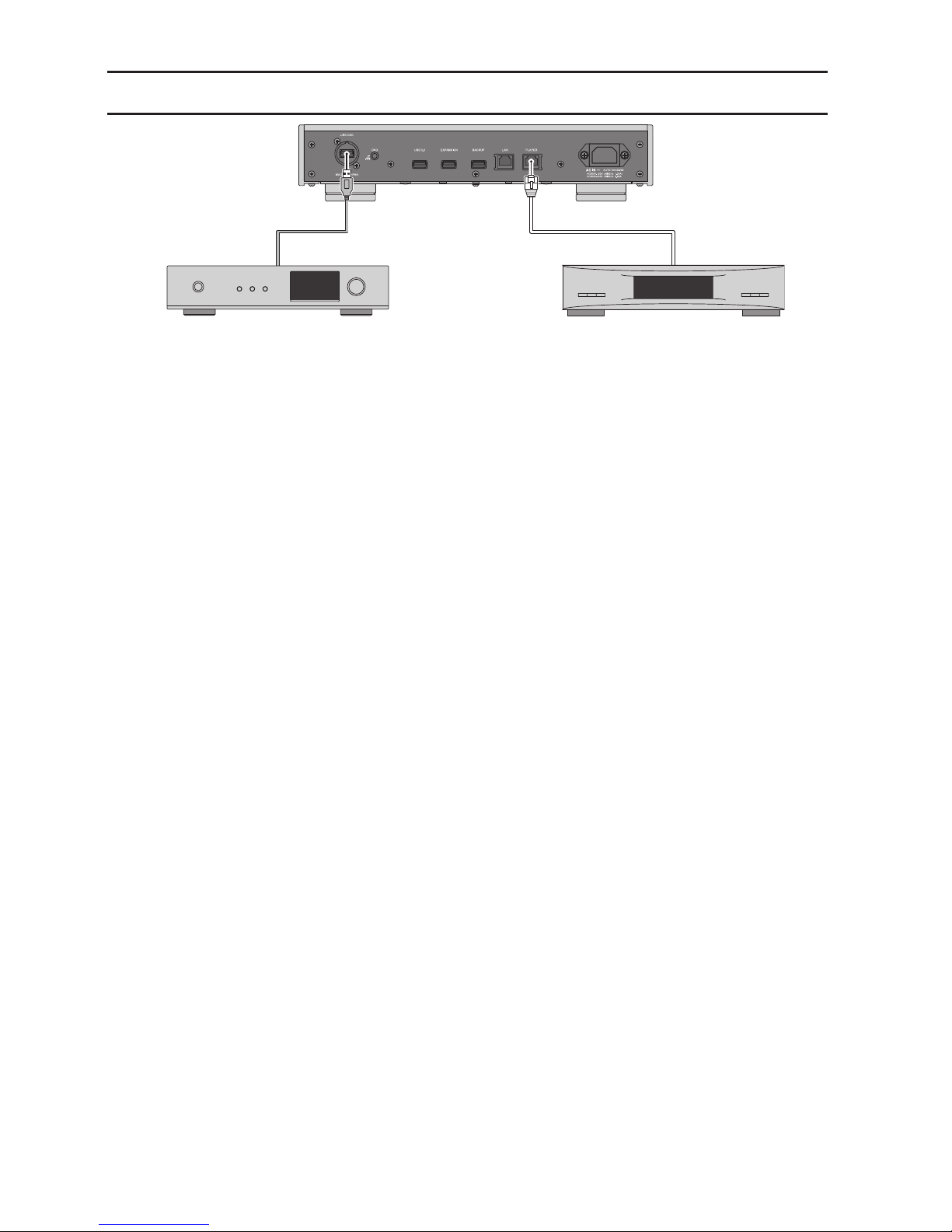

Peripheral Connections ..................................................7
Available Devices and Ports ............................................................7
Preparing Player ...............................................................................8
Default Settings and Product Specifications ...............9
Default Settings ...............................................................................9
Specifications of N1A/2 ...................................................................9
Specifications of N1Z/2 ................................................................. 10
Regulatory Compliance Information ......................... 11
For Customers in the United States ............................................. 11
For Customers in Europe .............................................................. 11
1
Diagrams
N1A/2
1 2 10 3 4 5 6 7
1089 11 12 13 14 15
N1Z/2
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
1 Power Button ( )
Press to turn the power on and off.
2 Power LED
While the N1 is powered on, the LED will light up in blue. It will extinguish when powering off.
2
Note: The brightness of the power LED can be changed from Settings - Power LED Brightness.
3 Display
Displays the device's status and settings. In case of an error, displays the error message and code.
Note: The brightness of the display panel can be changed from Settings - Brightness. If the display brightness is
set to Dark Mode, the display panel will be turned off.
4 Back Button ( )
Returns the window to the previous page. If you press and hold this button for 2 seconds while at the home
screen, the display panel will be turned off.
5 Menu/Enter Button ( )
Makes a selection.
6 Down Button ( )
Scroll down.
To initialize settings, press the power button while holding down this button.
7 Up Button ( )
Scroll up.
8 USB Port for USB-DAC
Use if connecting a USB-DAC device.
9 Ground Port ( )
Use a grounding cable (sold separately) to connect this port.
10 USB 3.0 Port
*
Connect a compatible USB hard drive or optical drive for music playback, or a USB flash drive for updating the
firmware.
11 USB Port for Expansion USB Drive
*
Connect a compatible USB hard drive to expand the storage capacity.
12 USB Port for Backup USB Drive
*
Connect a compatible USB hard drive to back up or restore the contents or settings of the N1.
13 Ethernet Port for Router or Hub
**
Use an Ethernet cable to connect this port to a wireless router, hub, or switch on your network. Then you will
be able to access the N1 from computers and mobile devices on your network.
14 Ethernet Port for Player
**
This is a dedicated port for Network Audio Players. Use an Ethernet cable to connect this port directly to a
Network Audio Player or AV receiver.
Note: If your Network Audio Player is directly connected to the player port, it will not be visible on the network
when the N1 is powered off. If this is an issue, connect your Network Audio Player to the router or switch
instead.
15 Power Connector
Use the included power cable.
* The first partition of a connected USB drive is mounted. Additional partitions are not recognized. To utilize the
whole capacity, connect the USB device to the expansion or backup port, navigate to Settings - Drive, select Format
3
