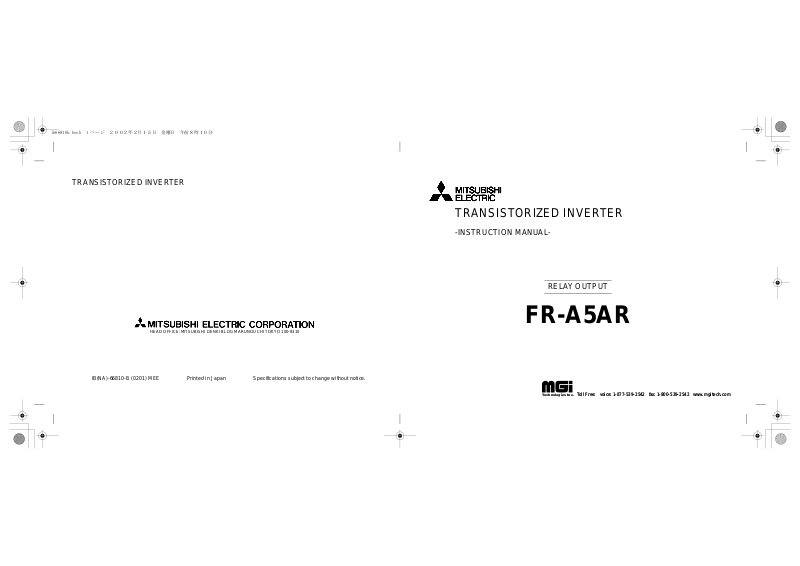

TRANSISTORIZED INVERTER
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
-INSTRUCTION MANUAL-
RELAY OUTPUT
FR-A5AR
Thank you for choosing the Mitsubishi transistorized inverter option unit.
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
This instruction manual gives handling information and precautions for use of this equipment. Incorrect handling
might cause an unexpected fault. Before using the equipment, please read this manual carefully to use the equipment
to its optimum.
Please forward this manual to the end user.
This section is specifically about safety matters
Do not attempt to ins tall, ope rat e, maint ai n or insp ect t his pro duct u nt il y ou h ave r ead t hro ugh th is i nst ruct io n manual and appended documen ts car ef ully and can us e the equip ment corr ectl y. Do not use t his pro duct until you ha ve
a full knowledge of the equipment, safety information and instructions.
In this instruction manual, the safety instruction levels are classified into "WARNING" and "CAUTION".
WARNING
CAUTION
Note that the CAUTION level may lead to a serious consequence according to conditions. Please follow the instructions of both levels because they are important to personnel safety.
Assumes that incorrect handling may cause hazardous conditions, resulting in
death or severe injury.
Assumes that incorrect handling may cause hazardous conditions, resulting in
medium or slight injury, or may cause physical damage only.
SAFETY INSTRUCTIONS
1. Electric Shock Prevention
WARNING
While power is on or when the inverter is running, do not open the front cover. You may get an electric shock.
!
Do not run the inverter with the front cover removed. Otherwise, you may access the exposed high-voltage termi-
!
nals and charging part and get an electric shock.
If power is off, do not remove the front cover except for wiring or periodic inspection. You may access the
!
charged inverter circuits and get an electric shock.
Before starting wiring or inspection, switch power off, wait for more than 10 minutes, and check for no residual
!
voltage with a tester or the like.
A-1
WARNING
C
C
C
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
Any person who is involved in the wiring or inspection of this equipment should be fully competent to do the work.
!
Always install the option unit before wiring. Otherwise, you may get an electric shock or be injured.
!
Handle this option unit with dry hands to prevent an electric s hock.
!
Do not subject the cables to scrat ches, excessi ve stress, h eavy loads or pin ching. Otherwi se, you may get an ele ctric shock.
!
2. Injury Prevention
AUTION
Apply only the voltage specified in the instruction manual to each terminal to prevent burst, damage, etc.
!
Ensure that the cables are connected to the correct terminals. Otherwise, burst, damage, etc. may occur.
!
Always make sure that polarity is correct to prevent burst, damage, etc.
!
While power is on or for some time after power-off, do not touch the inverter as it is hot and you may get burnt.
!
3. Additional instructions
Also note the following points to prevent an accidental failure, injury, electric shock, etc.:
(1) Transportation and mounting
AUTION
Do not install or operate the option unit if it is damaged or has parts missing.
!
Do not stand or rest heavy objects on the product.
!
Check that the mounting orientation is correct.
!
Prevent screws, metal fragments or other conductive bodies or oil or other flammable substance from entering the inverter.
!
(2) Test operation and adjustment
AUTION
Before starting operation, confirm and adjust the parameters. A failure to do so may cause some machines to
!
make unexpected motions.
A-2
(3) Usage
C
C
C
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
WARNING
Do not modify the equipment.
!
AUTION
When parameter clear or all parameter clear is performed, each parameter returns to th e factory setting. Re-set
!
the required parameters before starting operation.
For prevention of damage due to static electricity, touch nearby metal before touching this product to eliminate
!
static electricity from your body.
(4) Maintenance, inspection and parts replacement
AUTION
Do not test the equipment with a megger (measure insulation resistance).
!
(5) Disposal
AUTION
Treat as industrial waste.
!
(6) General instruction
All illustrations given in this manual may have been drawn with covers o r safety guards removed to provide indepth description. Before starting ope ration o f th e p roduc t, always return the covers and guards into o ri ginal po sitions as specified and operate the equipment in accordance with the manual.
A-3
CONTENTS
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
1.PRE-OPE RATIO N INST RUCT IO NS 1
1.1 Unpacking and Product Confirmation..................................................................................................1
1.2 Packing Confirmation...........................................................................................................................1
1.3 Structure ..............................................................................................................................................2
2.INSTALLATION 3
2.1 Pre-Installation Instructions..................................................................................................................3
2.2 Installation Procedure..........................................................................................................................3
2.3 Wiring...................................................................................................................................................5
3.FUNCTIONS 6
3.1 Internal Block Diagram.........................................................................................................................6
3.2 Terminals.............................................................................................................................................6
4.PARAMETERS 7
4.1 Parameter List......................................................................................................................................7
5.THE COMMERCIAL POWER SUPPLY-INVERTER SWITCH-OVER SE QUENCE FUNCTION 8
6.SPECIFICATIONS 9
6.1 Specifications.......................................................................................................................................9
1.PRE-OPERATION INSTRUCTIONS
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
1.1 Unpacking and Product Confirmation
Take the option unit out of the package, check the unit name, and confirm that the product is as you
ordered and intact.
Functions arailable differ between FR-A500(L)/F500(L) series and FR-V500 series, always check before
using.
" SERIAL number check
This product may be used with the FR-A520-0.4K to 22K manufactured in and after July 1997. Any of the
models may be used with this unit if its SERIAL number indicated on the rating plate and package has
"J77
######
SERIAL is made up of 1 version symbol and 8 numeric characters indicating year, month, and control
number as shown below.
J
Symbol Year Month Control number
1.2 Packing Confirmation
Make sure that the package includes the following
" Instruction manual.........................................................................1
" Mounting screws M3 × 10 .............................................................2
" or later version.
7 7 ######
SERIAL number
1
1.3 Structure
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
PRE-OPERATION INSTRUCTIONS
Mounting
hole
Terminal
block
screw si ze
M3
Terminal
symbol
Front view
1A 1B 2A 2B 3C
1C
FR-A5AR
2C 3A
3B
Mounting
holes
Option fixing holes
Rear view
Mounting
holes
Connector
2
2.INSTALLATION
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
2.1 Pre-Installation Instructions
Make sure that the input power of the inverter is off.
CAUTION
With input power on, do not install or remove the option unit. Otherwise, the inverter and
option unit may be damaged.
2.2 Installation Procedure
(1) Securely insert the connector of the option unit far into the connector of the inverter. At thi s time, fi t the
option fixing holes snugly. For the position of slot, refer to the next page.
Also be sure to fit the unit into the option fixing hook (For the FR-A500(L)/ FR-F500(L) series, it is available in Aug., 2000).
(2) Securely fix the option unit to the inverter on both sides with the accessory mounting screws. If the
screw holes do not match, the connector may not have been plugged snugly. Check for loose plugging.
3
INSTALLATION
A
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
Inverter
(without cover)
Option unit
ccessory screw
(2 pcs.)
Slot 1
Inverter side connector
Slot 2
Option fixing ho ok
Option side
connector
Slot 3
The slots 1, 2, and 3 are provided
with an option fixing ho ok.
CAUTION
1. Only one type of option per inverter may be used. When two or more options are mounted, priority is in order of slots 1, 2 and 3, the options having lower priority are inoperative.
2. When the inverter cannot recognize that the option is
mounted, it displays the option error. The errors shown
differ according to the mounting slots 1, 2, 3.
Mounting Position Error Display
Slot 1 E.OP1
Slot 2 E.OP2
Slot 3 E.OP3
4
INSTALLATION
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
2.3 Wiring
Route the wires so that they do not take up a lot of space in the control circuit terminal block of the option unit.
During wiring, do not leave wire off-cuts in the inverter. They may cause a fault, failure or malfunction.
Use the space on the left side of the control circuit terminal unit to route the wires.
Cable routing
REMARKS
The wires with large gaze may not be connected to the terminal block. When connected in parallel, all wires may not
fit in the wiring space due t o the i ncr eased number of wires. In suc h cases, perform wiring by using a junction terminal block.
CAUTION
Do not use empty terminals as junction terminals because they are used in the option unit. If
they are used as the junction terminals, the option unit may be damaged.
When installing the inverter front cover, the cables to the inverter's control circuit terminals
and option terminals should be routed prop erly in the wiring space to prevent them from
being caught between the inverter and its cover.
5
3.FUNCTIONS
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
3.1 Internal Block Diagram
You can select any three output signals available with an
FR-A5AR
inverter as standard, and output them as relay contant signals.
Functions arailable differ between FR-A500(L)/F500(L) series
RA1
and FR-V500 series.
The output signals to be selected differ according to the i nverter.
Refer to the instruction manual of the inverter. (output terminal
function selection (Pr. 190 to))
Connector
Internal circuit diagram
RA2
RA3
3.2 Terminals
Terminal
Symbol
1A Relay RA1's normally open contact te rm inal 2C Relay RA2's contact co mmon terminal
1B Relay RA1's normally closed contact terminal 3A Relay RA3's normally open contact terminal
1C Relay RA1's contac t co m m on terminal 3B Relay RA3's normally closed cont act terminal
2A Relay RA2's normally open contact te rm inal 3C Relay RA3's contact co mmon terminal
2B Relay RA2's normally closed contact terminal
Description
* The operation of each relay depends on the output signal selected.
Terminal
Symbol
6
Description
1A
1B
1C
2A
2B
2C
3A
3B
3C
4.PARAMETERS
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
4.1 Parameter List
By installing this option unit, the parameters below are extended.
Set the values according to need.
Parameter Number Name Setting Range Factory Setting
320 RA1 output selection 0 to 99, 9999 0
321 RA2 output selection 0 to 99, 9999 1
322 RA3 output selection 0 to 99, 9999 2
The setting value of the parameter differs according to the inverter. Please refer to the inverter instruction
manual (output terminal function selection (Pr. 190 to)). (The setting value of negative logic can not be set.)
REMAKS
For Pr.320 to Pr. 322, write is disabled during operation even when “2” is set in Pr.77. When changing the parameter
setting, stop the oper at ion.
7
5.THE COMMERCIAL POWER SUPPLY-INVERTER SWITCH-OVER SEQUENCE FUNCTION
If the commercial powe r supply-in verter switch-o ver sequen ce functio n is activat ed with the FR -A5AR mou nted on
the inverter, the phe nomen on wh ere ma gnet cont actor s witch es al ternat e bet ween ON an d OFF ma y occ ur.
To prevent this, adapt either connection shown below.
(1) Recommended connection example 1
Use inverter output terminals (Contact sig-
Supply
NFB
MC1
Inverter
R
S
open colle c t or
T
R1
contacts
S1
A and C
FR-A5AR
U
V
W
or
MC1
A
MC2
C
A
MC3
C
nal, open collector signal) instead of MG1
signals.
The phenomenon occurs when relay output of the FR-A5AR is used as MC1 signal.
(2) Recommended connection example 2
When using relay output of the FR-A5AR,
Supply
NFB
MC1
R
S
T
R1
S1
Inverter
FR-A5AR
ABC
MC2
MC3
U
V
W
B
C
A
C
A
C
set the alarm output signal (ABC) instead
of the MC1 signal and output it from contacts B and C.
CAUTION
For the FR-V500 series, the commercial power supply-inverter switch-over sequence function can not be used.
MC3
MC3
MC2
Motor
IM
MC1
MC2
MC3
MC2
Motor
IM
MC1
MC2
MC3
8
6.SPECIFICATIONS
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
6.1 Specifications
(1) Output signal type: contact output (three relays mounted)
(2) Contact output: 230VAC 0.3A
30VDC 0.3A
CAUTION
The contacts should be used within the rated capacity to ensure long contact life.
9
REVISIONS
Technologies Inc.
Toll Free: voice: 1-877-539-2542 fax: 1-800-539-2542 www.mgitech.com
*The manual number is given on the bottom left of the back cover.
Print Date *Manual Number Revision
Sep., 1997 IB(NA)-66810-A First edition
Jan., 2002 IB(NA)-66810-B
Addition
Adaptable inverters
Loading...
