Melco 920 User Manual

AUTO-SCANNING WITH DIGITAL CONTROL
COLOR DISPLAY MONITOR

USER’S GUIDE

For future reference, record the serial
number of your display monitor in the
space below:
SERIAL No.
The serial number is located on the
rear cover of the monitor.

Internet Home Page: http://www.necmitsubishi.com/

Supplying Windows
product information, etc.

®

95/98/2000 INF File download service, new

Registration

To learn about other special offers, register online at,

http://www.necmitsubishi.com/productregistration

Limited Warranty

NEC-Mitsubishi Electr onics Display of Ame rica, Inc. (hereinafter "NM D-A") warrants thi s
Product to be free from defects in material and workmanship and, subject to the conditions set
forth below, agrees to repair or replace (at NMD-A's sole option) any part of the enclosed unit
which proves defective for a period of three (3) years from the date of first consumer purchase.
Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or
refurbished and will meet specifications of the original parts or unit.

This warranty gi ves y ou sp ec ific legal rights and you m a y al s o h av e o ther rights, which vary
from state to state. This warranty is limited to the original purchaser of the Product and is not
transferable. This w arr anty co v ers o nly NM D -A-su p pli ed com po nen ts . Serv ic e re qui red as
a result of third party components is not covered under this warranty. In order to be covered
under this warran ty , th e Product must have been pu rc ha se d i n the U.S.A. or Canada by the
original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by
NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase
will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be
an original bill of sale or receipt containing name and address of seller, purchaser, and the
serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or
delivered to the authorized reseller from whom it was purchased or other facility authorized
by NMD-A to render the services provided hereunder in either the original package or a s imilar
package affording an equal degree of protection. All Products returned to NMD-A for service
MUST have prio r appr ova l, whic h may be obt ain ed by cal lin g 1-80 0-63 2- 466 2. The Produc t
shall not have be en pre vi o us ly al tered, repaired, or servi c ed by an y on e o th er t ha n a s erv i ce
facility authorized by NMD-A to render such service, the serial number of the product shall not
have been altered or removed. In order to be covered by this warranty the Product shall not
have been subjected to displaying of fixed images for long periods of time resulting in image
persistence (afterimage effects), accident, misuse or abuse or operated contrary to the
instructions contained in the User's Manual. Any such conditions will void this warranty.

NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUEN­TIAL, OR OTHER TYPES OF DAMAG ES RESULTING FROM THE USE OF ANY NMD-A
PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE
IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIE S OF MER CANTA BILITY OR FITNES S FO R A
PARTICULAR PURPOSE. SOM E STATES DO NOT ALLOW THE EXCLUSION O F
IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers
are cautioned that Product performance is affected by system configuration, software, the
application, custom er da ta, and operator control of the system, amon g ot her fac t o rs. Wh ile
NMD-A Products are considered to be compatible wit h many syste ms, specific functional
implementation by the customer of the Product may vary. Therefore, suitability of a Product
for a specific purpose or app li cat ion mus t be de te rmin ed by co nsu m er and is no t wa rran ted
by NMD-A.

For the name of your nea res t auth orized NEC -Mit subis hi El ectr onic s Dis pla y servi ce fa cil ity,
contact NEC-Mitsubishi Electronics Display at 1-800-632-4662.

- 2 -

CAUTION

The power cord provided with this monitor is de­signed for safety and must be used with a properly
grounded outlet to avoid possible electrical shock.

Do not remove the monitor cabinet as this can
expose you to very high voltages and other hazards.

WARNING!

This product is not designed for use in life support
devices and NEC-Mitsubishi Electronics Display of
America, Inc. makes no representations to the con­trary. Life support devices are those device s which are
used to measure, diagnose, or evaluate the tissue,
systems or functions of the human body; or other
devices employed to support or sustain life or good
health.

MANUFACTURER DECLARATION FOR CE-MARK­ING:

We, NEC-Mitsubishi Electric Visual Systems Corpo­ration, declare under our sole responsibility, that this
product is in conformity with the following standards:

EN60950
EN55022 Class B
EN50082-1
EN61000-3-2
EN61000-3-3

following the provisions of:

73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive

CONTENTS

ENGLISH

1. INTRODUCTION ..................................................... 6

1.1 Features........................................................ 6

1.2 Internal Preset Memory Capability................ 7

1.3 Power Management Function ....................... 7

1.4 DDC .............................................................. 7

1.5 Location Considerations ............................... 7

1.6 Cleaning Your Monitor .................................. 7

1.7 Unpacking ..................................................... 8

1.8 Tilt/Swivel Base............................................. 8

Screen Position Adjustment .......................... 8

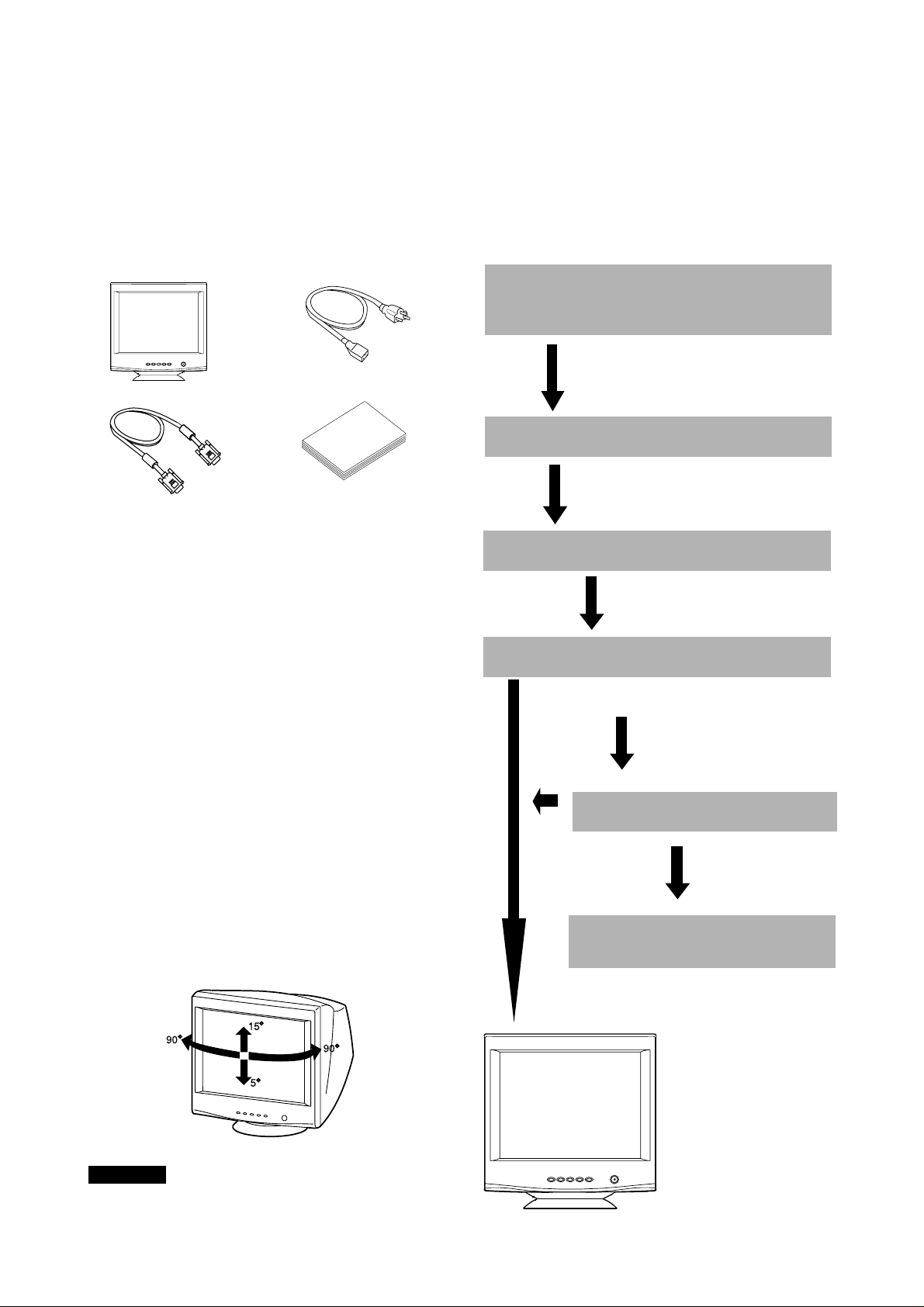

1.9 Quick Operation Chart .................................. 8

2. PART NAME............................................................ 9

2.1 Control Names .............................................. 9

2.2 Function ........................................................ 9

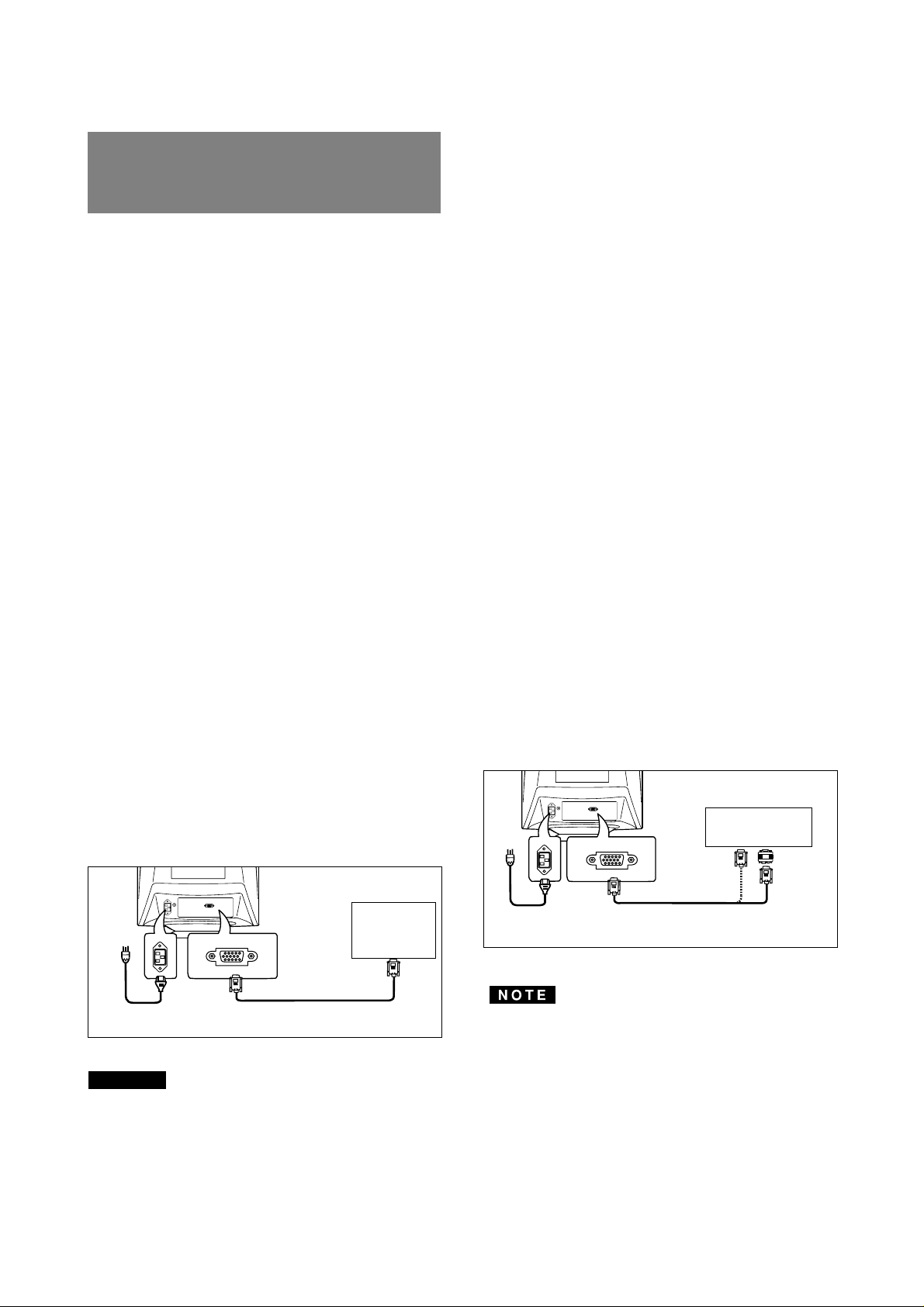

3. INSTALLATION AND CONNECTION ..................... 10

3.1 AC Power Connection................................... 10

3.2 Signal Cable Connection .............................. 10

3.2.1 Connecting to any IBM VGA Compatible

System ................................................... 10

3.2.2 Connecting to an Apple Macintosh

Computer ............................................... 10

4. OSD(On Screen Display) FUNCTIONS .................. 11

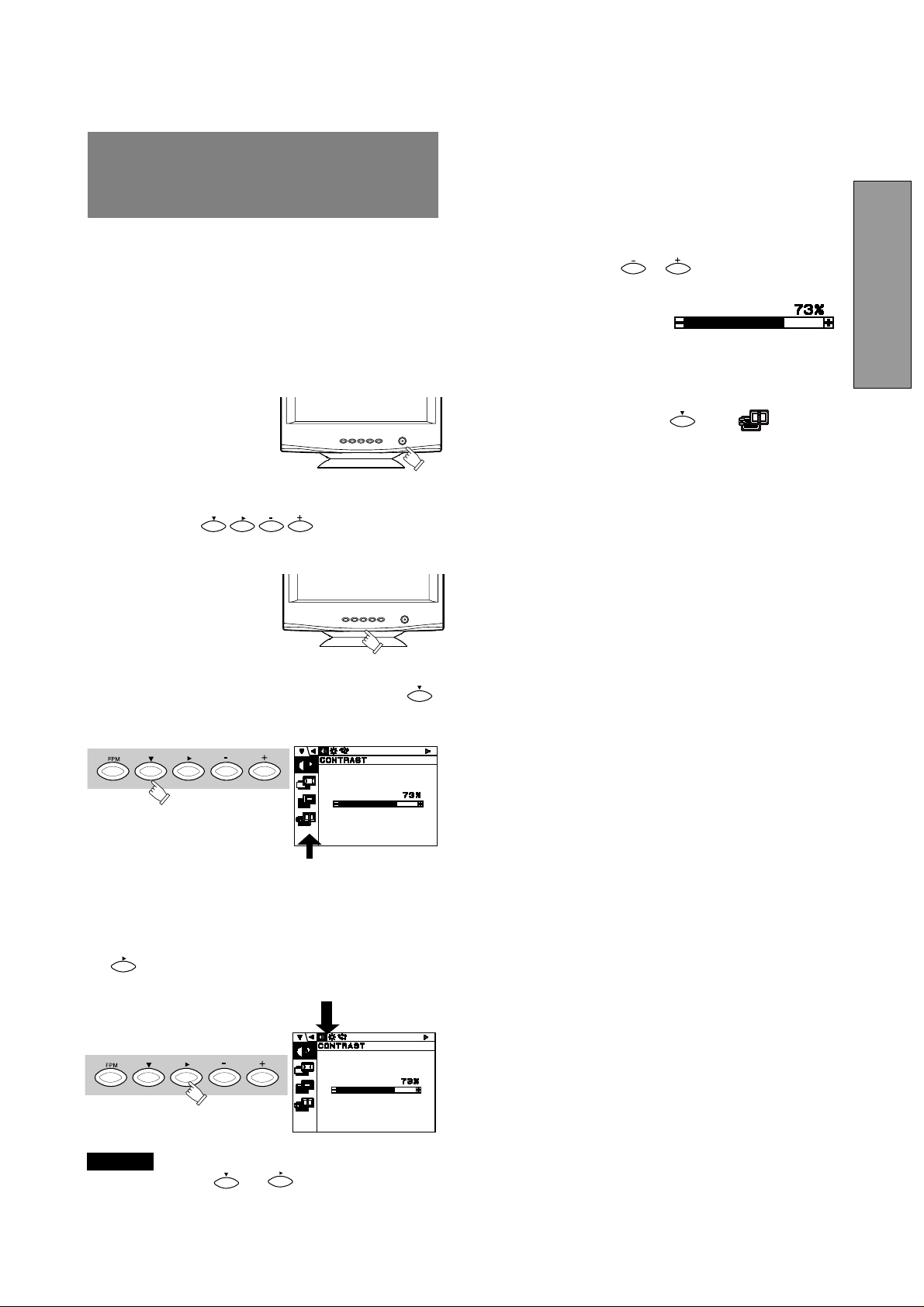

4.1 How to adjust the screen .............................. 11

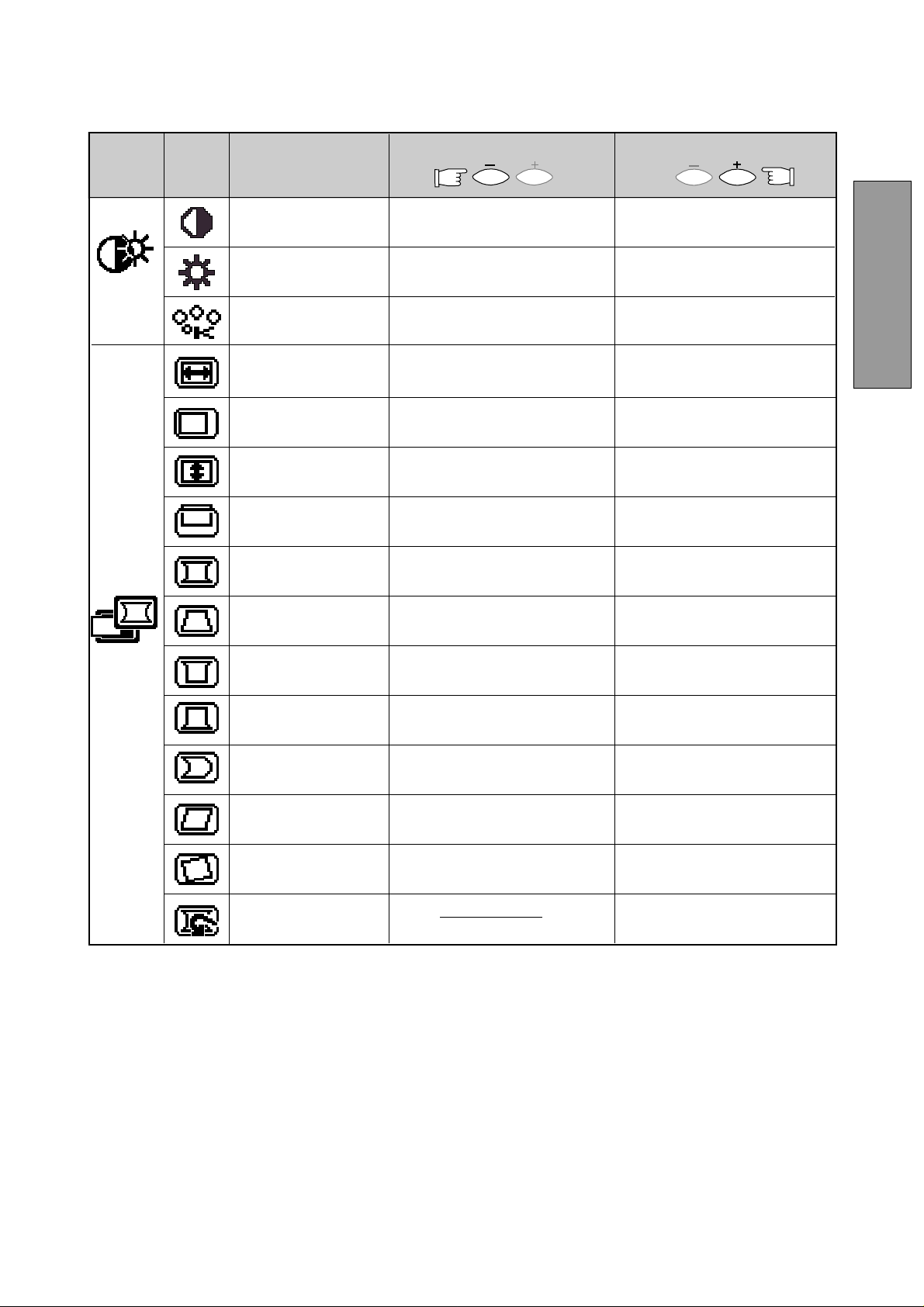

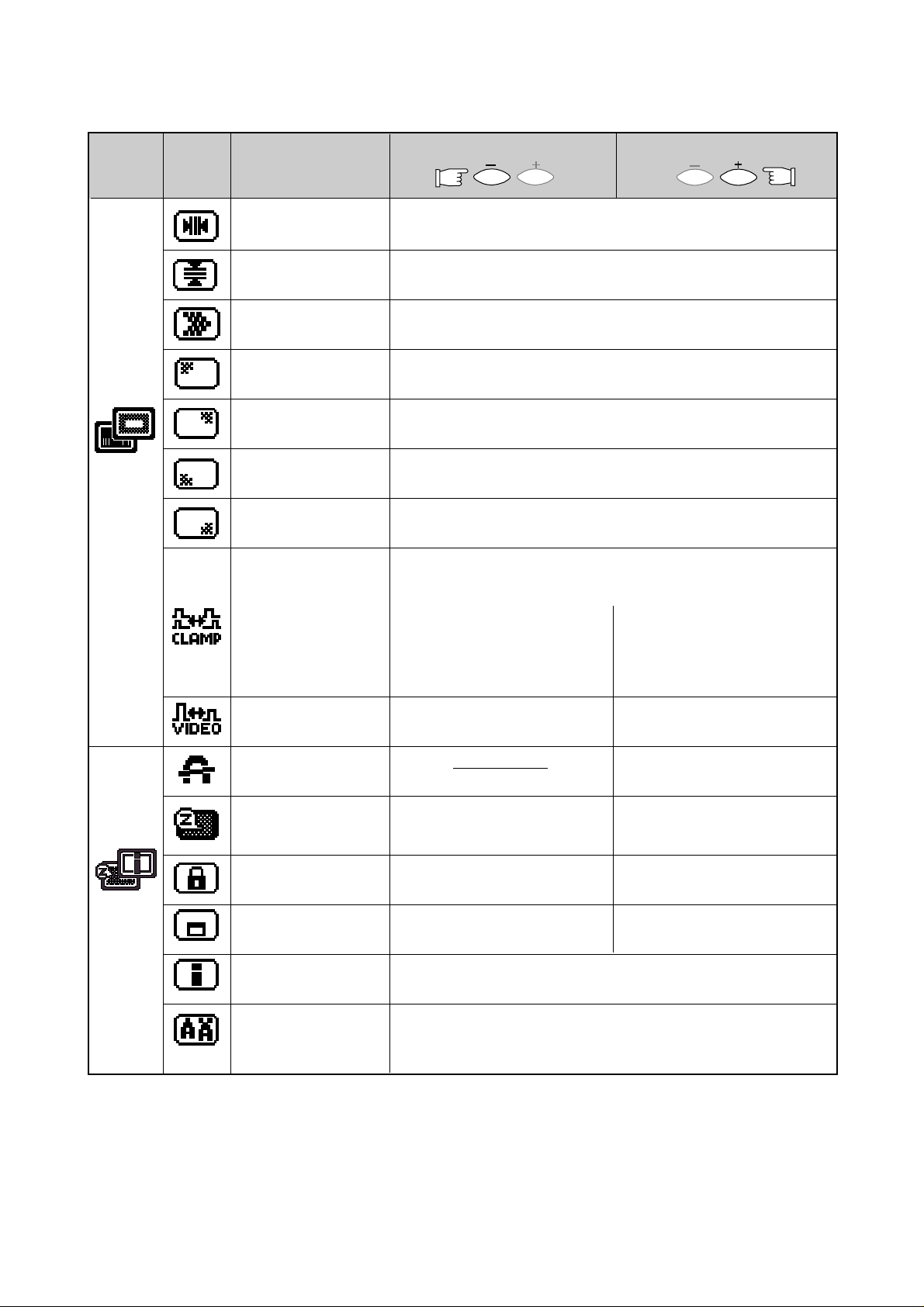

4.2 Adjustment Items .......................................... 12

5. TROUBLESHOOTING ............................................ 15

6. SPECIFICATIONS................................................... 17

Trademark

IBM, PC, PS/2, PS/V, Personal System/2 are registered trade­marks of International Business Machines Corp.

Apple Macintosh is a registered trademark of Apple Computer, Inc.
Quadra is a trademark of Apple Computer, Inc.
UNIX is a registered trademark in the United Sta tes and other
countries, licensed exclusively throug h X/Open Company Li mited.

E

NERGY STAR

© 2000 NEC-Mitsubishi Electronics Display of America, Inc.

is a U.S. registered mark.

7. APPENDIX .............................................................. 18

7.1 Monitor Signal Input Connector (DB9-15P) .. 18

7.2 SC-B104 Signal Cable .................................. 18

Optional Macintosh Adapter AD-A205 settings.

7.3

- 3 -

18

RADIO INTERFERENCE REGULATIONS STATE­MENT FOR U.S.A.

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasona bl e pro te ct ion ag ainst harmful interfer­ence in a residential installation. This equipment gener­ates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruc­tions, may cau se ha rmfu l int er feren ce to radi o com mu­nications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turn­ing the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is co n­nected.

- Consult the dealer or an experienced radio/TV tech­nician for help.

As an ENERGY STAR Partner, NEC-Mitsubishi
Electronics Display of America, Inc. has determined
that this product meets the ENERGY STAR guide­lines for energy efficiency.

THIS PRODUCT HAS BEEN TESTED AND FOUND
TO COMPLY WITH THE LIMIT S WITH SIGNAL
CABLE SC-B104. USE IT TO REDU CE THE POSSI­BILITY OF CAUSING INTERFERENCE T O RADI O,
TELEVISION, AND OTHER ELECTRIC DEVICES .
NO USER SERVICEABLE PARTS INSIDE. DO
NOT ATTEMPT TO MODIFY THIS EQUIPMENT. IF
MODIFIED, YOUR AUTHORITY TO OPERAT E THIS
EQUIPMENT MIGHT BE VO IDED BY FCC.

Declaration of Conformity - United States only

Product Name:

19 in. (50cm) Co lo r D is pl ay M onitor
Type: NUR1905STTKW
Brand Name: MITSUBISHI

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must acce pt an y inter ference receive d, in ­cluding interference that may cause undesired opera­tion.

For questions regarding this declaration, contact:

NEC-Mitsubishi Electronic s Display of
America, Inc.
1250 North Arlington Heights Road,
Itasca, Illinois 60143-1248,
U.S.A.

or, call

[phone]

To identify this product, refer to the model number found
on the product.

- 4 -

Below you will find a brief summary of the environmental
requirements met by this product. The complete
environmental criteria document may be ordered from:

Congratulations!

You have just purchased a TCO’99 approved and labelled
product! Your cho ice has provided you wi th a product
developed for professional u se. Your pur chase has also
contributed to reducing the burden on the environment and
also to the further development of environmentally adapted
electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an
established met hod for encour aging the adap tation of
goods and services to the environment. The main problem,
as far as computers and other electronics equipment are
concerned, is that environmentally harmful substances are
used both in the products and during their manufacture.
Since it is not so far possible to satisfa ctor ily recycle the
majority of electronics equipment, most of these potentially
damaging substances sooner or later enter natu re.

There are also other characteristics of a computer, such as
energy consumption levels, that are important from the
viewpoints of both the work (internal) and natural (external)
environments. Since all methods of electricity generation
have a negative effect on the environment (e.g. acidic and
climate-influencing emissions, radioactive waste), it is vital
to save energy. Electronics equipment in offices is often left
running continuousl y and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme
which provides for international and environmental label ling
of personal computers. The labelling scheme was developed
as a joint effort by the TCO (The Swedish Confederation of
Professional Employees), Svenska Naturskyddsforeningen
(The Swedish Societ y for Nature Cons ervation) and Staten s
Energimyndighet (The Swedish National Energy
Administration).

Approval requirements cover a wide range of issues:
environment, ergonomics, usability, emission of electric
and magnetic fields, energy consumption and electrical
and fire safety.

The environmental demands impose restrictions on the
presence and use of he avy metals, brominated and
chlorinated flame retardants , CFCs (freons) and chlorinated
solvents, among other things. The product must be prepared
for recycling and the manufact urer is oblige d to have an
environmental policy which must be adhered to in each
country where the company implements its operational
policy.

The energy requirements include a demand that the
computer and/or display, after a certain period of inactivity,
shall reduce i ts po wer cons ump tio n to a lo wer leve l in o ne
or more stages. The length of time to reactivate the computer
shall be reasonable for the user.
Labelled products must meet strict envi ronmental demands,
for example, in respect of the reduction of electric and
magnetic fields, physical and visual ergonomics and good
usability.

TCO Development

SE-114 94 Stockholm, Sweden
Fax: [phone]
Email (Internet): [e-mail]
Current informati on r ega rdi ng T CO’99 a ppr oved and
labelled products may also be
obtained via the Internet, using the address:
http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards,
cables, wires, casings and housings. Their purpose is to
prevent, or at least to delay the spread of fire. Up to 30% of
the plastic in a computer casing can consist of flame
retardant substances. Most flame retar dants contain
bromine or chloride, and those flame retardants are
chemically related to ano ther group of environmenta l toxins,
PCBs. Both the flame retardants containing bromine or
chloride and the PCBs are suspecte d of giving rise to
severe health effects, including reproductive damage in
fish-eating birds and mammals, due to the bio-accumulative
processes. Flame retardants have been found in human
blood and researchers fear that disturbances in foetus
development may occur.
The relevant TCO’99 demand requires that plastic
components weig hing more than 25 gram s must not contai n
flame retardants with org anically bound bro mine or chlorine.
Flame retardants are allowed in the printed circuit boards
since no substitutes are available.

Cadmium

**

Cadmium is present in rechargeable batteries and in the
colour-generating layers of certain computer displays.
Cadmium damages the nervous system and is toxic in high
doses. The relevant TCO’99 requirement states that
batteries, the colour-generating layers of display screens
and the electrical or electronics compo nents must not
contain any cadmium.

Mercury

**

Mercury is sometimes found in batterie s, relays and
switches. It damages the nervous syst em and is toxic in
high doses. The relevant TCO’99 requirement states that
batteries may no t cont ain any merc ury. It also demand s
that mercury is not present in any of the electrical or
electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO’99 requirement states that neither CFCs
nor HCFCs may be used during th e manufacture and
assembly of the product. CFCs (freons) are sometimes
used for washing printed circuit boards. CFCs break down
ozone and thereby damage the ozone layer in the
stratosphere, cau sing increased recepti on on earth of
ultraviolet light with e.g. increased risks of skin cancer
(malignant melanoma) as a consequence.

**

Lead

Lead can be found in picture tubes, display screens,
solders and capacitors. Lead damages the nervous system
and in higher doses, caus es le ad po iso ning. The relevant
TCO´99 requirement permits the inclusion of lead since no
replacement has yet been developed.

*

Bio-accumulative is defined as substances which
accumulate within living organisms

**

Lead, Cadmium and Mercury ar e heavy metal s which
are Bio-accumulative.

ENGLISH

*

- 5 -

1

INTRODUCTION

1

Congratulations on your purchase of the high resolution
color monitor. We designed this monitor to provide you with
years of reliable trouble-free operation.

This guide tells you how to connect, adjust and care for your
monitor. This guide also provides technical specifications
and instructions for troubleshooting any basic problems
you may experience with your monitor.

1.1 Features

This monitor is a 50cm/19"(46cm/18" Diagonal Viewable
Image) intelligent, microprocessor-based monitor compat­ible with most analog RGB (Red, Green, Blue) displ ay
standards.

It provides crisp text and vivid color graphics with both PC
and Macintosh platforms.

• The monitor’s wide auto-scanning compatibility range
makes it possible to upgrade video cards or software
without purchasing a new monitor.

• Digitally controlled auto-scanning is done us ing an
internal microprocessor, for horizontal scan frequen­cies between 30kHz and 108kHz, and vertical scan
frequencies between 50Hz and 140Hz. The micropro­cessor-based intelligence allows the monitor to operate
in each frequency mode wi th the precision of a fixe d
frequency monitor.

images.

• The monitor complies with Video Electronics Standards
Association (VESA
If your computer is Plug & Play compliant setup will be
done automatically.

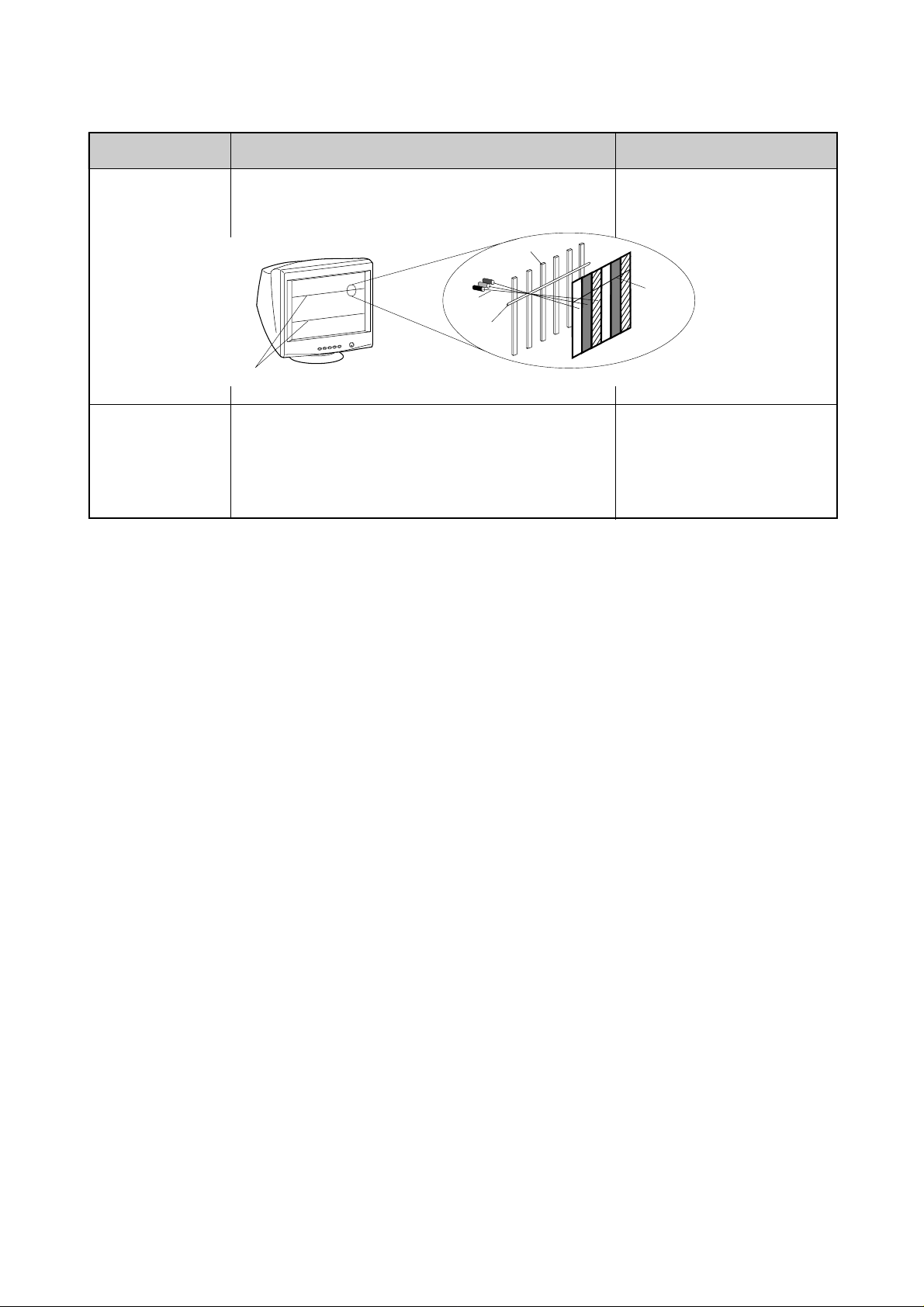

• The CRT provides fine 0.24mm uni aperture grille pitch/
Maximum addressable resolution of 1600x1200.

• The monitor has a contrast enhancement function
(FPM: Fine Picture Mode) and it is to accentuate
pictures and graphical images.

TM

) DDCTM1/2B(EDID) specification.

• The monitor contains resident memory for pre-pro­grammed screen display standards and is also capable
of storing additional user adjustment parameters.

• The monitor is capable of producing a non-interlaced
maximum addressable resolution format of 1600 dots x
1200 lines. This dis play is well su ited fo r wind owing
environments.

• Because of the analog signal inputs, the monitor ca n
display an unlimited palette of colors that can be
manually adjusted to suit your specific needs.

• The monitor has a power management function ac­corded to VESA
the monitor must be connected to a system compliant
with the VESA
computer and/o r video card in structions for proper
operation.)

• To ensure ease of installation and ongoing use, the
monitor features On Screen Display (OSD) of all moni­tor set-up and adjustment functions.

• For use in a variety of applications, the monitor com­plies with UL 1950, CSA C22.2 No.950 and EN60950
for safety, FCC Class-B and EN55022 Class-B for EMI,
MPR-II, ISO 9241-3, ISO9241-7 and ISO9241-8 for
ergonomics. The monitor also complies with TCO’99
guideline for environmental safe use.

TM

-DPMSTM-standard. To save energy,

TM

-DPMSTM-standard. (Refer to your

• The monitor features the world's standard
DIAMONDTRON NF CRT upgrad ed with improved
focus and convergence for supersharp and pure picture

- 6 -

1.2 Internal Preset Memory Capability

1.5 Location Considerations

To minimize adjustment needs, the factory has preset
popular display standards into the monitor, as shown in
Table 1. If any of these display standards are detected, the
picture size and position are automatically adjusted. All of
the factory presets may be overwritten by adjusting the user
controls. This monitor is capable of automatically storing up
to 16 additional display standards. The new display infor­mation must differ from any of the existing display stan­dards by at least 1kHz for the horizontal scan frequency or
5Hz for the vertical scan frequency or the sync signal
polarities must be different.

Table 1. Memory Buffer Factory Presets

PRESET Polarity

TIMING Fh(kHz) Fv (Hz) H V
640 x 480 N.I. 31.5 60.0 – –
640 x 400 N.I. 31.5 70.1 – +
800 x 600 N.I. 37.9 60.3 + +
640 x 480 N.I. 43.3 85.0 – –
800 x 600 N.I. 53.7 85.1 + +

1024 x 768 N.I. 60.0 75.0 + +
1024 x 768 N.I. 68.7 85.0 + +
1152 x 870 N.I. 68.7 75.1 – –
1280 x 1024 N.I. 80.0 75.0 + +
1280 x 1024 N.I. 91.1 85.0 + +
1600 x 1200 N.I. 81.3 65.0 + +
1600 x 1200 N.I. 87.5 70.0 + +
1600 x 1200 N.I. 93.8 75.0 + +
1600 x 1200 N.I. 106.3 85.0 + +

When setting up and using the monitor, keep the following
in mind:

ENGLISH

• For optimum viewing, avoid placing the monitor

against a bright background or where sunlight or
other light sources may reflect on the display area of
the monitor. Place th e m on it or ju st below eye level.

• Place the monitor away from strong magn etic or

electromagnetic fields, such as high capacity trans­formers, electric motors, large current power lines,

steel pillars, etc....

Magnetism can cause distortion in the picture and/or
color purity.

• Avoid covering the slots or openings of the monitor.

Allow adequate ventilation around the monitor so the
heat from the monito r c an pro perl y di ss i pat e. Av o id
putting the monitor into any enclosure that does not
have adequate ventilation.

• Avoid exposing the m oni to r to rai n, e xc essi ve moi s -

ture, or dust, as this can cause a fire or shock hazard.

• Avoid placing the monitor, or any other heavy object,

on the power cord. Damage to the power cord can
cause a fire or electrical shock.

• When transporting the monitor, handle it with care.

1.6 Cleaning Your Monitor

1.3 Power Management Function

The monitor has a power management function which
reduces the power consumption of the monitor when not
in use.
The power saving mode is invoked by a VESA DPMS­compliant computer. Check your computer's manual for
setting this function.

Mode Power Power-On Indicator

Normal 120 W Green

Power Saving Mode ≦5 W Amber

1.4 DDC

TM

The monitor includes the VESA DDC
feature. DDC (Display Data Channel) is a communication
channel over which the monitor automatically informs the
computer system about its capabilities (e.g. each sup­ported resolution with its corresponding timing).
DDC is routed through previously unused pins of the 15-pin
VGA connector.
The system will “Plug and Play” if both monitor and com­puter implement the DDC protocol.

1 and DDCTM2B

When cleaning the monitor, please follow these guidelines:

• Always unplug the monitor before cleaning.

• Wipe the screen and cabinet front and sides with a

soft cloth.

• If the screen re quires mor e tha n dusting , appl y a

household window cleaner to a soft cloth to clean
the monitor screen.

CAUTION

•

Do not use be nzene , thinne r or any volat ile su b­stances to clean the unit as the finish may be
permanently marked.

•

Never leave the monitor in contact with rubber or
vinyl for an extended time period.

•

Do not spray directly on the screen as cleaner may
drip into the monitor and damage the circuitry.

•

Never use an abrasive cleaner on the screen sur­face as this will damage the anti-reflection coating.

- 7 -

1.7 Unpacking

1.9 Quick Operation Chart

After you unpack the box you should have all of the items
indicated in Figure 1. Save the box and packing materials
in case you transport the monitor.

1

3

2

4

Figure 1

1. Color Monitor

2. AC Power Cord

4. User's Guide
(this document)

3. Signal Cable SC-B104

To summarize the steps in connecting your computer
with the color monitor and setting the necessary controls
and switches, refer to the chart below.

Connect the color monitor and computer with
the necessary cords and cables.

See
Section 3. INSTALLATION AND CONNECTION

Turn on the color monitor.

Turn on the computer.

Set the controls.

1.8 Tilt/Swivel Base

The monitor comes with a tilt/swivel base. This enables you
to position the monitor at the best angle and tilt for
maximum viewing comfort.

Screen Position Adjustment

Adjust the tilt and rotation of the monitor by placing your
hands at opposite sides of the case. You can adjust the
monitor 90 degrees right or left, 15 degrees up or 5 degrees
down, as shown below.

OK

See
Section 4. OSD(On Screen
Display) FUNCTIONS

If a problem appears.

OK

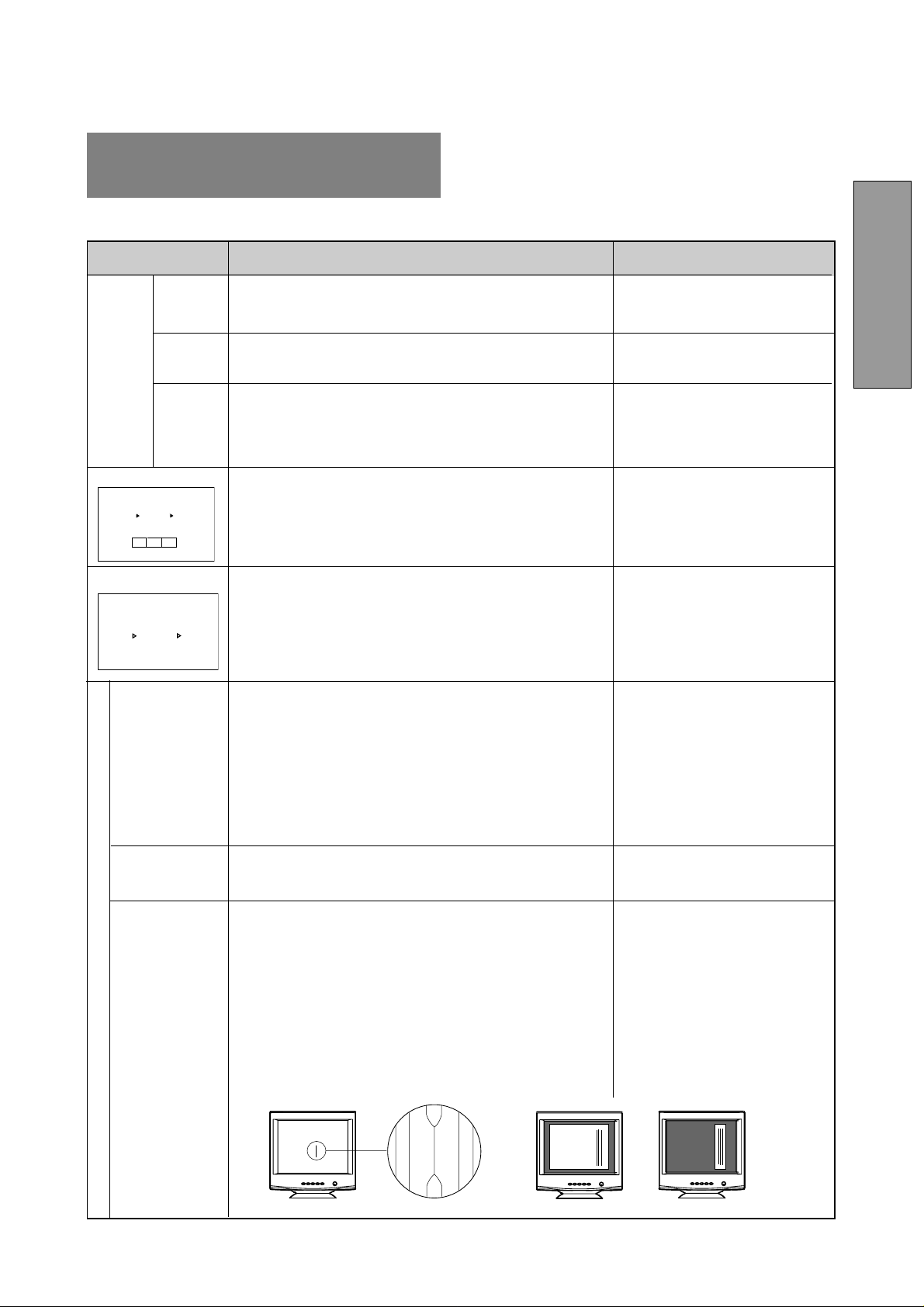

See Section 5. TROUBLESHOOTING

If the problem persists.

Call for your authorized Product Support.

Figure 2

CAUTION

Keep your fingers away from the pivot area of the tilt/swivel
base.

- 8 -

2

D-SUB

2

PART NAME

2.1 Control Names

See Figures 3 and 4 for the location of the user controls,
indicator and connectors.
Each part is identified by number and is described
individually.

FRONT

ENGLISH

REAR

Figure 3

2.2 Function

1. POWER SWITCH: A push-on / push-off switch for AC
power.

2. POWER-ON INDICATOR: This indicator illuminates
green when AC power is on, and illuminates amber
when the monitor is in the power management modes.

3. FPM (FINE PICTURE MODE):

Push to on/off the contrast enhancement function.

4. DOWN BUTTON: Push to select group icon.

5. ITEM SELECT BUTTON: Push to select the item icon.

6. FUNCTION ADJUST BUTTONS: Push the adjust
buttons to adjust the image on the screen.

D-SUB

Figure 4

7. AC POWER CONNECTOR

8. SIGNAL INPUT CONNECTOR (DB9-15P)

- 9 -

3

INSTALLATION AND

3

CONNECTION

On the back of the monitor two kinds of plug-in connections
are provided: AC power connector for the AC input, DB9­15P connector for video signal input.

3.1 AC Power Connection

One end of the AC power cord is connected to the AC
power connector on the back of the monitor. The other end
is plugged into a properly grounded three-prong AC outlet.
The monitor’s auto-sensing power supply can automati­cally detect 100-120V AC or 220-240V AC and 50 or 60Hz.

3.2 Signal Cable Connection

The DB9-15P(VGA) connector is provided for compatible
analog RGB outputs from your computer. Apple Macintosh
computers can also be interfaced with using the optional
Mitsubishi Macintosh adapter AD-A205.

3.2.1 Connecting to Any IBM VGA Compatible Sys­tem

Figure 5 shows the SC-B104 cable connection to the Video
Graphics Array (VGA) port in an IBM Personal System/2
series, or any VGA compatible system.

1. Power off, both the monitor and the computer.

2. Connect the one end of the SC-B104 cable to the

DB9-15P connector on the VGA controller card.

3. Connect the other end of the SC-B104 cable to the

DB9-15P receptacle on the back of the monitor.

4. Power on the monitor, then the computer.

5. After using the system, power off the monitor, then

the computer.

D-SUB

D-SUB

Computer

VGA

Compatible

System

DB9-15P

3.2.2 Connecting to An Apple Macintosh Computer

Figure 6 shows the SC-B104 cable and AD-A205
Adapter(option) to the video port in an Apple Macintosh.

The Macintosh Adapter is available that converts the 2 row
D-sub video connector on legacy Macintosh computers to
a 3 row D-sub(VGA) connector compatible with your
Mitsubishi monitor. The Macintosh Adapter is not needed
on G3 (ice and blue) and later version of the Macintosh. If
the Macintosh Adapter is required for your system, please
contact our Information Support line at [phone] and
Mitsubishi will provide this to you free of charge.

1. Power off, both the monitor and the computer.

2. Set the DIP switches of Macintosh Adapter according
to the setting chart.
(See Section 7.3 Optional Macintosh Adapter AD­A205 settings.)

3. Connect the 15-pin (DB-15P) end of the AD-A205
Adapter to the straight 15-pin connector on the
Macintosh video port on the computer or on the video

®

board.

4. Connect the sub-miniature 15-pin (DB9-15P) end of
the AD-A205 Adapter to the SC-B104 cable.

5. Connect the other end of the SC-B104 cable to the
DB9-15P receptacle on the back of the monitor.

6. Power on the monitor, then the Macintosh.

7. After using the system, power off the monitor, then the
Macintosh.

D-SUB

D-SUB

Power Cord Cable SC-B104

Figure 6

Computer

Apple Macintosh

Computer

Macintosh

Adapter

AD-A205

(Option)

Power Cord

CAUTION

Cable SC-B104

Figure 5

The socket-outlet shall be installed near the equipment
and shall be easily accessible. During servicing, discon­nect the plug from the socket-outlet.
Méme si le moniteur est mis hors tension il reste toujours
alimenté. La prise secteur devrait ainsi ètre facilement
accssible en cas d'urgence.

• For the Apple Macintosh Computers having a VGA
compatible port, steps 2 through 4 are not necessary.
Connect the end of the signal cable to the port directly.

• In case of Apple Macintosh G3 series, use "Control
Panel" of "Apple Menu" when selecting a resolution.
If select the resolution from "Control Bar", no screen
may be displayed and the computer may freeze.

- 10 -

4

4

OSD (On Screen Display)
FUNCTIONS

4.1 How to adjust the screen

The monitor has an OSD(On Screen Display) function.
The following procedure shows how to adjust the screen
using the OSD function.

(1) Turn on the monitor.

(2) Press button to display the OSD

screen.

ENGLISH

(5)Adjust by pressing or button.

(6)To turn the OSD off, press when is

selected.
If you don't press any button for about 12 seconds,

the OSD will turn off automatically.

(3) Select the group icon on Main Menu by pressing .

Main Menu

(4) Select the item icon on Sub Menu by pressing
button.

Sub Menu

NOTE

When pressing both and buttons simultaneously,
item selection moves to the reverse.

- 11 -

4.2 Adjustment Items

X: Available

Items

CONTRAST Adjusts the contrast level. X X
BRIGHT Adjusts the black level of the screen X X
COLOR TEMPERATURE Adjusts the color temperature of the image on the screen. X X
HORIZ-SIZE Adjusts the horizontal size of the image on the screen. X
HORIZ-PHASE Adjusts the horizontal position of the image on the screen. X
VERT-SIZE Adjusts the vertical size of the image on the screen. X
VERT-POSITION Adjusts the vertical position of the image on the screen. X
PINCUSHION Straightens the left and right sides of the image on the screen. X
KEYSTONE Adjusts the parallelism of the left and right sides of the image on the screen. X
TOP-PIN Adjusts the pincushioning at the top corners of the screen. X
BOTTOM-PIN Adjusts the pincushioning at the bottom corners of the screen. X
PIN-BALANCE Adjusts the curvature of the left and right sides of the image on the screen. X
KEY-BALANCE Adjusts the vertical slant or tilt of the screen image. X
ROTATION Adjusts the rotation of the image on the screen. X
GEOMETRY RESET Restores to the factory preset level.(See "NOTE" below.) - - -
HORIZ-STATIC Adjusts the horizontal alignment of the red, green and blue beams. X X
VERT-STATIC Adjusts the vertical alignment of the red green and blue beams. X X
MOIRE CANCEL LEVEL Adjusts the moire level on the screen. X
CORNER PURITY (TL) Adjusts the purity of the top-left corners of the screen. X X
CORNER PURITY (TR) Adjusts the purity of the top-right corners of the screen. X X
CORNER PURITY (BL) Adjusts the purity of the bottom-left corners of the screen. X X
CORNER PURITY (BR) Adjusts the purity of the bottom-right of the screen. X X
CLAMP PULSE POSITION Uses this function to eliminate excessive green or white background that may occur

when external sync signals are applied to the monitor.

VIDEO LEVEL Selects video level 1.0V or 0.7V. (0.7V Standard)
DEGAUSS Eliminates possible color shading or impurity. - - -
POWER-SAVE

CONTROL LOCK Locks the OSD function except for "BRIGHT" and "CONTRAST". X
OSD POSITION Moves the OSD screen position. X
DIAGNOSIS Indicates the current scanning frequency, factory or user preset timing number, and - - -

LANGUAGE Selects the language used on OSD screen. X

When setting to ON, the power consumption of the monitor will be reduced when not in use
if your computer is set for power management.

signal input connector.

Function A B C

X

A. Press "GEOMETRY RESET" to restore to the factory preset level.
B. Press and buttons together, to restore to the factory preset level.
C. Set data does not change by the change of the signal timing.

If a non-Factory Preset timing is used, "GEOMETRY RESET" does not work.

- 12 -

Group

Icon

Item
Icon

Item

Press the Minus Button

Press the Plus Button

SCREEN

GEOM­ETRY

CONTRAST

BRIGHT

COLOR TEMPERATURE

HORIZ-SIZE

HORIZ-PHASE

VERT-SIZE

VERT-POSITION

PINCUSHION

KEYSTONE

TOP-PIN

To decrease the contrast.

To decrease the brightness.

To increase the red color level.

To narrow the width of the image
on the screen.

To move the image on the screen
to the left.

To narrow the height of the image
on the screen.

To move the image down. To move the image up.

To collapse the center of the im­age.

To decrease the width at the top
of the screen image and to
increase the width at the bottom.

To expand the width of the screen
image near the corners of top.

To increase the contrast.

To increase the brightness.

To increase the blue color level.

To expand the width of the image
on the screen.

To move the image on the screen
to the right.

To expand the height of the image
on the screen.

To expand the center of the
image.

To increase the width at the top of
the screen image and to decrease
the width at the bottom.

To narrow the width of the screen
image near the corners of top.

ENGLISH

BOTTOM-PIN

PIN-BALANCE

KEY-BALANCE

ROTATION

GEOMETRY RESET

To expand the width of the screen
image near the corners of bottom.

To move the top and bottom of the
screen image to the right.

To make the screen slant to the
left.

To rotate the image counterclock­wise.

To narrow the width of the screen
image near the corners of bottom.

To move the top and bottom of
the screen image to the left.

To make the screen slant to the
right.

To rotate the image clockwise.

To restore to factory preset level.

- 13 -

Group

Icon

Item
Icon

Item

Press the Minus Button

Press the Plus Button

VIDEO

HORIZ-STATIC

VERT-STATIC

MOIRE CANCEL LEVEL

CORNER PURITY(TL)

CORNER PURITY(TR)

CORNER PURITY(BL)

CORNER PURITY(BR)

CLAMP PULSE POSITION

To adjust the horizontal beam alignment on the full screen area.

To adjust the vertical beam alignment on the full screen area.

To decrease the level of the moire-clear wave.

To adjust the purity condition on the top-left corner.

To adjust the purity condition on the top-right corner.

To adjust the purity condition on the bottom-left corner.

To adjust the purity condition on the bottom-right corner.

To eliminate an excessive green or white-back ground that may
occur when external sync signals are applied to the monitor.

To clamp the video signal at the

To clamp the video signal at
the front of the H-Sync pulse.

back of the H-Sync pulse. If you
connect to an older Macintosh, you
may need to press plus button.

MISC.

VIDEO LEVEL

DEGAUSS

POWER SAVE

CONTROL LOCK

OSD POSITION

DIAGNOSIS

LANGUAGE

To select 1.0V of video input. To select 0.7V of video input.

To eliminate possible color shading or
impurity due to magnetic effects.

To select the constant power
consumption mode.

To permit all OSD adjustments.

To move the OSD screen position
in a counter clockwise direction.

Shows the current scanning frequency, Preset No., and signal input
connection.

To choose the language used on OSD.

ENG......English, FRA......French, ESP......Spanish,

GER......German, JPN......Japanese

To select the power-save mode.
(Your computer must be set for
power management.)

To lock the OSD function except for
"BRIGHT" and "CONTRAST".

To move the OSD screen
position in a clockwise direction.

- 14 -

ATTENTION

PLEASECHANGE
SIGNALTIMING.

SIGNALFREQUENCY
ISOUTOFRANGE.

FH    

24.8KHzFV

43.0Hz

5

5

TROUBLESHOOTING

Before calling your Authorized Product Support, please
check that the items below are properly connected or set.
In case of using a non-standard signal, please check the
pin assignments and the signal timing of your computer
with the specification outlined in Section 6. SPECIFICA­TIONS and Section 7. APPENDIX.

ENGLISH

PROBLEM

•
LED On
(Green)

•

LED Off

•

No

LED On
(Amber)

The following message appeared.

INPUTCHECK

HV

COLORCHECK




RGB

The following message appeared.

ATTENTION


SIGNALFREQUENCY



ISOUTOFRANGE.


FH

24.8KHzFV

 43.0Hz





PLEASECHANGE
SIGNALTIMING.

•

•

•

•

•

•

•

•

•

Display is miss­ing, center shifts,

•

or too small or too
large of a display
size

•

ITEMS TO CHECK

Contrast and brightness controls.

Power switch.
AC power cord disconnected.

Signal cable disconnected.
Computer power switch.
Power management function is active.

Signal cable disconnected.
Computer power switch.
Power management function is active.

Input signal frequency range is too high or too low for the
monitor to synchronize with.

Do "GEOMETRY-RESET" for a standard signal.
Adjust HORIZ-SIZE, VERT-SIZE, HORIZ-PHASE, and
VERT-POSITION with non-standard signals.
Monitor may not be able to get full-screen image depend on
signal. In this case, please select other resolution, or other
vertical refresh timing.
Make sure you wait a few seconds after adjusting the size
of the image before changing or disconnecting the signal.

LOCATION

•

Front (OSD)

•

Front

•

Rear

•

Rear

•

Computer

•

Press any key on the keyboard
or move the mouse.

•

Rear

•

Computer

•

Press any key on the keyboard
or move the mouse.

•

Check the specification of
graphics adapter.

•

Front (OSD)

•

Front (OSD)

Display is dark or
too bright

Abnormal picture

Black vertical
lines are visible
on the screen.

•

"VIDEO LEVEL" is not at the appropriate position for your
graphics adapter output.(0.7V or 1.0Vp-p)

Thin vertical black lines on one or both sides of the

•

screen. This minor condition is caused by grille element
overlap which can occur during shipping.

Position an open white window over the affected area of

•

the screen and maximize the brightness and contrast
controls. This will cause localized heating of the overlap
which will clear in a few minutes. Be sure to readjust the
brightness and contrast controls back to the normal
viewing levels after this procedure.



- 15 -

•

Front (OSD)

•–



PROBLEM

ITEMS TO CHECK LOCATION

Two fine horizontal
lines are visible on
the screen.

A buzzing sound
when power on.

•

The 2 very faint thin lines across the screen are normal.
They are caused by the aperture grille stabilization
filaments(Damper Wires) which are required for all
aperture grille CRTs’.

Aperture Grille

Electron Gun

Damper Wires

Shadow of Damper Wires

•

A brief vibration or hum sound that is heard just after power

Aperture Grille Type

up is normal. This is caused by the automatic degaussing
function. This sound will be heard each time the monitor is
powered up from a cold start and each time the manual
degauss button is used.

•–

Shadow of
Damper Wires

•–

- 16 -

6 SPECIFICATIONS

6

Size 50cm/19"(46cm/18" Diagonal Viewable Image)
Mask type Aperture grille
Gun In-line
Deflection angle 90°

CRT Phosphors Red, Green, Blue EBU (medium short persistence)

Aperture grille pitch 0.24mm
Face Plate Anti-glare, Anti-reflection and Anti-static film
Focusing method Dynamic Beam Forming (DBF)

INPUT SIGNAL

SIGNAL INTERFACE
SCANNING Horizontal 30 - 108kHz

FREQUENCY Vertical 50 - 140Hz
RESOLUTION (HxV) 1600 dots x 1200 lines Non-Interlaced maximum addressable resolution format at 85Hz
WARM-UP TIME 30 minutes to reach optimum performance level

BRIGHTNESS 100cd/m2, standard full white video signal at 9300K (+ 8MPCD)
BLANKING TIME
DISPLAY SIZE 350mm x 262mm(typ.) ratio 4:3

COLOR 5000K~9300K

POWER SOURCE

OPERATING Temperature 5 -35°C
ENVIRONMENT Humidity 10 -90%RH (without condensation)
DIMENSIONS (W)17.9inch x (H)18.2inch x (D)18.0inch / (W) 454mm x (H) 462mm x (D) 456mm
WEIGHT Approx. 23.0kg (50.7lbs.)
TILT/SWIVEL Tilt Angle -5° - +15°
BASE Swivel Angle ±90°

REGULATIONS X-Ray DHHS, HWC, Röv vom 8.1, 1987

Video 0.7 or 1.0Vp-p analog RGB
Sync Separate H, V sync., or Composite sync
Input Connectors DB9-15P
Input Impedance 75Ω (video), 2.2kΩ(sync.)

Horizontal ≧2.3 µsec (typ.)
Vertical ≧500 µsec (typ.)

AC100-120/220-240V±10% 50/60Hz 120W (typ.)

Safety UL1950 (UL), CSA C22.2 No.950 (C-UL)

EN60950 (TÜV-GS)

EMC FCC Class-B, DOC Class-B

EN55022 Class-B
EN50082-1, EN61000-3-2, EN61000-3-3

Other CE-Marking, MPR-II/TCO'91

ISO9241-3, ISO9241-7, ISO9241-8 (TÜV-GS)
TCO '99
International E

NERGY STAR Program

ENGLISH

This model is registered / certified with Model No. NUR1905STTKW.

*

- 17 -

ON

10

11

131414

12

15

7 APPENDIX

7

7.1 Monitor Signal Input Connector (DB9-15P)

(Female)

3

DB9-15P

45

9

10

15

14

1

2

7

68

11

12

13

MOUNTED ON THE REAR PANEL

PIN ASSIGNMENTS

Pin No. Signal

1 RED VIDEO
2 GREEN VIDEO
3 BLUE VIDEO
4 GROUND
5 DDC GROUND
6 RED GROUND
7 GREEN GROUND
8 BLUE GROUND

9NC
10 SYNC GROUND
11 GROUND
12 SDA
13 HORIZONTAL SYNC

14 VERTICAL SYNC(VCLK)
15 SCL

DDC .................. DISPLAY DATA CHANNEL

SDA................... SERIAL DATA

SCL ................... SERIAL CLOCK

NC ..................... NO-CONNECTION

or COMPOSITE SYNC

7.2 SC-B104 Signal Cable

Approx. 1.8m

DB9-15P(Male)

Pin No. Signal

1 RED
2 GREEN
3 BLUE
4 GROUND
5 DDC GROUND
6 RED GROUND
7 GREEN GROUND
8 BLUE GROUND
9NC
10 SYNC GROUND
11 GROUND
12 SDA
13 HORIZONTAL SYNC
14 VERTICAL SYNC(VCLK)

15 SCL

DDC................ DISPLAY DATA CHANNEL

SDA ................ SERIAL DATA

SCL................. SERIAL CLOCK

NC .................. NO-CONNECTION

6 7

DB9-15P(Male)

PIN ASSIGNMENTS

1

11


12


4

2

5

3

9

10

8

15

13

7.3 Optional Macintosh Adapter AD-A205 settings

The AD-A205 Macintosh Adapter(option) allows you to
take an advantage of the built in video capabilities of
your Macintosh computer with the monitor.

(1) Set the dip switches of the adapter, before connect

to the computer.

Macintosh IIsi, IIci, IIvi, IIvx, LC, LC II

Dip Switches

Macintosh

Macintosh LC III, LC475, LC630

AD-A205

ON

1 2 3

M

IT

4

S

5 6

U

B

IS

H

I

Macintosh Quadra 610, 650, 700, 800, 840AV, 900, 950
Macintosh Centris 610, 650, 660AV

Display monitor

OFF

ON

Performa 6260, 6310, 6410, 6420
Power Macintosh 6100, 6100AV, 6200, 6300
Power Macintosh 7100AV, 7200, 7300, 7500, 7600
Power Macintosh 8100, 8100AV, 8500, 8600
Power Macintosh 9500, 9600
Workgroup Server 7350, 8150, 9150, 9650

(2) Set the dip switches according to the following chart.

By using the following chart, you can choose a main
resolution, quickly.
If you wish to operate by other resolution, refer to
next page; “AD-A205 Mac Adapter Setting Chart”

Apple Macintosh

Switch

ON

Switch Setting

1,2

2,4

1,2,3,4

1,2,6

Power Macintosh 4400, G3

- 18 -

3,4

(3) “AD-A205 Mac Adapter Setting Chart” shows all available modes for Macintosh systems and all possible combinations

640 x480@67Hz

832 x624@75Hz

1024 x768@75Hz

1152 x870@75Hz

with the monitor.
We recommend that you use the monitor with a preset timing. (See Section 1.2 Internal Preset Memory Capability)

(4) Please refer to the instruction book of your computer about the resolution setting.

Resolution may not be changed on some computers.

ENGLISH

G3

9600/300

9600/350

Server

9600/233

Workgroup

9500

7300

7500

7600

8500

7200 4400

6200

6300

8100

VRAM

(DB-15)

Video Card

8150

9150

Server

Workgroup

9650

8600

6100AV

7100AV

8100AV

6100

8100

6100AV

7350

Server

Workgroup

AV

(DB-15)

Video Card

DRAM

7100AV

8100AV

Video Port

(HDI-45)

3,4 3,4 3,4 3,4 3,4

3,43,4

1,2,6

3,4

1,2,6

1,2,6

1,2,6 1,2,6 1,2,6 1,2,61,2,61,2,63,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

1,2,6

3,4

3,4

3,4

3,4

3,4

3,4

3,4

1,2,63,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

1,2,6

1,2,6

1,2,6

1,2,6

3,4

1,2,6

1,2,6

1,2,6 1,2,6

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,4

3,43,4

3,4

3,4

1,2,6

1,2,6

1,2,6

1,2,6

1,2,6 3,4

1,2,6

3,4

3,4

3,4

1,2,6

1,2,6

1,2,6

1,2,63,41,2,61,2,6

3,4

3,4

1,2,6

1,2,6

3,4

1,2,6

3,4

3,4

3,4

3,4

3,4 3,4

3,4

1,2,61,2,6

1,2,61,2,63,4

3,4

3,4

3,4

1,2,61,2,6

3,4

1,2,6

1,2,6

3,4

3,41,2,6

1,2,6

6410

6420

Performa Power Macintosh

6260

6310

840AV

660AV

Centris

Quadra

610

650

800

700

950

900

Quadra

LC630 Quadra

Macintosh

610

Centris

650

1,2 1,2 1,2,6 1,2,6

1,2,6

1,2,6

3,4

1,2,6 1,2,63,4

3,4

2,42,4 2,4 2,4 2,4 1,2,6 1,2,6

1,2,63,4

3,4

1,2,6 3,4 3,4

2,32,3

1,2,3,4 1,2,3,4 1,2,3,4

<Optional Macintosh Adapter AD-A205 Setting Chart>

LCIII

LC475

LC

LCII

IIvi

IIsi

IIvx

IIci

 Set the dip switch "ON" as shown below.(Example; "1,2" )

3,4 3,4 3,4 3,4 3,4 3,4 1,2,6 1,2,6 3,4 3,4

3,4

640 x480@60Hz



RESOLUTION

1,2 1,2 1,2 1,2 1,2 1,2

640 x480@67Hz

640 x480@72Hz

640 x480@75Hz

640 x480@85Hz

800 x600@60Hz

800 x600@72Hz

800 x600@75Hz

800 x600@85Hz

832 x624@75Hz

1024 x768@60Hz

1024 x768@70Hz

1024 x768@72Hz

1024 x768@75Hz

1024 x768@85Hz

1152 x870@75Hz

1280 x960@60Hz

1280 x960@75Hz

1280 x960@85Hz

1280 x1024@60Hz

1280 x1024@75Hz

1280 x1024@85Hz

1600 x1200@60Hz

1600 x1200@65Hz

1600 x1200@67Hz

1600 x1200@70Hz

Be sure to power off the computer when you set the dip switches.

1. The resolution does not change with the computer powered on when you set the dip switches.

2. Set the dip switches by a pointed article like a pencil or ball point pen to touch end of the switch groove.

1600 x1200@75Hz

- 19 -

CP871C158A40

NEC-Mitsubishi Electronics Display of America, Inc.
1250 North Arlington Heights Road, Itasca, Illinois 60143-1248, U.S.A.
