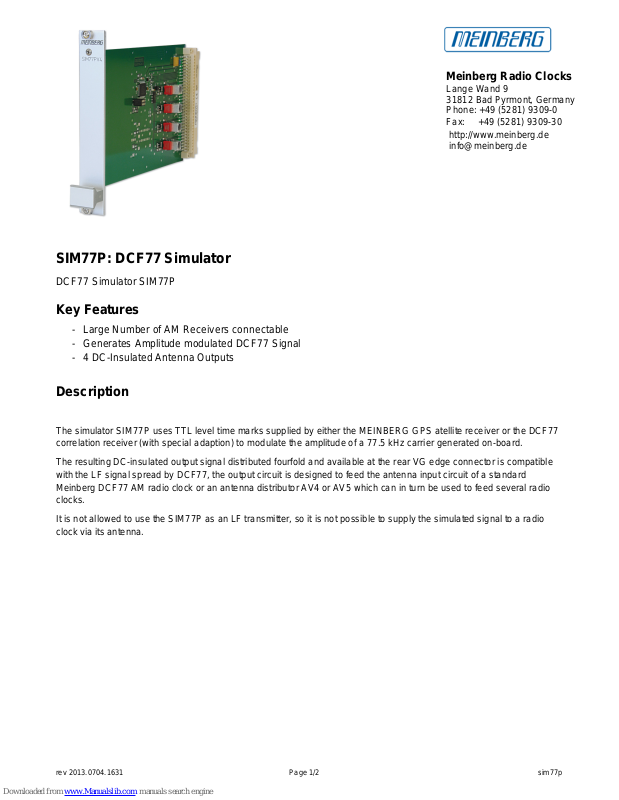

SIM77P: DCF77 Simulator

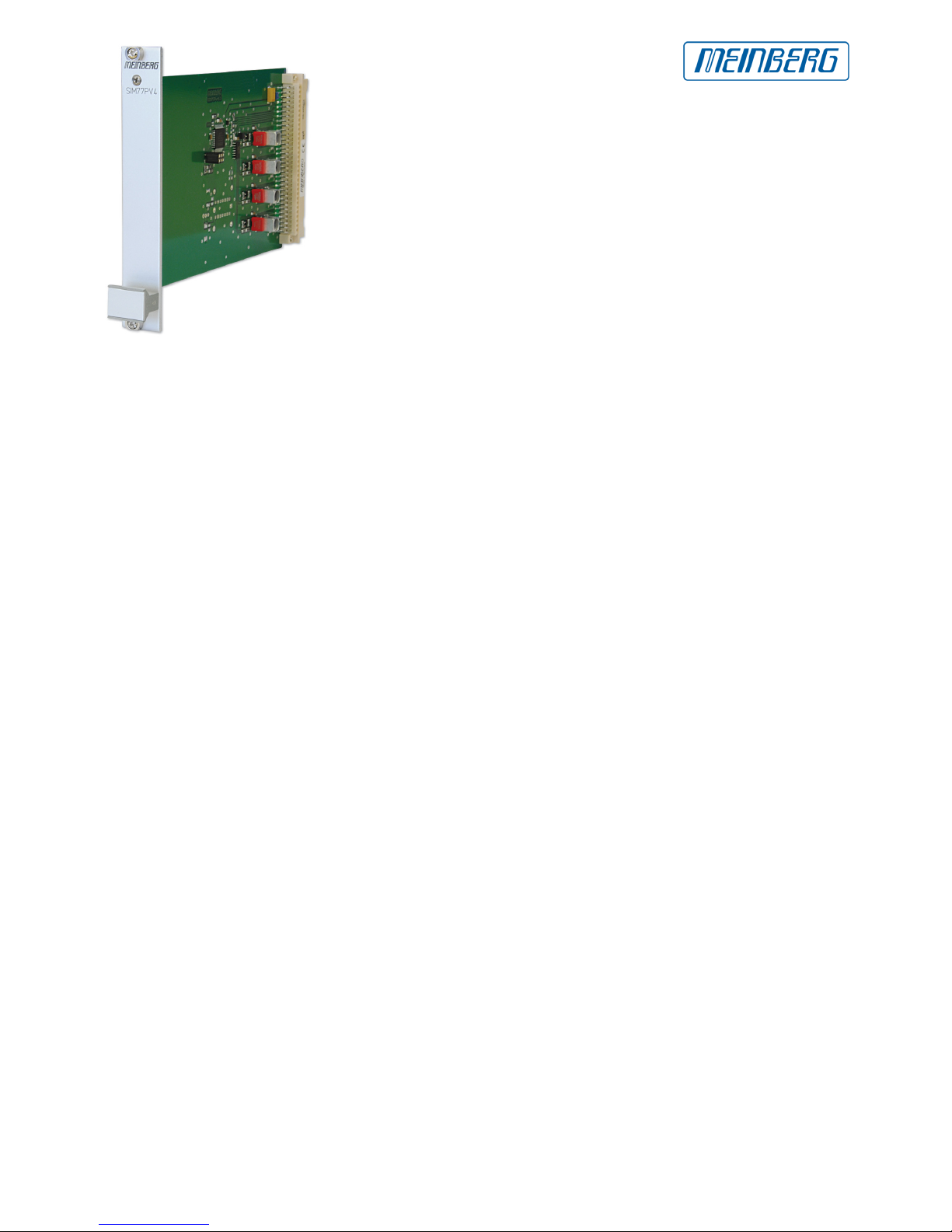

DCF77 Simulator SIM77P
Key Features
- Large Number of AM Receivers connectable
- Generates Amplitude modulated DCF77 Signal
- 4 DC-Insulated Antenna Outputs
Description
The simulator SIM77P uses TTL level time marks supplied by either the MEINBERG GPS atellite receiver or the DCF77
correlation receiver (with special adaption) to modulate the amplitude of a 77.5 kHz carrier generated on-board.
The resulting DC-insulated output signal distributed fourfold and available at the rear VG edge connector is compatible
with the LF signal spread by DCF77, the output circuit is designed to feed the antenna input circuit of a standard
Meinberg DCF77 AM radio clock or an antenna distributor AV4 or AV5 which can in turn be used to feed several radio
clocks.
It is not allowed to use the SIM77P as an LF transmitter, so it is not possible to supply the simulated signal to a radio
clock via its antenna.
rev 2013.0704.1631 sim77pPage 1/2
Page 2
Characteristics
Input signal DCF time marks, TTL level
Frequency outputs Amplitude modulated sine wave carrier 77.5kHz, dc-insulated
Output level: approx. -60dBm
the output is distributed fourfold on board
Dimensions of the front
panel
4HP/3U (20mm x 128mm)
Electrical connectors 64 pin rear VG edge connector DIN 41612
Power supply +5V DC
Current consumption ca. 70mA
Board type Eurocard
Board dimensions 160mm x 100mm , 1,5mm Epoxy
Ambient temperature 0 ... 50°C / 32 ... 122°F
Humidity Max. 85%
RoHS-Status of the product This product is fully RoHS compliant
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE
compliant waste disposal it has to be returned to the manufacturer. Any transportation
expenses for returning this product (at its end of life) have to be incurred by the end
user, whereas Meinberg will bear the costs for the waste disposal itself.
