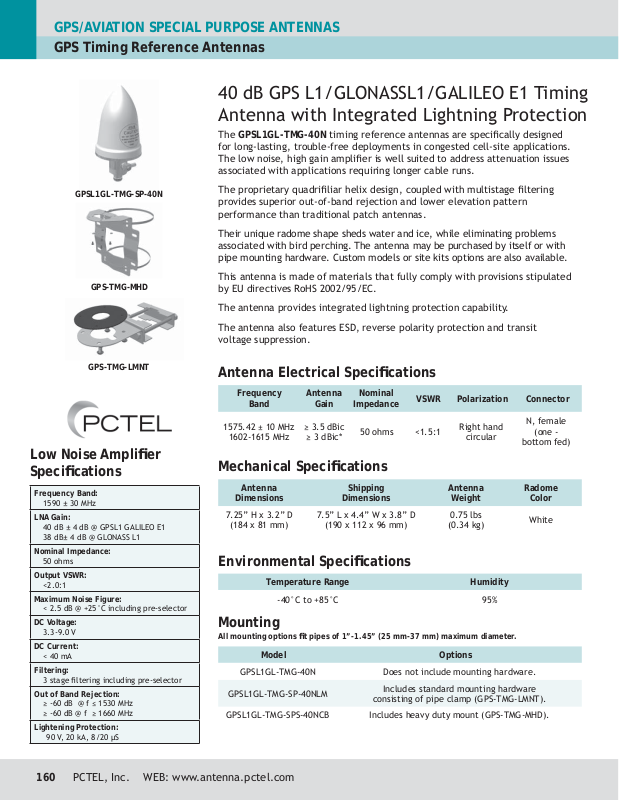

GPS/AVIATION SPECIAL PURPOSE ANTENNAS

GPS Timing Reference Antennas

40 dB GPS L1/GLONASSL1/GALILEO E1 Timing
Antenna with Integrated Lightning Protection

The GPSL1GL-TMG-40N timing reference antennas are specifi cally designed

for long-lasting, trouble-free deployments in congested cell-site applications.
The low noise, high gain amplifi er is well suited to address attenuation issues
associated with applications requiring longer cable runs.

GPSL1GL-TMG-SP-40N

GPS-TMG-MHD

GPS-TMG-LMNT

Low Noise Amplifi er
Specifi cations

Frequency Band:

1590 ± 30 MHz

LNA Gain:

Nominal Impedance:

Output VSWR:

Maximum Noise Figure:

DC Voltage:

DC Current:

Filtering:

Out of Band Rejection:

Lightening Protection:

90 V, 20 kA, 8/20 μS

± 4 dB @ GPSL1 GALILEO E1

40 dB
38 dB± 4 dB @ GLONASS L1

50 ohms

<2.0:1

< 2.5 dB @ +25°C including pre-selector

3.3-9.0 V

< 40 mA

3 stage fi ltering including pre-selector

≥ -60 dB @ f ≤ 1530 MHz
≥ -60 dB @ f ≥ 1660 MHz

The proprietary quadrifi liar helix design, coupled with multistage fi ltering
provides superior out-of-band rejection and lower elevation pattern
performance than traditional patch antennas.

Their unique radome shape sheds water and ice, while eliminating problems
associated with bird perching. The antenna may be purchased by itself or with
pipe mounting hardware. Custom models or site kits options are also available.

This antenna is made of materials that fully comply with provisions stipulated
by EU directives RoHS 2002/95/EC.

The antenna provides integrated lightning protection capability.

The antenna also features ESD, reverse polarity protection and transit
voltage suppression.

Antenna Electrical Specifi cations

Frequency

Band

1575.42 ± 10 MHz
1602-1615 MHz

Antenna

Gain

≥ 3.5 dBic

≥ 3 dBic*

Nominal

Impedance

50 ohms <1.5:1

VSWR Polarization Connector

Right hand

circular

N, female

(one -

bottom fed)

Mechanical Specifi cations

Antenna

Dimensions

7.25” H x 3.2” D
(184 x 81 mm)

7.5” L x 4.4” W x 3.8” D

Shipping

Dimensions

(190 x 112 x 96 mm)

Antenna

Weight

0.75 lbs

(0.34 kg)

Radome

Color

White

Environmental Specifi cations

Temperature Range Humidity

-40°C to +85°C 95%

Mounting

All mounting options fi t pipes of 1”-1.45” (25 mm-37 mm) maximum diameter.

Model Options

GPSL1GL-TMG-40N Does not include mounting hardware.

GPSL1GL-TMG-SP-40NLM

GPSL1GL-TMG-SPS-40NCB Includes heavy duty mount (GPS-TMG-MHD).

Includes standard mounting hardware

consisting of pipe clamp (GPS-TMG-LMNT).

160 PCTEL, Inc. WEB: www.antenna.pctel.com

For additional Information:

PCTEL Tech Support

Tel: [phone]

Fax: [phone]

[e-mail]

© 2011 PCTEL, Inc. - Antenna Products

471 Brighton Drive, Bloomingdale,

Illinois 60108

All Rights Reserved

PRODUCT WARRANTY

A. General Warranty. PCTEL, Inc ("PCTEL") represents and warrants that the
Products furnished hereunder shall be free from defects in material and
workmanship for a period of two (2) years from the date of shipment by PCTEL
under normal use and operation. PCTEL sole and exclusive obligation under the
foregoing warranty shall be to repair or replace, at its option, any defective Product
that fails during the warranty period. The expense of removal and reinstallation of
any item is not included in this warranty. THE FOREGOING WARRANTY IS
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY WARRANTIES
ARISING FROM A COURSE OF DEALING, USAGE OR TRADE PRACTICE WITH
RESPECT TO THE PRODUCTS. Repair or replacement in the manner provided
herein shall be the sole and exclusive remedy of Buyer for breach of warranty and
shall constitute fulfillment of all liabilities of PCTEL with respect to the quality and
performance of the Products. PCTEL reserves the right to inspect all defective
Products (which must be returned by Buyer to PCTEL factory freight prepaid). No
Products will be accepted for replacement or repair without obtaining a Return
Materials Authorization (RMA) number from PCTEL Customer Service [by
telephone: [phone] or email: [e-mail]]. Products
returned without an RMA number will not be processed and will be returned to
Buyer freight collect. PCTEL shall have no obligation to make repairs or
replacement necessitated by catastrophe, fault, negligence, misuse, abuse, or
accident by Buyer, Buyer's customers or any other parties. The warranty period of
any repaired or replaced Product shall not extend beyond its original term. B.
Warranty Conditions. The foregoing warranty shall apply only if: (i) the Product has
been properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; (ii) no modification, alteration
or addition has been made to the Product by persons other than PCTEL or
PCTEL's authorized representatives or otherwise approved by PCTEL; and

(iii) The Product has not been subjected to misuse, neglect or unusual physical,
electrical or electromagnetic stress, or some other type of accident. C. Disclaimer.
PCTEL DOES NOT WARRANT THAT THE OPERATION OF THE PRODUCTS IS
ERROR-FREE OR THAT OPERATION WILL BE UNINTERRUPTED. IN NO
EVENT SHALL PCTEL BE RESPONSIBLE FOR DAMAGES OR CLAIMS OF ANY
NATURE OR DESCRIPTION RELATING TO (i) SYSTEM PERFORMANCE,
INCLUDING COVERAGE, (ii) BUYER'S SELECTION OF PRODUCTS FOR
BUYER'S APPLICATION AND/OR (iii) FAILURE OF PRODUCTS TO MEET
GOVERNMENT OR REGULATORY REQUIREMENTS.

RETURNS In the unlikely event a defect occurs in this product, please work
through the dealer or distributor from which this product was purchased. PCTEL,
Inc. provides complete service and support to all of its dealers and distributors.
