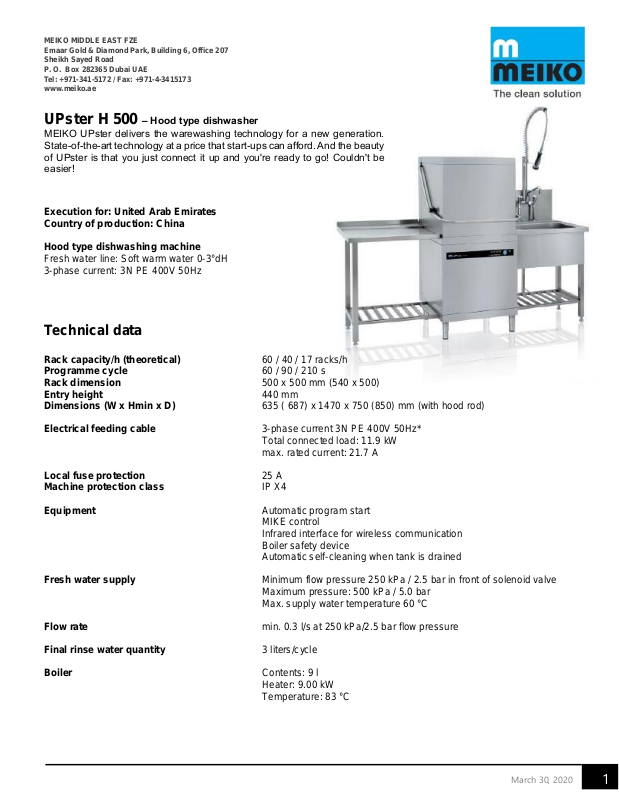

Meiko UPSTER H 500 Datasheet

MEIKO MIDDLE EAST FZE

1

March 30, 2020

UPster H 500 – Hood type dishwasher

MEIKO UPster delivers the warewashing technology for a new generation.
State-of-the-art technology at a price that start-ups can afford. And the beauty
of UPster is that you just connect it up and you're ready to go! Couldn't be

easier!

Emaar Gold & Diamond Park, Building 6, Office 207
Sheikh Sayed Road
P. O. Box 282365 Dubai UAE
Tel: [phone] / Fax: [phone]
www.meiko.ae

Execution for: United Arab Emirates
Country of production: China

Hood type dishwashing machine

Fresh water line: Soft warm water 0-3°dH
3-phase current: 3N PE 400V 50Hz

Technical data

Rack capacity/h (theoretical) 60 / 40 / 17 racks/h
Programme cycle 60 / 90 / 210 s
Rack dimension 500 x 500 mm (540 x 500)
Entry height 440 mm
Dimensions (W x Hmin x D) 635 ( 687) x 1470 x 750 (850) mm (with hood rod)

Electrical feeding cable 3-phase current 3N PE 400V 50Hz*

Total connected load: 11.9 kW
max. rated current: 21.7 A

Local fuse protection 25 A
Machine protection class IP X4

Equipment Automatic program start

MIKE control
Infrared interface for wireless communication
Boiler safety device
Automatic self-cleaning when tank is drained

Fresh water supply Minimum flow pressure 250 kPa / 2.5 bar in front of solenoid valve

Maximum pressure: 500 kPa / 5.0 bar
Max. supply water temperature 60 °C

Flow rate min. 0.3 l/s at 250 kPa/2.5 bar flow pressure
Final rinse water quantity 3 liters/cycle
Boiler Contents: 9 l

Heater: 9.00 kW
Temperature: 83 °C

MEIKO MIDDLE EAST FZE

2

March 30, 2020

Emaar Gold & Diamond Park, Building 6, Office 207
Sheikh Sayed Road
P. O. Box 282365 Dubai UAE
Tel: [phone] / Fax: [phone]
www.meiko.ae

Wash tank Filling: 22.0 l

Heater: 2.00 kW
Temperature: 60 °C

Wash pump Performance: 0.75 kW
Dosing of rinse aid Potential free terminals (changeable to 230V) for local dosing system
Detergent dosage Potential free terminals (changeable to 230V) for local dosing system
Material Cladding: 1.4301

Wash tank: 1.4301
Boiler: 1.4404

Heat emission for 20 programme cycles/h

total: 2.1 kW
perceptible: 1.4 kW
latent: 0.7 Kw

Ventilation flow rate 540 m³/h
Steam emission 1.0 kg/h
Emission sound pressure level at the 65 dB

workplace (LpA)
Net / gross weight 98.0 kg / 130.0 kg (standard packaging)

Packaging dimensions (W x H x D) 730 x 1700 x 870 mm (standard packaging)

*Note:
Electrical equipment suitable for supply voltage:
3N PE 400 V 50 HZ (3N PE 380-415 V 50 Hz)
