i
Preface
Thank you for purchasing this camera. This camera will help you fulfill all
your digital pictures processing needs.
The camera is equipped with five modes (Capture Mode, Playback
Mode, DSC Setup Mode, Video Mode, and Macro Mode) for your exploration.
This light and handy digital camera offers 4.0 mega pixels high-quality
image along with precise 12 x zoom (3 x optical plus 4 x digital) The builtin 16MB memory can store your images. The stylish metallic case is
crafted from aluminum alloy, making this camera light and portable.
Through a USB cable connection, pictures can be easily transmitted from
the camera to the PC. Nine recorded images can be displayed on the
high resolution LCD. Continuous shooting function is also available for
users to take multiple frames of scenes in quick succession.
Note:
1. The company keeps the right to change the contents of this document, spec of this camera in the
future, without prior notice.
Page 3
Table of Contents ii
E N
Table of Contents
Preface............................................................................i
Prior to Operating the Camera.....................................1
Unpacking the camera...............................................................1
Identifying components..............................................................2
Loading the battery and SD Card...............................................3
Basic Settings............................................................................4
Formatting the Internal Memory and SD Card............................5
Basic Operating Procedure..........................................6
Turning the Camera ON/OFF.....................................................6
Basic Shooting...........................................................................7
Auto-Focus Function..................................................................7
Zooming In/Out..........................................................................7
Flash Setting..............................................................................8
Playback....................................................................................8
Five Main Camera Mode and Instructions...................9
Video Mode..............................................................................11
Capture Mode..........................................................................12
Playback Mode........................................................................16
Macro Mode.............................................................................19
DSC Setup Mode.....................................................................20
Making Connections...................................................23

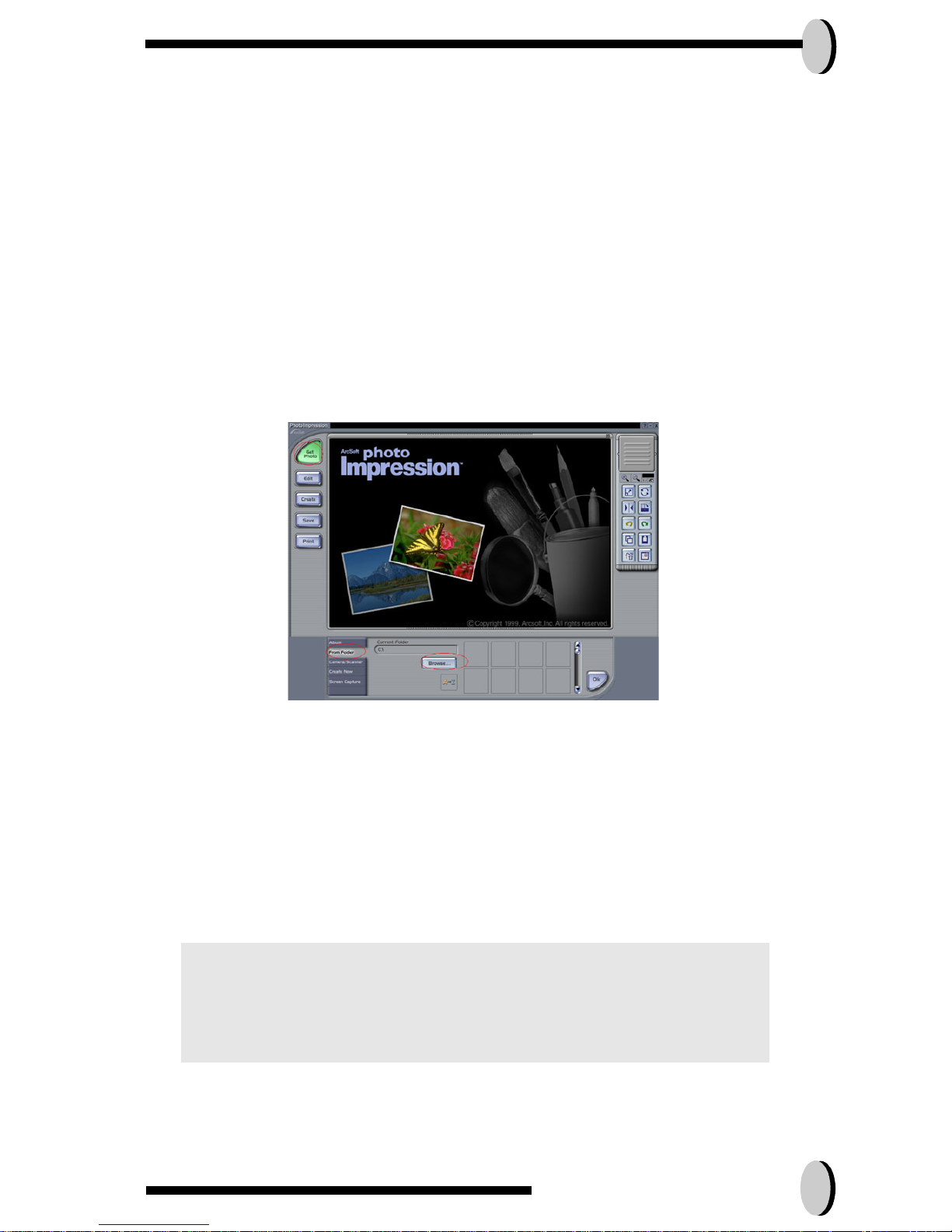

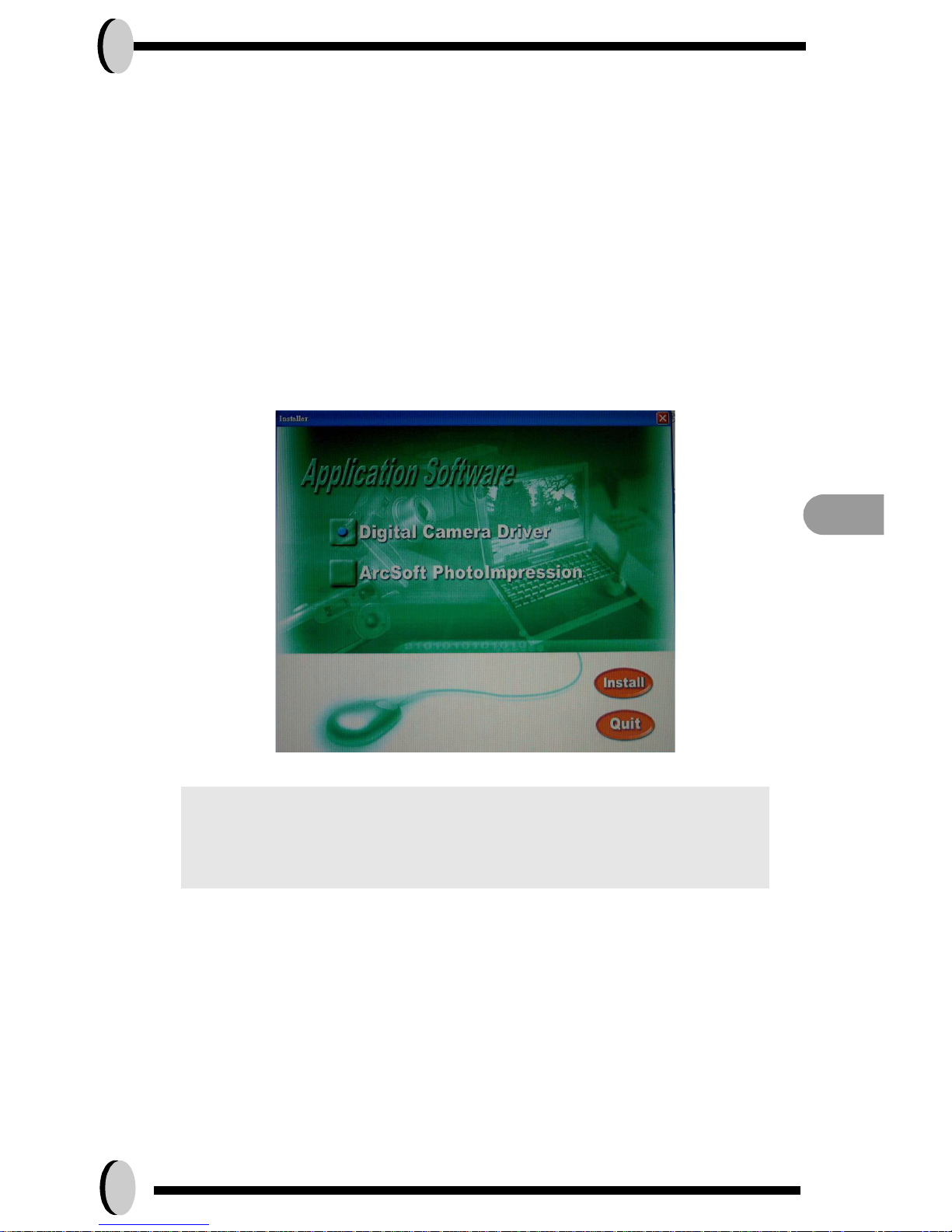

Installing software....................................................................23
Connecting through the mini USB............................................24
Connecting with the DSC.........................................................25
APPENDIX...................................................................26
Specifications...........................................................................26
Page 4
1
Prior to Operating the Camera
Set this digital camera by following these quick and simple instructions.

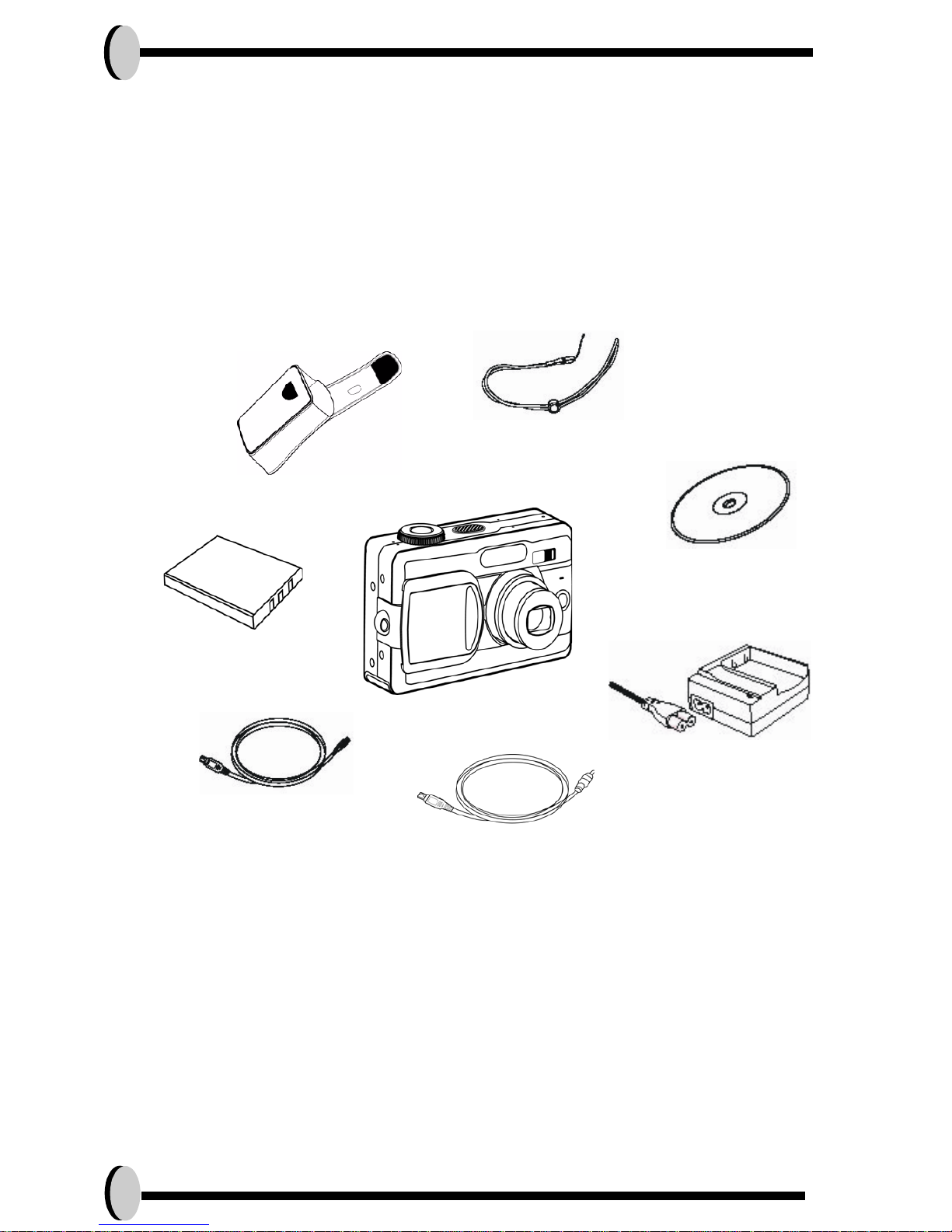

Unpacking the camera
1. Clear all items from the box. (It is highly recommended that the box and wrappings are kept for future usage)
2. Double check for the following items:
Pouch
Handstrap
CD-ROM
Mini USB Cable
Battery
Battery Charger
Camera
Video Cable
Page 5
E N
Prior to Operating the Camera 2

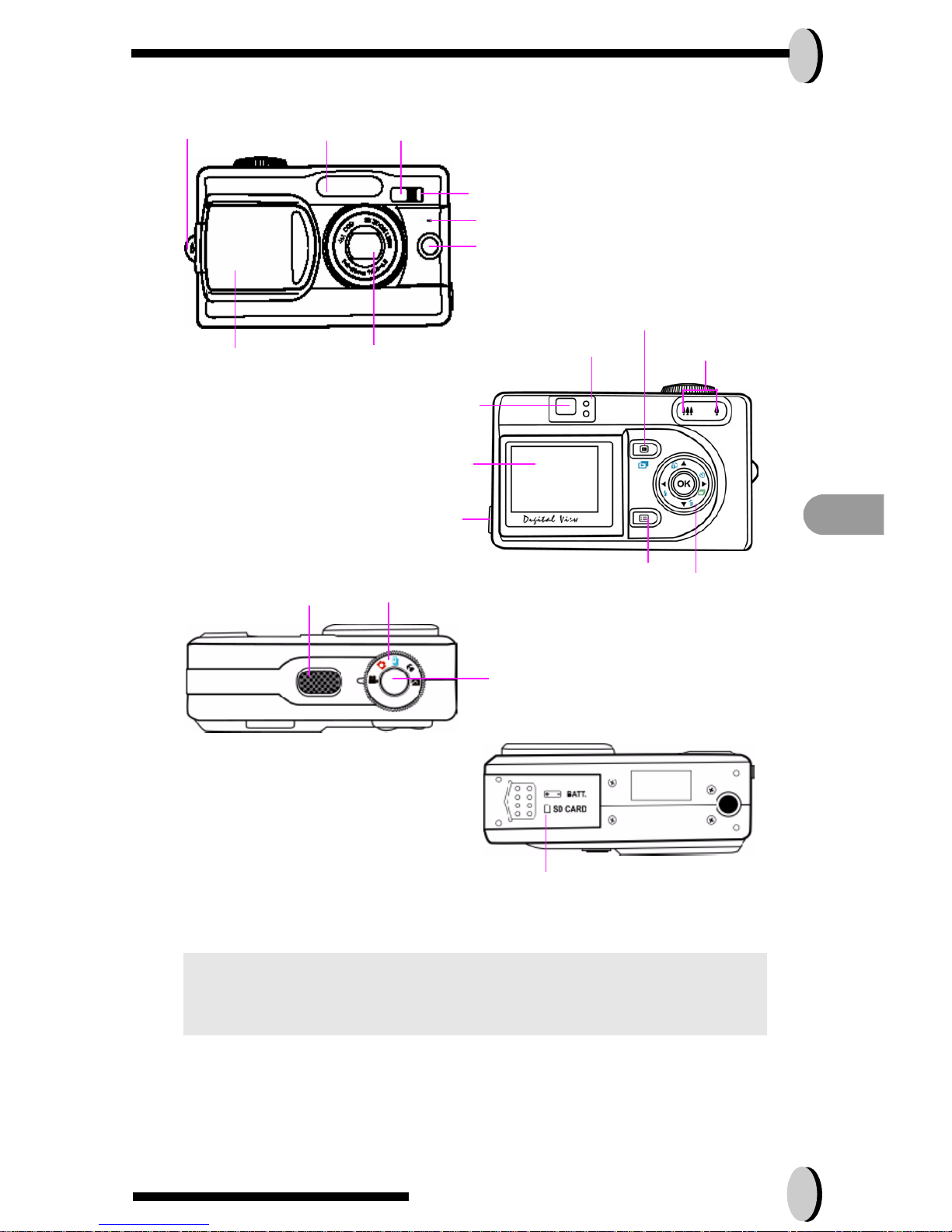

Identifying components
CAUTION!
1. Use only the specified battery or AC power adapter
specified (5V 2A) for use with this camera. Other
power sources may cause fire.
Power/Flash Charge LED
Zoom Button
TFT LCD
DC-in & USB/TV-out Connector
Flash
Viewfinder
.
Self timer LED
Auto-Focus LED
Zoom Lens
Handstrap Hook
Display Button
Five-way Switch
Viewfinder
Menu Selection
Shutter
Mode Dial
Speaker
Lens Barrier
Microphone
Battery and SD card compartment
Page 6
3

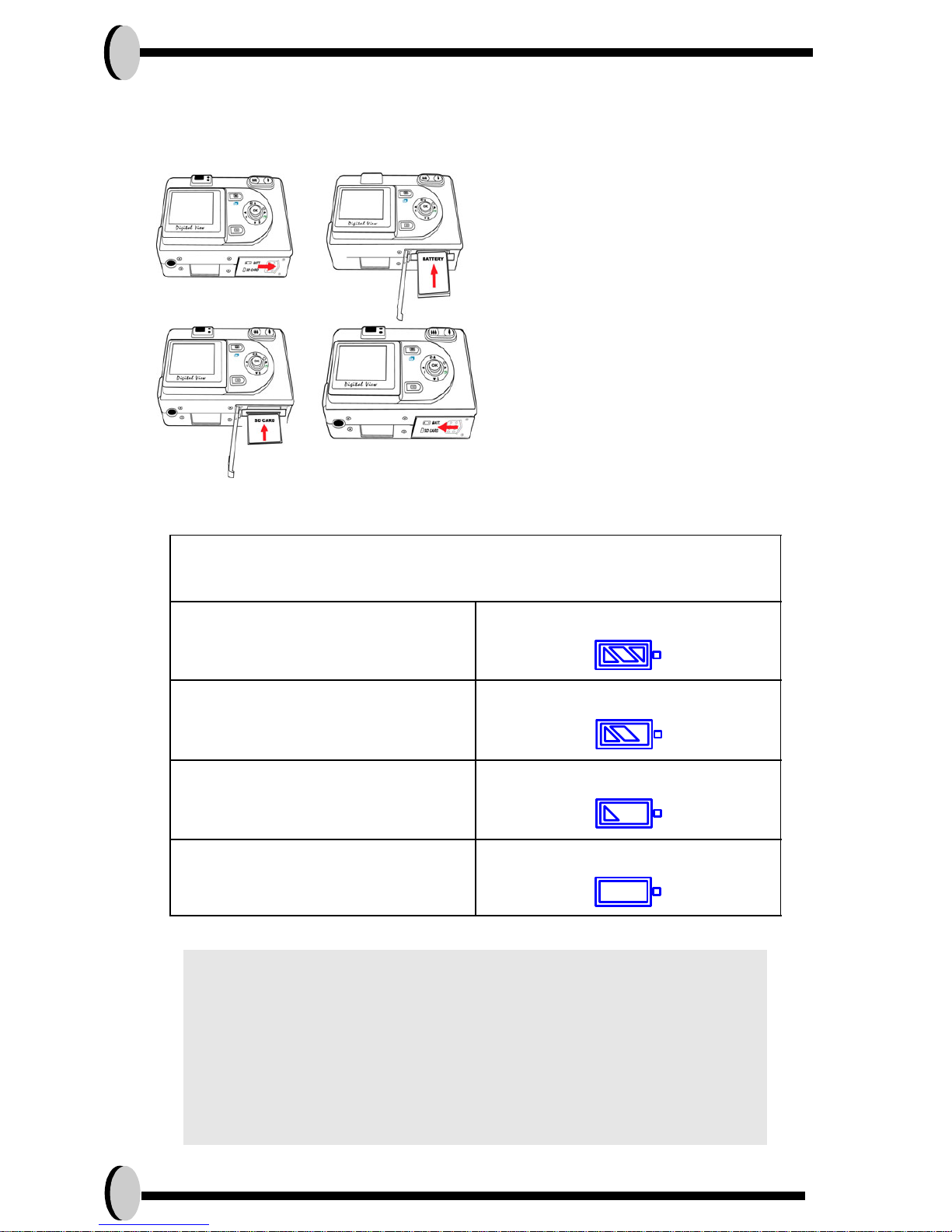

Loading the battery and SD Card
This camera uses a Li-ion battery. The battery and SD card share the same compartment and door.
1.Slide the battery/SD Card cover in
the direction of the arrow, then lift to
open.
2.Load the included battery in the
compartment.
3.Insert the SD card into the slot.
4.Close the cover.
Battery Power Status
Full
Middle
Low
Empty
CAUTION!
1. Fully charge the battery before its first use.
2. To improve battery performance, replace installed
battery at the same time and keep away from heat.
3. To discard battery, refer to the index of the battery
manufacturer.
4. Battery should be inserted in the battery compartment with the "+" and "-" sides facing correctly.
5. For alternative power source, the optional ACAdapter kit is available.
Page 7
E N
Prior to Operating the Camera 4
Basic Settings
Upon turning the camera ON, a “welcome image” will appear on the LCD
display. Turn the mode dial to the DSC Setup Mode. Please proceed with
the following settings:
Language Preference Setting
1. There are a total of nine languages to choose from to interact with this camera.
English will be the default language. Please refer to DSC Setup Mode. (Page
21)
Date and Time Setting
1. Please refer to the Date and Time setting under DSC Setup Mode. (Page 20)
NOTE:
1. Upon loading new battery, users will need to reset their
Basic Settings
2. Do not open the battery/SD card cover or remove the
battery when the camera is in its ON status. Only
remove the battery and SD card when the camera is not
in use, or in its OFF status.
3. If you do not plan on using the camera for a long period
of time, please remove the battery and SD card.
4. Battery charges through the charger.
5. Camera will draw power from DC-in when used with the
AC-Adapter
Page 8
5
Formatting the Internal Memory and SD
Card
To format SD card, please insert your compatible SD card into SD slot.
Then processed with the following steps:
1. Turn the Mode Dial to Playback Mode.
2. Press the Menu button to enter Playback menu setting to select “Erase” and
then “Format”
3. You will then be asked "Format SD card?" on the LCD Display.
4. Press the OK button to confirm and proceed with formatting.
5. Push the Menu button to exit Playback menu setting.
As a result, once you withdraw the SD Card from the camera, the LCD
display will show the following message for confirmation: "Format internal
memory?" Then, press OK button to complete formatting internal memory.
Page 9
Basic Operating Procedure 6
Basic Operating Procedure
This section provides simple and basic directions to get you started with
your camera. From this section, you will learn how to turn the camera on
and off, shoot pictures, zoom In and Out, set your flash, and playback
your pictures.

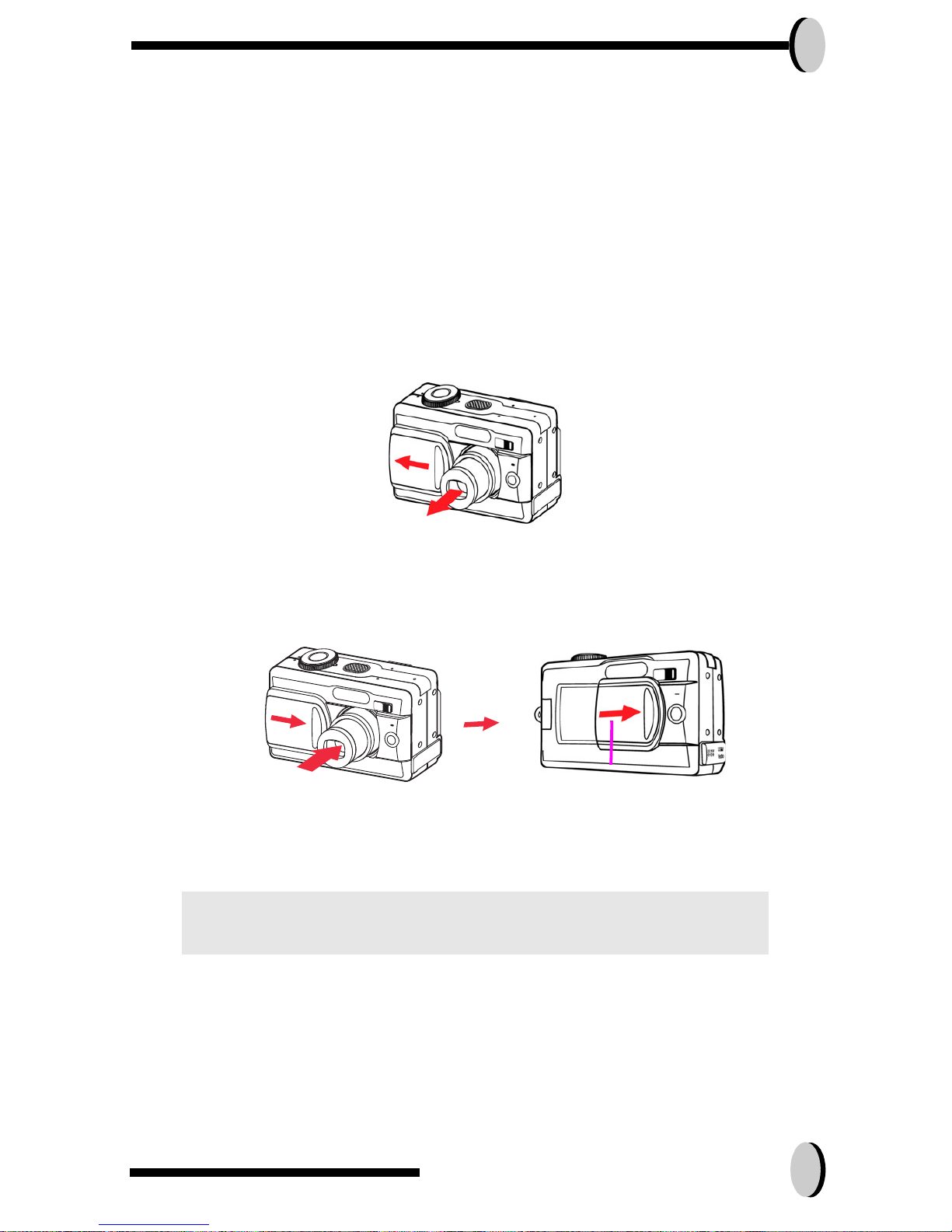

Turning the Camera ON/OFF
1. To turn the camera on, slide the lens barrier to the direction of the arrow. If the
lens does not extend when the lens barrier is opened, there is a possibility that
it is not fully open. Fully slide the barrier until you hear a click.
2. To turn the camera off, slighly close the lens barrier until it touches the lens
barrel. Once they make contact, the lens will retract. Please wait until the lens
is fully retracted before closing the lens barrier. The backside LED indicator will
remain green while the power is turned on.
3. User can directly turn on playback mode while the slide remains closed.
Please refer to page 17 for detailed operation.
NOTE:
Do not forcefully push the lens barrier against the lens as this
may damage the lens or cause it to malfunction.
Lens Barrier
Lens Barrier
Page 10
E N
7

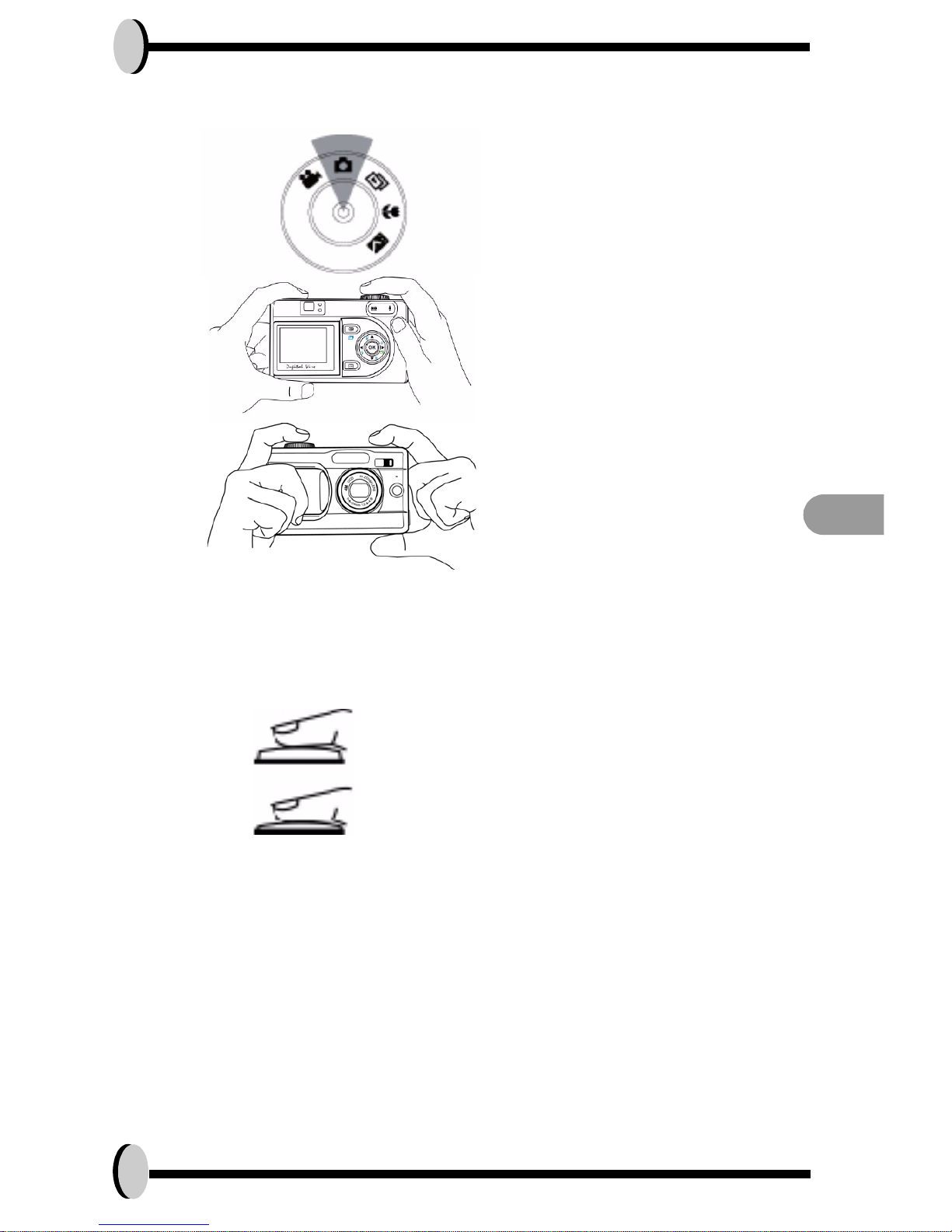

Basic Shooting
1.Turn the mode dial to the capture mode
2.Look into the viewfinder/LCD and try to
align your subject in the crop mark.
3.When you are set, press the shutter
button once.
Auto-Focus Function
Under Auto-Focus, the camera lens focuses automatically when the shutter release is pressed halfway. To activate Auto-Focus, please follow
these steps:
1.Crop mark is white in normal situation. Press half
shutter to activate auto focus. Crop mark turns
green when focused. If fail, crop mark is red.
2.Then, fully press the shutter button to take the
picture.
Zooming In/Out
This camera has 3 x optical zoom and 4 x digital zoom. The zoom bar
located on the left side of the LCD display, informs users of the zoom status while the zoom in or out button is pressed. While the zoom button is
pressed, there would be 5 levels of optical zoom magnifications (f0~f6),
from W(Wide) to T(Tele) of zoom bar; The zoom lens can automatically
protrude and retract. Then, if you keep pressing the zoom button, there
would be an additional 8 levels of optical zoom magnification (0.5x/each),
from T(tele)to 4x (4x Digital Zoom) of zoom bar. Users can see the result
from LCD display.
Page 11
Basic Operating Procedure 8
1. Once you have aligned your subject in the LCD display, press the zoom in or
out button to select your preferred distance.
2. The picture can be zoomed in up to four times the original size, 12 times from
its original size

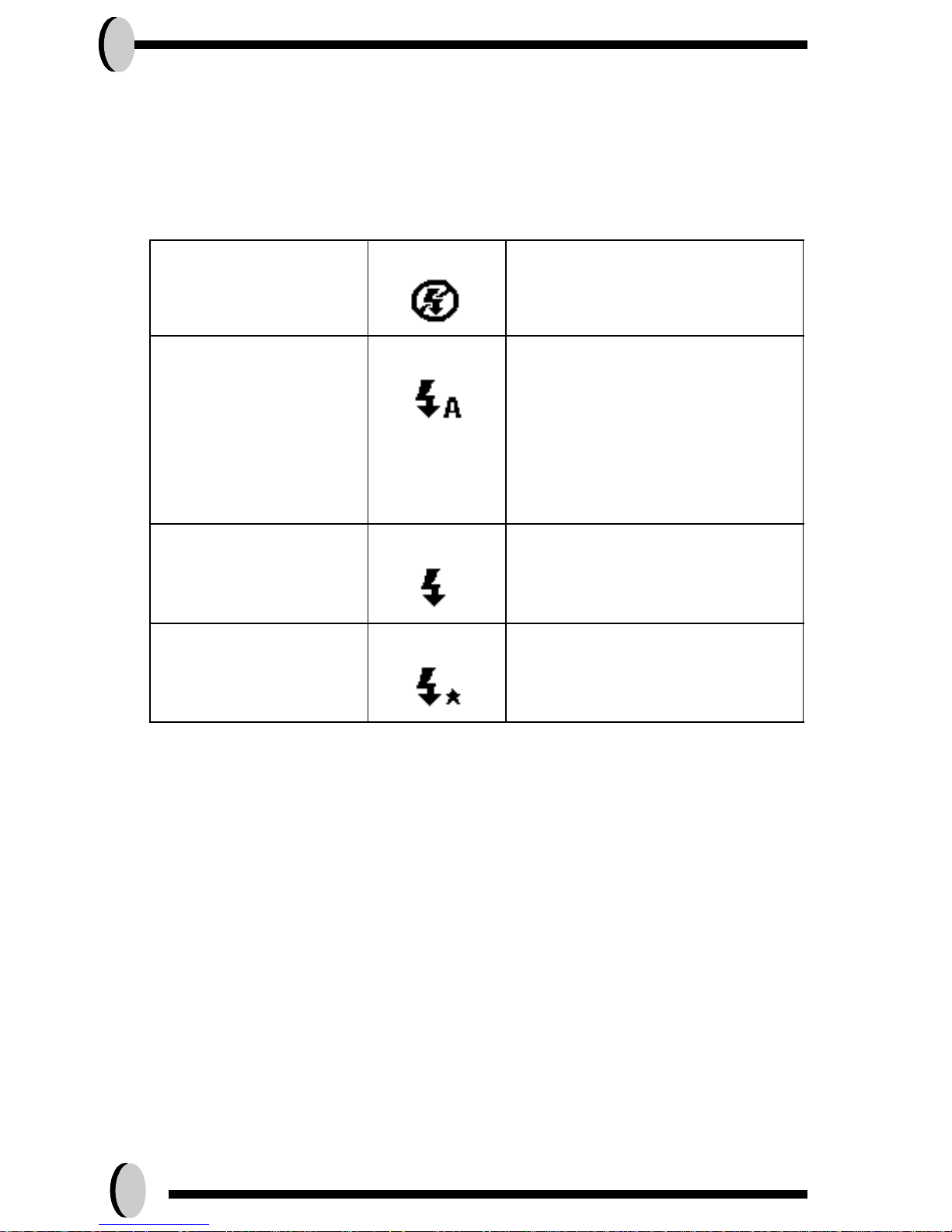

Flash Setting
Please Refer to CAPTURE MODE, page 12.
Playback
Please Refer back to PLAYBACK Mode, page 16
NOTE:
4 x digital zoom are all supported in PLAYBACK Mode.
Resolution Digital Zoom
5.5M(S) x 1
4.0M x 4
2.0M x 4
1.3M x 4
VGA x 4
Page 12
9

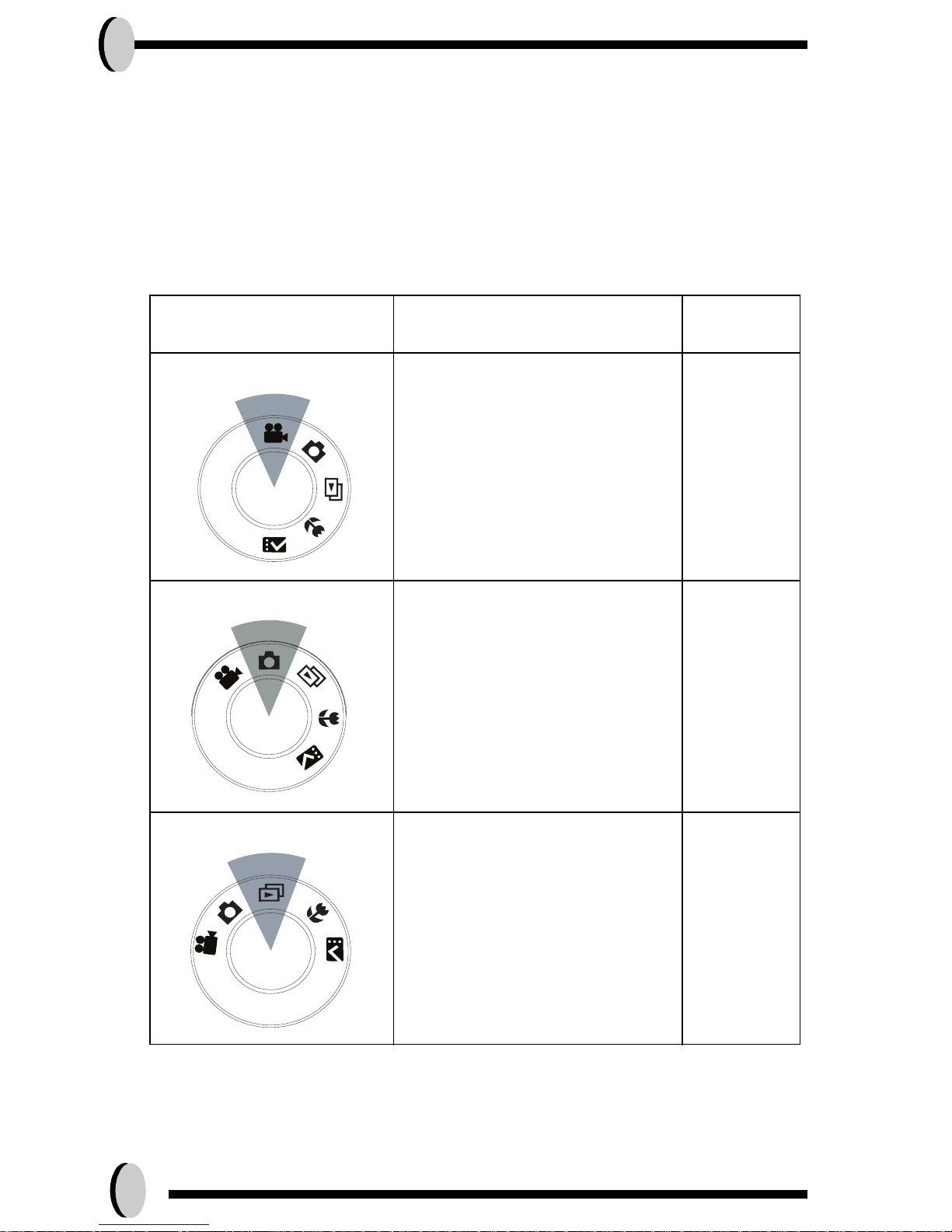

Five Main Camera Mode and
Instructions
This section describes the five modes included in this camera. An indepth coverage of these modes will be further described. Here are the
five main functions of this camera:
Camera Mode Function Setting
Page
Video Mode
1. Record Movies
Page 11

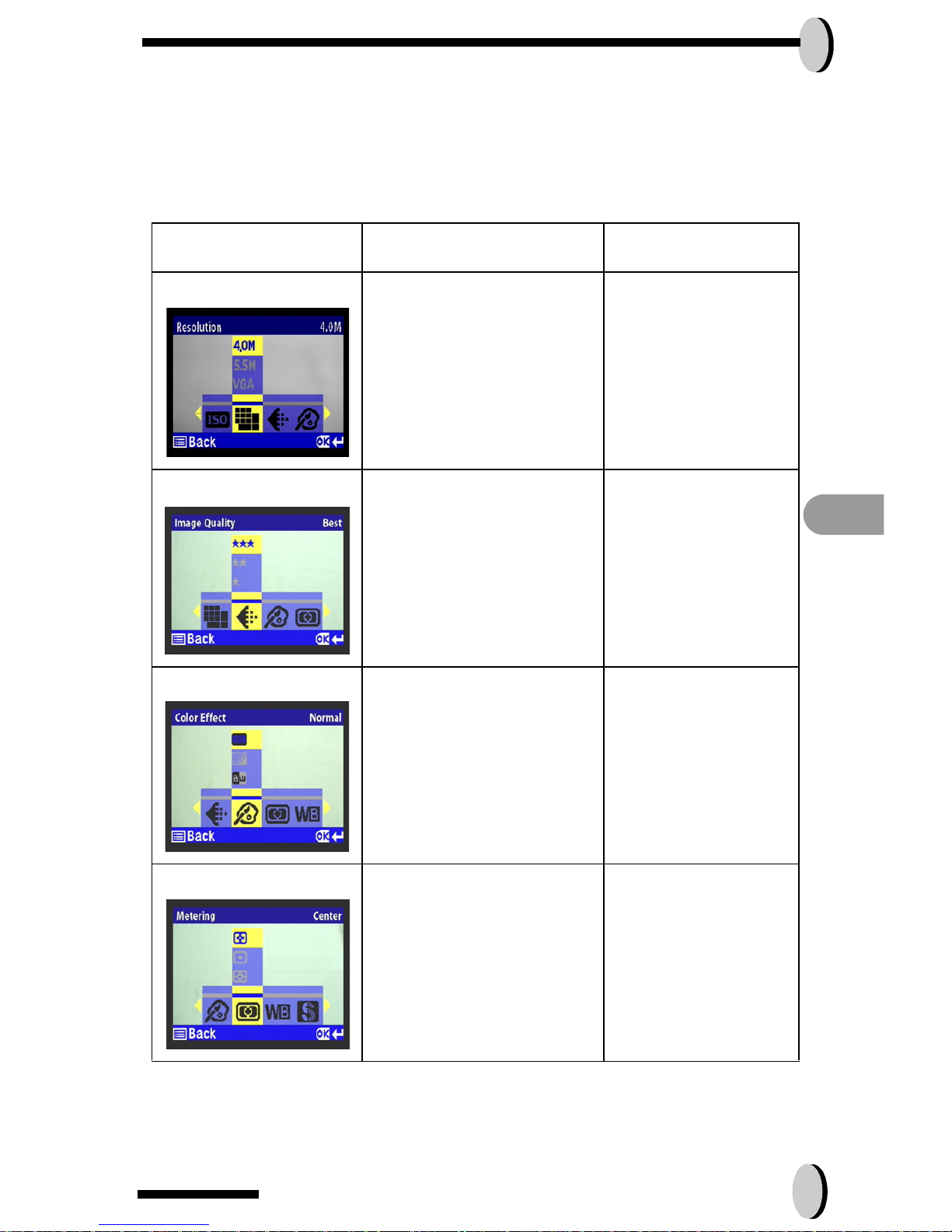

Capture Mode

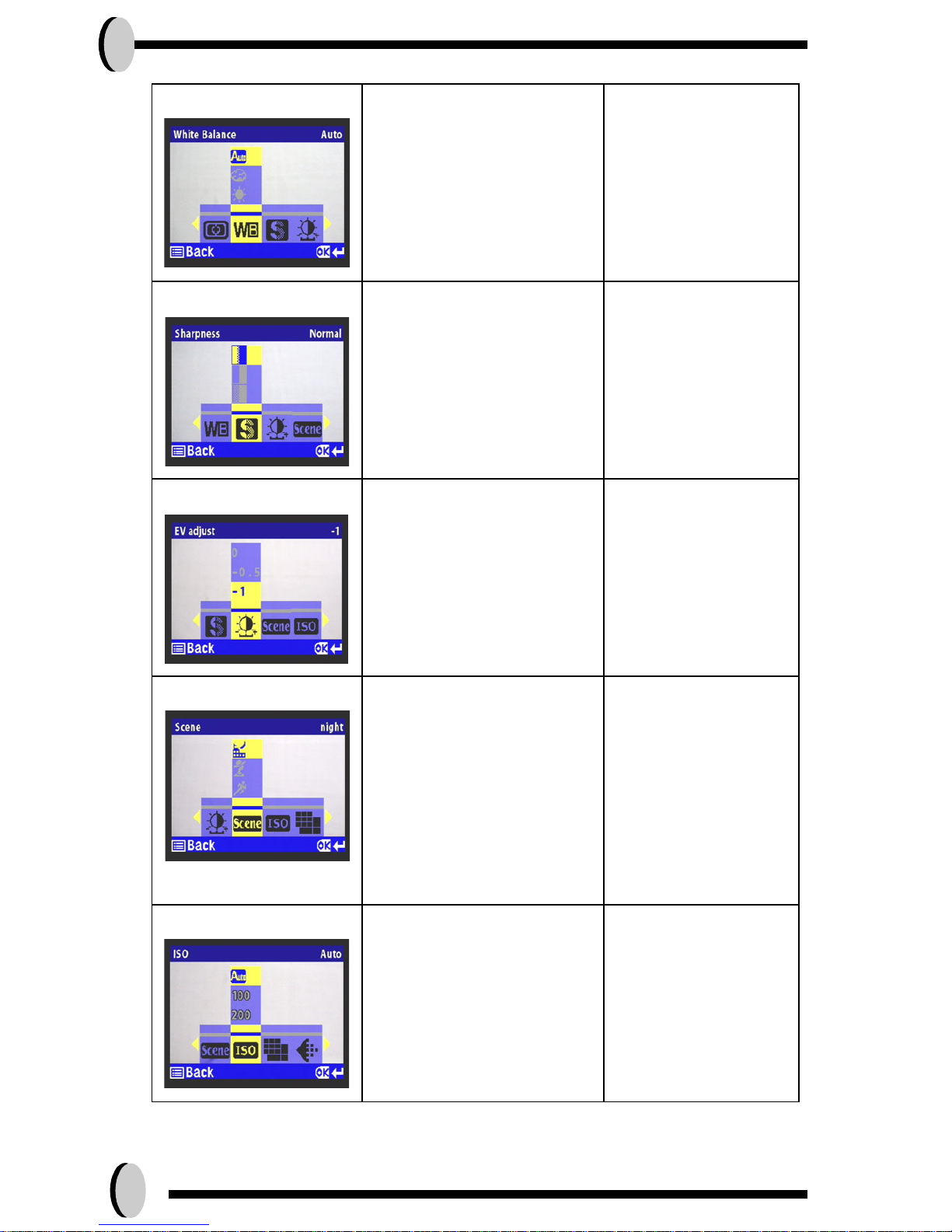

1. Resolution
2. Image Quality
3. Color Effect
4. White Balance
5. Scene
6. Metering
7. Sharpness
8. EV Adjust
9. ISO
Page 12

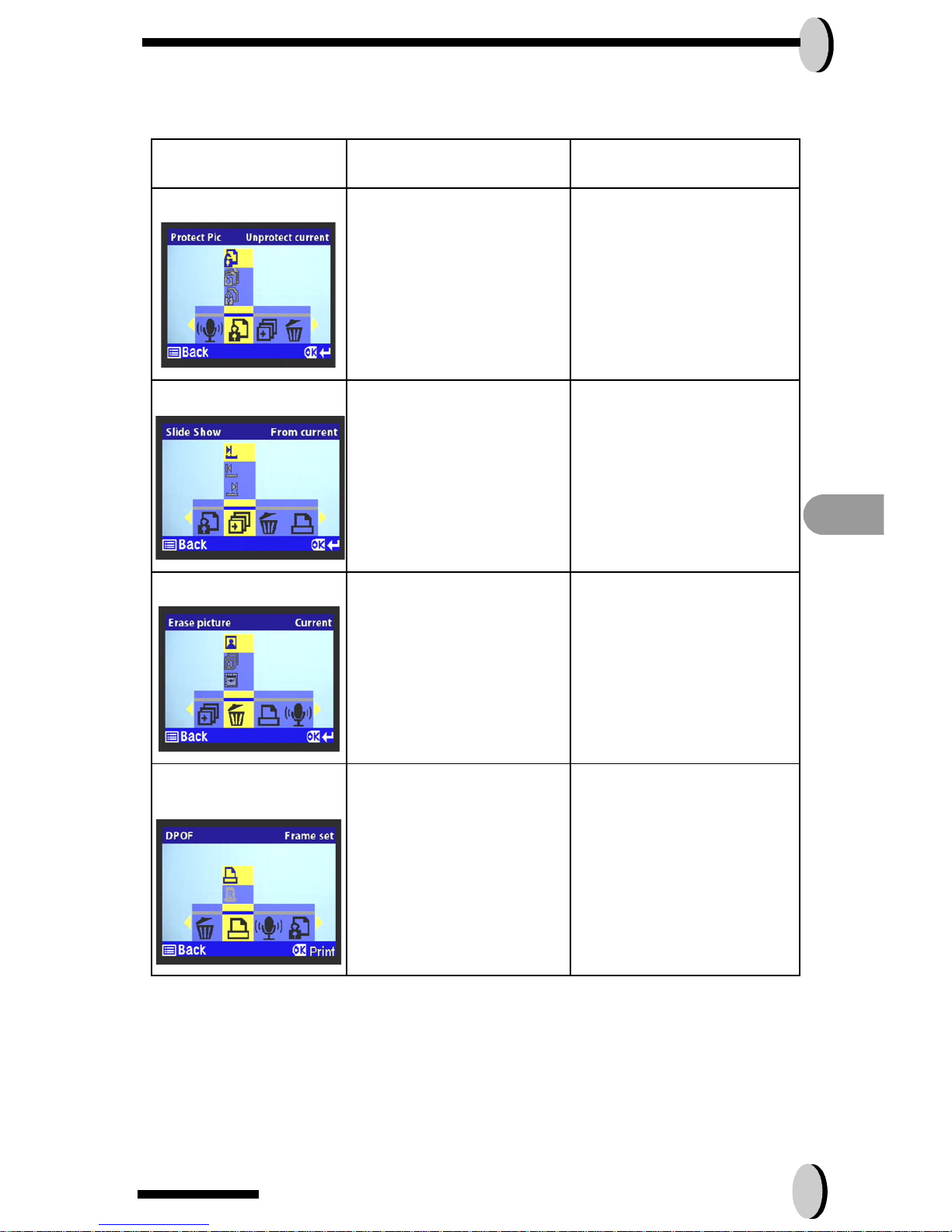

Playback Mode
1. Erase Picture
2. Protect Picture
3. DPOF
4. Slide Show

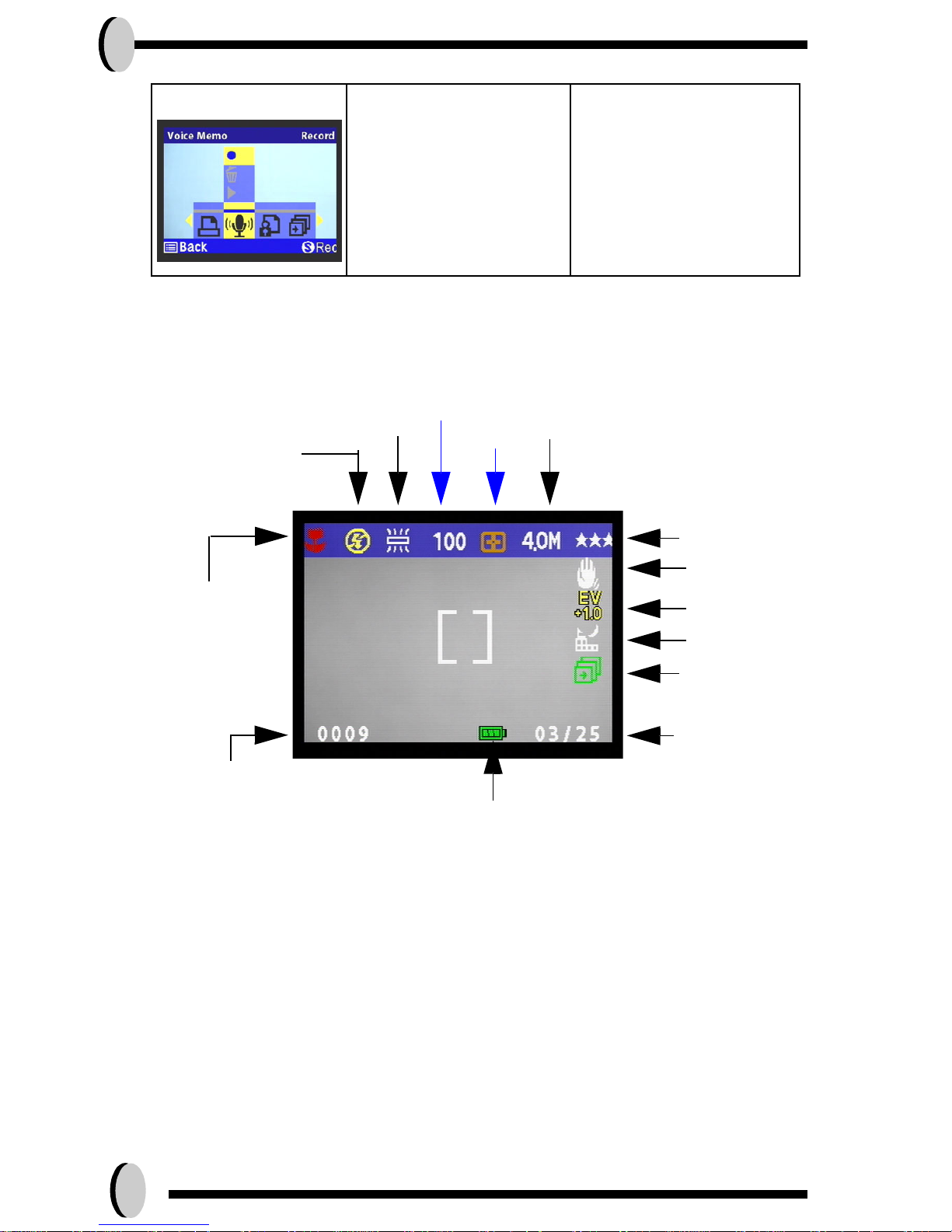

5. Voice Memo
Page 16
Page 13
E N
Five Main Camera Modes and Instructions 10

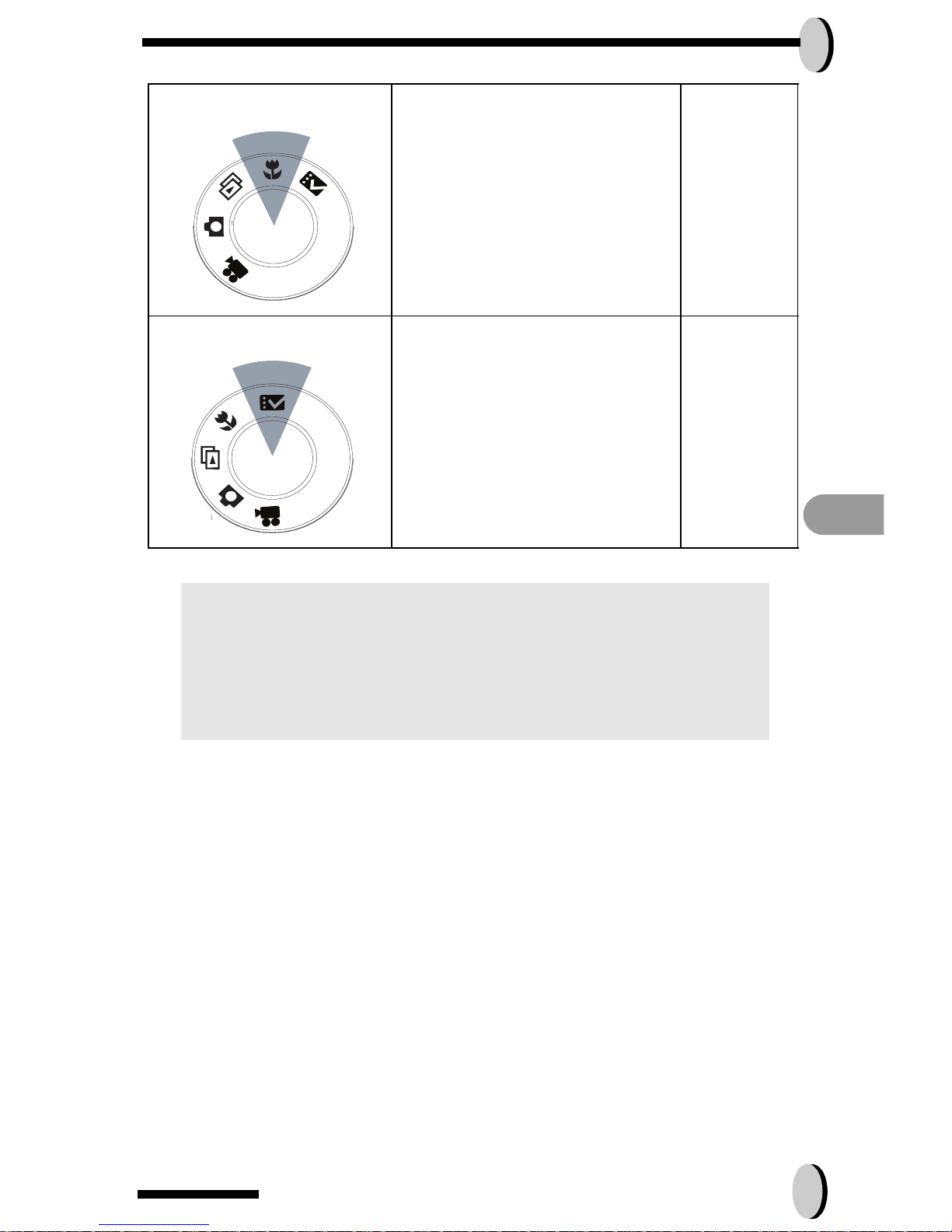

Macro Mode
1. Resolution
2. Image Quality
3. Color Effect
4. White Balance
5. Scene
6. Metering
7. Sharpness
8. EV Adjust
9. ISO
Page 19

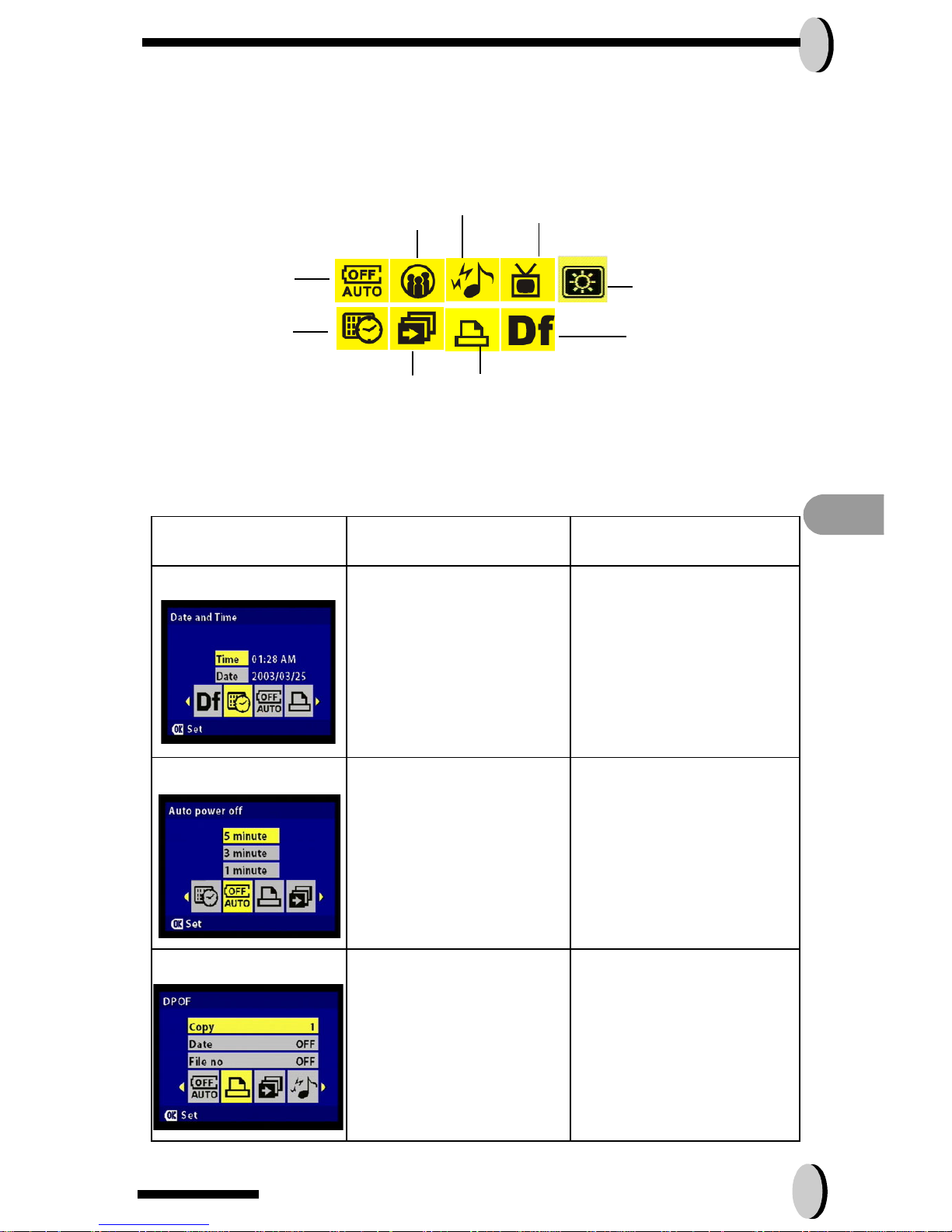

DSC Setup Mode
1. Date and Time
2. Auto Power Off
3. DPOF

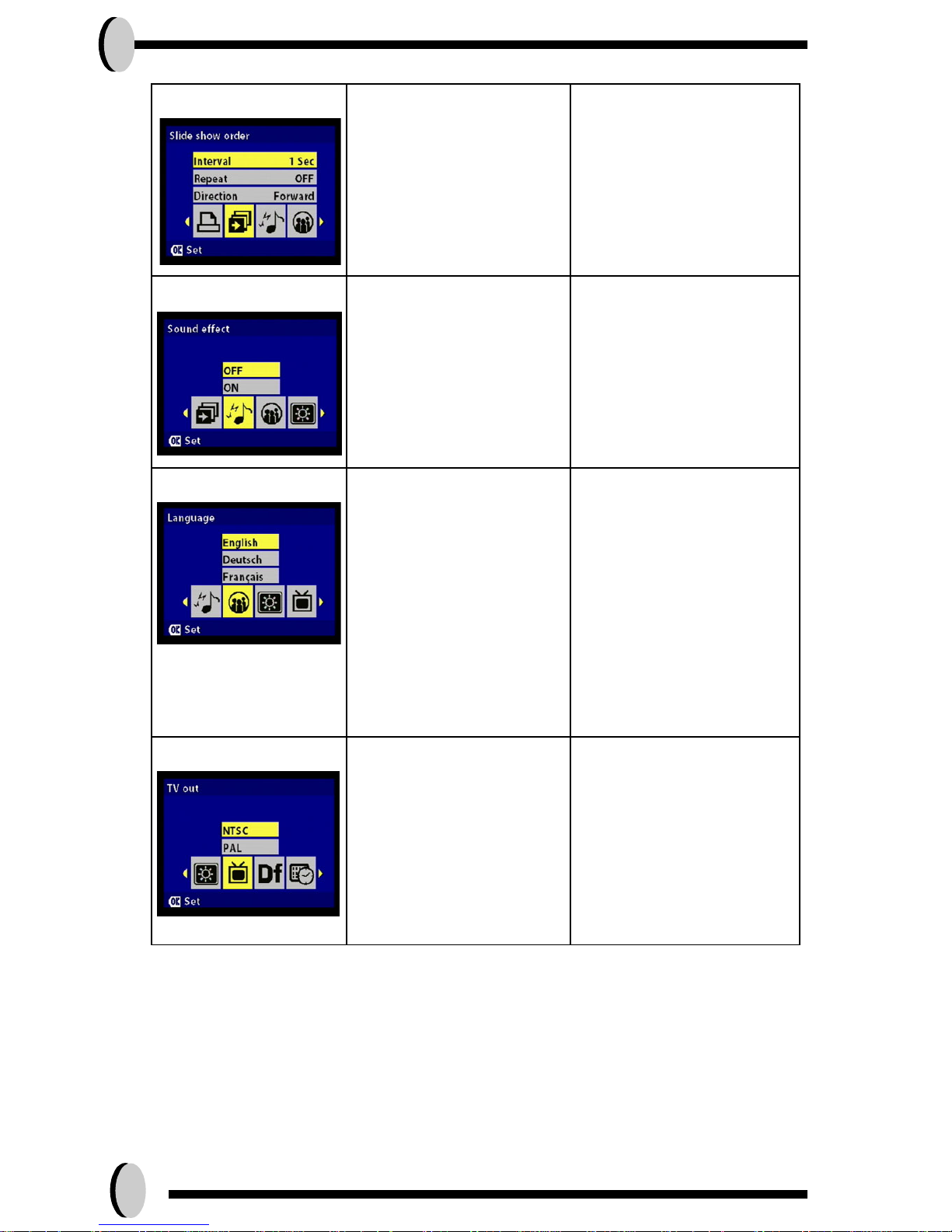

4. Slide Show Order
5. Sound Effect
6. Languages
7. TV-out

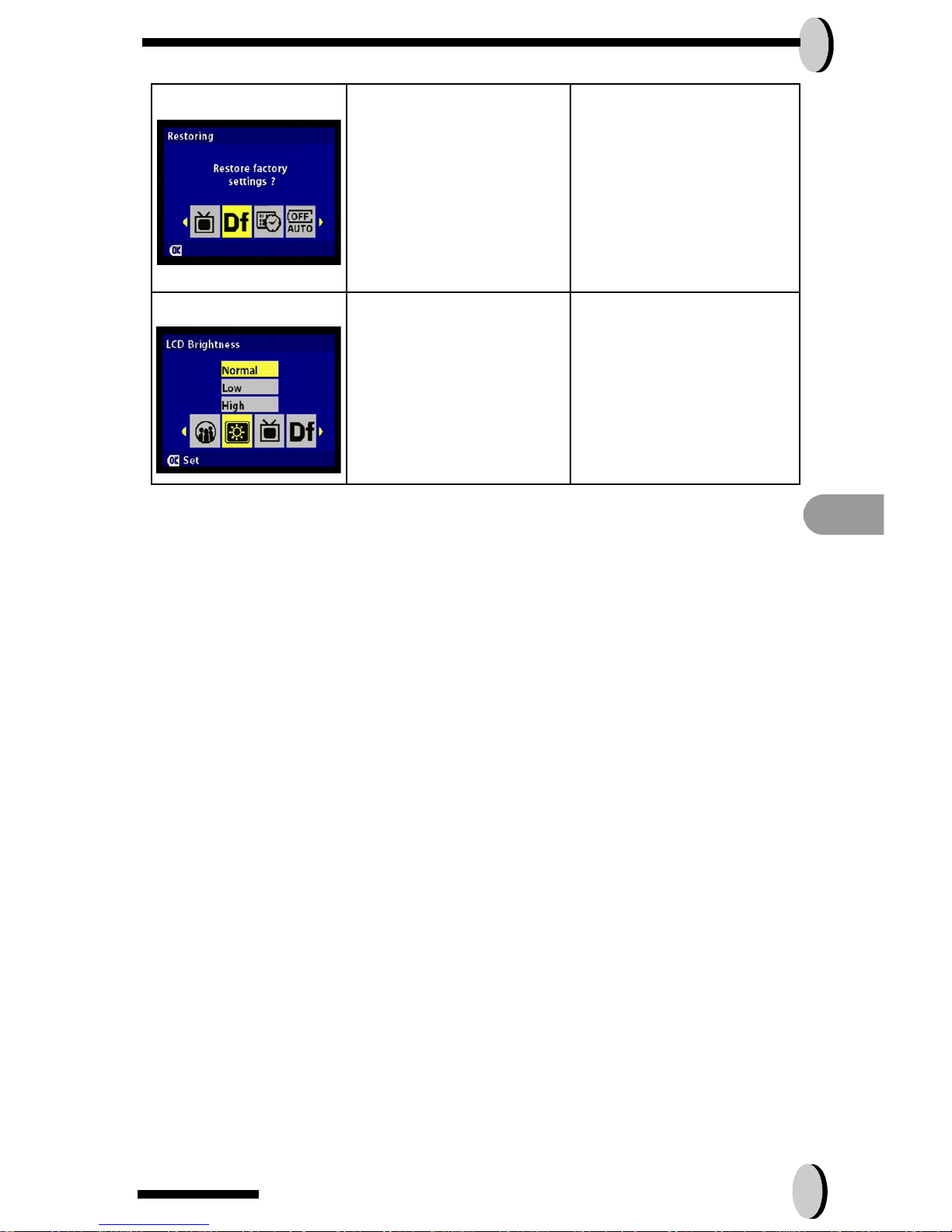

8. Restoring
9. LCD Brightness
Page 20
NOTE:
1. Press the display button once to delete the icons
from the LCD display. To delete the crop mark from
the display simply press the display button a second
time. Press the display a third time to turn off the
LCD display.
2. To save your battery power, it is best to not leave
your display ON for a long period of time.
Page 14
11
Video Mode
Video Mode allows you to use the camera as a movie recorder, and set
the self-timer for recording purpose. The length is based on the capacity
of your SD card and internal memory. Users can still achieve optical
zoom function before actual recording is being made. Digital zoom will
not be allowed when recording.
1. Turn the Mode Dial to the Video Mode
2. To start recording a movie, press the shutter button. The camera will start
checking whether the memory is sufficient to record a movie. If the memory is
full, a warning sign will display on the LCD, and will automatically exit the
movie recording state.
3. If there are no warning messages with memory problems, the camera will start
recording itself. To stop recording, press the shutter button again.
4. To set the self timer under the video mode, press the right button once to activate the self timer. You will have ten seconds to get ready. The countdown will
be displayed on the LCD and followed by a beep sound.

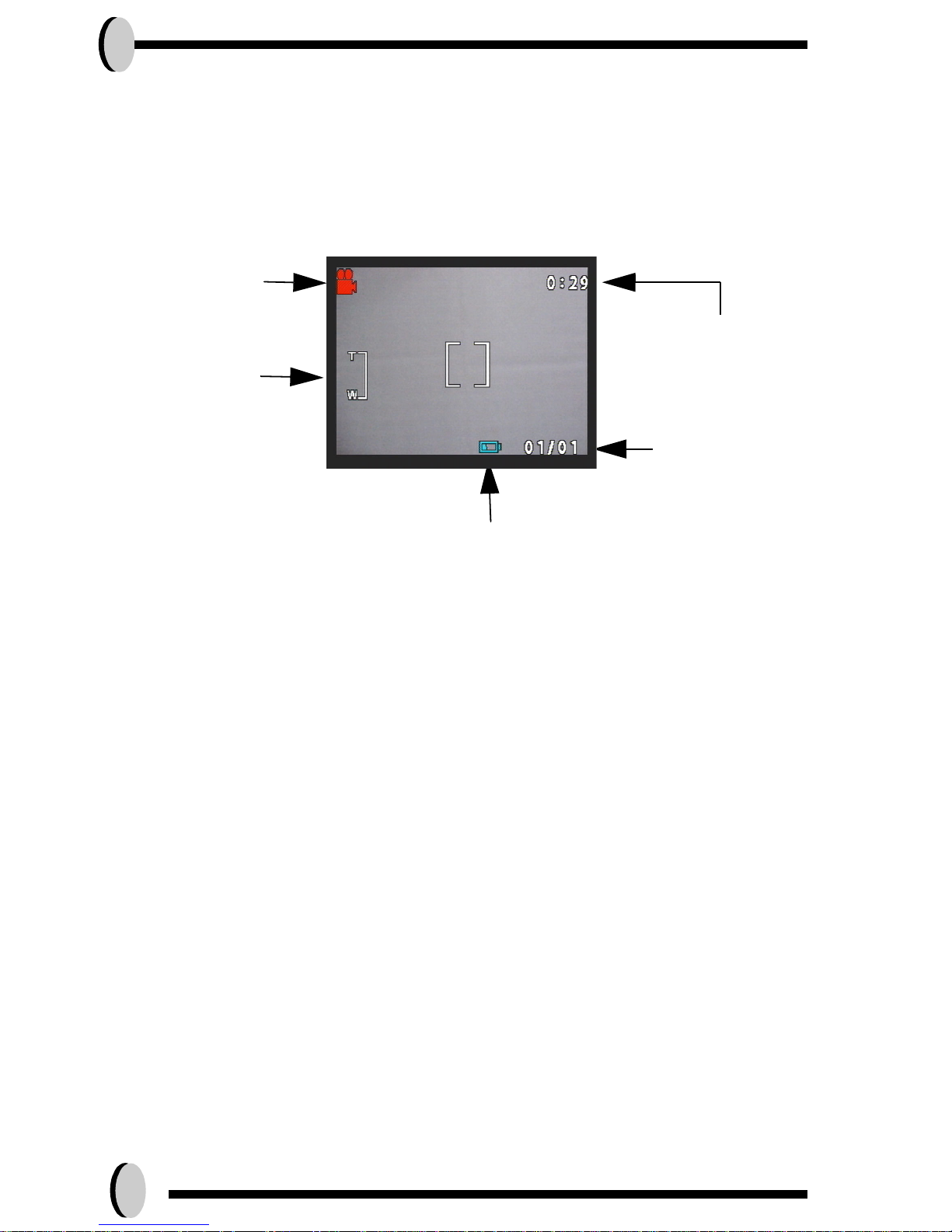

* The icons can be removed from the display by pressing
the menu button once.
Battery Status
Date
Remaining Time
Video Mode
Zoom Bar
Page 15
E N
Five Main Camera Modes and Instructions 12
Capture Mode

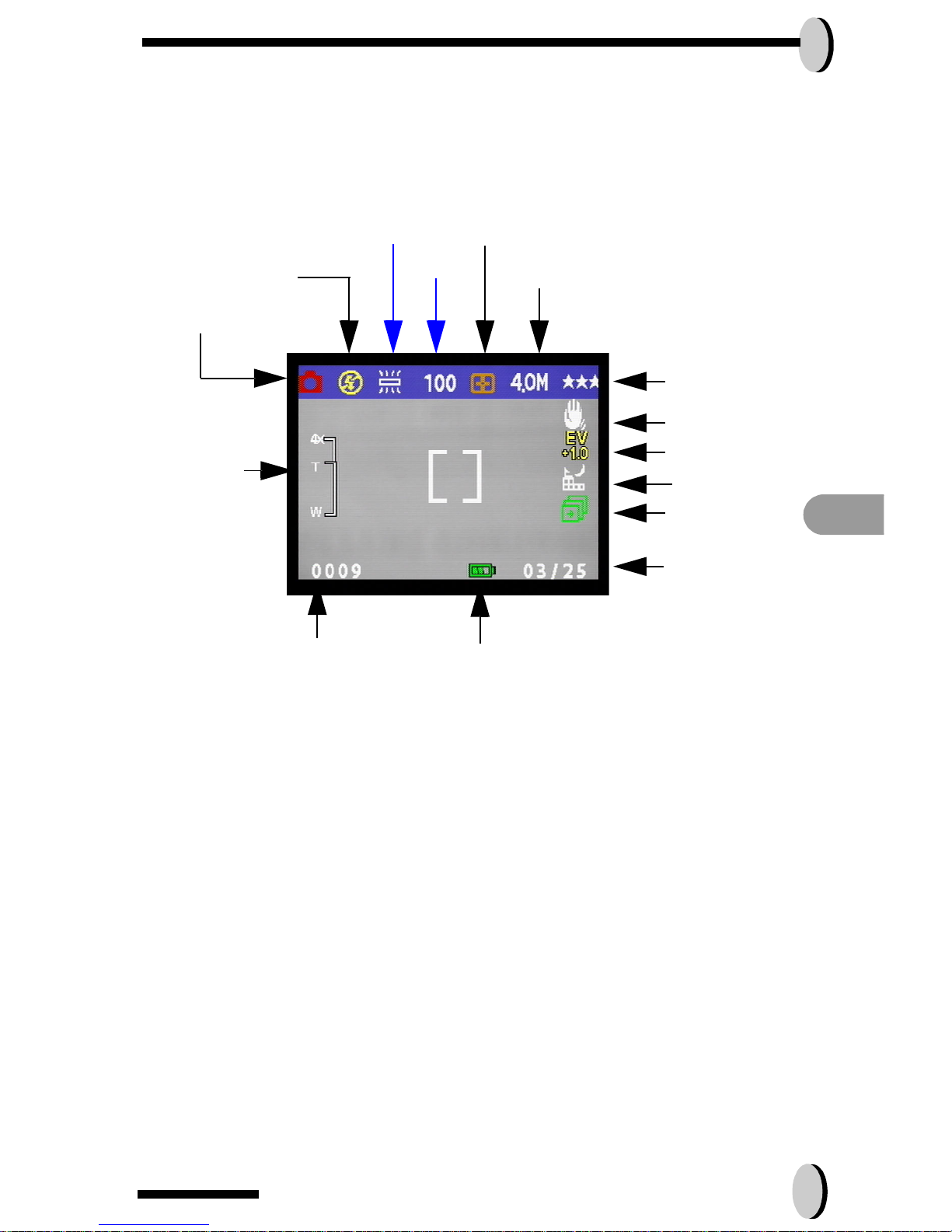

Capture mode will allow you to shoot single, continuous images, set your
flash and self-timer. Depending on the environment and setting, the camera’s settings will work accordingly. To exit the setting menu, simply press
the menu button.
• Shooting images
1. Under Capture Mode, press the shutter button. The camera will start checking
whether the memory is sufficient to store the image. If it is full, a warning “Memory Full” icon will display on the LCD.
2. Once the picture is taken, you can erase the image under instant review. user
can protect image when in playback mode. Press OK If users want to see
instant review after the picture is saved.
3. If you decide to erase this image, press down. An erase icon will appear on the
LCD, press OK to achieve this function.
Resolution
Image Quality
Date
Battery Status
Remaining Number
of Pictures
Zoom Bar
Flash
White Balance
* The icons can be removed from the display by pressing
the display button once.
Metering
ISO (100/200)
Capture Mode
EV
Continuous
Shot
Vibration
Scene
Page 16
13
• FLASH Setting
1.To set the Flash, press the Five-Way Switch to the Left to select the
desired Flash setting. You will have the four types of Flash settings:
Flash Off, Auto Red-eye reduction, Flash Force On, and Night. Once
you’ve set your Flash setting, proceed with your picture taking.
•Self Timer
To set the self timer under the capture mode, please press Five-Way
Switch to the Right button once to activate the self timer. You will have
ten seconds to get ready for your pose. The countdown number will be
displayed on the LCD as well followed by a beep sound.
• Shooting Continuously Setting
Pictures can be shoot in successive orders.
1. Keep pressing the right button twice until Shooting Continuously icon appears
on the LCD Display.
2. Keep pressing the shutter button to activate Shooting Continuously. Then
release the shutter after the three sequences have been taken.
Flash Off The Flash will not fire.
Auto Red-eye
reduction
The Flash will fire depending
on the light source. Red eye
reduction will also be active
when needed. (Flash will
blink twice, picture will be
shot when the second flash is
fired.)
Flash Force On The Flash always fire with
every shot.
Night (Slow) The camera extends the
mechanical shutter action,
and allow flash delay.
Page 17
E N
Five Main Camera Modes and Instructions 14
Capture Mode Setup
1. To enter/exit Capture Mode Setup, press the menu button.
2. Once you are in the Capture Mode Setup, you will be able to adjust the following settings.
3. To select each individual function settings, press the UP or DOWN arrow.
Function Selection Definition
Resolution Users can select from the
following resolution:
VGA
1.3M
2.0M
4.0M (Default)
5.5M
The size of the picture. The default size
is 4.0 M, but users
will have the option
of choosing VGA,
1.3 M, 2.0M, 4.0 M,
or 5.5 M
Image Quality Users can select from the
following quality:
Best (Default)
Better
Basic.
The quality of the
picture. The default
is Best.
Color Effect User can select from the
following color tones:
Normal (default)
Sepia
Black and white
It is the tone that will
be applied in the picture. The default is
Normal.
Metering
Users can select from the
following metering:
Center
Spot
Matrix (Default)
It calculates the best
overall exposure
value. The default is
Matrix.
Page 18
15
White Balance Users can select the fol-
lowing white balance:
Auto (Default)
Shade
Sun
Tungsten
Fluorescent
It adjusts the relative brightness under
different condition.
The default is Auto.
Sharpness
Users can select the following sharpness:
Normal (Default)
High
Low
Enhance of edge
detail. The default is
Normal.
EV Adjust Users can select the fol-
lowing EV adjust:
from EV+2.0~ toEV -2.0, in
EV 0.5 step increase
This function allows
users to control the
exposure value, to
either lighten or
darken images the
camera is trying to
focus. The default is
0.
Scene Users can select the fol-
lowing scene:
Auto (default)
night
portrait
sport
landscape
night portrait
This pre-defined settings make it even
more convient for
users to take pictures. Users will not
need to make any
further adjustment to
the camera. The
scenes are already
pre-defined.
ISO Users can select the fol-
lowing ISO setting:
100
200
Auto (Default)
It adjusts the sensitivity of the camera.
The higher the number, the more sensitive it is to light. The
default is Auto.
Page 19
E N
Five Main Camera Modes and Instructions 16

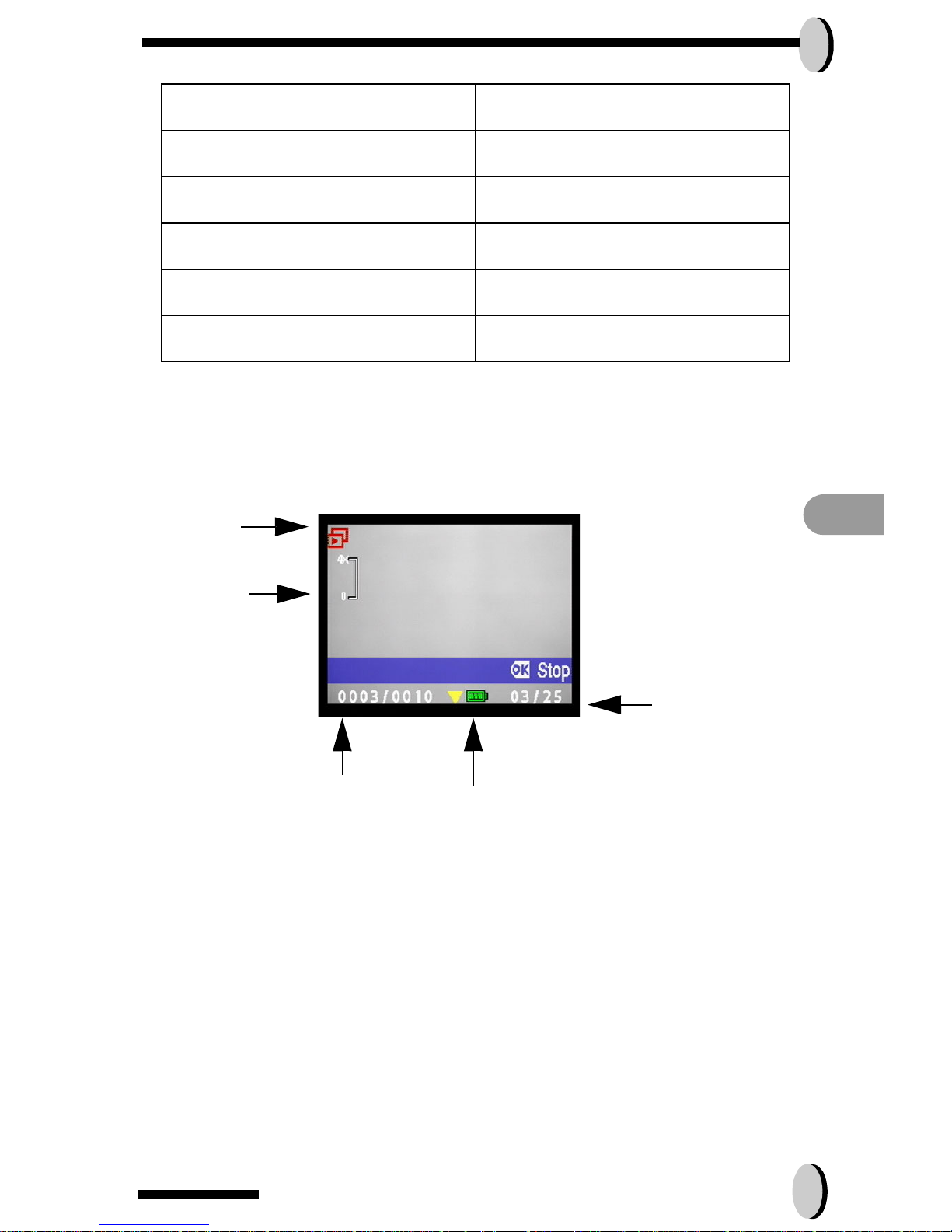

Playback Mode
This mode will allow you to replay/view your images or video. It can also
protect your desired images, set DPOF, slide show and voice memo.
Resolution (with 16 MB SD Card) Storage Mode
5.5M (S) 5 pictures
4.0M 11 pictures
2.0M 21 pictures
1.3M 25 pictures
VGA 105 pictures
Date
Battery Status
Remaining
Number of
Pictures
Playback
* The icon information can be removed by pressing the
** Thumbnail can be viewed after the display button twice.
display button once
Mode
Zoom Bar
Page 20
17

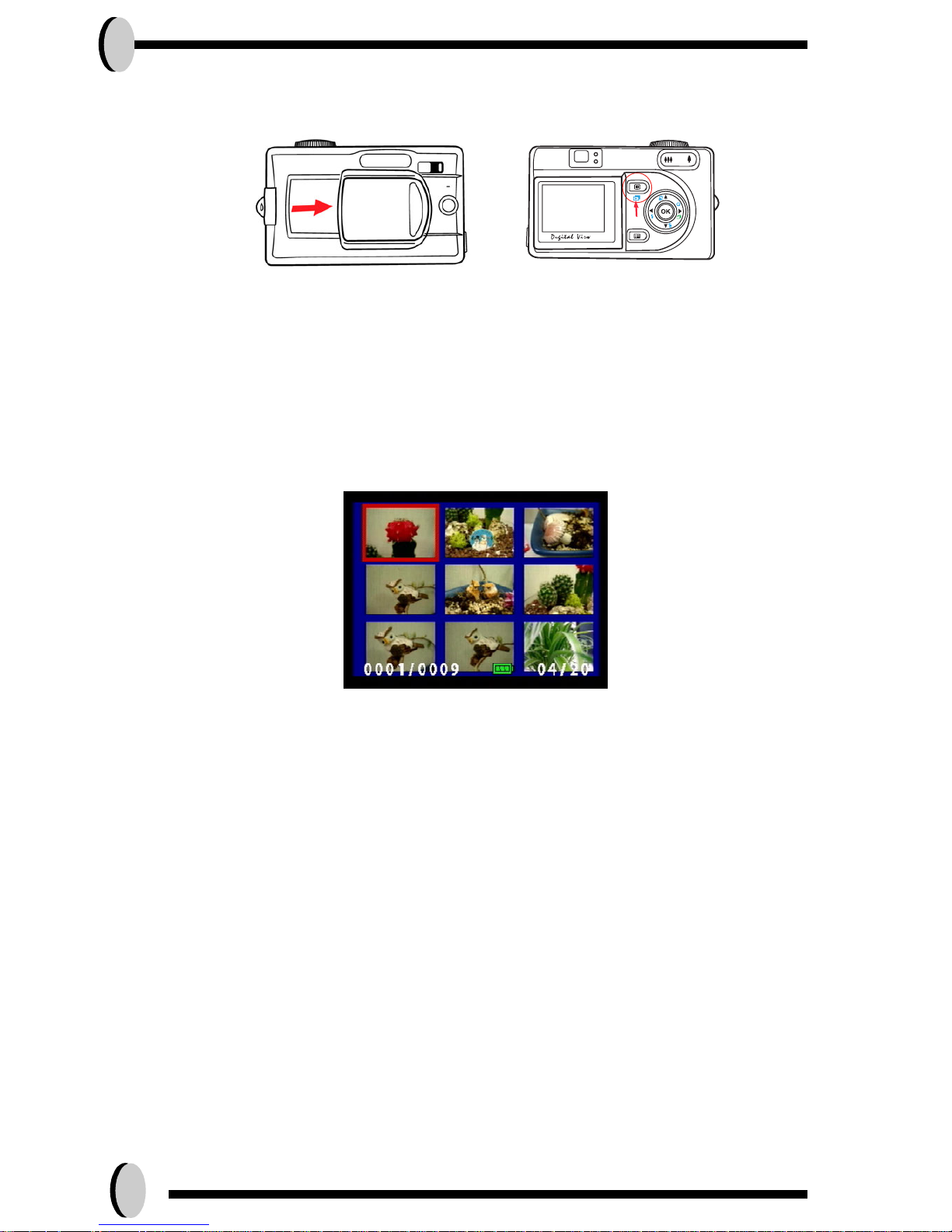

User can directly turn on playback mode while the sliding door remains
closed.
1. Press the LCD button for about 2 seconds to power on DSC (playback mode
only)
2. Use the 5 ways function & Zoom button to view the images that have been
taken.
3. Erase and protect function setting is available.
4. If there are no images in memory, LCD will display "No data in internal memory!", and format function will be the only function available to users.
5. Press the LCD button again to power off the DSC.
• Displaying Thumbnails
1. Turn the Mode Dial to Playback Mode.
2. Press the display button two times to thumbnails in sets of nine.
3. Use the Five-Way Switch to change the image selection.
4. Press OK button to magnify images to standard size.
5. Press the left or right button to view other images.
• Display with Digital Zoom
The camera has 4x digital zoom.The picture can be zoomed up to four
times the original size. The five-way switch controls left, right, up, and
down of the image. Press the OK button to quit Digital Zoom Display.
1. Turn the MODE DIAL to Playback Mode.
2. To enter/exit Playback Mode Setup, press the Menu button.
3. While you are in the Playback Mode menu setting, use the Five-Way Switch to
select.
Page 21
E N
Five Main Camera Modes and Instructions 18
Function Setting Selection Definition
Protect Picture Users can select the fol-
lowing:
unprotect current
(Default)
unprotect all
protect current
protect all
Protection setting for
your pictures against
accidental erasure. Once
you are set, press OK to
confirm.
Slide Show Users can select from:
From current (picture)Default
From first (picture)
From last (picture)
Pictures will be displayed
in an orderly way. While
you are in the Slide Show
setting, press OK to start/
exit slide show.
Erase Pictures Users can select from:
Current (Default)
All
Format
Erasing options for your
pictures. When formatting, a warning message
will appear. Press the OK
button to confirm. Format
will permanently remove
all data such as internal
memory/ SD card.
Digital Print Order
Format or DPOF
Users can select from:
Frame Set (Default)
Reset all
It is a standard for printing the pictures directly
from the SD card. Pictures can be printed on
printers compatible with
the DPOF standard.
frame set --> set for one
reset all --> set for all
Page 22
19
Macro Mode
Macro mode is best used for taking close-up images with franges from
15-50 cm.
Please refer back to Capture Mode section (page 12) for shooting
images, and continuous shooting.
Voice Memo You are allowed 20 sec-
onds to record voice
memo. Users can select
from:
Record (Default)
Erase
Play
1. Select the picture you
wish you add voice
memo.
2. Press menu button.
3. Choose Voice Memo.
4. Select record
4. Press the shutter to
start or end recording.
Resolution
Date
Battery Status
Remaining Number
of Pictures
Flash
White Balance
* The icons can be removed from the display by pressing
the display button once.
Metering
ISO (100/200)
Macro Mode
EV Adjust
Vibration
Continuous
Shot
Scene
Quality
Page 23
E N
Five Main Camera Modes and Instructions 20
DSC Setup Mode
Under this mode, you will be able to set your desired settings. There are a
total of nine different settings.
1. Turn the mode dial to enter the DSC Setup Mode.
2. Select the type of setup you want to perform by pushing the left or right button.
Press the UP or Down arrow to select the function setting.
3. Press “OK” to confirm.
Function Setting Selection Definition
Date and Time Users can select to set:
Date: yy/mm/dd
Time: hh/mm (AM/PM)
Reset date and time
when change battery.
Auto Power Off Users can select the fol-
lowing minutes to Auto
Power Off the camera.
5min
3min
1min
never
This setting automatically
turns off the camera.
(Prior to shutting off, the
LCD will shut itself automatically)
DPOF Users can select the
number of copies of
images they want to
print, and whether turn
the date and the no. of
files on or off in the picture.
It is a standard for printing the pictures directly
from the SD card. Pictures can be printed on
printers compatible with
the SD card. Users can
set certain pictures to
DPOF.
S
ound
Eff
ect
TV-out
Slide Show Order
Date and Time
Restoring
Auto Power Off
Language
DPOF
LCD Brightness
Page 24
21
Slide Show Order Users can select the:
Interval
Repeat
Direction
Under this setting, users
can set the number of
seconds they want the
slide show to proceed
per slide, repeat the
show or not, and the
direction where these
slides should proceed.
Sound Effect Users can select either
on or off
This function allows
users to turn the sound
ON or OFF.
Language Users can select from
the following languages:
Deutsch
English
French
Italian
Japanese
Korean
Spanish
Simplified Chinese
Traditional Chinese
There are a total of nine
languages you can
choose to navigate this
camera. Camera will
keep your language setting but users will need to
reset when change battery. Press the Up or
Down button to select.
Press OK to confirm.
TV-Out Users can select from:
NTSC
PAL
Depending on where
your location, different
region requires different
system for TV-out function. Connect Video
cable for TV out. Press
the Up or Down button to
select. Press OK to confirm.
Page 25
E N
Five Main Camera Modes and Instructions 22
Restoring Reset back to default. To revert the setting back
to the default setting.
Press the OK if you want
to, if not, press the “right”
or “left” button to continue next setting. When
restoring is completed,
"done" will appear on the
LCD.
LCD Brightness Users can select the
brightness of the LCD
Depending on the angle
users hold the camera,
the LCD might need
adjustment in terms of
brightness. Users can
select by pressing the up
or down button to select
the desired brightness.
Page 26
E N
23
Making Connections
In this section you will be able to connect the camera to your PC to download or edit photos.
Installing software
1. Insert the CD-ROM into your CD-ROM drive.
2. Click “Digital Camera Driver” and Install if your operating system is Windows
98. Users can pick 2 selections and press Install. Driver is for uploading pictures to you computer, if the operation system is Win 98
3. The installation wizard will guide you through the installation.
4. You will be able to use the application once it’s installed.
Caution:
1. If you didn’t install the driver before plugging in the
USB device. System will detect new device. Please
insert the CD-ROM and complete the driver installation.
Page 27
Making Connections 24
Connecting through the mini USB
This section will show you how to download images from camera to PC
through mini USB cable. While the station is connected through an USB
port, it will download pictures and video clips from the camera to the PC.
A. Editing with ArcSoft
1. Turn the computer ON.
2. Connect the camera and the computer with the USB port cable.
3. Turn the camera ON.
4. Launch Photo Impression (the inclusive software which you have downloaded
from the CD-ROM.)
5. Select "from folder", you can find your camera as a new disk to upload your
images to edit.
6. Shortly follow the prompts and you will start downloading your pictures to the
computer..
B. Accessing images through your PC
1. This camera allows users to move the images or movies from camera to PC by
MSDC support.
2. When the camera is connected to your PC, there will be an external storage
under “My computer” named “ 400_CAMERA ”.
3. Simply click the folder named “400_CAMERA”, you can find your images or
movies under "DCIM" folder.
4. Copy or remove these files from the camera to your PC. You can edit these
images accordingly.
NOTE:
1. Once the pictures are downloaded into the computer, they will be available in three different format:
JPEG, WAV, and HTML. The recommended format
for users (desiring to include their recorded voice
memo in their selected pictures) is HTML.
Page 28
E N
25
Connecting with the DSC
Before you proceed, please determine your corresponding TV-Out mode.
This camera will assist you in achieving full camera functions through the
TV-out connection. User can operate each function through the TV monitor instead of the LCD display.
1. Connect with DSC
2. Connect the other end of the video cable into the TV’s video-in jack.
3. Turn the camera ON, you should then be able to operate the camera with TV
screen. (The LCD will turn off while connected to TV-out)
Page 29
Appendix 26
APPENDIX
Specifications
Features Content
Effective pixels 4.0M sensor, scale up to 5.5M
Removable storage
card
SD/MMC
Internal memory 16MB NAND Flash Memory
Estimated number of
storable pictures
Compression ratio@ 1:8 16MB SD CARD
5.5M: 5 pictures
4.0M: 11 pictures
2.0M: 21 pictures
1.3M: 25 pictures
VGA: 105 pictures
Video mode display QVGA @15~20fps
Lens 3X Optical Zoom Lens, F2.8-4.9
Focus/ Shooting distance
Macro: 15~50 cm
Normal: 50cm~ infinity
Digital zoom 4x digital zoom
View finder Real image viewfinder
Flash mode Flash Off/Auto Red Eye Reduction/ Flash
Force On/ Night
Page 30
E N
27
LCD monitor 1.6" TFT LCD, 80,000 pixel and above
Camera Interface Mini USB/DC-in
Multiple language UI English/French/German/Italian/Spanish/
Japanese/Traditional and Simplified Chinese/ Korean
Compatible Battery Li-ion battery (3.7V 840mAh)
Battery Level High/ Middle/ Low/ Empty
AC Adapter
(optional)
5 V 2A
Dimension (WxHxD) 97 x 58 x 31 (mm)
Weight 196 (g) without battery
System requirements
Windows Win98,WinME,Win2000,WinXP
Macintosh Mac 9.1 and above
Loading...
