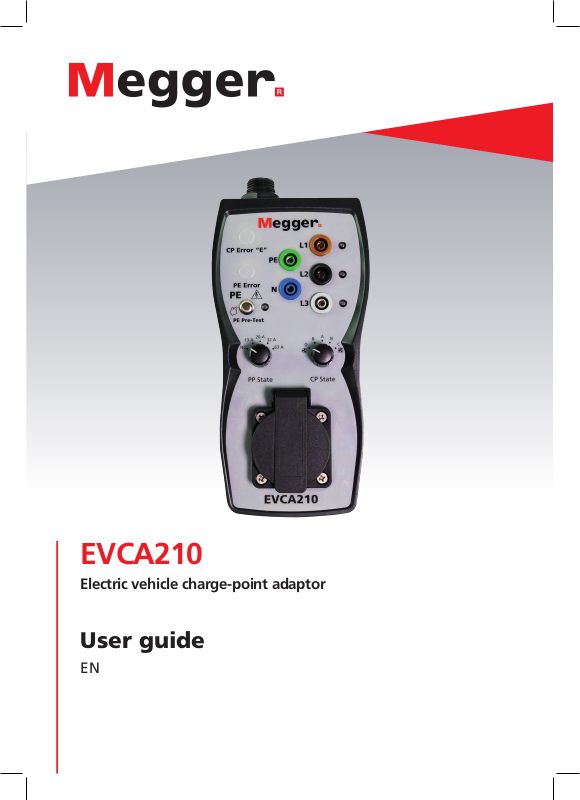

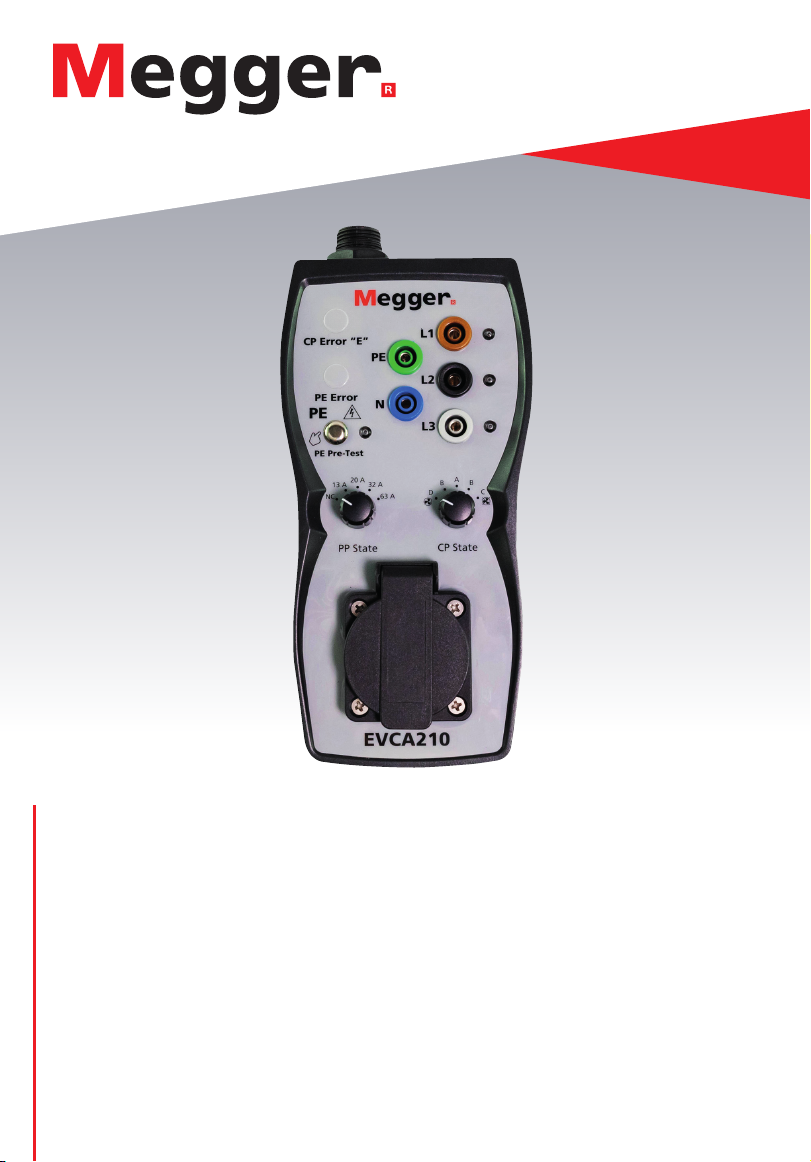

EVCA210
Electric vehicle charge-point adaptor
User guide
EN
English
This document is copyright of:
Megger Limited, Archcliffe Road, Dover, Kent CT17 9EN. ENGLAND
T +44 (0)1304 502101 F +44 (0)1304 207342 www.megger.com
Megger Ltd reserves the right to alter the specification of its products from time to time without
notice. Although every effort is made to ensure the accuracy of the information contained within
this document it is not warranted or represented by Megger Ltd. to be a complete and up - to date description.
For Patent information about this instrument refer to the following web site:
megger.com/patents
2
EVCA210
www.megger.com
This manual supersedes all previous issues of this manual. Please ensure that you are using the
most recent issue of this document. Destroy any copies that are of an older issue.
Declaration of Conformity
Hereby, Megger Instruments Limited declares that radio equipment manufactured by Megger
Instruments Limited described in this user guide is in compliance with Directive 2014/53/EU.
Other equipment manufactured by Megger Instruments Limited described in this user guide is in
compliance with Directives 2014/30/EU and 2014/35/EU where they apply.
The full text of Megger Instruments EU declarations of conformity are available at the following
internet address
megger.com/company/about-us/eu-dofc
www.megger.com
EVCA210
3
Introduction
1. Introduction
Thank you for purchasing the Megger EVCA210 (Electric Vehicle Charge-point Adaptor).
For your own safety and to get the maximum benefit from your instrument, please ensure that you
read and understand the following safety warnings and instructions before using the instrument.
This user guide describes the operation and functions of the EVCA210 Electric Vehicle Chargepoint Adaptor:
Megger Limited reserves the right to change the specification of these instruments at any time
without notice.
Megger reserves the right to improve the content of this User Guide from time to time without
notice. Megger reserves and retains the intellectual property rights of the content including the
design, text, graphics, and logos in this User Guide. Any partial or complete reproduction or usage
of the content is strictly prohibited. For the latest version of this User Guide visit: www.megger.com
To register this instrument go to: uk.megger.com/support-pages/register
4
EVCA210
www.megger.com
Safety Warnings
2. Safety Warnings
G
Safety Warnings and Precautions must be read and understood before the instrument is
used. They must be observed during use.
THE INSTRUMENT MUST BE USED ONLY BY SUITABLY TRAINED AND COMPETENT
PERSONS.
National Health and Safety Legislation requires users of this equipment and/or their
employers to carry out valid risk assessments of all electrical work so as to identify potential
sources of electrical danger and risk of electrical injury, such as inadvertent short circuits, so
that safe working procedures can be followed.
This instrument is internally protected against electrical damage when used for the purposes
of testing electric vehicle charging points as defined herein. If used in a manner other than
those defined in this user guide the protection capabilities could be impaired with potential
risk to the operator and the instrument.
Circuit connections and exposed-conductive-parts and other metalwork of an installation or
equipment under test must not be touched during testing.
The live phase indicators are an additional safety feature which may fail; therefore safe
working practices must be observed.
Check that all test leads and plugs are in good order, clean and with no broken or cracked
insulation before use.
The instrument, leads and plugs should not be used if any part is damaged.
All test leads supplied with the instrument form part of the measuring circuit of the
instrument. They must not be modified or changed in any way, or be used with any other
electrical instrument or appliance.

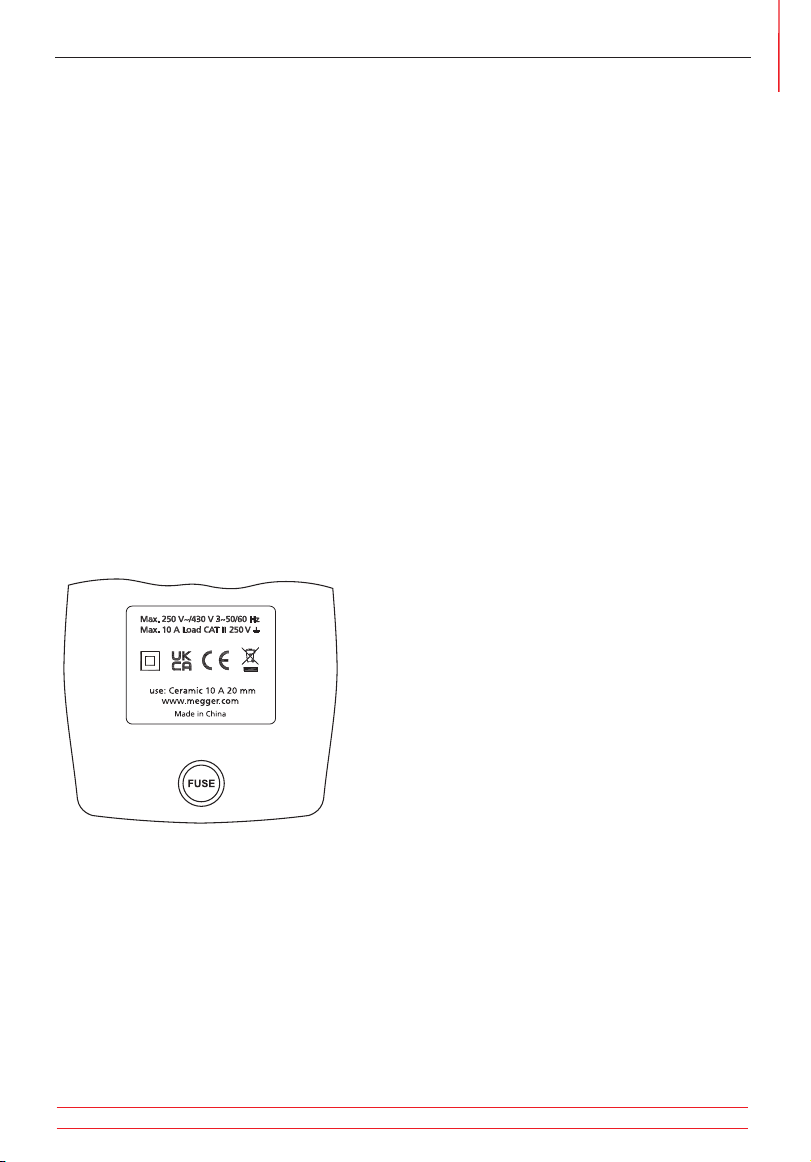

Replacement fuses must be of the correct type and rating. Failure to fit the correctly rated
fuse may result in a safety hazard and may cause damage to the instrument in the event of
an overload.

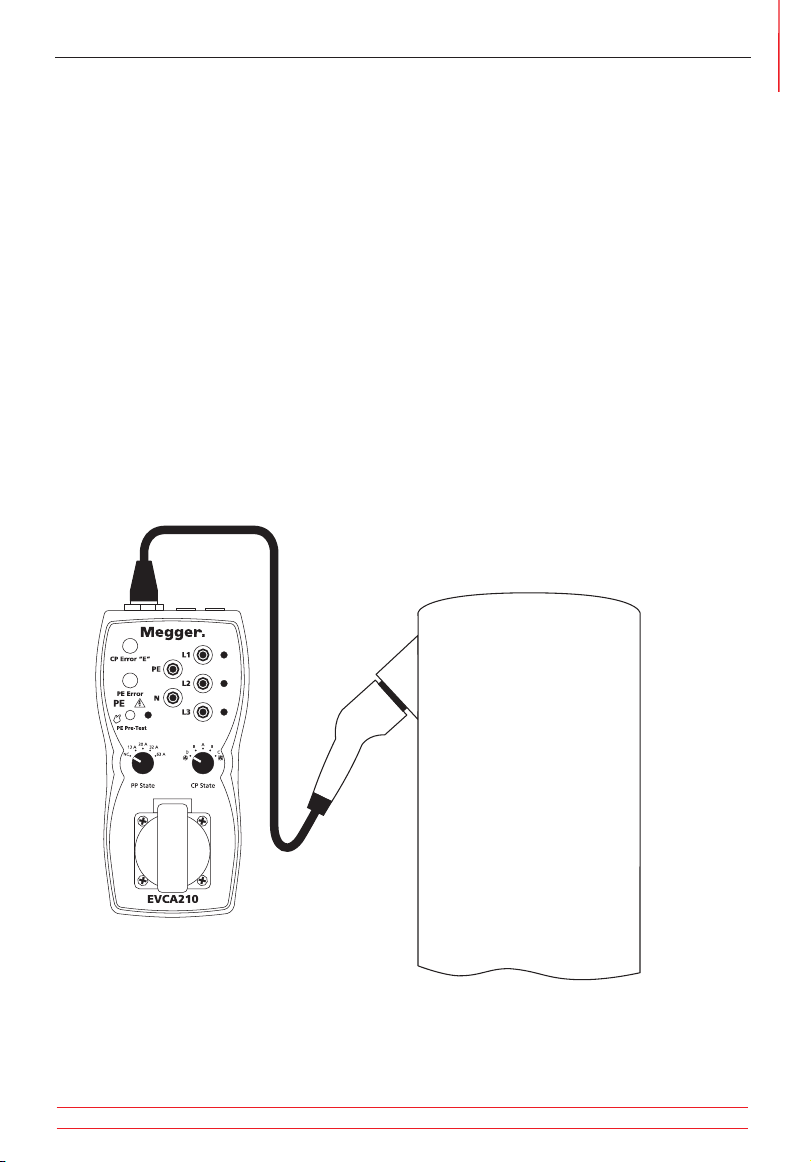

If no voltage is present between the L and N of the terminals or between the L and N of the
front mains plug socket when the EVCA210 is connected to the charging point, using the
appropriate charging plug and the charging point is in charging mode, this may be because
the EVCA210 internal fuse has blown.
In the event of no neutral (N) connection, the phase indicator LED’s will not light but phases
may still be live.

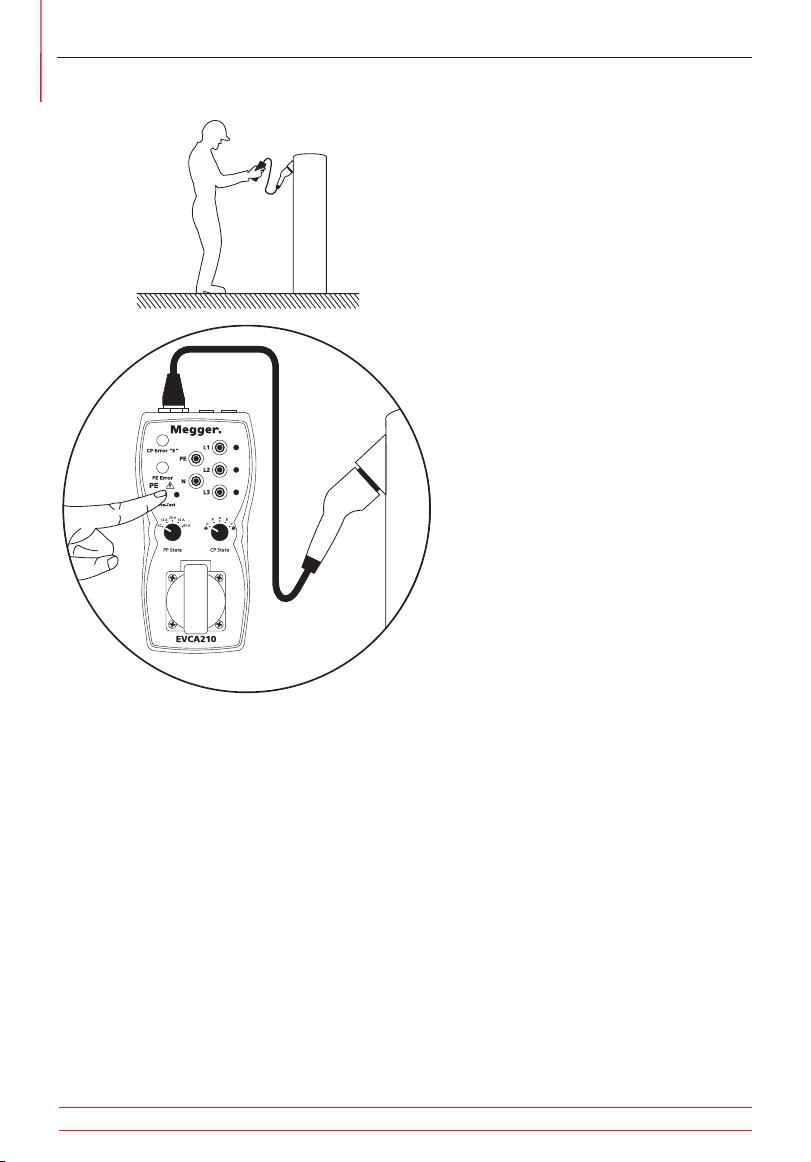

The PE Pre-Test must be carried out prior to any other testing. If this test fails, further testing
must cease, and fault must be investigated and rectified before continuing as there may be
a potently high voltage present within the charging point and on the output terminals and
therefore a high risk of electric shock to the operator and other persons nearby.
Take precautions to ensure that terminals will not be short circuited.
Connect only suitably rated leads and test equipment to the adapter.
DO NOT leave this adapter connected to the socket when testing is complete
www.megger.com EVCA210
5
General Description
Installation category definitions
CAT IV Measurement category IV: Equipment connected between the origin of the low-voltage
mains supply outside the building and the consumer unit.
CAT III Measurement category III: Equipment connected between the consumer unit and the
electrical outlets.
CAT II Measurement category II: Equipment connected between the electrical outlets and the
user’s equipment.
Symbols used on the instrument
F
G
t
c
g
Caution: risk of electric shock
Caution: risk of danger – consult the user instructions
Equipment protected throughout by Double Insulation (Class II)
Equipment complies with relevant EU Directives
Do not dispose of in the normal waste stream
Earth (ground)

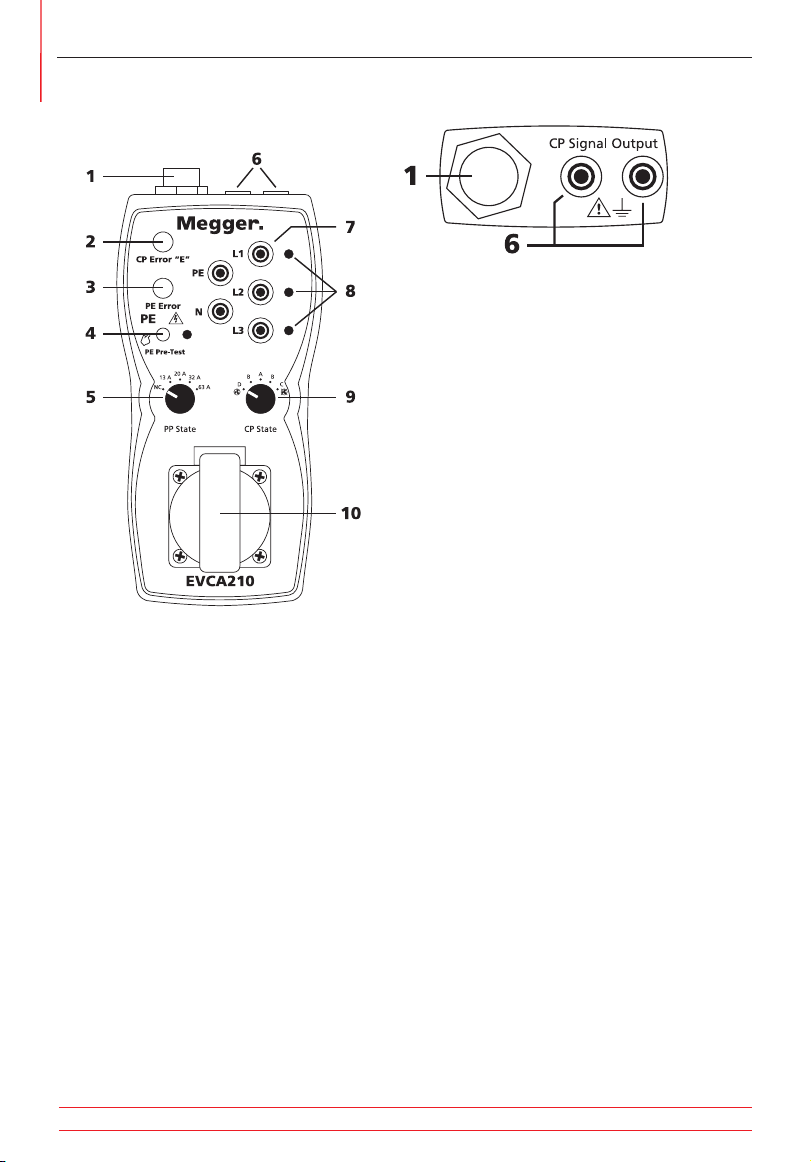

3. General Description
Type 1 Plug Type 2 Plug
Case contents
1 x EVCA210 Electric Vehicle Charge-point Adaptor
1 x 32 A Type 2 EV charging plug
1 x 32 A Type 1 EV charging plug (EVCA210-UK Only)
Zip-up carry case
Quick start guide

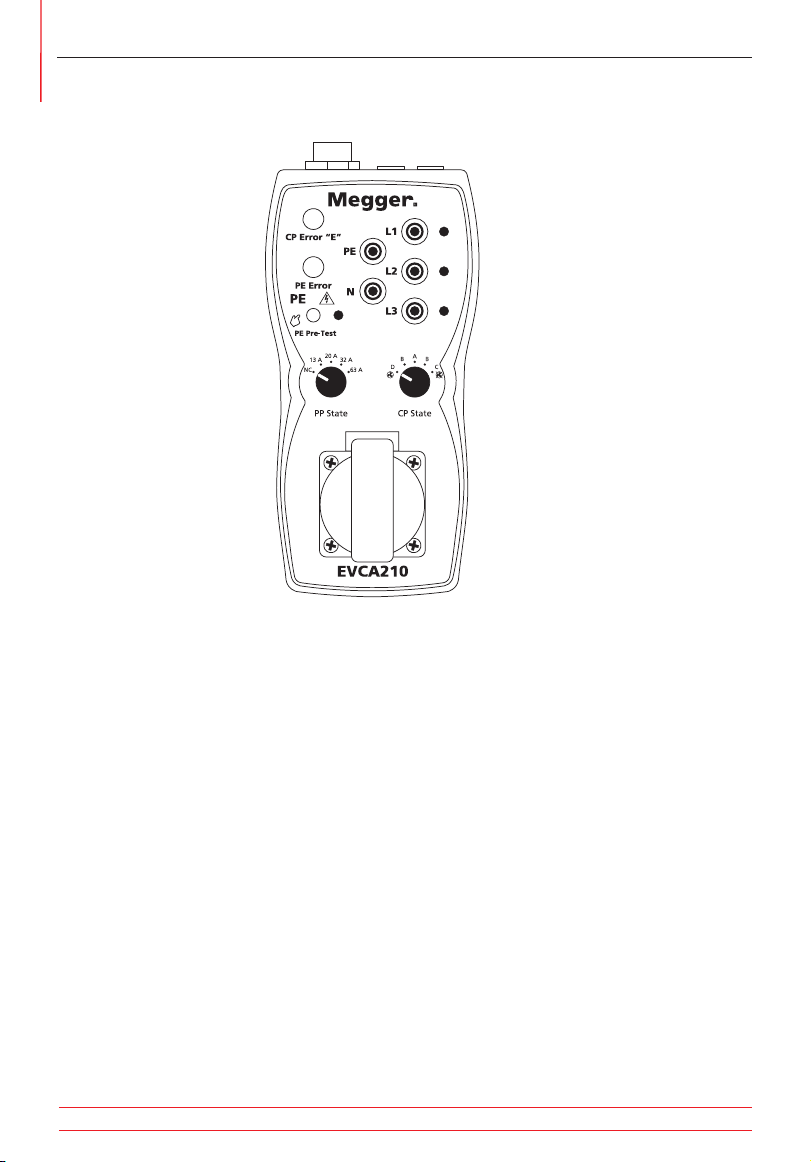

The Electric Vehicle Charge-point Adaptor, EVCA210, is a
compact and portable unit, designed to allow the electrical
contractor to test the function and safety of AC Mode
3 Electric Vehicle charge points and has been specifically
designed to allow testing of charging points in accordance
with the IEC/EN 61851-1 and IEC/HD 60364-7-722 standards,
in combination with suitable test instruments.
EV Type 1
Charging Plug
(EVCA210-UK only)
EVCA210
6
EV Type 2
Charging Plug
www.megger.com
