1 Introduction

Features

 Megawin proprietary OCD (On-Chip-Debug) technology  On-chip & in-system real-time debugging  Two-pin dedicated serial interface for OCD, no target resource occupied  Directly linked to the debugger function of the Keil 8051 IDE Software  USB connection between target and host (PC)  Helpful debug actions: Reset, Run, Stop, Step and Run to Cursor  Programmable breakpoints, up to 4 breakpoints can be inserted simultaneously  Several debug-helpful windows: Register/Disassembly/Watch/Memory Windows  Source-level (Assembly or C-language) debugging capability

Description

The all new “Megawin 8051 OCD ICE” is a powerful development tool for 8051 embedded system. By adopting the Megawin proprietary OCD (On-Chip-Debug) technology, this ICE provides on-chip and in-system real-time debugging. The user has no need to prepare any development board during developing, or the socket adapter used in the traditional ICE probe. All the thing the user needs to do is to reserve a 6-pin connector for the dedicated OCD interface: VCC, OCD_SDA, OCD_SCL, RST,CLK and GND.

In addition, the most useful feature is that it can directly connect the user’s target system to the Keil 8051 IDE software for debugging, which directly utilizes the Keil IDE’s dScope-Debugger function. Of course, all the advantages are based on your using Keil 8051 IDE software.

Note: “Keil” is the trade mark of “Keil Elektronik GmbH and Keil Software, Inc.”, and “Keil 8051 IDE software” is the most popular C51 compiler for 8051 embedded system development.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

2 Hardware Setup

For debugging, the user should connect the target system to a PC via the ICE adapter, as shown below. The ICE adapter is a bus-powered USB device, and therefore there is no need of a power adapter for it.

Hardware Connection Diagram

Note: Refer to Section 6.5 for more information.

OCD ICE Interface Pin Number

Part No.

Package

OCD_SCL

OCD_SDA

RST

CLK

MPC82G516

40-pin DIP

29

30

N/A

44-pin PLCC

32

33

N/A

44-pin QFP

26

27

N/A

MG82FL(E)532/564

44-pin QFP

26

29 4 5

48-pin LQFP

28

32 5 6

MG84FG516

48-pin LQFP

26

27

25

N/A

64-pin LQFP

34

35

33

N/A

MG82FG5A32/5A64

48-pin LQFP

26

27

25

N/A

64-pin LQFP

34

35

33

N/A

MG82FG5Bxx

28-pin SOP

27

28

26

N/A

32-pin LQFP

18

19

17

N/A

MG82FG5Cxx

48-pin LQFP

26

27

25

N/A

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

64-pin LQFP

34

35

33

N/A

MG82FG5Dxx

16-pin SOP

15

16

14

N/A

20-pin SSOP

19

20

18

N/A

**N/A : No need to connect

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

3 Software Setup

This section tell the user how to do software setup before using the OCD ICE.

3.1 Install the USB Device Driver for the ICE Adapter

The user just needs to plug the ICE adapter into any USB port in a PC. There is no need to install any device driver for the ICE adapter.

3.2 Install the Megawin 8051 Database in the Keil 8051 IDE Software

Activate the “Setup.exe” in the folder [Database Installer] to open the Database Installer Application Program to install the Megawin Database into the Keil 8051 IDE software. Of course, you should have installed the Keil 8051 IDE software, either μVision2 or μVision3, in your PC previously.

After opening the Database Installer, please follow the steps shown in the following GUI figure. Step1) Click the Browse button to specify where the Keil software has been installed.

(Normally, when you install the Keil 8051 IDE software, the default install-path is "C:\KEIL".) Step2) Click the Install button to start installing the Megawin Database into the Keil software.

GUI of the Database Installer

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

4 Keil IDE Setup

Before using the dScope-Debugger function of the Keil IDE, the user should do some proper settings in the Keil IDE. First, open the μVision project you would like to debug. Then, move cursor to “Target-..” and click the mouse’s right button to invoke the “Options for Target”, as shown below.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

4.1 Options- Device

Select the “Megawin Device Database” and the target part number.

4.2 Options- Target

Enable the “Use on-chip ROM” and the “Use on-chip XRAM”.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

4.3 Options- Output

Enable the “Debug Information”. It is necessary for creating an absolute OMF file for source-level debugging.

4.4 Options- C51

Disable the code optimization by selecting “Level 0: Constant folding”. Refer to Section 6.3 for more information about this setting. Note: This setting is optional.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

4.5 Options- Debug

Select the “Megawin On-Chip-Debug Driver”.

And, enable the “Load Application at Startup” and all the Cache Options.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

4.6 Options- Utilities

Always disable the “Update Target before Debugging”. It is because we have enabled the “Load Application at Startup” shown in Section 4.5. And, leave the ”Use Target Driver for Flash Programming” don’t-cared.

Note: μVision2 doesn’t have this selection item.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5 Start Debugging

After the tasks described in Sections 2, 3 and 4 have been done, you can start debugging your μVision project.

5.1 Activate the dScope-Debugger Function

After building the project (suppose no error), you can enter the Keil IDE’s debugger mode by clicking the dScope button, as shown below. Now, the project code will be automatically downloaded into the target’s Flash. It will take some time.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2 Introduction to the Debugger Environment

There are four basic windows regarding the debugging operation in the debugger environment. They are Register Window, Disassembly Window, Watch Window and Memory Window, as described below.

Register Window This window shows the contents of the current register bank (R0~R7), the system registers (A, B, SP, DTPR and

the Program Counter) and the Program Status Word (PSW). The register with blue background means its content is just changed due to the instruction just executed.

Disassembly Window This window is the default window opened just when the debugger mode is entered. It shows the source-level

code followed by its corresponding assembly code. Watch Window

This window automatically shows the local variables when Locals is clicked. The local variables are the variables declared within a function including the main() function. To view the global variables, click Watch #1 or Watch #2 and type <F2> key to edit and enter the variable name. The variable with blue background means its content is just changed due to the instruction just executed.

Memory Window This window shows the contents of the memory located at the data/idata/xdata/code memory space. The

available commands are: d:0x00~d:0xFF, i:0x00~i:0xFF, x:0x0000~x:0xFFFF and c:0x0000~c:0xFFFF. The user can view any of the four memory by entering the corresponding command.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2.1 Reset/Run/Halt/Step/Run-to-Cursor

Reset, Run, Halt (Stop), Step and Run-to-Cursor are the basic debug actions. The user can easily invoke any of these actions by clicking the short-cut buttons in the debugger GUI, as shown below.

5.2.2 Source-Level Debugging

To do the source-level debugging, open the source file by clicking Files to open the Project Workspace and select the source files you want. Click Regs again to return to Register Window, as shown below.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2.3 Breakpoint Setting

There are total four breakpoints available for debugging. Up to four breakpoints can be inserted simultaneously. Insert/Remove a Breakpoint

Move the cursor to the front of the line and click the right key, then click “Insert/Remove Breakpoint” for toggling between Insert and Remove, as shown below.

Enable/Disable a Breakpoint Move the cursor to the front of the line and click the right key, then click “Enable/Disable Breakpoint” for

toggling between Enable and Disable. Of course, this line should have been inserted a breakpoint previously.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2.4 View/Edit the Contents of Peripherals’ SFRs

There are many peripheral SFRs that don’t belong to the registers shown in the Register Window. To view or edit these registers, select the Peripherals item on the main menu. A pulled-down sub-menu will be displayed, and the user can select a peripheral to view or edit its corresponding SFRs, as shown below.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2.5 View- Disassembly Window

Disassembly Window displays source-level code followed by its corresponding assembly. To open this window, select the View item on the main menu. A pulled-down sub-menu will be displayed, and then select Disassembly Window, as shown below.

Maximize the Disassembly Window for detailed description:

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2.6 View- Watch Window

The Watch Window helps the user to check either local variables or global variables, as shown below.

To check the global variables, click Watch #1 or #2, then type <F2> key to enter the variable name.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

5.2.7 View- Memory Window

To open this window, select the View item on the main menu. A pulled-down sub-menu will be displayed, and then select Memory Window, as shown below. The available commands are:

(1) d:0x00~d:0xFF, for ‘data’ type (2) i:0x00~i:0xFF, for ‘idata’ type (3) x:0x0000~x:0xFFFF, for ‘xdata’ type (4) c:0x0000~c:0xFFFF., for ‘code’ type

The user can view any of the four memory by entering the corresponding command. Refer to Section 6.2 for how to display ‘xdata’ type variables.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

6 Tools, Megawin ICP

6.1 About ICP

ICP is the acronym of In-Circuit Programming. Users can update the application code under the software control without removing the mounted MCU chip from the actual end product. In addition, because the programming data to be programmed to the target can be saved in the ICE adapter’s non-volatile storage, this stand-alone programmer is able to work without host(PC) intervention. This feature is especially useful in the field without a PC.

6.2 Use ICP

Here are the two ways of opening ICP application:

1. Execute “ICPProgrammer.exe” under “\C51\INC\Megawin\” of Keil’s Install folder.

2. Click “Tools\Megawin ICP” from Keil’s Menu bar. Attention: To program ICP application correctly by means 2, users have to open Project and Build first.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

6.2.1 Update Programmer

Step 1: Choose a “MCU Part No.” If users open ICP application by clicking Menu, Step 1 can be omitted. ICP application will choose MCU Part No.

by Project automatically.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

Step 2: Click “Load File” and choose loading AP(Code) or IAP(Data). “Load File” can be clicked repeatedly to load different files. While loading IAP(Data), users have to key in Address. HEX and BIN data formats are supported for file loading.

If users open ICP application by clicking Menu, Step 2 can be omitted. ICP application will load Target file automatically.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

Step 3: Click “Insert ISP-Code” may choose to insert Megawin-provided ISP code or User-defined ISP code. If ISP function is not needed, Step 3 can be omitted.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

Step 4：H/W Option Setting

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

Step 5: Click “Update Programmer” to download programming data to the ICE adapter. “Update Programmer” function can be chosen only when connecting an ICE adapter (Only support TH065C or

later versions).

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

6.2.2 Update Target

How to update the target? Users may

1. click “Update Target” to program on-line update, referring to steps 1 through 4 of 6.2.1 Update Programmer, or

2. click “Downloading” of ICE adapter to program off-line update, referring to 6.2.1 Update Programmer.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

7 Special Notes

7.1 Register Definition Files

Register definition files REG_MPC82G516.INC and REG_MPC82G516.H define all Special Function Registers (SFRs) and bit-addressable control/status bits. They are installed into the default search path used by the Keil 8051 IDE software when you do the Software Setup (described in Section 2). Therefore, when using the Keil 8051 tools, you can include them by $INCLUDE (REG_MPC82G516.INC) and #include <REG_MPC82G516.H>. It is not necessary to copy a register definition file to each project’s file directory.

7.2 On-chip XRAM and External Data Memory

Megawin 8051 devices provide on-chip XRAM (eXpanded RAM), which is accessed with the same instructions as the traditional external data memory. The size of on-chip XRAM in MPC82G516 is 1024 bytes with addresses 0x0000 to 0x03FF. That is, the address space of on-chip XRAM overlaps that of the external data memory. So, there must be a control bit used to distinguish these two physical memories during access. The ERAM bit (bit-1 in register AUXR) plays this role. Because the C51 Compiler won’t take care which physical memory the user wants

to access, the user must manually clear this bit before accessing on-chip XRAM and set this bit before accessing external data memory. By default, this control bit is ‘0’ after powered on or chip reset for on-chip XRAM accessing.

The C51 Compiler offers two different memory types that access external data: xdata and pdata. (The xdata memory specifier refers to any location in the 64K-byte address space of external data memory. The pdata memory type specifier refers to only one page or 256 bytes of external data memory.) When the user want to view the variables declared by xdata or pdata directly in the Memory Window rather than in the Watch Window, he should select “Display xdata from on-chip XRAM” or “Display xdata from external RAM” under menu Peripherals- XRAM, as shown in the following figure.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

The following example code shows how to use both on-chip XRAM and external RAM in an application. To view G_array1[ ], select “Display xdata from on-chip XRAM”; and to view G_array2[ ], select “Display xdata from external RAM”.

Example of using both on-chip XRAM and external RAM

unsigned char xdata G_array1[512] _at_ 0x0000; // in 'xdata' space, will use on-chip XRAM unsigned char xdata G_array2[512] _at_ 0x0000; // in 'xdata' space, will use ext. RAM unsigned int i;

AUXR&=0xFD; //clear AUXR.1 for on-chip XRAM for (i=0; i<512; i++) G_array1[i]=0x5A; // fill XRAM with 0x5A

AUXR|=0x02; //set AUXR.1 for external RAM for (i=0; i<512; i++) G_array2[i]=0xA5; // fill ext. RAM with 0xA5

Note that there will be a linking warning listed below. However, it doesn’t matter because we intentionally declare G_array1 and G_array2 in the same address space. In fact, we access to the different physical memory controlled by bit-1 of AUXR.

7.3 Code Optimization and Source-Level Debugging

As shown in the following source code, the C51 compiler won’t generate any machine code for “L_var1=0x38;” because this statement becomes meaningless due to its following statement “L_var1=0xC7;”. For code optimization, “L_var1=0x38;” will be optimized out unless the code optimization is disabled as described in

Section 4.4.

unsigned char L_var1;

L_var1=0x38; // ! Note: this statement may be optimized out by the C51 compiler L_var1=0xC7;

So, during source-level debugging, L_var1 will never show 0x38 but may show a random number when this statement is just executed. In fact, there in no machine code for this statement. The user should pay attention to it!

Sometimes, for debugging purpose, the user may disable the compiler’s code optimization. Note that once the compiler’s code optimization is disabled, there may be some linking errors which won’t occur when the code optimization is enabled. For example, refer to the following linking error message, it means the variables you use exceed the RAM an MCU has. To make this error disappear, the only way is to enable the compiler’s code optimization to let the compiler make more efficient use of the RAM.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

7.4 “for-Loop” and Source-Level Debugging

The following two statements are fully the same for the 8051 CPU to execute them. During source-level debugging, there is no problem to apply Step action on Statement 1. However, it will take so much time if the user apply Step action on Statement 2. We think it is caused by unknown processing in the Keil debugger function. Before we getting the reply from Keil, we suggest using Statement 1 instead of Statement 2 in the source code if you want to do step-debugging in such statement. Another solution for Statement 2 is: move cursor to Line2 and click left key, then click Run-to-Cursor button to fly over Line 1.

Statement 1:

Line1: for (i=0; i<16; i++) { Line2: G_array1[i]=i+0x60; Line3: }

Statement 2:

Line1: for (i=0; i<16; i++) G_array1[i]=i+0x60; Line2: … Line3: …

7.5 Hardware Option Requirements During Debugging

There are two requirements regarding the hardware option in the dScope-Debugger mode: Requirement 1: The debugged chip must be in un-locked state It is because if the debugged chip is locked, the downloading of the user’s application code in the dScope-

Debugger mode will cause the chip to be whole-chip erased, and therefore all the chip’s hardware options will be disabled. Thus the debugged chip may not work well owing to losing its original hardware options. For example, for a locked chip with IAP-memory configured, after downloading the user’s application code when entering the dScope-Debugger mode, its IAP-memory will disappear (i.e., disabled). So, the chip cannot work well.

Requirement 2: The ISP function of the debugged chip must be disabled It is because if the ISP function is enabled, the debugged chip will always boot from the ISP-memory and run the

ISP-code when the chip receives the Reset command in the dScope-Debugger mode. It will cause a problem. That is, the code the MCU runs (i.e., the ISP-code) is different from the code of the opened Keil project (i.e., the user’s application code). So, during debugging, the user needs to disable the ISP function by having the hardware option HWBS disabled temporarily.

Note: After the application code is debugged completely, the user may use the “Megawin 8051 ICP Programmer” to restore the original hardware option.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

7.6 Error Message

There will be an error message “Error: Target DLL has been cancelled. Debugger aborted !” shown in following figure if:

(1) ICE adapter hardware fails, or (2) Target MCU doesn’t work (for example, not powered on), or (3) Cable error or improper connection between ICE adapter and the Target MCU.

Once the error message pops out, click “OK”. Then, check the above possible causes to solve the problem.

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

7.7 Properly Connect the ICE Adapter to a Host

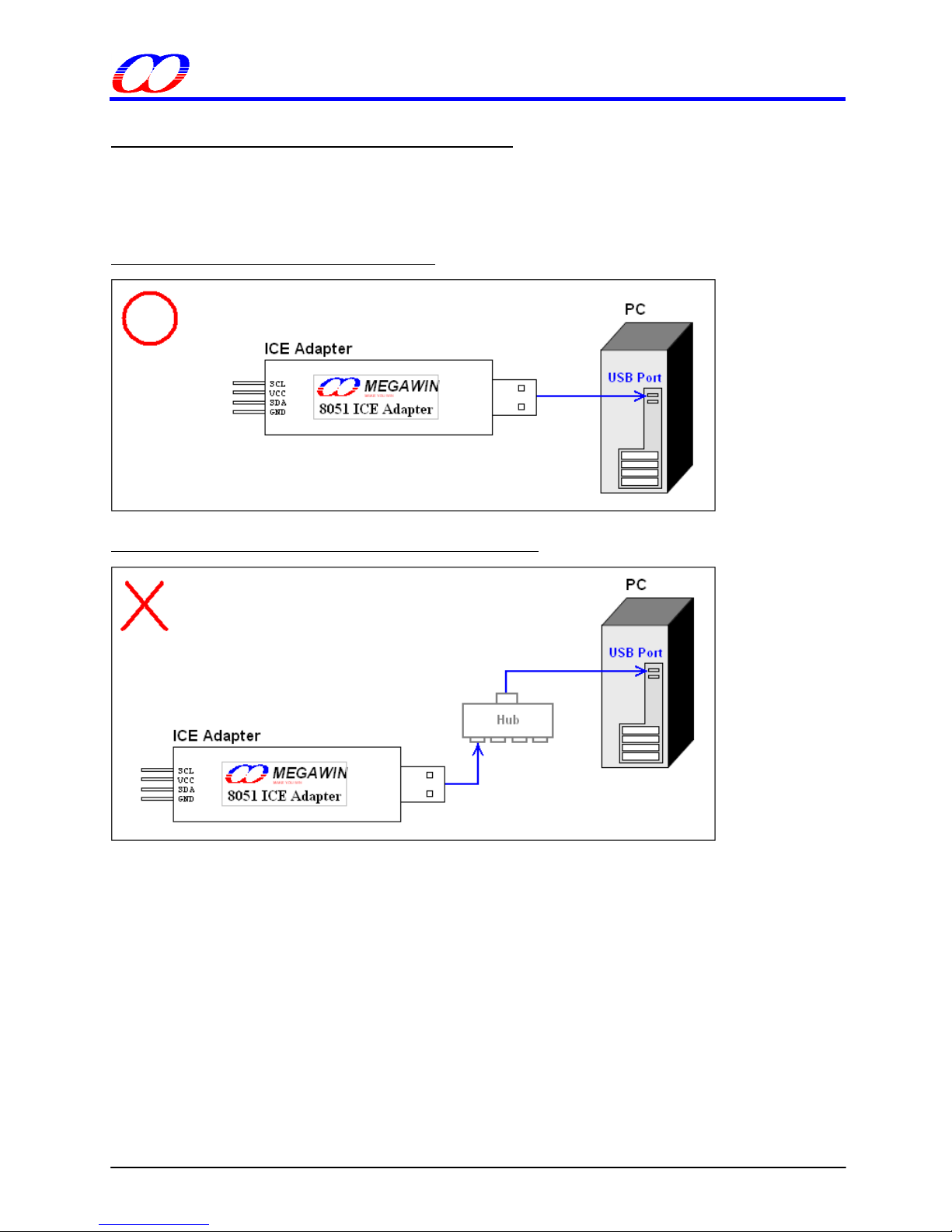

The data transfer rate of the ICE adapter will be slowed down severely if it is connected to a host via a USB2.0 hub. So, to speed up the downloading when clicking dScope button to enter the debugger mode, the user had better directly plug the ICE adapter into the host’s USB port, as shown in Figure 6.7.1. Don’t plug into a hub and then to the host, as shown in Figure 6.7.2.

Figure 6.7.1 Directly plug into the host’s USB port

Figure 6.7.2 Don’t plug into a hub and then to the host’s USB port

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

Revision History

Revision

Description

Date

v1.00

The first release for beta-site test.

2007/08/15

v1.01

Add notes when installation fails. (Section 3.2)

2007/08/24

v1.02

Change to manually specify the installation path of the Keil software. (Section 3.2)

2007/08/27

v2.00

Add the notification of default installation path of Keil 8051 IDE software. (Section 3.2)

2007/08/29

Update the Keil IDE Setup. (Section 4.4)

2007/10/08

Update the Special Notes. (Section 6)

2007/10/08

The formal released version.

2007/10/08

v2.10

(1) Improve the defect of breakpoint setting. (2) Fix the bug of wrong erasing range when downloading the application code.

2007/12/26

V2.20

(1) Update the data base for all series of MCU in Driver Installer. (2) Removed the function of detecting the ICE adapter when install Driver.

2009/02/27

V2.21

Change the folder name of Driver Install to Database install

2009/04/01

V2.30

(1) Supported MG82FL(E)532 and MG82FL(E)564 (2) Supported ICP function

2010/05/10

V2.31

Update “Database Installer “

2010/05/21

V2.32

Support uVision4

2010/06/02

V2.33

Update “IcpProgrammer.exe” in Database Installer

2010/08/25

V2.40

Supported MG84FG516

2011/05/02

V2.41

Update “IcpProgrammer.exe” in Database Installer

2011/06/01

V2.50

Support Off-Line Mode programming

2011/10/20

V2.51

Support H/W ver.TH065E to prevent to damage the MG84FG516

2012/04/01

V2.52

Fix the bug on ICP function for MG84FG516

2012/05/01

V2.53

Update “IcpProgrammer.exe” in Database Installer

2012/05/15

V2.54

(1) Supported “Maximum Counter” in Off-Line Mode programming (2) Supported “ Serial Number “ in Off-Line Mode programming (3) Improve the performance on Off-Line Mode programming.

2012/07/12

V2.55

Fix the bug on ICP function

2012/09/28

V2.56

Fix the bug on ICE function

2012/10/08

V2.60

(1) Supported “MPJ” file (2) Database support MG86FL(E)104 and MG86FL(E)508 (3) Supported MG82FG5A64 (4) Update “ warning message “ when OCD ICE in update processing

2012/12/10

V2.61

(1) Fix a bug for MG84FG516 at access P6M0 in debug mode (2) Update “ Megawin.dat “

2013/01/10

V2.62

Update “IcpProgrammer.exe” in Database Installer

2013/01/14

V2.63

Supported MG82FG5A32

2013/06/27

V2.64

Update the Hardware Setup. (Section 2)

2013/09/27

V2.70

(1) Supported MG82FG5B(32/16) (2) Supported MG20FL(E)809

2103/11/15

V2.71

Supported MG82FG5B(24/08)

2104/04/09

V2.72

Update H and INC files in H and INC folder

2014/05/15

V2.90

Supported MG82FG5C(64/32)

2015/04/15

MEGAWIN

MAKE YOU WIN

8051 OCD ICE

User Manual, v3.00

V2.91

Update “IcpProgrammer.exe” in Database Installer

2015/05/21

V2.92

Update “IcpProgrammer.exe” in Database Installer

2015/05/22

V2.93

Update “MegawinOCD.dll” in Database Installer

2015/08/24

V2.94

Update “MegawinOCD.dll” in Database Installer

2015/12/14

V2.95

Support “ Auto Reload Code “ in IcpProgrammer

2016/09/01

V2.96

Update “IcpProgrammer.exe” in Database Installer

2015/09/26

V3.00

Supported MG82FG5D(08/16)

2017/06/09

Megawin 8051 OCD ICE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
