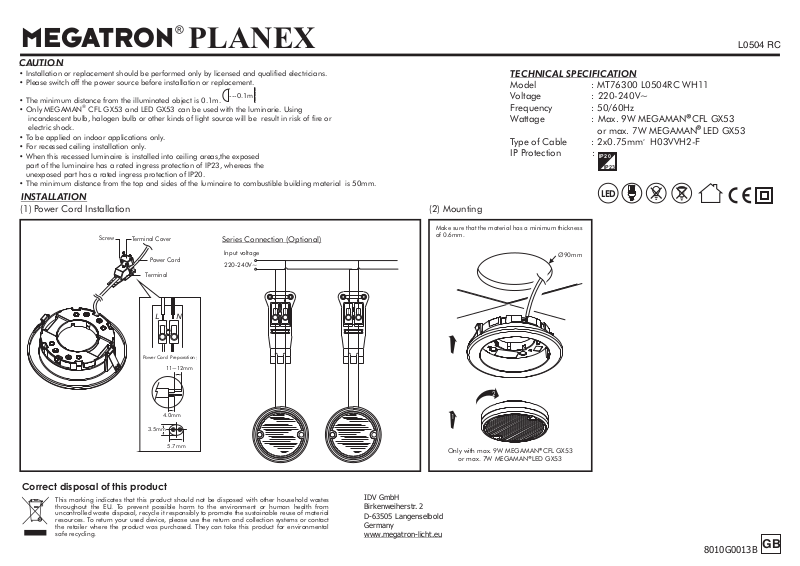

Megatron MT76300, L0504RC User guide

MEGATRON

PLANEX

CAUTION

• Installation or replacement should be performed only by licensed and qualified electricians.

• Please switch off the power source before installation or replacement.

---

The minimum distance from the illuminated object is 0.1m.

•
MEGAMAN

• Only CFL GX53 and LED GX53 can be used with the luminarie. Using

incandescent bulb, halogen bulb or other kinds of light source will be result in risk of fire or
electric shock.

• To be applied on indoor applications only.

• For recessed ceiling installation only.

•

When this recessed luminaire is installed into ceiling areas,the exposed
part of the luminaire has a rated ingress protection of IP23, whereas the
unexposed part has a rated ingress protection of IP20.

• The minimum distance from the top and sides of the luminaire to combustible building material is 50mm.

®

0.1m

INSTALLATION

(1) Power Cord Installation

Screw

Terminal Cover

Power Cord

Terminal

L

Series Connection (Optional)

Input voltage

220-240V~

N

TECHNICAL SPECIFICATION

Model : M 76300 L0504RC 1
Voltage : 220-240V~
Frequency : 50/60Hz
Wattage : Max. 9W MEGAMAN CFL
or max. 7W MEGAMAN LED GX53
Type of Cable : 2x0.75mm H03VVH2-F
IP Protection :

(2) Mounting

Make sure that the material has a minimum thickness
of 0.6mm.

Ø90mm

L0504 RC

T WH1

GX53

2

IP20

IP23

LED

Power Cord Preparation:

3.5mm

Correct disposal of this product

This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental
safe recycling.

11~12mm

4.0mm

5.7mm

IDV GmbH
Birkenweiherstr. 2
D-63505 Langenselbold
Germany
www.megatron-licht.eu

2

1

Only with max. 9W MEGAMAN CFL GX53

or max. 7W MEGAMAN LED 3GX5

8010G0013B

GB
