MEGASTEK MT-200 User Manual

Waterproof MINI Tracker

___________________________

User Manual

V1.0

MINI

Contents

1. Waterproof notices and disclaimers

·····················································

1

2. Products overview

···············································································

1

3. Specifications

······················································································

2

4. Overview

·····························································································

2

4.1. What is in the package

··································································

2

4.2. How to use the belt

··············································

错误！未定义书签。

4.3. View

······························································································

3

4.4. LED status, ports and buttons description

······································

3

4.5. Getting started

··············································································

4

5. Instruction and function applications

···················································

6

5.1 Change password

··········································································

6

5.2 Authorized number

········································································

6

5.3 Working mode

···············································································

7

5.4 Tracking by calling

·········································································

8

5.5 Real time tracking

·········································································

9

5.6 Uploaded regularly via GPRS

·························································

9

5.7 Reset remote

···············································································

10

5.8 Restore default

············································································

10

5.9 Tracking regularly via SMS

··························································

11

5.10 SMS format

·················································································

11

5.11 Set the time zone

········································································

12

5.12 SD card test

················································································

12

5.13 Over speed alarm

········································································

12

5.14 Geo-fence alarm

··········································································

13

5.15 Moving alarm

··············································································

13

5.16 Vibration alarm

············································································

13

5.17 Low battery alarm

·······································································

14

5.18 SOS emergency calling

································································

14

5.19 Belt-off alarm

······················································

错误！未定义书签。

6. Problems & solutions

·········································································

14

Attachment 1：SMS data format

····································································

15

User manual of tracker

-1-

1

1. Waterproof notices and disclaimers

Do not let the tracker stay in the water too long, taken out the tracker in time if it falls into
the water, and then siphoning off the water with a towel or paper towel.

The structural design of the our products fully comply with the requirements of waterproof
rating, in no event shall our company be liable for direct, indirect, special, incidental, or
consequential damages (including but not limited to economic loss, personal injury, and
loss of asset and property) arising out of use or inability or illegality to use the product or
documentation.

2. Products overview

Thanks for purchasing our product！

It is an industry waterproof, small, light tracker.

It is easy to take and specially designed for field staff, security guard, old man, Business
personnel and pet.

Build in U-blox GPS module, GPRS module and low power ARM processor.

Through GPS (Global Positioning System), tracker can get its position and send the position
data to your smart phone via map (Google Earth or Google Map). At the same time, it will
send the position data to the internet server by GPRS, so you can track the tracker’s
position.

Tracker has the following features and functions:

◆ Waterproof (waterproofing grade: IP67)

◆ AGPS position assisted

◆ SOS alarm (LBS position assisted)

◆ Two-way communication

◆ Monitoring mode

◆ Pet mode

◆ Long standby time mode

◆ SMS and GPRS (TCP/UDP) communication

User manual of tracker

-2-

2

◆ Support up to 5 authorized cell phone numbers

◆ Real time tracking

◆ SOS emergency calling

◆ Geo-fence alarm

◆ Over speed alarm

◆ Low battery alarm

◆ Vibration alarm

◆ Data Logger in no GSM signal area using Micro SD card (Max: 2GB)

3. Specifications

Items

Specification

Charging Voltage

DC 4.8-5.5V/500mA

Battery

Rechargeable，lithium-polymer battery 1800mAh battery 3.7V

Dimension

70mmx64mmx20mm

Weight

173g

Operating Temperature

-25°C to 60°C

GSM Module

Quad Band GSM 850/900/1800/1900MHz

GPS Chipset

Ublox-7Q

Memory

Micro SD card (Max: 2GB)

4. Overview

4.1. What is in the package

USB to serial cable

AC adapter

Car adapter (optional)

User manual of tracker

-3-

3

Screw driver

CD

4.2. View

Front View

Side View

Back View

4.3. LED status, ports and buttons description

Power LED

GSM LED

GPS LED

SOS button

CALL button

Soft switch button

Speaker

Charging port

User manual of tracker

-4-

4

Blue LED — GSM LED

Blue LED flashing 0.5s on & 0.5s off

Initializing

Blue LED flashing 1s on & 3s off

Registered to GSM network

Red /Yellow LED — Power LED

The red LED is always on

Charging

The red LED turn Yellow

Fully charged

Green LED — GPS LED

Green LED flashing 1s on & 3s off

Positioning success

Green LED flashing 1s on & 1s off

Searching for satellite signal

Button

On/Off button

Function blocked

CALL button

Press for 1s to pick up a call，press for 3s to call to

an authorized number (vibration touch for calling)

SOS button

Press it for 3s to send an alarm SMS with
coordinates

Other ports

Main power switch

Slide switch to ON position to power on tracker

SIM card and micro SD card slots

Insert SIM and micro SD card

Micro USB port

For setup the parameter and firmware upgrade

4.4. Getting started

Please read this manual before using tracker and check if all parts are in the box.

4.5.1 Ensure that your tracker has a working SIM

card.



Please make sure SIM card has enough credit.



Please make sure that the SIM is not locked and do not require a password to operate.



Please make sure the SIM card is supporting caller ID display.

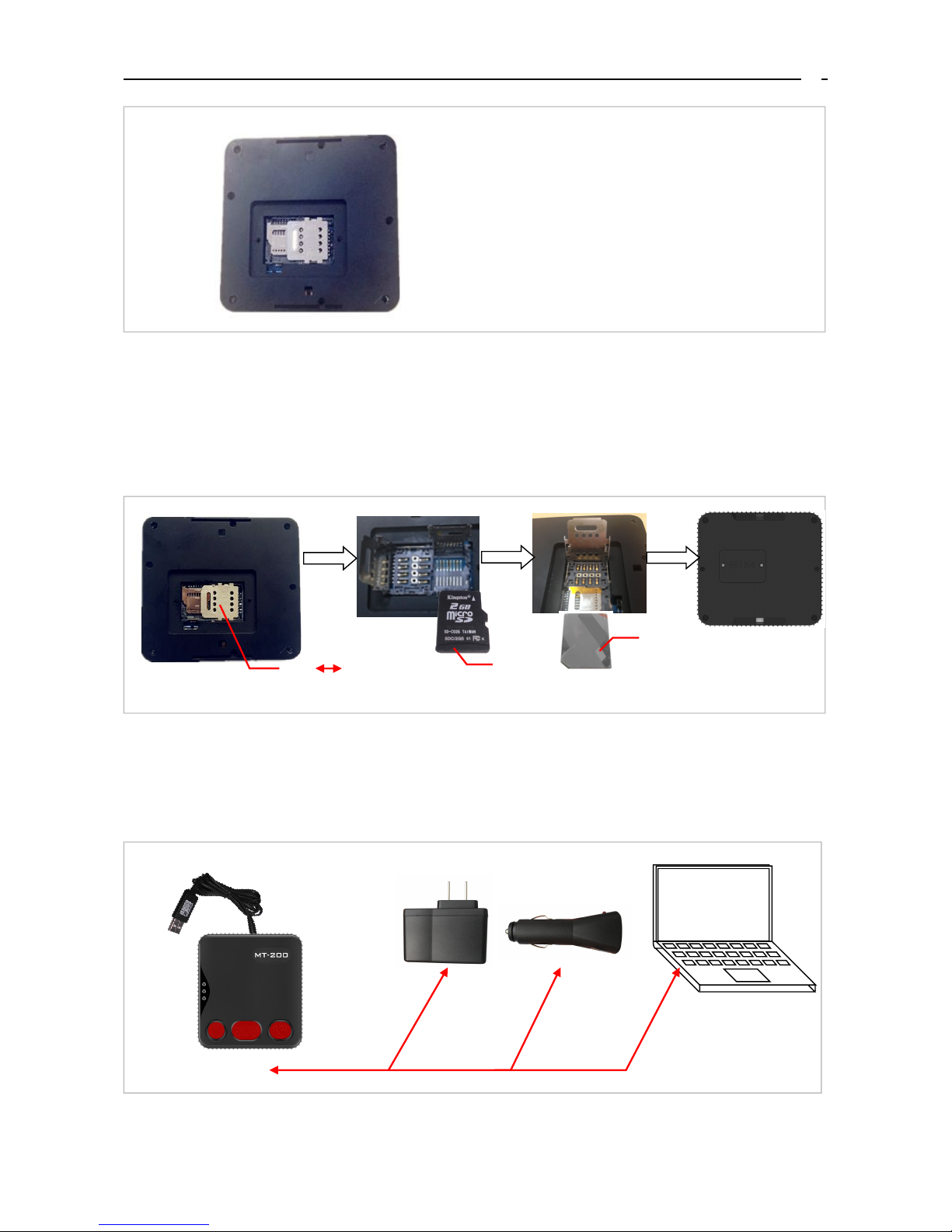

4.5.2 Insert SIM/micro SD card and switch on the main power switch

- Twist off the screws and then open the cover

User manual of tracker

-5-

5

- Switch on the main power switch, insert a SIM card, and micro SD card (optional), and
switch off the main power switch, then close the cover, as follow:

- Close the cover and seal it up with the screw

4.5.3

SD card

OFF ON

SIM card

When using tracker for the first time please charge the battery for at least for 3 hours with
the main power switched off. There are three ways to charge: using supplied AC adapter,
car adapter, and connecting USB charging cable to USB port of any computer. (Note: Please

turn off the tracker when charging!)

Computer

AC adapter

Car adapter

USB port

User manual of tracker

-6-

6

Make sure that tracker front side is up to the open sky when

the main power switched on.

-- If the tracker operates normally and positioning successfully, the blue LED flashes 1s on
& 3s off; the green GSM LED flashes 1s on & 3s off.

5. Instruction and function applications

There are three ways to set up the tracker: SMS command, GPRS command and setup by
computer.

Notice:

1. All changes to setup require a password. Make

sure that you are using correct password

otherwise changes will be rejected.

2. All commands are not case sensitive.

5.1 Change password

For example:
Command: FACID,123456,PASSWORD,V=888888
You receive SMS reply: FACID password ok!
123456 is the factory default password, 888888 is the new one.

Password must be six digits!

5.2 Authorized number

Tracker supports up to 5 authorized telephone numbers, which you can set at your choice.
To receive alarms and calls from tracker you have to set at least one authorized telephone
number. If there are no any authorized number has been set the tracker cannot send out

User manual of tracker

-7-

7

any alarm SMS (but you still can receive alarms through GPRS, if set) and cannot call out.

Advice: set the authorized number first when

you first use!

Command:
FACID,123456,AUTHORIZE,1=13145826121,2=13145826122,3=13145826123,4=1314
5826124,5=13145826125
SMS reply: FACID authorize ok!
It means that set tracker success.
This command also can set 1 or 2 authorized number only, just don’t fill in behind.
Cancel this command:
FACID,123456,AUTHORIZE
SMS reply: FACID authorize ok!

5.3 Working mode

Tracking mode:

Default mode is tracking mode, if the tracker is in operation you can get SMS with its
current location by dialing from an authorized telephone to the tracker.
If you already set the other working mode and then wanted to go back to tracking mode
can use this command to set.
For example:
FACID,123456,MODE,Tracker
SMS reply: FACID mode ok!

CALL mode:

Command:
FACID,123456,MODE,CALL
SMS reply: FACID,123456,MODE,CALL

At this working mode, if there is a phone call, you will hear a bell; press the CALL button
for 1s to answer the phone. If you want to make a phone call by tracker, press the CALL
button for 3s to calling the first authorized phone number, if the first authorized phone
number can not get through, it will call the second authorized phone number…At the end,
if there is no authorized phone number answer the incoming call, tracker will call all the
authorized phone number in turn.

Monitoring mode

Command:

User manual of tracker

-8-

8

FACID,123456,MODE,MONITOR
SMS reply: FACID mode ok!
When in this mode the tracker will answer incoming call from an authorized number
automatically without vibration or sound signal and you can monitor surroundings.

The speaker is mute automatically in

surveillance mode.

Long time standby mode

Tracker do not set up any work tasks; turn the GPS system power supply off via command,
so tracker can be low standby power consumption.

For example:
FACID,123456,config,gpsautosearch=610000（0—9999999 seconds）

SMS reply: FACID config ok!
Advice: GPS interval must be set 610000s or longer to activate this mode.
Cancel this command:
FACID,123456,config,gpsautosearch=600（600s is the factory standard parameters）

SMS reply: FACID config ok!

At this function, you can get its current position by calling to it
from an authorized number.

Pet mode（set its working time）

This function is according to set the tracker’s working time.
For example:
FACID,123456,config,poweron1=10:30,poweroff1=11:00,poweron2=18:30,poweroff2=1
9:00,poweren=1
SMS reply: FACID config ok!
Poweren =1 Start the timing switch machine function. Poweren =0 Close the timing switch
machine function
poweron1=10:30 turn on time
poweroff1=11:00 turn off time
poweron2=18:30 turn on time
poweroff2=19:00 turn off time

5.4 Tracking by calling

This function is only effective in tracking mode.

Operation：

User manual of tracker

-9-

9

Tracker will hand up the phone when authorized number call and it will send a SMS
with LBS Google link positioning immediately, if there is no GPS signal at the real ti
me.

For example:

http://maps.google.com/maps?f=q&hl=en&q=loc:22.637118,114.032055&SP:1.55 21/0

3/14 17:35 BAT=100% SGL:LAST GNS:0GPS:5-LBS

At the same time, the tracker starting to search satellite. It will send the real time position
data if there is any new.
“CUR” means that GPS data by the real time.

For example:

lat:22.636975N long:114.032996E,SP:0.47,18/04/14 10:19,BAT=100%,SGL:
CUR,,GNS:0GPS:04,92.9,460,00,262C,1073

If there isn’t search any new satellite, the tracker will reply a SMS with latest GPS
position.＂LAST＂means that the latest GPS position data.

For example:

lat:22.636975N long:114.032996E,SP:0.47,18/04/14 10:19,BAT=100%,SGL:
LAST,,GNS:0GPS:04,92.9,460,00,262C,1073

5.5 Real time tracking

Function: send the command:

FACID,123456,SMS,FAST

and get the location by real time. You

can get the location immediately when you send this command.

Then you will receive two reply SMS after send the command.

The first one is:

FACID sms ok!

The second one is location data.

5.6 Uploaded regularly via GPRS

Function: Set an interval for the tracker to continuously send its location to server.
The first step: set GPRS parameter

Send command to tracker (for example):

FACID,123456,GPRS,ADDR=219.133.34.184,PORT=8000,NAME=,PASS=,APN=CMNET,ID=,MODE=0,H

BE=0,HBN=HI,HBI=50,HBT=100,HBR=1

Reply: FACID gprs ok!

ADDR: it is your server’s IP.
PORT: your server’s port.

User manual of tracker

-10-

10

NAME: access Point’s user name.
PASS: access point’s password.
APN: network service access point.
ID: device number.
MODE: communication mode, 0 means that TCP, 1 means that UDP.
HBE: 1 or 0 enable/disable heartbeat function.
HBN: text message of heartbeat.
HBI: heartbeat transmission time interval.
HBT: The number of heartbeat packets sent (when server receives the number of times
is full, and it didn't feedback, device will restart.)

HBR: When the tracker can't get the server response, whether to restart (reset switch)
ADDR,PORT,NAME,PASS,APN,ID,MODE,HBE,HBN,HBI,HBT,HBR (those are according to fill
in yourself).

Cancel this command:

FACID,123456,GPRS
Reply: FACID gprs ok!
The second step: set the upload time interval.

Send the command via SMS to tracker:

FACID,123456,LOC,I=60,T=20,L=45,GPSWIFI=2;

Reply: FACID loc ok!

LOC means that command’s name,

I=60 means that the upload time interval is 60s, range of: 10-65535.

T=20 means that the upload times is only 20 times, if T=999 means that

unlimite

d upload times.

L=45 means that

the distance is less than 45 meters compared to the last position (max: 6

5535), the tracker will not send the GPS location data to server or authorized number, L=0 means

that unlimited

GPSWIFI, range: 0~2(0 means only fix position position by GPS, 1 means only fix
position by WIFI, 2 means automatically switch between GPS and WIFI fix positoin)

Reply: FACID loc ok!

5.7 Reset remote

For example:
FACID,123456,RESTART
This command can make the tracker to restart but not reply SMS.

5.8 Restore default

For example:
FACID,123456,DEFAULT
Reply: FACID default ok!

Restore default successfully.

Tracker has been successfully restored.

User manual of tracker

-11-

11

5.9 Tracking regularly via SMS

Function: tracker will send the SMS to authorized number by timing.
Set the upload regularly and the upload number of times.
FACID,123456,LOC,I=60,T=20,L=45
Reply: FACID loc ok!
LOC: means that the command name with positioning regularly.
I=60: means that the location regularly is 60s, range of: 10-65535.
T=20: means that the upload number of times is 20, if T=999 means that unlimited times

to upload.

L=45: means compared to latest position, the distance is closer than 45m and the tracker

will not send the GPS position to authorized number via SMS; L=0 means that

unlimited distance to upload data.
Cancel this command:
FACID,123456,LOC
Replay: FACID loc ok!

When you use this function, the server’s

parameter configuration must be cancel;

otherwise it will not send the upload data to

authorized number!

5.10 SMS format

The tracker has two kinds of SMS formats to reply:

1. Ordinary SMS, including longitude and latitude, location state, battery level and

satellites act
Command: FACID,123456,SMS,text
Reply: FACID sms ok!
For example:

lat:22.636975N long:114.032996E,SP:0.47,18/04/14 10:19,BAT=100%,SGL:
CUR,,GNS:0GPS:04,92.9,460,00,262C,1073

2.Google Link SMS, a data format with can link to Google map.

Command: FACID,123456,SMS,link
Reply: FACID sms ok!
For example:

http://maps.google.com/maps?f=q&hl=en&q=loc:22.637118,114.032055&SP:1.55 21/0

3/14 17:35 BAT=100% SGL:LAST GNS:0GPS:5

User manual of tracker

-12-

12

5.11 Set the time zone

Function: default is GMT+8, set the time zone of your place so SMS time consistent with

local time.
For example:
FACID,123456,TIME ZONE,V=+9
Reply: FACID time zone ok!

（ -12,-11,-10,-9,-8,-7,-6,-5,-4.5,-4,-3.5,-3,-2,-1,0,+1,+2,+3,+3.5,+4,+4.5,+5,+5.5,+

6.5,+6,+7,+8,+9,+9.5,+10,+11,+12,+13）

5.12

SD card test

If the tracker insert SD card and it can not receive the
GSM signal, the GPRS location data will be save to the SD
card. After receive the GSM signal, the data will be
packaged to upload!

Send the command:
FACID,123456,SDCARD,TEST
Insert SD card, and use this command to test whether the SD card is work or not
Reply: FACID sdcard ok！ Or FACID sdcard fail！
If receive FACID sdcard fail！, please to check the SD card is work or not again.

5.13 Over speed alarm

Function: both of that will send an alarm when the moving speed is bigger or less than
preset value if you set this function.
For example:
FACID,123456,OV,L=50
Reply: FACID ov ok!
L=50: 65535 is the maximum value, unit is: KM/H
Cancel this function:
FACID,123456,OV
Replay: FACID ov ok !

Advice: it is suggested to set it higher than 50 KM/H in
order to improve the tracker’s accuracy.

User manual of tracker

-13-

13

5.14 Geo-fence alarm

Function: if already set a Geo-fence, when the tracker is get into or out of the Geo-fence
area, it will send an alarm message.
For example:
FACID,123456,GEOFENCE,A1=113.000000e/22.400000n,A2=114.800000e/22.600000n,
B1=113.000000e/22.400000n,B2=114.800000e/22.600000n,C1=113.000000e/22.4000
00n,C2=114.800000e/22.600000n,D1=113.000000e/22.400000n,D2=114.800000e/22.
600000n,E1=113.000000e/22.400000n,E2=114.800000e/22.600000n
Reply: FACID geofence ok!

Note: A1, B1, C1, D1, E1 for the preset range of the longitude and latitude in the upper
left corner, and A2, B2, C2, D2, E2 is preset in the low right corner of the latitude and
longitude
Cancel this function:
FACID,123456,GEOFENCE
Reply: FACID geofence ok!

5.15 Moving alarm

Function: if already set this function, when the tracker gets into or out of the moving area,
it will send an alarm message.
FACID,123456,MOVE,L=200
Reply: FACID move ok!
L=200(max: 65535), unit: meters，L: radius.

Send this command and the tracer will search for the first time location of the GPS signals
as the center, the tracker will report alarm when it is move in or out of the radius is 200
meters circle.
Cancel this function:
FACID,123456,MOVE
Reply: FACID move ok!

5.16 Vibration alarm

Function: Set the vibration alarm. When the tracker detects enough strength of vibration,
it will send an alarm message.
For example:
FACID,123456,VIB,L=5
Reply: FACID vib ok!
Sensitivity level: 1-10 (max: 10)
Cancel this function:
FACID,123456,VIB

User manual of tracker

-14-

14

Reply: FACID vib ok!
Also can set 3G sensor with this function:
FACID,123456,GSensor,L=40
Reply: FACID gsensor ok!
3G sensor’s sensitivity level: 0~50 (max: 50).
Cancel this function:
FACID,123456,GSensor
Replay: FACID gsensor ok!

5.17 Low battery alarm

Function: When the battery level is lower than 30%, the

tracker will send a low battery alarm message to remind users to charge in time.

5.18 SOS emergency calling

Function: when the SOS button is pressed for 3 seconds or more than 3 seconds (you

can see the LED auto to extinguish and the button will vibrate), tracker

will send an alarm message (in an emergency).

1. If there is not the real time GPS data, tracker will send a LBS emergency alarm at first.

http://maps.google.com/maps?f=q&hl=en&q=loc:22.633141,114.031213&SP:3.05 04/0

5/14 19:00 BAT=100% SGL:LAST help GNS:0GPS:8-LBS

2. It will send a new effective GPS data or the last effective location data after search the

satellite.

lat:22.636975N long:114.032996E,SP:0.47,18/04/14 10:19,BAT=100%,SGL:
CUR（LAST）,help,GNS:0GPS:04,92.9,460,00,262C,1073

6.

Problems & solutions

Problem: Tracker will not turn on

Possible cause

Resolution

The power button is not pressed long

enough

Press and hold the ON/OFF button for 3 second or

more

Battery needs charging

Recharge battery for 3 hours

User manual of tracker

-15-

15

Problem: Tracker will not reply with SMS

Possible cause

Resolution

Can not registered to the GSM network

(LED flash 0.5 second on and 0.5

second off)

Make sure the GSM signal is good

Check the SIM card, Inspect SIM card again

If re-inserting does not help, try another one

GSM network is slow

Some GSM networks slow down during peak time or

when they have equipment problems.

The SIM card has run out of credit

Replace or top up the SIM card

Problem: LED flash 1 second on and 1 second off

Possible cause

Resolution

Tracker does not have clear view of the

sky

Move the tracker to a location where the sky is

visible. Tall buildings, trees, heavy rain, can cause

problems with the GPS reception.

Bad GPS reception

Place the front side of tracker towards sky

Problem: Fails to Connect to Server via GPRS

Possible cause

Resolution

SIM card does not support GPRS

function

Enable SIM card GPRS function

GPRS function of tracker is turned off

Turn on GPRS function

Incorrect IP address or port

Set the right IP address and port, then reset

GSM signal is weak

Move the tracker to a location with good GSM

reception

Attachment 1：SMS data format

The cell phone (authorized number) will get the position information via tracker SMS.

Tracker

Phone

SMS

GSM

User manual of tracker

-16-

16

There are three kinds of SMS data formats: LBS Google link format, Latitude and longitude
format and Google link format.

LBS Google link format：

http://maps.google.com/maps?f=q&hl=en&q=loc:22.633141,114.031213&SP:3.05 04/0

5/14 19:00 BAT=100% SGL:LAST help GNS:0GPS:8-LBS

Data analysis:

For example

Explain

http://maps.google.com/maps?f=q&hl=en&q

=loc:22.633141,114.031213&SP:3.05

Google link

21/03/14 17:35

Date

BAT=100%

State Of Charge

SGL:LAST

SGL:CUR

Positioning successfully

SGL:LAST

Positioning failure

help

Emergency alarm

GNS:0

The last available number of GLONASS sate

llites (can be ignored)

GPS:8

The last available number of GPS satellites

(can be ignored)

-LBS

Location Based Service flag

For example:

Latitude and longitude format:

lat:22.636975N long:114.032996E,SP:0.47,18/04/14 10:19,BAT=100%,SGL:
CUR,LowBattery,GNS:0GPS:04,92.9,460,00,262C,1073

Data analysis:

For example

Explain

lat:22.636975N

Latitude

long:114.032996E

Longitude

SP: 0.47

Real time speed is 0.47 Km/h

18/04/14 10:19

Date/time

BAT=100%

State Of Charge

User manual of tracker

-17-

17

SGL:CUR

SGL:CUR

Real time positioning success

SGL:LAST

Last valid data

LowBattery

Alarm information, as follow:

Alarm type

Explain

Move in

Tracker gets into preset warning area.

Move out

Tracker out of the preset warning area.

Geo in(A,B,C,D,E)

Tracker gets into the preset
Geo-fence area.

Geo out(A,B,C,D,E)

Tracker out of the preset Geo-fence
area

OverSpeed

The moving speed is higher than
preset value.

LowSpeed

The moving speed is lower than
preset value.

Help

The SOS button is pressed for 3
seconds or more than 3 seconds.

VIB

Tracker detects enough strength of
vibration.

LowBattery

Battery level is lower than 30%.

GNS:0

The number of available GLONASS satellites

GPS:8

The number of available GPS satellites

92.9

Altitude (unit：meter)

460

MCC (mobile country code)

00

MNC (mobile network code)

262C

LAC (location area code)

1073

Cell identification code

Google link format:

For example:

http://maps.google.com/maps?f=q&hl=en&q=loc:22.637118,114.032055&SP:1.55 21/0

3/14 17:35 BAT=100% SGL:LAST

LowBattery

GNS:0GPS:5

User manual of tracker

-18-

18

Data analysis:

For example

Explain

http://maps.google.com/maps?

f=q&hl=en&q=loc:22.637118,1

14.032055&SP:1.55

Google link

21/03/14 17:35

Date

BAT=100%

State Of Charge

SGL:LAST

SGL:CUR

Real time positioning success

SGL:LAST

Last valid data

LowBattery

Alarm information, as follow:

Alarm type

Explain

Move in

Tracker gets into preset warning area.

Move out

Tracker out of the preset warning area..

Geo in（A,B,C,D,E）

Tracker gets into the preset
Geo-fence area.

Geo out(A,B,C,D,E)

Tracker out of the preset Geo-fence
area

OverSpeed

The moving speed is higher than
preset value

.

LowSpeed

The moving speed is lower than
preset value.

Help

The SOS button is pressed for 3
seconds or more than 3 seconds.

VIB

Tracker detects enough strength of
vibration.

LowBattery

Battery level is lower than 30%.

GNS:0

The number of available GLONASS satellites

GPS:5

The number of available GPS satellites
