MEGAPOWER

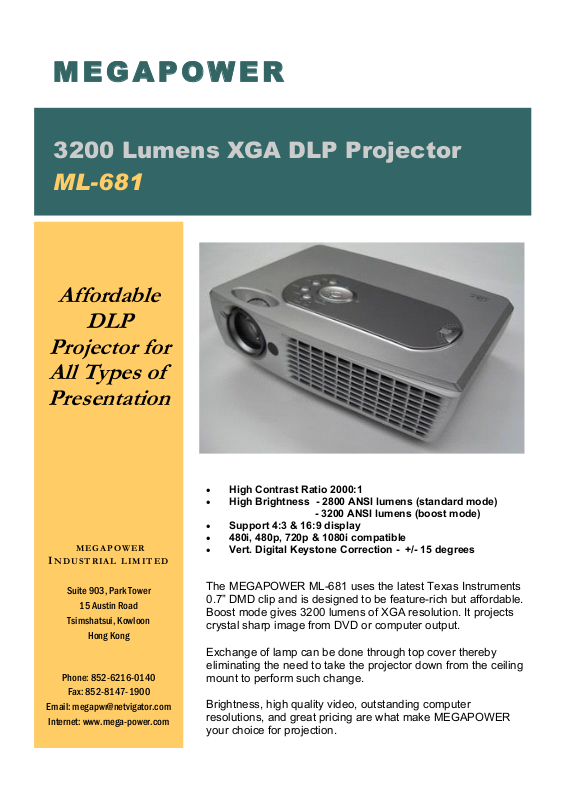

3200 Lumens XGA DLP Projector
ML-681
Affordable
DLP
Projector for
All Types of
Presentation
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
• High Contrast Ratio 2000:1
• High Brightness - 2800 ANSI lumens (standard mode)
- 3200 ANSI lumens (boost mode)
• Support 4:3 & 16:9 display
• 480i, 480p, 720p & 1080i compatible
• Vert. Digital Keystone Correction - +/- 15 degrees
The MEGAPOWER ML-681 uses the latest Texas Instruments
0.7” DMD clip and is designed to be feature-rich but affordable.
Boost mode gives 3200 lumens of XGA resolution. It projects
crystal sharp image from DVD or computer output.
Exchange of lamp can be done through top cover thereby
eliminating the need to take the projector down from the ceiling
mount to perform such change.
Brightness, high quality video, outstanding computer
resolutions, and great pricing are what make MEGAPOWER
your choice for projection.
Page 2
Specifications
Specifications
Technology
Projection Lens
Native Resolution
Computer Compatibility
Brightness
Imager Size
Number of Color
Diagonal Picture Size
Zoom Ratio
Projection Distance
Zoom Lens
Uniformity
Aspect Ratio
Contrast Ratio
Horizontal Frequency
Vertical Scan Rate
Projection Method
Audible Noise
Keystone Correction Angle
Lamp
Input Terminal
Output Terminal
Control Terminal
Built-in Speaker
Video Compatibility
Body Material
Dimensions
Weight
Power Supply
Power Consumption
Functions
On-Screen Display Languages
Safety Regulations
ML-681
True XGA, 3200 ANSI Lumens (Boost Mode)
2800 ANSI Lumens (Standard Mode)
0.7” DMD Chip 12 degree
Manual Zoom , Manual Focus
1024 x 768
PC & MAC
3200 ANSI Lumens (Boost Mode)
2800 ANSI Lumens (Standard Mode)
26.4mm (0.7 inches diagonal)
16.7 million
30” ~ 300”
1.22 : 1
1 m ~ 10 m
f=26~32 mm (Manual Zoom/Focus)
85%
4:3 / 16:9 screen selectable
2000 : 1
15 ~ 90 kHz
50 ~ 85 Hz
Front / Rear / Desktop / Ceiling Mount
36 dB (Standard), 33 dB (Eco)
Vertical ± 15 °
250W VIP , 2000 hours lifetime (Standard)
3000 hours lifetime (Eco)
RGB(D-Sub 15 pin) x 1, S-Video(Mini DIN 4 pin) x 1,
Video x 1, Components Video x 1,
Audio(Mini jack) x 1, Audio(RCA L&R) x 1, DVI-I x 1
RGB OUT (D-Sub 15 pin) x 1, Audio (Mini Jack) x 1
USB x 1, RS232 x 1
2 W Mono
NTSC / PAL / SECAM / HDTV
PC+ABS
328(L) x 238(D) x 88(H) mm
7.8 lbs
AC Input 110 – 240 Voltage (auto-ranging)
350 W (Boost Mode)
Vertical Digital Keystone, Auto Source Detection, Auto-
Sync, Picture-in-Picture, Freeze
English/French/German/Spanish/Japanese/Italian/
Chinese (Tradition) /Chinese (Simplified)
FCC-B, UL/Cul, TUV, CB, CE, CCC
Accessories (Standard)
AC Cable, VGA Cable x 2, Video Cable, S-Video
Cable, USB Keyboard (Remote Control) with laser
pointer, Batteries, Audio Cable (2RCA-RCA), Audio
Cable (PC-PC), User's Guide, USB Cable, carrying
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected] Web site: www.mega-power.com
bag
