MEGAPOWER

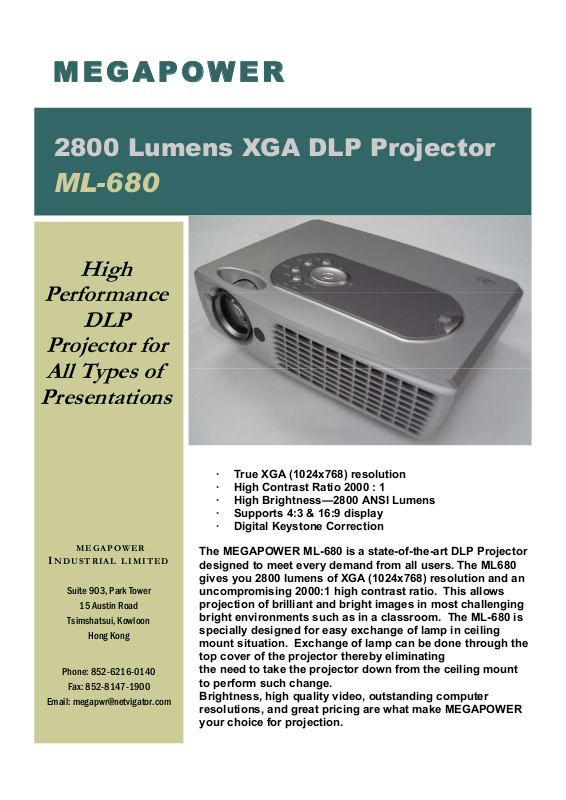

2800 Lumens XGA DLP Projector
ML-680
High
Performance
DLP
Projector for
All Types of
Presentations
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
· True XGA (1024x768) resolution
· High Contrast Ratio 2000 : 1
· High Brightness—2800 ANSI Lumens
· Supports 4:3 & 16:9 display
· Digital Keystone Correction
The MEGAPOWER ML-680 is a state-of-the-art DLP Projector
designed to meet every demand from all users. The ML680
gives you 2800 lumens of XGA (1024x768) resolution and an
uncompromising 2000:1 high contrast ratio. This allows
projection of brilliant and bright images in most challenging
bright environments such as in a classroom. The ML-680 is
specially designed for easy exchange of lamp in ceiling
mount situation. Exchange of lamp can be done through the
top cover of the projector thereby eliminating
the need to take the projector down from the ceiling mount
to perform such change.
Brightness, high quality video, outstanding computer
resolutions, and great pricing are what make MEGAPOWER
your choice for projection.
Page 2
Specifications
Specifications
Technology
Native Resolution
Brightness
Image Size
Zoom Ratio
Projection Distance
Projection Lens
Aspect Ratio
Contrast Ratio
Scanning Frequency
Vertical Scan Rate
Audible Noise
Keystone Correction Angle
Lamp
Input Terminal
Output Terminal
Video Compatibility
Dimensions
Weight 3.4 kgs (7.6 lbs)
Power Supply
Power Consumption
XGA (1024*768), SXGA (1280*1024) Compressed
DVI, RGB (D-Sub 15 pin), Component (Y/Pb/Pr),
S-Video (Mini DIN 4 pin), Composite Video x 1,
RGB Out , Audio Out, 2 watt built-in speaker x 1
NTSC, NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM
True XGA, 2800 ANSI Lumens
0.7” DMD Technology
2800 ANSI Lumens
Min. 37.5”, Max 240”
1.2 : 1
1.5m~8m (60”~320”)
1.2 : 1 (Manual Zoom/Focus)
4:3 / 16:9 screen selectable
2000 : 1
Horizontal: 31 – 90 kHz
50 -85 Hz
<35 dB
± 15°
250 W, 2000 hrs lamp life
Audio, USB, RS-232
328 x 238 x 88 mm
100 to 240 VAC, 50 to 60 Hz
300 W
ML-680
Digital Keystone, Mute
Functions
On-Screen Display Languages
Safety Regulations
Accessories (Standard)
Accessories (Optional)
English/Chinese (Tradition) /Chinese (Simplified)
Auto Sync, Auto Source Detection
UL, CUL,CE, TUV, FCC Class B, CCC
AC Power Cord, VGA Cable, C-Video Cable,
S-Video Cable, Audio Cable, Remote Control,
Batteries, User’s Guide
Ceiling Mount, Spare Lamp
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Web site: www.mega-power.com
