MEGAPOWER

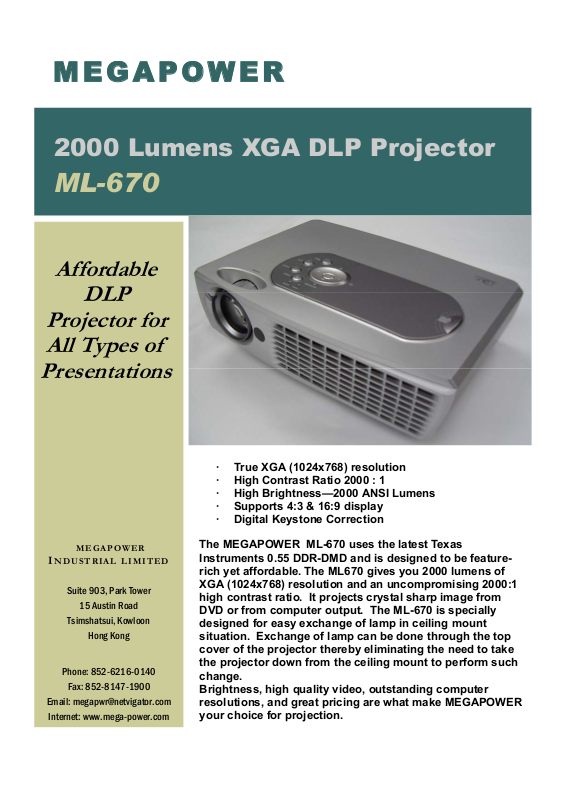

2000 Lumens XGA DLP Projector
ML-670
Affordable
DLP
Projector for
All Types of
Presentations
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
· True XGA (1024x768) resolution
· High Contrast Ratio 2000 : 1
· High Brightness—2000 ANSI Lumens
· Supports 4:3 & 16:9 display
· Digital Keystone Correction
The MEGAPOWER ML-670 uses the latest Texas
Instruments 0.55 DDR-DMD and is designed to be featurerich yet affordable. The ML670 gives you 2000 lumens of
XGA (1024x768) resolution and an uncompromising 2000:1
high contrast ratio. It projects crystal sharp image from
DVD or from computer output. The ML-670 is specially
designed for easy exchange of lamp in ceiling mount
situation. Exchange of lamp can be done through the top
cover of the projector thereby eliminating the need to take
the projector down from the ceiling mount to perform such
change.
Brightness, high quality video, outstanding computer
resolutions, and great pricing are what make MEGAPOWER
your choice for projection.
Page 2
Specifications
Specifications
Technology
Native Resolution
Brightness
Image Size
Zoom Ratio
Projection Distance
Projection Lens
Aspect Ratio
Contrast Ratio
Scanning Frequency
Vertical Scan Rate
Audible Noise
Keystone Correction Angle
Lamp
Input Terminal
Output Terminal
Video Compatibility
Dimensions
Weight 3.4 kgs (7.6 lbs)
Power Supply
Power Consumption
Functions
On-Screen Display Languages
Safety Regulations
Accessories (Standard)
Accessories (Optional)
XGA (1024*768), SXGA (1280*1024) Compressed
DVI, RGB (D-Sub 15 pin), Component (Y/Pb/Pr),
S-Video (Mini DIN 4 pin), Composite Video x 1,
RGB Out , Audio Out, 2 watt built-in speaker x 1
NTSC, NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM
English/Chinese (Tradition) /Chinese (Simplified)
AC Power Cord, VGA Cable, C-Video Cable,
S-Video Cable, Audio Cable, Remote Control,
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Web site: www.mega-power.com
True XGA, 2000 ANSI Lumens
0.55” DMD Technology
2000 ANSI Lumens
Min. 37.5”, Max 240”
1.2 : 1
1.5m~8m (60”~320”)
1.2 : 1 (Manual Zoom/Focus)
4:3 / 16:9 screen selectable
2000 : 1
Horizontal: 31 – 90 kHz
50 -85 Hz
<35 dB
± 15°
200 W, 2000 hrs lamp life
Audio, USB, RS-232
328 x 238 x 88 mm
100 to 240 VAC, 50 to 60 Hz
300 W
Digital Keystone, Mute
Auto Sync, Auto Source Detection
UL, CUL,CE, TUV, FCC Class B, CCC
Batteries, User’s Guide
Ceiling Mount, Spare Lamp Module
ML-670
