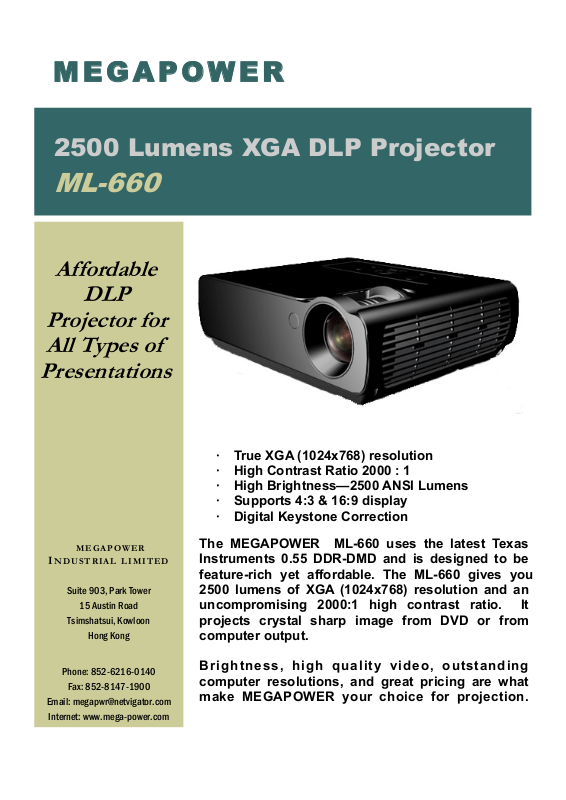

Page 1
MEGAPOWER
2500 Lumens XGA DLP Projector
ML-660
Affordable
DLP
Projector for
All Types of
Presentations
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
· True XGA (1024x768) resolution
· High Contrast Ratio 2000 : 1
· High Brightness—2500 ANSI Lumens
· Supports 4:3 & 16:9 display
· Digital Keystone Correction
The MEGAPOWER ML-660 uses the latest Texas
Instruments 0.55 DDR-DMD and is designed to be
feature-rich yet affordable. The ML-660 gives you
2500 lumens of XGA (1024x768) resolution and an
uncompromising 2000:1 high contrast ratio. It
projects crystal sharp image from DVD or from
computer output.
Brightness, high quality video, outstanding
computer resolutions, and great pricing are what
make MEGAPOWER your choice for projection.
Page 2
Specifications
Specifications
Technology
Native Resolution
Brightness
Image Size
Zoom Ratio
Projection Distance
Projection Lens
Aspect Ratio
Contrast Ratio
Scanning Frequency
Vertical Scan Rate
Audible Noise
Keystone Correction Angle
Lamp
Input Terminal
Output Terminal
Video Compatibility
Dimensions
Weight
Power Supply
Power Consumption
Functions
On-Screen Display Languages
Safety Regulations
Accessories (Standard)
Accessories (Optional)
XGA (1024*768), SXGA (1280*1024) Compressed
RGB, Component Video(D-Sub 15 pin), S-Video,
RGB , Component Video Loop through(D-Sub 15 pin)
NTSC; PAL ;SECAM; 576p,576i,480p,480i,720p,1080i
AC Power Cord, VGA Cable, C-Video Cable,
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Web site: www.mega-power.com
True XGA, 2500 ANSI Lumens
0.55” DMD Technology
2500 ANSI Lumens
Min. 35”, Max 240”
1.1 : 1
1.5m~10m (60”~320”)
1.1 : 1 (Manual Zoom/Focus)
4:3 / 16:9 screen selectable
2000 : 1
Horizontal: 15 – 110 kHz
50 -80 Hz
<35 dB
Vertical +
200 W, 2000 hrs lamp life
Composite Video, USB, RS-232
264 x 208 x 78 mm
2.2 kgs (4.9 lbs)
100 to 240 VAC, 50 to 60 Hz
Digital Keystone, Mute
Auto Sync, Auto Source Detection
Multiple Language
UL, CUL,CE, TUV, FCC Class B, CCC
S-Video Cable, Remote Control, Batteries,
User’s Guide
Ceiling Mount, Spare Lamp
15 deg.°
280W
ML-660
