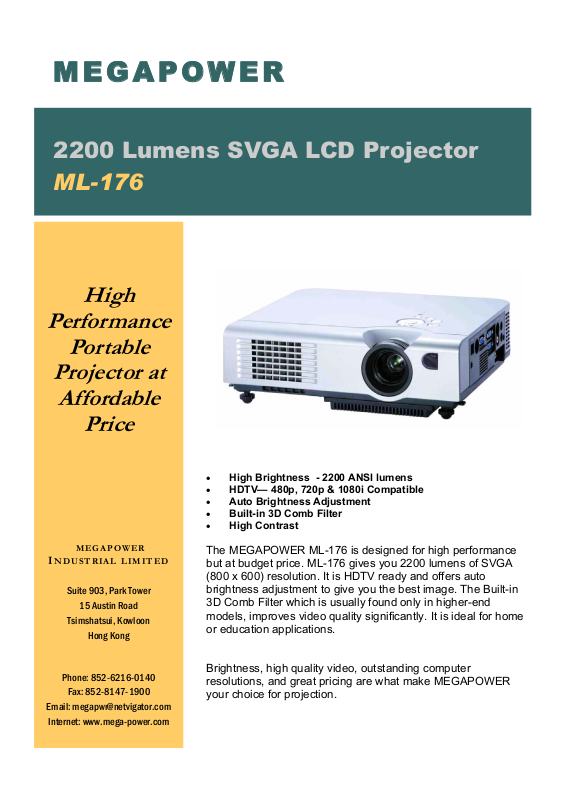

Page 1
MEGAPOWER
2200 Lumens SVGA LCD Projector
ML-176
High
Performance
Portable
Projector at
Affordable
Price
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
• High Brightness - 2200 ANSI lumens
• HDTV— 480p, 720p & 1080i Compatible
• Auto Brightness Adjustment
• Built-in 3D Comb Filter
• High Contrast
The MEGAPOWER ML-176 is designed for high performance
but at budget price. ML-176 gives you 2200 lumens of SVGA
(800 x 600) resolution. It is HDTV ready and offers auto
brightness adjustment to give you the best image. The Built-in
3D Comb Filter which is usually found only in higher-end
models, improves video quality significantly. It is ideal for home
or education applications.
Brightness, high quality video, outstanding computer
resolutions, and great pricing are what make MEGAPOWER
your choice for projection.
Page 2
Specifications
Specifications
Technology
Projection Lens
Native Resolution
Computer Compatibility
Brightness
Imager Size
Number of Color
Diagonal Picture Size
Zoom Ratio
Projection Distance
Zoom Lens
Uniformity
Aspect Ratio
Contrast Ratio
Horizontal Frequency
Vertical Scan Rate
Projection Method
Audible Noise
Keystone Correction Angle
Lamp
Input Terminal
Output Terminal
Control Terminal
Built-in Speaker
Video Compatibility
Body Material
Dimensions
Weight
Power Supply
Power Consumption
Functions
On-Screen Display Languages
Safety Regulations
ML-176
True SVGA, 2200 ANSI Lumens
0.7” TFT x 3
Manual Zoom , Manual Focus
800 x 600
PC & MAC
2200 ANSI Lumens
26.4mm (0.7 inches diagonal)
16.7 million
30” ~ 300”
1.22 : 1
1 m ~ 10 m
F#1.8 ~ 2.1, f=26.5 ~31.5 mm(Manual Zoom/Focus)
85%
4:3 / 16:9 screen selectable
700 : 1
15 ~ 100 kHz
43 ~ 120 Hz
Front / Rear / Desktop / Ceiling Mount
33 dB
Vertical +/-15 degree
180W, 2000 hours lifetime
RGB(D-Sub 15 pin) x 1, RGB(D-Sub 15 pin)/ Y, Pb, Pr
x 1, Composite AV x 1, S-Video x 1,
Audio(Mini jack) x 1, RS-232 wire control x 1
RGB OUT (D-Sub 15 pin) x 1, Audio (Mini Jack) x 1,
USB mouse x 1
USB x 1, RS232 x 1
2 W Mono
NTSC / PAL / SECAM / HDTV 1080i/720p/480p
PC+ABS
310(W) x 270(D) x 98(H) mm
2.7 KG
AC Input 110 – 240 Voltage (auto-ranging)
300 W
Vertical Digital Keystone, Auto Source Detection, Auto-
Sync, Picture-in-Picture, Freeze
English/French/German/Spanish/Japanese/Italian/
Chinese (Tradition) /Chinese (Simplified)
FCC-B, UL/CUL, TUV, CB, CE, CCC
Accessories (Standard)
AC Cable, VGA Cable x 1, Video Cable, S-Video
Cable, Remote Control with laser pointer, Batteries,
Audio Cable (2RCA-mini jack), Audio Cable (PC-PC),
User's Guide, USB Cable, carrying bag
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Web site: www.mega-power.com
