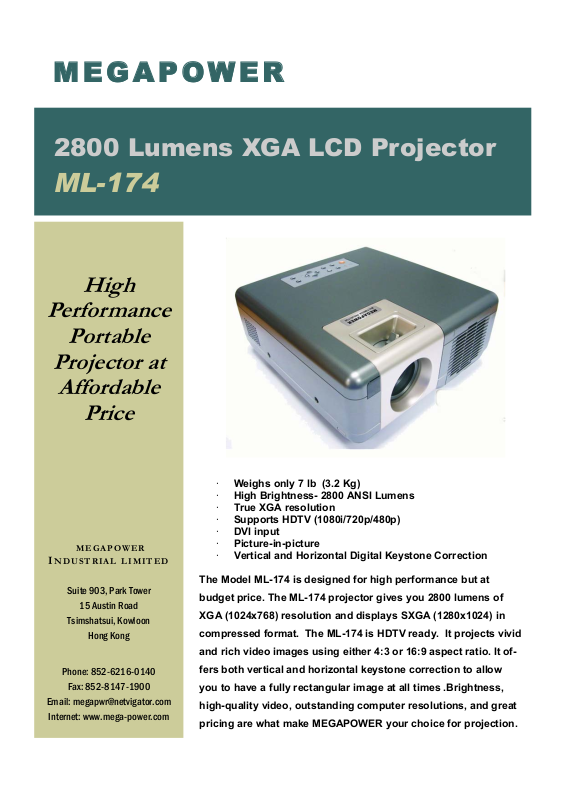

MEGAPOWER
2800 Lumens XGA LCD Projector
ML-174
High
Performance
Portable
Projector at
Affordable
Price
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
· Weighs only 7 lb (3.2 Kg)
· High Brightness- 2800 ANSI Lumens
· True XGA resolution
· Supports HDTV (1080i/720p/480p)
· DVI input
· Picture-in-picture
· Vertical and Horizontal Digital Keystone Correction
The Model ML-174 is designed for high performance but at
budget price. The ML-174 projector gives you 2800 lumens of
XGA (1024x768) resolution and displays SXGA (1280x1024) in
compressed format. The ML-174 is HDTV ready. It projects vivid
and rich video images using either 4:3 or 16:9 aspect ratio. It of-
fers both vertical and horizontal keystone correction to allow
you to have a fully rectangular image at all times .Brightness,
high-quality video, outstanding computer resolutions, and great
pricing are what make MEGAPOWER your choice for projection.
Page 2
Specifications
Imager Three 0.7” diagonal poly-silicon LCD
Native Resolution XGA (1024*768)
Brightness 2800 ANSI Lumens
Projection Distance 1.1m~11.0m ; (Image size 36”~300” diagonal)
Zoom Lens F# 1.7~2.1 (Manual Zoom/Focus); f=26.7~32mm
Uniformity 85%
Aspect Ratio 4:3 / 16:9 screen selectable
Contrast Ratio 500:1
Computer Compatibility
Audible Noise 35 dB typ. / 27 dB ECO mode
Keystone Correction Vertical ± 15° and Horizontal ± 10°
Lamp
Input Terminal
Output Terminal
Video Compatibility NTSC / PAL / SECAM, HDTV (480p/720p/1080i)
Projection Mode Front/Rear/Ceiling/Rear Ceiling
Dimensions 278x294x104 mm (10.9”x11.6”x4.1”)
Weight 3.2 Kg (7.0 lbs)
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption 270W
Functions
On-Screen Display
Languages
Composite Video: RCA x 1, Audio: mini jack x 1
Digital Keystone, Digital Zoom, Picture-in-Picture,
English/French/German/Spanish/Portuguese/Italian/
Sweden/Chinese (Tradition) /Chinese (Simplified)
SXGA, XGA, SVGA,VGA, MAC PC
200 W , 2000 hrs lamp life
RGB/HDTV: (D-Sub 15 pin) x 1, DVI x 1,
Y/Cb/Cr: RCA x3, S-Video: Mini DIN 4 pin x 1,
RGB Out: (D-Sub) x1, USB x1, RS-232 x 1,
2 watt speaker x 1
Auto Sync, Remote Mouse,
HDTV(480p/720p/1080i), Freeze
ML-174
Safety Regulations CE. FCC/Class A. UL.
AC Power Cord, VGA Cable, C-Video Cable,
S-Video Cable, Mouse Cable, Audio Cable, Remote
Accessories (Standard)
Accessories (Optional)
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Component YCbCr Cable, YPbPr to VGA Cable,
Control, Batteries, User’s Guide
Ceiling Mount, Carrying Bag, Spare Lamp
Web site: www.mega-power.com
