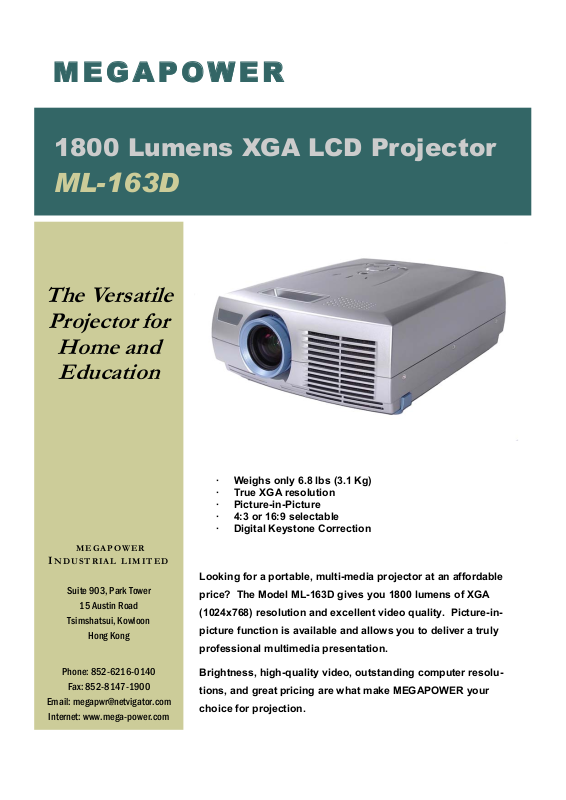

Page 1
MEGAPOWER
1800 Lumens XGA LCD Projector
ML-163D
The Versatile
Projector for
Home and
Education
MEGAPOWER
NDUSTRIAL LIMITED
I
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
· Weighs only 6.8 lbs (3.1 Kg)
· True XGA resolution
· Picture-in-Picture
· 4:3 or 16:9 selectable
· Digital Keystone Correction
Looking for a portable, multi-media projector at an affordable
price? The Model ML-163D gives you 1800 lumens of XGA
(1024x768) resolution and excellent video quality. Picture-in-
picture function is available and allows you to deliver a truly
professional multimedia presentation.
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
Brightness, high-quality video, outstanding computer resolu-
tions, and great pricing are what make MEGAPOWER your
choice for projection.
Page 2
Specifications
Specifications
Technology
Native Resolution
Brightness
Image Size
Throw Ratio
Zoom Ratio
Projection Distance
Zoom Lens
Uniformity
Aspect Ratio
Contrast Ratio
Horizontal Frequency
Vertical Scan Rate
Audible Noise
Keystone Correction Angle
Lamp
Input Terminal
Output Terminal
Video Compatibility
Body Material
Dimensions
Weight
Power Supply
Power Consumption
Functions
On-Screen Display Languages
Safety Regulations
ML-163D
True XGA, 1800 ANSI Lumens
0.7” Polysilicon LCD x 3
1024x768
1800 ANSI Lumens
40” ~ 300” diagonal
60” (Wide) ~ 48” (Tele) @ 2m
1.23 : 1
1.33m ~ 8.34m
F=1.7~2.1, f=26~32 mm (Manual Zoom/Focus)
85%
4:3 / 16:9 screen selectable
400: 1
15 – 90 kHz
43 - 85 Hz
< 37 dB
± 15 ° vertical
165 W , 2000 hours lifetime
RGB (D-Sub 15 pin) x 1, S-Video (Mini DIN 4 pin) x 1,
Composite Video x 1, Audio (Mini jack) x 1, USB x 1,
RS-232 x 1
RGB (D-Sub 15 pin), 2 Watt Speaker x 1
NTSC / PAL/SECAM
PC+ABS
297 x 233 x 93 mm
6.8 lbs (3.1 Kg)
90 to 240 VAC, 50 to 60 Hz
230W
Digital Keystone, Auto Source Detection, Auto-Sync,
Picture-in-Picture, Freeze
English/French/German/Spanish/Japanese/Italian/
Chinese (Tradition) /Chinese (Simplified)
CE. FCC. UL.
Accessories (Standard)
AC Cable, VGA Cable, Video Cable, S-Video Cable,
USB Cable, Remote Control with laser pointer,
Batteries, Audio Cable (2RCA-RCA),
Audio Cable (PC-PC), User's Guide
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Web site: www.mega-power.com
