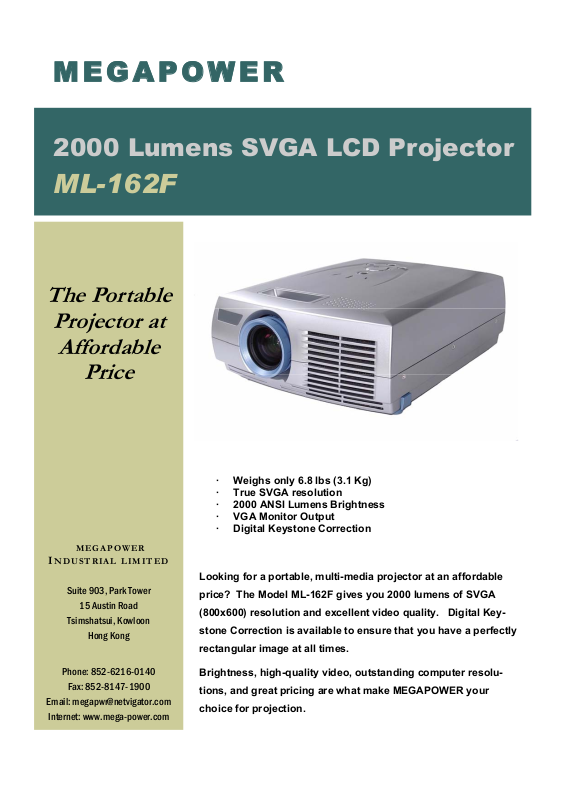

Page 1
MEGAPOWER
2000 Lumens SVGA LCD Projector
ML-162F
The Portable
Projector at
Affordable
Price
MEGAPOWER
INDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
· Weighs only 6.8 lbs (3.1 Kg)
· True SVGA resolution
· 2000 ANSI Lumens Brightness
· VGA Monitor Output
· Digital Keystone Correction
Looking for a portable, multi-media projector at an affordable
price? The Model ML-162F gives you 2000 lumens of SVGA
(800x600) resolution and excellent video quality. Digital Key-
stone Correction is available to ensure that you have a perfectly
rectangular image at all times.
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
Brightness, high-quality video, outstanding computer resolu-
tions, and great pricing are what make MEGAPOWER your
choice for projection.
Page 2
Specifications
Specifications
Technology
Native Resolution
Computer Compatibility
Brightness
Imager Size
Throw Ratio
Zoom Ratio
Projection Distance
Zoom Lens
Uniformity
Aspect Ratio
Contrast Ratio
Horizontal Frequency
Vertical Scan Rate
Audible Noise
Keystone Correction Angle
Optical Correction
Lamp
Input Terminal
Output Terminal
Video Compatibility
Body Material
Dimensions
Weight
Power Supply
Power Consumption
Functions
On-Screen Display Languages
Safety Regulations
ML-162F
True SVGA, 2000 ANSI Lumens
0.7” Polysilicon LCD x 3
800 x 600
PC(SVGA to UXGA) & MAC
2000 ANSI Lumens
26.4mm (0.7 inches diagonal)
64.2” (Wide) ~ 53.6” (Tele) @ 2m
1.23 : 1
1.0m ~ 12.3m (30” ~300” diagonal image)
F=1.7~2.1, f=26~32 mm (Manual Zoom/Focus)
90%
4:3 / 16:9 screen selectable
450: 1
15 – 90 kHz
43 - 85 Hz
< 37 dB
± 15 °
1:6
165W UHE , 2000 hours lifetime
RGB IN (D-Sub 15 pin) x 1,
S-Video (Mini DIN 4 pin) x 1, Composite Video x 1,
Audio (Mini jack) x 1, USB x 1, RS-232 x 1
RGB OUT (D-Sub 15 pin), 2 Watt Speaker x 1
NTSC / PAL/SECAM
PC+ABS
297 x 233 x 93 mm
6.8 lbs (3.1 Kg)
90 to 240 VAC, 50 to 60 Hz
230W
Digital Keystone, Auto Source Detection, Auto-Sync,
Picture-in-Picture, Freeze
English/French/German/Spanish/Japanese/Italian/
Chinese (Tradition) /Chinese (Simplified)
CE. FCC. UL.
Accessories (Standard)
AC Cable, VGA Cable, Video Cable, S-Video Cable,
Remote Control with laser pointer, Batteries, Audio
Cable (2RCA-RCA), Audio Cable (PC-PC),
Carrying Bag, User's Guide
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected] Web site: www.mega-power.com
