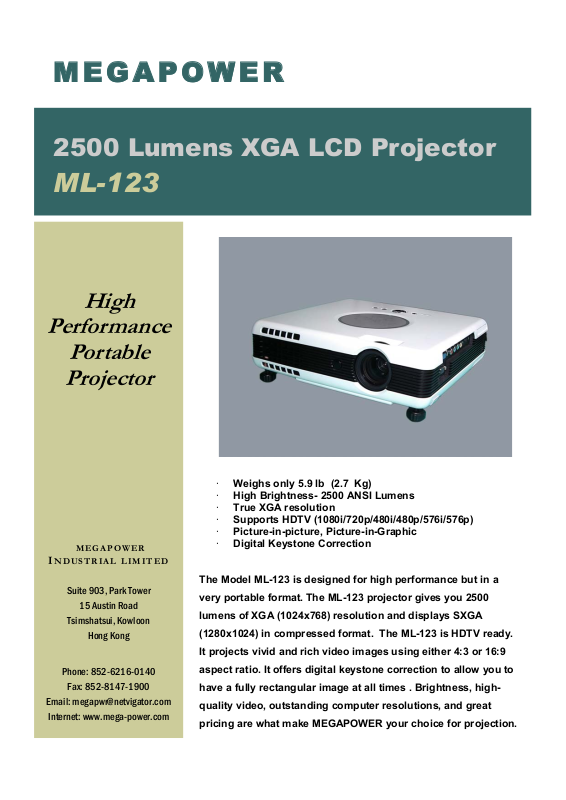

Page 1
MEGAPOWER
2500 Lumens XGA LCD Projector
ML-123
High
Performance
Portable
Projector
MEGAPOWER
I
NDUSTRIAL LIMITED
Suite 903, Park Tower
15 Austin Road
Tsimshatsui, Kowloon
Hong Kong
Phone: 852-6216-0140
Fax: 852-8147-1900
Email: [email protected]
Internet: www.mega-power.com
· Weighs only 5.9 lb (2.7 Kg)
· High Brightness- 2500 ANSI Lumens
· True XGA resolution
· Supports HDTV (1080i/720p/480i/480p/576i/576p)
· Picture-in-picture, Picture-in-Graphic
· Digital Keystone Correction
The Model ML-123 is designed for high performance but in a
very portable format. The ML-123 projector gives you 2500
lumens of XGA (1024x768) resolution and displays SXGA
(1280x1024) in compressed format. The ML-123 is HDTV ready.
It projects vivid and rich video images using either 4:3 or 16:9
aspect ratio. It offers digital keystone correction to allow you to
have a fully rectangular image at all times . Brightness, high-
quality video, outstanding computer resolutions, and great
pricing are what make MEGAPOWER your choice for projection.
Page 2
Specifications
Imager Three 0.7” diagonal poly-silicon LCD
Native Resolution XGA (1024*768)
Brightness 2500 ANSI Lumens
Screen Size 40”~300” diagonal
Zoom Lens F# 1.8~2.1 (Manual Zoom/Focus); f=27~32mm
Uniformity 85%
Aspect Ratio 4:3 / 16:9 screen selectable
Contrast Ratio 400:1
Computer Compatibility
Audible Noise 37 dB typ.
Keystone Correction Automatic Keystone Correction; Vertical ± 15°
Lamp
Input Terminal
Output Terminal
Video Compatibility
Projection Mode Front/Rear/Ceiling/Rear Ceiling
Dimensions 279x265x72 mm (11.0”x10.4”x2.8”)
Weight 2.7 Kg (5.9 lbs)
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption 250W
Functions
On-Screen Display
Languages
Composite Video: RCA x 1, Audio: mini jack x 1
English/French/German/Spanish/Portuguese/Italian/
SXGA, XGA, SVGA,VGA, MAC PC
180 W , 2000 hrs lamp life
RGB/HDTV: (D-Sub 15 pin) x 1,
Y/Cb/Cr: RCA x3, S-Video: Mini DIN 4 pin x 1,
RGB Out: (D-Sub) x1, USB x1,
1 watt speaker x 1
NTSC / PAL / SECAM, HDTV
(480i/576i/480p/576p/720p/1080i)
Digital Keystone, Picture-in-Picture,
Picture-in-Graphic, 3:2 pull down,
Auto Sync, Remote Mouse, HDTV, Freeze
Chinese (Tradition) /Chinese (Simplified)
ML-123
Safety Regulations CE. FCC/Class A. UL.
AC Power Cord, VGA Cable, AV Cable (with Audio),
S-Video Cable, USB Cable, Remote Control,
Accessories (Standard)
Accessories (Optional)
MEGAPOWER INDUSTRIAL LIMITED
Suite 903, Park Tower, 15 Austin Road, Tsimshatsui, Hong Kong
Tel: 852-6216-0140 Fax: 852-8147-1900
Email: [email protected]
Component YCbCr Cable, Component YPbPr Cable,
Batteries, User’s Guide, Carrying Bag
Ceiling Mount, Spare Lamp
Web site: www.mega-power.com
