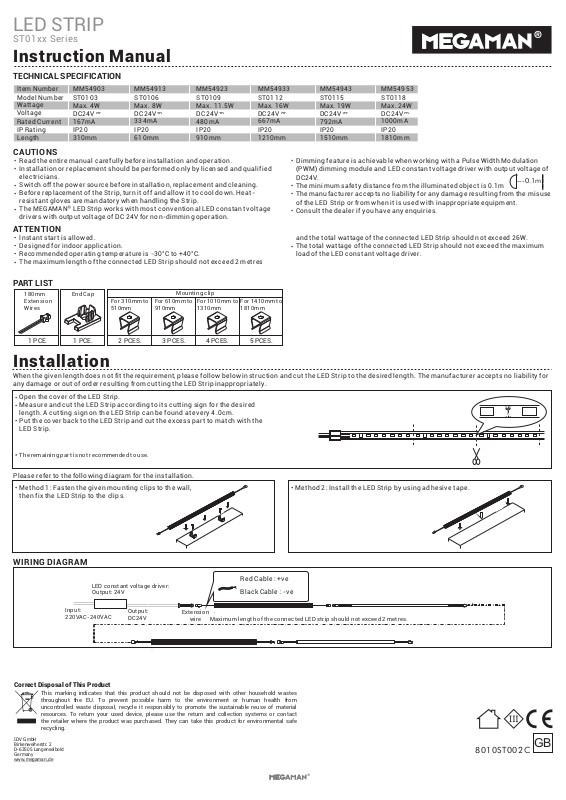

LED STRIP
ST01xx Series
Instruction Manual
TECHNICAL SPECIFICATION
Item Number
Model Number
Wattage
Voltage
Rated Current
IP Rating
Length
CAUTIONS
•
Read the entire manual carefully before installati on and operation.
Installation or replacement should be p erformed only by licensed an d qualified
•
electricians.
Switch off the power source before installation, rep lacement and cleaning.
•
Before repl acement of the Strip, turn it off and allow it to cool down. Heat-
•
resistant gloves are mandatory when handling th e Strip.
The MEGAMAN LED Strip works wi th most conventional LED constant volta ge
•
drivers with output voltage of DC 24V for non -dimming operation.
ATTENTION
•
Instant start is allowed.
•
Designed for indoor applicati on.
•
Recommended operating tempe rature i s -30°C to +40°C.
The maximum length of the connect ed LED Strip should not exceed 2 metres
•
MM54903 MM54913 MM54923 M M54933 MM54943 MM5495 3
ST0103 ST0106 ST 0109
Max. 4W Max. 8W Ma x. 11.5W
DC24V
-
-
-
-
167mA
IP20 IP20 IP 20
310mm 610mm 91 0mm
DC24V
334mA
-
-
-
-
DC24V
480mA
-
-
-
-
ST0112
Max. 16W
DC24V
-
-
-
-
667mA
IP20
1210mm
•
Dimming feature is achievable when working with a Pulse Wid th Modulation
(PWM) dimming module and LED cons tant voltage driver with output voltage of
DC24V.
The minimum safety distance from the illuminate d object is 0.1m
•
The manufacturer accepts no liability f or any damage resulting from the misuse
•
of the LED Strip or from when it is used with inapp ropriate equipment.
Consult the dealer if
•
and the total wattage of the connected L ED Strip should not exceed 26W.
The total wattage of the connected LED S trip should not exceed the maximum
•
load of the LED constant voltage driver.
ST0115
Max. 19W
DC24V
-
-
-
-
792mA
IP20
1510mm
you h ave any enquiries.
ST0118
Max. 24W
DC24V
-
-
-
-
1000mA
IP20
1810mm
---
0.1m
PART LIST
180 mm
Ext ensio n
Wir es
1 PCE.
End C ap
1 PCE. 2 PCES. 3 PCES. 4 PCES. 5 PCES.
For 3 10mm to
510 mm
Mou nting c lip
For 6 10mm to
910 mm
For 1 010mm to
131 0mm
For 1 410mm to
181 0mm
Installation
When the given length does not fit the requirement, plea se follow below instruction and c ut the LED Strip to the desired length. The man ufacturer accepts no liability for
any damage or out of order resulting from cutting the LED St rip inappropriately.
Open the cover of the LED Strip.
•
Measure and cut the LED Strip according to its cuttin g sign for the desired
•
length. A cutting sign on the LED Str ip can be found at every 4.0cm.
•
Put the cover back to the LED Strip and cut the excess part t o match with the
LED Strip.
The r emain ing par t is not recommend ed to use .
*
Please refer to th e following diagram for the insta llation.
Method 1: Fas ten the given mounting clips to the wall,
•
then fix the LED Strip to the clips.
Method 2: Install the LED Strip by using adhesive tape.
•
+ +
- -
WIRING DIAGRAM
Correct Disposal of This Product
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental safe
recycling.
IDV GmbH
Birkenweiherstr. 2
D-63505 Langenselbold
Germany
www.megaman.de
LED c onsta nt volt age dri ver:
Out put: 24 V
Inp ut:
220 VAC-240VAC
Out put:
DC2 4V
Ext ensio n
wir e
Max imum le ngth of t he conn ected L ED stri p shoul d not exceed 2 metres.
Red Cable : +ve
Black Cable : -ve
80 10 ST 002C
