Mega Lite AXIS CYCLOPS User Manual

Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...6 Rigging the Fixture……………………………….…………………….6 Main Control Menu……………..…………………………………..….7

DMX Profile...................................................................................10

Cleaning & Maintenance...............................................................11

Parts List.......................................................................................11

USER MANUAL

Table of Contents

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.

3. Replace fuse only with the specified type and rating.

4. Do Not install the unit to close to a heat source.

5. Make sure cable are properly secured away from unit movement.

6. Maximum surface operating temperature 104º.

Protection Against Fire

1. Disconnect power before lamp replacement or servicing.

2. For connection to main power supply proceed to page 6.

3. This unit must be earthed. (electronically grounded)

4. Do not expose unit to rain or moisture.

Protection Against Mechanical Hazards

1. Use safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit

3. Do not open unit risk of electrical shock.

3

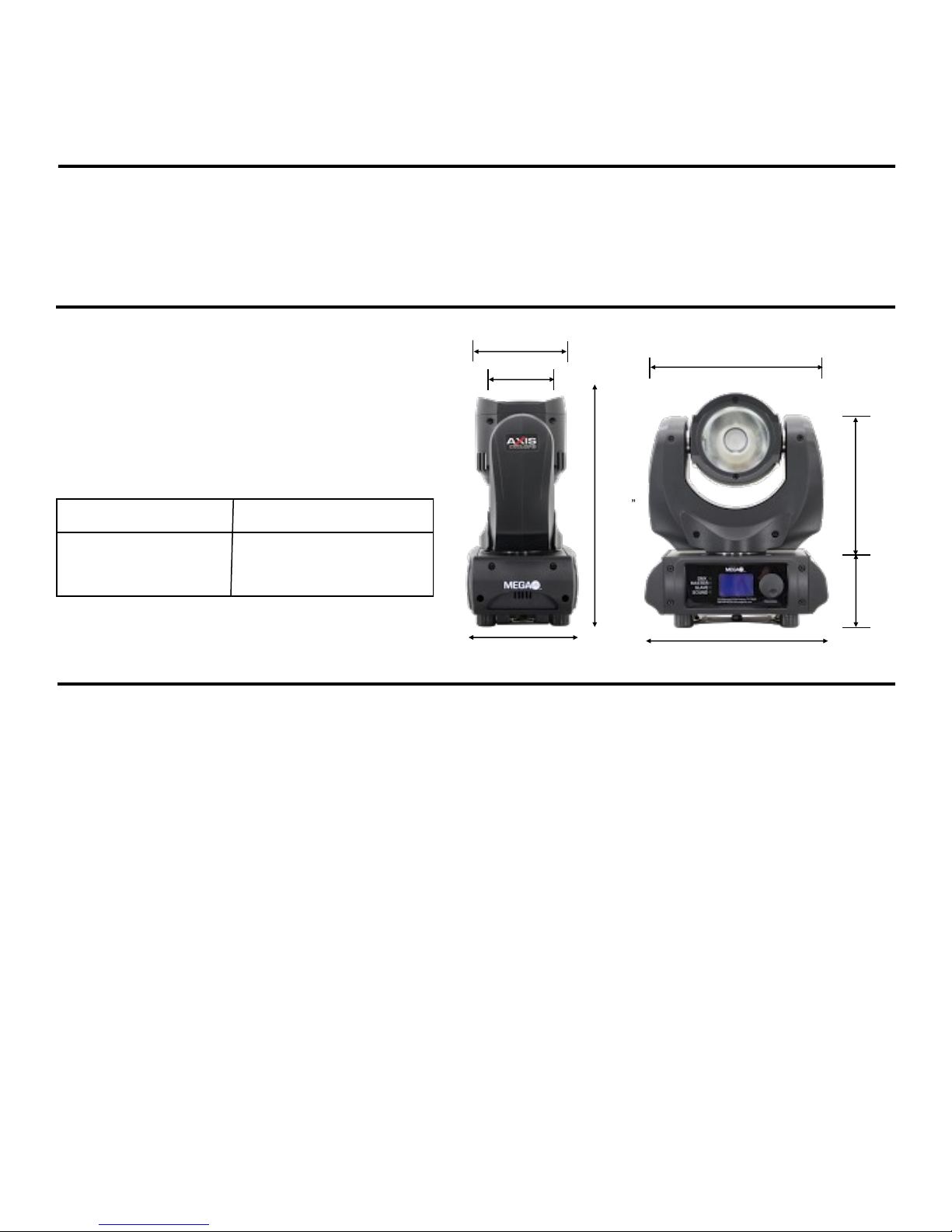

Specifications

Part Numbers

Fixture Lamp Flight Case

1160 - AXIS Cyclops Osram 60W RGBW LED 1160-RC4 4 Unit Road Case

Mechanical Specifications

Pan: Infinite° Tilt: Inf inite°

DMX Connectors: 3 and 5-pin XLR connectors

Power Connectors: Power Con type in and out

Thermal: Maximum ambient temperature 100° F

Maximum surface temperature 130° F

Fastening System: Single Quick Release Clamp Mounts

Lens Angle: 4.5º

Fixture Packaged for Shipping

Size: 9.5” x 6” x 12.25”

Weight: 11.5 lb

Size: 12.75” x 9” x 19”

Weight: 15 lb

Electrical Specifications

Power supply: Auto Switch100V-240V 50/60 HZ

Power consumption: Amps .62

Watts 73

Ballast: Electronic

LAMP: Osram 60W RGBW LED

Display: LCD Display

5”

3.5 ”

6”

9.25 ”

7.5 ”

12.25 ”

3.75 ”

9.5 ” ( w ith handles )

4

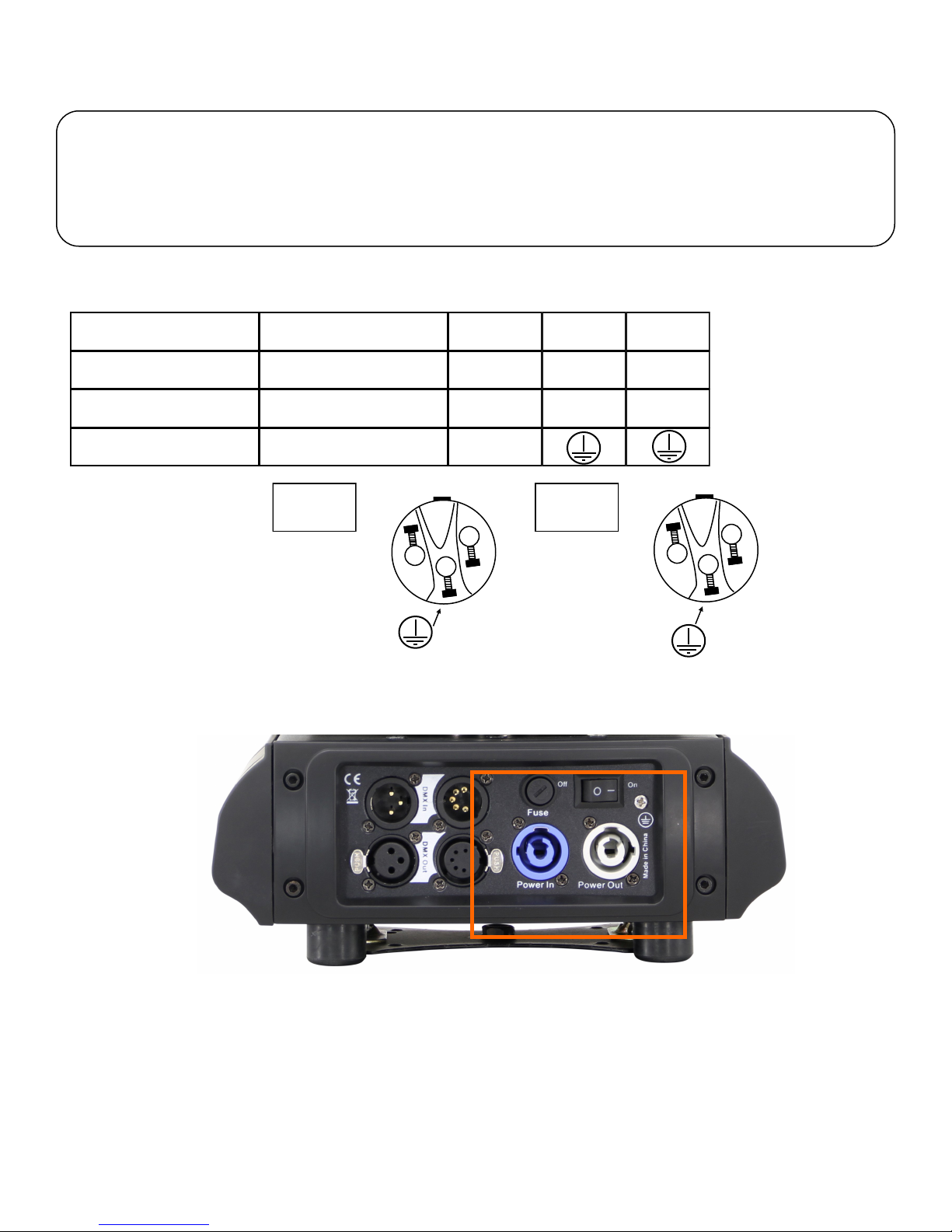

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (electronically grounded)

3. Replace fuse only with the specified type and rating.

This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz

The occupation of the connection-cable is as follows:

Cable (USA) Cable (EU) Pin 110V

Black Brown

White

Green

Light Blue

Yellow/Green

110V

Connec-

N

Live

Neutral

Ground

L

N

220V

Connec-

220V

L

5

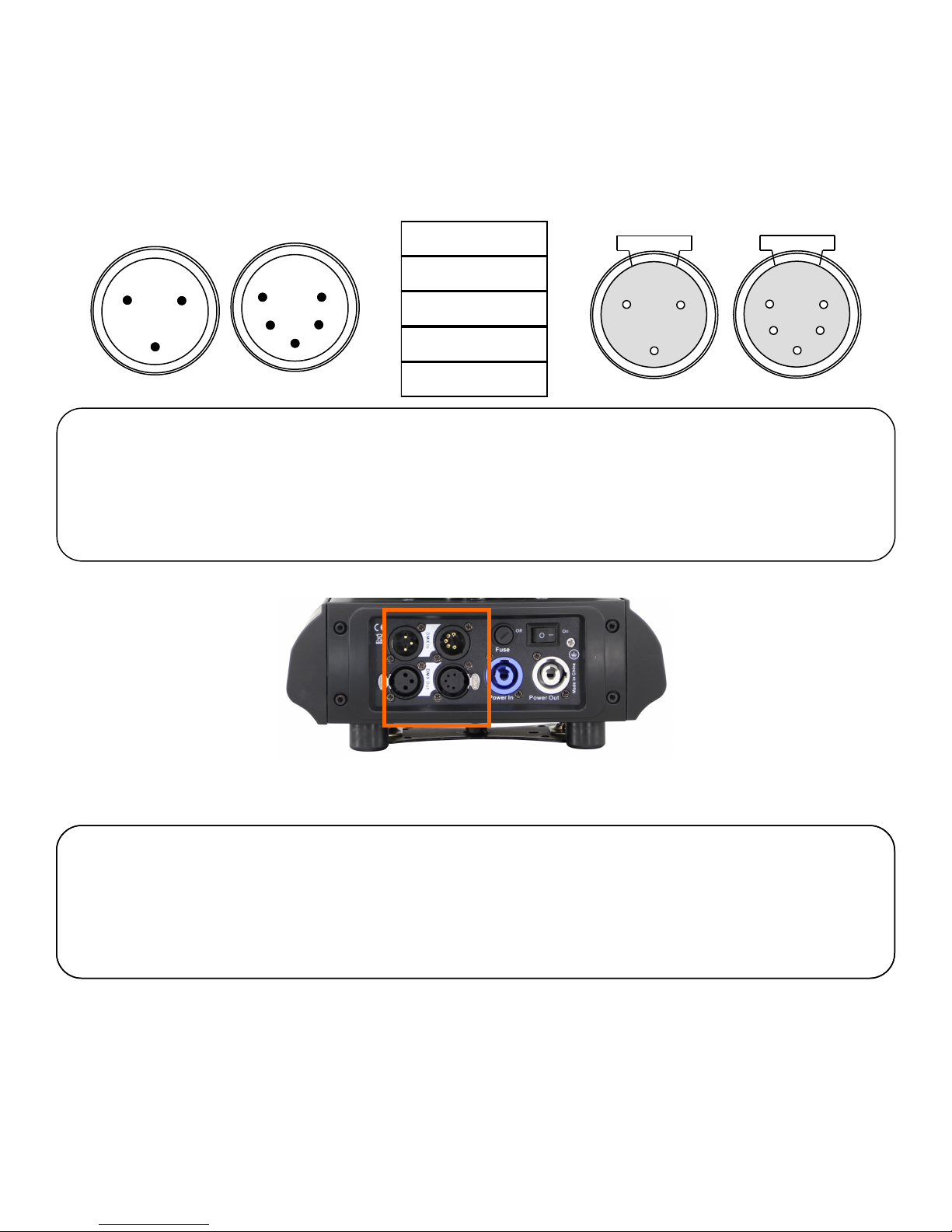

DMX-512 Connection

The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to connect the controller with the fixture or the fixture with another.

DMX—Input

DMX—Output

1. Shield

2. Signal (-)

1

2

3

1

2

5

4

3

3. Signal (+)

4. N/A

2

1

3

5

4

1

2

3

5. N/A

Caution!

At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it in to the last fixture on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-Lite dealer (P-DMX-T).

Rigging the fixture

Rigging the

Caution!

1. The installations must be carried out by an authorized dealer or trained professional.

2. Unit may cause severe injures if you have doubts concerning the safety do not install.

3. Unit is to be 24inches away from flammable materials (decoration material)

4. Use high quality installation equipment to hang unit.

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience including but not limited to calculating working loads, material being used and periodic safety inspections. If you

ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.

lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be

has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least one time a year by a skilled person.

checked at least one time a year by a skilled person.

6

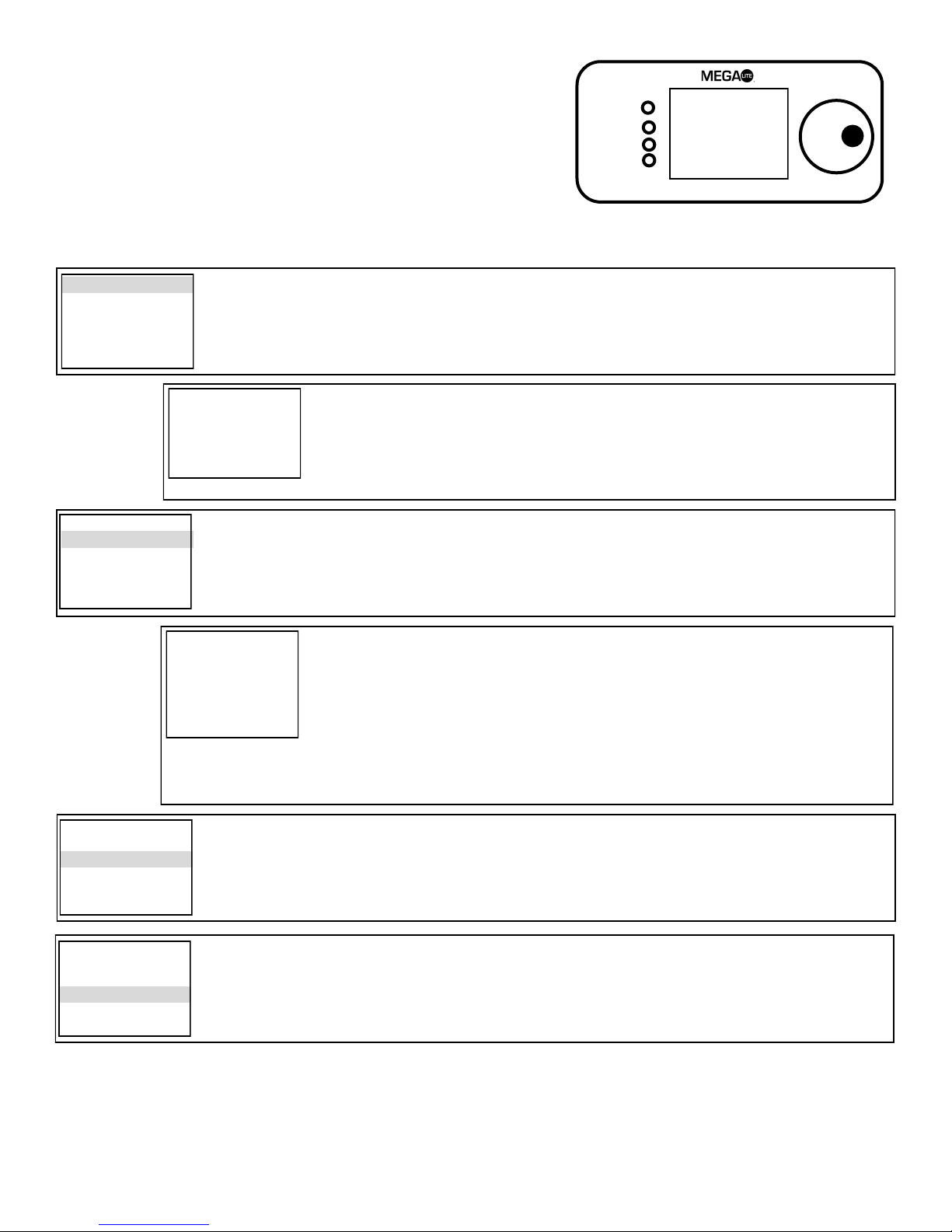

Main Control Menu

The control board on the fixture base is your interface to access and control all the functions on the unit. Its LCD display gives you views of the options and functions. The following will explain each function and its options. Turn the rotary knob to see options and press the knob to Enter

1 DMX Address

2 Channel Mode 3 Dimmer Curve 4 Demo Mode 5 Manual Control 6 Slave Mode

Setup Menu

DMX Address

Press the knob to select Set Up options.

DMX Address

Press the knob to select the DMX start address. Turn knob Left or Right to select desired start address.

001

15Ch 54ºC

1 DMX Address 2 Channel Mode 3 Dimmer Curve 4 Demo Mode 5 Manual Control 6 Slave Mode

Channel Mode

Press the knob to select fixture profile operating mode

DMX

Master

Slave

Sound

Mega-Lite

Axis Cyclops

18668 Hwy 16 N., Helotes, TX 78023

866-460-MEGA www.mega-lite.com

Press to Enter

1 DMX Address 2 Channel Mode 3 Dimmer Curve 4 Demo Mode 5 Manual Control 6 Slave Mode

1 DMX Address 2 Channel Mode 3 Dimmer Curve

4 Demo Mode

5 Manual Control 6 Slave Mode

(9 Ch)

(15 Ch)

Dimming Curve

Press the knob to select fixtures dimming curve from Fastest Mode 1 to Slowest Mode 4

Demo Mode

Press the knob to select fixtures Pre-recorded demo program Demo Mode 1 or 2 (Note DMX signal must not be connected for this function to work).

9 Ch

1. Pan

2. Tilt

3. Dimmer

4.Red Intensity

5. Green Intensity

6. Blue Intensity

7. White Intensity

8.Shutter / Strobe

9. Control

15 Ch

1. Pan

2. Pan Fine

3. Tilt

4. Tilt Fine

5. Pan & Tilt Speed

6. Infinity Pan

7. Infinity Tilt

8. Dimmer

9.Red Intensity

10. Green Intensity

11. Blue Intensity

12. White Intensity

13.Shutter / Strobe

14. Color Macro

15. Control

7

1 DMX Address 2 Channel Mode 3 Dimmer Curve 4 Demo Mode

5 Manual Control

6 Slave Mode

Manual Control

Press the knob to select Manual control Functions. Select the fixtures function you would like to manually control . (Note The fixture

will recall the set manual control attributes even after the fixture is turned off and on)

1 DMX Address 2 Channel Mode 3 Dimmer Curve 4 Demo Mode 5 Manual Control

6 Slave Mode

7 Sound Mode

8 Pan Inverse 9 Tilt Inverse 10 DMX Clear 11 P/T Degree 12 P/T Fedback

7 Sound Mode

8 Pan Invert

9 Tilt Invert 10 DMX Clear 11 P/T Degree 12 P/T Fedback

7 Sound Mode 8 Pan Invert 9 Tilt Invert

10 DMX Clear

11 P/T Degree 12 P/T Fedback

Slave Mode

Press the knob to select Slave mode function

Sound Mode

Press the knob to select Sound Mode option Select yes or no. Pre Program will change scene to the sound of audio.

Pan Invert

Press the knob to select Pan Invert option Select yes or no

DMX Clear

Press the knob to select DMX Clear. Select yes if you would like to bring DMX attributes to zero if DMX signal is lost. Sele ct no if

you would like DMX attributes to be kept to the last position if DMX signal is lost.

7 Sound Mode 8 Pan Invert 9 Tilt Invert 10 DMX Clear

11 P/T Degree

12 P/T Fedback

7 Sound Mode 8 Pan Invert 9 Tilt Invert 10 DMX Clear 11 P/T Degree

12 P/T Feedback

13 Display Rotate

14 Back Light 15 Version 16 Factory Set 17 Reset 18 Calibration

P/T Degree

Press the knob to select Pan and Tilt extreme positions from 540 x 270 or 360x360

P/T Feedback

Press the knob to select yes or no if you would like for the pan and tilt to return to set position after it has been physically moved.

Display Rotate

Press the knob to select the display orientation. Select from Inverted , Auto (will automatically invert the display depending in the

fixtures orientation or Normal (default position)

8

13 Display Rotate

14 Back Light

15 Version 16 Factory Set 17 Reset 18 Calibration

Back Light

Press the knob to select the Back Light option yes to leave light on or No to have the back light turn off after no display movement

for 15 seconds

13 Display Rotate 14 Back Light

15 Version

16 Factory Set 17 Reset 18 Calibration

13 Display Rotate 14 Back Light 15 Version

16 Factory Set

17 Reset 18 Calibration

13 Display Rotate 14 Back Light 15 Version 16 Factory Set

17 Reset

18 Calibration

13 Display Rotate 14 Back Light 15 Version 16 Factory Set 17 Reset

18 Calibration

Version

Press the knob to find out what version of software is being used

Factory Setting

Press the knob and select yes to restore the fixture to the factory settings

Reset

Press the knob and select yes to reset the fixture’s motor and dimmer settings

Calibration

This function is for factory trained technician.

13 Display Rotate 14 Back Light 15 Version 16 Factory Set 17 Reset 18 Calibration

19 Auto Test

Auto Test

Press the knob and select yes to have the fixture run throw a built in program testing all functions

9

DMX Profile

Axis Cyclops 9 Ch Mode

DMX Channel Function Description Value Init Value

1 Pan

2 Tilt

3 Dimmer Dimmer off to full 0-255 255 4 LED Intensity Red Dimmer 0-255 255 5 LED Intensity Green Dimmer 0-255 255 6 LED Intensity Blue Dimmer 0-255 255

7 LED Intensity White Dimmer 0-255 255

8 Shutter

Strobe slow to fast 129-255

9 Control

No Function 21-255

Backwards (slow to fast) 192-255

Random Strobe (slow to fast) 7-128

Pan Course 0-127

Forward (fast to slow) 128-191

Tilt Course 0-127

Forward (fast to slow) 128-191

No Function 0-6

No Function 0-9

Reset all functions 10-20

43

64

0

Axis Cyclops 15 Ch Mode

DMX Channel Function Description Value Init Value

1 Pan Pan Course 0-255 128 2 Pan Fine Pan Fine 0-255 128

3 Tilt Tilt Course 0-255 128

4 Tilt Fine Tilt Fine 0-255 128 5 Pan & Tilt Speed Pan Speed (fast to slow) 0-255 0

6 Infinity Pan

Backwards (slow to fast) 136-255

7 Infinity Tilt

Backwards slow to fast 136-255 8 Dimmer Dimmer off to full 0-255 255 9 LED Intensity Red Dimmer 0-255 255

10 LED Intensity Green Dimmer 0-255 255

11 LED Intensity Blue Dimmer 0-255 255

12 LED Intensity White Dimmer 0-255 255

13 Shutter

14 Color Macro

Color Fade (slow to fast) 127-255

15 Control

No Function 21-255

Random Strobe slow to fast 7-128

Color Snap (slow to fast) 2-126

No Function 0-15

Forward (fast to slow) 16-135

No Function 0-15

Forward (fast to slow) 16-135

No Function 0-6

Strobe slow to fast 129-255

No Function 0-1

No Function 0-9

Reset all functions 10-20

10

0

Cleaning and maintenance

Installation Maintenance: The operator has to m ake sure that t he unit is operating saf ely and has the installa-

tions and electronics checked by an expert every 2 years.

The following points have to be considered during the inspection:

1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.

2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).

3) Mechanically moved parts like axles and other must not show any traces of wearing and must not rotate with unbal- ances.

4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.

Disconnect from mains before starting maintenance operation!

Caution Danger to life!

We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!

1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require more periodic cleaning as fog fluid tends to build up residues, reducing the light output.

2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can damage the fans operation.

3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.

4) The interior of the fixture should be cleaned using a vacuum.

5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid oil run outs when motor wheel rotates

Note: There is no serviceable parts i nsid e the dev ice except for the fuse. Maintenance and serv ice op erations are to be carried out by authorized dealers.

Replacing the fuse: Only replace the fu se with the same typ e and rating.

Replacing the power cable: If the power cable of this device becom es damaged, it has to be r eplaced by aut hor-

ized dealers only

Should you have further questions , please contact your dealer.

Parts List

1160-RC4 4 Unit Road Case

1160-PS Power Supply

1160-MPCB Main PCB

1160-LED Osram LED 60W RGBW

1160-LEDMOD LED on PCB

1160-FAN Fan

1160-DMX5 5pin DMX Panel Mount Connector

1160-DMX3 3pin DMX Panel Mount Connector

1160-PSEN Pan Motor Sensor

1160-TSEN Tilt Motor Sensor

1160-MOT Motor

1160-LEN Lens

1160-QR Quick Release Clamp Mount

11

Warranty Information

Warranty Conditions

-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.

-LEDs are not guaranteed to match in color temperature or output.

-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.

If purchase date cannot be provided, date of manufacture will be used to determine warranty period.

-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of

the original invoice.

-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical

means of shipment.

-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS

INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, incidental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort (including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.

- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This

warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

18668 Hwy 16 N., Helotes, TX 78023

Ph 210-684-2600 Fax 210-855-6279

www.mega-lite.com / [email protected]

Mega-Lite
