Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 90º.
Protection Against Fire
1. Disconnect power before lamp replacement or servicing.
2. For connection to main power supply proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit risk of electrical shock.
Protection Against UV Radiation
1. Do not look directly at the lamp when cover are off and lamp is on.
2. Do not start unit with out lamp covers or if the protection screens, or ultraviolet filters.
3
Specifications
Part Numbers
Fixture Lamp Flight Case
1030 - AXIS 250 LNSK250/2 9051-Dual Flight Case
Mechanical Specifications
Pan: 530° Tilt: 280°
DMX Connectors: 3-pin XLR connectors
Reflector: Glass reflector with cold mirror coating
Thermal: Maximum ambient temperature 40° C
Maximum surface temperature 80° C
Fastening System: 2 clamp placement attachments
Fixture Packaged for Shipping
Size: 16.75”L x 16”W x 20.5”H
Weight: 52 lbs
Size: 20”L x 19.25”W x 22.25”H
Weight: 61.60 lbs
16 ” ( with handles )
Electrical Specifications
Lamp: NSK/2 MSD250/2 (optional)
Light output: 12,000 ANSI lumen 12,000 ANSI lumen
Lamp life: 3,000 hours 3,000 hours
Color temperature: 8,000 K 6,200 K
Power consumption: 120V 50/60 Hz
Base: GY-9.5
Ballast: Magnetic
16.75 ”
8”
3”
15.25
17.5 ”
5.25
16 ”
Electromechanical Effects
Focus: Motorized focus
Prism: 3-Facet prism rotating in both directions at different speeds
Dimmer / Shutter: Full range dimming and variable strobe effect
4
Color
Gobo
1: Open
2: Red
3: Yellow
4: Purple
5: Light Green
6: Orange
7: Blue
8: Magenta
9: Dark Blue
10: Light Blue
1: Open
2: Magenta Swirl
3: Daisy
4: Swivel
5: Stars
6: Diffusion
7: Circular Stars
Dichroic Glass Gobo: Diameter 27 mm Image 24 mm Thickness 4 mm max
DMX Channels
Channel Function Channel Function Channel Function
1 Pan 7 Color Wheel 13 Prism Rotation
2 Tilt 8 Gobo Wheel 14 Focus
3 Pan Fine 9 Gobo Rotation
4 Tilt Fine 10 Shutter
5 Pan/Tilt Speed 11 Dimmer
6 Control 12 Prism
5
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
110V 50/60hz Connection
The occupation of the connection-cable is as follows:
Cable (USA) Cable (EU) Pin International
Brown Brown
Blue
Yellow / Green
Yellow/Green
Blue
Live
Neutral
Pin
L
N

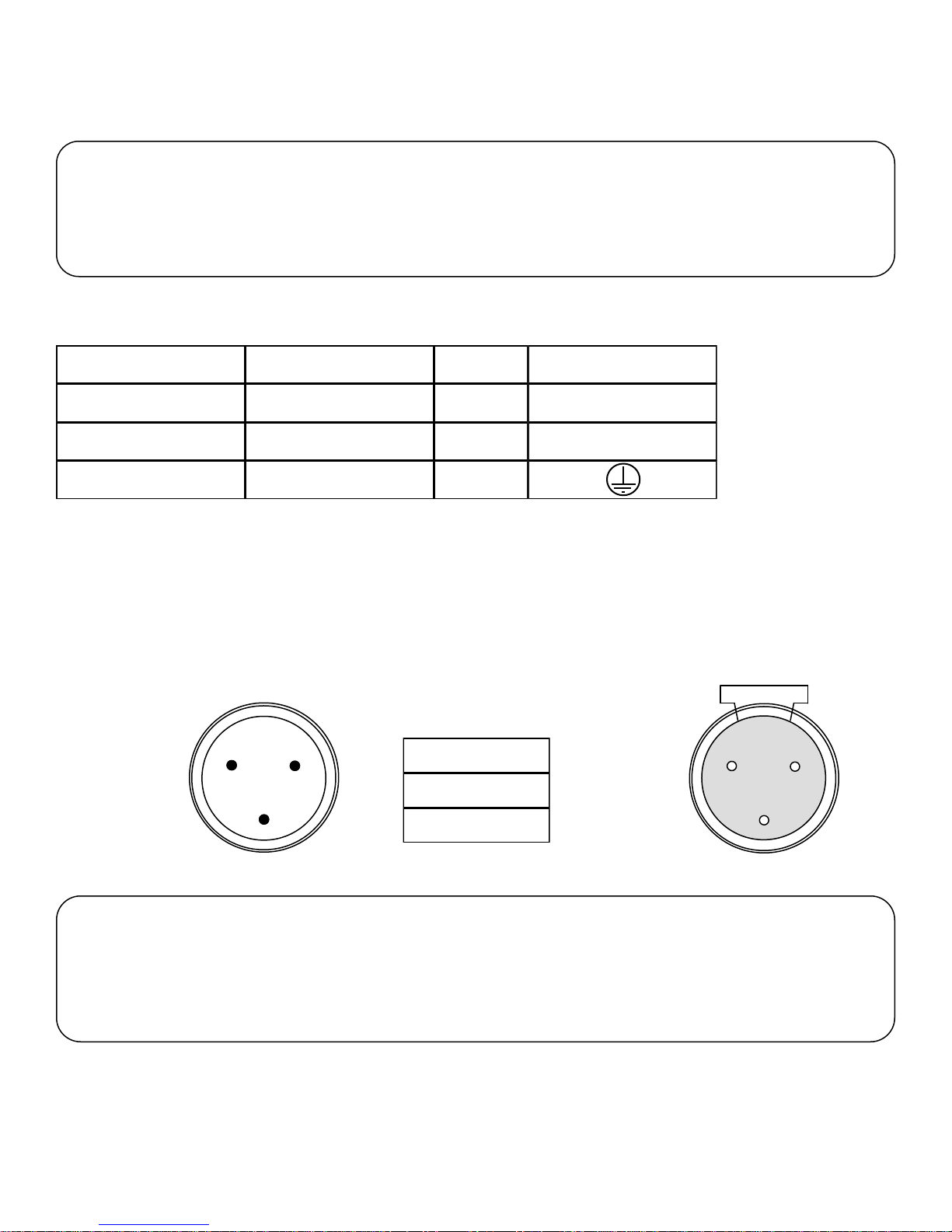

DMX-512 Connection
The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded
twisted pair cable designed for RS-485 and 3 pin XLR plugs and connectors in order to connect the controller with the fixture or
the fixture with another.
DMX—input
2
1
1. Shield
2. Signal (-)
3
3. Signal (+)
DMX—output
2
1
3
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120
Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the
last fixture on the signal run. Pre-manufactured terminator plugs are available for
purchase from your Mega-Lite dealer (HOS-DMXT).
6
Lamp Replacement
Caution!
1. Disconnect power before you begging.
2. Allow 15min for the unit and lamp to cool.
3. Do not touch lamps glass envelope with your fingers. If this happens clean with alcohol / to remove oils.
Lamp Placement
To insert the lamp MSD 250/2, HSD250. Use a Phillips screwdriver to unscrew the bolts that hold the plastic Bessel in place
there will be 3 screws. Unscrew the knurled-head screws of the
lamp holder and remove it. Carefully insert the lamp into the lamp
holder. Make a note that there is a large and small pole insert the
new lamp into corresponding socket.
Do not install a higher wattage lamp this will void your warranty.
Please note the light bulb manufactures warnings. Do not touch
the bulb with bare hands. Close lamp cover. Adjust the lamp as
described under lamp adjustment make sure lamp is not touching
any of the metal housing.
Warning: Disconnect the fixture from AC power
Lamp is hot! Risk of fire! Protect hands and eyes.
Wait at least 15min before opening the covers
Maximum room temperature t=45°C
Minimum distance from flammable material d=0.5m
Exterior surface temperature T=80°C
Adjust lamp position by turning screws and
Before re-lamping.
and removing lamp from fixture.
Not for domestic use.
A
Be sure that the lamp
never touches the lens
A
B
B
Lamp Adjustment
Due to the difference between lamps. Fine adjustment may improve light performance. You will need to strike the lamp and set
the light so the optical path is clear. You will need to turn the screws A&B one after another a slight turn clockwise and counter
clockwise until you set the hot spot of the light in the center of the image. If no hot spot can be seen then set the lamp till the
light is evenly distributed.
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience including but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to
be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least
one time a year by a skilled person.
7
Axis 250 DMX Profile
DMX Channel Function Description Value
1 Pan Pan 0-255
2 Tilt Tilt 0-255
3 Pan Fine Pan Fine 0-255
4 Tilt Fine Tilt Fine 0-255
5 Speed
Blackout During Movement 250-252
6 Reset Reset 200-209
7 Color
Backwards Color Scroll (fast to slow) 192-255
8 Gobo Wheel
Backwards Gobo Wheel Spin 193-255
9 Gobo Rotation
10 Shutter
11 Dimmer
12 Prism
13 Prism Rotation
14 Focus
Pan/Tilt Speed (From fast to slow)
Max Speed 1-249
Open 0-13
Red 13-25
Yellow 26-38
Purple 39-51
Light Green 52-64
Orange 65-77
Blue 78-90
Magenta 91-103
Dark Blue 104-116
Light Blue 117-127
Forward Color Scroll (slow to fast) 128-191
Open 0-17
Magenta Swirl 18-35
Daisy 36-53
Swivel 54-71
Stars 72-89
Diffusion 90-107
Circular Stars 108-125
Forward Gobo Wheel Spin 127-191
Stop 192
No Function 0-15
Clockwise Rotation (slow to fast) 16-135
Counterclockwise Rotation (slow to
fast) 136-255
Open 0-13
Strobe (slow to fast) 14-214
Random (slow to fast) 215-249
Open 250-255
Close 0-5
Open 6-59
Dimmer 0% to 100% 60-255
No Function 0-127
Prism 128-255
No Function 0-15
Clockwise Rotation (slow to fast) 16-135
Counterclockwise Rotation (slow to
fast) 136-255
Focus 0-255
0
8
Main Control Menu
The control board on the fixture base is your interface to access and control
all the functions on the unit. Its digital display gives you a code view of the
options and functions. The following will explain each function and its options.
MODE
DMX
ENTER
DOWN
UP
MODE
ENTER
UP
DOWN
DMX Address
0-512
Color Control
Reverse Pan Reverse Tilt
Demo Mode Reset
DMX Address
Use the up/down keys to select the required DMX start channel. Press Enter to confirm or Mode to exit and return to main
menu. The display will flash if there is no DMX signal been received from the console.
Color Control
This function allows you to chose from Bi-Color placement or Fixed Color placement. Use the up/down keys to select, Y to select
bi-color mode or N to select fixed color mode . Press Enter to confirm or Mode exit and return to the main menu.
Reverse Pan
This function allows you to invert the Pan direction. Use the up/down keys to select, Y to invert pan and N not to invert the pan.
Press Enter to confirm or Mode exit and return to the main menu.
Reverse Tilt
This function allows you to invert the Tilt direction. Use the up/down keys to select, Y to invert tilt and N not to invert the tilt.
Press Enter to confirm or Mode exit and return to the main menu.
Demo Mode
This option allows you to turn on the demo mode. Use the up/down keys to select, Y to turn on demo mode and N not to turn off
the demo mode. Press Enter to confirm or Mode exit and return to the mail menu.
Reset
This option allows you to reset the fixture and re-home all the motor setting. Use the up/down keys to select, Y to Reset and N
not to reset the fixture. (note: after you reset the fixture you must also set it to N to stop resetting or it will continue to reset)
Press Enter to confirm or Mode exit and return to the main menu.
9
Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electron-
ics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles, eyes and other must not show any traces of wearing and must not rotate with unbalances.
4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further
instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems
have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!
1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require more periodic cleaning as fog fluid tends to build up residues, reducing the light output.
2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can damage the
fans operation.
3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.
4) The interior of the fixture should be cleaned using a vacuum.
5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid oil run
outs when motor wheel rotates
Note: There is no serviceable parts inside the device except for the lamp and the fuse. Maintenance and service operations are
to be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized dealers only
In order to avoid hazards.
Should you have further questions , please contact your dealer.
Parts List
9051 Dual Axis 250or 300 Case
1030-MPCB Main PCB Card
1030-DC-G Driver Card-gobo
1030-DC-P Driver Card-prism
1030-dis Display Card
1010FAN Fan 3X3
1010FAN-S Lamp Fan 1.5X1.5
1030-IG Igniter
1030-PRISM Prism
1030-QRM Quick Release Mount Set
1030-RF Reflector
LMSD250 Phillips MSD250/2
LNSK250 JENDO NSK250/2
1030-TRA Transformer
P-1010IRF IR Filter
1030-PLLS Full Lens Set
1030-ARMB Arm Body Set
1030-DISB Display Body Set
1030-HEADB Head Body Set
1010-CBB65R Capacitor CBB65R
1030-MC Motor Color
1030-MG Motor Gobo
10
