Meet BT002 User Manual

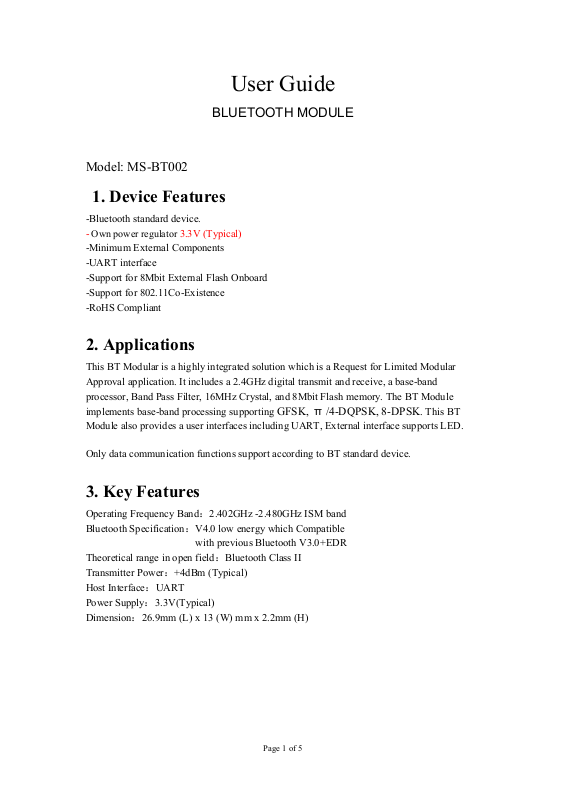

User Guide

BLUETOOTH MODULE

Model: MS-BT002

1. Device Features

-Bluetooth standard device.

- Own power regulator 3.3V (Typical)

-Minimum External Components

-UART interface

-Support for 8Mbit External Flash Onboard

-Support for 802.11Co-Existence

-RoHS Compliant

2. Applications

This BT Modular is a highly integrated solution which is a Request for Limited Modular

Approval application. It includes a 2.4GHz digital transmit and receive, a base-band

processor, Band Pass Filter, 16MHz Crystal, and 8Mbit Flash memory. The BT Module
implements base-band processing supporting GFSK, π /4-DQPSK, 8-DPSK. This BT
Module also provides a user interfaces including UART, External interface supports LED.

Only data communication functions support according to BT standard device.

3. Key Features

Operating Frequency Band：2.402GHz -2.480GHz ISM band
Bluetooth Specification：V4.0 low energy which Compatible

with previous Bluetooth V3.0+EDR
Theoretical range in open field：Bluetooth Class II
Transmitter Power：+4dBm (Typical)
Host Interface：UART
Power Supply：3.3V(Typical)
Dimension：26.9mm (L) x 13 (W) mm x 2.2mm (H)

Page 1 of 5

4. Electrical Characteristic

Absolute Maximum Ratings

Recommend operation conditions

5. Mechanical Dimensions

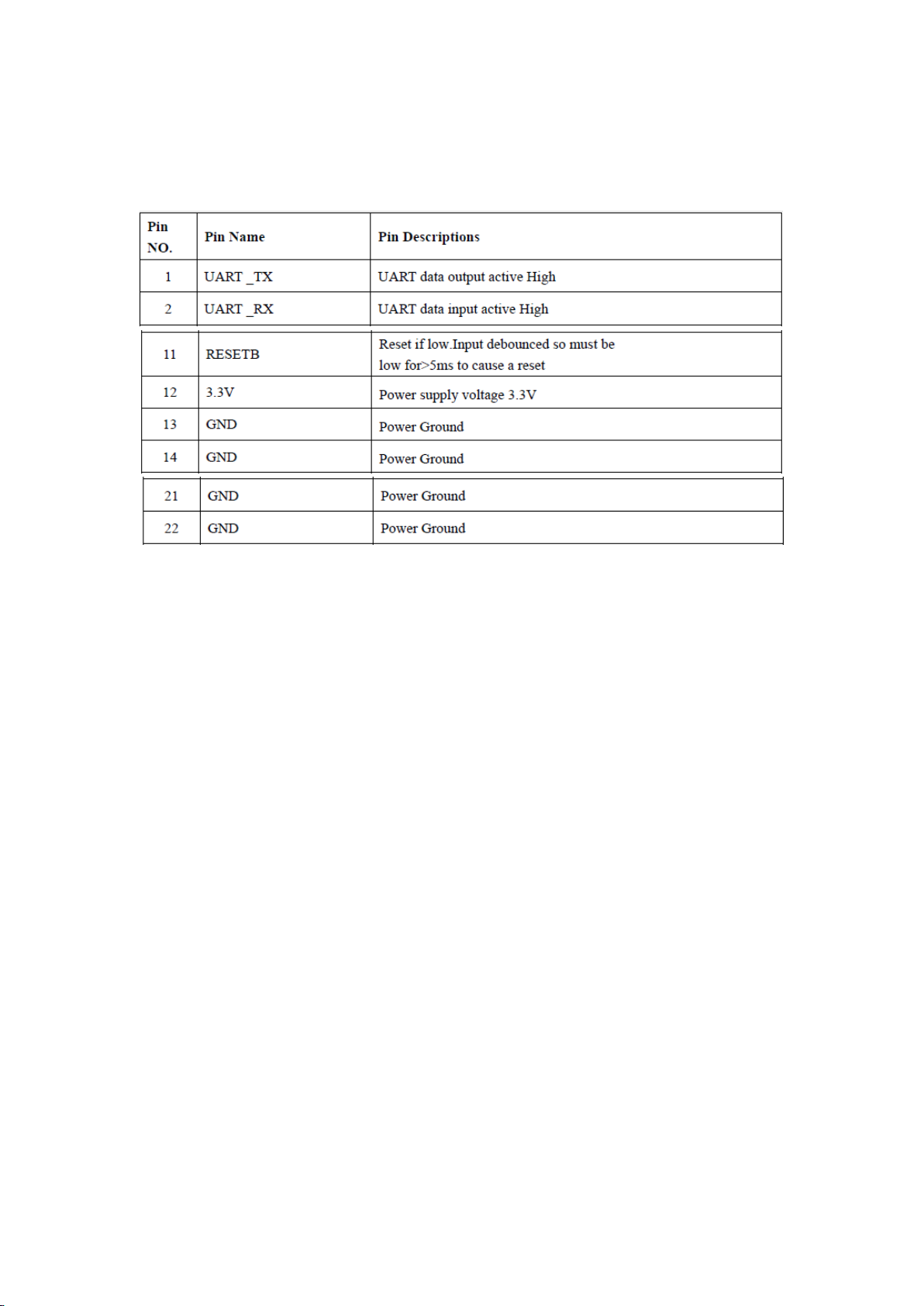

Page 2 of 5
