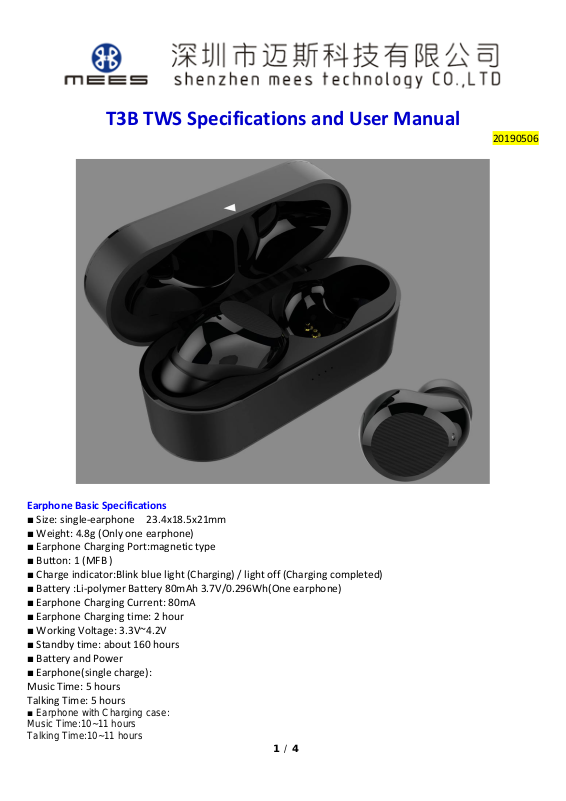

T3B TWS Specifications and User Manual
20190506
Earphone Basic Specifications
■ Size: single-earphone 23.4x18.5x21mm
■ Weight: 4.8g (Only one earphone)
■ Earphone Charging Port:magnetic type
■ Button: 1 (MFB )
■ Charge indicator:Blink blue light (Charging) / light off (Charging completed)
■ Battery :Li-polymer Battery 80mAh 3.7V/0.296Wh(One earphone)
■ Earphone Charging Current: 80mA
■ Earphone Charging time: 2 hour
■ Working Voltage: 3.3V~4.2V
■ Standby time: about 160 hours
■ Battery and Power
■ Earphone(single charge):
Music Time: 5 hours
Talking Time: 5 hours
■ Earphone with Charging case:
Music Time:10~11 hours
Talking Time:10~11 hours
Page 2
2 / 4
※ Working time of main earphone in the state of two earphones:＜5 Hours
■ Bluetooth version: Bluetooth 5.0
■ Bluetooth chip: BES200S
■ Support Profile: HSP, HFP, A2DP, AVRCP
■ The remote control to speaker: MFB (Play/Pause/Stop, Volume+/Volume-, Next song, Previous song)
■ Paring name: T3B
■ Pass: 0000
■ RF transmit: class 2
■ RF input impedance: 50ohm
■RF Emissive Power: 9 dBm
■ Receive sensitivity: -89dBm
■ Transmission Range (Hz): 2.40GHz ~ 2.48GHz
■ Transmission distance: 10m
■ TWS function: after two earphones pair and connect, they can work as true wireless stereo earphone
■ Audio sampling accuracy: 16bits
■ Audio sampling rate: Up to 96 kHz
■ Audio encoding format: CVSD、mSBC、SBC、ACC
■ SNR: >95dB
■ Working temperature: -15℃～+60℃
■ Working humidity: 10%~85%( in a non-frozen state)
■ waterproof level ：IPX6
Speaker
■ Speaker specifications / mode: Φ9mm
■ Impedance: 16Ω/ typ
■ Frequency(Hz): 20Hz～20KHz
■ Sensitivity: 93±3dB
■ Input Power: 3 mW ( normal), 5mW ( maximum)
MIC
■ MIC type: silicon MIC
■ MIC sensitivity: -42±3dB
■ SPL：130dB
Basic Specifications of Charging box
■ Size:64.2x26x28.3mm
■ Weight:29g
■ Charging Port: Micro USB
■ Charging LED indicator/charging completed indicator: Blink blue/Steady blue light.
■ Battery:Li-polymer Battery 400mAh 3.7V/1.48Wh
■ Input Voltage :DC5V
■ Charging current:300mA
■ Output Voltage:DC5V
■ Discharge current:80mA
Page 3
3 / 4
■ Working temperature: -15℃～+60℃
■ Working humidity: 10%~85%( in a non-frozen state)
Operating Instructions
Bluetooth pairing
1. Take out both earphones from the charging case,they interconnected within 10 seconds,you can hear a
“click” if wearing; with “Pairing” prompt tone, afterward to enter pairing mode;
2. Activate Bluetooth connection on your device and select T3B, with “Connected” after successfully
connected;
Music and calls
Left earphone (L)
Right earphone (R)
Play/Pause
X1
X1
Previous Song
X2
Next Song
X2 Volume +
Touch and hold
Volume -
Touch and hold
Answer/End a call
X1 X1
Reject call
Touch and hold for 3 seconds
Voice assistant
X3
*All the above function are for touch operations.
*Right earphone is master.
For MONO:
Right earphone as mono:
Charging
Charging the earphones
Place the earphones in the charging case,they will automatically shut down and start charging,indicated by a
flashing blue light.Light turn off when it is completely charged.
Earphone status lights
*Your earphones let you know your battery level is low.Every 20 seconds you will hear “Battery Low”when
there is 5 minutes of battery level.
Charging the case
Connect an adapter with 5V output voltage (compatible) with a Micro USB cable.
Charging
Flashing blue light
Full charge
Light off
Pairing
Blink blue light
Page 4
4 / 4
Case status lights
Notes:
It will turn off automatically after 5 minutes if without any connection with mobile phone when it turns on.
Pairing time: 3 minutes. It will quit the pairing mode automatically after 3 minutes if without any connection
with mobile phone when it is in the state of pairing.
In addition, display battery state on Apple devices.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Charging
Flashing blue light
Full charge
Steady blue light
