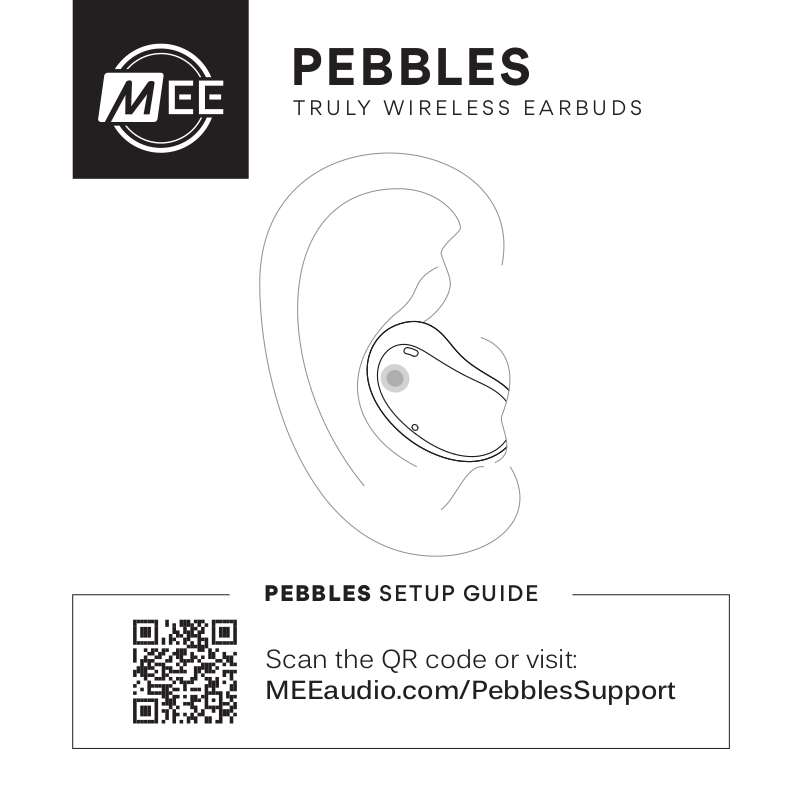

Page 1
PEBBLES
TRULY WIRELESS EARBUDS
PEBBLES SETUP GUIDE
Scan the QR code or visit:
MEEaudio.com/PebblesSupport
Page 2
Product Overview
Touch
Control
Panel
Charging Pins
Earbud Indicator
Lights
Case Battery
Indicator Light
Charging Port
Page 3
Touch Controls
Press and hold 2s
Press and hold 5s
Tap 1x
Tap 2x
Tap 3x
Tap 4x
Press and hold 2s
Tap 6x
LEFT
Volume down
Power on
Power off
RIGHT
Volume up
Play / pause / answer phone call / hang up
Activate Siri
®
/ Google Assistant
™
Enable / disable low latency (gaming) mode
Previous track
Next track
Clear pairings and put into pairing mode
Page 4
Getting Started
1. Remove film and return
earpieces to case
2. Charge for 2 hours
3. Remove charging cable
and open lid to automatically
enter pairing mode
4. Open your device’s
Bluetooth menu and select
“MEE audio Pebbles”
12:26 PM
AT&T LTE
Settings
Bluetooth
Bluetooth
MEE audio Pebbles
95%
Page 5
Charging
Charge Earbuds
Place earbuds in the case
Earbud Indicator Lights
Flash 3 times Earbud charging
Charge Case
Close the lid and plug in
the charging cable
Case Battery Indicator Light (While Charging)
Slow recurring flash
Solid light
Case charging
Case charged
Page 6
Case Battery Indicator
1. Make sure charging cable is not plugged in
2. Open or close case lid to activate indicator light
Case Battery Indicator Light
Solid light for 5 seconds
Quick flash 3 times
No light
Case battery above 20%
Case battery below 20%
Case battery 0%
Page 7
Clear Pairings / Pair New Device
1. Take out both earpieces and put them in your ears
2. Tap either side 6 times
to clear pairings.
If successful, you
will hear two tones.
6x
3. Open your device’s
Bluetooth menu and select
“MEE audio Pebbles”
12:26 PM
AT&T LTE
Settings
Bluetooth
Bluetooth
MEE audio Pebbles
95%
Page 8
For Additional Support
VIEW OUR VIDEO SETUP GUIDE
Scan the QR code or enter the URL
below into your web browser:
MEEaudio.com/PebblesSupport
Page 9
QUESTIONS?
WE’RE HERE TO HELP!
Phone Support: 626-965-1008
Monday ~ Friday 9 am to 5 pm PST
Email Support: [email protected]
All emails are responded to within 2 business days
WARRANTY
This product is covered by a 1-year manufacturer
warranty.
For more information, visit MEEaudio.com/support.
MEE audio
and its logo are registered trademarks of S2E, Inc. All rights reserved.
®
The Bluetooth
word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by MEE audio is under license. Other trademarks and
trade names are those of their respective owners.
®
is a registered trademark of Apple Inc. Google Assistant is a trademark of Google Inc.
Siri
Page 10
WARNINGS
Using headphones at high volumes for extended periods of time will result in permanent hearing damage. It is
advised you keep volume levels moderate to low at all times for your safety. Turn the volume all the way down
after connecting your earphones, then gradually increase the volume until you reach a comfortable listening
level. Do not use headphones while driving a car, cycling, operating machinery, or performing other activities
that require hearing surrounding sounds.
Keep the device and packaging out of reach of children.
This device is designed and manufactured to operate within its defined design limits. Misuse may result in
electric shock or fire. Read and follow these instructions carefully.
•
If submersed in water, do not turn the device on until completely dried. Note: liquid submersion voids the
warranty.
•
Danger of explosion or fire if batteries are damaged. Keep away from direct sunlight, naked flames,
flammable gasses, or heat sources such as radiators or stoves
•
Battery performance will be severely decreased when stored in extreme temperatures: below -10°C/14°F or
above 45°C/113°F including direct sunlight
•
Do not use around flammable gasses as fire or explosion may occur.
•
There are no user replaceable/reparable parts in the device. Disassembling it will void your warranty.
Only use attachments/accessories specified by the manufacturer
Changes or modifications to this unit not expressly approved by MEE audio could void the user’s authority to
operate the equipment.
COMPLIANCE INFORMATION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC RULES
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Relocate the receiving antenna.
•
Increase the separation between equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
•
DISPOSAL AND RECYCLING
Dispose of this product in accordance with all local laws and regulations. Because this product contains
electronic components and a battery, it must be disposed of separately from household waste. Contact local
authorities to learn about disposal and recycling options.
