MEE AF-T1 User Manual
Universal Dual Headphone
Bluetooth® Wireless Audio Transmier
Model: AF-T1
USER
MANUAL
EN
PACKAGE CONTENTS
Bluetooth
Transmitter
3.5mm
audio cable
TOSLINK
digital optical
S/PDIF audio
cable
Micro-USB
charging
cable
3.5mm to
RCA adapter
1
B
Quick
start
guide
Universal Dual Headphone
Bluetooth® Wireless Audio Transmier
PRODUCT OVERVIEW
EN
2
1
2
3
6
7
8
9
1
2
3
4
5
Pairing button “B”
Indicator light “B”
Indicator light “A”
Pairing button “A”
On/Off switch
6
7
8
9
Analog audio input (3.5mm)
Digital audio input (TOSLINK
optical S/PDIF)
Power/charging indicator light
Micro-USB power/charging port
4 5
Universal Dual Headphone
Bluetooth® Wireless Audio Transmier
COMPATIBILITY
The
Connect
is compatible with any device that has one of the following
audio outputs:
1. 3.5mm (1/8”)
headphone
jack
2. RCA audio
jacks (red
and white
connectors)
3. TOSLINK
digital optical
(S/PDIF)
connector
The
Connect
can stream music to any Bluetooth audio receiver that
supports the A2DP Bluetooth profile, such as a Bluetooth headphone,
Bluetooth speaker, or dedicated A2DP receiver.
The
Connect
also supports aptX® and aptX Low Latency, more
efficient Bluetooth audio codecs capable of transmitting CD-quality
audio that also provide lower and much lower latency (smaller
delay), respectively, compared to regular Bluetooth audio (SBC).
Using the
Connect
with a headphone that supports aptX or aptX
Low Latency will provide the best possible audio quality and
minimize audio lag/latency.
The
Connect
will always default to the best codec that is also supported by
the headphones connected to it. If two headphones are connected, the best
codec supported by both will be used.
3
B
4
CHARGING
To charge the
Connect
, plug the included Micro-USB charging cable into
any powered USB port** and the charging port on the rear of the unit.
Charge time is approximately 90 minutes. The green charging indicator light
will pulse slowly while the
Connect
is charging.
Note: If you use the
Connect
while plugged in to USB power, it is not
necessary to charge the unit before using it, or to turn it off after each use.
When used while plugged in, the
Connect
will use USB power and the
internal battery will be charged. When unplugged from USB power, the
Connect
will use the internal battery. When battery is low, the green power
LED will blink once every second and a short alert tone will sound at 10
minute intervals.
**The USB outputs of some TVs do not provide a stable current.
It is recommended to use a computer or USB wall charger to charge the
Connect
.
To turn on, slide the on/off switch on the right side of the
Connect
unit to the
“On” position.
To turn off, slide the switch to the “off” position.
SETUP:

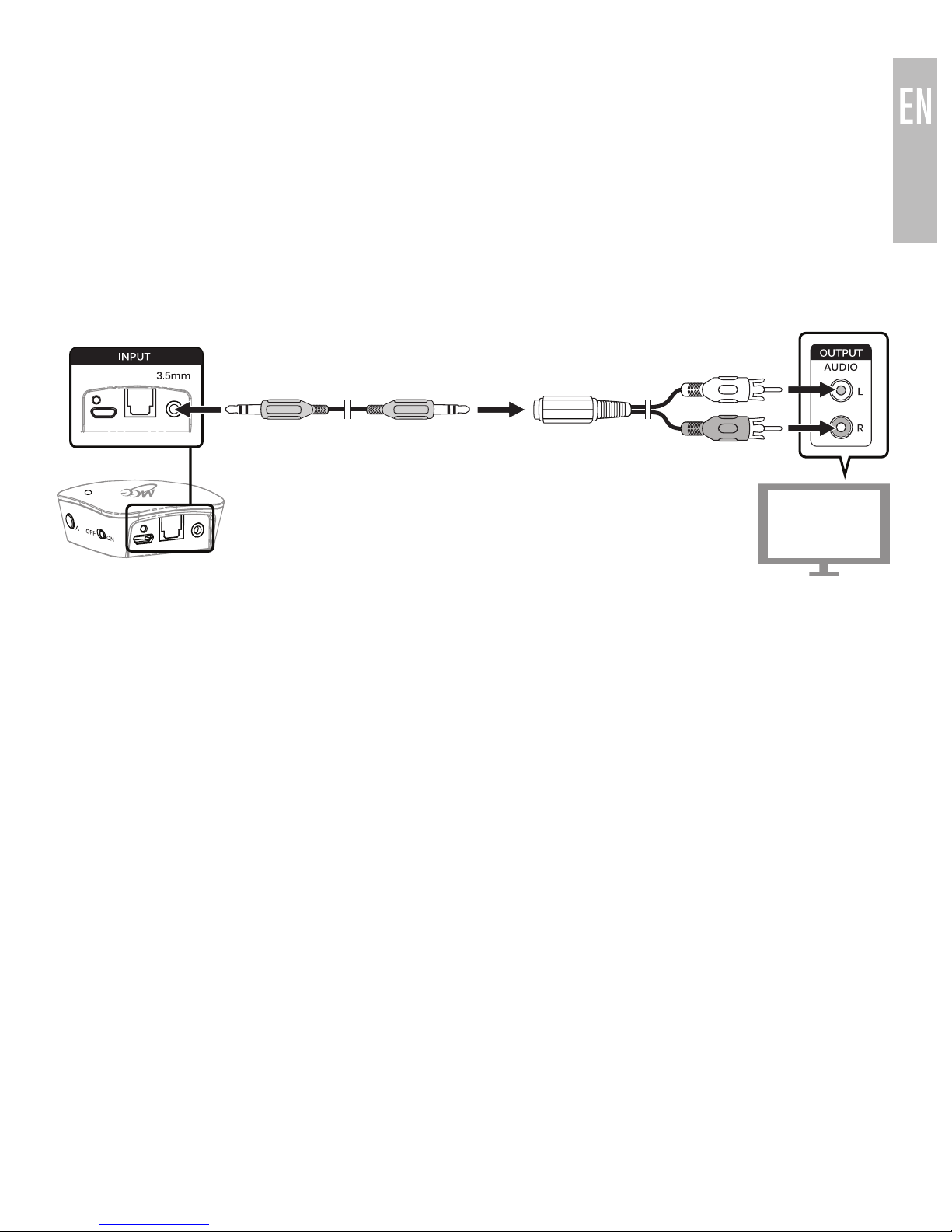

CONNECTING TO TV OR OTHER AUDIO DEVICE
The
Connect
includes three connection options. Consult the user manual
for your television or other device to find the appropriate connector to use for
audio output (Audio Out).
Option 1: Digital optical audio out (TOSLINK)
Newer TVs are usually outfitted with a TOSLINK
digital optical (SPDIF) connector.
A. Remove the protective
caps from the included
fiber optic TOSLINK cable
B. Plug the cable firmly into the optical audio output on the TV and the
optical input of the
Connect
.
The volume of optical output is typically fixed and TV speakers can be
controlled independently as necessary.
Note: If something is plugged into both the optical and 3.5mm input jacks of
the
Connect
, the analog (3.5mm) input will have priority and the optical input
will be muted. To use the optical input, unplug the 3.5mm connector from the
transmitter.
continue to next page
