Introduction

This manual is intended to help you use the Medtronic CareLink Monitor Model 2490C (“monitor”)

If you have any questions that are not answered by this manual, or if you have any problems with the monitor, talk to your doctor. Your doctor knows your medical history and can give you the help you need.

About your monitor

The Medtronic CareLink Monitor Model 2490C is designed to automatically gather information from your implanted heart device. This automatic wireless communication between your heart device and the monitor takes place at times scheduled by your doctor or clinic.

Sending heart device information to your clinic using wireless technology does not require you to interact with your monitor. The process is silent and invisible. Clinics typically schedule the automatic process to occur while you sleep.

The gathered heart device information is sent over a telephone line to your clinic using a toll-free number. For

this reason, the monitor must always be plugged into a telephone wall jack and a power outlet.

The monitor can also send wireless heart device alerts to your clinic automatically. The information sent to your clinic helps your doctor manage your care.

Your phone will be busy while the monitor is sending information. See “Sending information with your monitor” on page 19.

The monitor is intended specifically for your use only. It will not work with other implanted devices and should be used only by you as directed by your doctor.

Sending information at the request of your doctor or clinic

You will sometimes need to send information at times other than those scheduled by your doctor or clinic. These times are:

• when completing first-time setup, to allow automatic

wireless communication between your monitor and your heart device

• at the request of your doctor or clinic

See “Sending information with your monitor” on page 19.

10 About your monitor

Warnings

Wa r n i n g : If you are feeling ill and you think you might need to go to the hospital, seek medical attention immediately. If there is an emergency, call 911. If your doctor has provided other instructions, follow them. Do not use the monitor to send your heart device information to your doctor unless you have already contacted your doctor and your doctor has requested that you use the monitor.

Wa r n i n g : To ensure the safe operation of your implanted device, use the monitor only as described in this manual and at the times prescribed by your doctor.

Wa r n i n g : Do not use the monitor if the monitor does not operate as described in “Sending information with your monitor” on page 19. If you need further assistance, contact your clinic.

Wa r n i n g : No modification of this equipment is allowed. Wa r n i n g : Important safety instructions follow. When

using the monitor, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following precautions:

1. Do not use the monitor near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.

2. When completing first-time setup or sending information at the request of your doctor or clinic, avoid using the monitor during an electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak. Do not use the monitor to send information if you suspect a gas leak.

Save this manual.

Precautions

•

Use only the supplied power cord with this monitor.

• Always leave the monitor plugged into a working

power outlet and a telephone wall jack.

• Do not use a mobile phone while using the monitor.

• If possible, avoid using the telephone while using the

monitor. Your phone line will be “busy” while the monitor is sending data.

Note: In the case of an emergency, you can use your phone to call for help. If you have an emergency while

12 Precautions

using the monitor, press the Start/Stop button to stop the monitor and to ensure your phone line is available.

• Do not get your monitor wet. Liquids can damage the

monitor. If you get your monitor wet, contact your clinic for instructions.

Contents of the monitor package

You should receive the following:

• Medtronic CareLink Monitor Model 2490C

• power cord

• telephone cord

• carrying case

• patient manual

• patient instructional DVD

• instruction card

• warranty

• electromagnetic compatibility declaration

Choosing a place to set up your monitor

Choose a place to set up your monitor. Follow these recommendations for choosing the right spot:

• Place the monitor within ten feet (three meters) of

where you sleep, preferably on a night stand or a table.

• Place the monitor within reach of a telephone wall

jack.

• Place the monitor within reach of a power outlet.

• Do not place the monitor anywhere it can get wet.

Setting up your monitor

Before you use your monitor, you will need to:

1. Check the telephone line settings on the monitor.

2. Connect the monitor to a telephone wall jack.

3. Plug the monitor into a power outlet.

You may connect a telephone to the monitor to make and receive telephone calls, but this is not required for the monitor to work correctly. For more information see, “Connecting the monitor to a telephone wall jack and power outlet” on page 16.

Note: The monitor will not work with mobile phones.

Checking the telephone line settings

Before using the monitor, make sure that the telephone line settings are correct. There are two telephone line settings on the monitor, N-7-8-9 and T-P. See Figure 1.

14 Setting up your monitor

Figure 1: Telephone line settings N-7-8-9 –

This setting is used if the number 7, 8, or 9 needs to be dialed to reach an outside telephone line. N means no number needs to be dialed and is the most common setting for home use.

Select the setting that is appropriate for the telephone line you will be using. If you are staying in a hotel, you may have to set the switch to 7, 8, or 9 to get an outside line.

T-P – This setting is used to select a tone (T) or pulse (P)

telephone line. T is the most common setting.

Select the setting that is appropriate for the telephone line that you will be using. Telephone line settings may be selected when the monitor is plugged in.

If you have questions about the telephone line, contact your local telephone carrier or hotel front desk.

Connecting the monitor to a telephone wall jack and power outlet

Power outlet

Power cord

Telephone wall jack

Optional

Figure 2: Monitor connected to a telephone wall jack, a power outlet, and a telephone (connecting a telephone is optional).

To set up the monitor, you will need to:

1. Make sure that you have the monitor, the telephone

cord, and the power cord supplied with the monitor. You may use the telephone cord provided with the

16 Setting up your monitor

monitor or any telephone cord with standard connectors.

Note: If you have a digital subscriber line (DSL) phone service, you may need a DSL filter from your phone service provider placed between your telephone wall jack and the supplied telephone cord.

2. Locate the telephone plugs on the left side of the

monitor.

Figure 3: Telephone plugs

3. Plug one end of the telephone cord into either of the

telephone plugs on the side of the monitor. See Figure 3.

4. Plug the other end of the telephone cord into the

telephone wall jack.

Note: You may connect a telephone to the monitor to make and receive phone calls, but this is not required for the monitor to work correctly. The set up is similar to an answering machine.

5. Connect the power cord to the monitor. See Figure 4.

Caution: Use only the power cord supplied with the monitor to plug the monitor into the power outlet.

6. Plug the power cord into the power outlet.

Figure 4: Connecting the power cord

If this is the first time setting up the monitor, you will need to allow wireless communication between the monitor and your heart device. To do this, see “Sending information with your monitor” on page 19. The monitor is ready for use.

18 Setting up your monitor

Sending information with your monitor

Use this procedure at these times:

• when completing first-time setup, to allow automatic

wireless communication between your monitor and your heart device

• at the request of your doctor or clinic

Before using your monitor:

• Turn off any television sets within six feet (two

meters) of the monitor.

• Turn off any computer monitors or screens within six

feet (two meters) of the monitor.

• Make sure the monitor Power light is on.

Antenna

Start/Stop button

Power light

Display panel

Figure 5: Monitor (front view, approximately 1/4 actual

size)

Perform the following steps:

1. Press the Start/Stop button on the front of the

monitor to send your heart device information to your clinic. See Figure 5.

2. Place the antenna over your implanted device, holding

it snugly against your clothing. The hand strap on the antenna should face away from you. See Figure 6.

20 Sending information with your monitor

The Antenna Position Status light will be off if the antenna is correctly placed. Reposition the antenna over your heart device if the orange Antenna Position Status light starts flashing. See Figure 7.

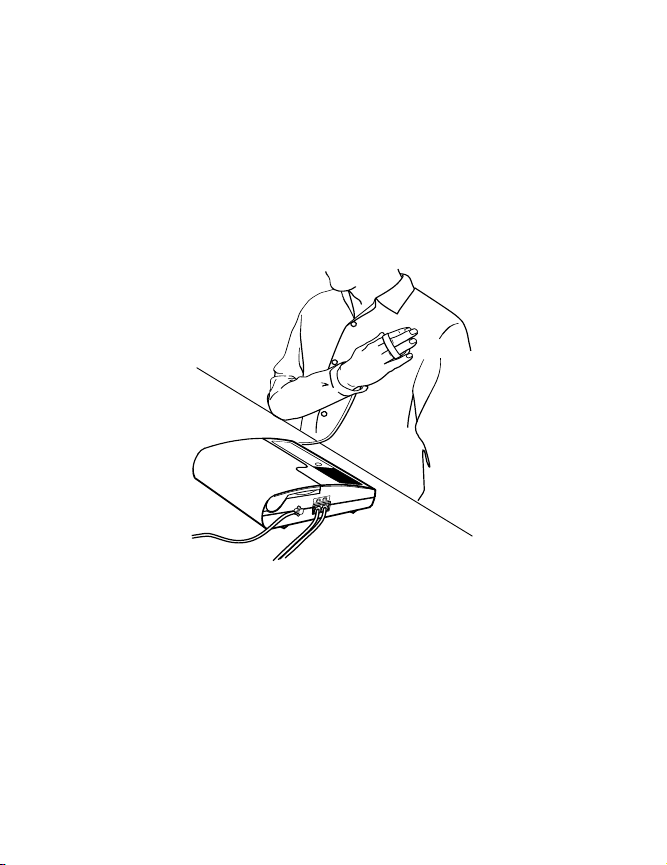

Figure 6: Positioning the antenna

3. Watch the status lights on the display panel on the

front of the monitor. See Figure 7. Each of these status lights has a different meaning

when you use the monitor to send your heart device information.
