Medtronic MDTCSG2V9B Installation Instructions
MAINSPRING® DATA EXPRESS
MDTCSG2
CareLink Integration Software Installation and Configuration Manual
Caution: Federal law (USA) restricts this de vice to sale b y or on
the order of a physician (or a properly licensed practitioner).
Trademarks in this manual
The following list includes trademarks or registered trademarks of Medtronic in the United States and possibly in
other countries. All other trademarks are the property of their respective owners.
Medtronic, Paceart Optima, CareLink, Mainspring, Medtronic CareLink
Contents
Mainspring Data Express............................................................................................................4
Installation Prerequisites.............................................................................................................7
Installing Mainspring Data Express........................................................................................10
CareLink Integration ..................................................................................................................13
Automatically Starting the Connected Systems Gateway After Restart......................24
Log File Configuration................................................................................................................25
Uninstalling Mainspring Data Express...................................................................................26
CareLink Integration Software Installation and Configuration Manual | Contents | 3
Explanation of symbols.............................................................................................................4
Indications................................................................................................................................5
Precautions...............................................................................................................................5
Contraindications......................................................................................................................5
Mainspring Data Express Authorized Users.............................................................................5
Technical Support.....................................................................................................................6
Installing and Configuring MS Message Queuing for Windows 7.............................................7
Installing and Configuring MS Message Queuing for Windows 8.1..........................................7
Installing and Configuring MS Message Queuing for Windows 10...........................................8
Installing and Configuring MS Message Queueing for Windows Server 2012, Windows
Server 2012 R2, and Windows Server 2016.......................................................................8
Installing the Java Runtime Environment..................................................................................8
Installing .Net 4.7.2 Framework................................................................................................9
Stopping the Connected Systems Gateway Service................................................................9
CareLink Report Expor t..........................................................................................................13
Configuring CareLink Report Expor t...........................................................................13
Enabling and Verifying Mainspring Report Export.......................................................17
Troubleshooting Report Export....................................................................................17
CareLink EHR Integration.......................................................................................................17
Configuring EHR Integration........................................................................................18
Installing and configuring Mirth Connect.....................................................................22
Troubleshooting EHR Integration.................................................................................23
4 | CareLink Integration Software Installation and Configuration Manual | Mainspring Data Express
Mainspring Data Express
Mainspring – because like the inner workings of a clock – it is the power source that f acilitates the mov ement
of cardiac data within your clinic, and between various departments within your organization.
Mainspring Data Express is a comprehensive solution for your cardiac patients , bringing together device and
patient data from the Medtronic CareLink Network, the Paceart Optima System, the CareLink Programmer,
your EHR System, and local network.
In order to simplify the process of connecting and sharing demographic, scheduling, and device data between
Medtronic applications and electronic health record systems (EHRs), Medtronic has developed Mainspring
Data Express.This software application serves as the primary tool to move and share data for device patients .
Mainspring Data Express helps to streamline the implementation and on-going maintenance of data movement
between applications.

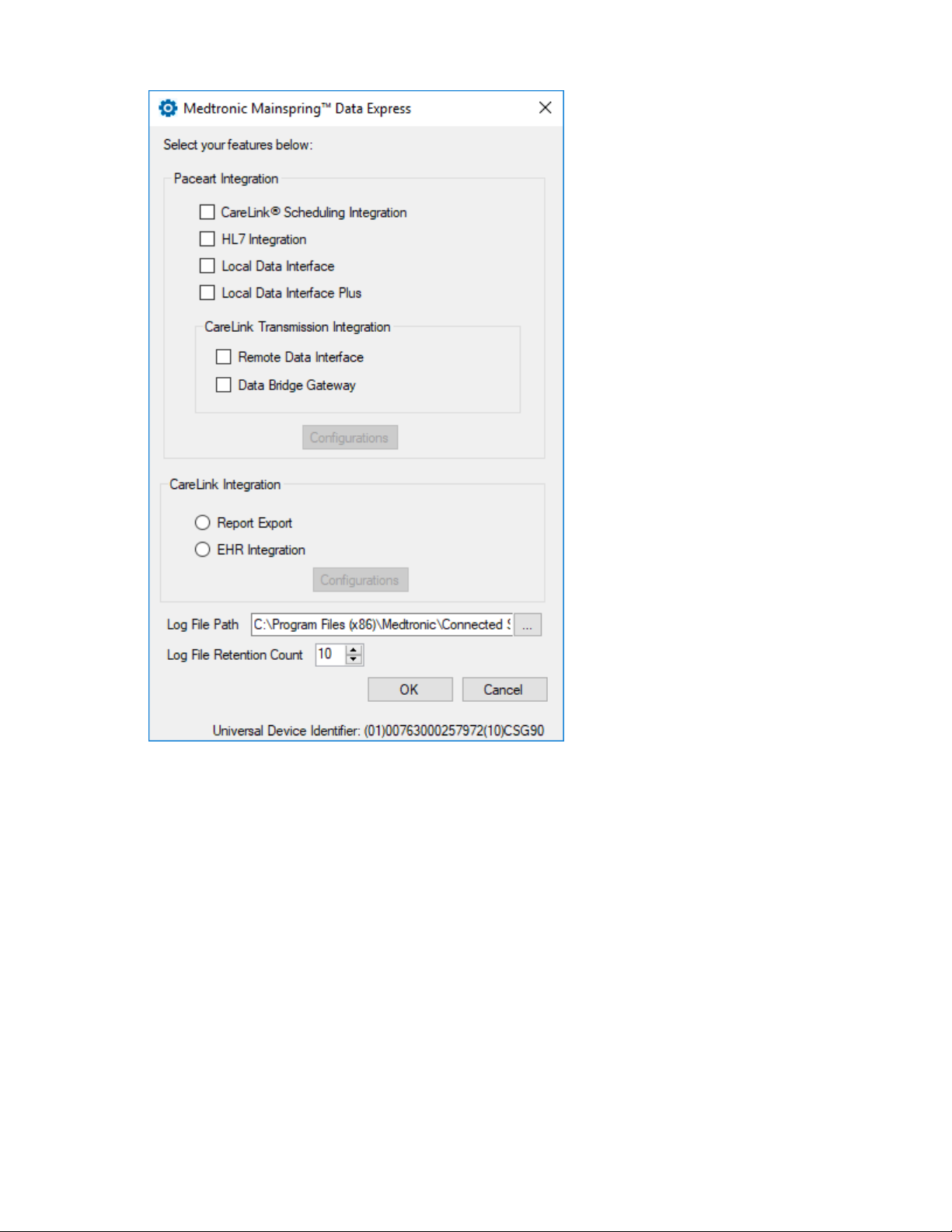

This manual explains the process f or installing the Mainspring Data Express software and configuring CareLink
Report Export and CareLink EHR Integration.
Mainspring Data Express is an optional component of the CareLink Network and the Paceart Optima System.
For more information on configuring the CareLink website refer to the CareLink online Help.
Explanation of symbols
Symbol definitionSymbol
Consult instructions for use
Authorized Representative in the European
Community
Manufacturer
Lot number
Re-order number
Date of Manufacture
Do not dispose of this product in the unsorted
municipal waste stream. Dispose of this product
according to local regulations. See
http://recycling.medtronic.com for instructions on
proper disposal of this product.
Storage temperature limit
Transit temperature limit
Humidity Limitation
CareLink Integration Software Installation and Configuration Manual | Mainspring Data Express | 5
Symbol definitionSymbol
Software
Indications
Mainspring Data Express is an optional component of the Medtronic CareLink Network and the Paceart
Optima System. Mainspring Data Express can be used to provide data integ ration between disparate systems,
using a defined mapping.
For more information on the Medtronic CareLink Network, refer to the CareLink Network Online Help.
For more information on the Paceart Optima System, refer to the Paceart Optima System Software User
Manual or the Paceart Optima System Online Help.
Precautions
Mainspring Data Express USBs must be stored within the following conditions:
Storage Environment
-20°C (-4°F) to +45°C (113°F)Temperature
20% to 90%Relative Humidity
Mainspring Data Express USBs must be operating in an environment within the following conditions:
Operating Environment
0°C (32°F) to +35°C (95°F)Temperature
20% to 90%Relative Humidity
Call customer service or your biomedical department for service and repairs.
Contraindications
No known contraindications.
Mainspring Data Express Authorized Users
Medtronic representatives provide the Mainspring Data Express orientation and training materials at the time
of the installation. Users should be familiar with the Mainspring Data Express documents before using
Mainspring Data Express.
6 | CareLink Integration Software Installation and Configuration Manual | Mainspring Data Express
Technical Support
In the US and Canada, call 1-800-929-4043 and select option 3. For all other countries contact your local
Medtronic representative.
CareLink Integration Software Installation and Configuration Manual | Installation Prerequisites | 7
Installation Prerequisites
First Time Installation
If you are installing the Mainspring Data Express software for the first time, and not an upgrade, you must
complete the following prerequisites before you can install the Mainspring Data Express software.
• Create an External Systems Account on the CareLink Network. For instructions on how to create an
External Systems Account, refer to the CareLink Network Online Help.
• Install .Net Framework version 4.7.2 (or newer).
• Install and configure MS Message Queuing.
• If you will be using the EHR Integration f eature, install the Jav a Runtime Environment version 1.8 or higher .
Upgrade Installation
If you are upgrading to a new version of Mainspring Data Express software you must first stop the existing
Connected Systems Gateway service.
You do not need to uninstall your e xisting Mainspring Data Express software.The new version of the software
will import any existing configurations. For example, if you have an existing Paceart System-CareLink
scheduling integration configuration, the settings will be sav ed and used in the new v ersion of the Mainspring
Data Express software.
Installing and Configuring MS Message Queuing for Windows 7
Membership in the local Administrators group, or equivalent, is the minimum required to complete this
procedure.
1. Open the Control Panel.
2. Select the appropriate action based on your system configuration.
• Click Programs, and then under Programs and Features, click Turn Windows features on or off.
• Click Classic View, double-click Programs and Features, and then in the tasks pane, click Turn
Windows features on or off.
3. Under the Microsoft Message Queue (MSMQ) Server option, check the Microsoft Message Queue
(MSMQ) Server Core option.This enables all of the MSMQ Server Core subfeatures.
4. Click OK.
5. If you are prompted to restart the computer, click OK to complete the installation.
Installing and Configuring MS Message Queuing for Windows 8.1
Membership in the local Administrators group, or equivalent, is the minimum required to complete this
procedure.
1. From the Charms bar, click Settings.
2. Click Control Panel.
8 | CareLink Integration Software Installation and Configuration Manual | Installation Prerequisites
3. Click Programs, and then under Programs and Features, click Turn Windows features on or off.
4. Under the Microsoft Message Queue (MSMQ) Server option, check the Microsoft Message Queue
(MSMQ) Server Core option.This enables all of the MSMQ Server Core subfeatures.
5. Click OK.
6. If you are prompted to restart the computer, click OK to complete the installation.
Installing and Configuring MS Message Queuing for Windows 10
Membership in the local Administrators group, or equivalent, is the minimum required to complete this
procedure.
1. Open the Control Panel.
2. Click Programs, and then under Programs and Features, click Turn Windows features on or off.
3. Under the Microsoft Message Queue (MSMQ) Server option, check the Microsoft Message Queue
(MSMQ) Server Core option.This enables all of the MSMQ Server Core subfeatures.
4. Click OK.
5. If you are prompted to restart the computer, click Restart now to complete the installation.
Installing and Configuring MS Message Queueing for Windows Server 2012, Windows Server 2012 R2, and Windows Server 2016
Membership in the local Administrators group, or equivalent, is the minimum required to complete this
procedure.
1. Launch Server Manager.
2. In the Server Manager, click Add Roles and Features to start the Add Roles and Features Wizard.
3. Click Next until the Features page opens.
4. Expand Message Queuing, expand Message Queuing Services, and then select the Message Queuing
Server option.
5. Click Next, and then click Install.
6. If you are prompted to restart the computer, click OK to complete the installation.
Installing the Java Runtime Environment
If you will be installing the EHR Integration feature, you will need to install the Java Runtime Environment
version 1.8 or higher.
You do not need to be connected to the internet to install the files.
1. Insert the Mainspring Data Express software USB into your disk drive.
2. Browse to Resources\Mirth on the USB and double-click on jre-8u172-windows-i586.exe.
The installation wizard starts.
3. Click Install.
A progress window is displayed.
4. Once the installation is complete, click Close.
CareLink Integration Software Installation and Configuration Manual | Installation Prerequisites | 9
Installing .Net 4.7.2 Framework
You must have .Net 4.7.2 Framework (or newer) installed before you install the Mainspring Data Express
software.
You do not need to be connected to the internet to install the files.
1. Insert the Mainspring Data Express software USB into your disk drive.
2. Browse to Resources\.Net Framework on the USB and double-click on
NDP472-KB4054530-x86-x64-AllOS-ENU.exe.
3. Read the Microsoft license agreement and select I have read and ACCEPT the terms of the License
Agreement.
4. Click Install.
The .Net Framework will install. A progress bar shows the installation progress.
5. Once the setup is complete click Exit.
Stopping the Connected Systems Gateway Service
Before you install a ne w version of the Medtronic Mainspring Data Express software you must stop the e xisting
Connected Systems Gateway service.
Membership in the local Administrators group, or equivalent, is the minimum required to complete this
procedure.
1. To stop the Connected Systems Gateway service go to Start > Control Panel > Administrative Tools
> Services.
2. Right-click on the Connected Systems Gateway service and select Stop.
